The
receiver is designed for one-transmitter-many-receivers system. You can use a 4
buttons transmitter to control 4 receivers, or use a 6 buttons transmitter to
control 6 receivers, or use a 8 buttons transmitter to control 8 receivers, or
use a 12 buttons transmitter to control 12 receivers.
Feature:
Application:
It can be used in industry automation, agriculture automation and home
automation, such as factory, house, farm, pasture, vehicle, ship, offshore operation,
aerial vehicle, field call, etc. It can remote control equipments on land,
water and air, such as remote control lights, sirens, locks, motors, fans,
winches, blinds, linear actuators, doors, windows, electric solenoid valves,
security alarm, business signs and various devices.
Wireless control, easy
to install.
Waterproof:

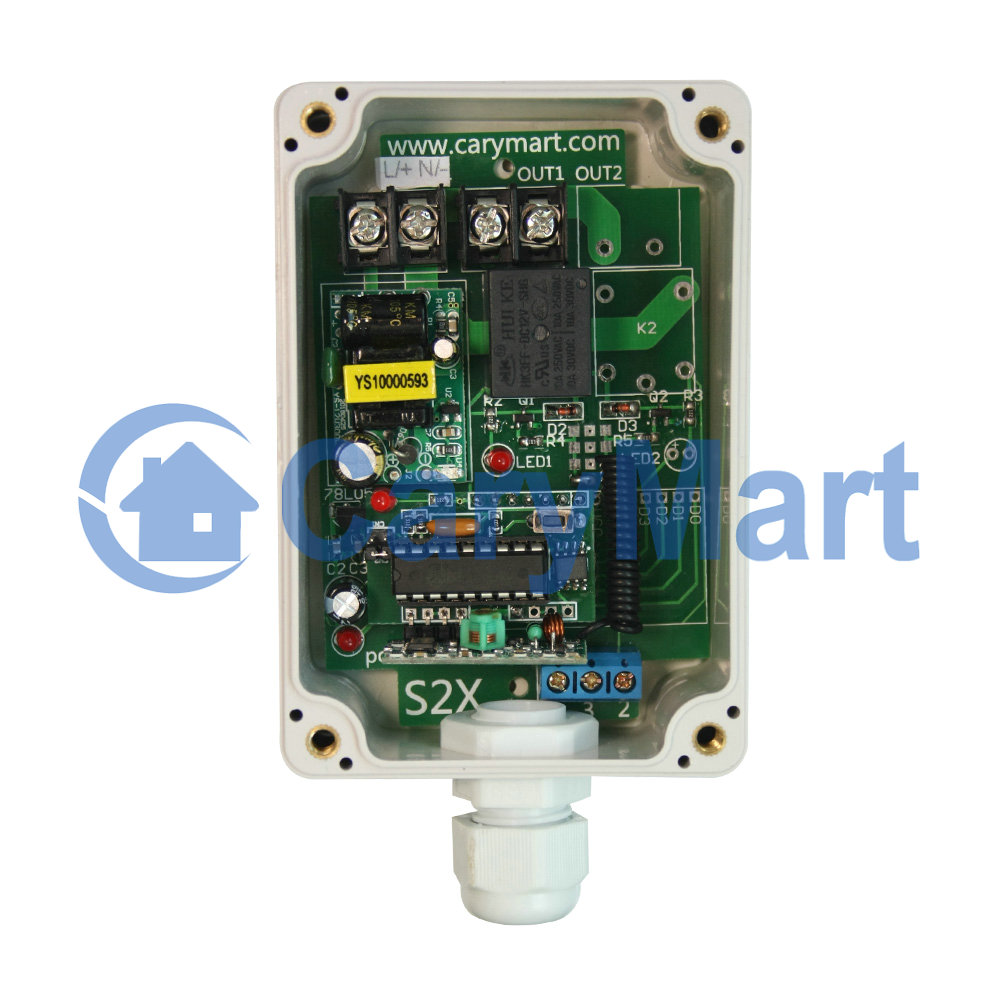

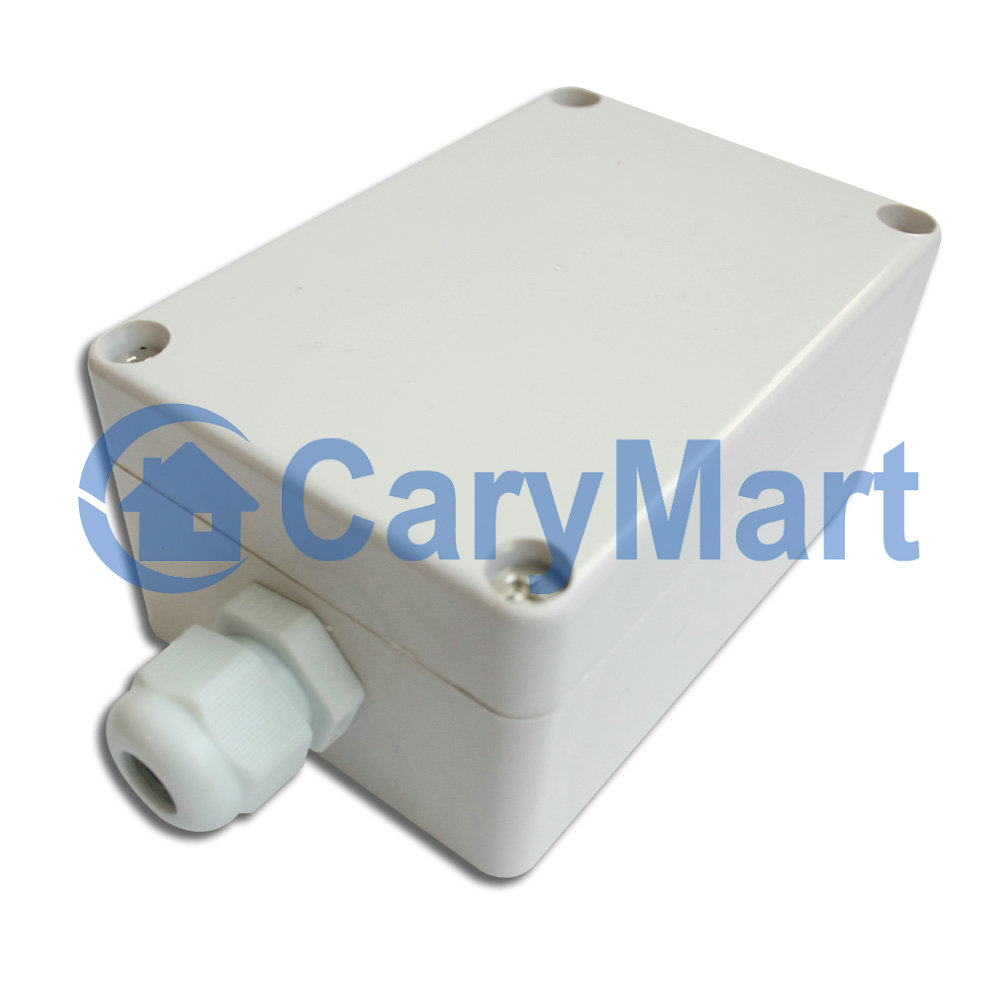

The receiver has waterproof case and waterproof connector, it can be installed
outdoors.
Universal input: Support voltage of AC110V (100V~120V), widely used in US,
Canada... and voltage of AC220V (200V~240V), used in UK, France...
AC Power
Output: It can control AC equipment with voltage 110V / 120V / 220V / 240V AC.
With wired control terminals:
You can connect sensors, limit switches,
manual switches or external devices to control the receiver.
You can
turn on/ off the receiver with transmitter (remote control) from any place
within a reliable distance.
Wireless RF
signal can pass through walls, floors, doors or windows.
With
reverse power protection and over current protection.
Reliable
control: The receiver only works with the transmitter which use same code.
One/several
transmitters can control one/several receivers simultaneously.
You can use
two or more units in the same place.

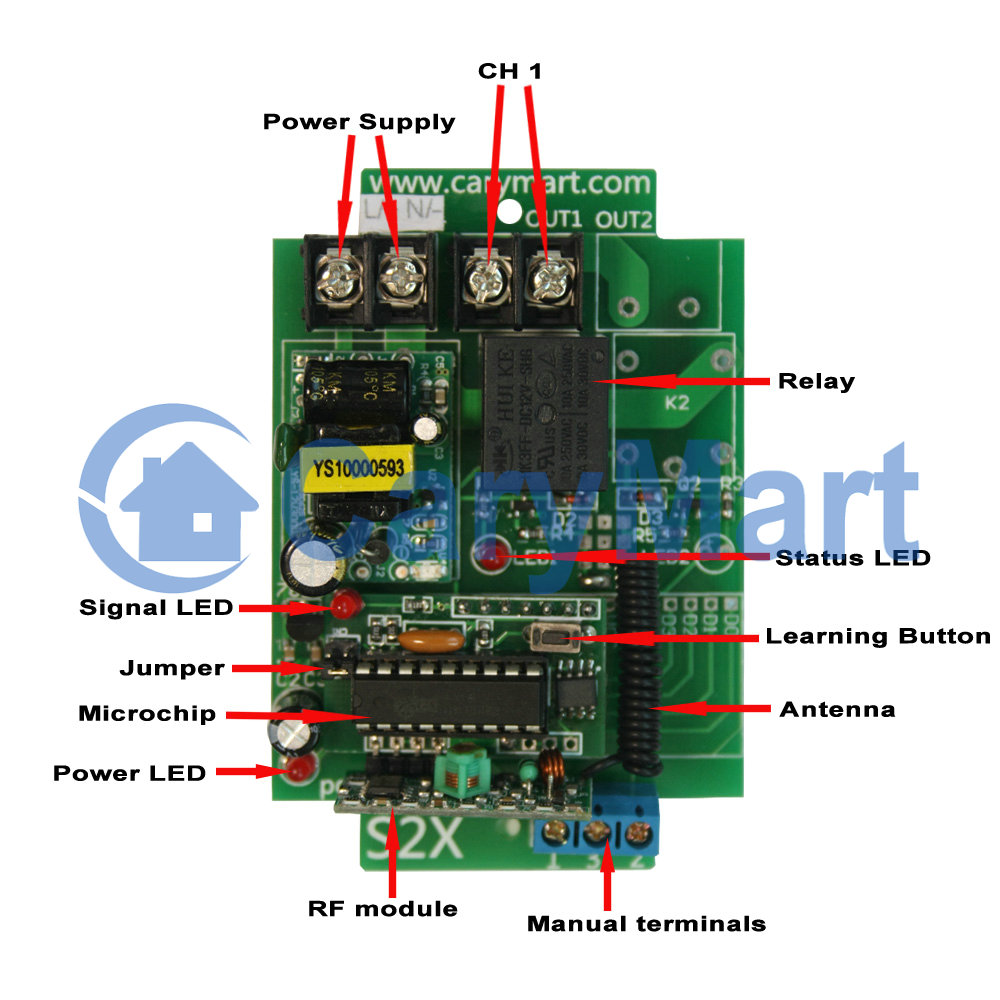

Receiver Parameters:
Model No.: S1XB-AC220
Power Supply
(Operating Voltage): AC100~240V (110V/120V/220V/240V)
Output: AC100~240V (110V/120V/220V/240V)
Working Frequency: 433MHz
Channel: 1 CH
Control Modes: Self-locking, Momentary, Interlocking
Static Current: ≤6mA
Maximum Working
Current: 10A / each channel
PCB size: 90mm x 59mm
x 18mm
Case size: 100mm x 68mm
x 50mm
Work with Fixed code transmitters
Matching Transmitters:
The
receiver can work with different transmitters, such as model CV-6 / CV-8 /
CV-12 (500M), or CB-6 / CB-8 / CB-12 (1000M) etc.
Working
Range:
With a transmitter (such as CV-12) to form a complete
set, the maximum working distance can reach 500M in an open ground.
The maximum working
distance is a theoretical data, it shall be operated in an open ground, no
barriers, no any interference. But in the practice, it will be hindered by
trees, walls or other constructions, and will be interfered by other wireless
signals. Therefore, the actual distance may not reach this
maximum working distance.
If you
want to have a further working range, you can install an external antenna to
the receiver, and you also can use a powerful
transmitter, such as CB series transmitters.
Usage (with
the transmitter CV-12):
The receiver can be used to control AC 110~240V equipments.
Wiring:
If you want to control an AC 220V lamp, do as following:
1) Connect the live wire of AC power supply to terminal “L / +” of INPUT,
and connect the neutral wire of AC power supply to terminal “N / -” of INPUT.
2) Connect one side of AC lamp to terminal "L / +" of OUTPUT, and connect another side of AC lamp to terminal
"N / -" of OUTPUT.
Setting different control modes:
Setting
different control modes: (We have set the receiver in Self-locking mode before
delivery, if you want to use other modes, do as following operation.)
Setting
control mode Self-locking: Only connect Jumper-2.
Control
mode Self-locking: Press -> On; Press again -> Off.
Press button
1 of the transmitter: Terminals “OUT1” of receiver 1 outputs AC power, the lamp
1 is on.
Press button
1 of the transmitter again: Terminals “OUT1” of receiver 1 stops outputting,
the lamp 1 is off.
…
Press button
12 of the transmitter: Terminals “OUT1” of receiver 12 outputs AC power, the
lamp 12 is on.
Press button
12 of the transmitter again: Terminals “OUT1” of receiver 12 stops outputting,
the lamp 12 is off.
Setting
control mode Momentary: Only connect Jumper-1.
Control
mode Momentary: Press and hold ->
On; Release -> Off.
Press and
hold button 1 of the transmitter: Terminals “OUT1” of receiver 1 outputs AC
power, the lamp 1 is on.
Release
button 1 of the transmitter: Terminals “OUT1” of receiver 1 stops outputting,
the lamp 1 is off.
…
Press and
hold button 12 of the transmitter: Terminals “OUT1” of receiver 12 outputs AC
power, the lamp 12 is on.
Release
button 12 of the transmitter: Terminals “OUT1” of receiver 12 stops outputting,
the lamp 12 is off.
Setting
control mode Interlocking: Do not connect Jumper-1 and Jumper-2.
Control
mode Interlocking: Press -> On, Press another button -> Off.
Press button
1 of the transmitter: Terminals “OUT1” of receiver 1 outputs AC power, the lamp
1 is on.
Press other
buttons of the transmitter: Terminals “OUT1” of receiver 1 stops outputting,
the lamp 1 is off.
…
Press button
12 of the transmitter: Terminals “OUT1” of receiver 12 outputs AC power, the
lamp 12 is on.
Press other
buttons of the transmitter: Terminals “OUT1” of receiver 12 stops outputting,
the lamp 12 is off.
Wired control terminals:
The
receiver has manual control terminals, you can connect external devices,
sensors, or manual switches to control the receiver.
1) Signal
input:
You can
connect external devices (with low level output signal) to manual terminals 1
(Signal +) and terminal 3 (Signal -), then the external device’s output signal
can control the receiver.
When the
external device outputs low level signal to manual terminal 1 and terminal 3, turns on the
relay. Terminals “OUT1” outputs AC power, the lamp is on.
When the external device stops to output signal, turns off the relay. Terminals “OUT1” stops
outputting, the lamp is off.
2) The manual switches:
You can
connect manual switches to manual terminals 1 and 3, then you can use
manual switches to control the receiver.
When connect terminals
1 and 3, the receiver turns on the relay. Terminals
“OUT1” outputs AC power, the lamp is on.
And when disconnect
terminals 1 and 3, the receiver turns off the
relay. Terminals “OUT1” stops outputting, the lamp is off.
