Long Range Remote Or Transmitter Triggered By DC Voltage Signal

Price: US $40.00

Model: 0021044 (CB-2V)

Please Choose:

Choose Battery For the transmitter:

Add DC9V/1A Power Adapter For Transmitter:

Qty:

Manual

Product Description:
Model No.: 0021044 (CB-2V)

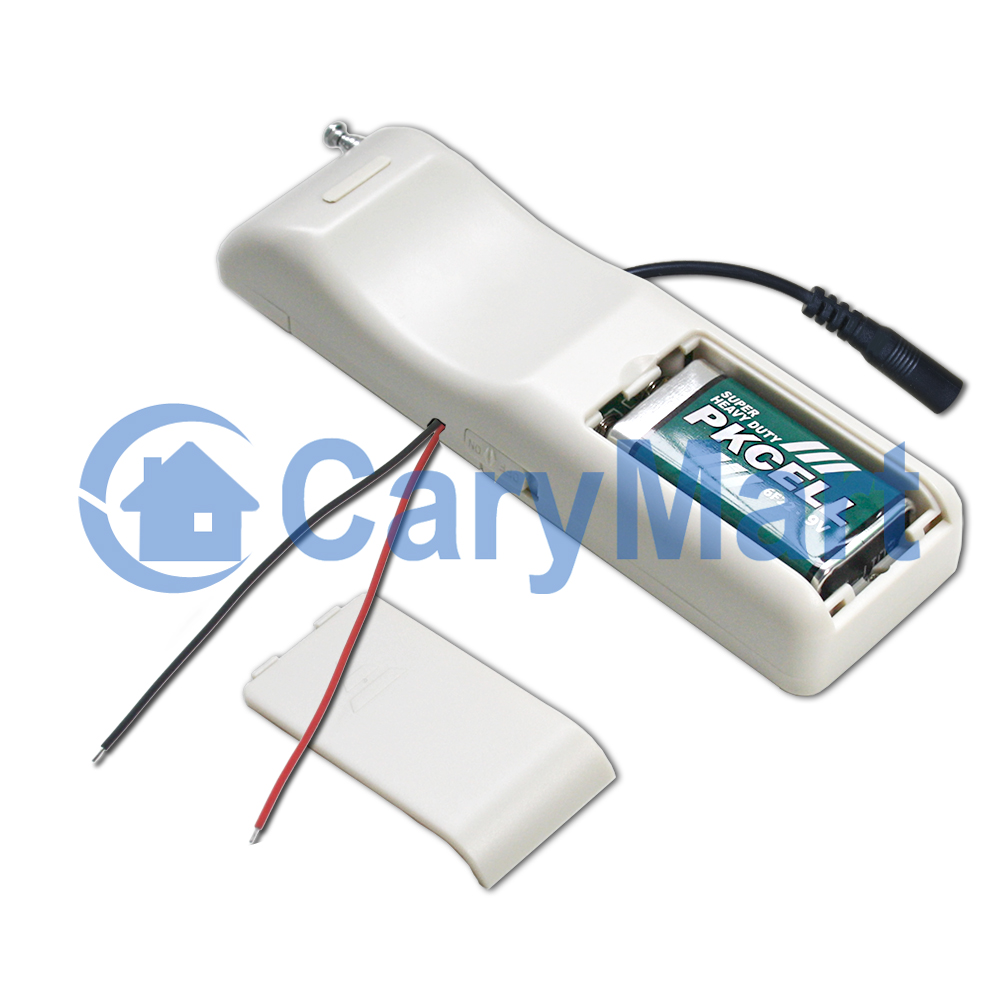

With Extended Input Wires
Triggering method: DC power 5-28V input
Shell Color: Grey

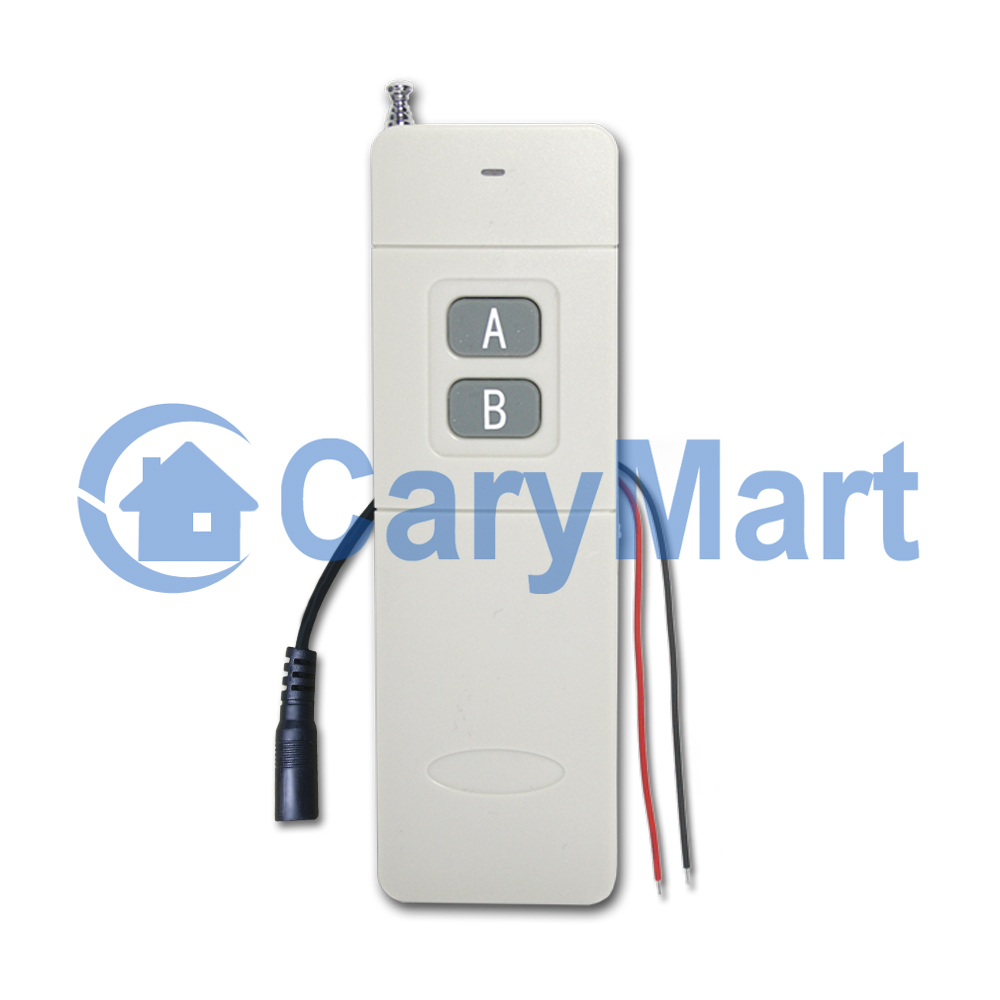

Channel/Button: 2
Button Symbol: A, B
Operating Voltage: 9V (1 x 6F22-9V battery, 9V Ordinary battery can be used for a week, 9V Rechargeable Lithium Battery can be used for two weeks, if you want a longer working time, please use a 9V power adapter.)
Operating Current: 30mA
Operating Frequency: 315MHz
Encoding Chip: PT2262 / PT2264 / SC2262
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 1000m / 3000ft (theoretically)
It has an on / off button on the side.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 135mm x 42mm x 25mm
Uses: garage doors, motorcycles, car alarm products, home security products, wireless remote control products, industrial control products.

Controlling the device by pressing buttons on the transmitter:
Press button A on the transmitter -> On, the device controlled by the receiver starts to work;
Press button B on the transmitter -> Off, the device controlled by the receiver stops working.

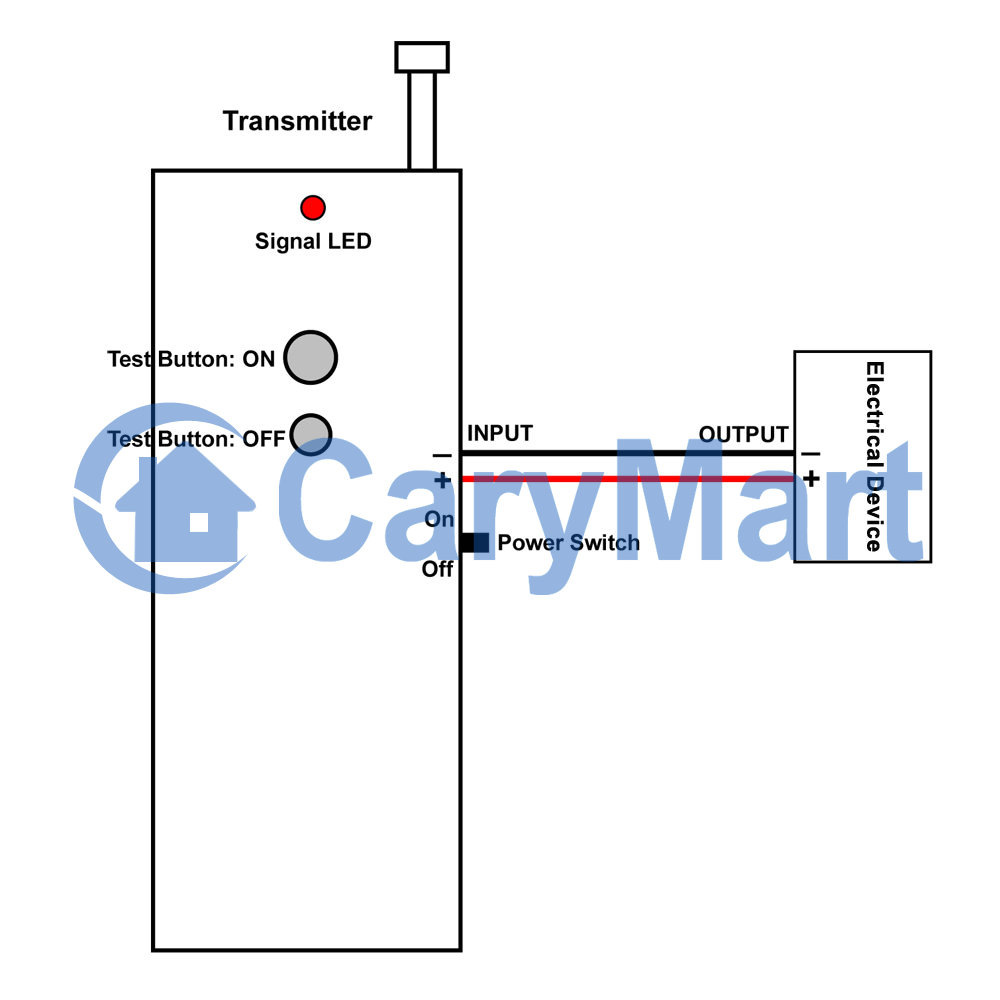

Controlling the device by inputting or no inputting DC 5~28V power to red wire and black wire of the transmitter:
When it has DC 5~28V power input for red wire and black wire of the transmitter, the transmitter will be triggered and then it will send an RF signal of "ON" to turn on the receiver, the device controlled by the receiver will starts to work.
When it does not have DC 5~28V power input for red wire and black wire of the transmitter, the transmitter will be triggered and then it will send an RF signal of "OFF" to turn off the receiver, the device controlled by the receiver will stops working.

Add Receiver:
This transmitter can remote control different receivers, including:
