1 CH AC110 240V Wireless Remote Control Self-locking Momentary Interlocking Mode

Manual

This is the operation video of wireless remote control one AC lamp , you can click the website: https://www.youtube.com/watch?v=fcsw2BShDek&feature=youtu.be

Feature:

• Wireless control, easy to install
• Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with AC 100~240V.
• You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
• With characteristics of reverse power protection and over current protection
• Audible / visual indication
• Use microcontroller model of EM78P156, an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
• Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
• One/several transmitters can control one/several receivers simultaneously.
• If you use two or more receivers in the same place, you can set them with different codes.
• Transmitting Frequency: 433MHz

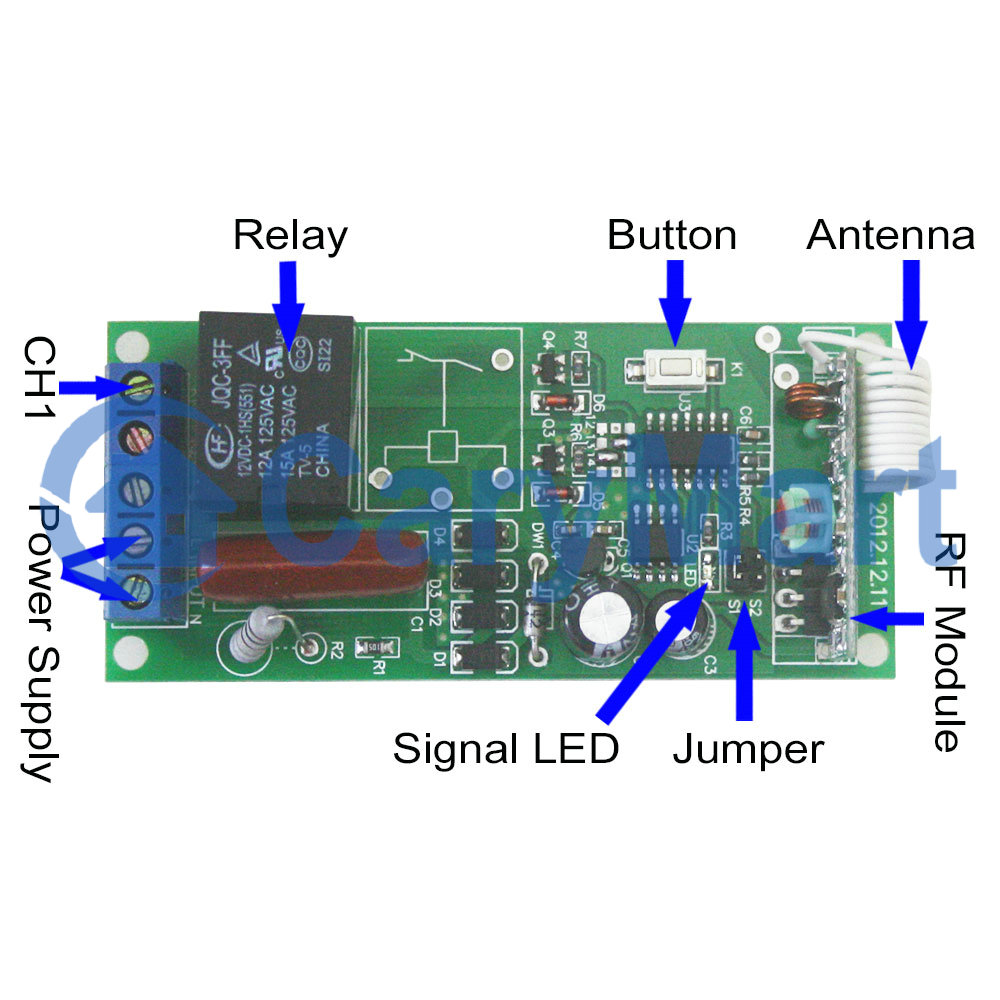

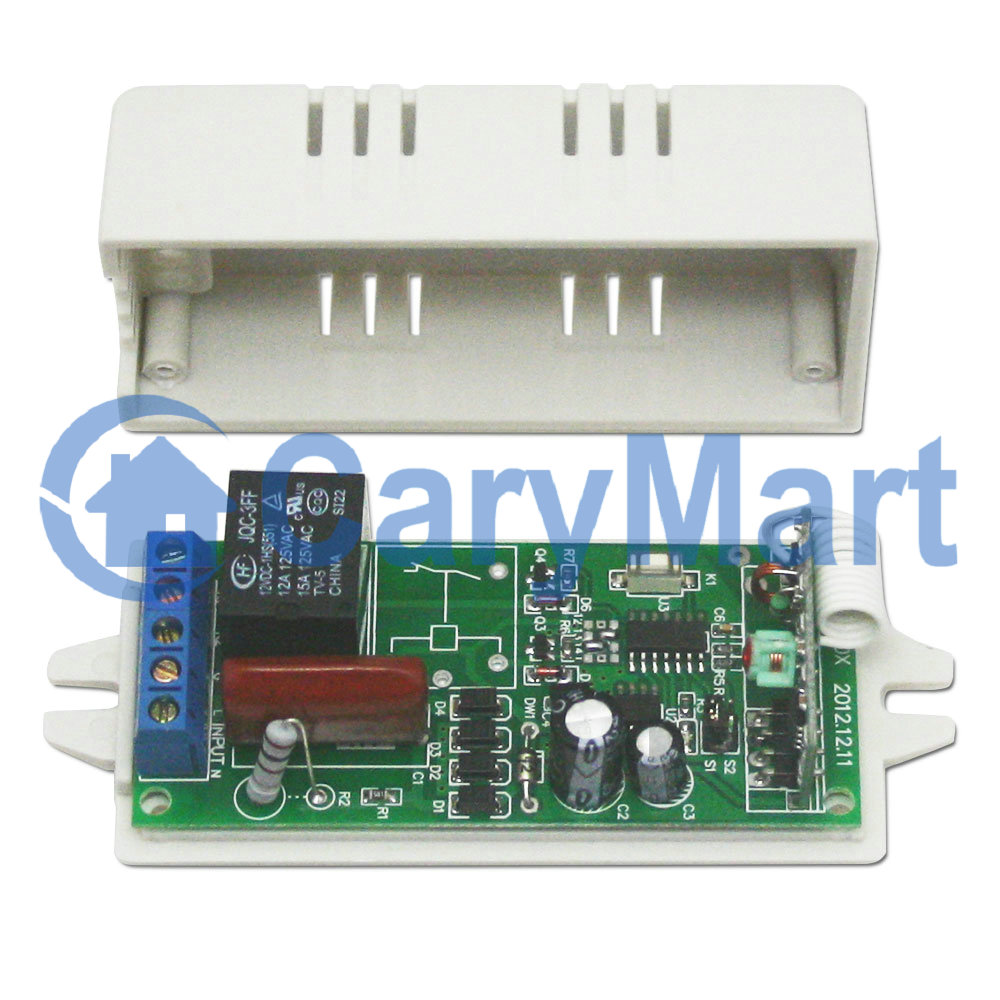

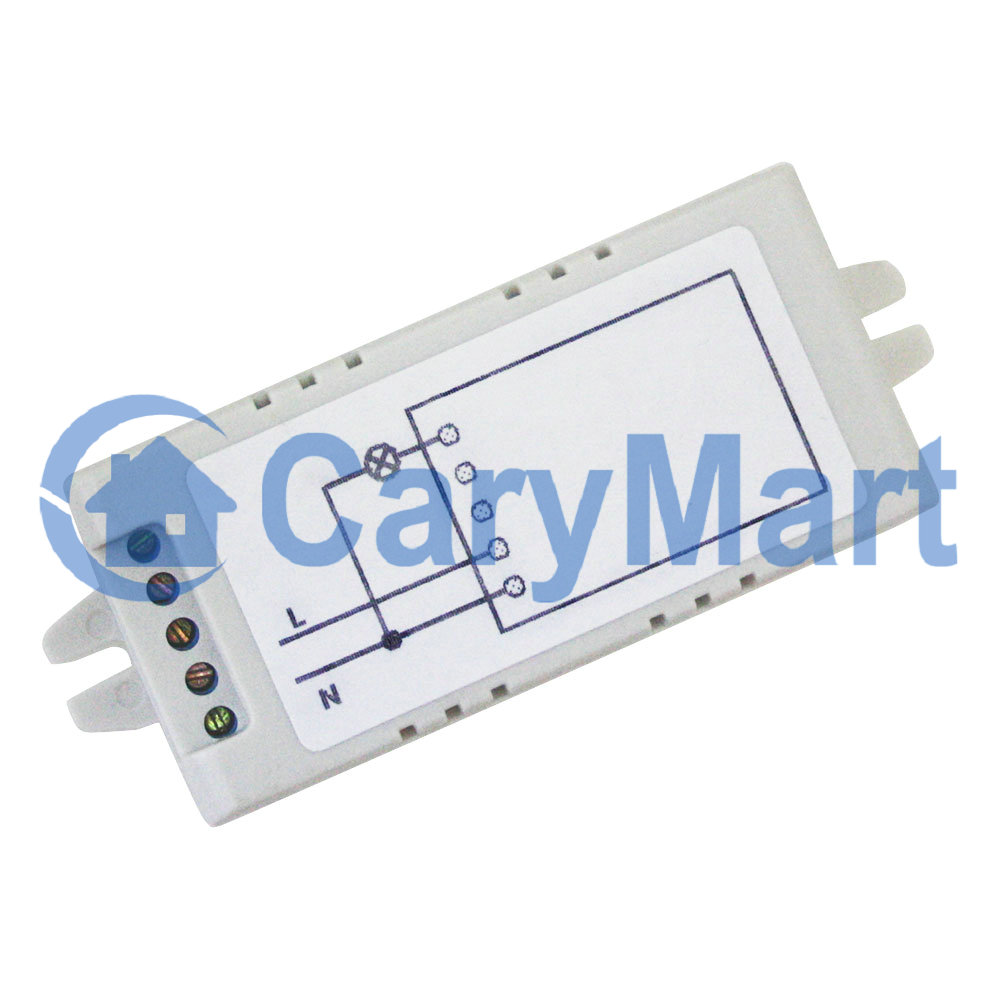

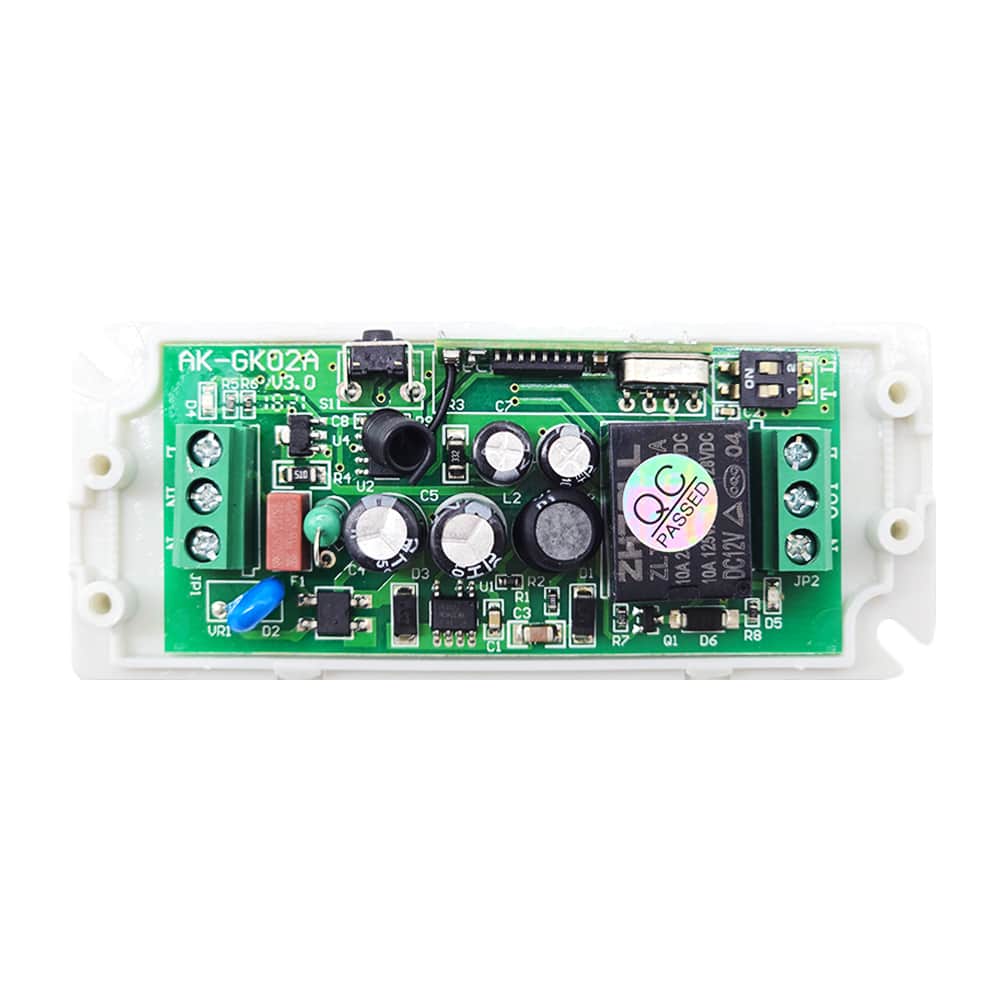

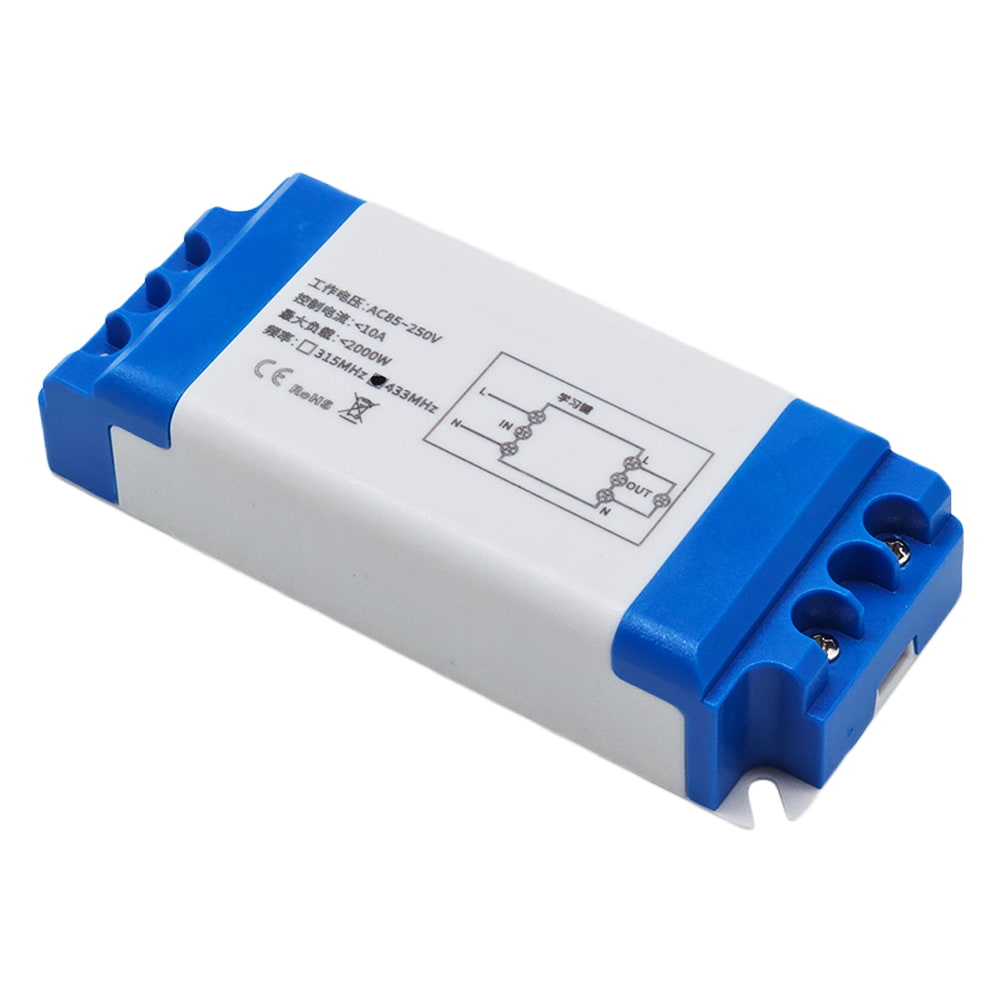

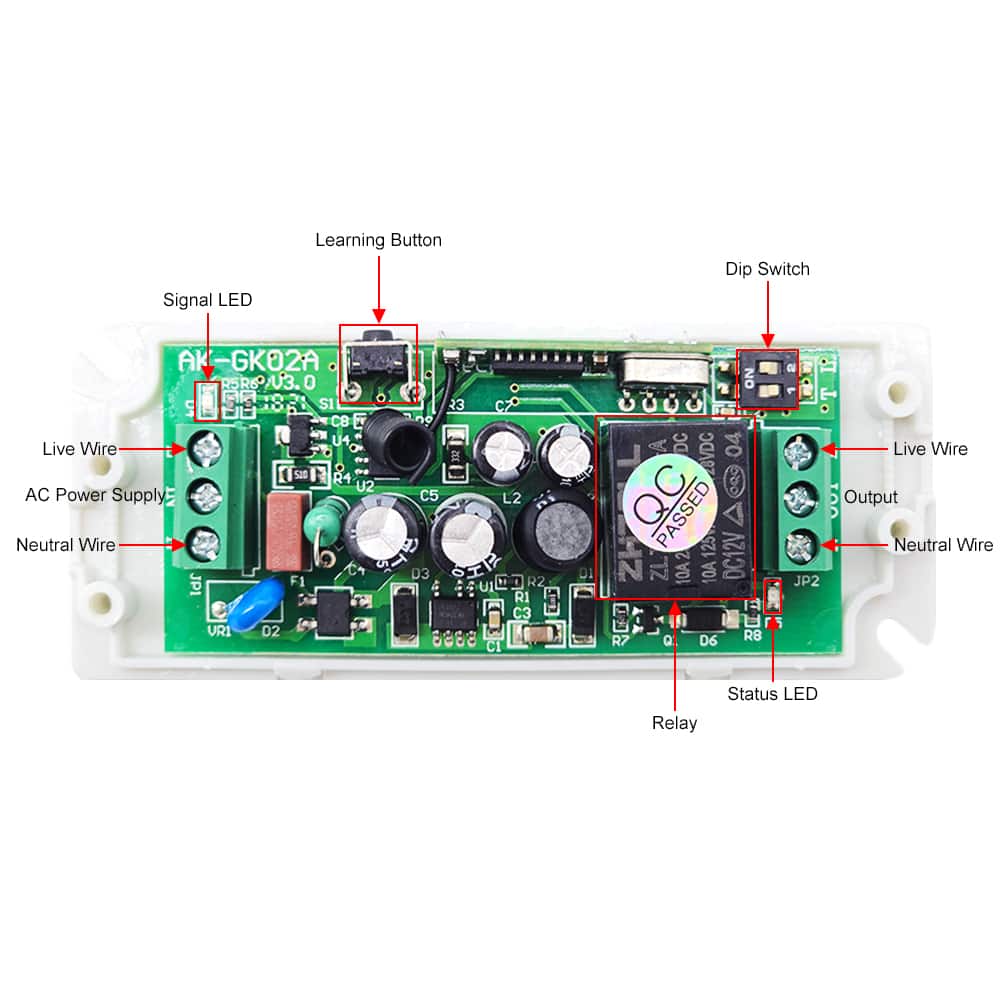

Receiver:

• Model No.: S1XC-AC110 / S1XC-AC220
• Channel: 1 CH
• Control Modes: Self-locking, Momentary, Interlocking,
• Coding Type: Fixed code or learning code
• Coding Setting: By learning
• Power Supply (Operating Voltage): AC100~120V (S1XC-AC110), AC200~240V (S1XC-AC220)
• PCB size: 80mm x 35mm x 14mm
• Case size: 100mm x 40mm x 24mm
• Maximum Working Current: 3A/each channel

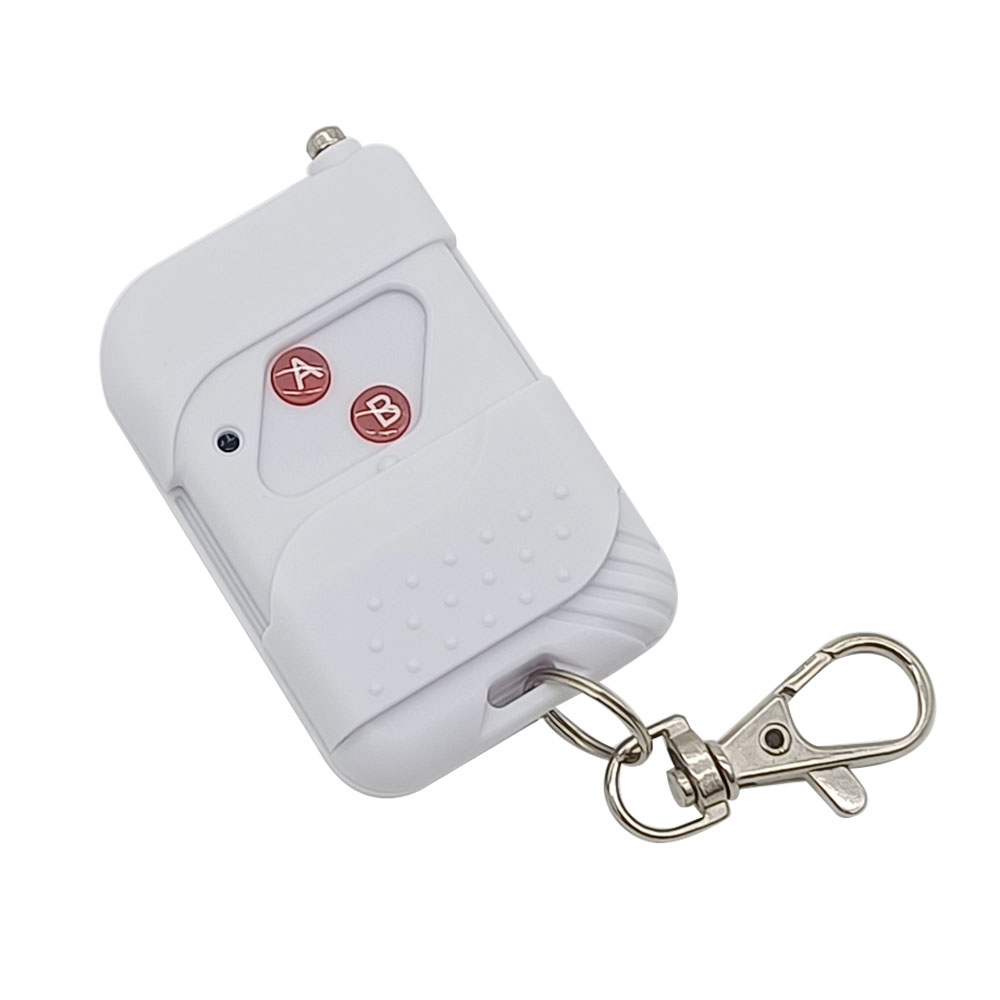

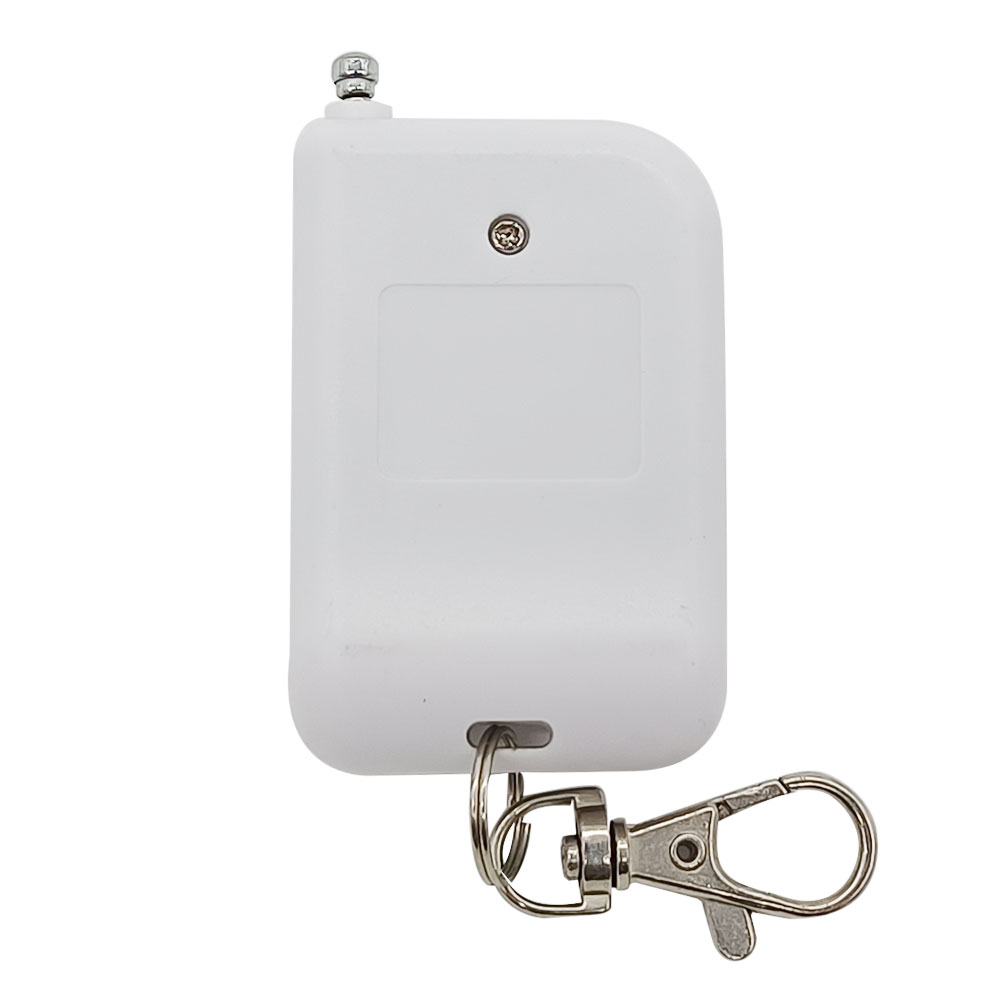

Transmitter:

• Model No.: C-2
• Channel: 2 CH
• Remote Control Distance: 100m / 300ft (theoretically)
• Encode: Fixed code by Soldering
• Unit size: 58mm x 39mm x 16mm
• Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)

Usage:

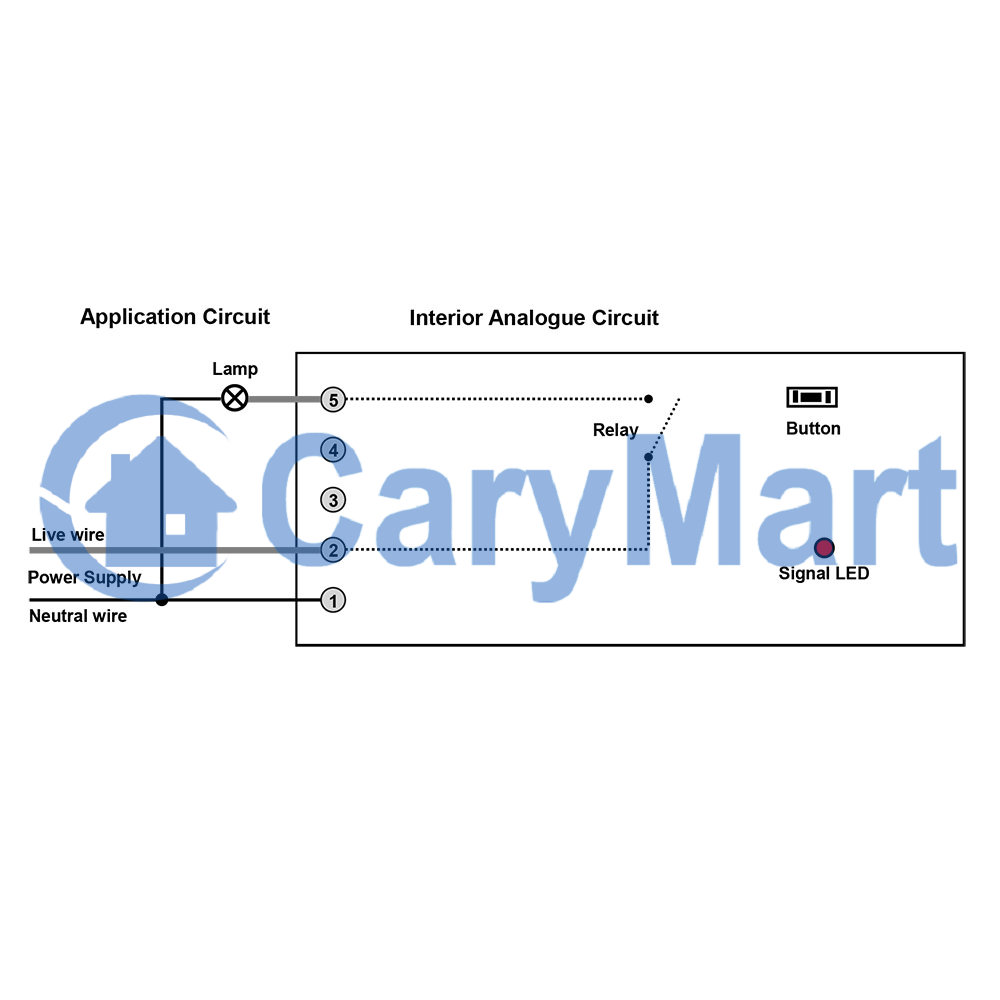

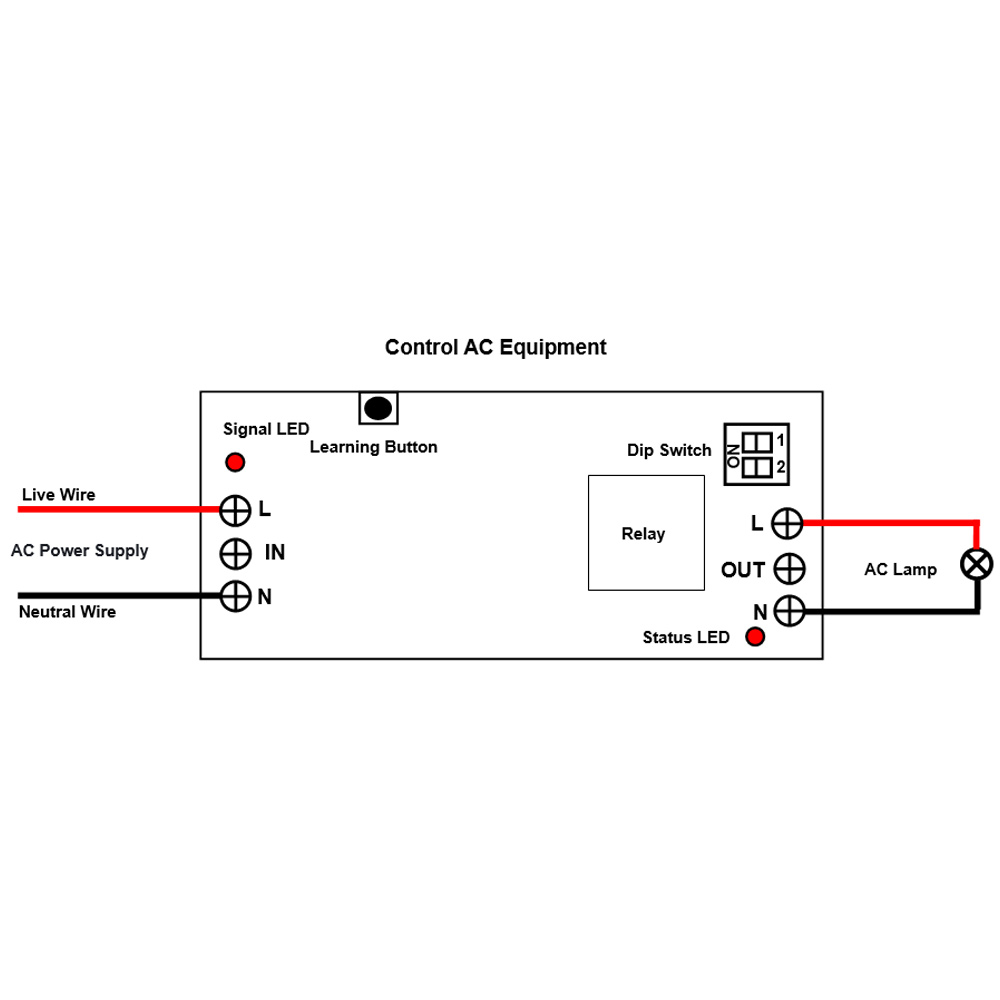

• Connect the neutral wire to the terminal “1”, and the live wire to the terminal “2”.
• Connect the lamp to the terminal “5” and the neutral wire.
• Setting different control modes (We have set the receiver as Self-locking mode before delivery. If you want to use other modes, do as following):
• Setting control mode Self-locking: Only connect Jumper-1.
• Press button 1: Turn on the relay, terminal OUT outputs AC power.
• Press button 1 again: Turn off the relay, terminal OUT no output.
• Setting control mode Momentary: Do not connect Jumper-1 and Jumper-2.
• Press and hold button 1: Turn on the relay, terminal OUT outputs AC power.
• Release button 1: Turn off the relay, terminal OUT no output.
• Setting control mode Interlocking: Only connect Jumper-2.
• Press button 1: Turn on the relay, terminal OUT outputs AC power.
• Press button 2: Turn off the relay, terminal OUT no output.

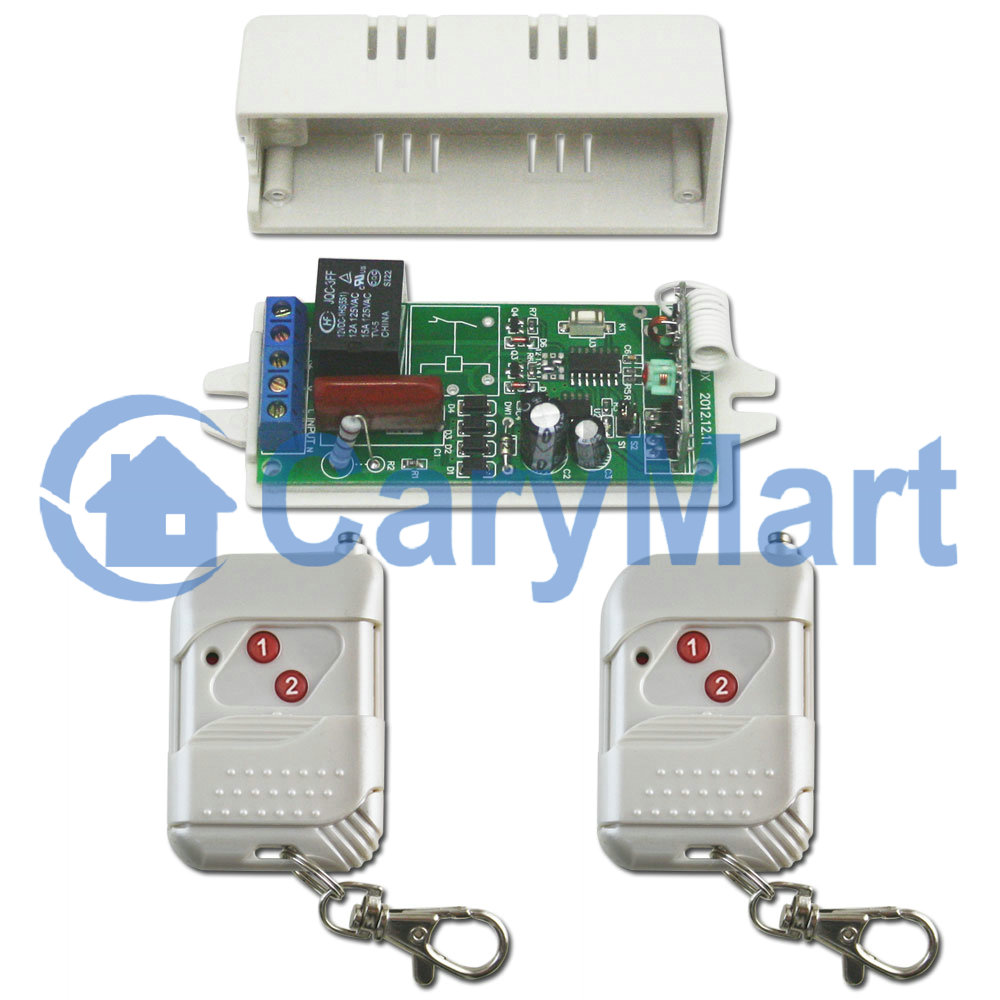

Package Include:

• 1 x Receiver: S1XC-AC110 / S1XC-AC220 (1 Channel / Three Control Modes)
• 2 x Transmitter: C-2
• 1 x User manual
