Wireless control, easy to install Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with AC110~240V or DC0~28V. You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors. Adopt singlechip technology to build millions of code. Two or more transmitter & receivers set can be used in the same place. Transmitting Frequency: 433MHz
Receiver:

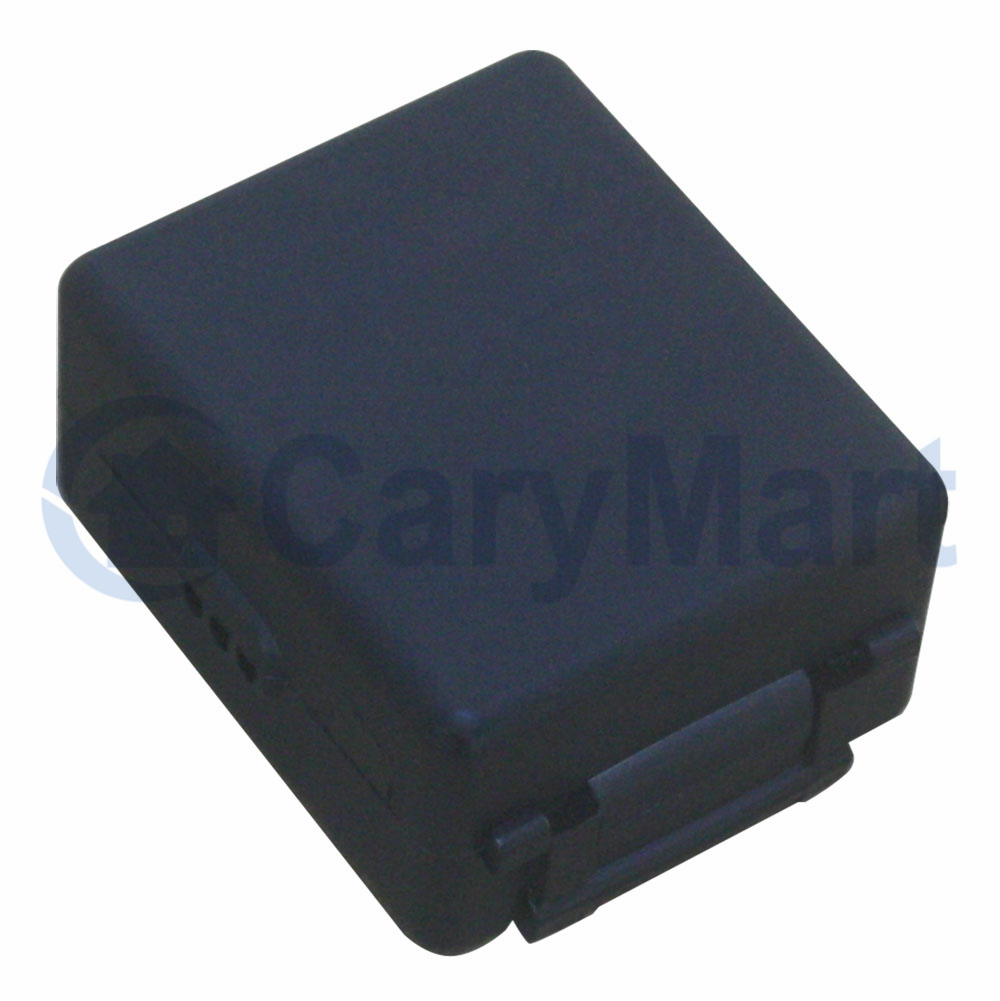

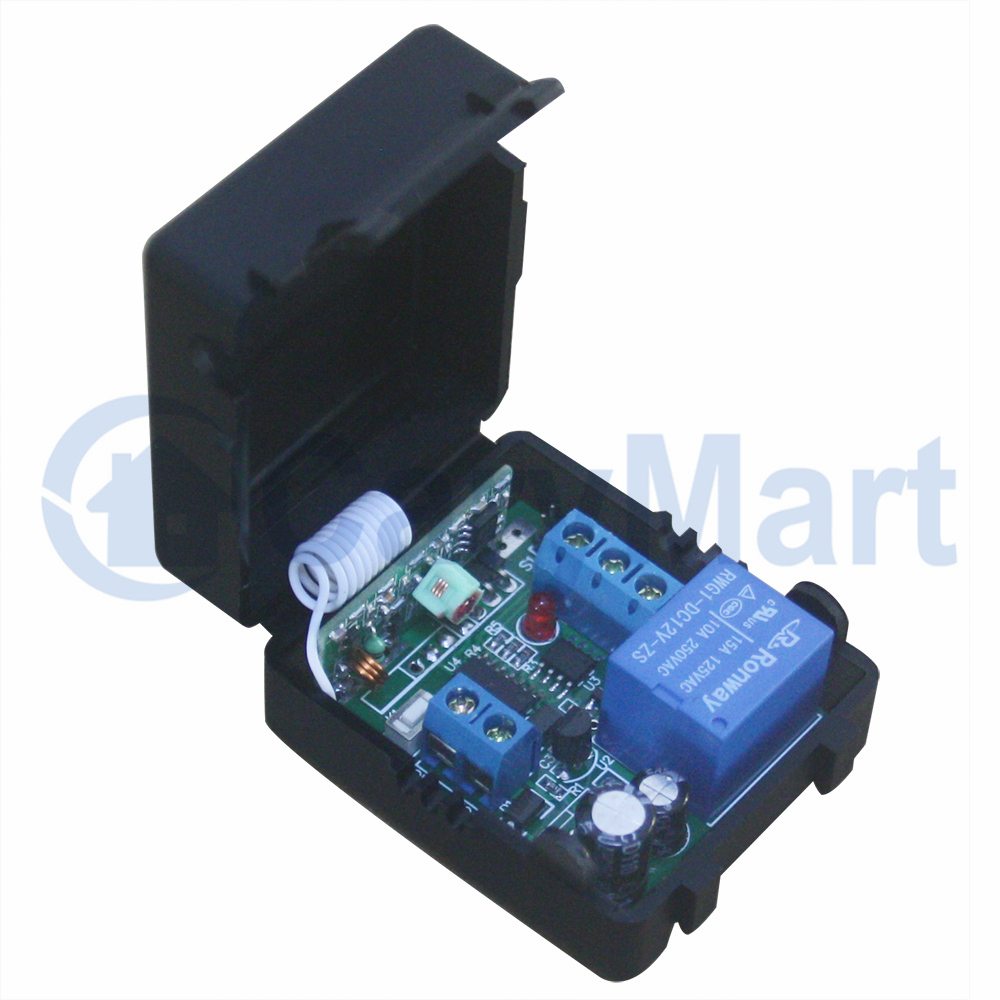

Model No.: S1RU-DC06 / S1RU-DC09 / S1RU-DC12 / S1RU-DC24 Channel: 1 CH Control Modes: Self-locking, Momentary, Interlocking Coding Type: Fixed code or learning code Coding Setting: By learning Power Supply (Operating Voltage): DC6V (S1RU-DC06), DC9V±1V (S1RU-DC09), DC12V±1V (S1RU-DC12), DC24V±1V (S1RU-DC24) PCB size: 44mm x 37mm x 19mm Case size: 55mm x 45mm x 28mm Maximum Working Current: 10A
Transmitter:

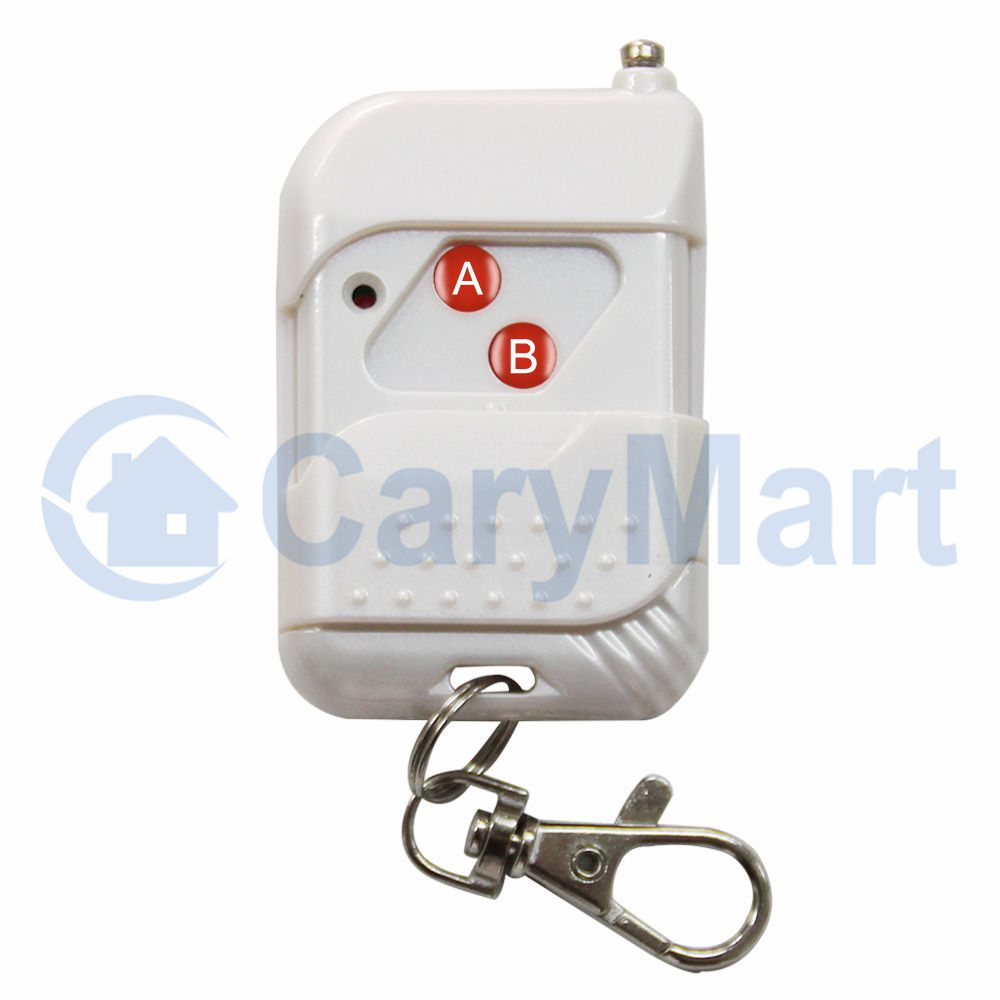

Model No.: 0021001 (C-2) Channel: 2 CH Encoding Chip: PT2264/PT2262/SC2262 Remote Control Distance: 100m / 300ft (theoretically) Encode: Fixed code by Soldering Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)
Usage:

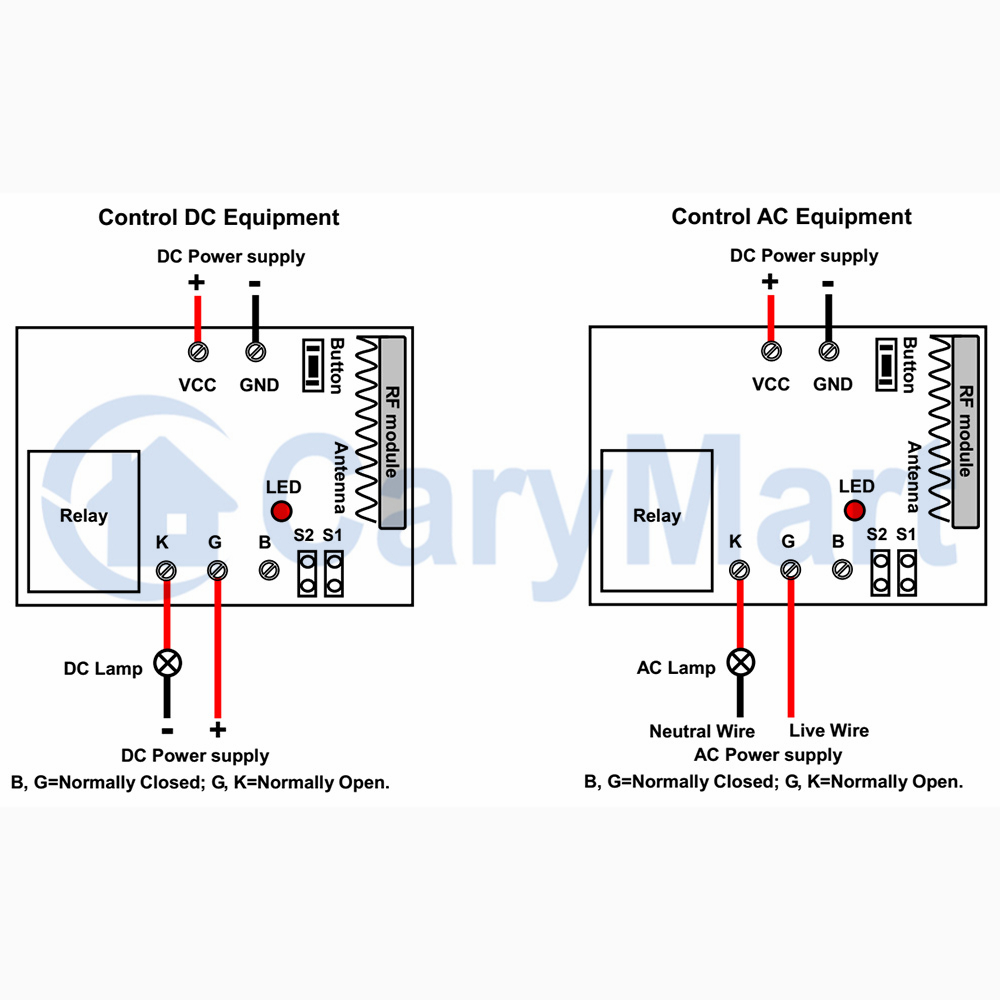

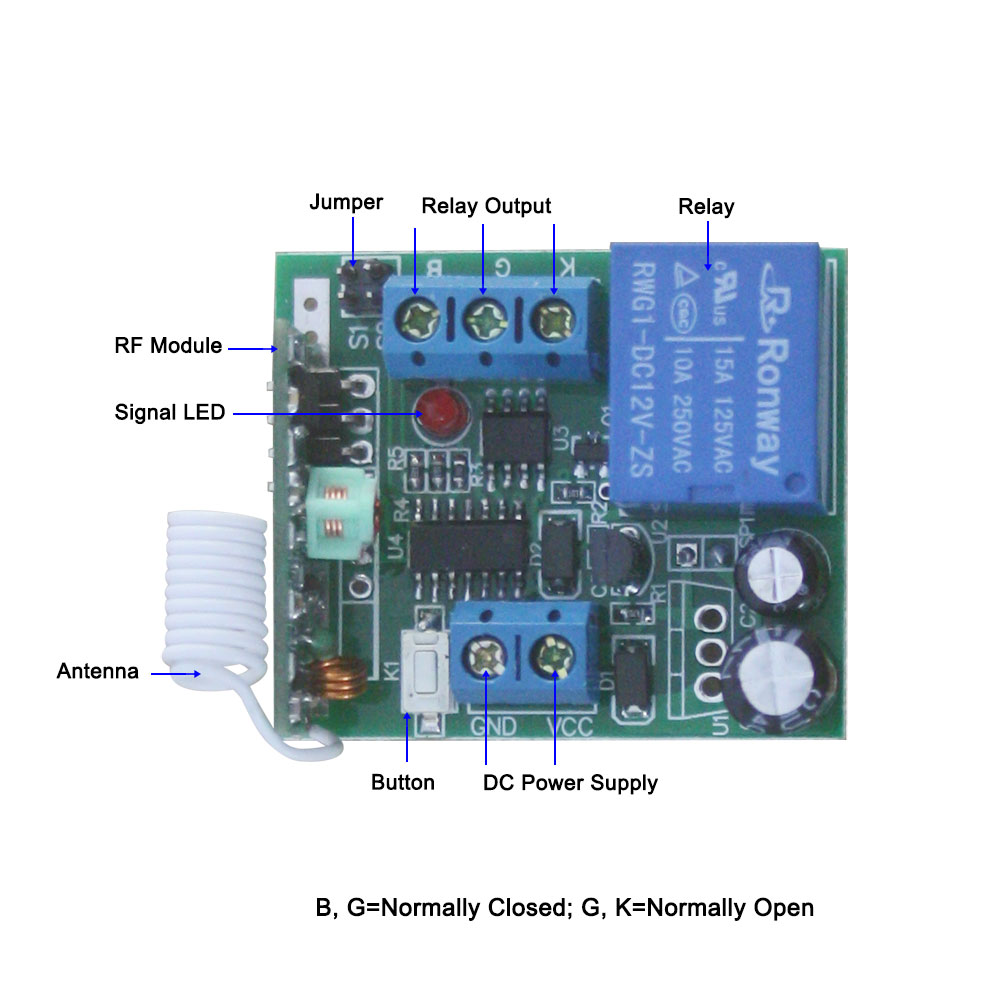

Initial state: B, G = Normally Closed; G, K = Normally Open. Setting different control modes (We have set the receiver as Self-lockingcontrol mode before delivery. If you want to use other control modes, do as following operation):
Setting control mode Self-locking: Connect S1. Control mode Self-locking: Press -> On; Press again -> Off. Press button A: Turn on the relay (connect G and K, disconnect B and G) Press button A again: Turn off the relay (disconnect G and K, connect B and G)
Setting control mode Momentary: Disconnect S1 and S2. Control mode Momentary: Press and hold -> On; Release -> Off. Press and hold button A: Turn on the relay (connect G and K, disconnect B and G) Release button A: Turn off the relay (disconnect G and K, connect B and G)
Setting control mode Interlocking: Connect S2. Control mode Latched: Press -> On, other relays Off; Press another button -> Off. Press button A: Turn on the relay (connect G and K, disconnect B and G) Press button B: Turn off the relay (disconnect G and K, connect B and G)
Package Include:

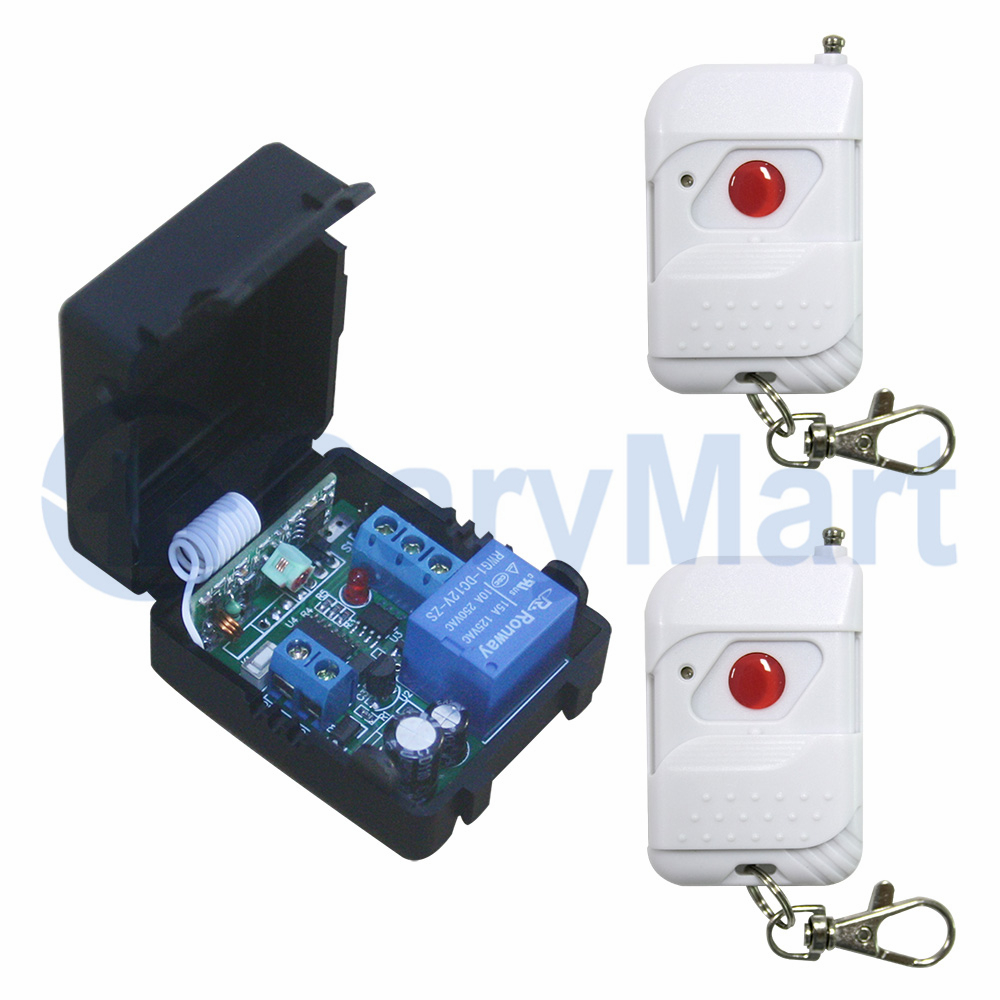

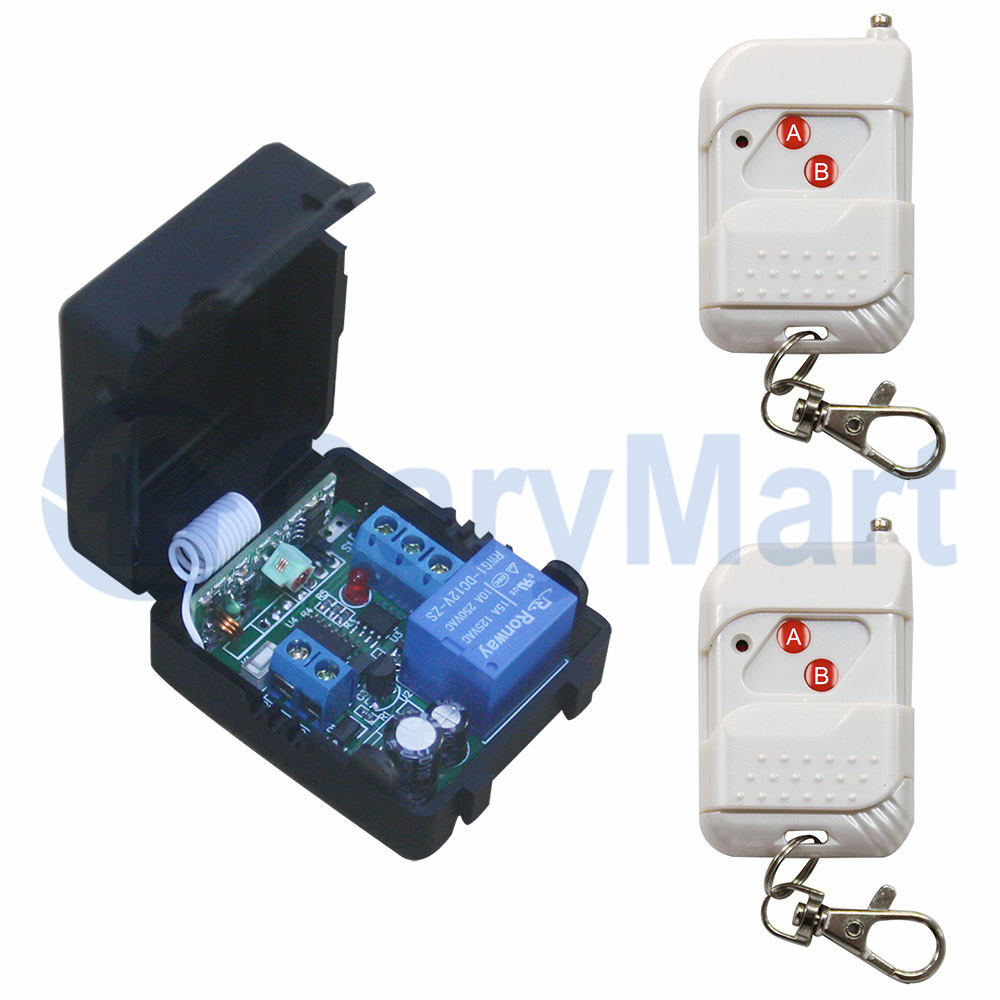

1 x Receiver: S1RU-DC06 / S1RU-DC09 / S1RU-DC12 / S1RU-DC24 2 x Transmitter: C-2/C-1 1 x User manual
