The receiver is designed for one-transmitter-many-receivers system. You can use a 4 buttons transmitter to control 4 receivers, or use a 6 buttons transmitter to control 6 receivers, or use a 8 buttons transmitter to control 8 receivers, or use a 12 buttons transmitter to control 12 receivers.
Application: It can be used in industry automation, agriculture automation and home automation, such as factory, house, farm, pasture, vehicle, ship, offshore operation, aerial vehicle, field call, etc. It can remote control equipments on land, water and air, such as remote control lights, sirens, locks, motors, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, business signs and various devices.
Wireless control, easy to install.

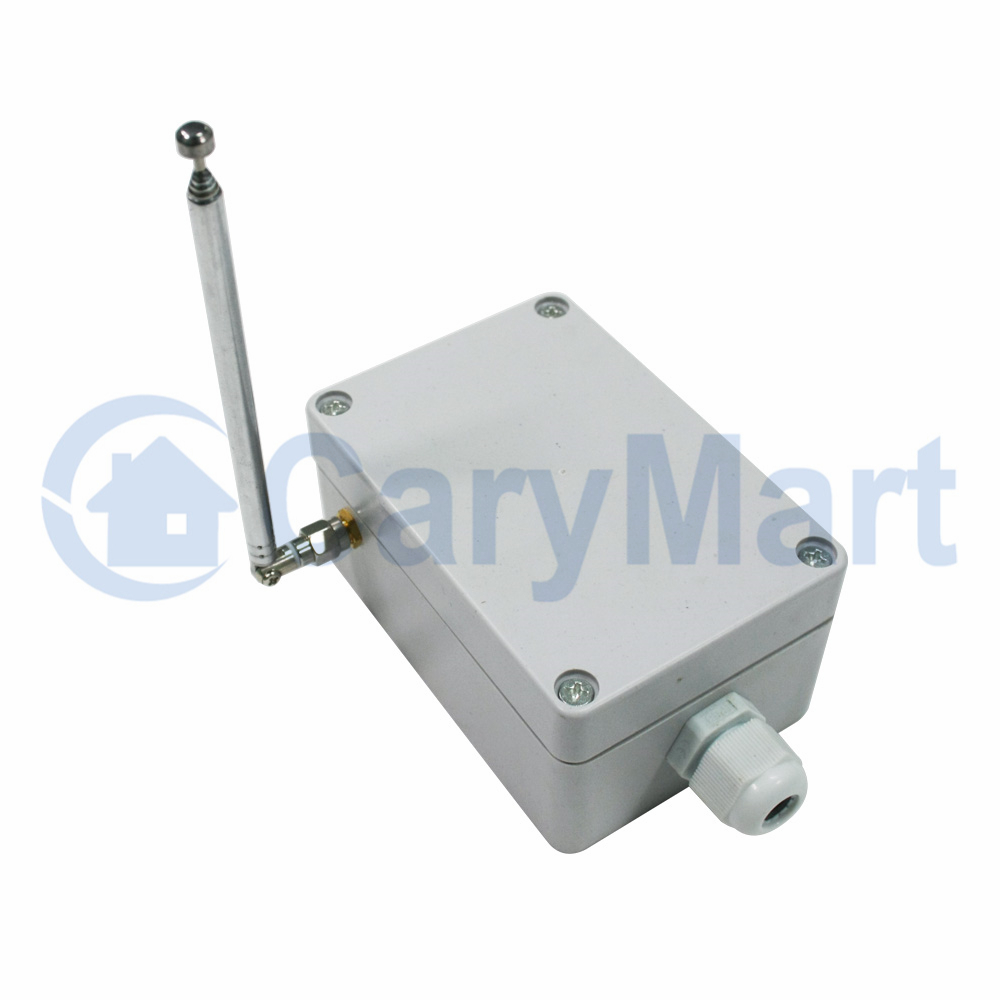

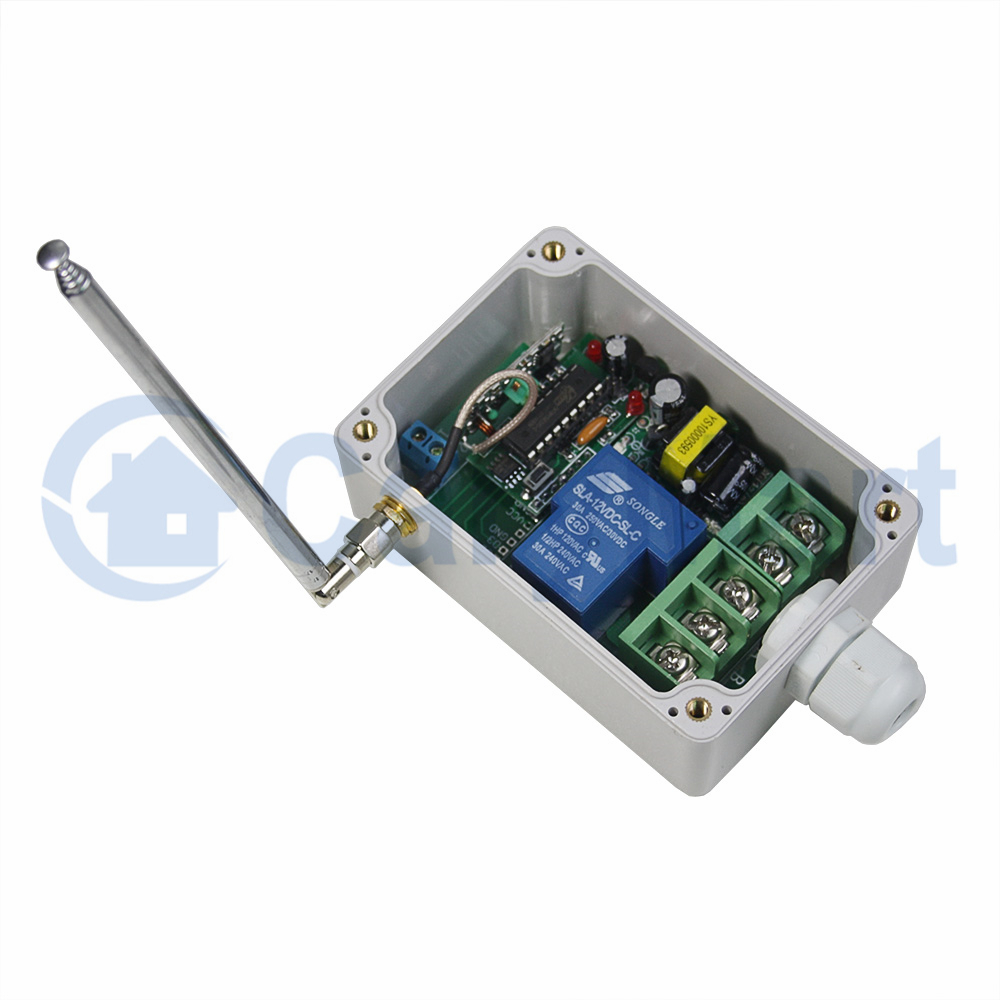

Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Universal input: Support voltage of AC110V (100V~120V), widely used in US, Canada... and voltage of AC220V (200V~240V), used in UK, France...
Relay Output: This receiver is relay output, it can be used to operate both DC and AC equipments. The terminal is NO / NC (normally open / normally closed), which serves as a switch. That means you should also connect a separate power supply to it.
High Power: Each channel can work at maximum current 30A, such as 360W/12V, 180W/6V, 270W/9V, 720W/24V, 3000W/110V, 6000W/220V.
With wired control terminals: You can connect sensors, limit switches, manual switches or external devices to control the receiver.
Design with low-power and high-speed CMOS technology.
You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With reverse power protection and over current protection.
Reliable control: The receiver only works with the transmitter which use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.
Receiver Parameters:
Model No. S1PUB-AC220-ANT3
Power Supply (Operating Voltage): AC100~240V (110V/120V/220V/240V)
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
Working Frequency: 433MHz
Channel: 1CH
Control Modes: Self-locking, Momentary, Interlocking
Static Current: ≤6mA
Maximum Working Current: 30A / each channel
PCB size: 90mm x 59mm x 18mm
Case size: 100mm x 68mm x 50mm
Work with Fixed code transmitters or Learning code transmitters.
Matching Transmitters:
You can use one transmitter to control several receivers, such as each two buttons on transmitter controls one receiver. They can pair different model transmitters, includes model CV-4 (500M), CV-6 (500M), CV-8 (500M), CV-12 (500M) and CB-4 (1000M), CB-6 (1000M), CB-8 (1000M), CB-12 (1000M), etc... For example, you can use one 4 buttons transmitter CV-4 or CB-4 to control two receivers, use one 6 buttons transmitter CV-6 or CB-6 to control three receivers, use one 8 buttons transmitter CV-8 or CB-8 to control four receivers, use one 12 buttons transmitter CV-12 or CB-12 to control six receivers, etc…
Usage (with the transmitter like CV-12):
The receiver can be used to control both DC 0~28V and AC 110~240V equipments.

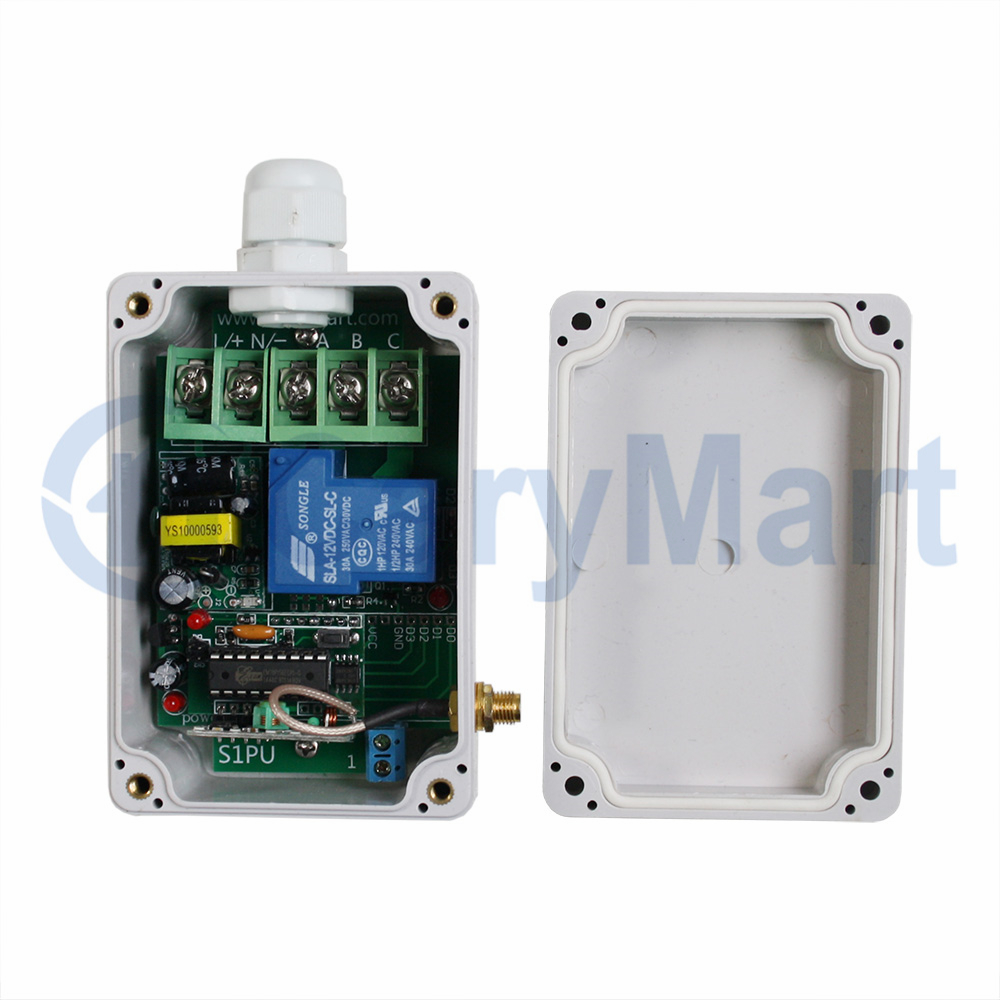

Notice: The receiver is relay output, not DC/AC power output. Initial state of relay output terminals: Terminals B and C are Normally Open; Terminals A and C are Normally Closed.

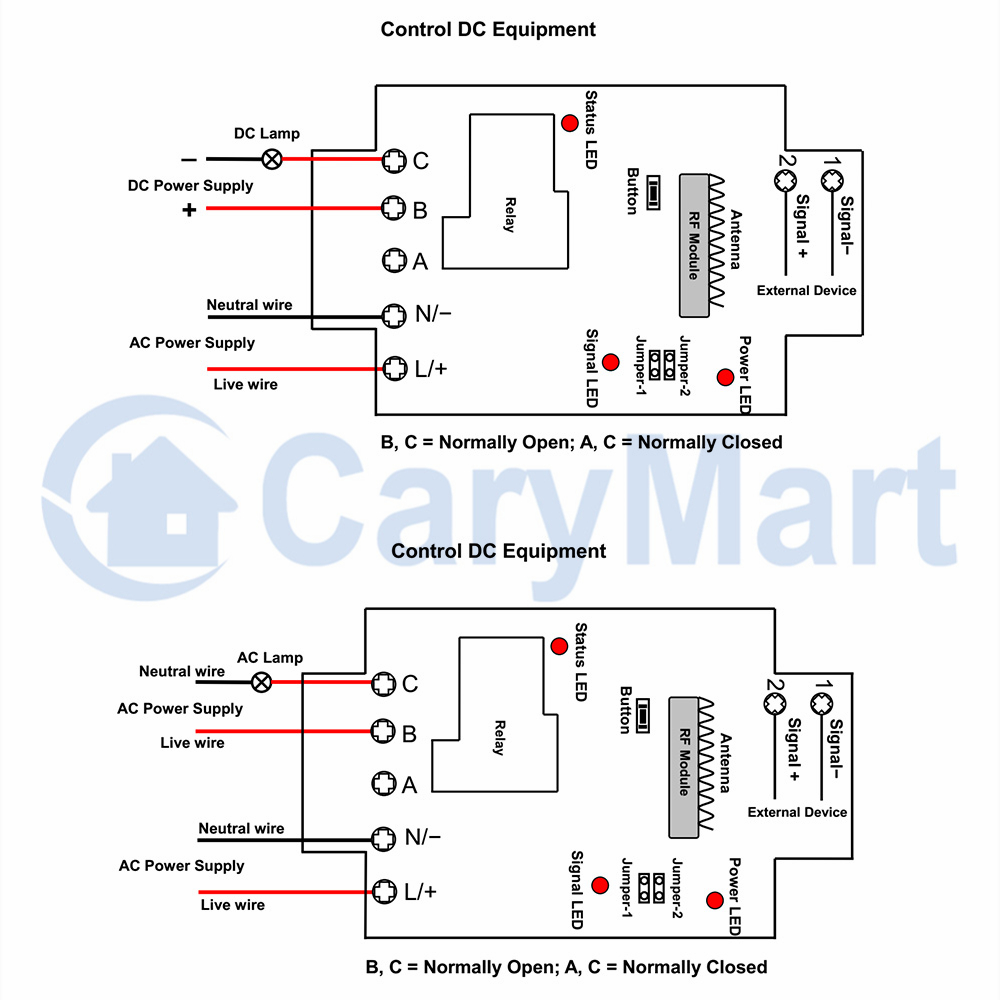

Wiring:
If you want to control a DC 12V lamp, do as following:
1) Connect the live wire of AC power supply to terminal “L / +”, and connect the neutral wire of AC power supply to terminal “N / -”.
2) Connect terminal B to the positive pole of DC power supply, connect terminal C to the positive pole of DC lamp, and connect the negative pole of DC lamp to the negative pole of DC power supply.
If you want to control an AC 220V lamp, do as following:
1) Connect the live wire of AC power supply to terminal “L / +”, and connect the neutral wire of AC power supply to terminal “N / -”.
2) Connect terminal B to the live wire of AC power supply, connect terminal C to one side of AC lamp, and connect another side of AC lamp to the neutral wire of AC power supply.
Setting different control modes:
Setting different control modes (We have set the receiver as Self-locking control mode before delivery. If you want to use other control modes, do as following operation):
Setting control mode Self-locking: Only connect Jumper-2.
Control mode Self-locking: Press -> On; Press again -> Off.
Press button 1: Turn on Receiver 1 (connect B and C, disconnect A and C)
Press button 1 again: Turn off Receiver 1 (disconnect B and C, connect A and C)
…
Press button 12: Turn on Receiver 12 (connect B and C, disconnect A and C)
Press button 12 again: Turn off Receiver 12 (disconnect B and C, connect A and C)
Setting control mode Momentary: Only connect Jumper-1.
Control mode Momentary: Press and hold -> On; Release -> Off.
Press and hold button 1: Turn on Receiver 1 (connect B and C, disconnect A and C)
Release button 1: Turn off Receiver 1 (disconnect B and C, connect A and C)
…
Press and hold button 12: Turn on Receiver 12 (connect B and C, disconnect A and C)
Release button 12: Turn off Receiver 12 (disconnect B and C, connect A and C)
Setting control mode Interlocking: Disconnect Jumper-1 and Jumper-2.
Control mode Interlocking: Press -> On, other relays Off; Press another button -> Off.
Press button 1: Turn on Receiver 1 (connect B and C, disconnect A and C)
Press any other button: Turn off Receiver 1 (disconnect B and C, connect A and C)
…
Press button 12: Turn on Receiver 12 (connect B and C, disconnect A and C)
Press any other button: Turn off Receiver 12 (disconnect B and C, connect A and C)
Wired control terminals:
The receiver has manual control terminals, you can connect external devices, sensors, or manual switches to control the receiver.
1) Signal input:
You can connect external devices (with low level output signal) to manual terminals 1 (Signal -) and terminal 2 (Signal +), then the external device’s output signal can control the receiver.
When the external device outputs low level signal to manual terminal 1 and terminal 2, the receiver turns on the relay. (connect B and C, disconnect A and C)
When the external device stops to output signal, the receiver turns off the relay. (disconnect B and C, connect A and C).
2) The manual switches:
You can connect manual switch to terminals 1 and 2, and then you can use this manual switch to control the receiver.
When connect terminals 1 and 2, the receiver turns on the relay. (connect B and C, disconnect A and C).
And when disconnect terminals 1 and 2, the receiver turns off the relay. (disconnect B and C, connect A and C).
Package Include:
1 x Receiver: S1PUB-AC220-ANT3 (1 Channel / Three Control Modes)
