Feature:Application:
It can be used in industry automation, agriculture automation and home
automation, such as factory, house, farm, pasture, vehicle, ship, offshore
operation, aerial vehicle, field call, etc. It can remote control equipments on
land, water and air, such as remote control lights, sirens, locks, motors,
fans, winches, blinds, linear actuators, doors, windows, electric solenoid
valves, security alarm, business signs and various devices.Wireless control, easy
to install.
Function of memory: The power is cut off, and then the
power is restored, the relay will return automatically to the previous status.
Relay
Output: This receiver is relay output, it can be used to operate both DC and AC
equipments. The terminal is NO / NC (normally open / normally closed), which
serves as a switch. That means you should also connect a separate power supply
to it.
Each channel
can work at maximum current 10A, such as 120W/12V,
60W/6V, 90W/9V, 240W/24V, 1100W/110V, 2200W/220V.
Design with low-power
and high-speed CMOS technology.
You can
turn on/ off the receiver with transmitter (remote control) from any place
within a reliable distance.
Wireless RF
signal can pass through walls, floors, doors or windows.
With reverse
power protection and over current protection.
Reliable
control: The receiver only works with the transmitter which use same code.
One/several
transmitters can control one/several receivers simultaneously.
You can use
two or more units in the same place.
Receiver Parameters:
Model No. S1MU-DC06 /
S1MU-DC09 / S1MU-DC12 / S1MU-DC24
Power
Supply (Operating Voltage): DC6V (S1MU-DC06), DC9V±1V (S1MU-DC09), DC12V±1V (S1MU-DC12),
DC24V±1V (S1MU-DC24)
Output: Relay output
(Normally open and normally closed)
Working Voltage Range
of Relay: AC110~240V or DC0~28V
Working Frequency: 433MHz
Channel: 1CH
Control Modes: Self-locking, Interlocking
Static Current: ≤6mA
Maximum Working
Current: 10A / each channel

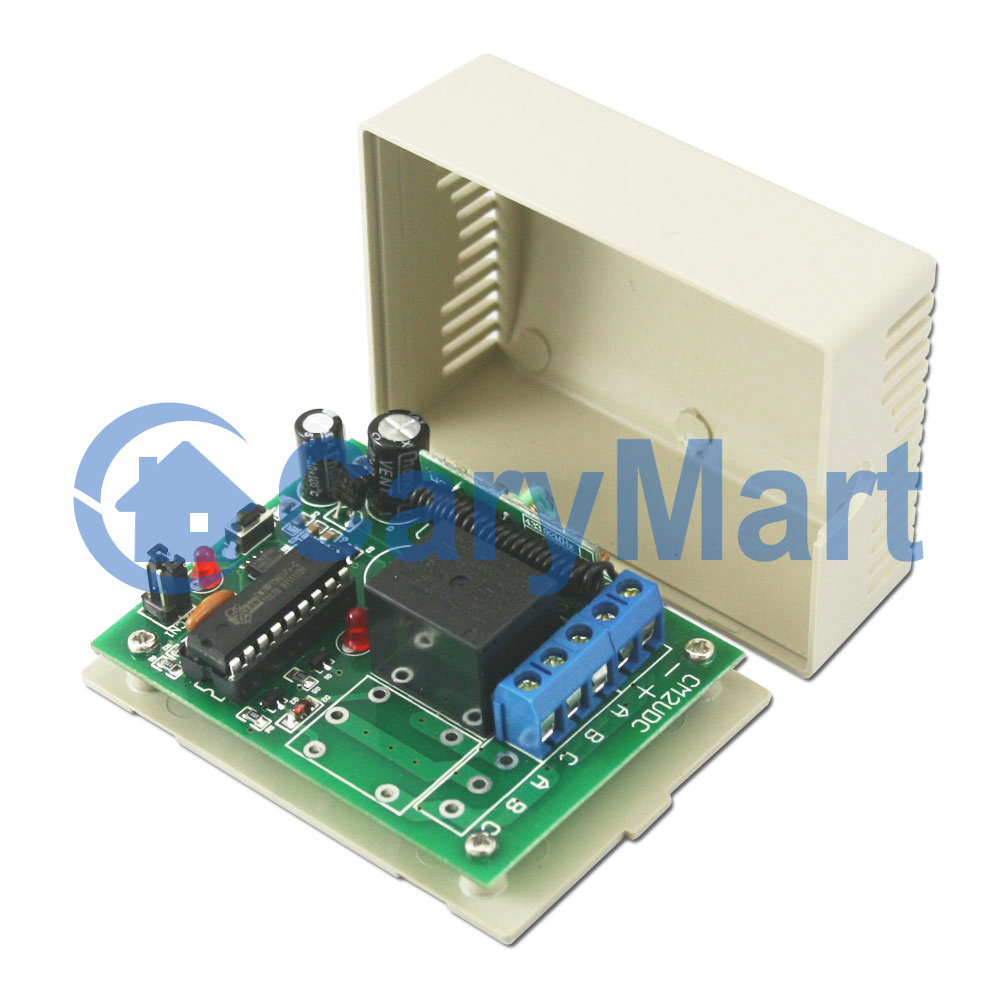

PCB size: 67mm x 50mm
x 18mm

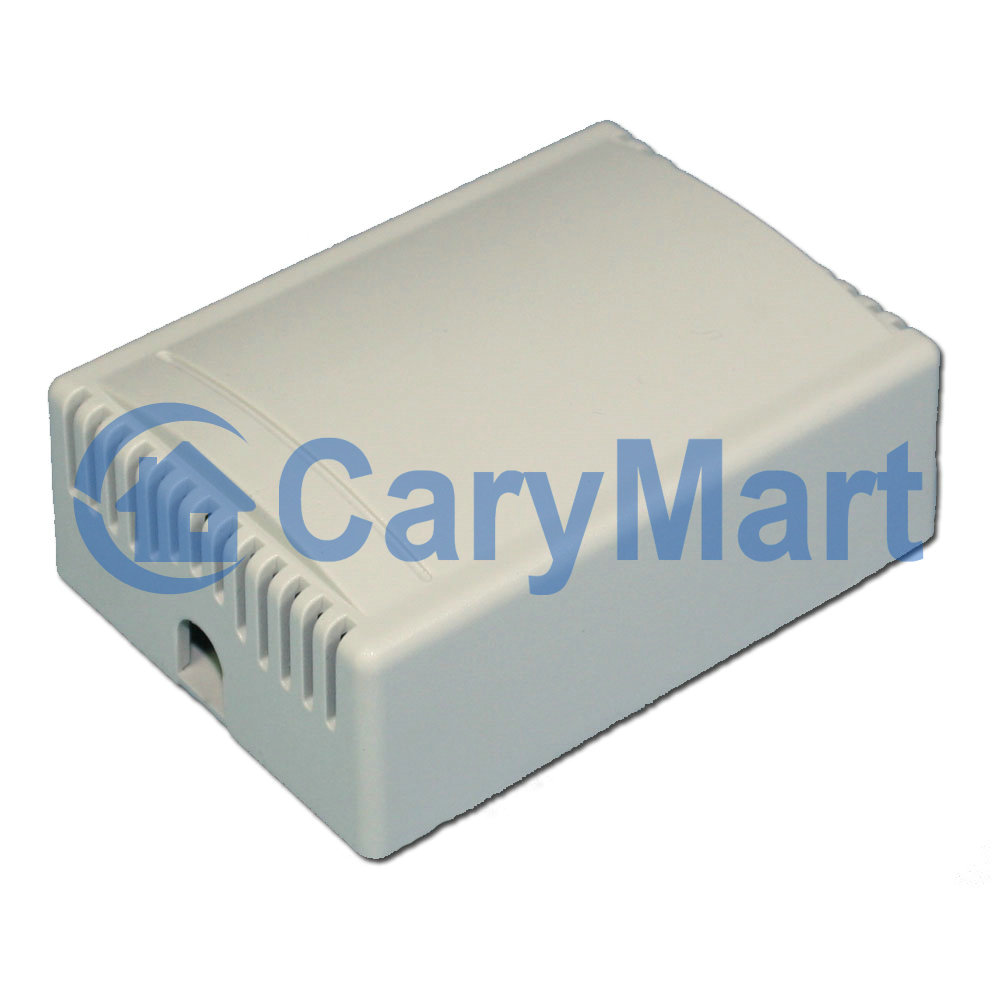

Case size: 75mm x 54mm
x 27mm
Work with Fixed code transmitters or Learning code transmitters.
If you want to have a
further working range, you can install an external antenna to the receiver.
Matching Transmitters:
The
receiver can work with different transmitters, such as model C-1 / C-2 (100M),
CWB-1 / CWB-2 (50M, waterproof), CP-1 / CP-2 (500M), or CB-1 / CB-2 (1000M)
etc.
When you
set the receiver in toggle mode, it should work with single button transmitter, such as model C-1 (100M), CWB-1 (50M,
waterproof), CP-1 (500M), or CB-1 (1000M) etc. When you set the receiver in latched
mode, it should work with two buttons transmitter,
such as model C-2 (100M), CWB-2 (50M, waterproof), CP-2 (500M), CV-2 (500M), or
CB-2 (1000M) etc.
Working
Range:
With a transmitter
(such as C-2) to form a complete set, the maximum working distance can reach
100M in an open ground.
The maximum working
distance is a theoretical data, it shall be operated in an open ground, no
barriers, no any interference. But in the practice, it will be hindered by
trees, walls or other constructions, and will be interfered by other wireless
signals. Therefore, the actual distance may not reach this
maximum working distance.
If you
want to have a further working range, you can install an external antenna to
the receiver, and you also can use a powerful
transmitter, such as CB series transmitters.
Usage:
The receiver can be used to control both DC 0~28V and AC 110~240V
equipments.

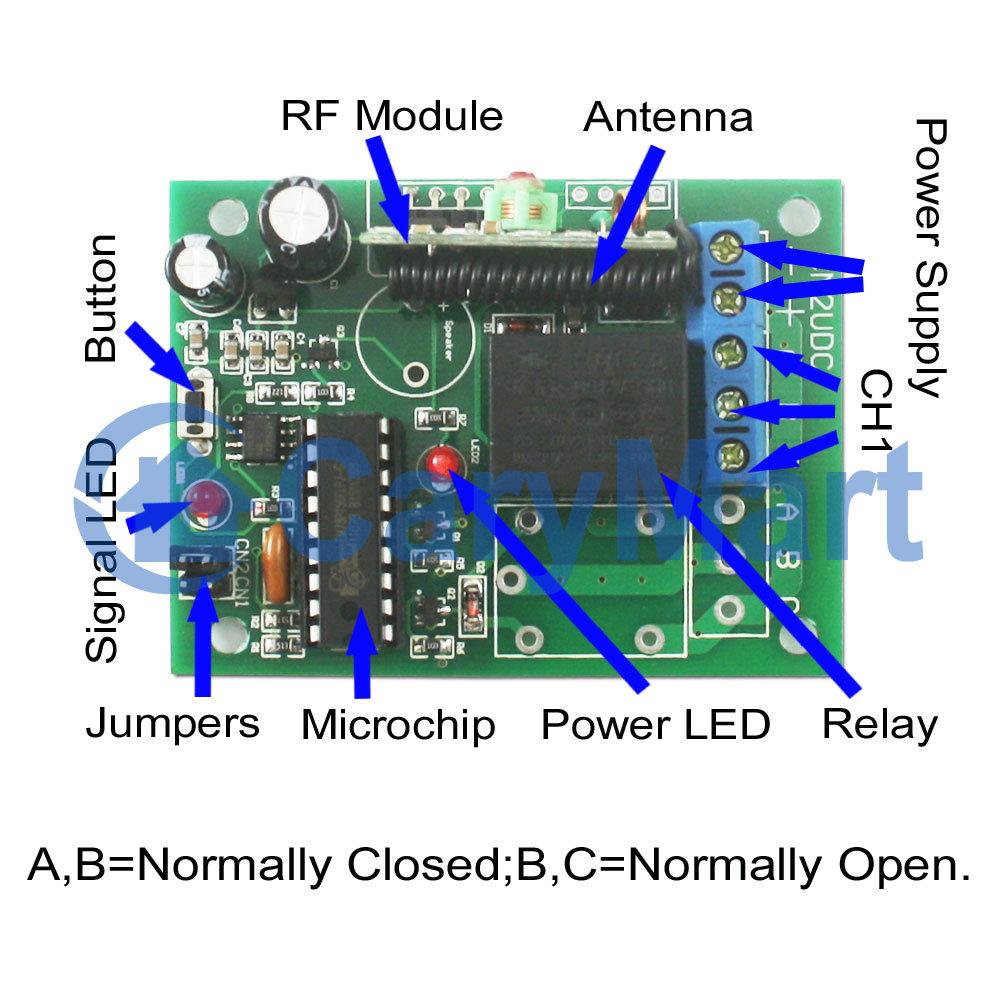

Notice: The receiver is relay output, not DC/AC power output. Initial
state of relay output terminals: Terminals B and C are Normally Open; Terminals
A and B are Normally Closed.

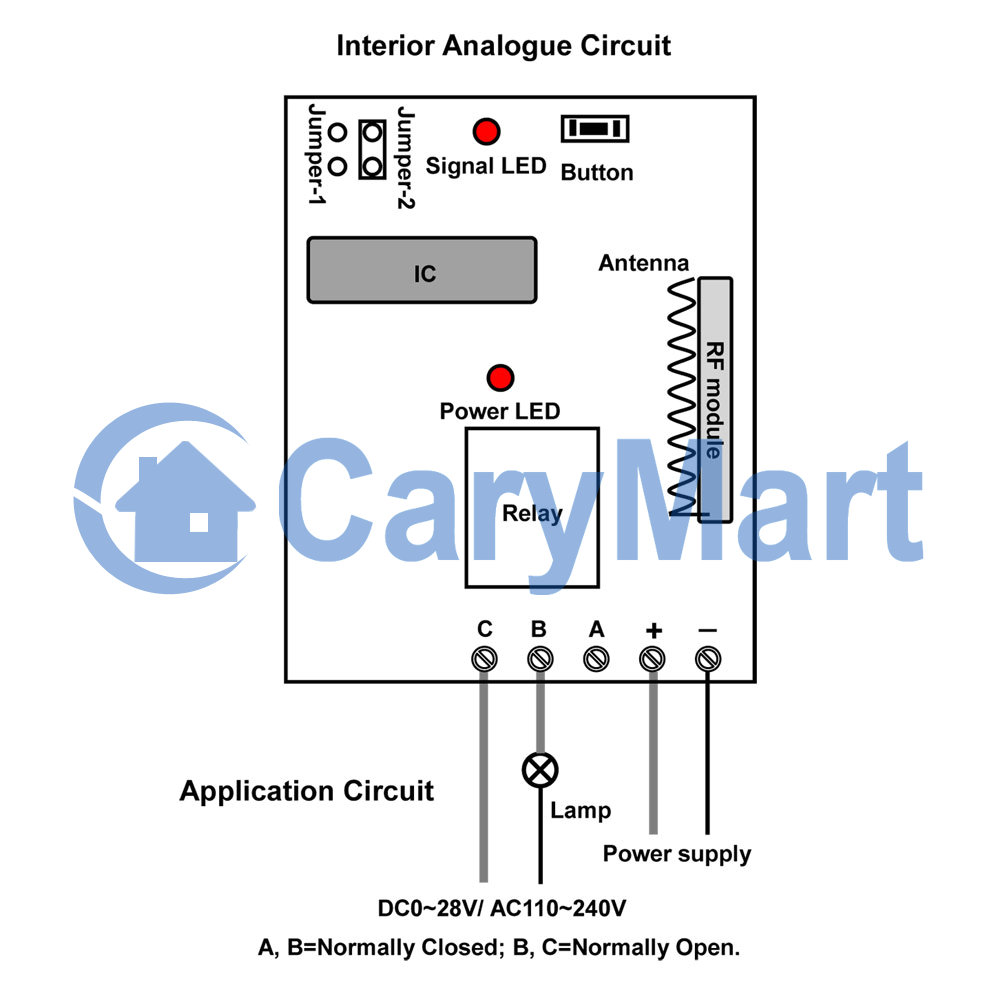

Wiring:
If you want to control a DC 12V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “+” of INPUT,
and connect the negative pole of DC power supply to terminal “-” of INPUT.
2) Connect terminal C to the positive pole of DC power supply, connect terminal
B to the positive pole of DC lamp, and connect the negative pole of DC lamp to
the negative pole of DC power supply.
If you want to control an AC 220V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “+” of INPUT,
and connect the negative pole of DC power supply to terminal “-” of INPUT.
2) Connect terminal C to the live wire of AC power supply, connect terminal
B to one side of AC lamp, and connect another side of AC lamp to the neutral
wire of AC power supply.
Setting
different control modes (We have set the receiver as Self-locking control mode before
delivery. If you want to use other control modes, do as following operation):
Setting
control mode Self-locking: Only connect Jumper-2.
Control
mode Self-locking (with the
transmitter C-1): Press -> On; Press again -> Off.
Press button
of the transmitter: Turn on the
relay (connect B and C, disconnect A and B), the lamp is on.
Press
button of the transmitter again:
Turn off the relay (disconnect B and C, connect A and B), the lamp is off
Setting
control mode Interlocking: Disconnect Jumper-1 and Jumper-2.
Control
mode Interlocking (with the transmitter C-2):
Press -> On, other relays Off; Press another button -> Off.
Press
button 1: Turn on the relay (connect B and C, disconnect A and B), the lamp is
on.
Press
button 2: Turn off the relay (disconnect B and C, connect A and B), the lamp is
off
Function of memory:
When
the relay is on the status of "ON", it will shift to the status of
"OFF" when the power is cut off.
Once the power is restored, the relay will return automatically to the
previous status of "ON".
