Package Include:

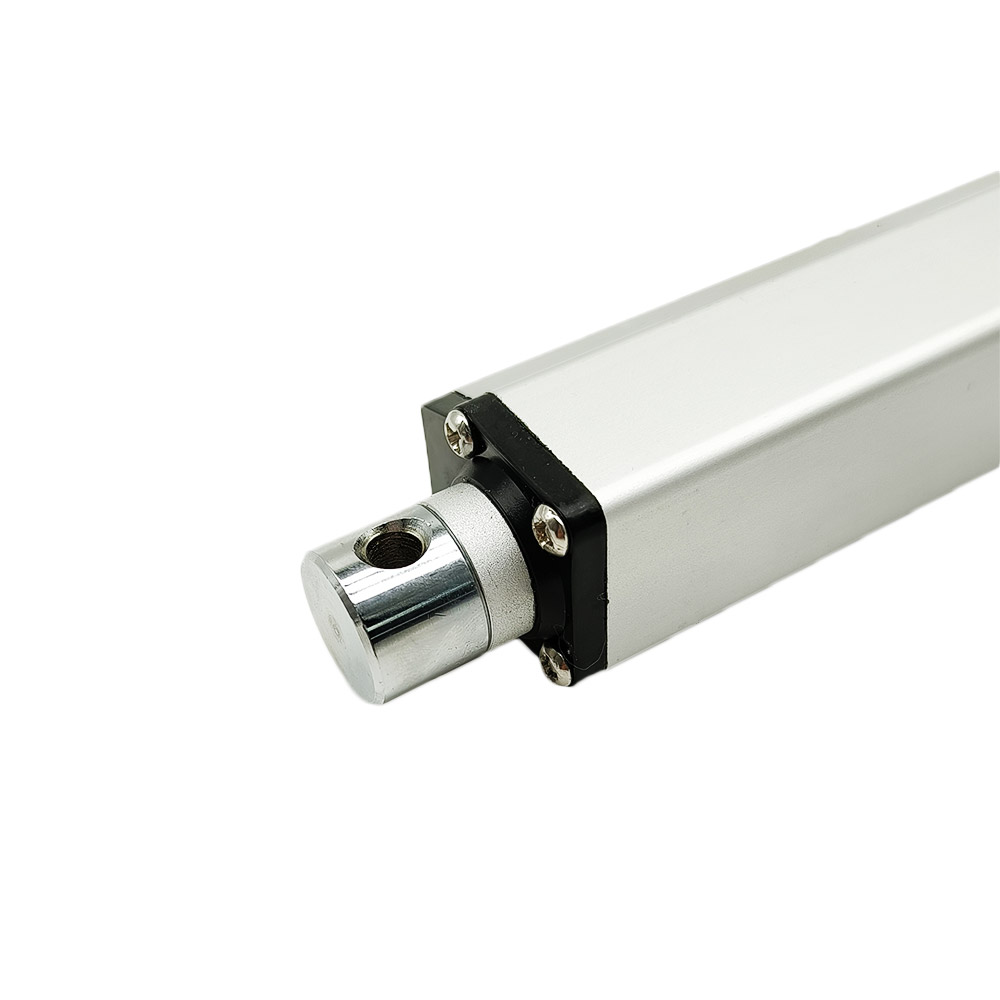

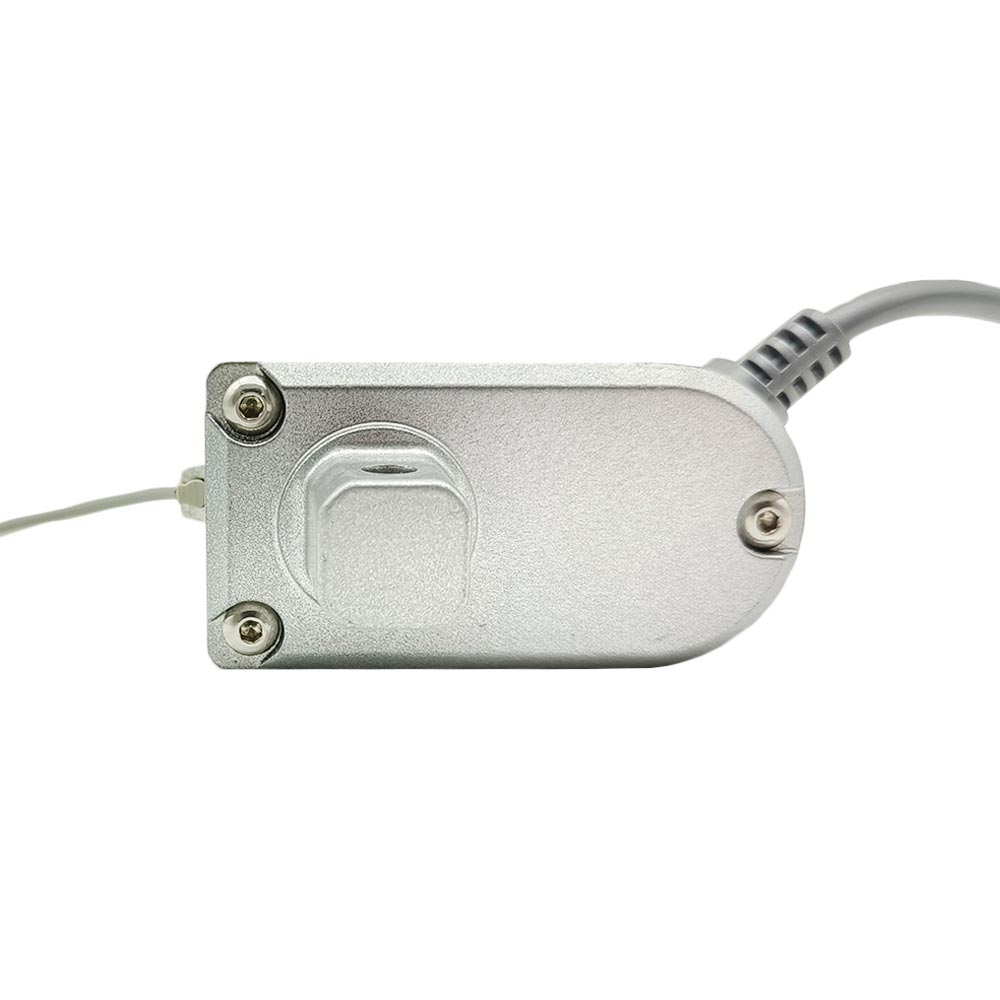

1 x Linear actuator A3

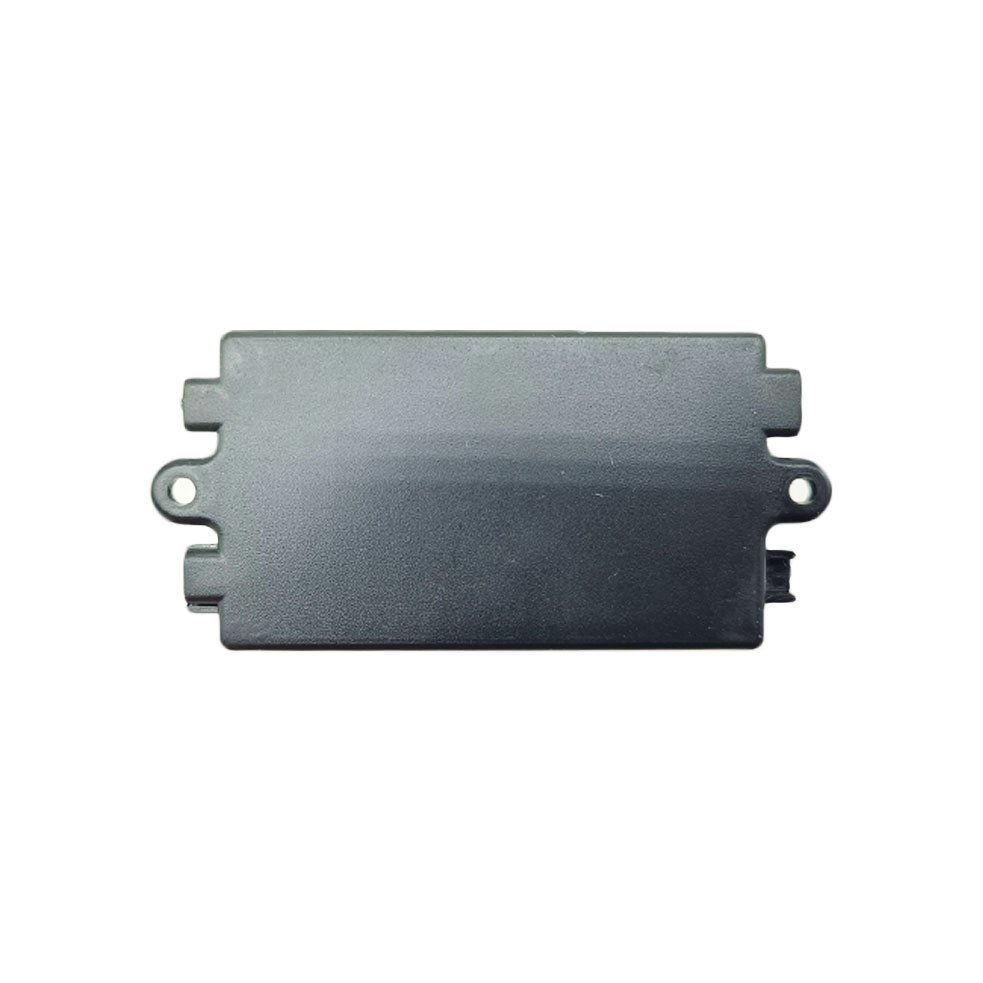

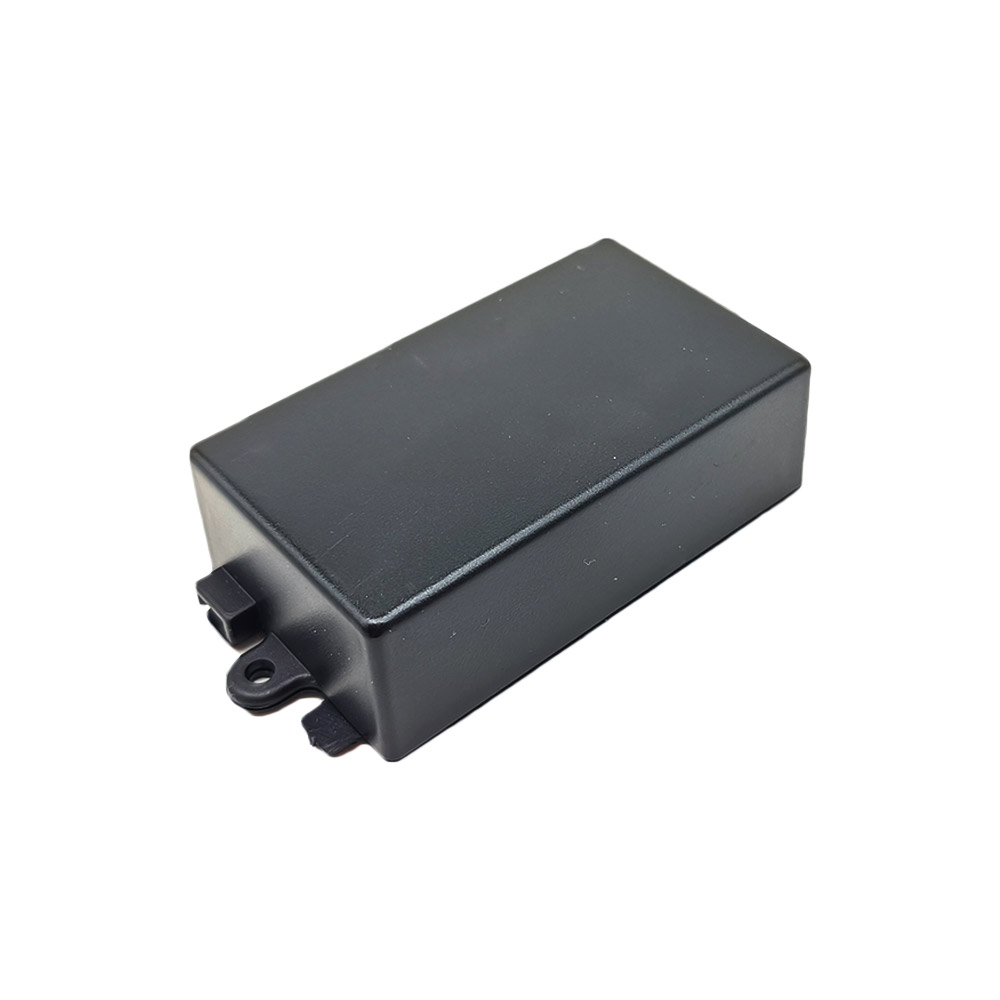

1 x Magnetic switch controller

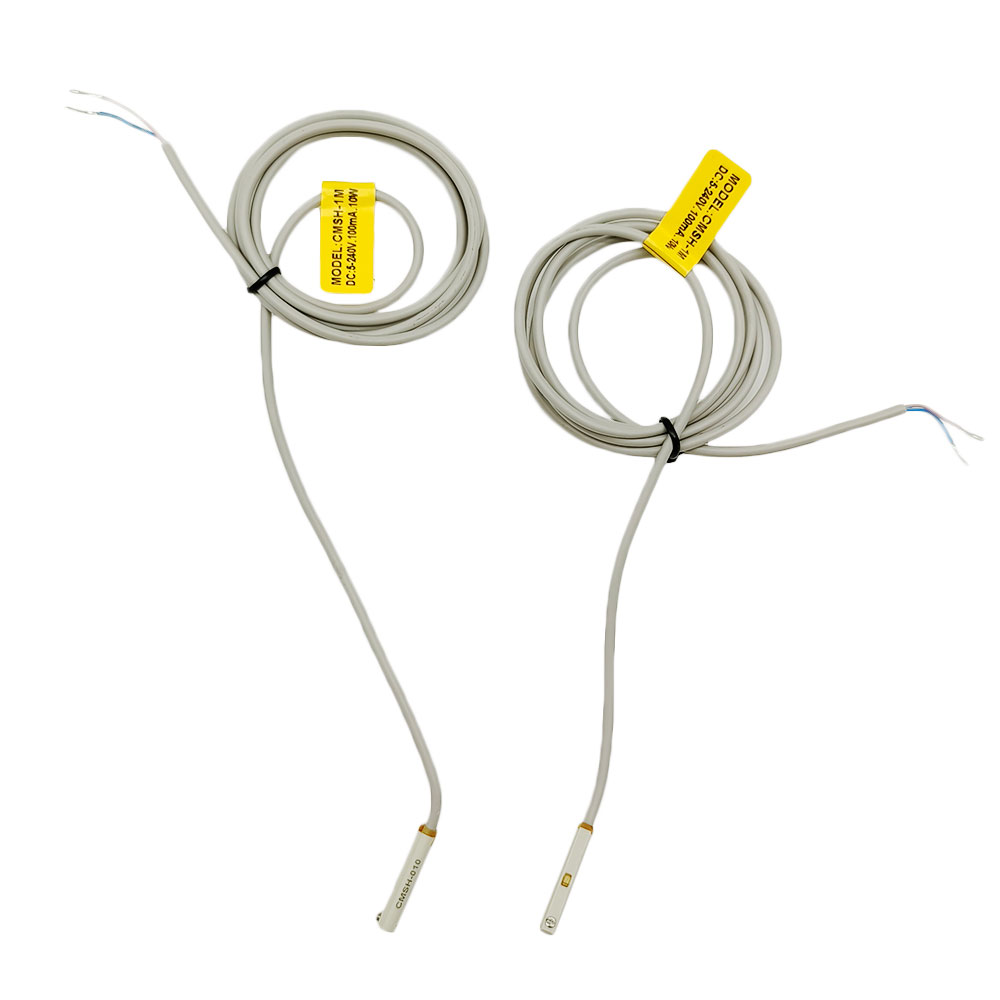

2 x Electronic magnetic switch sensor
1 x User manual
Introduction:

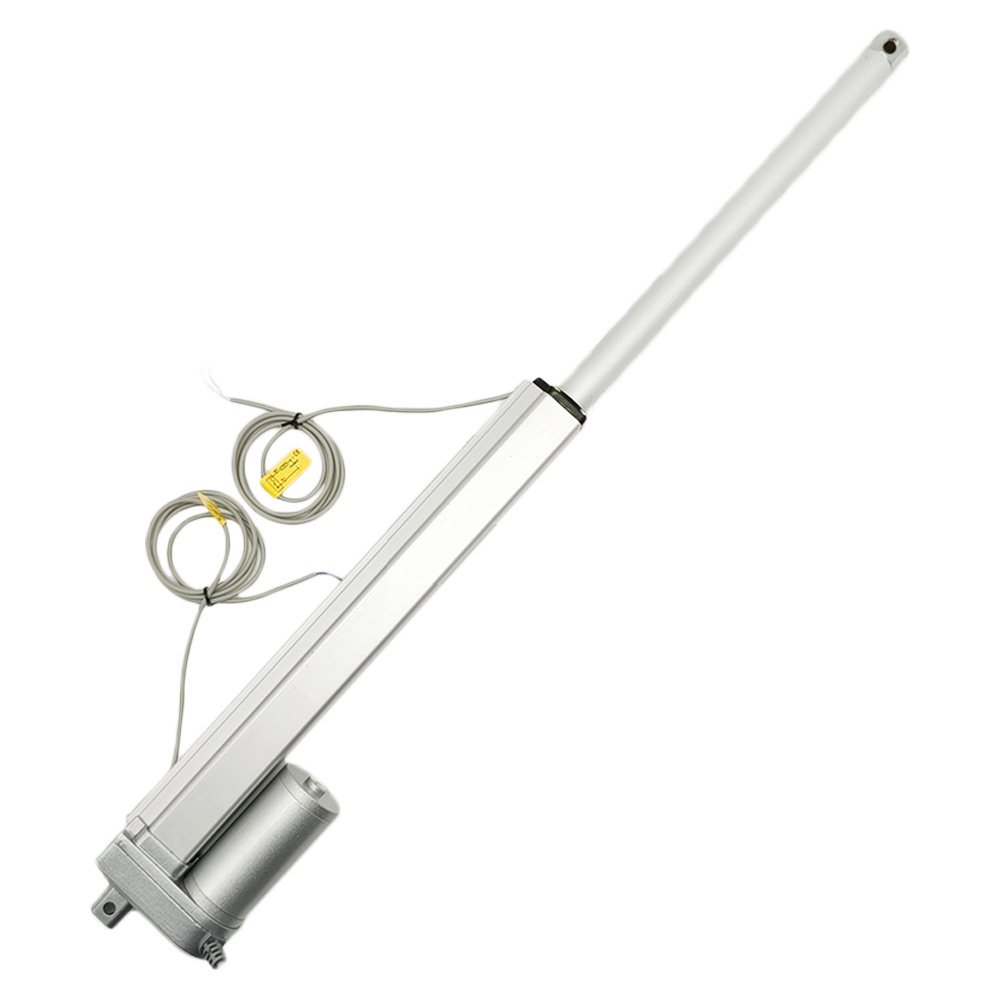

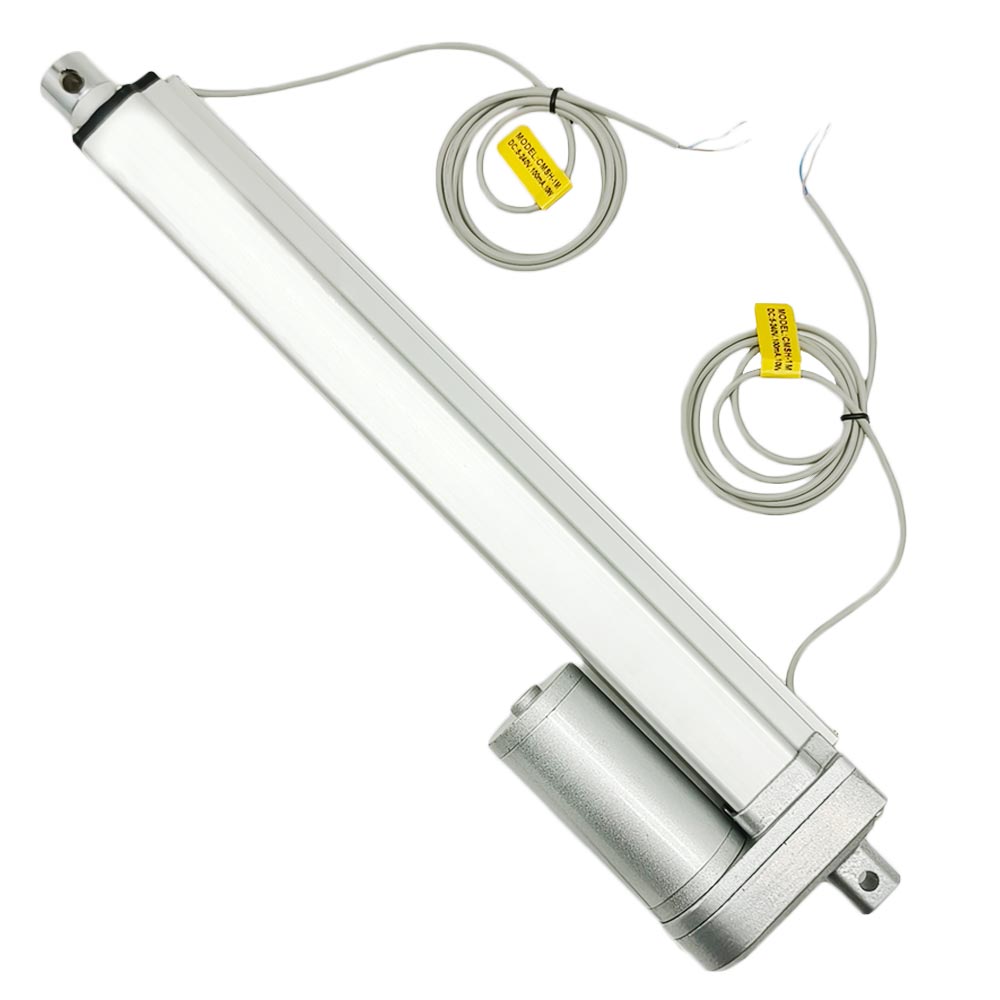

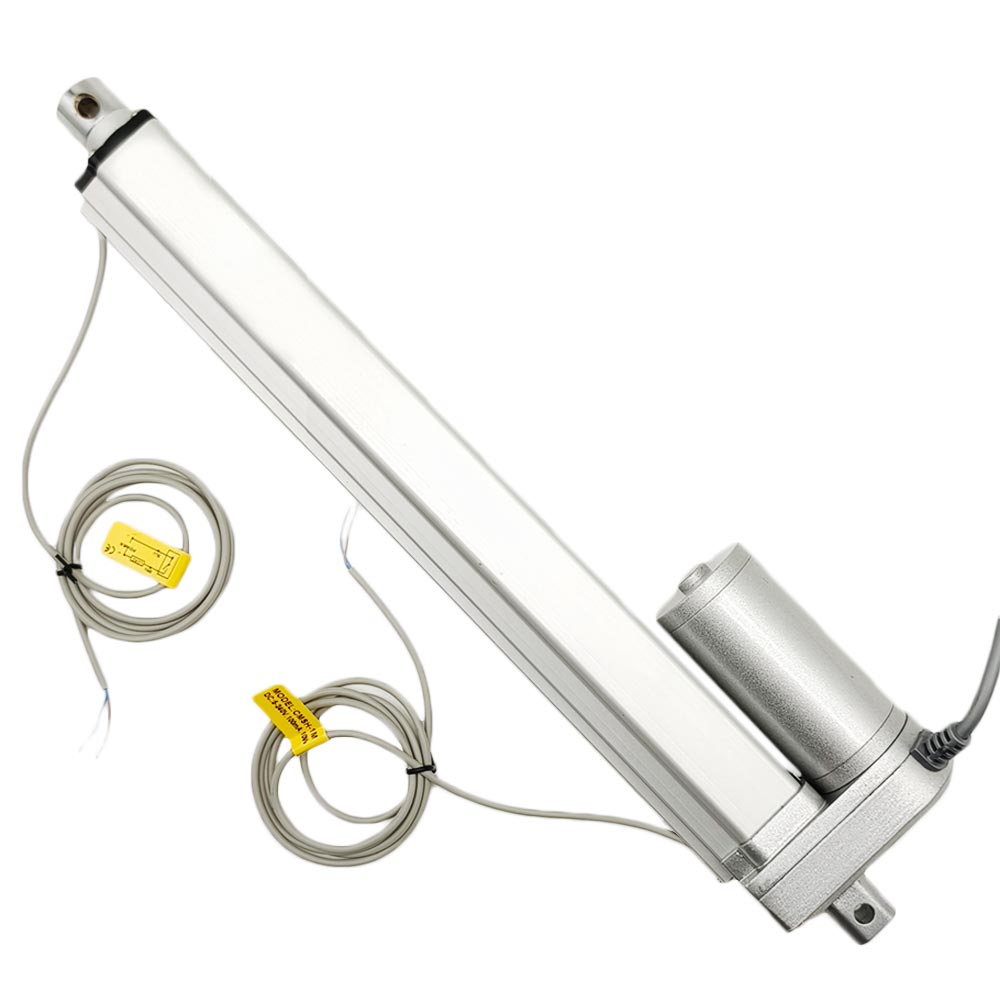

This is a linear actuator with adjustable stroke. It is equipped with two
external magnetic switches that can slide freely, and by adjusting the
position of these two magnetic switches, the linear actuator can be
controlled to work within the set stroke length. For example, for a linear
actuator with a stroke of 500MM, you can set it to move within a stroke
range of 150MM to 400MM.
Application:
Mainly used for doors, windows, cellars, trapdoors, hatchways, solar
tracking system, medical devices, agricultural machinery, vehicles, ships,
elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage
sofas, electric beds, medical chairs, and other electrical equipment. It can
open, close, push, pull, lift, and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.
Feature:
High-quality products and high-quality services
New housing design, high working stability
Metal housing, able to work in very harsh environments.
Metal gearbox, high strength wear-resistant gear
Aluminum alloy telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 2000N / 200 Kgs / 450 lbs.
Multiple speed options, from 5 mm/second to 160 mm/second
Multiple stroke options, from 10 mm to 1000 mm
We can customize any stroke length from 10mm to 1000mm, such as 225mm,
660mm, 950mm and so on.
Advanced waterproof and dustproof technology
Low power consumption and low noise

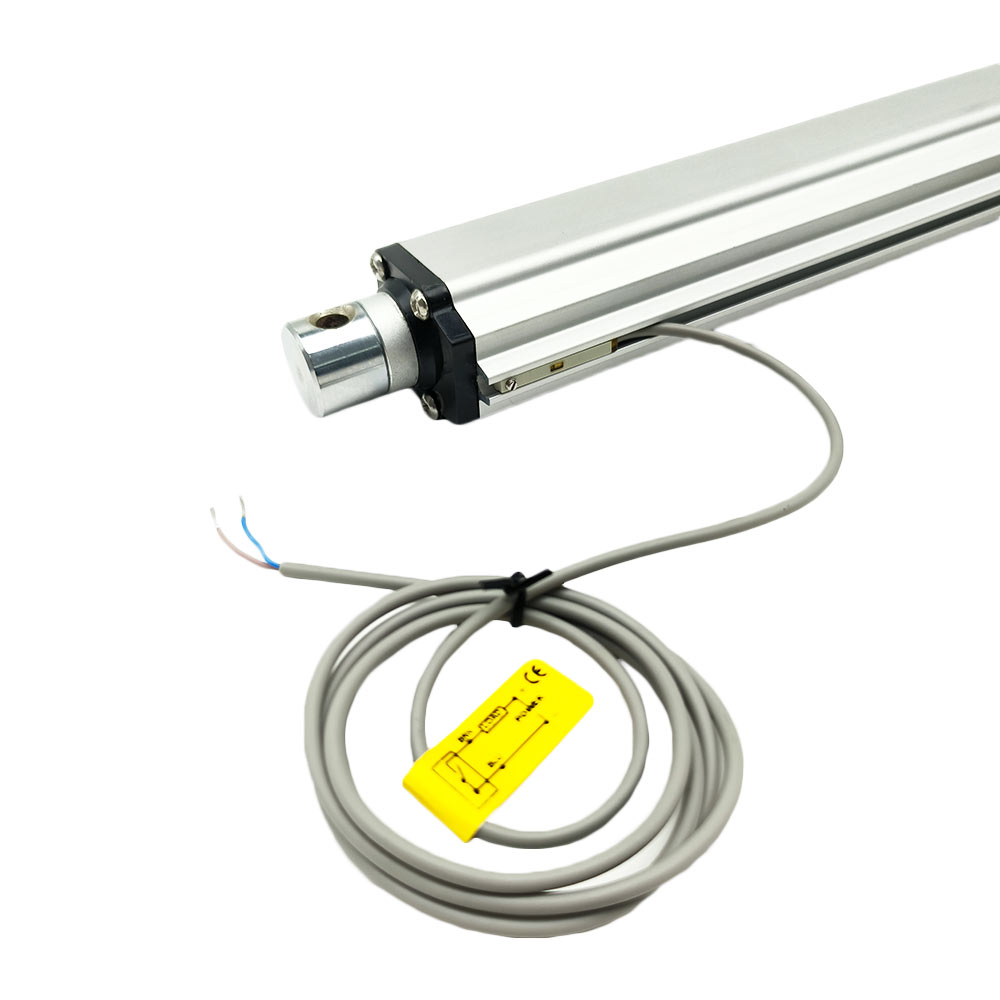

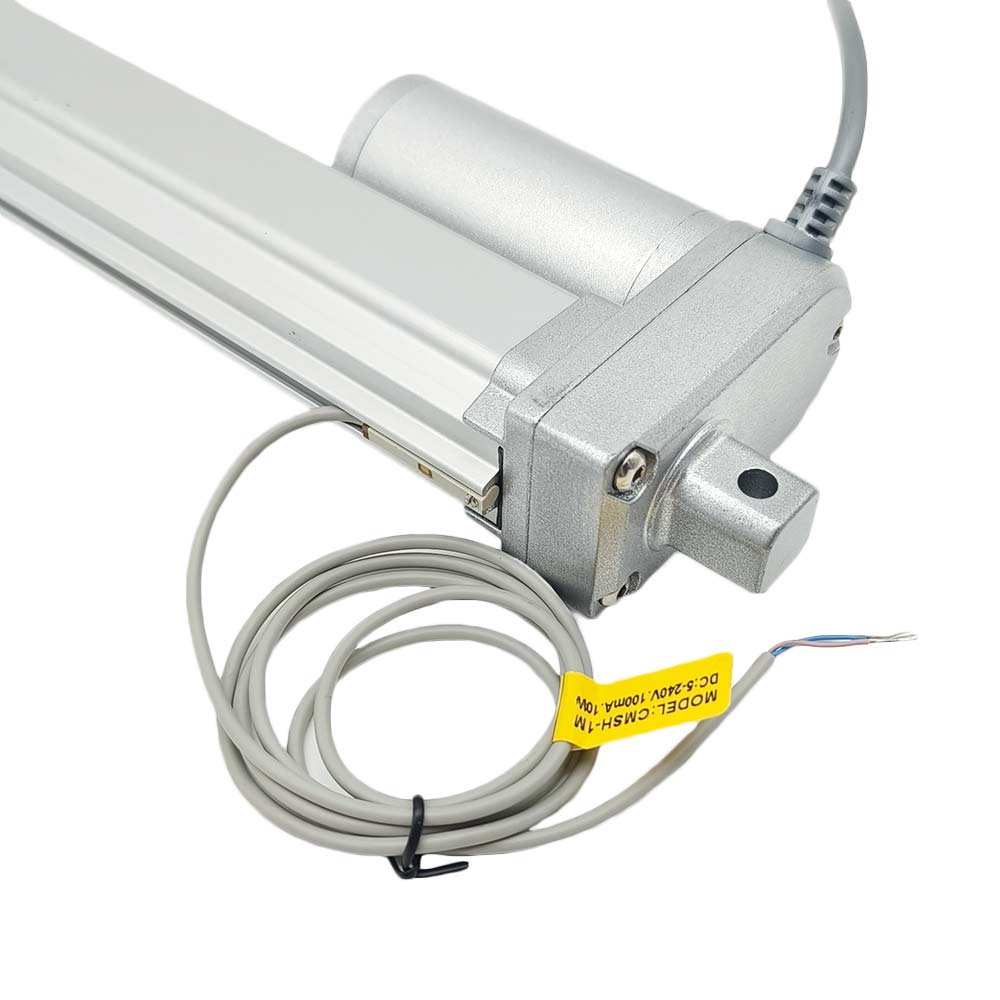

Equipped with two external magnetic switches that can slide freely, by
adjusting the position of these two magnetic switches, the linear actuator
can be controlled to work within the set stroke length.

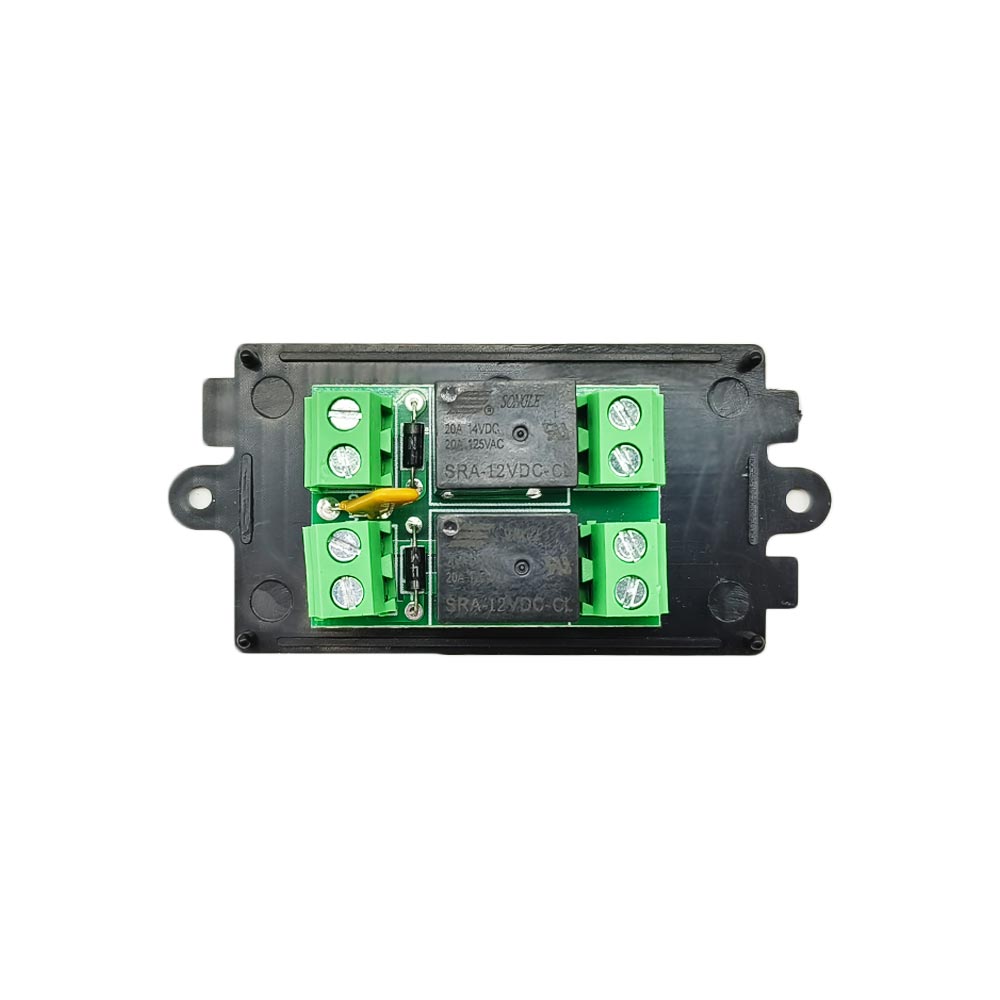

External magnetic switches need to be used in conjunction with the magnetic
switch controller.
Built-in two limit switches, linear actuator will automatically stop when
stroke rod reaches the limit position.
Automatically lock after stopping, and no power supply is required.
Maintenance-free
Specifications:

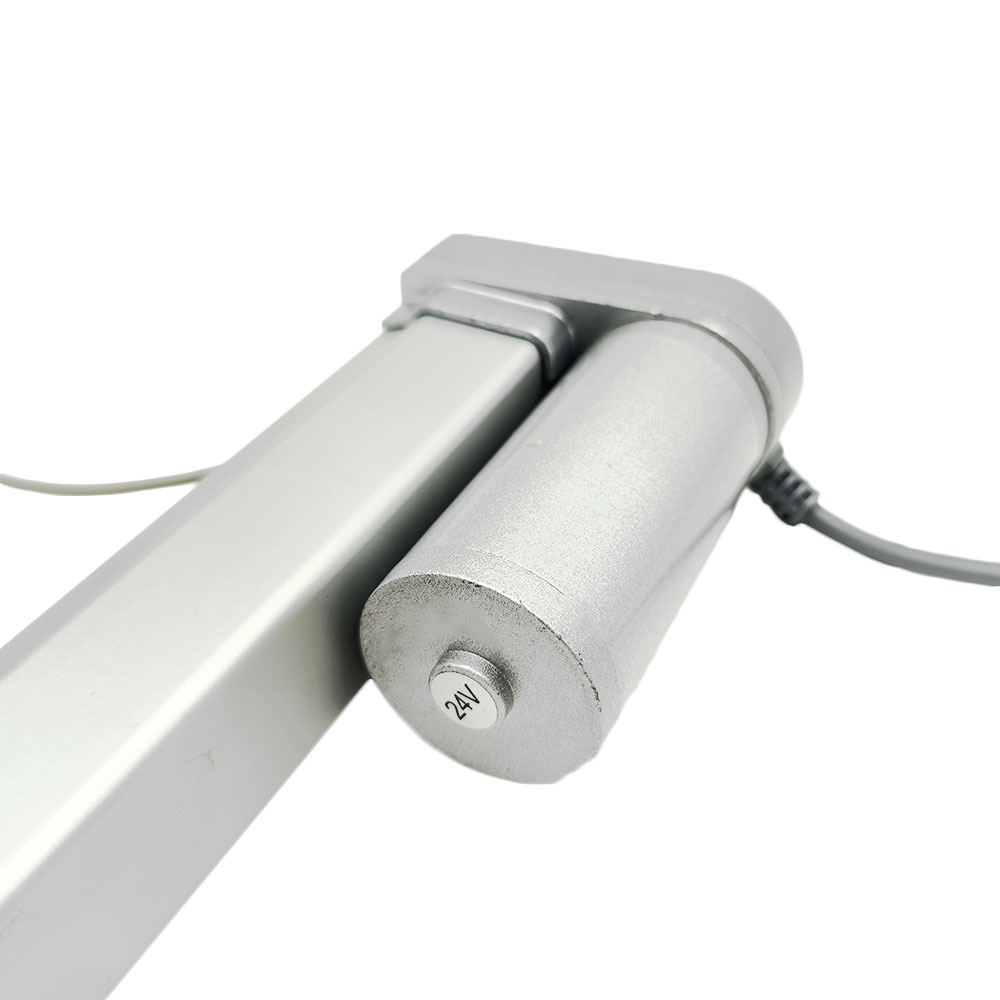

Optional working voltage: DC 12V or DC 24V. Unless you only have 12V power
supply available, we recommend you choose the linear actuator with 24V
working voltage.
Stroke range: 10 inches or 250 mm
Optional speed: 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 30±5mm/s, 50±10mm/s,
100±15mm/s, 160±20mm/s
The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases.
Max load capacity: 2000N / 200 Kgs / 450 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the
vertical direction, and the pulling force is less than pushing force.
No-load current: 0.5~1A at 12V or 0.3~0.5A at 24V
Full load current: 3~6A at 12V or 1.5~3A at 24V
Please use a 12V/6A or 24V/3A power supply to power a linear actuator or use
a 12V/10A or 24V/5A power supply to power two linear actuators, or use a
12V/20A or 24V/10A power supply to power four linear actuators.

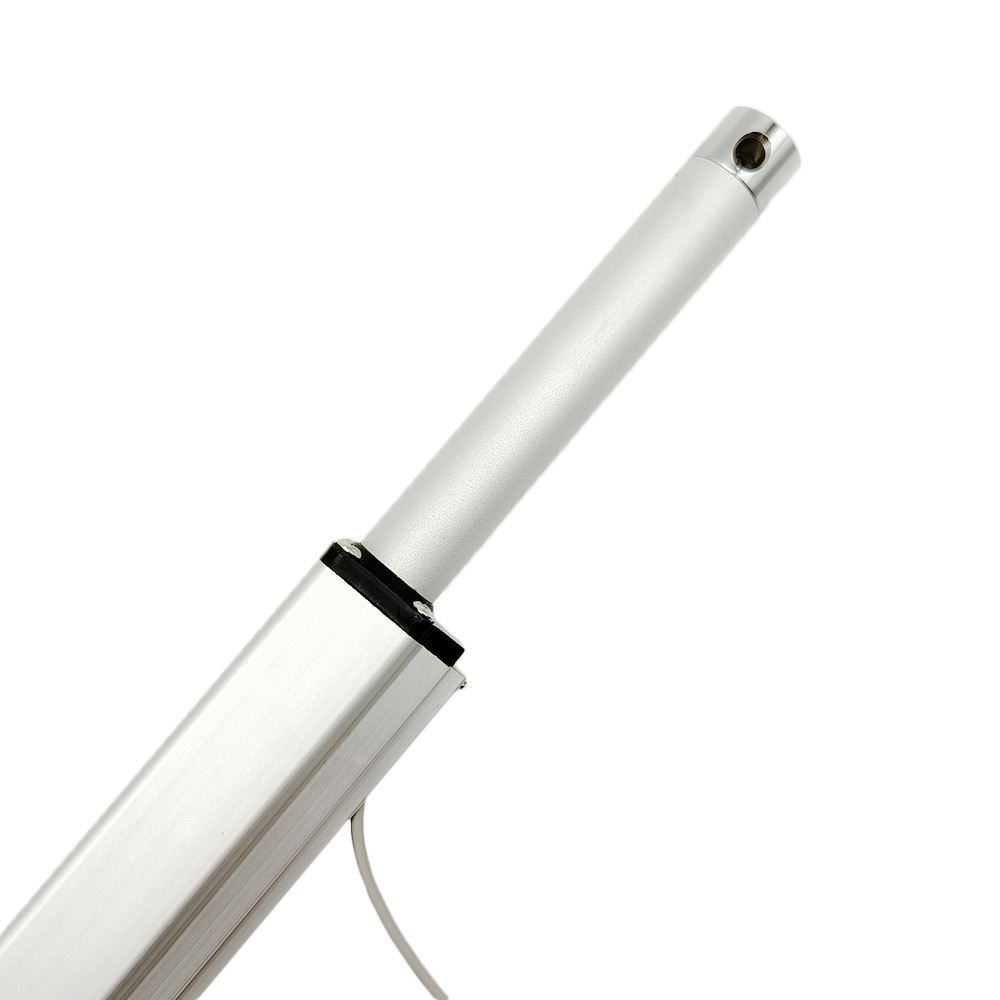

Shaft diameter: 20mm
Mounting holes diameter: 6mm
Housing material: Aluminum Alloy
Stroke rod material: Aluminum Alloy
Gear material: Steel Alloy
Motor type: Brushed DC Motor
Duty cycle: 20%, max 5mins continuous use
Power cable: Ordinary Two-core Wire
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating noise: about 46dB~56dB (Linear actuators with different parameters
will have different noise levels.)
IP rating: IP65

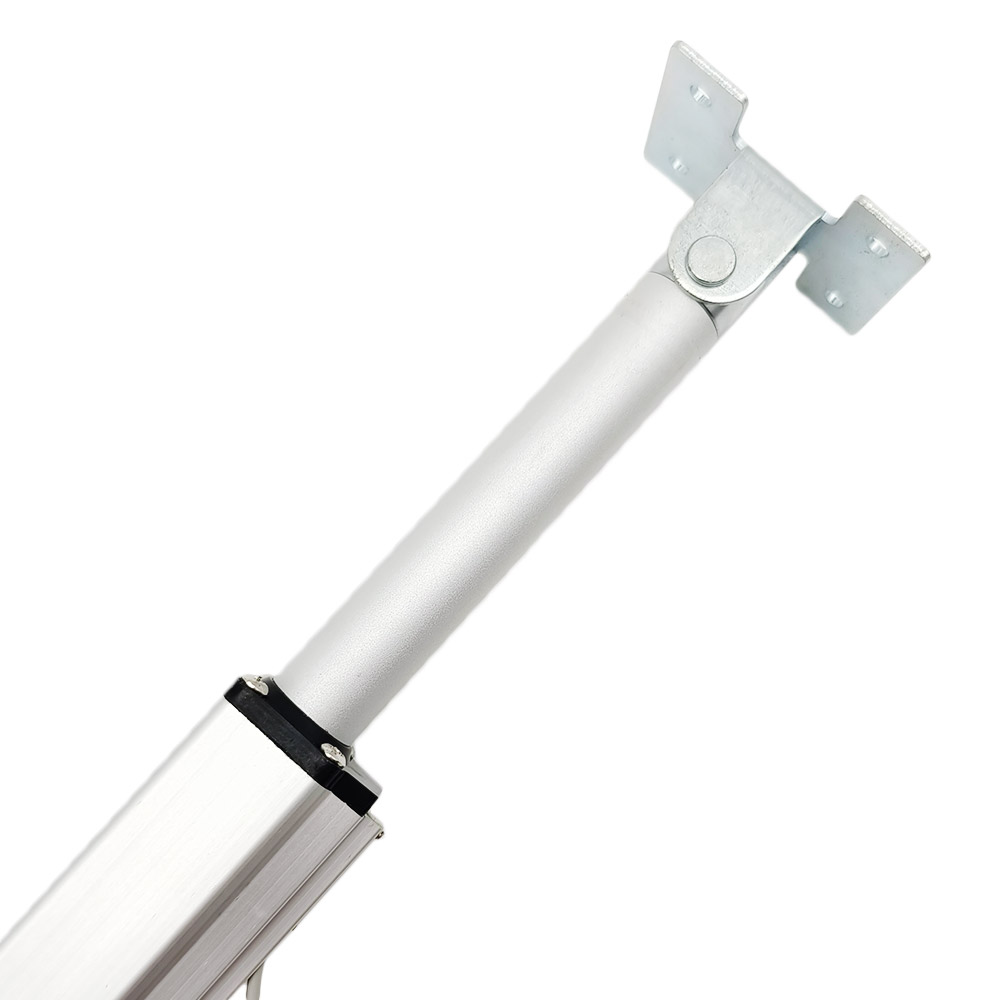

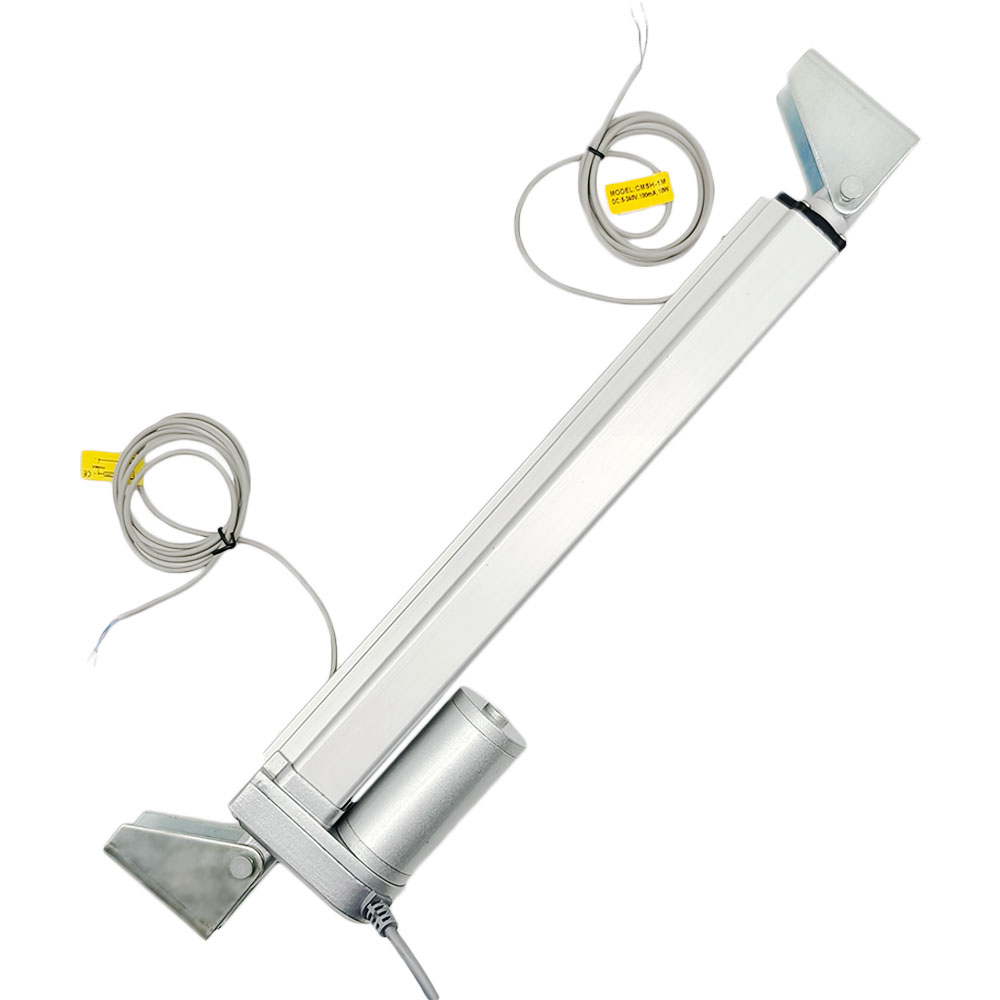

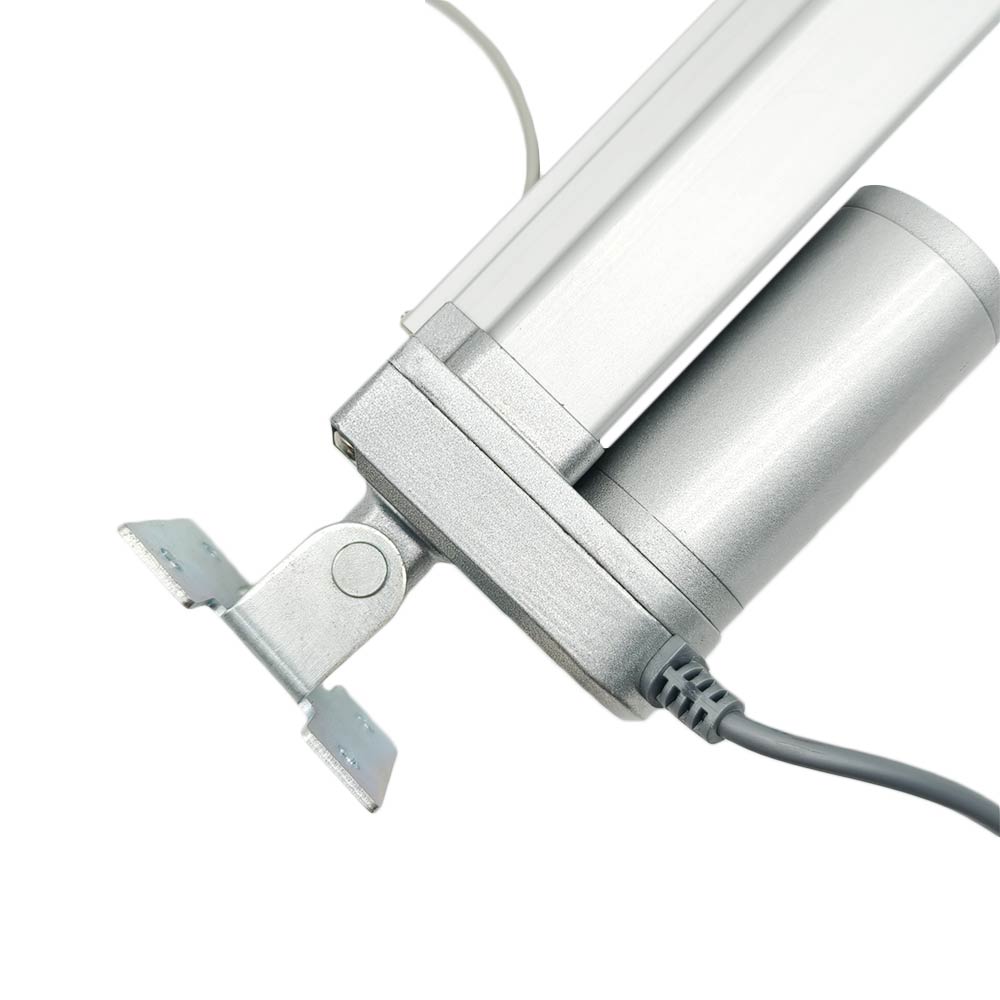

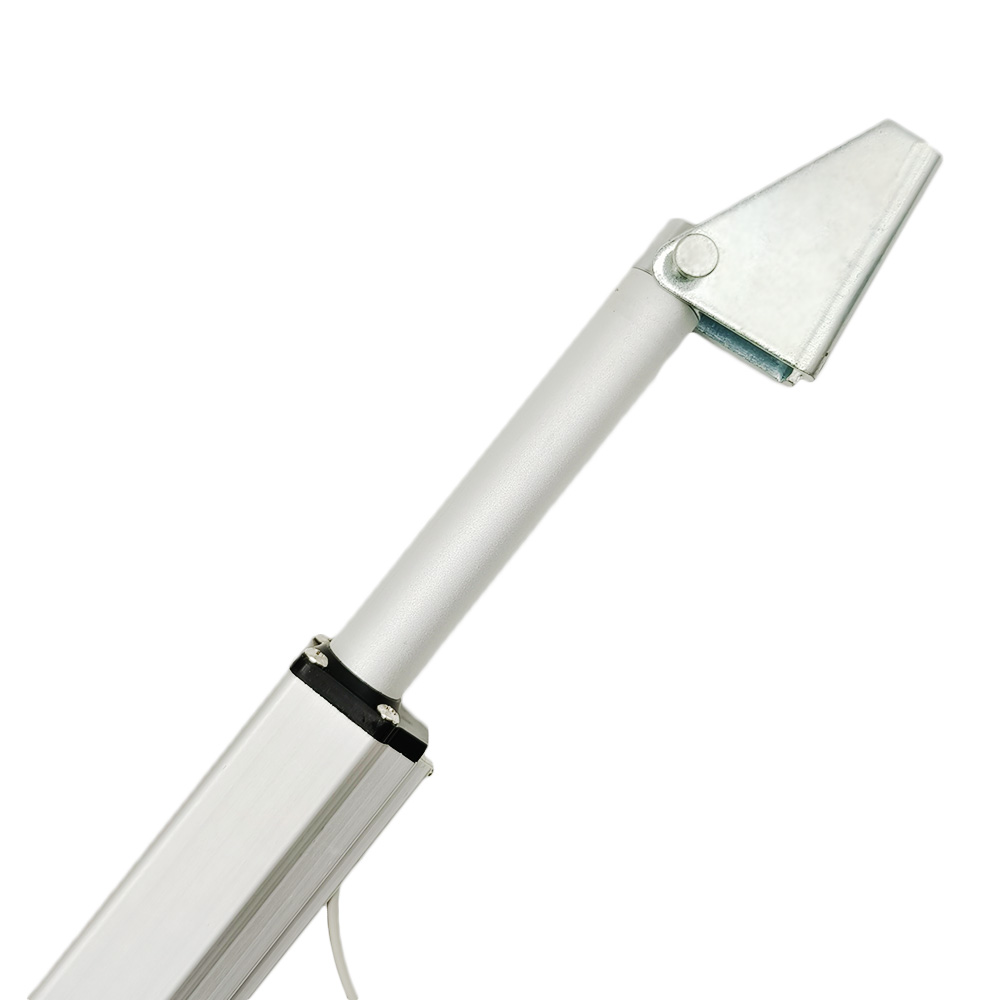

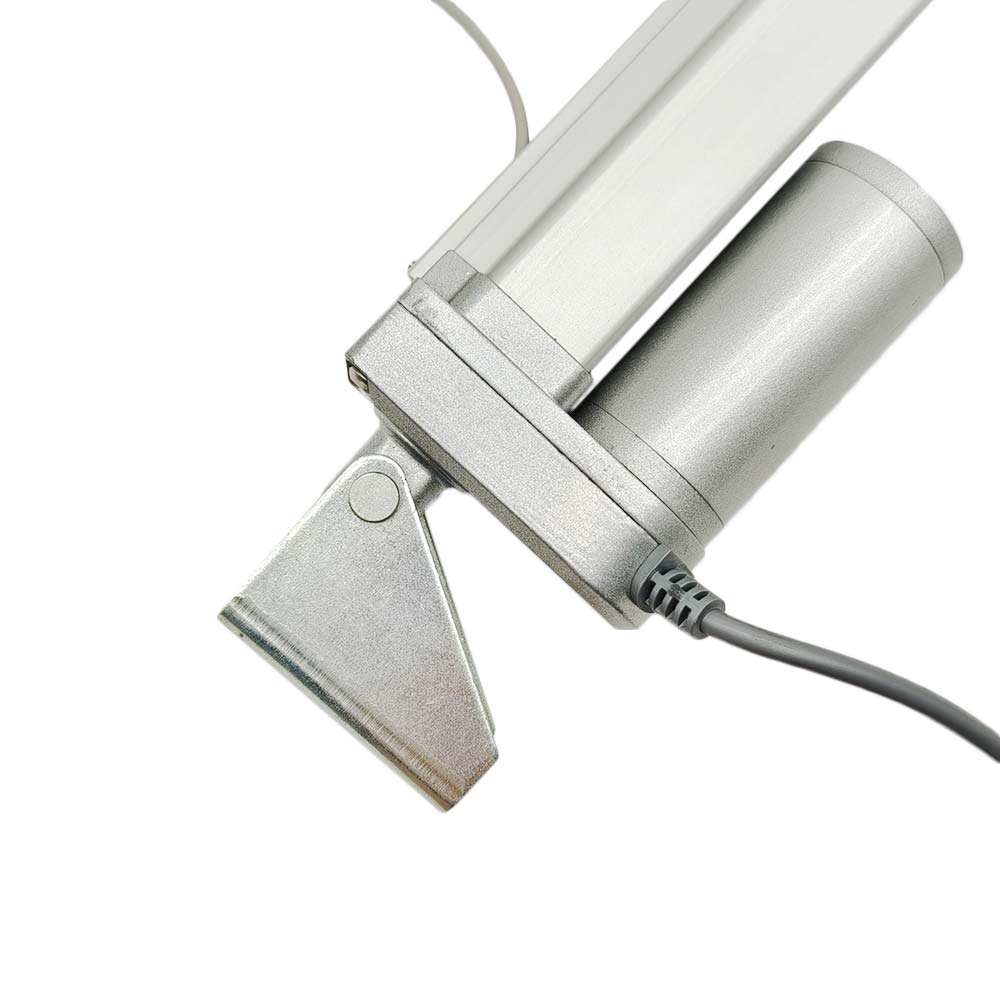

Fixed Bracket:
1. This linear actuator does not contain fixed mounting brackets, please
click
here
to purchase.

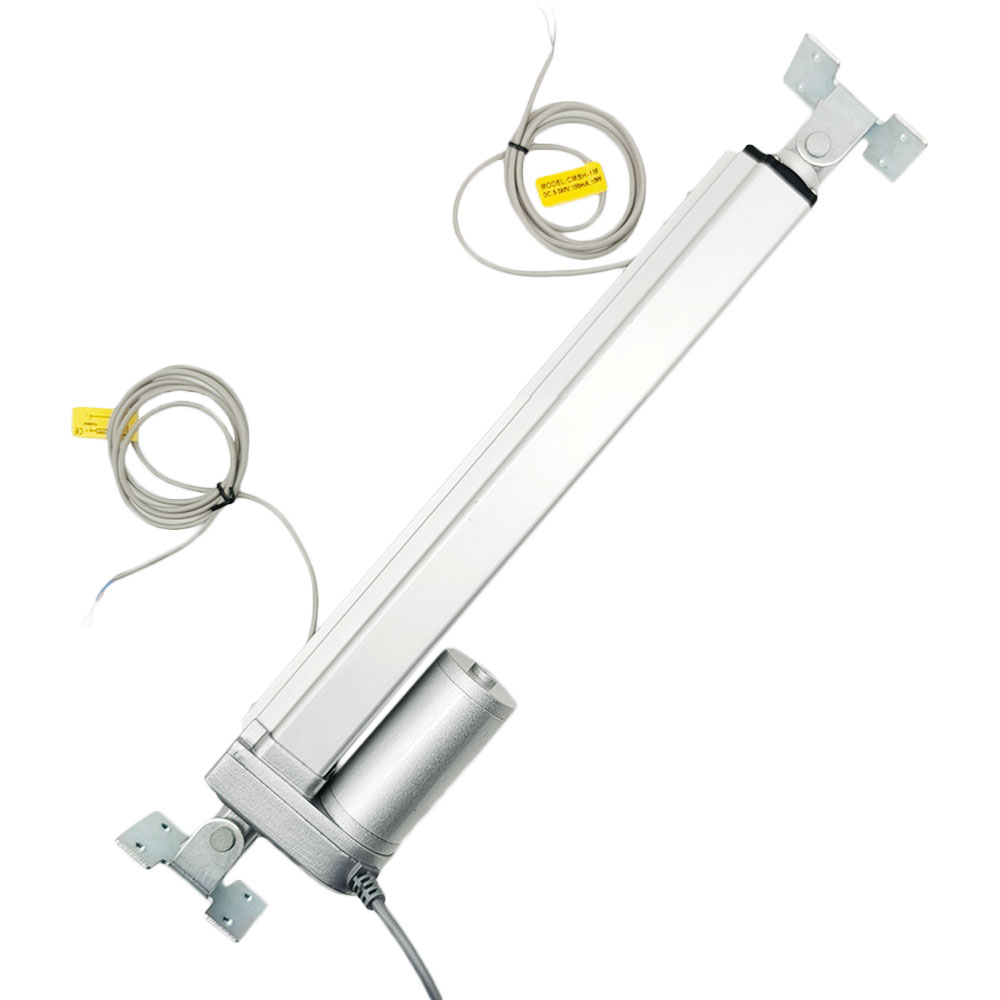

2. Each linear actuator would require two mounting brackets, one to fix the
head of linear actuator and another to fix the bottom of linear actuator.
3. Compatible Mounting Brackets:
Bracket A
and
Bracket C
.
Note:
1. If you want to control 2 or 4 linear actuators fully synchronously, you
need to add built-in hall effect sensor to each linear actuator, and buy a
synchronization controller, please click
here
to purchase.
2. If you need a power supply to power linear actuator, please click
here
to purchase.
3. If you want to use a remote control switch to operate linear actuator
wirelessly, please click
here
to purchase.
Different no-load speeds and corresponding maximum thrust:
No-load Speed
Maximum Thrust
5mm/s
2000N / 200 kg / 450 lbs
10mm/s
1000N / 100 kg / 200 lbs
15mm/s
800N / 80 kg / 180 lbs
20mm/s
700N / 70 kg / 160 lbs
30mm/s
500N / 50 kg / 110 lbs
50mm/s
300N / 30 kg / 60 lbs
100mm/s
150N / 15 kg / 30 lbs
160mm/s
100N / 10 kg / 20 lbs
Note:
1. The above data is the maximum load capacity that can be obtained when the
linear actuator runs in the vertical direction. If the weight of your
equipment (such as a cellar door) is 100kg, and you want to use a linear
actuator to open this door, you need to calculate the actual force acting on
the linear actuator according to your installation method. This force is
usually 2-5 times the weight of the cellar door. If you don't know how to
calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases. Full load speed is approximately
60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the
right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under
maximum load, we recommend letting it work at about half of the maximum load
to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not
normally allow them to operate at their maximum stroke under heavy loads. If
the actual stroke you want is 600MM, we recommend that you choose a linear
actuator with a stroke of 700-800MM.
6. When the speed of the linear actuator is 100mm/s or 160mm/s, the
self-locking force is much smaller than the thrust. At other speeds the
self-locking force is greater than the thrust.
7. The maximum pull force of the linear actuator is slightly less than its
maximum thrust force.

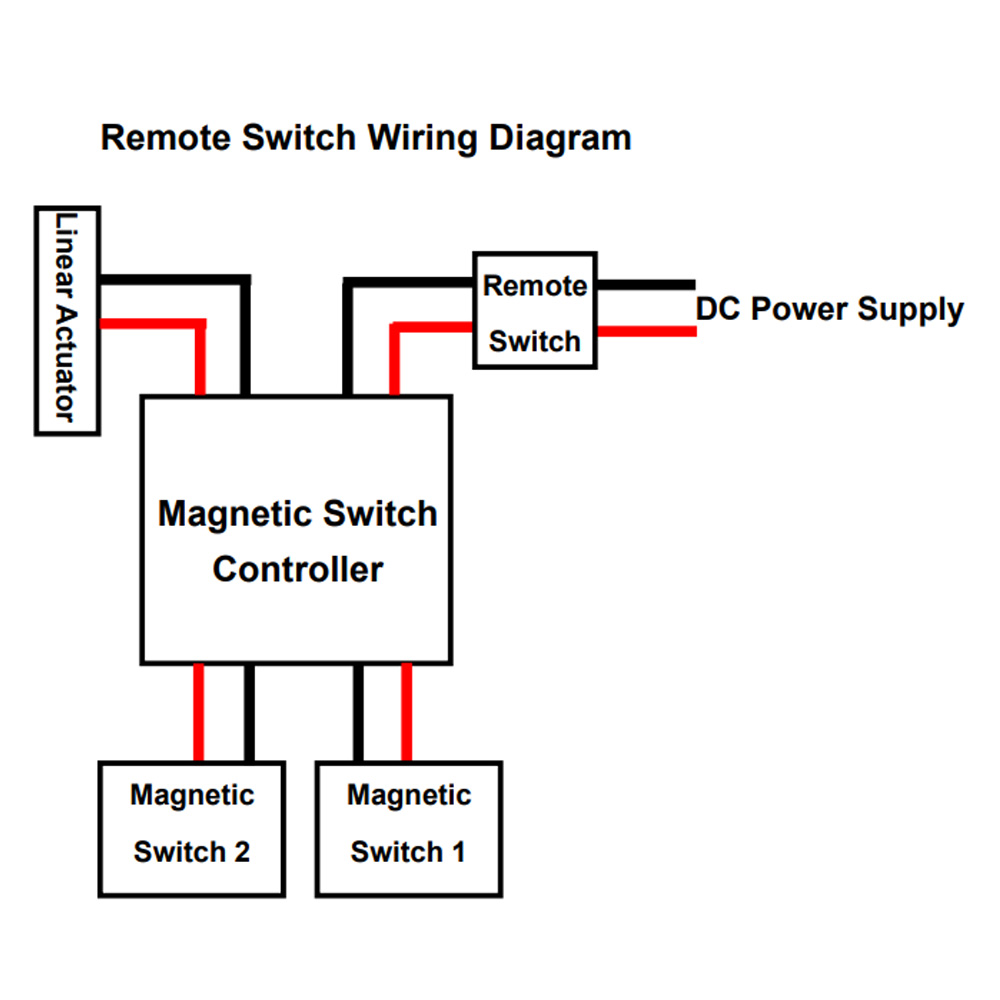

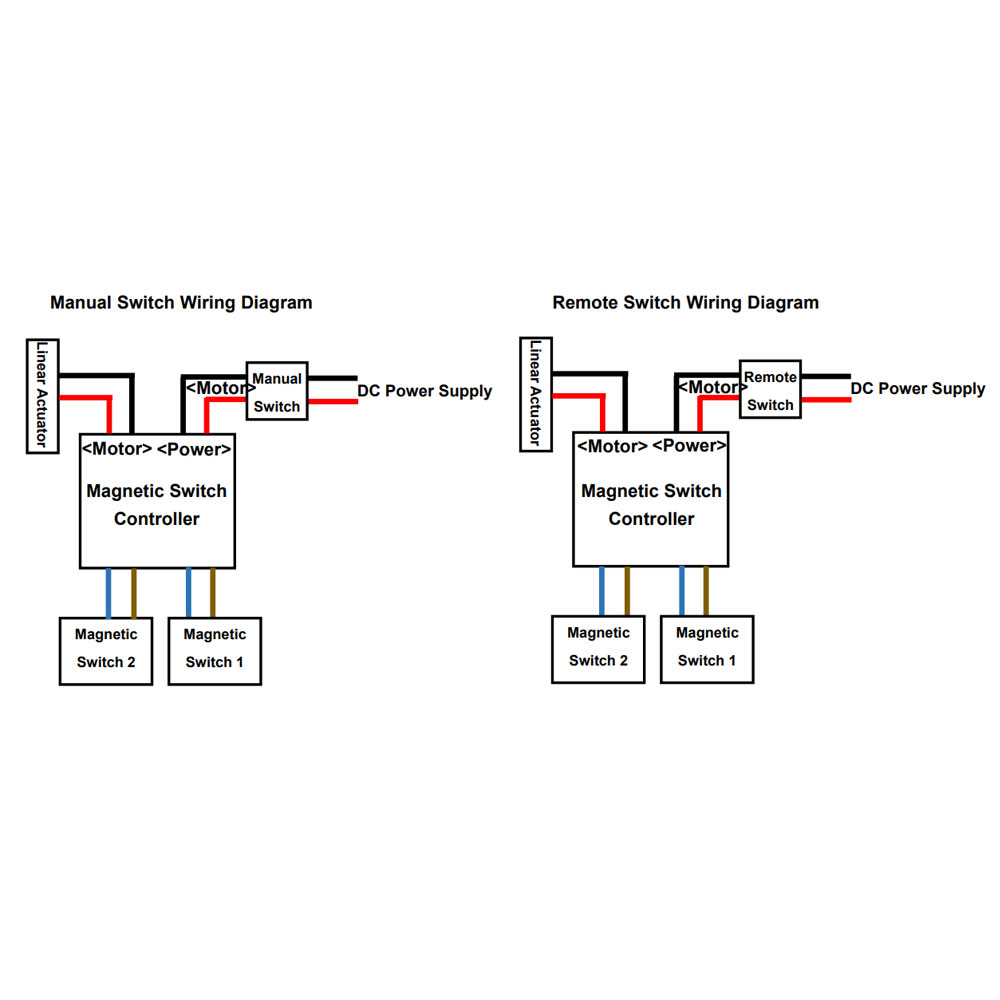

Wiring:
You need to connect a manual switch or a remote switch to operate the linear
actuator.
1) Connect two wires of DC power supply to two terminals of the
manual switch or remote switch.

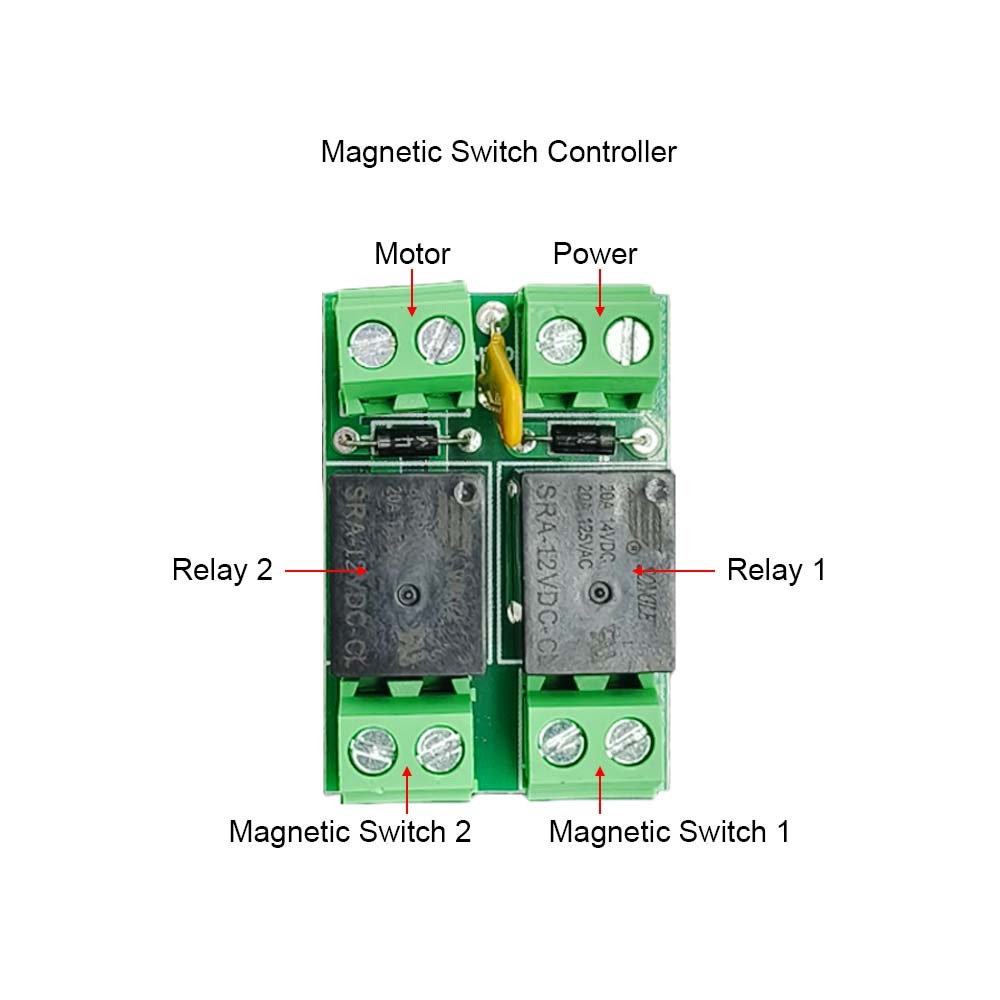

2) Connect two terminals of the magnetic switch controller to two
terminals of the manual switch or remote switch.
3) Connect two wires of linear actuator to two terminals of the
magnetic switch controller, and you can exchange these two wires to change
the moving direction of linear actuator.
4) Connecting two wires of a magnetic switch to two terminals of the magnetic switch controller and connect two wires of another
magnetic switch to two terminals < Magnetic Switch 2> of the magnetic switch
controller. Note: The two wires of the magnetic switch cannot be connected reversely, please follow the connection diagram below for specific wiring.
Operation:
1.The operation by the manual switch:
Press and hold the button on the manual switch: linear actuator extends
outward, when it moves to the position of a magnetic switch, the linear
actuator will automatically stop.
Press and hold the button on the manual switch: linear actuator
inward retracts, when it moves to the position of another magnetic switch,
the linear actuator will automatically stop.
2. The operation by the remote switch:
Press and hold the button ▲ on the remote: linear actuator extends outward,
when it moves to the position of a magnetic switch, the linear actuator will
automatically stop.
Press and hold the button ▼ on the remote: linear actuator inward retracts,
when it moves to the position of another magnetic switch, the linear
actuator will automatically stop.
How to adjust the position of the magnetic switch:
You can use a small screwdriver to loosen the fixing screw of the magnetic
switch, then move the magnetic switch to a suitable position and tighten the
fixing screw again.
Note: If the positions of the two magnetic switches
are reversed, please swap their positions.
Production time:
The linear actuators are the customized products, and these products are not in stock, we need to spend 3~7 working days to produce them according to the specified parameters in your order.
Return or Exchange:
The Linear Actuators are the customized products, we need to produce them
according to the specified parameters in your order, so that we do not
accept returns or cancel orders. If customers order unsuitable linear
actuators themselves, we also do not accept exchanges, please understand.
We can provide 3D CAD model files in STEP format for linear actuators.
Please contact us by e-mail if you need them.
