Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with AC110~240V or DC0~28V.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
Adopt singlechip technology to build millions of code.

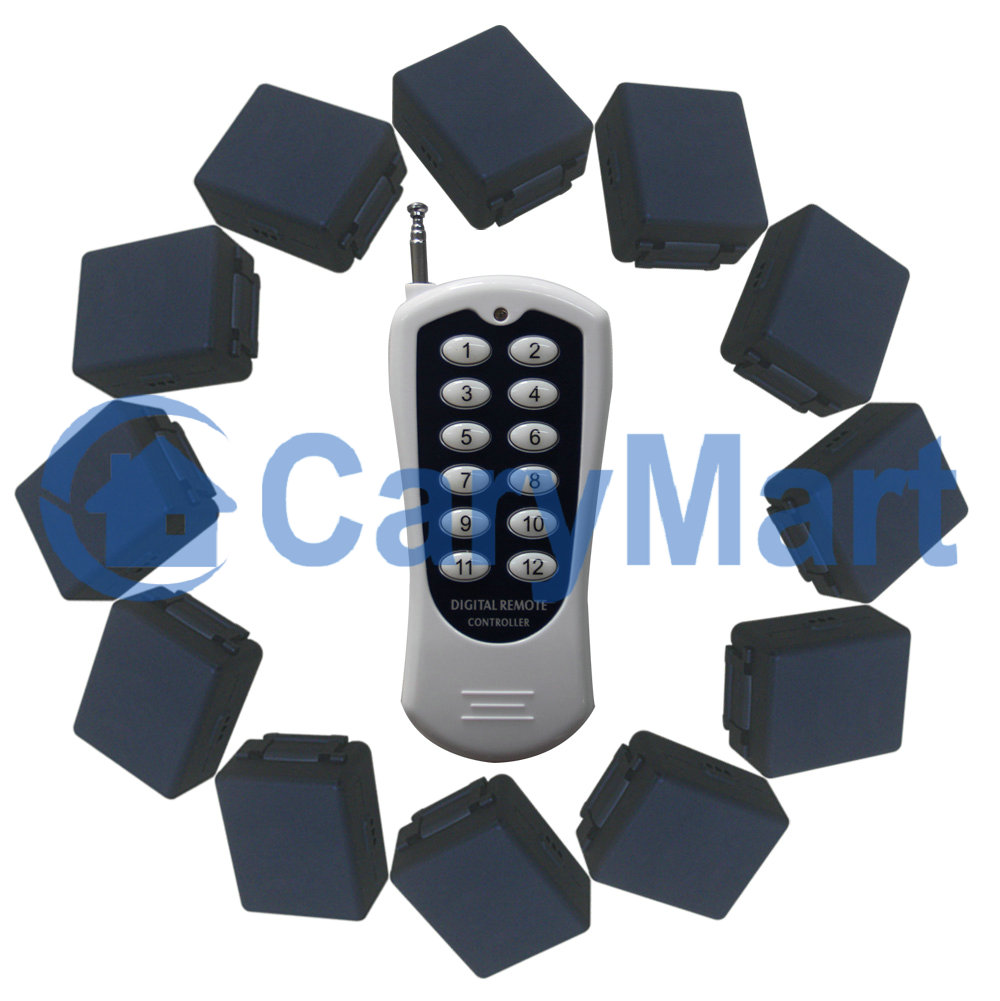

Two or more transmitter & receivers set can be used in the same place.
Transmitting Frequency: 433MHz

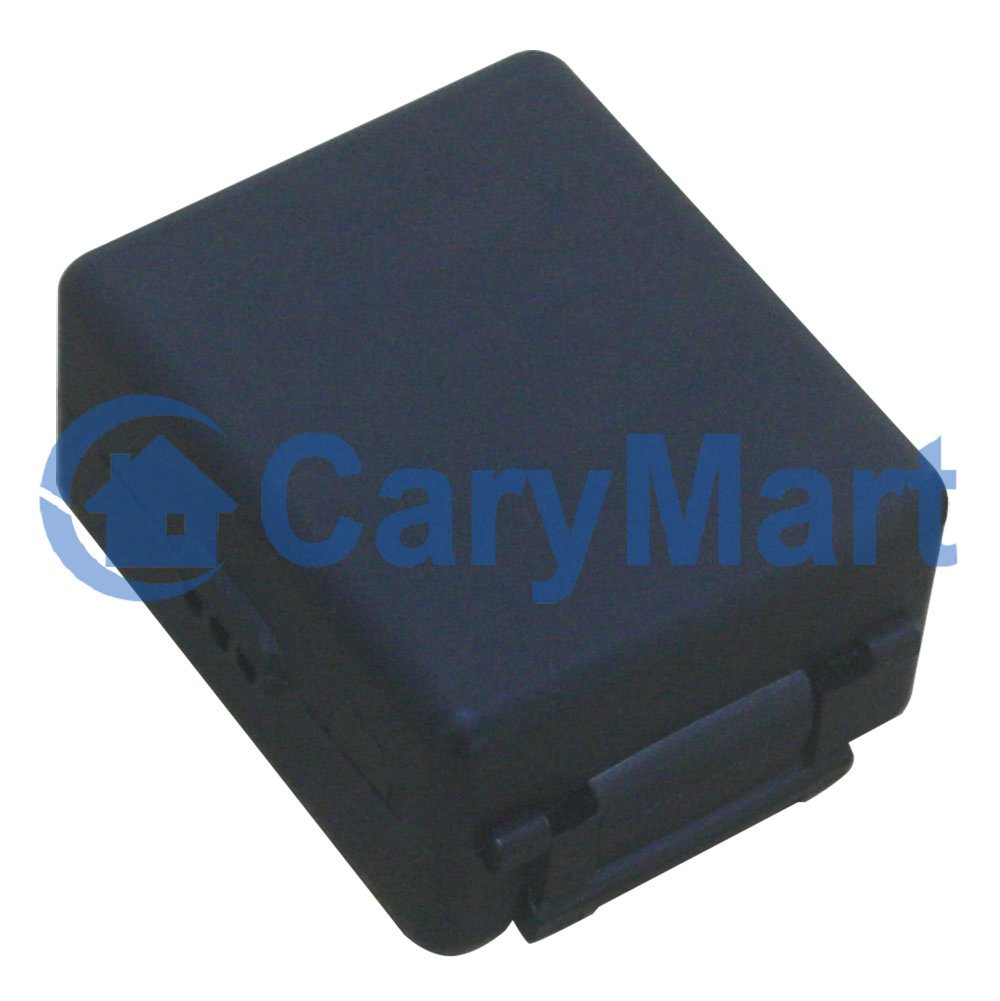

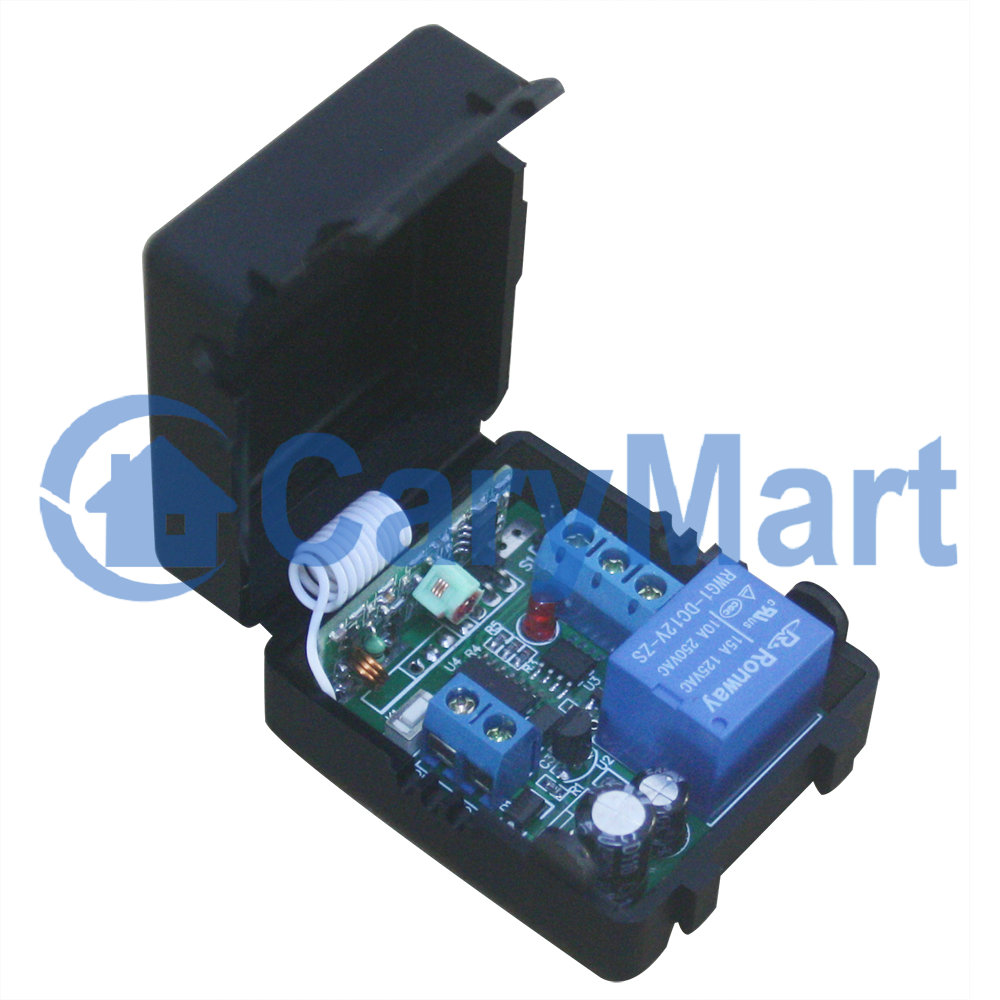

Receiver:
Model No.: S1RU-DC06 / S1RU-DC09 / S1RU-DC12 / S1RU-DC24
Channel: 1 CH
Control Modes: Self-locking, Momentary, Interlocking
Remote Control Distance: 500m / 1500ft (theoretically)
Encode: Fixed code by Soldering
Unit size: 110mm x 50mm x 18mm

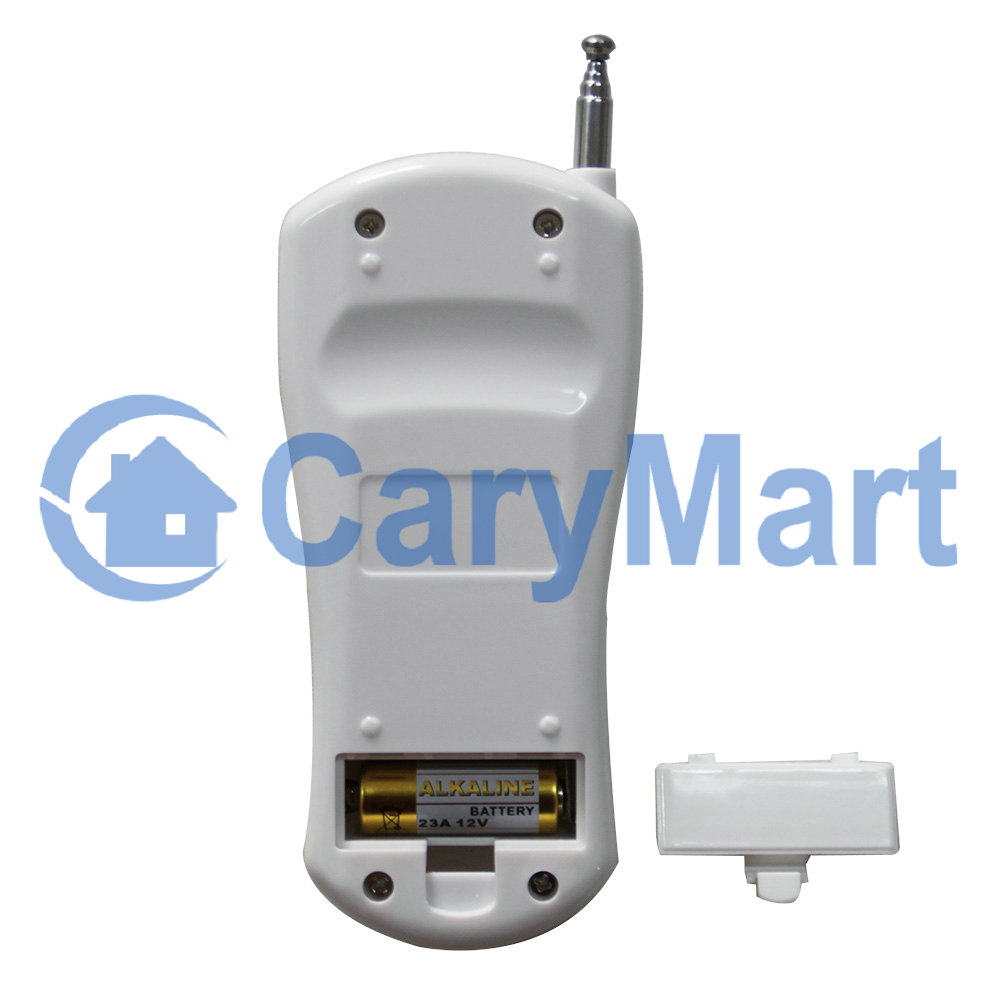

Power Supply: 1 x 23A -12V battery (Included, can be used for 12 months)
Usage:

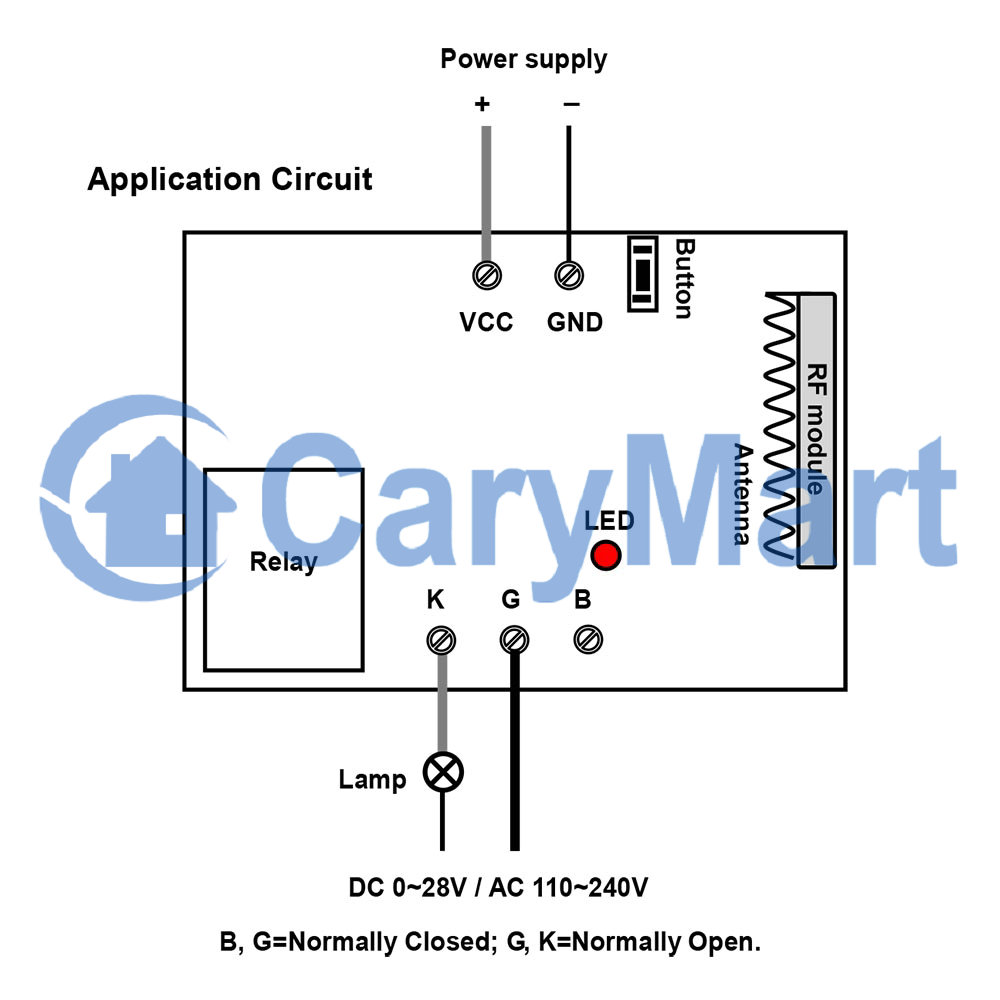

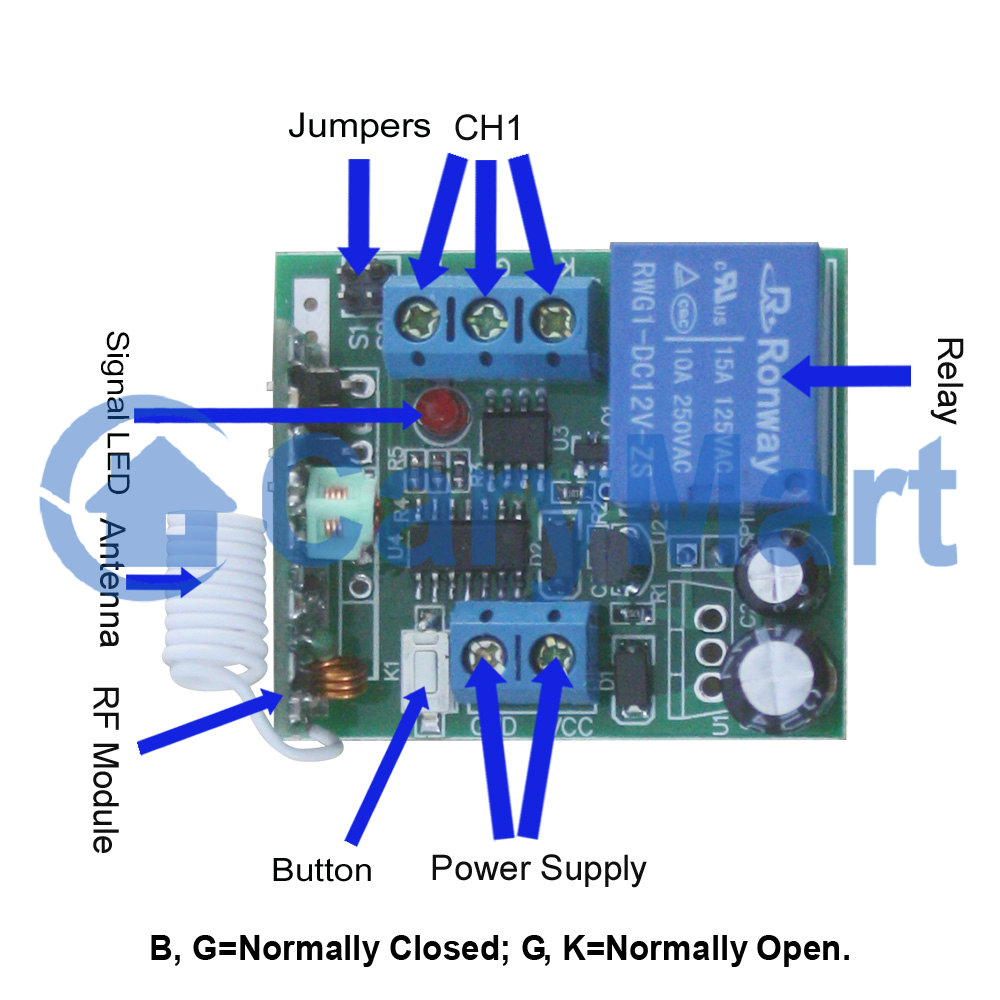

Initial state: B, G = Normally Closed; G, K = Normally Open.
Setting different control modes (We have set the receiver as Self-locking control mode before delivery. If you want to use other control modes, do as following operation):
Setting control mode Self-locking: Connect S2.
Control mode Self-locking: Press -> On; Press again -> Off.
Press button 1, turn on the relay of receiver 1, (connect G and K, disconnect B and G).
Press button 1 again, turn off the relay of receiver 1, (disconnect G and K, connect B and G).
Press button 2, turn on the relay of receiver 2, (connect G and K, disconnect B and G).
Press button 2 again, turn off the relay of receiver 2, (disconnect G and K, connect B and G). ……
Press button 11, turn on the relay of receiver 11, (connect G and K, disconnect B and G). Press button 11 again, turn off the relay of receiver 11, (disconnect G and K, connect B and G).
Press button 12, turn on the relay of receiver 12, (connect G and K, disconnect B and G). Press button 12 again, turn off the relay of receiver 12, (disconnect G and K, connect B and G).
Setting control mode Momentary: Connect S1.
Control mode Momentary: Press and hold -> On; Release -> Off.
Press and hold button 1, turn on the relay of receiver 1, (connect G and K, disconnect B and G). Release button 1, turn off the relay of receiver 1, (disconnect G and K, connect B and G).
Press and hold button 2, turn on the relay of receiver 2, (connect G and K, disconnect B and G). Release button 2, turn off the relay of receiver 2, (disconnect G and K, connect B and G). ……
Press and hold button 11, turn on the relay of receiver 11, (connect G and K, disconnect B and G). Release button 11, turn off the relay of receiver 11, (disconnect G and K, connect B and G).
Press and hold button 12, turn on the relay of receiver 12, (connect G and K, disconnect B and G). Release button 12, turn off the relay of receiver 12, (disconnect G and K, connect B and G).
Setting control mode Interlocking: Disconnect S1 and S2.
Control mode Interlocking: Press -> On, other relays Off; Press another button -> Off.
Press button 1, turn on the relay of receiver 1, (connect G and K, disconnect B and G), turn off the relay of receiver 2,3,4,5,6,7,8,9,10,11,12 (disconnect G and K, connect B and G).
Press button 2, turn on the relay of receiver 2, (connect G and K, disconnect B and G), turn off the relay of receiver 1,3,4,5,6,7,8,9,10,11,12 (disconnect G and K, connect B and G). ……
Press button 11, turn on the relay of receiver 11, (connect G and K, disconnect B and G), turn off the relay of receiver 1,2,3,4,5,6,7,8,9,10,12 (disconnect G and K, connect B and G).
Press button 12, turn on the relay of receiver 12, (connect G and K, disconnect B and G), turn off the relay of receiver 1,2,3,4,5,6,7,8,9,10,11 (disconnect G and K, connect B and G).
