Manual Package Include:
1 x Receiver: S4U-AC-ANT3
1 x User manual Feature:
Application: It can be used in industry automation, agriculture automation and
home automation, such as factory, house, farm, pasture, vehicle, ship, offshore
operation, aerial vehicle, field call, etc. It can remote control equipments on
land, water and air, such as remote control lights, sirens, locks, motors, fans,
winches, blinds, linear actuators, doors, windows, electric solenoid valves,
security alarm, business signs and various devices.
Wireless control, easy to install.
Universal input: Support voltage of AC110V (100V~120V), widely used in US,
Canada... and voltage of AC220V (200V~240V), used in UK, France...
Relay Output: This receiver is dry relay output, it can be used to operate both
DC and AC equipments. The output terminals are NO / NC (normally open / normally
closed), which serves as a switch. That means you should also connect a separate
power supply to equipments.
Each channel can work at maximum current 10A.

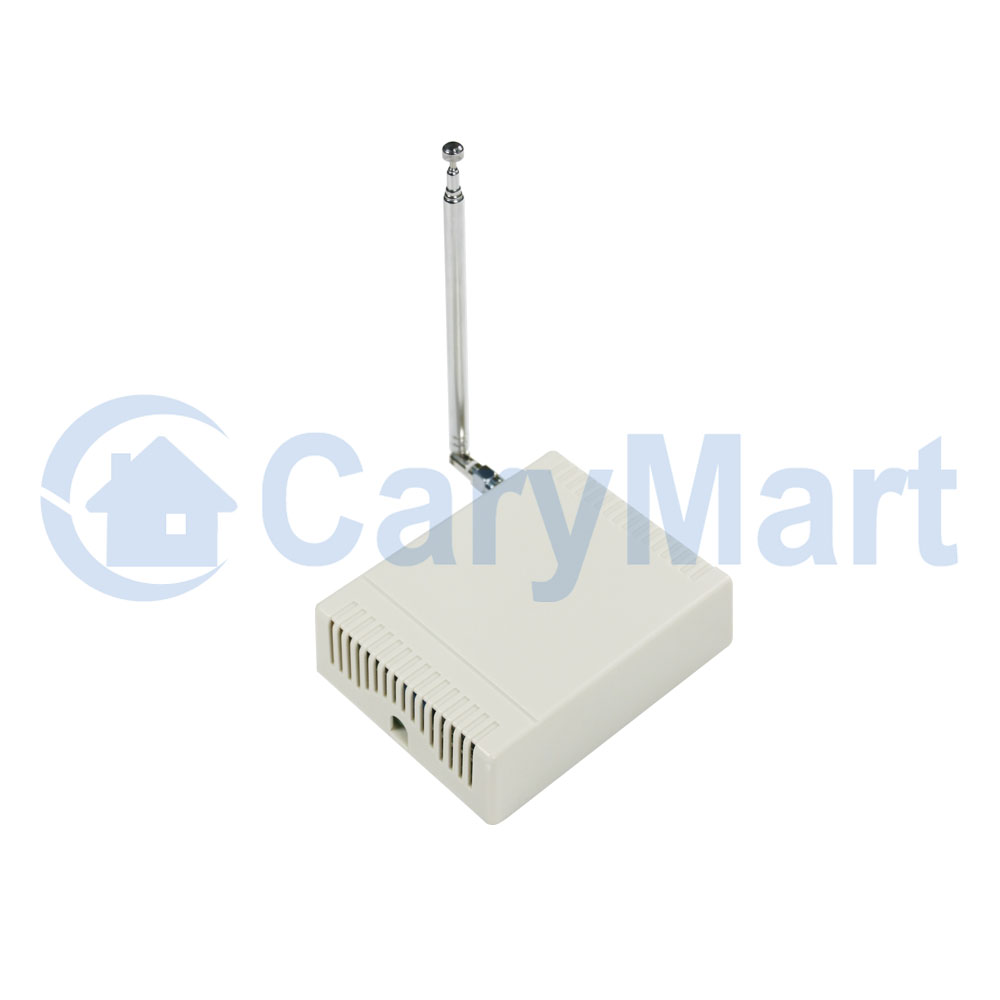

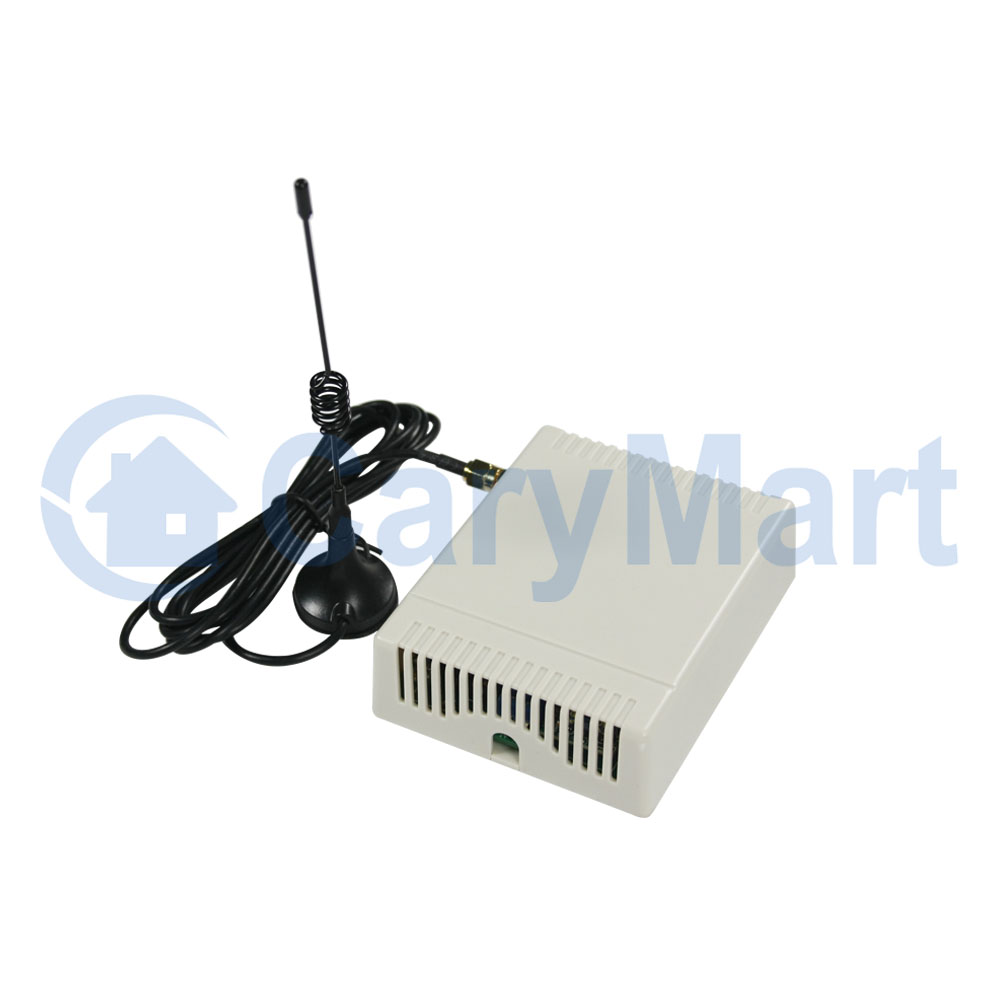

With external telescopic antenna, the receiver have a farther working range.
You can control the equipments by using the receiver with transmitter (remote
control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With characteristics of reverse power protection and over current protection.
Reliable control: The code has thousands of different combinations, and the
receiver only works with the transmitter which use the same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.
Receiver Parameters:
Model No.: S4U-AC-ANT3
Power Supply (Operating Voltage): AC100~240V (110V/120V/220V/240V)
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
Wire range for the terminals: 22-14 AWG
Working Frequency: 433.92MHz
Channel: 4 CH
Control Modes: Self-locking, Momentary, Interlocking, Momentary + Self-locking
Static Current: ≤6mA
Maximum Load Current: 10A / each channel
Operating Temperature: -20 ° C to +70 ° C
PCB size: 94mm x 73mm x 21mm
Case size: 100mm x 80mm x 28mm
Matching Transmitters:
The receiver can work with different transmitters, such as model CWB-4 (50M,
waterproof), C-4 (100M) or CB-4 (1000M) etc.
Working Range:
With a transmitter (such as C-4) to form a complete set, the maximum working
distance can reach 100M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an
open ground, no barriers, no any interference. But in the practice, it will be
hindered by trees, walls or other constructions, and will be interfered by other
wireless signals. Therefore, the actual distance may not reach this maximum
working distance.
If you want to have a further working range, you can use a powerful transmitter,
such as CB-4 transmitters.
Usage (with the transmitter C-4):
The receiver can be used to control both DC 0~28V and AC 110~240V equipments.

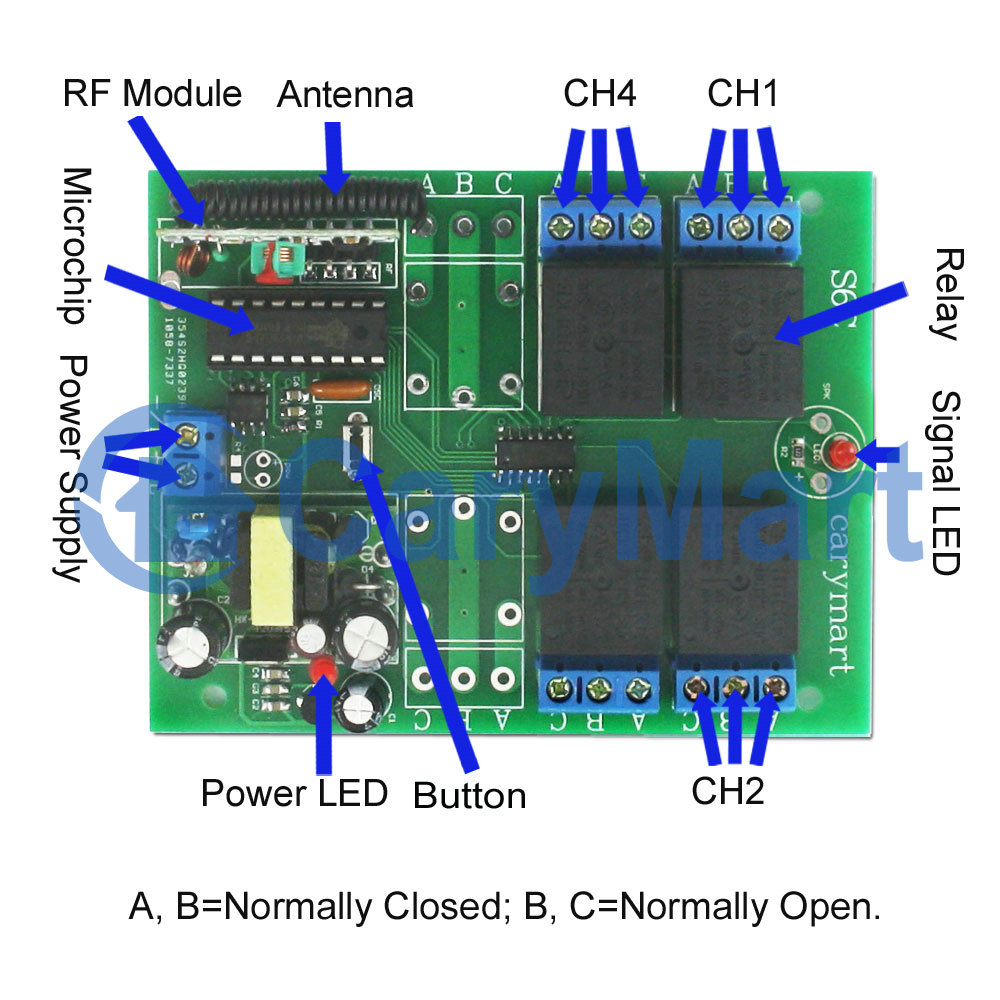

Notice: The receiver is relay output, not DC/AC power output. Initial state of
relay output terminals: Terminals B and C are Normally Open; Terminals A and B
are Normally Closed.
Wiring:

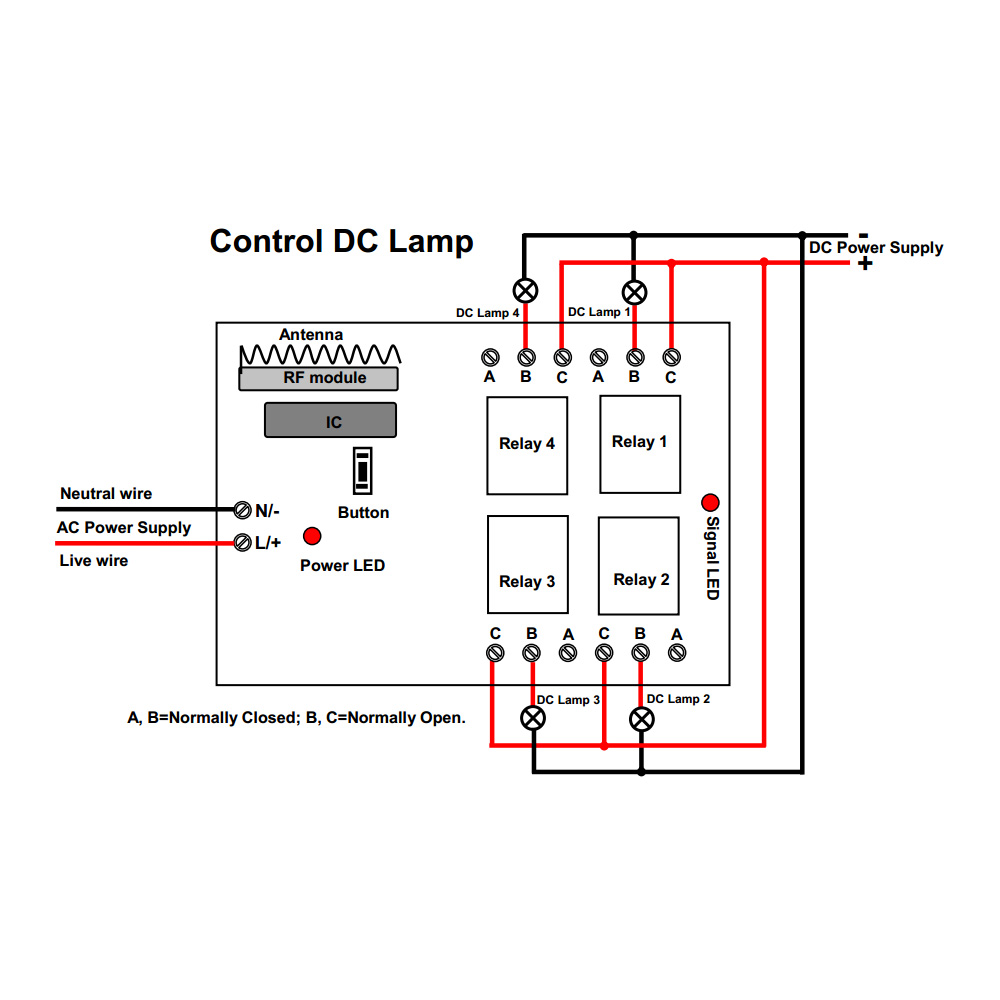

1) If you want to control a DC 12V lamp, do as following:
1.1 Connect the live wire of AC power supply to terminal “L / +” of INPUT, and
connect the neutral wire of AC power supply to terminal “N / -” of INPUT.
1.2 Connect terminal C to the positive pole of DC power supply, connect terminal
B to the positive pole of DC lamp, and connect the negative pole of DC lamp to
the negative pole of DC power supply.

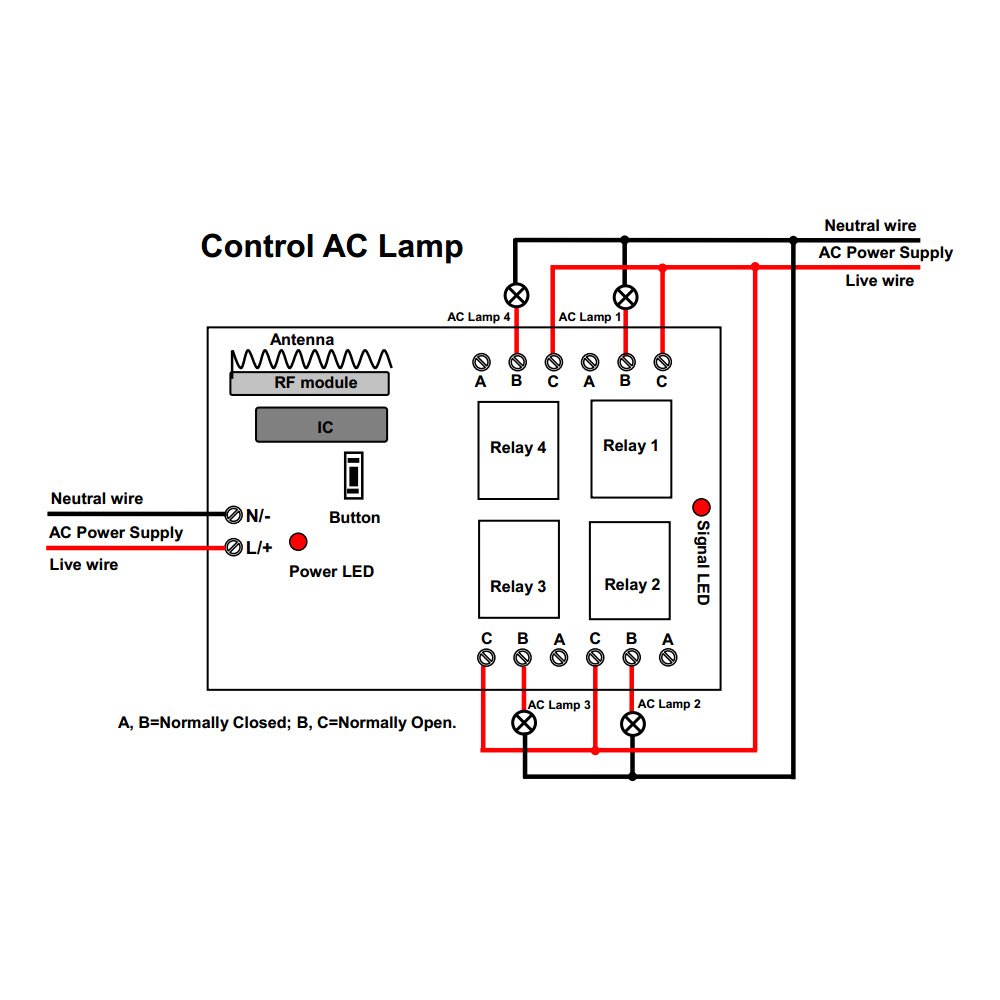

2) If you want to control an AC 220V lamp, do as following:
2.1 Connect the live wire of AC power supply to terminal “L / +” of INPUT, and
connect the neutral wire of AC power supply to terminal “N / -” of INPUT.
2.2 Connect terminal C to the live wire of AC power supply, connect terminal B
to one side of AC lamp, and connect another side of AC lamp to the neutral wire
of AC power supply.
Setting different control modes:
We have set the receiver as Self-locking control mode before delivery. If you
want to use other control modes, do as following operation:
1) Setting Self-locking mode: When the receiver is in the status of LEARNING,
press button 1 of the transmitter.
Mode Self-locking (working with transmitter C-4): Press -> On; Press again ->
Off.
Press button 1 of the transmitter: The relay 1 is activated (connect the
terminals B and C, disconnect the terminals A and B), and the lamp 1 is turned
on.
Press button 1 again: The relay 1 is deactivated (disconnect the terminals B and
C, connect the terminals A and B, and the lamp 1 is turned off.
Press button 2 of the transmitter: The relay 2 is activated (connect the
terminals B and C, disconnect the terminals A and B), and the lamp 2 is turned
on.
Press button 2 again: The relay 2 is deactivated (disconnect the terminals B and
C, connect the terminals A and B, and the lamp 2 is turned off.
Press button 3 of the transmitter: The relay 3 is activated (connect the
terminals B and C, disconnect the terminals A and B), and the lamp 3 is turned
on.
Press button 3 again: The relay 3 is deactivated (disconnect the terminals B and
C, connect the terminals A and B, and the lamp 3 is turned off.
Press button 4 of the transmitter: The relay 4 is activated (connect the
terminals B and C, disconnect the terminals A and B), and the lamp 4 is turned
on.
Press button 4 again: The relay 4 is deactivated (disconnect the terminals B and
C, connect the terminals A and B, and the lamp 4 is turned off.
2) Setting Momentary mode: When the receiver is in the status of LEARNING, press
button 2 of the transmitter.
Mode Momentary (working with transmitter C-4): Press and hold -> On; Release ->
Off.
Press and hold button 1 of the transmitter: The relay 1 is activated (connect
the terminals B and C, disconnect the terminals A and B), and the lamp 1 is
turned on.
Release button 1: The relay 1 is deactivated (disconnect the terminals B and C,
connect the terminals A and B, and the lamp 1 is turned off.
Press and hold button 2 of the transmitter: The relay 2 is activated (connect
the terminals B and C, disconnect the terminals A and B), and the lamp 2 is
turned on.
Release button 2: The relay 2 is deactivated (disconnect the terminals B and C,
connect the terminals A and B, and the lamp 2 is turned off.
Press and hold button 3 of the transmitter: The relay 3 is activated (connect
the terminals B and C, disconnect the terminals A and B), and the lamp 3 is
turned on.
Release button 3: The relay 3 is deactivated (disconnect the terminals B and C,
connect the terminals A and B, and the lamp 3 is turned off.
Press and hold button 4 of the transmitter: The relay 4 is activated (connect
the terminals B and C, disconnect the terminals A and B), and the lamp 4 is
turned on.
Release button 4: The relay 4 is deactivated (disconnect the terminals B and C,
connect the terminals A and B, and the lamp 4 is turned off.
3) Setting Interlocking mode: When the receiver is in the status of LEARNING,
press button 4 of the transmitter.
Mode Interlocking (working with transmitter C-4): Press -> On; Press another
button -> Off.
Press button 1: The relay 1 is activated (connect the terminals B and C,
disconnect the terminals A and B), and the lamp 1 is turned on.
The relays 2, 3, 4 are deactivated (disconnect the terminals B and C, connect
the terminals A and B), and the lamps 2, 3, 4 are turned off.
Press button 2: The relay 2 is activated (connect the terminals B and C,
disconnect the terminals A and B), and the lamp 2 is turned on.
The relays 1, 3, 4 are deactivated (disconnect the terminals B and C, connect
the terminals A and B), and the lamps 1, 3, 4 are turned off.
Press button 3: The relay 3 is activated (connect the terminals B and C,
disconnect the terminals A and B), and the lamp 3 is turned on.
The relays 1, 2, 4 are deactivated (disconnect the terminals B and C, connect
the terminals A and B), and the lamps 1, 2, 4 are turned off.
Press button 4: Relay of the receiver 4 is activated (connect the terminals B
and C, disconnect the terminals A and B), and the lamp 4 is turned on.
The relays 1, 2, 3 are deactivated (disconnect the terminals B and C, connect
the terminals A and B), and the lamps 1, 2, 3 are turned off.
4) Setting Mixed mode (Momentary + Self-locking): When the receiver is in the
status of LEARNING, press button 3 of the transmitter.
Mode Momentary for channel 1 & 2 (working with transmitter C-4): Press and hold
-> On; Release -> Off.
Press and hold button 1 of the transmitter: The relay 1 is activated (connect
the terminals B and C, disconnect the terminals A and B), and the lamp 1 is
turned on.
Release button 1: The relay 1 is deactivated (disconnect the terminals B and C,
connect the terminals A and B, and the lamp 1 is turned off.
Press and hold button 2 of the transmitter: The relay 2 is activated (connect
the terminals B and C, disconnect the terminals A and B), and the lamp 2 is
turned on.
Release button 2: The relay 2 is deactivated (disconnect the terminals B and C,
connect the terminals A and B, and the lamp 2 is turned off.
Mode Self-locking for channel 3 & 4 (working with transmitter C-4): Press -> On;
Press again -> Off.
Press button 3 of the transmitter: The relay 3 is activated (connect the
terminals B and C, disconnect the terminals A and B), and the lamp 3 is turned
on.
Press button 3 again: The relay 3 is deactivated (disconnect the terminals B and
C, connect the terminals A and B, and the lamp 3 is turned off.
Press button 4 of the transmitter: The relay 4 is activated (connect the
terminals B and C, disconnect the terminals A and B), and the lamp 4 is turned
on.
Press button 4 again: The relay 4 is deactivated (disconnect the terminals B and
C, connect the terminals A and B, and the lamp 4 is turned off.
