Package Include:

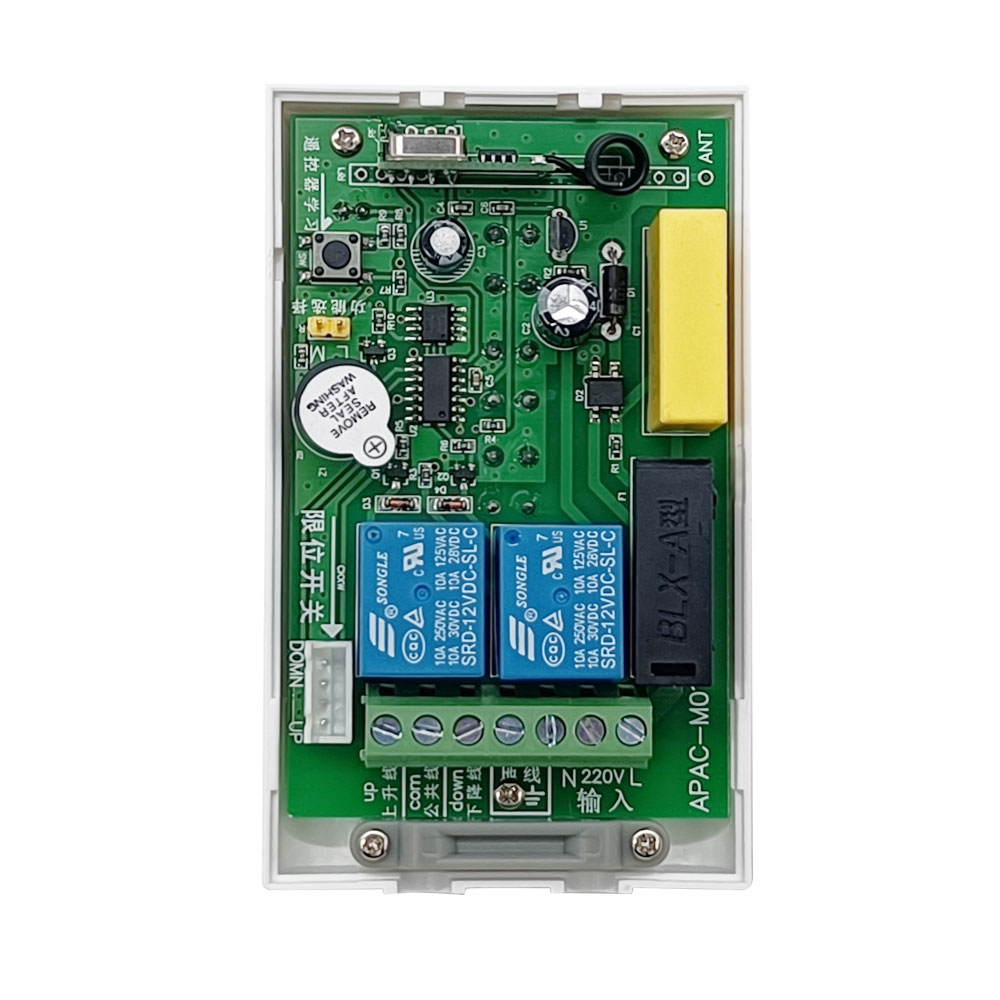

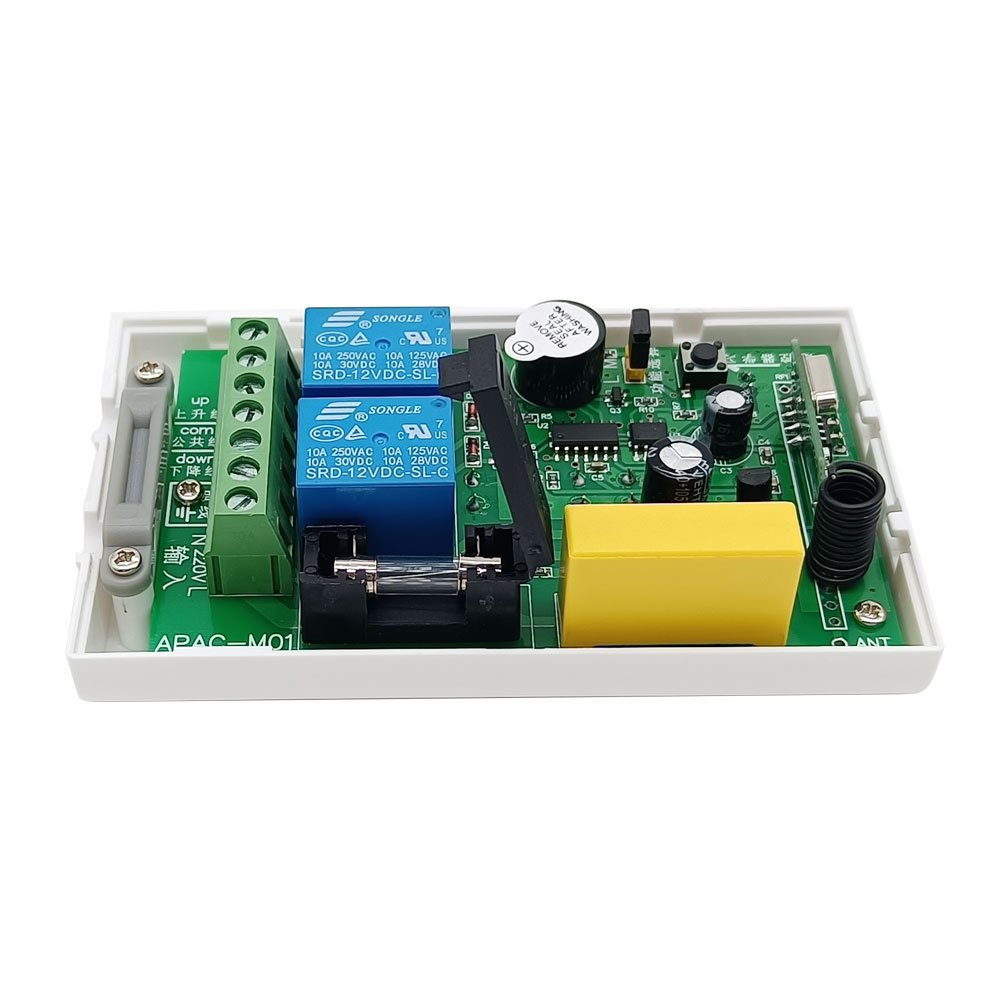

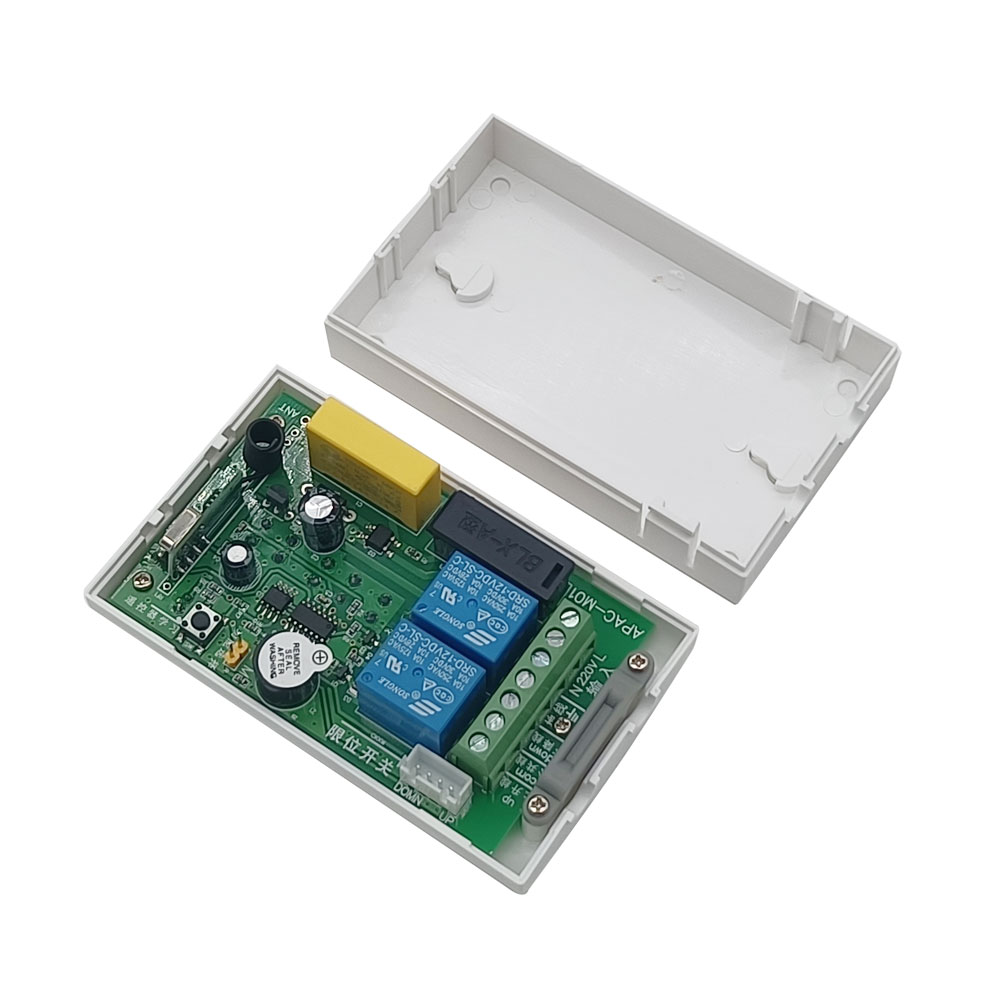

1 x Receiver: S1FC-AC
1 x User manual
Application:
This receiver is a wireless controller for AC motor, it and the transmitter
form a wireless transmitter receiver system. This system can be used for
roller shutters, rolling doors, projection screens, awnings, pumps, winches,
conveyors, or other devices with AC motors. If you connect an AC motor to
this receiver, you can operate the motor to rotate in positive or reversal
direction by the remote control. You can connect two limit switches to the
receiver and use them to stop the motor.
Features:
Wireless control, easy to install.
Suitable for AC motor.
Support voltage of 110VAC (110V~120V), widely used in the United States,
Canada, etc., and voltage of 220VAC (220V~240V), used in the United Kingdom,
France, Germany etc.
Two working modes.
You can operate the motor to rotate in positive or reversal direction by
using the buttons in the receiver or by the transmitter.

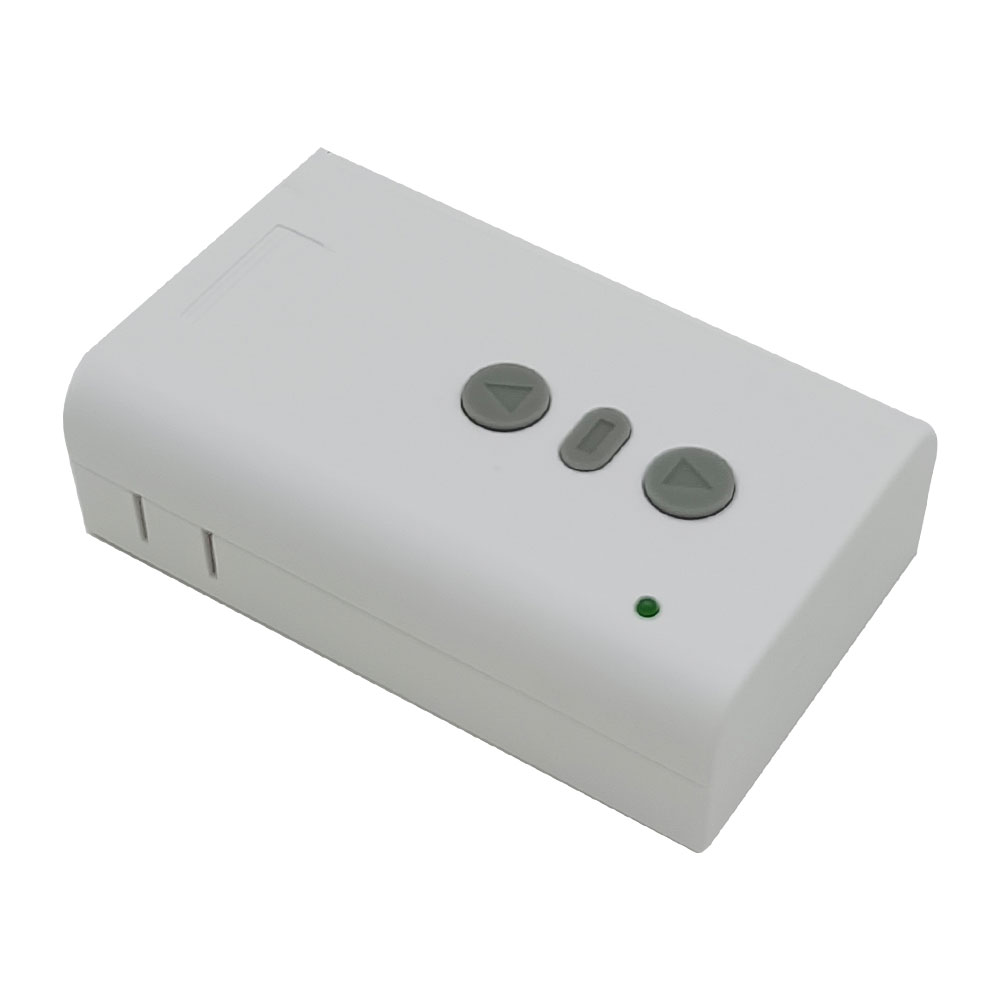

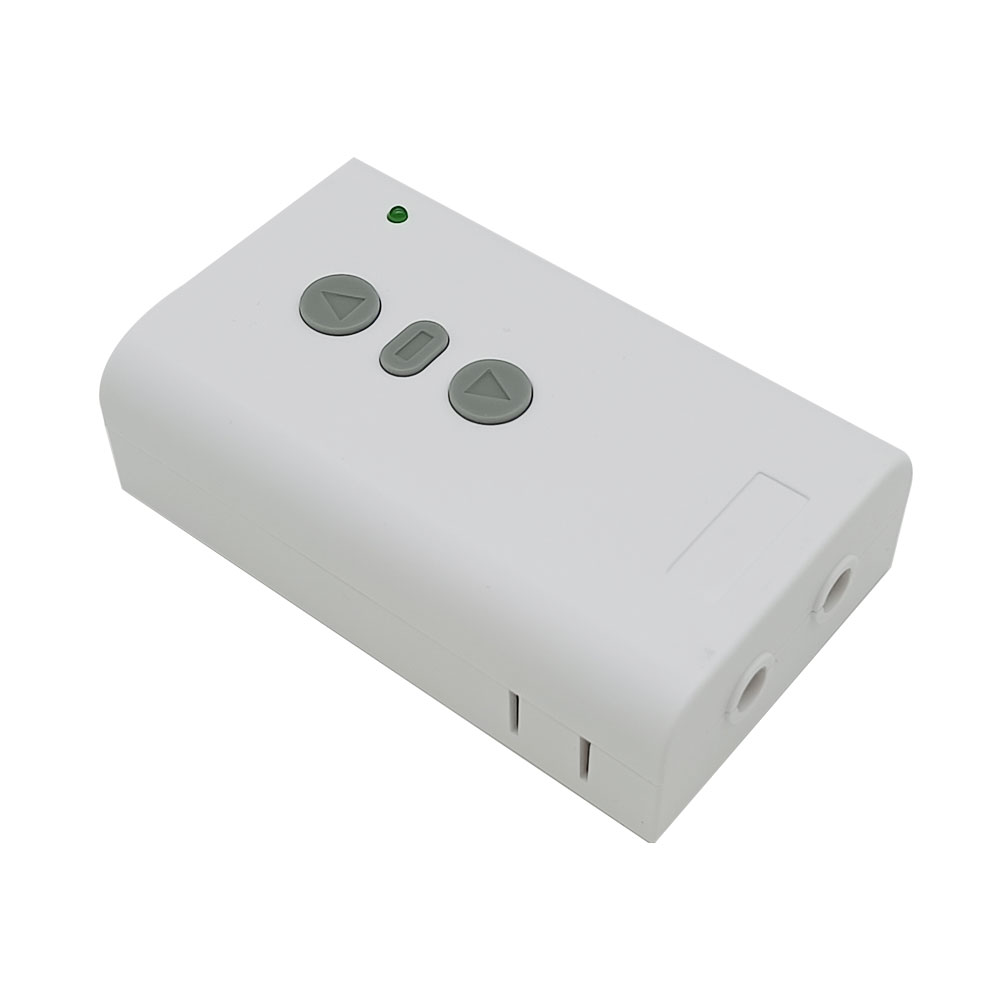

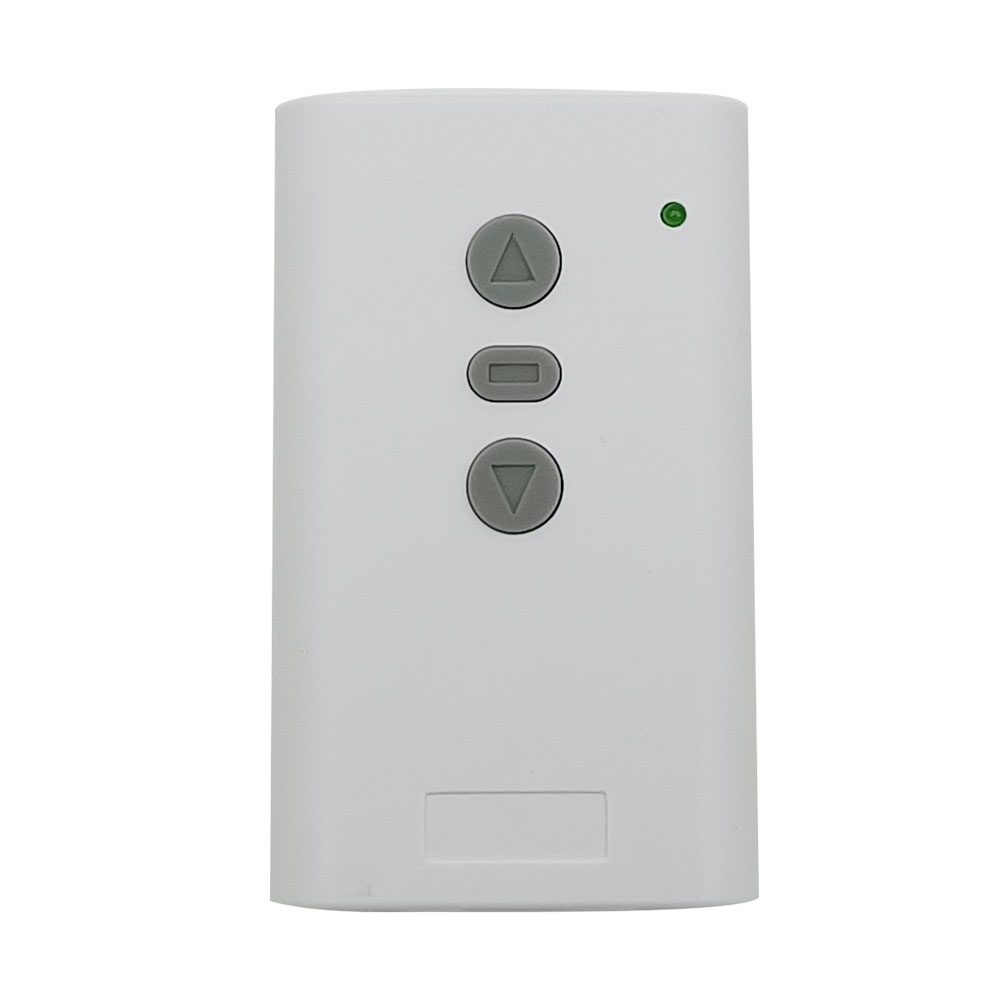

With three manual buttons: You can control the motor by manual buttons.
With limit control terminals: You can connect sensors, limit switches or
external devices to stop the motor.
The transmitter / remote can control the receiver from any place within a
reliable working distance.
Wireless RF signal from the transmitter can pass through walls, floors,
doors, or windows, but it will lose some operating range.
The receiver has reverse power protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers
simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:
Model: S1FC-AC
Operating Voltage: 110~240VAC (110V/120V/220V/240V)
Output Voltage: 110~240VAC (110V/120V/220V/240V) , the output voltage is the
same as input voltage.
Working Frequency: 433.92 MHz
Channel: 1 CH, can work with an AC motor
Quiescent Current: ≤8mA
Rated Current: 5A, so motor's maximum starting current cannot exceed 5A.
Suitable Wires for Connecting Terminals: 22-14 AWG
2 Selectable Working Modes: Interlocking, Momentary
Operating Temperature: -20°C ~ +70°C
Case Size: 100 x 60 x 30 mm (4.0 x 2.4 x 1.2 inches)
Matching Transmitters:
This receiver can work with different transmitters, such as model
CWC-3L
(waterproof, 50 Meter / 150 feet),
C-3-2
(100 Meter / 300 feet),
CA-3
(200m / 600 feet),
CP-3
(500 Meter / 1500 feet),
CG-3
(500 Meter / 1500 feet) or
CB-3-2
(1000 Meter / 3000 feet).
Working Range:
This receiver and different transmitters form a complete kit, which can
achieve different working distances. For example, when it and the
transmitter CA-3 form a complete kit, the maximum working distance may reach
600 feet or 200 meters in an open area. When it and the transmitter CB-3-2
form a complete kit, the maximum working distance may reach 3000 feet or
1000 meters in an open area.
The maximum working distance is a theoretical data, it shall be operated in
an open ground, no barriers, no interference. But in the practice, it will
be hindered by trees, walls, or other construction, and will be interfered
by other wireless signals. Therefore, the actual working distance may not
reach this maximum distance.
The receiver equipped with an external antenna has a larger working range
than the receiver equipped with an internal antenna.
Usage:
The receiver can be used to control AC 110V/120V/220V/240V motor.

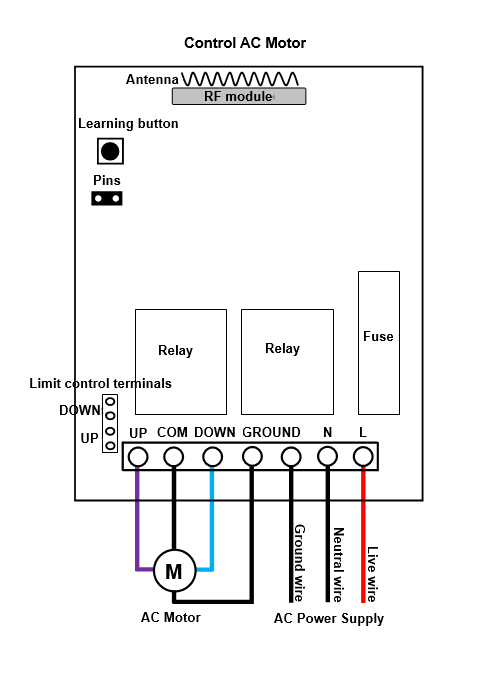

Wiring:
If you want to control an AC 110V/120V/220V/240V motor, do as following:
1) Connect the ground wire of AC power supply to the terminal <GROUND>. If
AC power supply have not the ground line, it doesn't need to be connected.
2) Connect the live wire of AC power supply to terminal <L>, and connect the
neutral wire of AC power supply to terminal <N>.
3) Connect the neutral wire of AC motor to terminal <COM>, and connect the
ground wire of AC motor to the terminal <GROUND>. If AC motor have not the
ground line, it doesn't need to be connected.
4) Connect the forward rotation wire of AC motor to terminal <UP>, and
connect the reverse rotation wire of AC motor to terminal <DOWN>. You can
exchange these two wires to change the rotating direction of motor.
Setting different working modes:
The receiver will be set in Interlocking mode before leaving the factory, if
you require momentary mode, please follow the following steps.
Attention: Need to restart the receiver after changing the working mode.
1) Setting Interlocking mode: Do not short two pins.
The operation by the transmitter, such as CA-3:
Press the button ▲ on the transmitter: Motor rotates in positive direction.
Press the button ▼ on the transmitter: Motor rotates in reversal direction.
Press the button ■ on the transmitter: Motor stops.
The operation by the receiver:
Press the button ▲ on the receiver: Motor rotates in positive direction.
Press the button ▼ on the receiver: Motor rotates in reversal direction.
Press the button ■ on the receiver: Motor stops.
2) Setting Momentary mode: Short two pins with a shouted cap.
The operation by the transmitter, such as CA-3:
Press and hold the button ▲ on the transmitter: Motor rotates in positive
direction.
Release the button ▲: Motor stops.
Press and hold the button ▼ on the transmitter: Motor rotates in reversal
direction.
Release the button ▼: Motor stops.
The operation by the receiver:
Press and hold the button ▲ on the receiver: Motor rotates in positive
direction.
Release the button ▲: Motor stops.
Press and hold the button ▼ on the receiver: Motor rotates in reversal
direction.
Release the button ▼: Motor stops.
Limit control terminals:
The receiver has limit control terminals, and you can connect external
devices (with normally open contact), such as sensors, limit switches to
limit terminals, then use them to stop the motor.
For example, you can connect a normally open limit switch to two terminals
<UP>, and connect another normally open limit switch to two terminals
<DOWN>.
When motor rotates in positive direction, if two terminals <UP> are
connected, the motor will stop automatically.
When motor rotates in reversal direction, if two terminals <DOWN> are
connected, the motor will stop automatically.
How to pair the transmitter to the receiver:
Notice: We have paired the transmitter to the receiver before leaving the
factory.
1) Press the learning button in the receiver; signal LED on the receiver
flashes quickly, this indicates that the receiver enters the learning
status.
2) Press any one button on the transmitter, if signal LED stop flashes and
stays on, it means learning is successful.
3) The receiver can learn several transmitters with different codes.
How to delete all transmitters codes stored in the receiver:
We have paired the transmitter to the receiver, if you don’t want the
receiver to work with the transmitter, you can delete all transmitters codes
stored in the receiver.
Operation: Press and hold the learning button in the receiver for 8-9
seconds, signal LED first flashes quickly, then flashes slowly three times,
and finally stays on, then release the learning button, this indicates all
stored codes have been deleted successfully.
