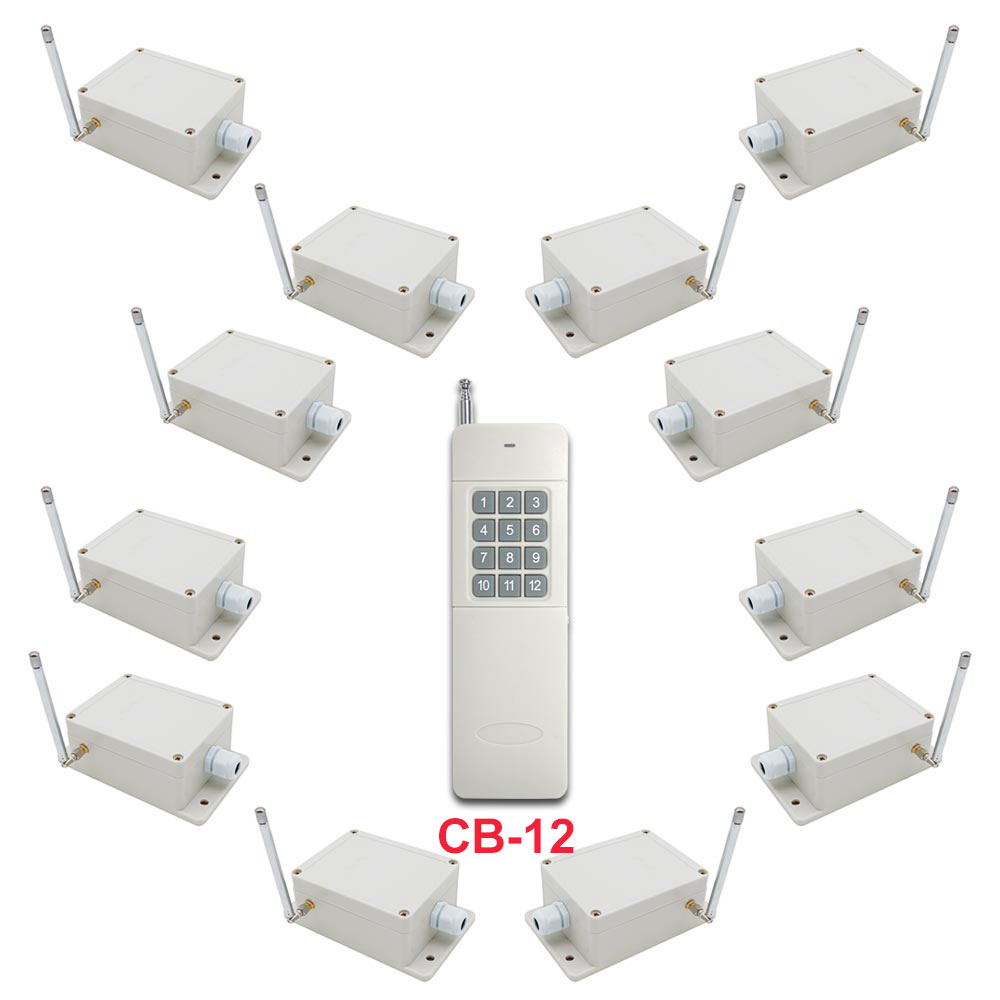

12 Channel 10A 100~240V AC Power Output RF Remote Controller 1 Transmitter & 12 Receivers


Price: US $280.00

  • Model: 0020459 (12S1XB-AC & CV-12)

Please Choose:






Qty:



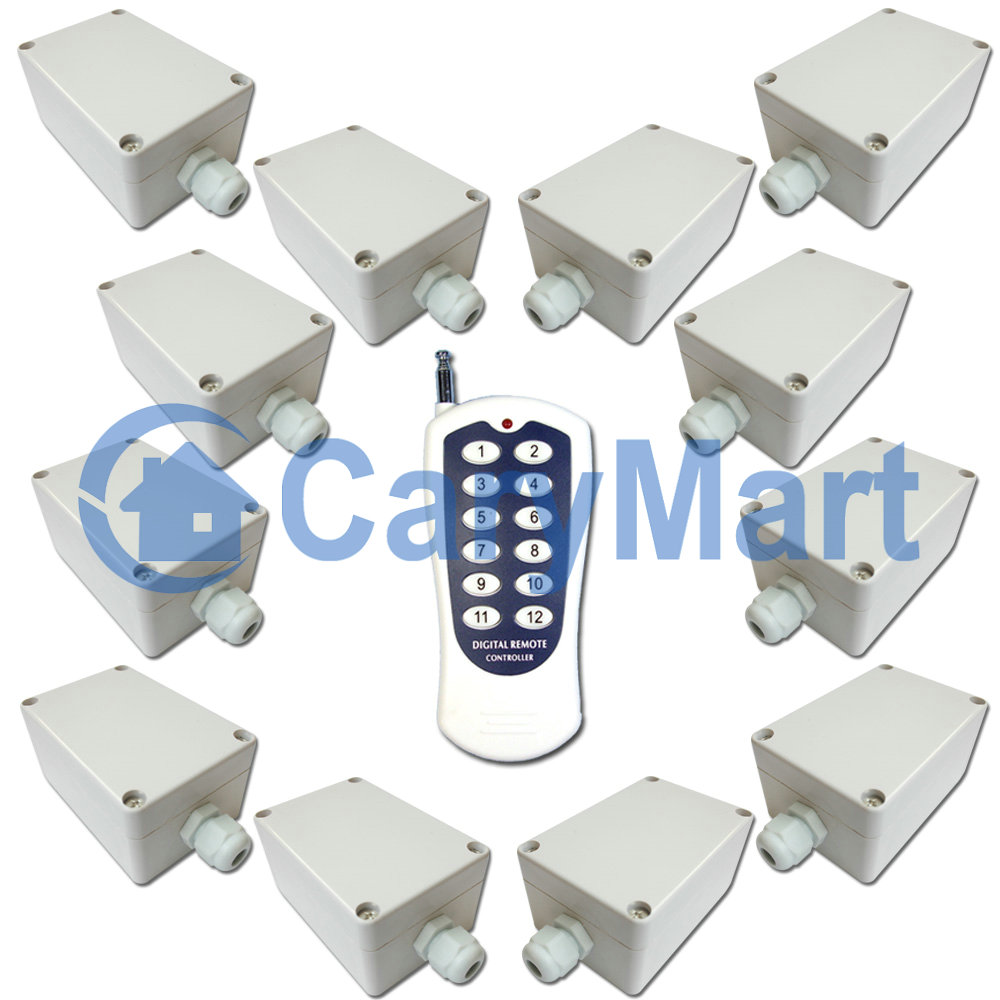

The receiver is designed for one-transmitter-many-receivers system. You can use a 4 buttons transmitter to control 4 receivers, or use a 6 buttons transmitter to control 6 receivers, or use a 8 buttons transmitter to control 8 receivers, or use a 12 buttons transmitter to control 12 receivers.
Feature:
 Application: It can be used in industry automation, agriculture automation and home automation, such as factory, house, farm, pasture, vehicle, ship, offshore operation, aerial vehicle, field call, etc. It can remote control equipments on land, water and air, such as remote control lights, sirens, locks, motors, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, business signs and various devices.
Wireless control, easy to install.

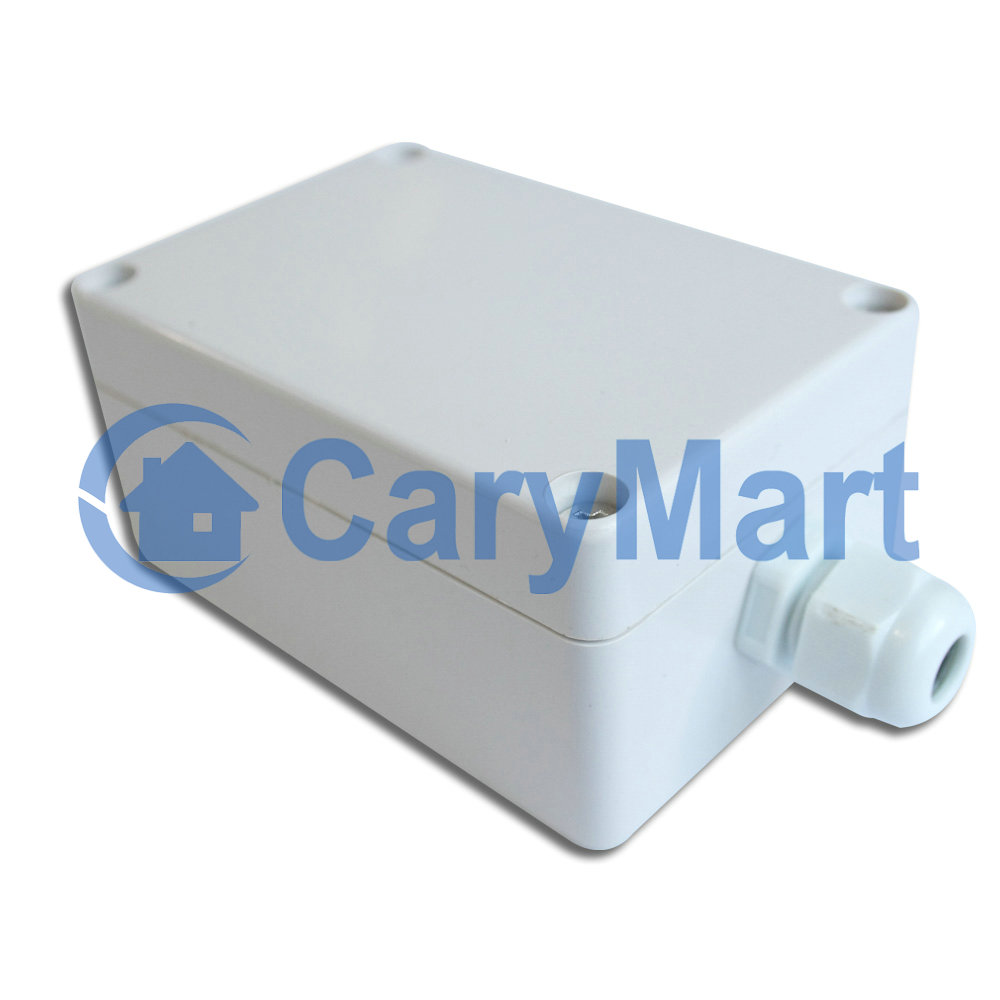

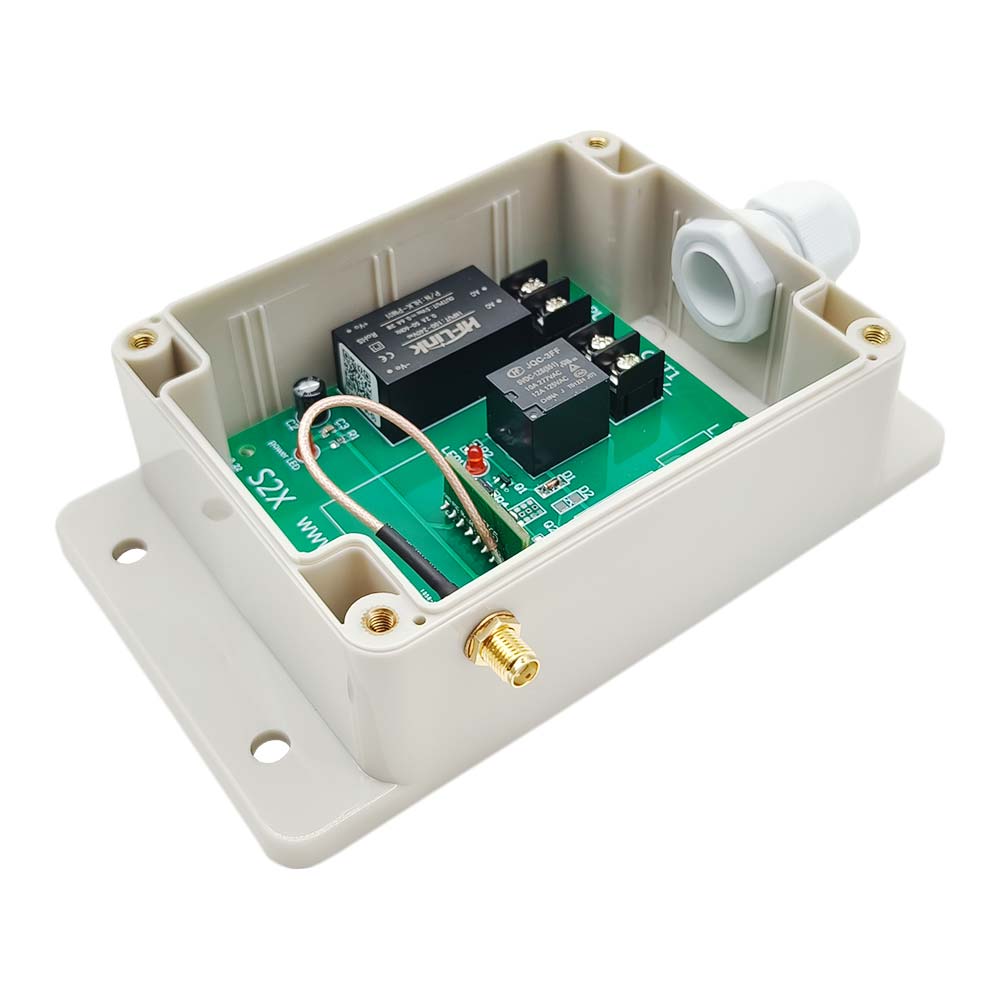

Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Universal input: Support voltage of AC110V (100V~120V), widely used in US, Canada... and voltage of AC220V (200V~240V), used in UK, France...
AC Power Output: It can control AC equipment with voltage 110V / 120V / 220V / 240V AC.
With wired control terminals: You can connect sensors, limit switches, manual switches or external devices to control the receiver.
You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With reverse power protection and over current protection.
Reliable control: The receiver only works with the transmitter which use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

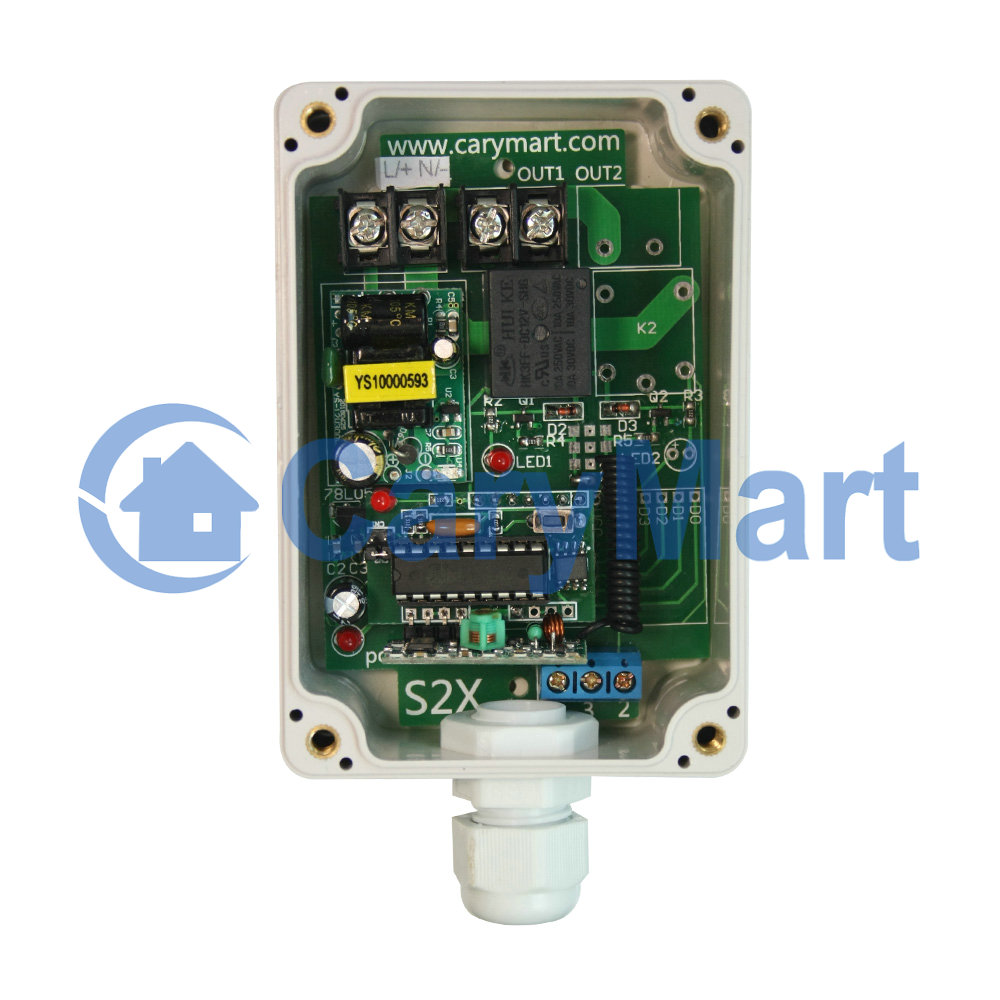

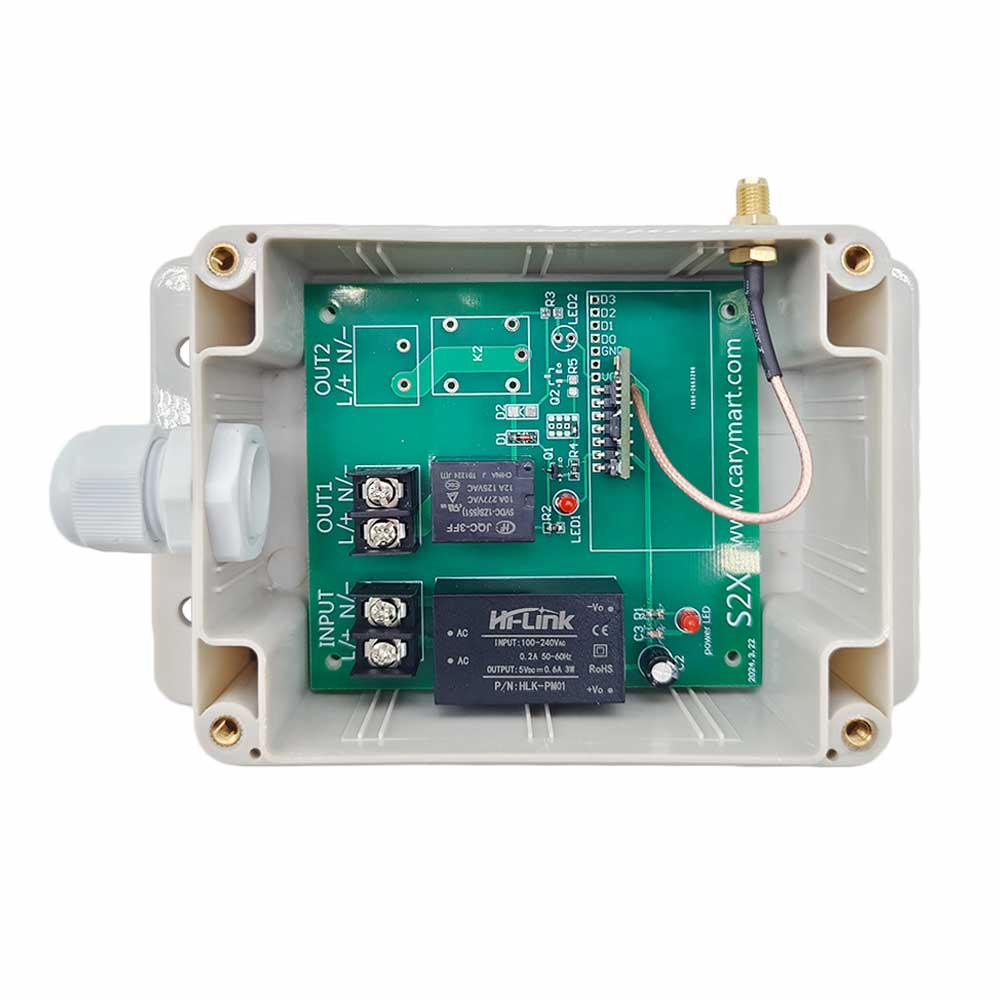

Receiver Parameters:
Model No.: S1XB-AC220
Power Supply (Operating Voltage): AC100~240V (110V/120V/220V/240V)
Output: AC100~240V (110V/120V/220V/240V)
Working Frequency: 433MHz
Channel: 1 CH
Control Modes: Self-locking, Momentary, Interlocking
Static Current: ≤6mA
Maximum Working Current: 10A / each channel
PCB size: 90mm x 59mm x 18mm
Case size: 100mm x 68mm x 50mm
Work with Fixed code transmitters

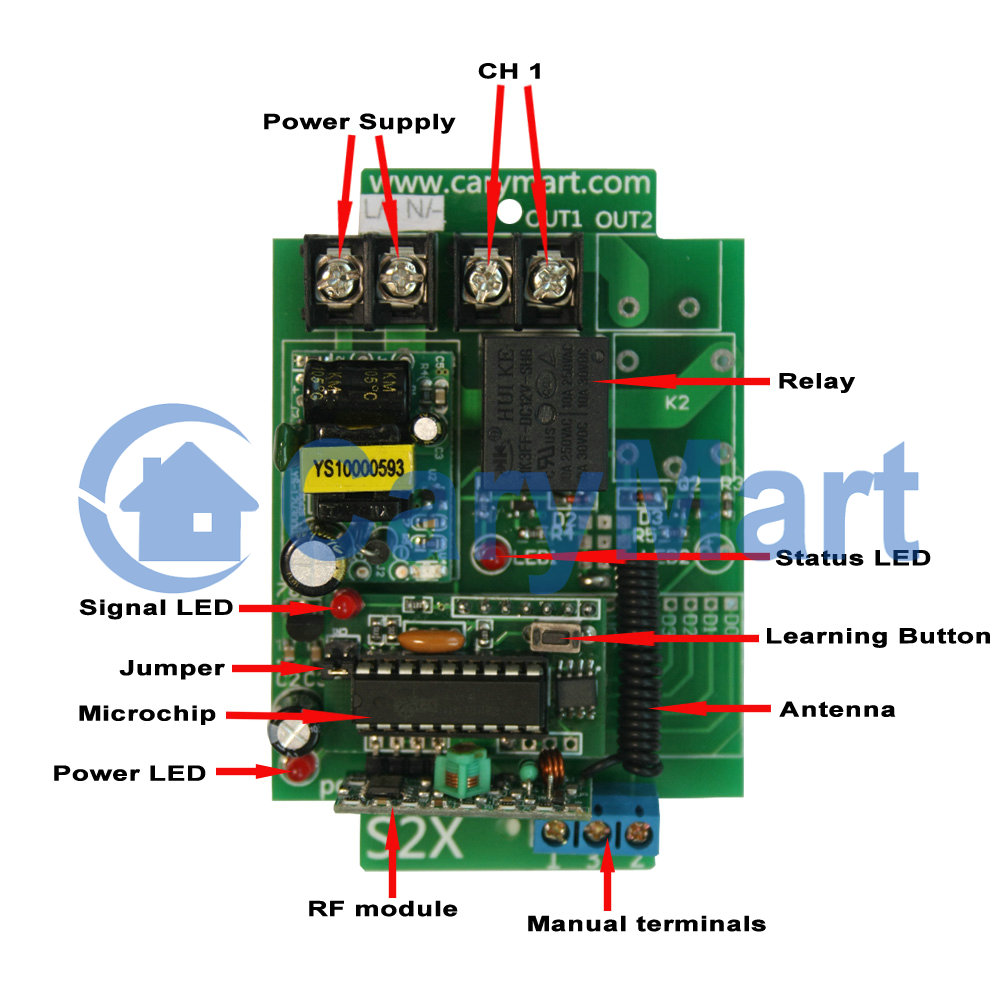

Product Description:

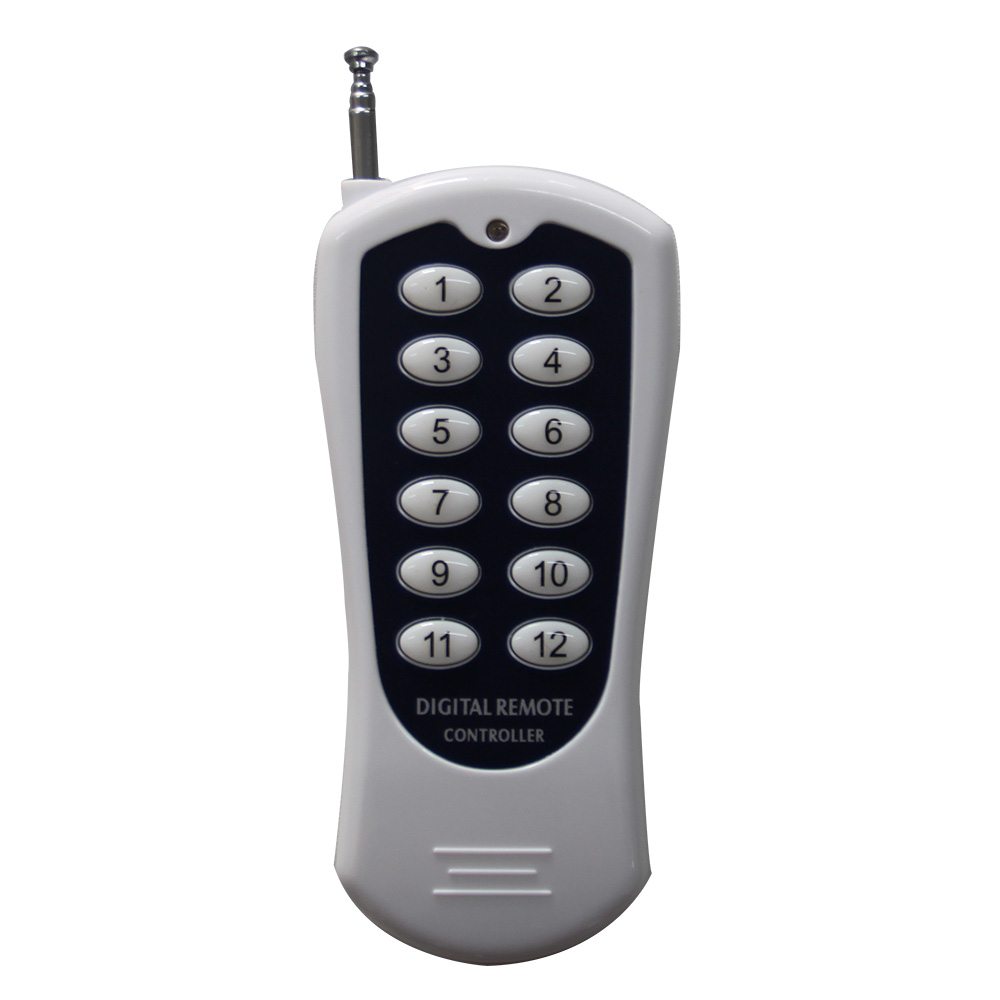

Model No.: 0021022 (CV-12)
Shell Color: White
Channel/Button: 12
Button Symbol: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 15mA
Operating Frequency: 433Mhz
Encoding Chip: LX2260A-R4
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 500m / 1500ft (theoretically)
The distance of 500m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance may or may not reach 500m.
If you stretches the telescopic antenna, it can have a further working range, which is twice as much as it used to be.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110mm x 50mm x 18mm
Weight: 60g
Uses: garage doors, motorcycles, car alarm products, home security products, wireless remote control products, industrial control products.

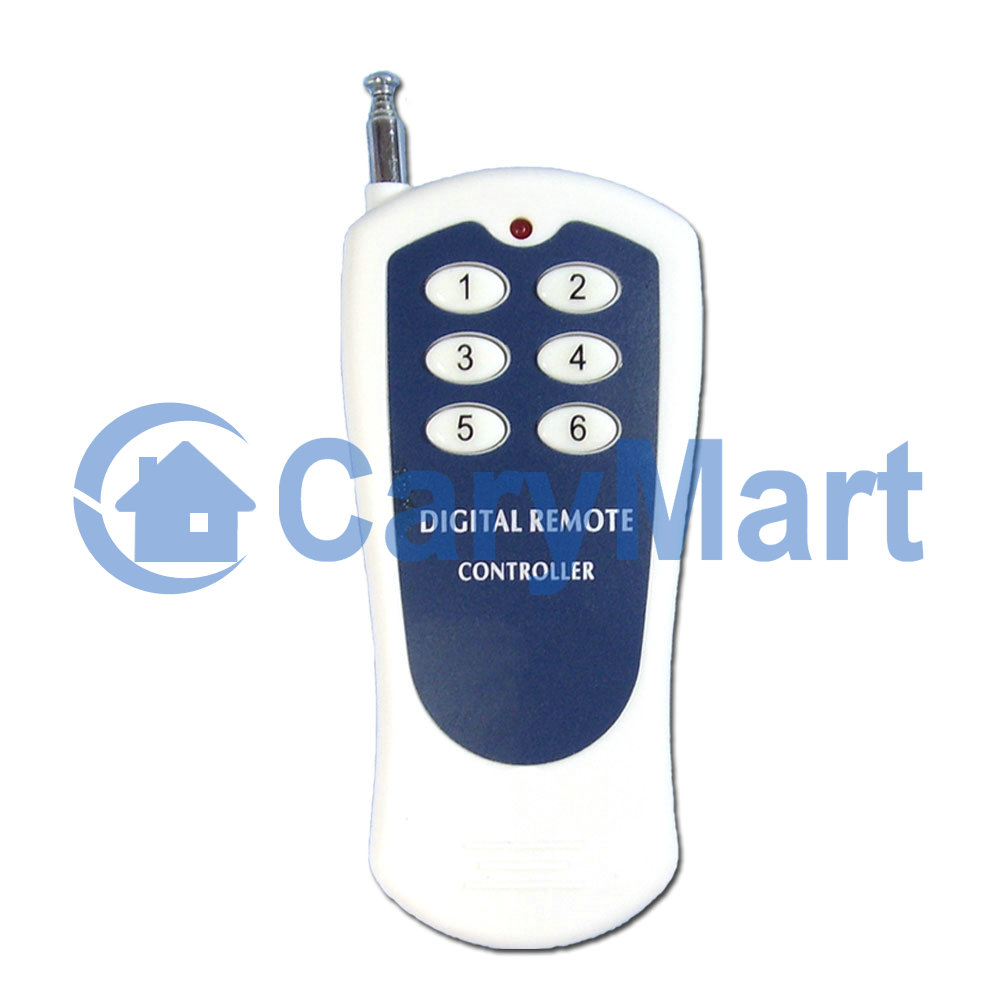

 Matching Transmitters:

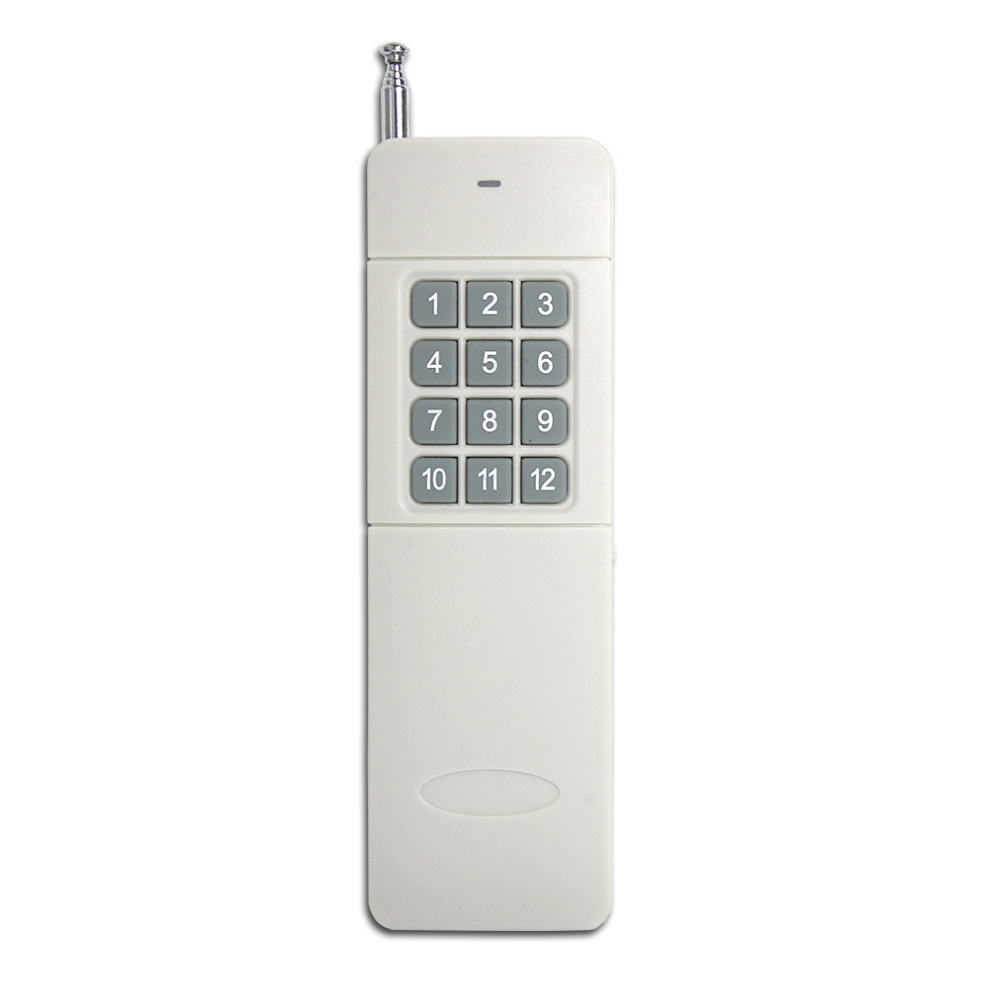

 The receiver can work with different transmitters, such as model CV-6 / CV-8 / CV-12 (500M), or CB-6 / CB-8 / CB-12 (1000M) etc.

 Working Range:
 With a transmitter (such as CV-12) to form a complete set, the maximum working distance can reach 500M in an open ground.
 The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
 If you want to have a further working range, you can install an external antenna to the receiver, and you also can use apowerful transmitter, such as CB series transmitters.

 Usage (with the transmitter CV-12):
 The receiver can be used to control AC 110~240V equipments.

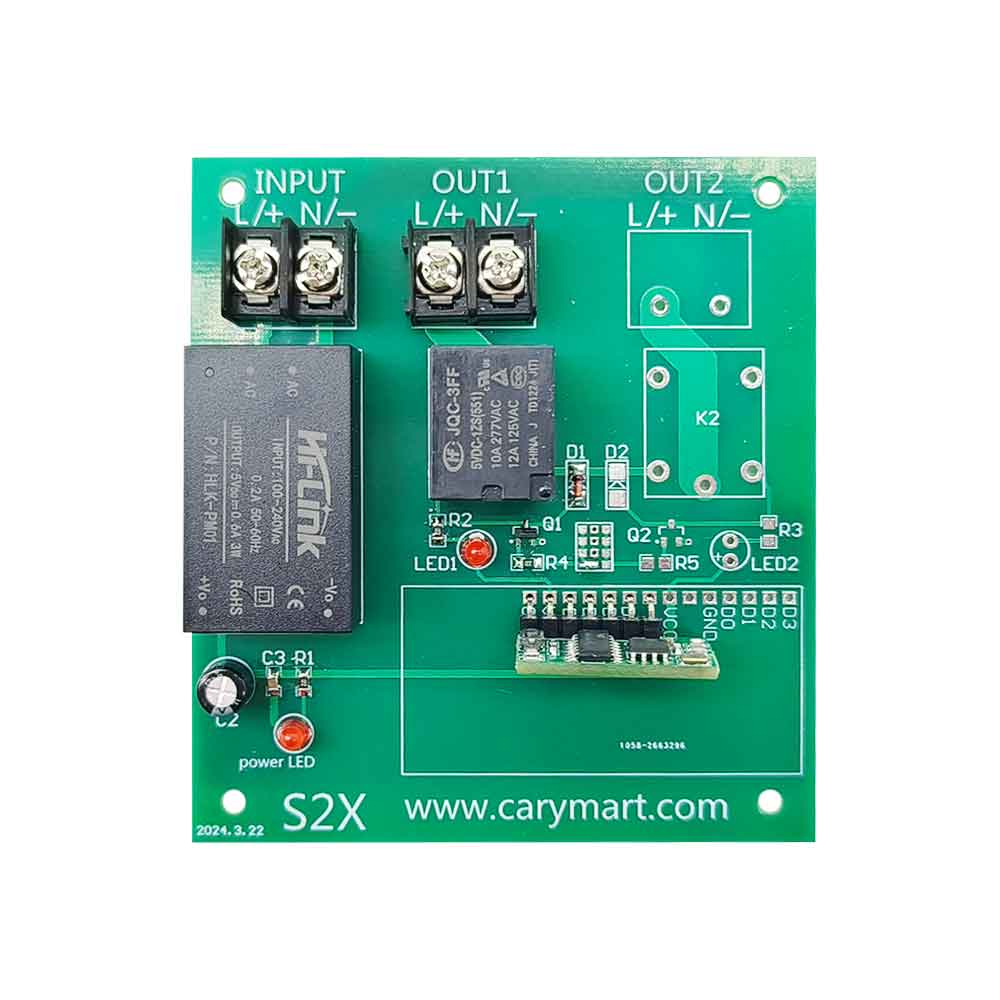

 Wiring:
 If you want to control an AC 220V lamp, do as following:

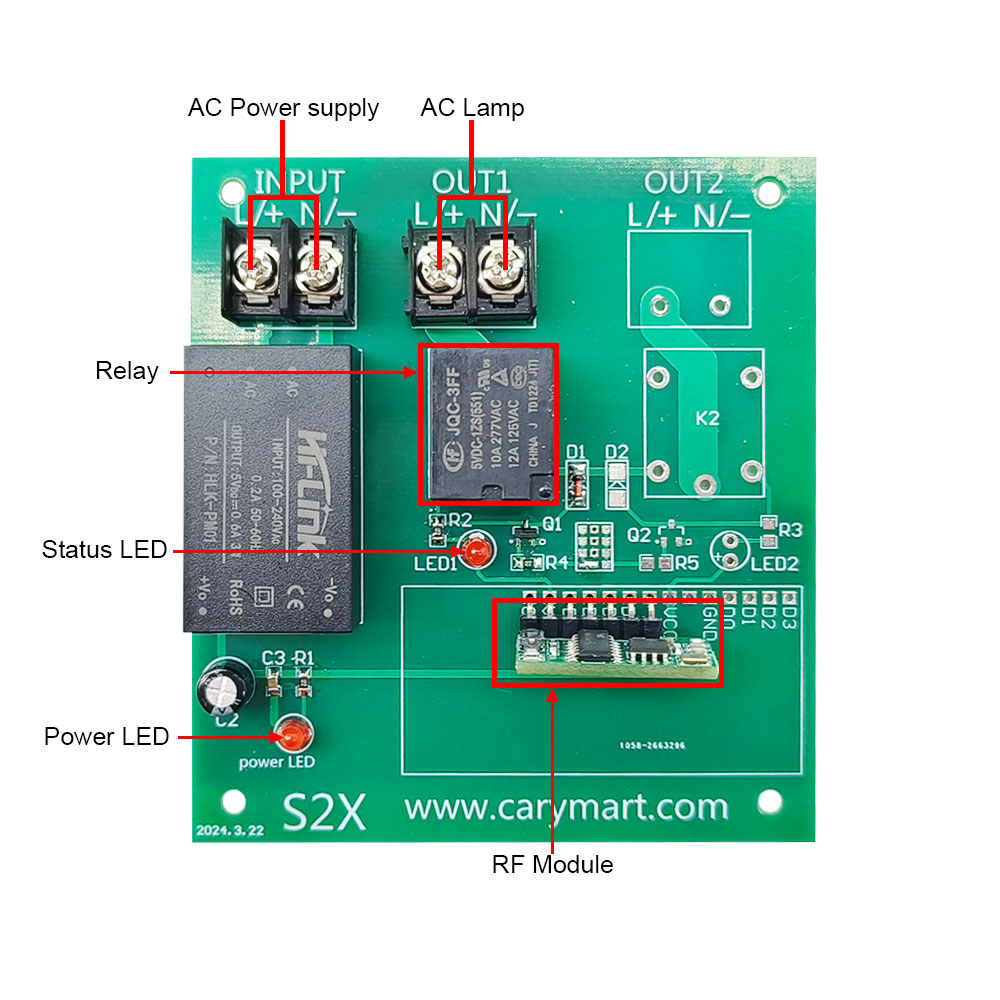

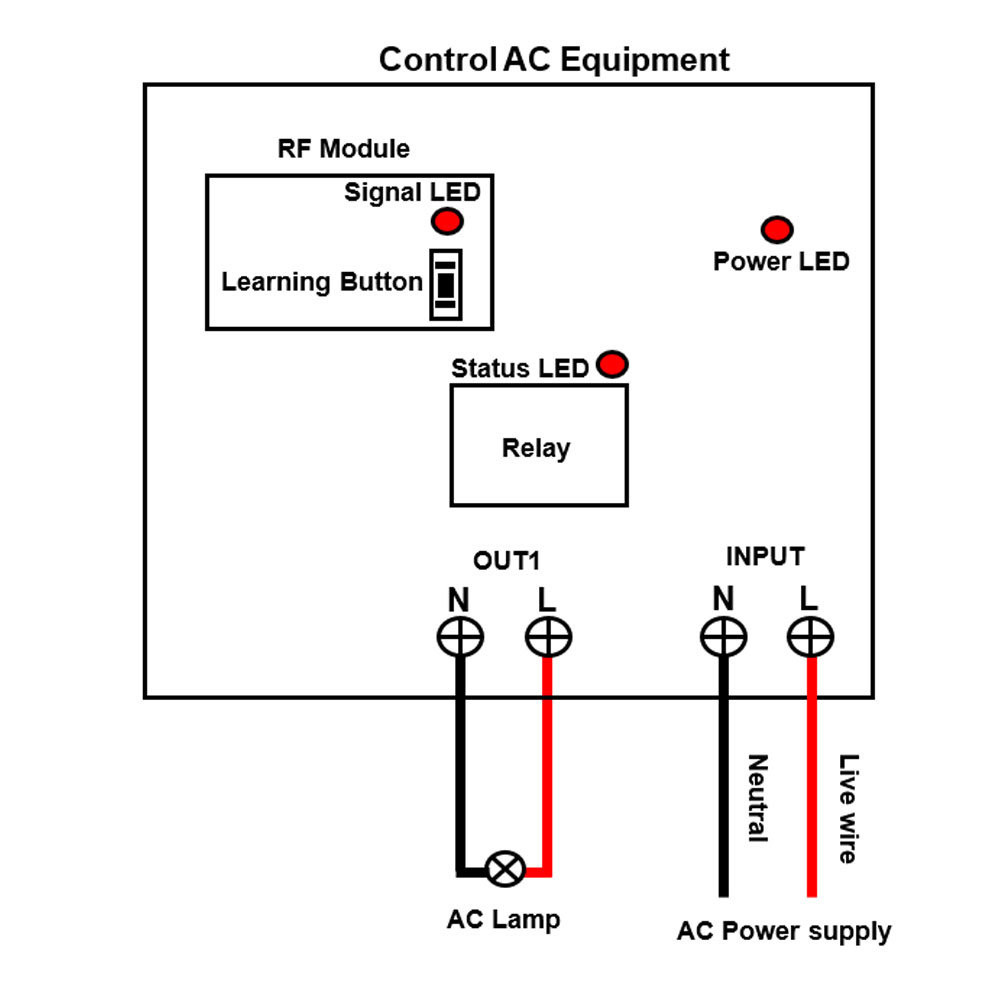

 1) Connect the live wire of AC power supply to terminal “L / +” of INPUT, and connect the neutral wire of AC power supply to terminal “N / -” of INPUT.
 2) Connect one side of AC lamp to terminal "L / +" of OUTPUT, and connect another side of AC lamp to terminal "N / -" of OUTPUT.

 Setting different control modes:
 Setting different control modes: (We have set the receiver in Self-locking mode before delivery, if you want to use other modes, do as following operation.)
 Setting control mode Self-locking: Only connect Jumper-2.
 Control mode Self-locking: Press -> On; Press again -> Off.
 Press button 1 of the transmitter: Terminals “OUT1” of receiver 1 outputs AC power, the lamp 1 is on.
 Press button 1 of the transmitter again: Terminals “OUT1” of receiver 1 stops outputting, the lamp 1 is off.
 …
 Press button 12 of the transmitter: Terminals “OUT1” of receiver 12 outputs AC power, the lamp 12 is on.
 Press button 12 of the transmitter again: Terminals “OUT1” of receiver 12 stops outputting, the lamp 12 is off.

 Setting control mode Momentary: Only connect Jumper-1.
 Control mode Momentary: Press and hold -> On; Release -> Off.
 Press and hold button 1 of the transmitter: Terminals “OUT1” of receiver 1 outputs AC power, the lamp 1 is on.
 Release button 1 of the transmitter: Terminals “OUT1” of receiver 1 stops outputting, the lamp 1 is off.
 …
 Press and hold button 12 of the transmitter: Terminals “OUT1” of receiver 12 outputs AC power, the lamp 12 is on.
 Release button 12 of the transmitter: Terminals “OUT1” of receiver 12 stops outputting, the lamp 12 is off.

 Setting control mode Interlocking: Do not connect Jumper-1 and Jumper-2.
 Control mode Interlocking: Press -> On, Press another button -> Off.
 Press button 1 of the transmitter: Terminals “OUT1” of receiver 1 outputs AC power, the lamp 1 is on.
 Press other buttons of the transmitter: Terminals “OUT1” of receiver 1 stops outputting, the lamp 1 is off.
 …
 Press button 12 of the transmitter: Terminals “OUT1” of receiver 12 outputs AC power, the lamp 12 is on.
 Press other buttons of the transmitter: Terminals “OUT1” of receiver 12 stops outputting, the lamp 12 is off.

 Wired control terminals:
 The receiver has manual control terminals, you can connect external devices, sensors, or manual switches to control the receiver.
 1) Signal input:
 You can connect external devices (with low level output signal) to manual terminals 1 (Signal +) and terminal 3 (Signal -), then the external device’s output signal can control the receiver.
 When the external device outputs low level signal to manual terminal 1 and terminal 3, turns on the relay. Terminals “OUT1” outputs AC power, the lamp is on.
 When the external device stops to output signal, turns off the relay. Terminals “OUT1” stops outputting, the lamp is off.

 2) The manual switches:
 You can connect manual switches to manual terminals 1 and 3, then you can use manual switches to control the receiver.
 When connect terminals 1 and 3, the receiver turns on the relay. Terminals “OUT1” outputs AC power, the lamp is on.
 And when disconnect terminals 1 and 3, the receiver turns off the relay. Terminals “OUT1” stops outputting, the lamp is off.
