Application:
Mainly used for doors, windows, solar tracking system, medical devices,
agricultural machinery, vehicles, ships, elevator platforms, lifting tables,
TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs
and other electrical equipment. It can open, close, push, pull, lift and
descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.
Feature:
High-quality products and high-quality services
Metal housing, able to work in very harsh environments
Metal gearbox, high strength wear-resistant gear
Stainless steel telescopic tube and aluminum alloy outer tube, good
corrosion resistant
Strong thrust, up to 120N / 12 Kgs / 25 lbs
Two speed options
Multiple stroke options, from 50 mm to 300 mm
We can customize any stroke length from 50mm to 300mm, such as 70mm, 125mm,
270mm and so on.
Advanced waterproof and dustproof technology
Low power consumption and low noise

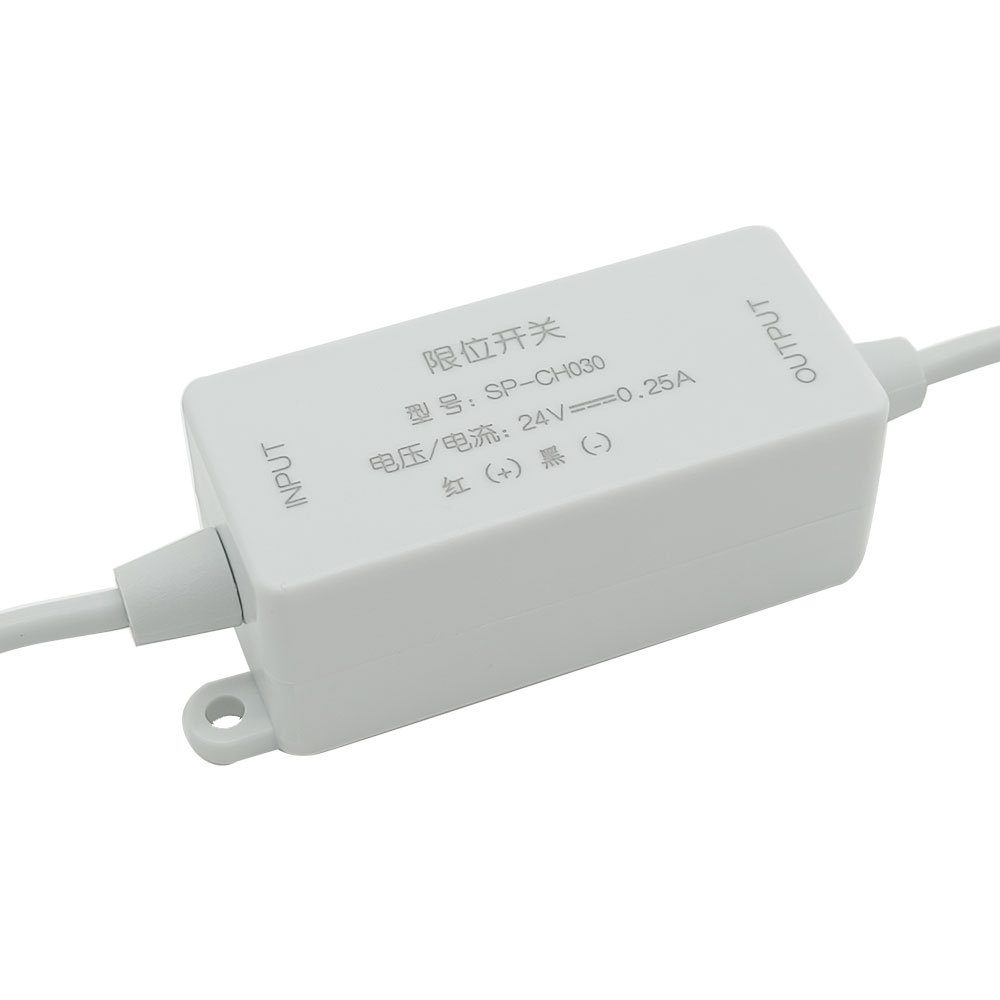

External overcurrent protection, linear actuator will automatically stop
when stroke rod reaches the limit position.
Automatically lock after stopping, and no power supply is required.
Maintenance-free
Specifications: Optional working voltage: DC 12V or DC 24V. Unless you only have 12V
power supply available, we recommend you choose the linear actuator with 24V
working voltage.
Stroke range: 12 inches or 300 mm
Optional speed: 9.5mm±1mm/s, or 26mm±2mm/s
The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases.
Max Load capacity: 120N / 12 Kgs / 25 lbs at 6.5mm/second, or 30N / 3 Kgs /
6 lbs at 22mm/second.
Linear actuator can get maximum load capacity when it operates in the
vertical direction, and the pulling force is less than pushing force.
Please use a 12V/3A or 24V/3A power supply to power a linear actuator.

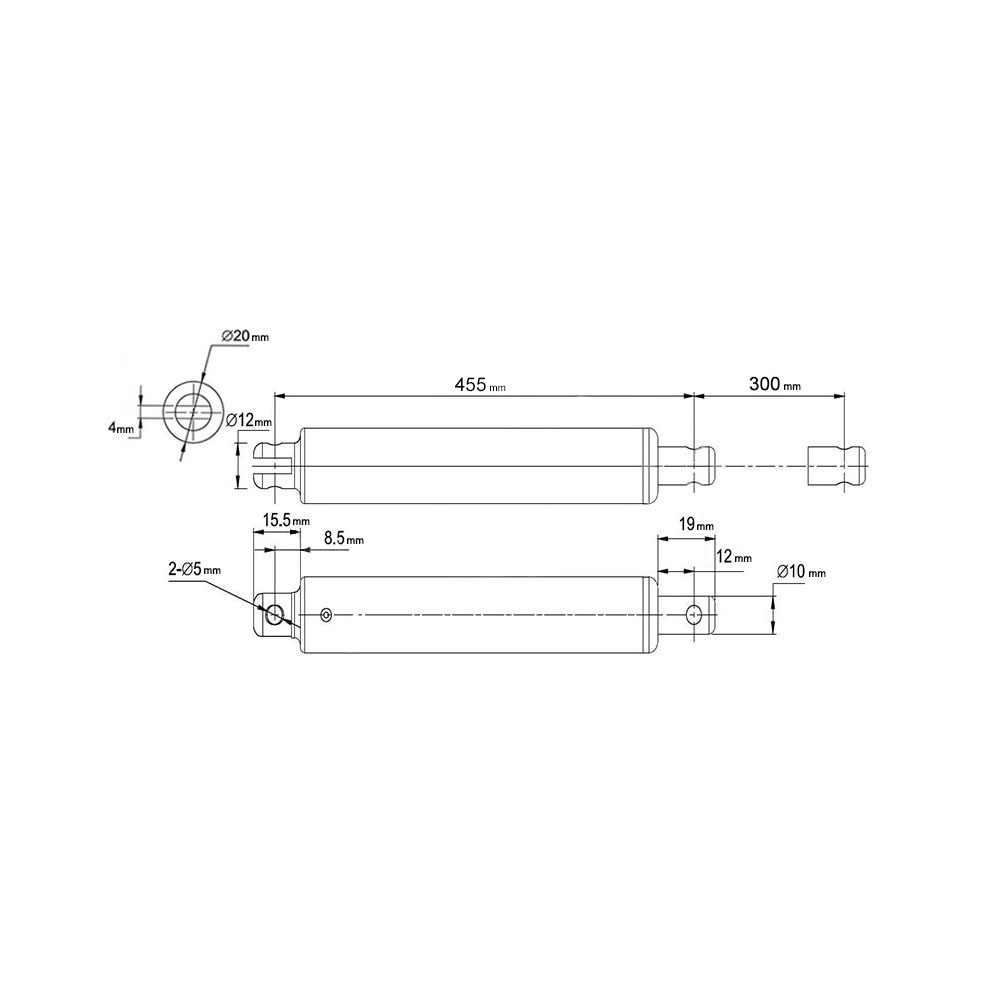

Outer tube diameter: 20mm

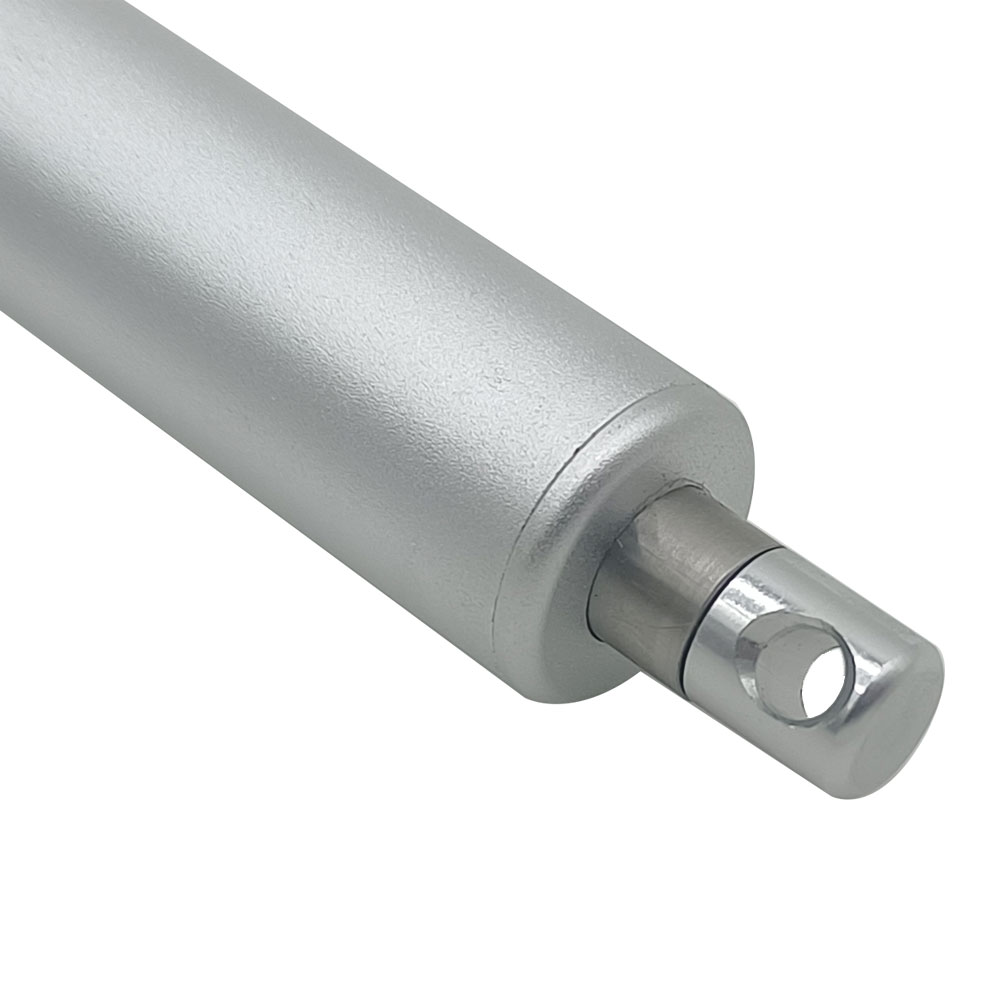

Telescopic tube diameter: 10mm
Mounting holes diameter: 5mm
Housing Material: Aluminum Alloy
Stroke Rod Material: Stainless Steel
Gear Material: Steel Alloy
Motor Type: Brushed DC Motor
Duty Cycle: 10%

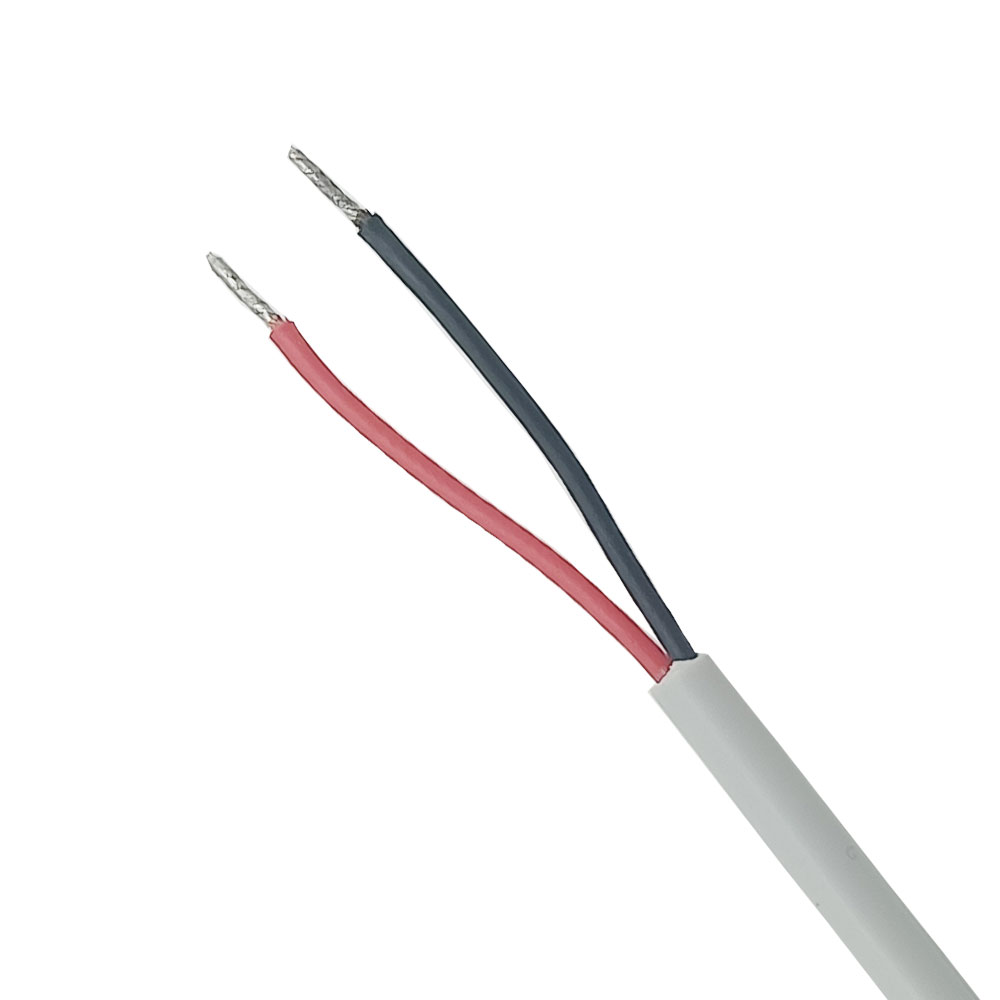

Plug Standard: Ordinary Two-core Wire
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating Noise: about 38dB~42dB (Linear actuators with different parameters
will have different noise levels.)
IP rating: IP54, not suitable for outdoor use.
Fixed Bracket:
This linear actuator does not contain fixed mounting brackets.
Operation:
When linear actuator is connected to DC power supply, the stroke rod will
extend outward; after switching the power in the reverse direction, the
stroke rod will retract inward.
The direction of movement of the stroke rod can be changed by switching the
polarity of DC power supply.
Note:
1. When the load increases, the speed of linear actuator will slow down.
2. If you want to operate two or more linear actuators to fully synchronize
movement, please contact us for specific solutions.
3. If you need a power supply to power linear actuator, please click
here
to purchase.
4. If you want to use external limit switches to stop linear actuator at any
position, please click
here
to purchase.
5. If you want to use a remote control switch to operate linear actuator
wirelessly, please click
here
to purchase.
Different speeds and corresponding maximum thrust:
No-load Speed
Full load Speed
Max Load
Working Current
12V version
24V version
No Load
Full Load
No Load
Full Load
26mm±2mm/second
22mm±2mm/second
30N / 3 Kgs / 6 lbs
0.15A
0.52A
0.08A
0.3A
9.5mm±1mm/second
6.5mm±1mm/second
120N / 12 Kgs / 25 lbs
0.1A
0.4A
0.05A
0.25A
Note:
1. The above data is the maximum load capacity that can be obtained when the
linear actuator runs in the vertical direction. If the weight of your
equipment (such as a cellar door) is 100kg, and you want to use a linear
actuator to open this door, you need to calculate the actual force acting on
the linear actuator according to your installation method. This force is
usually 2-5 times the weight of the cellar door. If you don't know how to
calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases. Full load speed is approximately
60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the
right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under
maximum load, we recommend letting it work at about half of the maximum load
to get a longer working life.
5. The maximum pull force of the linear actuator is slightly less than its
maximum thrust force.
Production time:
The linear actuators are the customized products, and these products are not in stock, we need to spend 3~7 working days to produce them according to the specified parameters in your order.
Return or Exchange:
The Linear Actuators are the customized products, we need to produce them
according to the specified parameters in your order, so that we do not accept
returns or cancel orders. If customers order unsuitable linear actuators
themselves, we also do not accept exchanges, please understand.
