Carymart offers you the premium rf remote control equipment.
We suggest you reading our FAQs before making your decision.
If you have any other question, please contact us.
We will reply you as soon as possible.

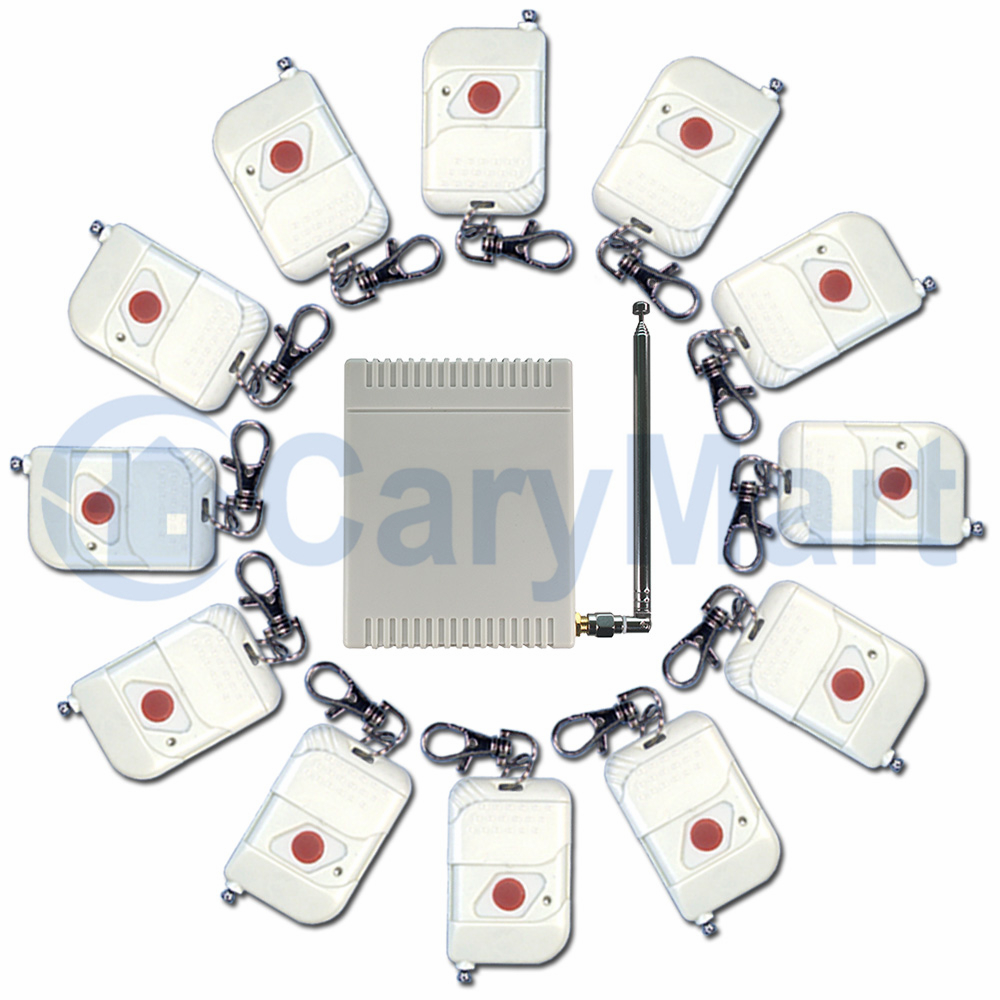

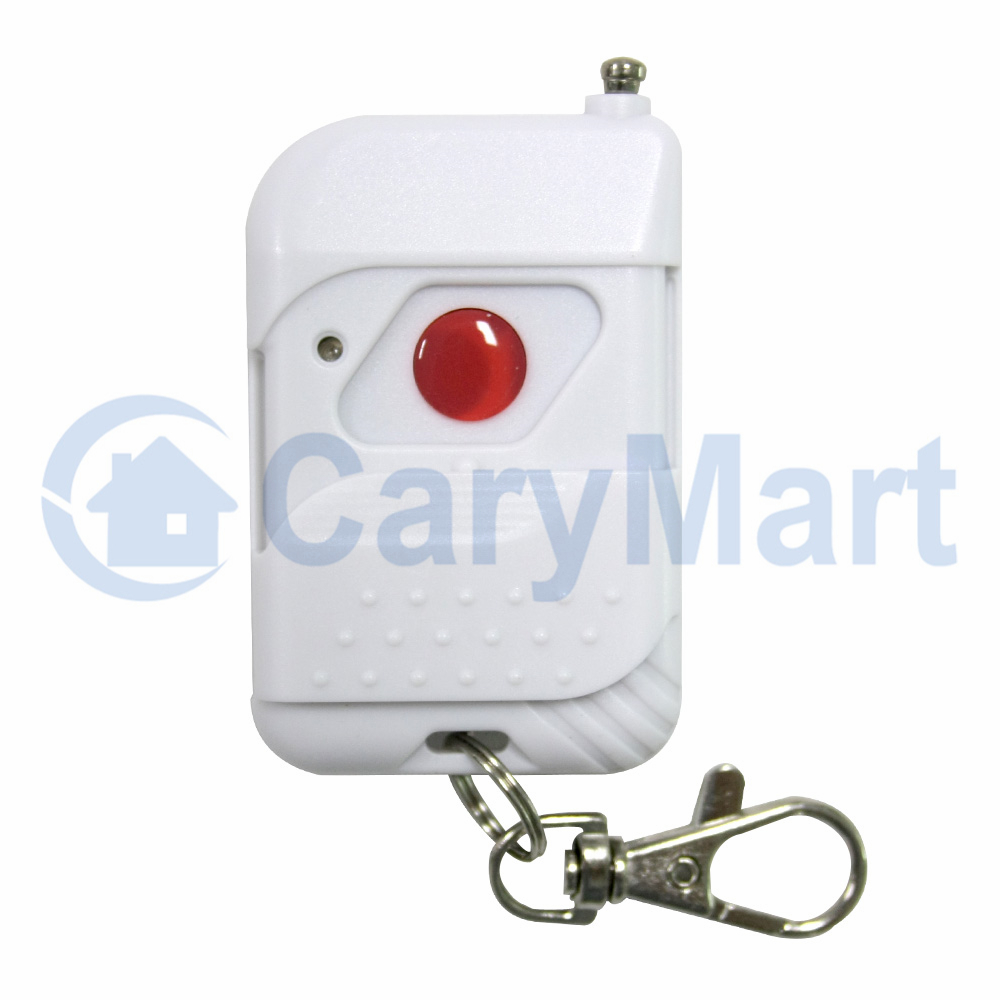

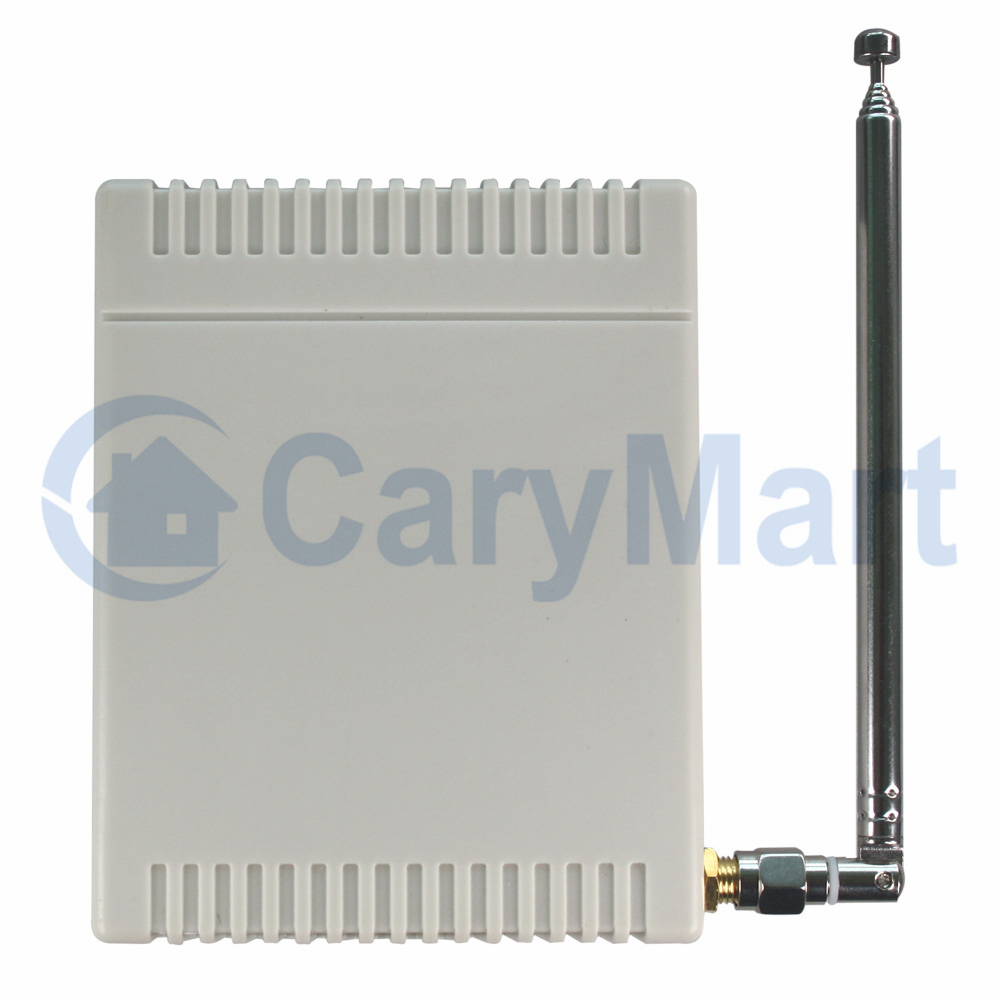

Package Include: 1 x Receiver: S12CA-DC09-ANT3 / S12CA-DC12-ANT3 / S12CA-DC24-ANT3 (12 Channel / 12 Control Modes) 12 x Transmitter: C-1 1 x User manual Feature: Application: It can be used in industry automation, agriculture automation and home automation, such as factory, house, farm, pasture, vehicle, ship, offshore operation, aerial vehicle, field call, etc. It can remote control equipments on land, water and air, such as remote control lights, sirens, locks, motors, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, business signs and various devices. Wireless control, easy to install. Relay Output: This receiver is relay output, it can be used to operate both DC and AC equipments. The terminals are NO / NC (normally open / normally closed), which serves as a switch. That means you should also connect a separate power supply to equipments. You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance. Wireless RF signal can pass through walls, floors, doors or windows. With reverse power protection and over current protection. Reliable control: The receiver only works with the transmitter which usesame code. One/several transmitters can control one/several receivers simultaneously. You can use two or more units in the same place. Receiver Parameters: Model No.: S12CA-DC09-ANT3 / S12CA-DC12-ANT3 / S12CA-DC24-ANT3 Power Supply (Operating Voltage): DC12V±1V (S12CA-DC12), DC9V±1V (S12CA-DC09), DC24V±1V (S12CA-DC24) Output: Relay output (Normally open and normally closed) Working Voltage Range of Relay: AC110~240V or DC0~28V Working Frequency: 433MHz Channel: 12 CH Control Modes: Self-locking, Momentary, Interlocking and mixed modes Static Current: ≤6mA Maximum Working Current: 5A / each channel PCB Size: 94mm x 73mm x 18mm Case Size: 100mm x 80mm x 30mm Work with Fixed code transmitters Matching Transmitters: The receiver can work with different transmitters, such as model CV-12 (500M), or CB-12 (1000M) etc. Working Range: With a transmitter (such as C-1) to form a complete set, the maximum working distance can reach 100M in an open ground. The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance. If you want to have a further working range, you can install an external antenna to the receiver, and you also can use a powerful transmitter, such as CB series transmitters. Usage: The receiver can be used to control both DC 0~28V and AC 110~240V equipments. Notice: The receiver is relay output, not DC/AC power output. Initial state of relay output terminals: Terminals B and C are Normally Open; Terminals A and B are Normally Closed. Wiring: If you want to control a DC 12V lamp, do as following: 1) Connect the positive pole of DC power supply to terminal “+” of INPUT, and connect the negative pole of DC power supply to terminal “-” of INPUT. 2) Connect terminal C to the positive pole of DC power supply, connect terminal B to the positive pole of DC lamp, and connect the negative pole of DC lamp to the negative pole of DC power supply. If you want to control an AC 220V lamp, do as following: 1) Connect the positive pole of DC power supply to terminal “+” of INPUT, and connect the negative pole of DC power supply to terminal “-” of INPUT. 2) Connect terminal C to the live wire of AC power supply, connect terminal B to one side of AC lamp, and connect another side of AC lamp to the neutral wire of AC power supply. Setting different control modes: Setting different control modes (We have set the receiver as Self-locking control mode before delivery. If you want to use other control modes, do as following operation): 1) Learning Self-locking control mode: When the receiver is in the status of LEARNING, press button of remote control 1. Control mode Self-locking (Channel 1~12): Press -> On; Press again -> Off. Press button 1: Turn on relay 1 (connect B and C, disconnect A and B), the lamp 1 is on. Press button 1 again: Turn off relay 1 (disconnect B and C, connect A and B), the lamp 1 is off. … Press button 12: Turn on relay 12 (connect B and C, disconnect A and B), the lamp 12 is on. Press button 12 again: Turn off relay 12 (disconnect B and C, connect A and B), the lamp 12 is off. 2) Learning Momentary control mode: When the receiver is in the status of LEARNING, press button of remote control 2. Control mode Momentary (Channel 1~12): Press and hold -> On; Release -> Off. Press and hold button 1: Turn on relay 1 (connect B and C, disconnect A and B), the lamp 1 is on. Release button 1: Turn off relay 1 (disconnect B and C, connect A and B), the lamp 1 is off. … Press and hold button 12: Turn on relay 12 (connect B and C, disconnect A and B), the lamp 12 is on. Release button 12: Turn off relay 12 (disconnect B and C, connect A and B), the lamp 12 is off. 3) Learning Interlocking control mode: When the receiver is in the status of LEARNING, press button of remote control 3. Control mode Interlocking (Channel 1~12): Press -> On, other relays Off; Press other button -> Off. Press button 1: Turn on relay 1 (connect B and C, disconnect A and B), the lamp 1 is on. Turn off other relay (disconnect B and C, connect A and B), other lamps are off. … Press button 12: Turn on relay 12 (connect B and C, disconnect A and B), the lamp 12 is on. Turn off other relay (disconnect B and C, connect A and B), other lamps are off. 4) Learning Self-locking (Channel 1~4) + Momentary (Channel 5~8) + Interlocking (Channel 9~12) control mode: When the receiver is in the status of LEARNING, press button of remote control 4. 5) Learning Self-locking (Channel 1~6) + Momentary (Channel 7~12) control mode: When the receiver is in the status of LEARNING, press button of remote control 5. 6) Learning Self-locking (Channel 1~6) + Interlocking (Channel 7~12) control mode: When the receiver is in the status of LEARNING, press button of remote control 6. 7) Learning Momentary (Channel 1~6) + Interlocking (Channel 7~12) control mode: When the receiver is in the status of LEARNING, press button of remote control 7. 8) Learning Interlocking (Channel 1~4 interlocked; Channel 5~8 interlocked; Channel 9~12 interlocked) control mode: When the receiver is in the status of LEARNING, press button of remote control 8. 9) Learning Self-locking (Channel 1~10) + Momentary (Channel 11~12) control mode: When the receiver is in the status of LEARNING, press button of remote control 9. 10) Learning Self-locking (Channel 1~4) + Momentary (Channel 5~12) control mode: When the receiver is in the status of LEARNING, press button of remote control 10. 11) Learning Self-locking (Channel 1~4) + Interlocking (Channel 5~12) control mode: When the receiver is in the status of LEARNING, press button of remote control 11. 12) Learning Self-locking control mode (Channel 1~10) + All On / Off (Channel 11/12): When the receiver is in the status of LEARNING, press button of remote control 12. Press button 11: Turn on all 12 relays Press button 12: Turn off all 12 relays
