Application:
Mainly used for doors, windows, cellars, trapdoors, hatchways, solar
tracking system, medical devices, agricultural machinery, vehicles, ships,
elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage
sofas, electric beds, medical chairs, and other electrical equipment. It can
open, close, push, pull, lift, and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.

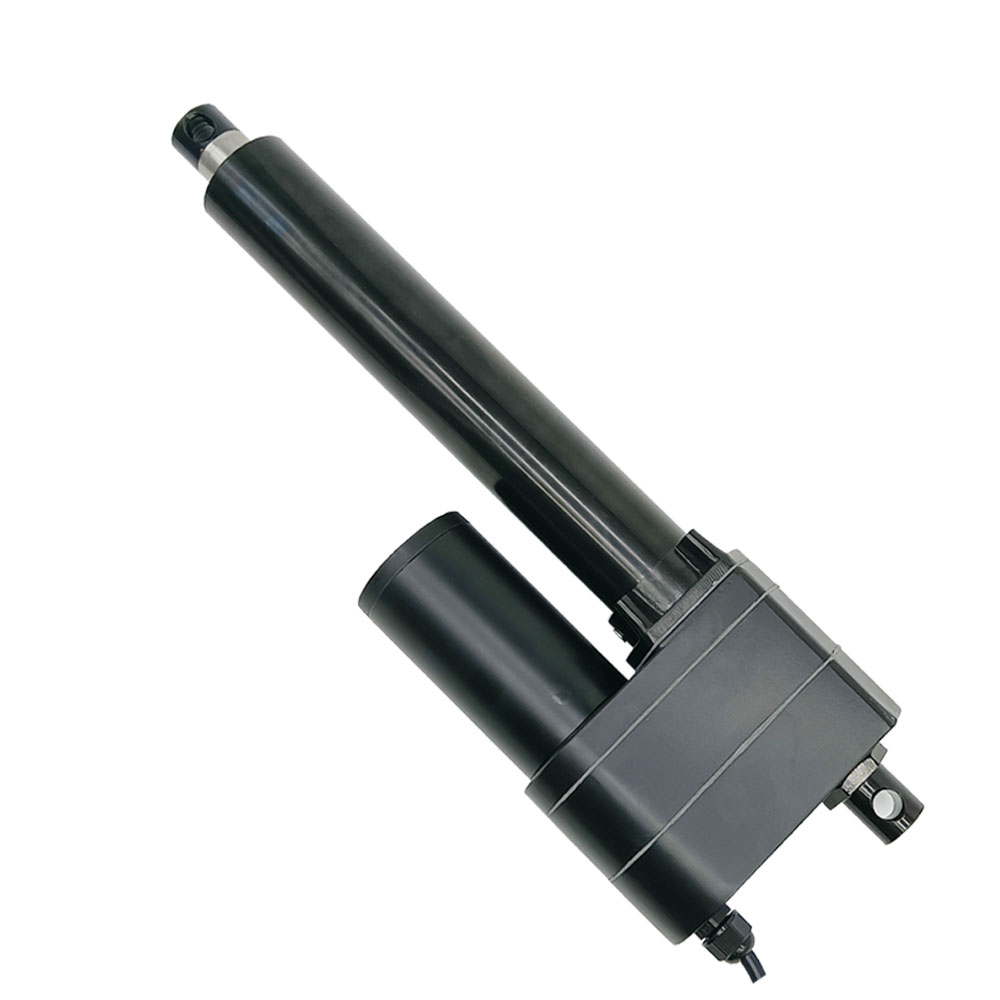

Feature:
High-quality products and high-quality services
Metal housing, able to work in very harsh environments
Metal gearbox and high strength wear-resistant metal gears
Stainless steel telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 5000N / 500 Kgs / 1100 lbs
Multiple speed options, from 12 mm/second to 50 mm/second
Multiple stroke options, from 700 mm to 2000 mm
Advanced waterproof and dustproof technology
Low power consumption and low noise
Built-in clutch to protect gears and motors
Built-in motor overload and overheat protection
Built-in two limit switches, linear actuator will automatically stop when
stroke rod reaches the limit position.
Built-in Hall sensor is optional, so you can use the synchronous controller
to operate 4 linear actuators fully synchronously.
Automatically lock after stopping, and no power supply is required.
Maintenance-free
Specifications:
Optional working voltage: DC 12V, DC 24V, DC 36V or DC 48V, and 24V is the
most commonly used working voltage.

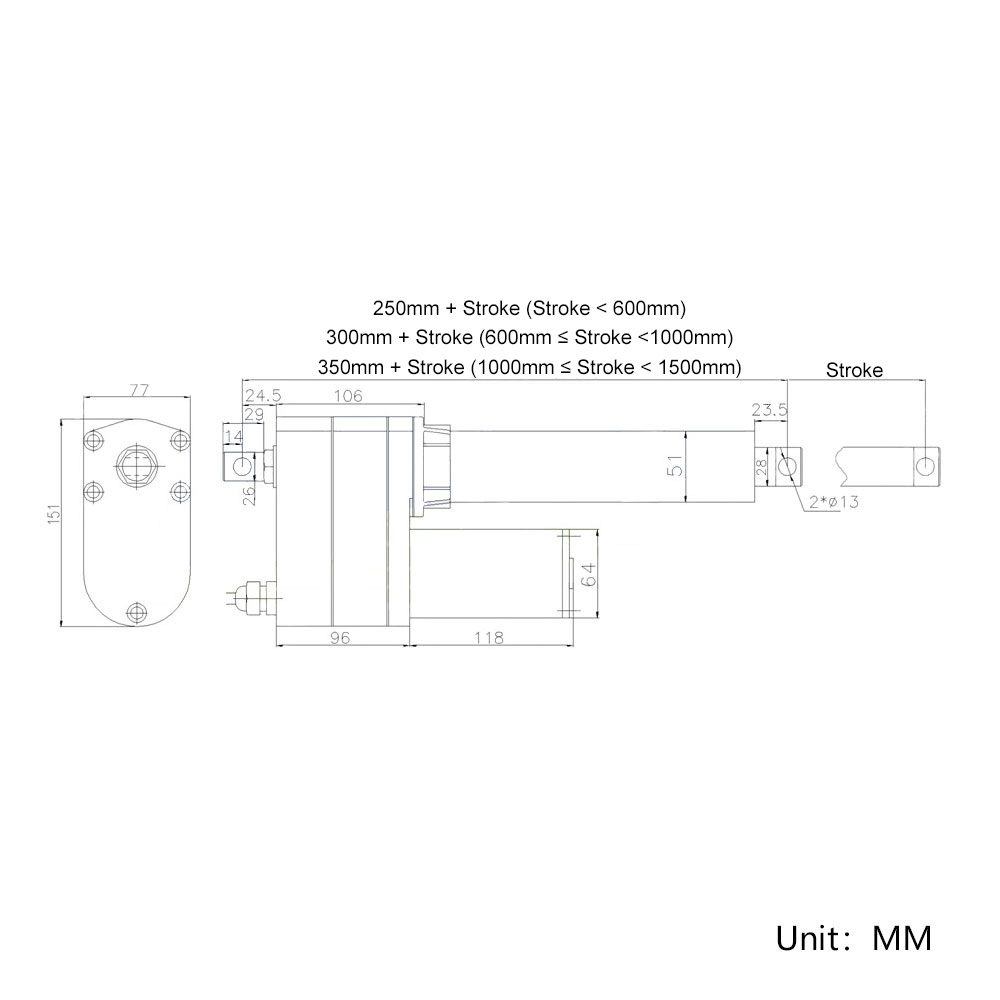

Stroke range: 28 ~ 80 inches or 700 ~ 2000 mm (If you want to view detailed information of linear actuators with different
strokes, such as detailed drawings and dimensional drawings, please click
the following link to view:
Linear Actuator C)
Optional speed: 12±2mm/s, 16±3mm/s, 20±4mm/s, 28±6mm/s, 50±10mm/s
The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases.
Max Load capacity: 5000N / 500 Kgs / 1100 lbs at 12mm/s
Linear actuator can get maximum load capacity when it operates in the
vertical direction, and the pulling force is less than pushing force.
No-load current: 2~3A at 12V or 1~1.5A at 24V
Full load current: 12~20A at 12V or 6~10A at 24V
Please use a 12V/84A or 24V/42A power supply to power the four linear
actuators.
Shaft diameter: 28mm
Mounting holes diameter: 13mm [0.512 in]
Housing Material: Stainless steel
Stroke Rod Material: Stainless steel
Gear Material: Steel Alloy
Motor Type: Brushed DC Motor
Duty cycle: 10%, max 5mins continuous use
Service life: approx. 35, 000 cycles

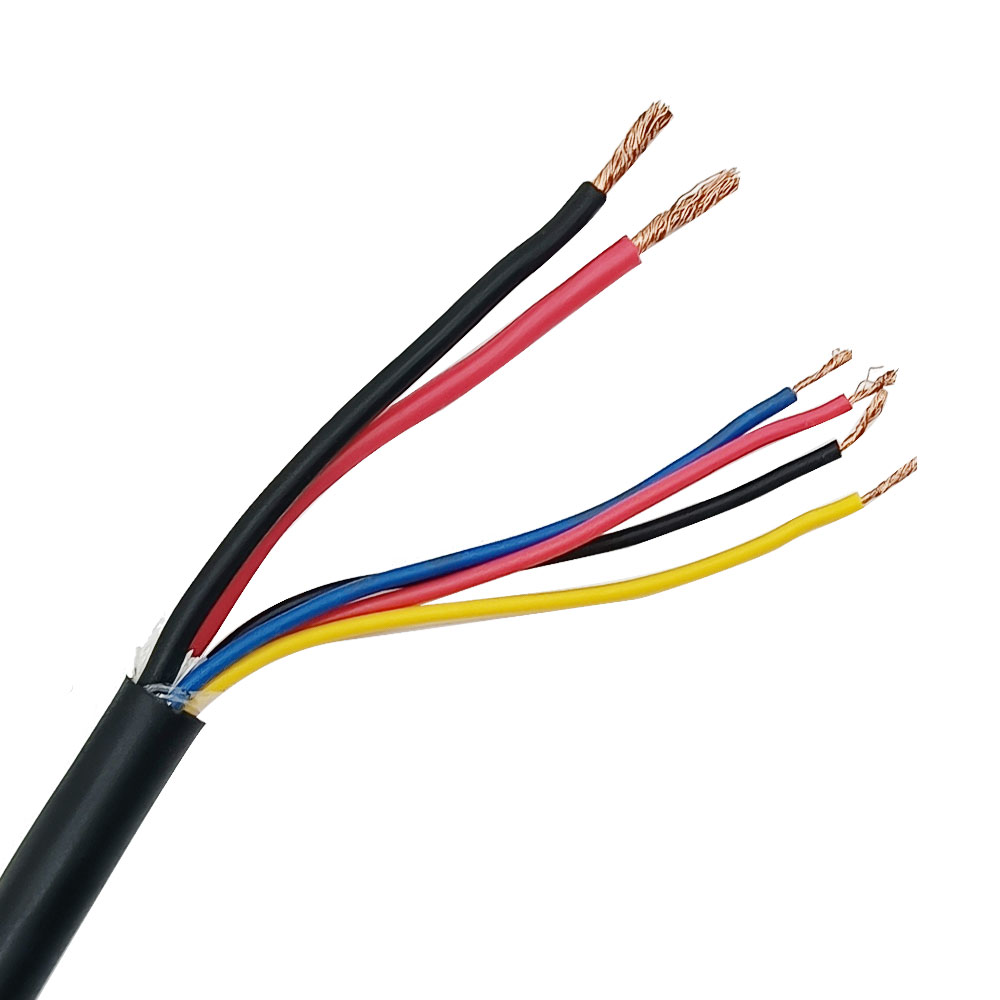

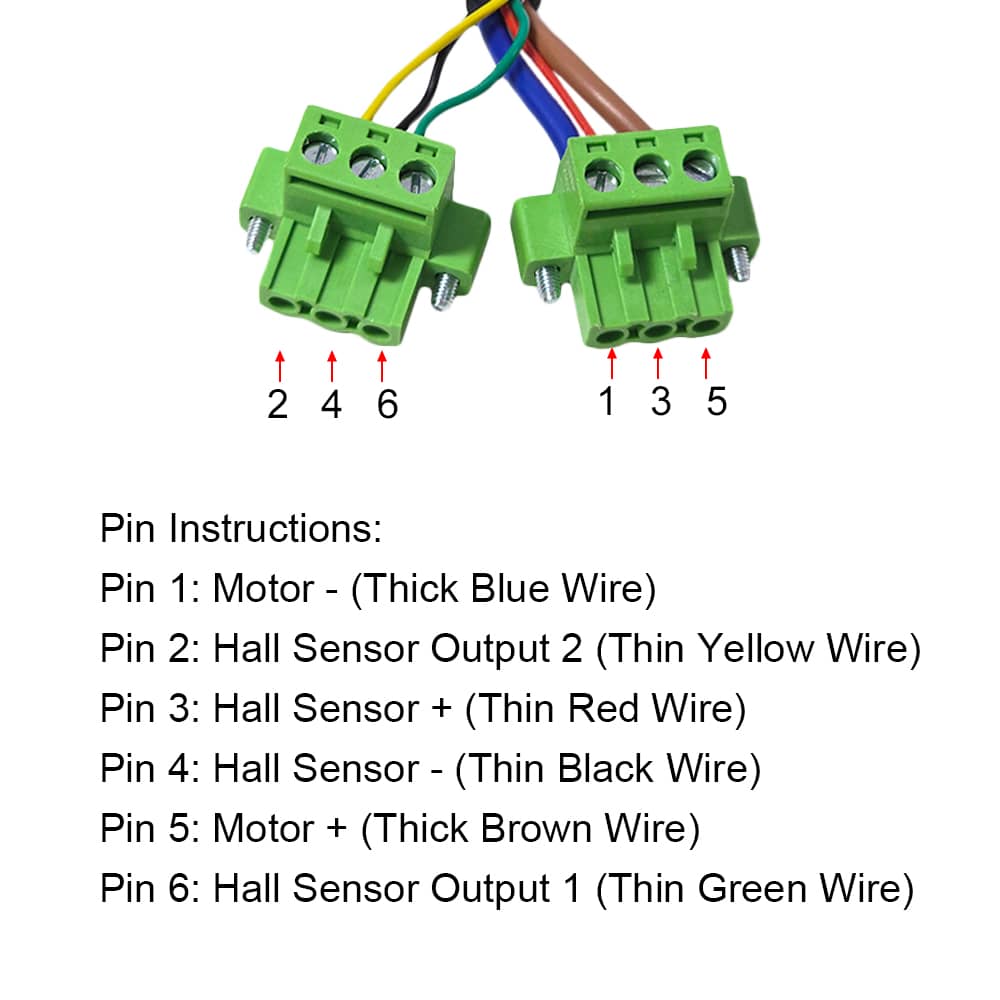

Power cable: Six-core Wire
Cable length: 2500±10%mm [24 in], the length can also be customized
according to your specific needs.
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating Noise: about 56dB~66dB (Linear actuators with different parameters
will have different noise levels.)
IP rating: IP65
Different speeds and corresponding maximum thrust:
No-load Speed
Full load Speed
Maximum Thrust
Self-locking Force
12mm/s
9mm/s
5000N / 500 kg / 1100 lbs
5500N / 550 kg / 1200 lbs
16mm/s
12mm/s
4000N / 400 kg / 880 lbs
4500N / 450 kg / 1000 lbs
20mm/s
15mm/s
3000N / 300 kg / 670 lbs
3500N / 350 kg / 790 lbs
28mm/s
20mm/s
2000N / 200 kg / 450 lbs
2500N / 250 kg / 560 lbs
50mm/s
38mm/s
1000N / 100 kg / 200 lbs
1500N / 150 kg / 340 lbs
Note:
1. The above data is the maximum load capacity that can be obtained when
each linear actuator runs in the vertical direction. The maximum load capacity
of the entire synchronous system is the sum of the maximum load capacities of
the four linear actuators. If the weight of your equipment (such as a cellar
door) is 100kg, and you want to use a linear actuator to open this door, you
need to calculate the actual force acting on the linear actuator according to
your installation method. This force is usually 2-5 times the weight of the
cellar door. If you don't know how to calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases. Full load speed is approximately
60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the
right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum
load, we recommend letting it work at about half of the maximum load to get a
longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not
normally allow them to operate at their maximum stroke under heavy loads. If the
actual stroke you want is 600MM, we recommend that you choose a linear actuator
with a stroke of 700-800MM.
6. The maximum pull force of the linear actuator is slightly less than its
maximum thrust force.

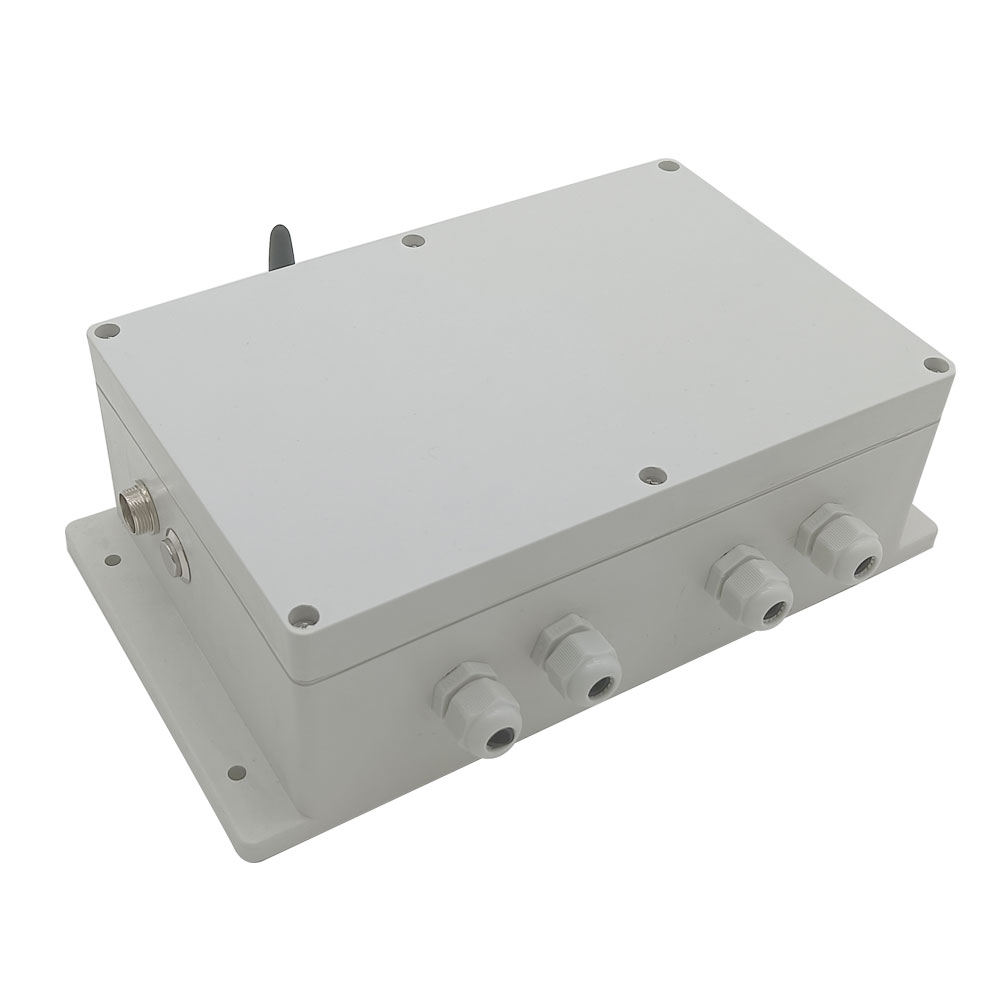

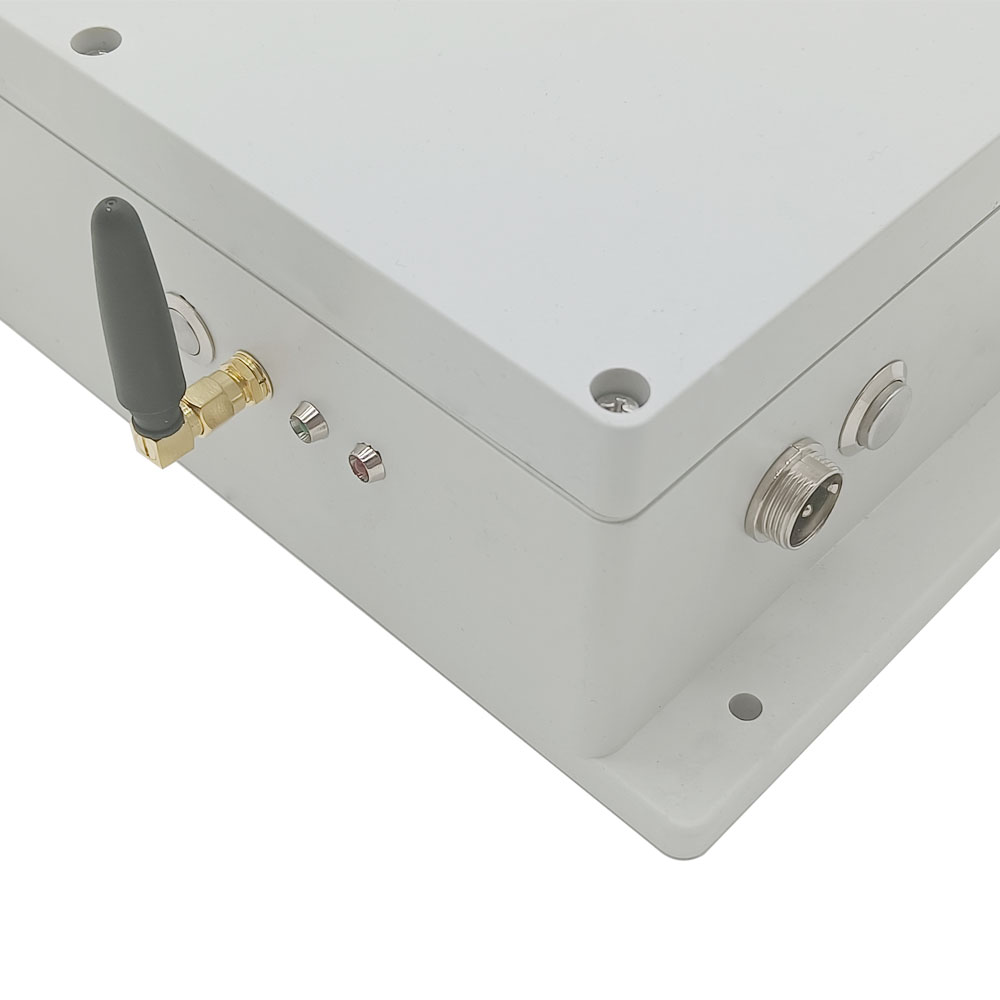

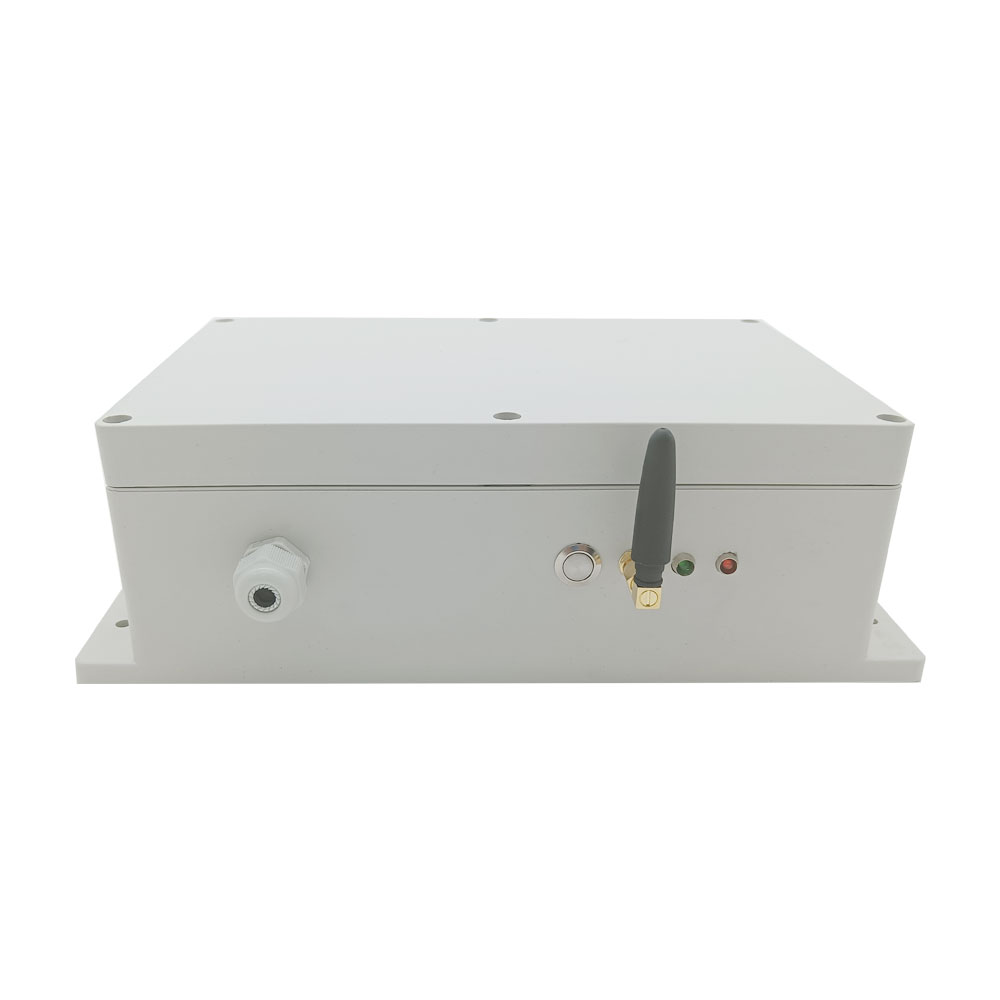

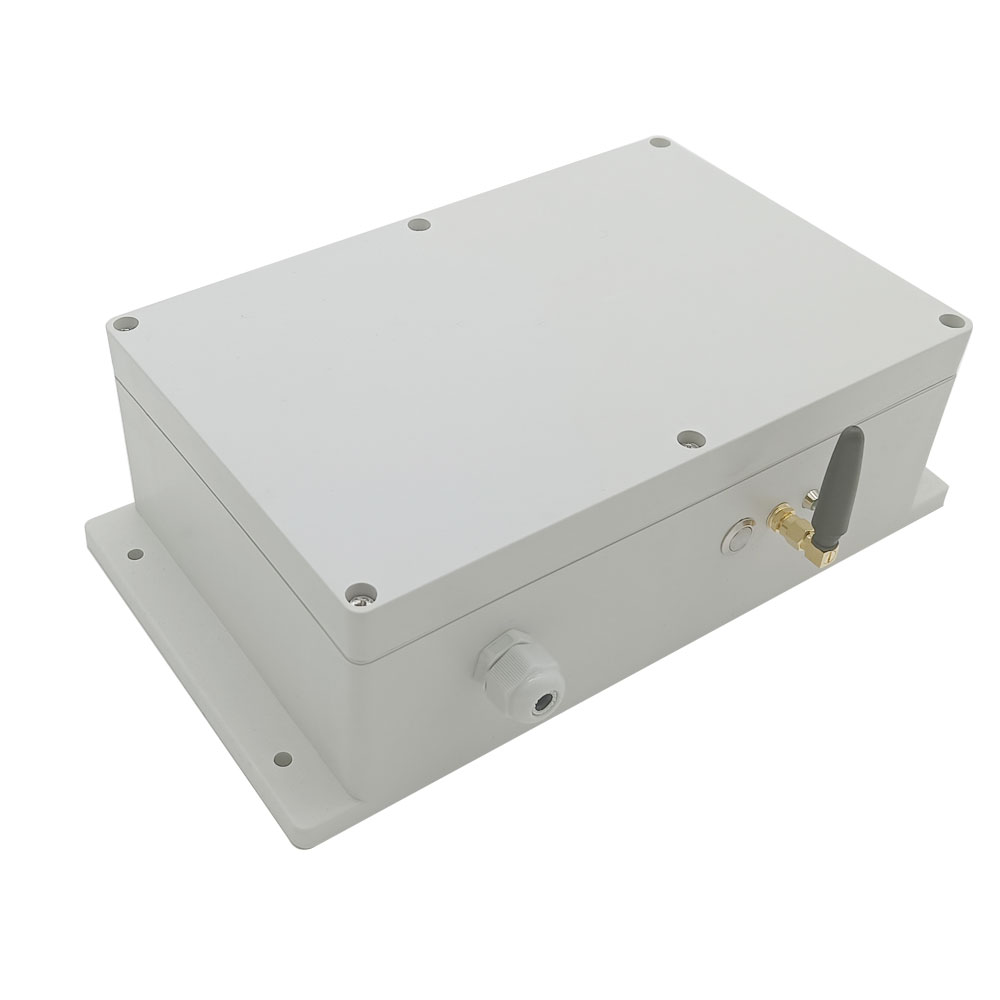

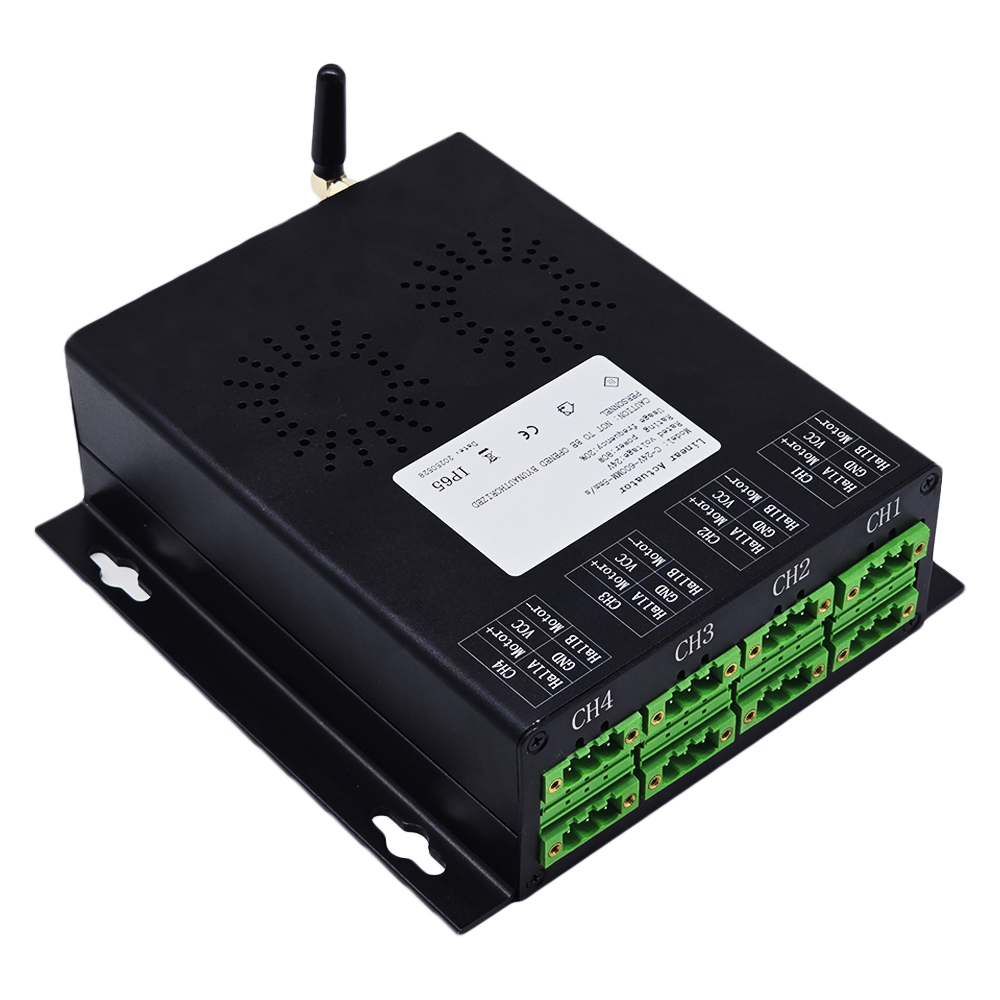

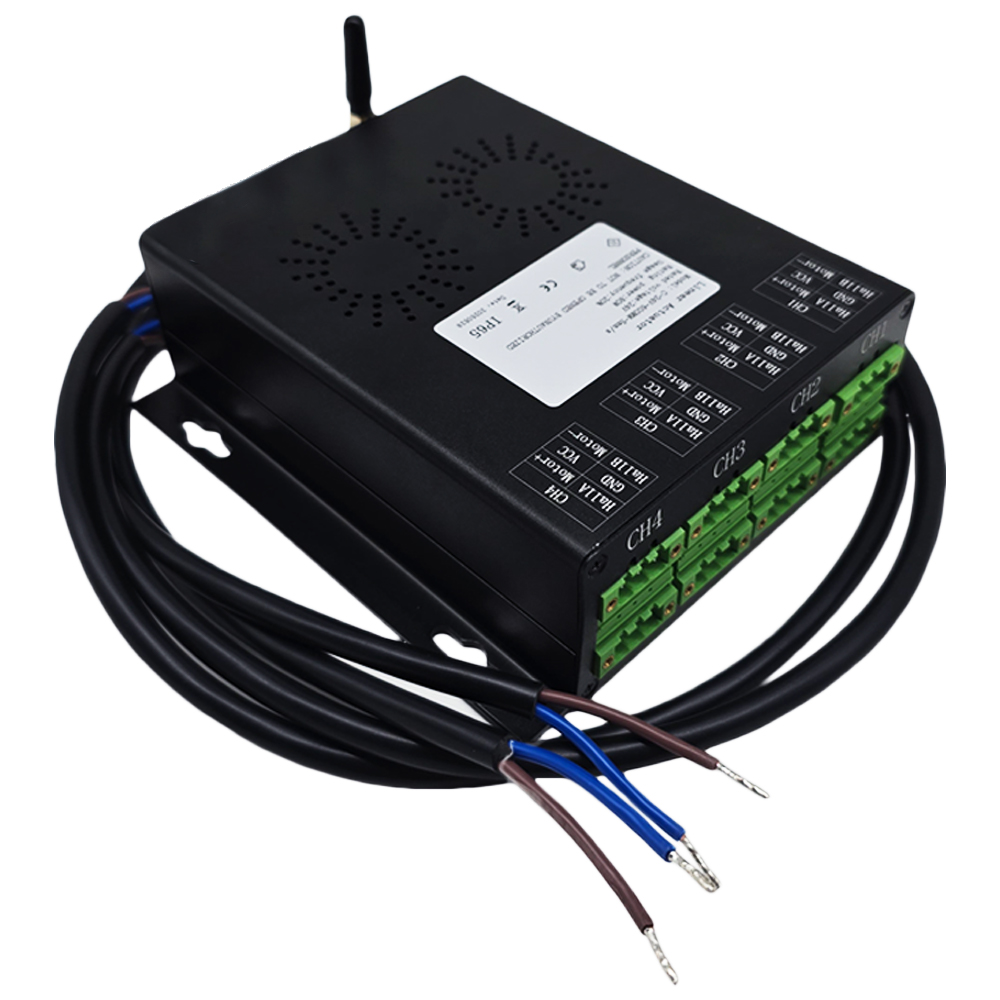

The information for synchronous controller:
Introduction:
If you want to use multiple linear actuators to raise and lower an
equipment, for example two, three or four electric actuators. Since the
high-speed DC motors in electric actuators cannot run at exactly the same
speed, so the movement speed of the electric actuator will also be
different. When multiple electric actuators work at the same time, their
actual speeds cannot be exactly the same. In this case, we can use a
synchronous controller to operate multiple linear actuators to rise or fall
synchronously. They work completely in sync without any difference.
Working principle:
If you want to use a synchronization controller to operate 2, 3 or 4 linear
actuators fully synchronously, you will need to add built-in Hall effect
sensors for each linear actuator. And when you purchase Hall effect sensors
along with linear actuators, we will install Hall effect sensors in the
linear actuators during production for you. When 2, 3 or 4 linear actuators
are running together, Hall sensor will send Hall signals to the
synchronization controller, and the controller will adjust the running speed
of each linear actuator, so that all linear actuators run at the exact same
speed.
Feature:

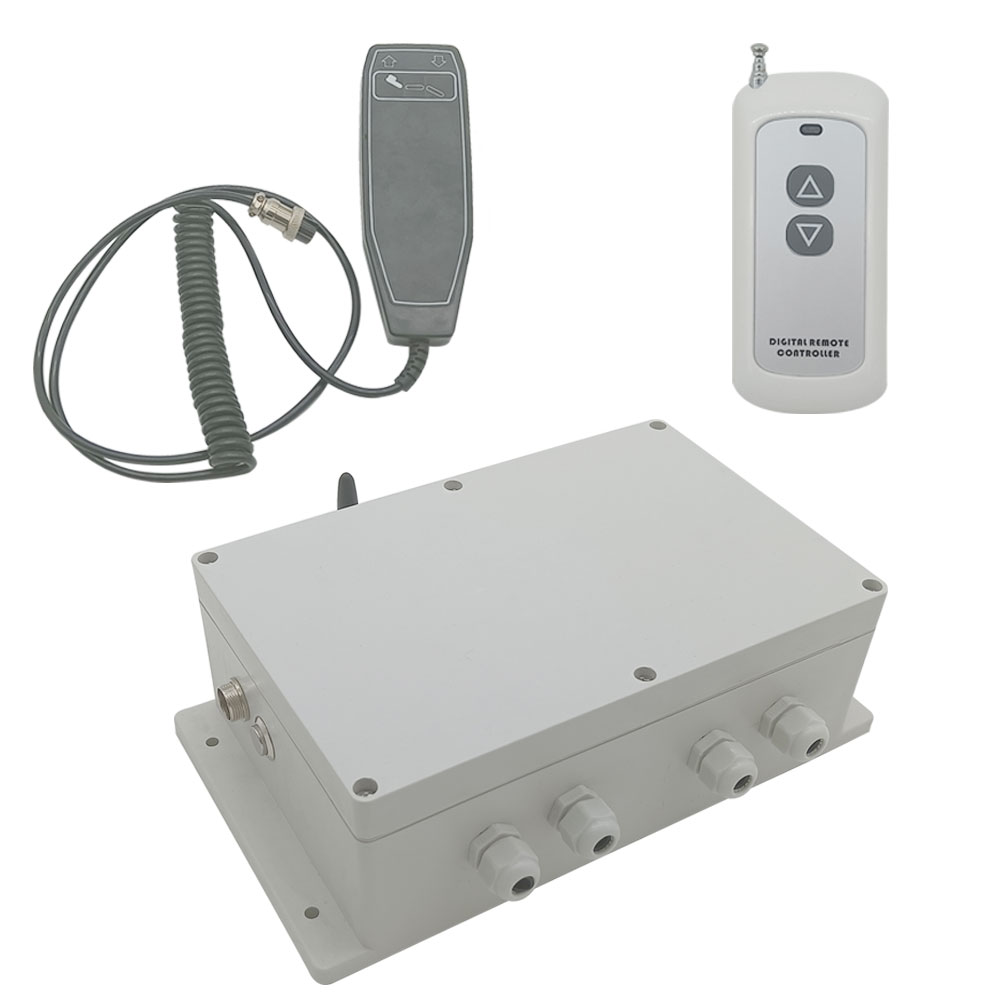

It can operate four electric linear actuators C
to run completely
synchronously.

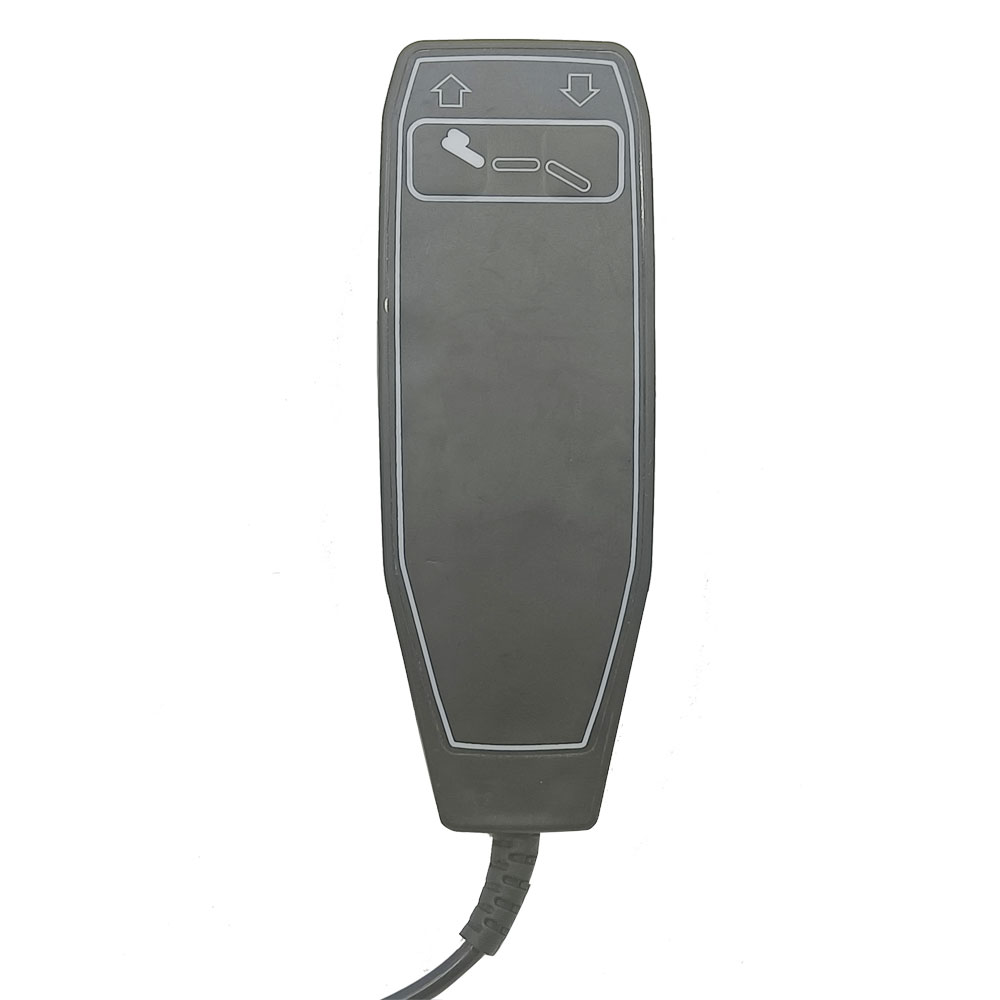

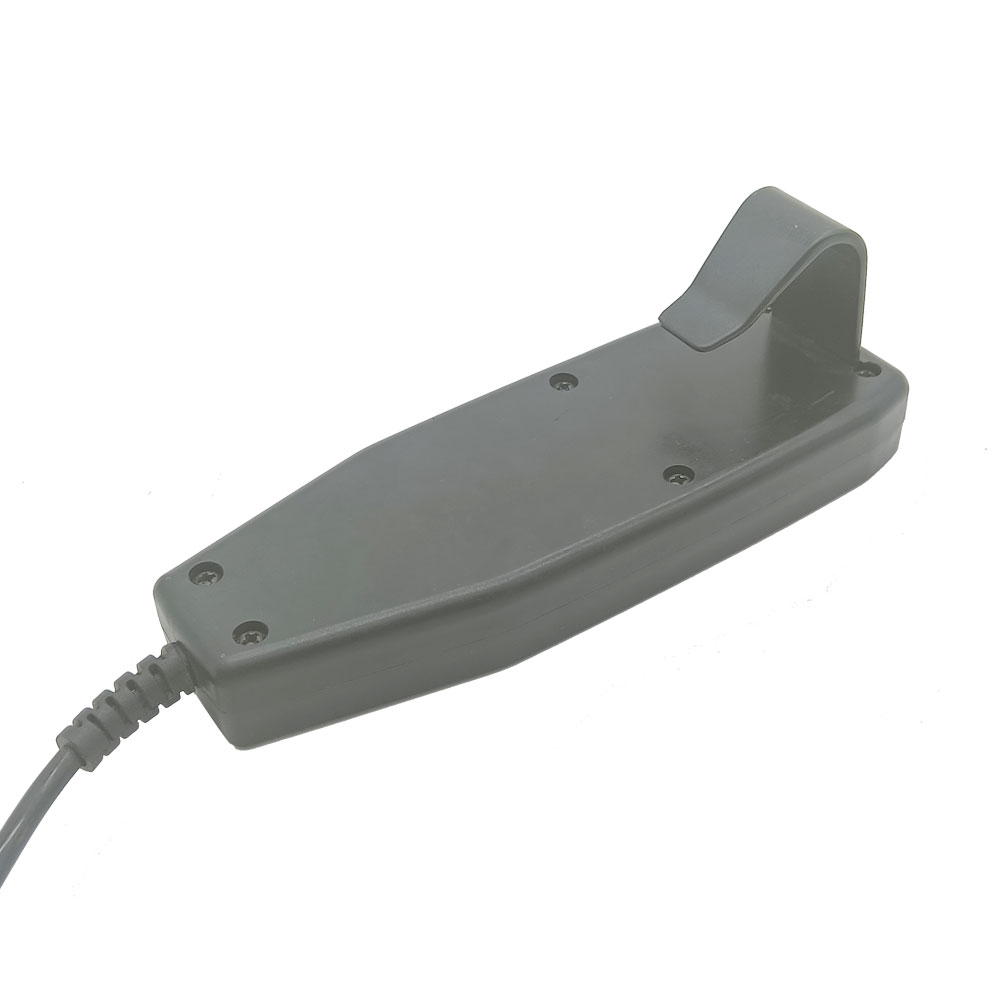

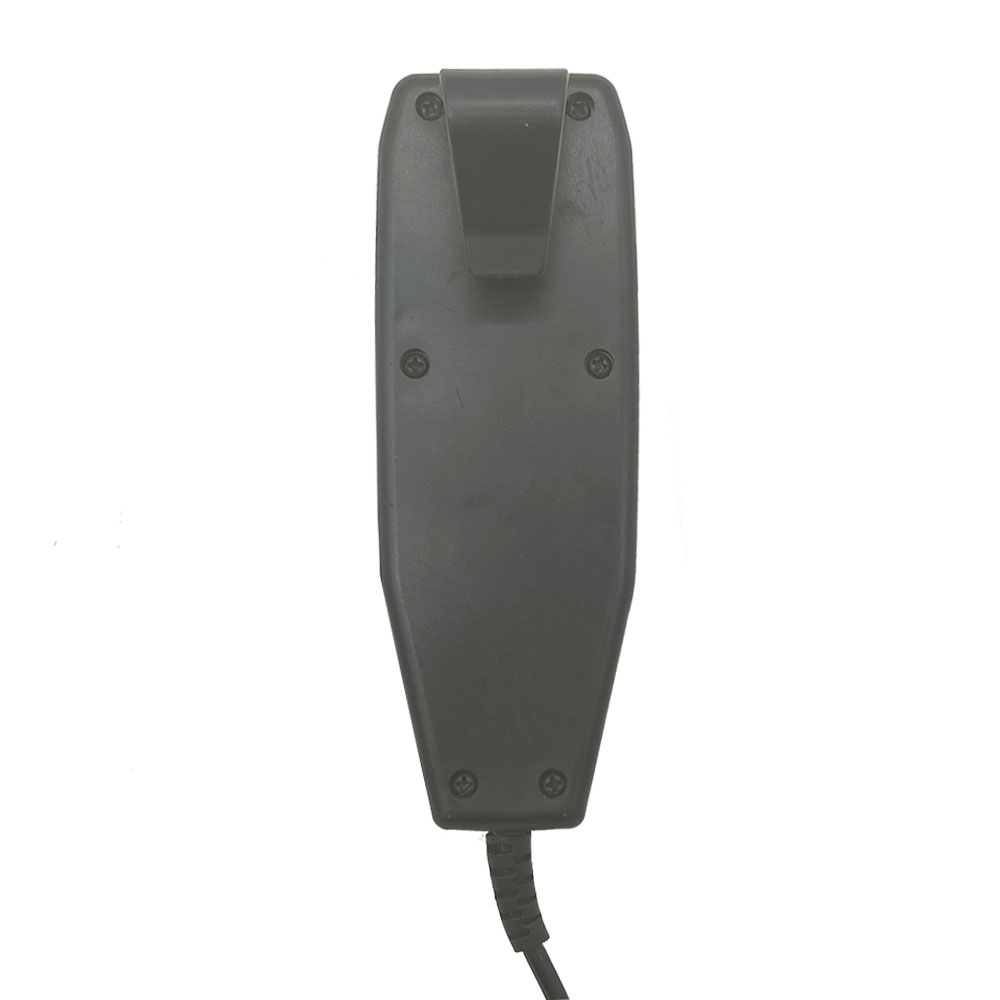

Wired control via a control handle.

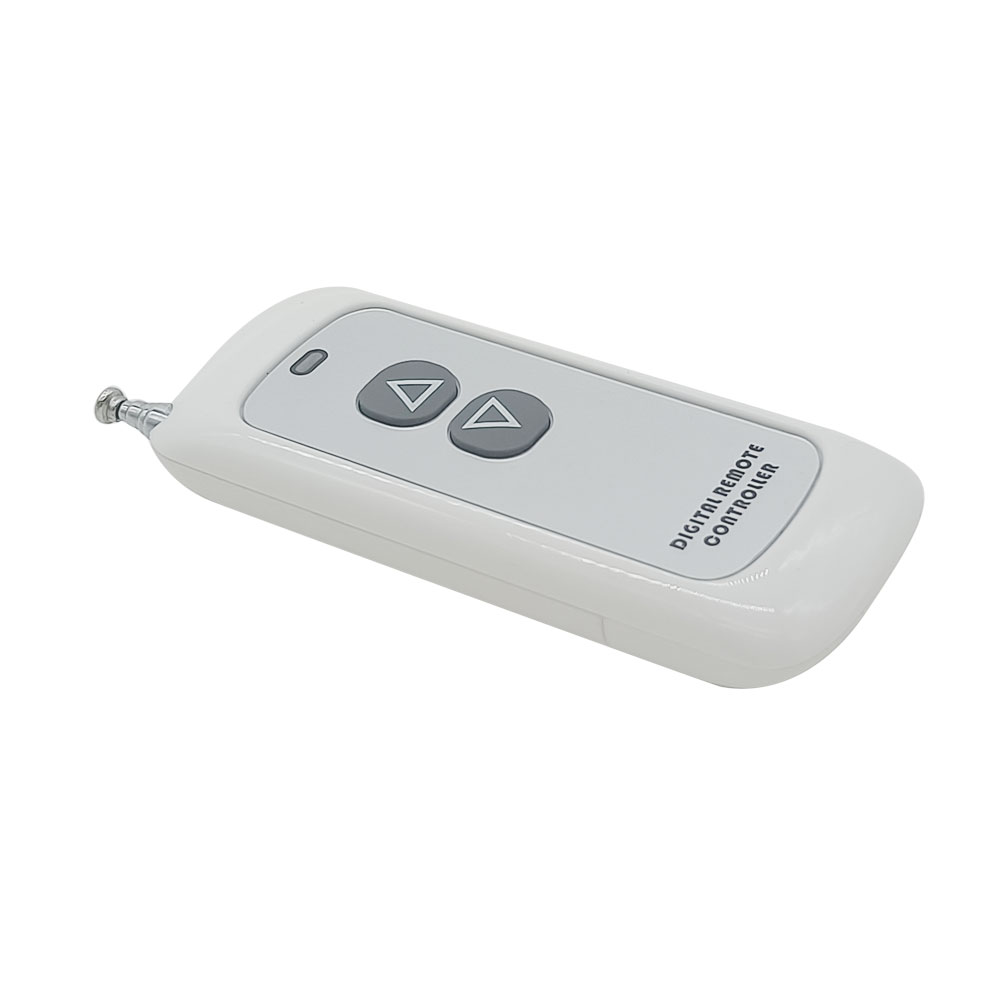

Wireless control via a remote.
Two function buttons: ▲ and ▼.
With reset button.

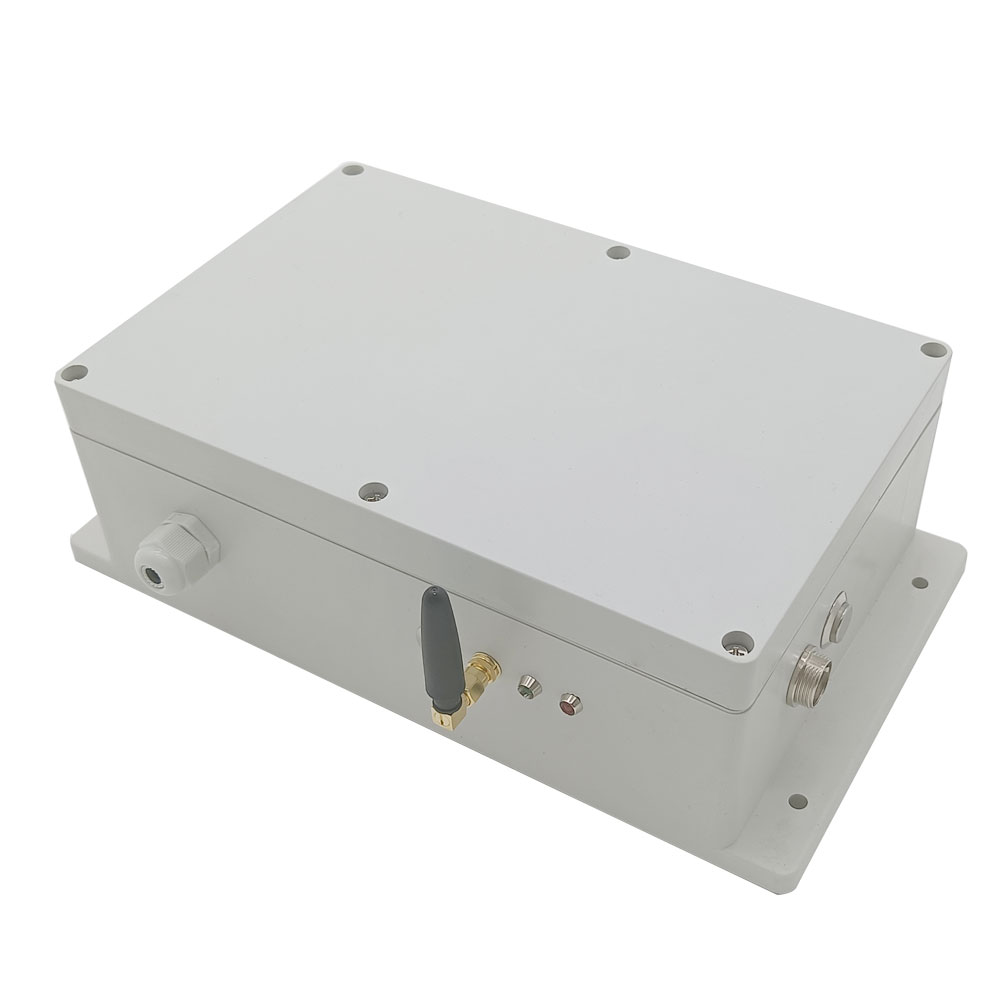

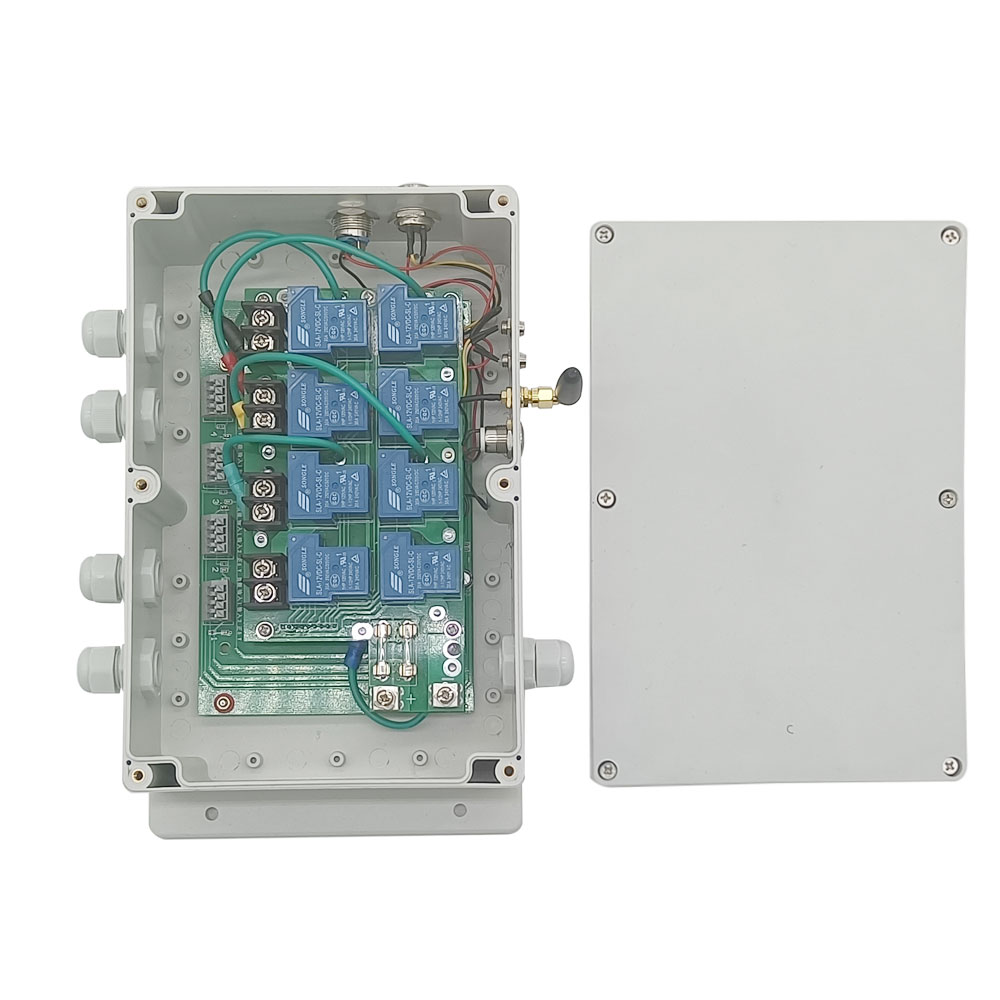

Parameters:
Working Voltage: 10~30 VDC, suitable for 12V or 24V linear actuator
Working Frequency: 433.92 MHz
Working Distance: 100m / 300ft (theoretically)
Rated current: 30A
Two selectable control modes: Interlocking mode or Momentary mode, please
select a control mode you need when ordering..
Operating Temperature: -20°C ~ +70°C

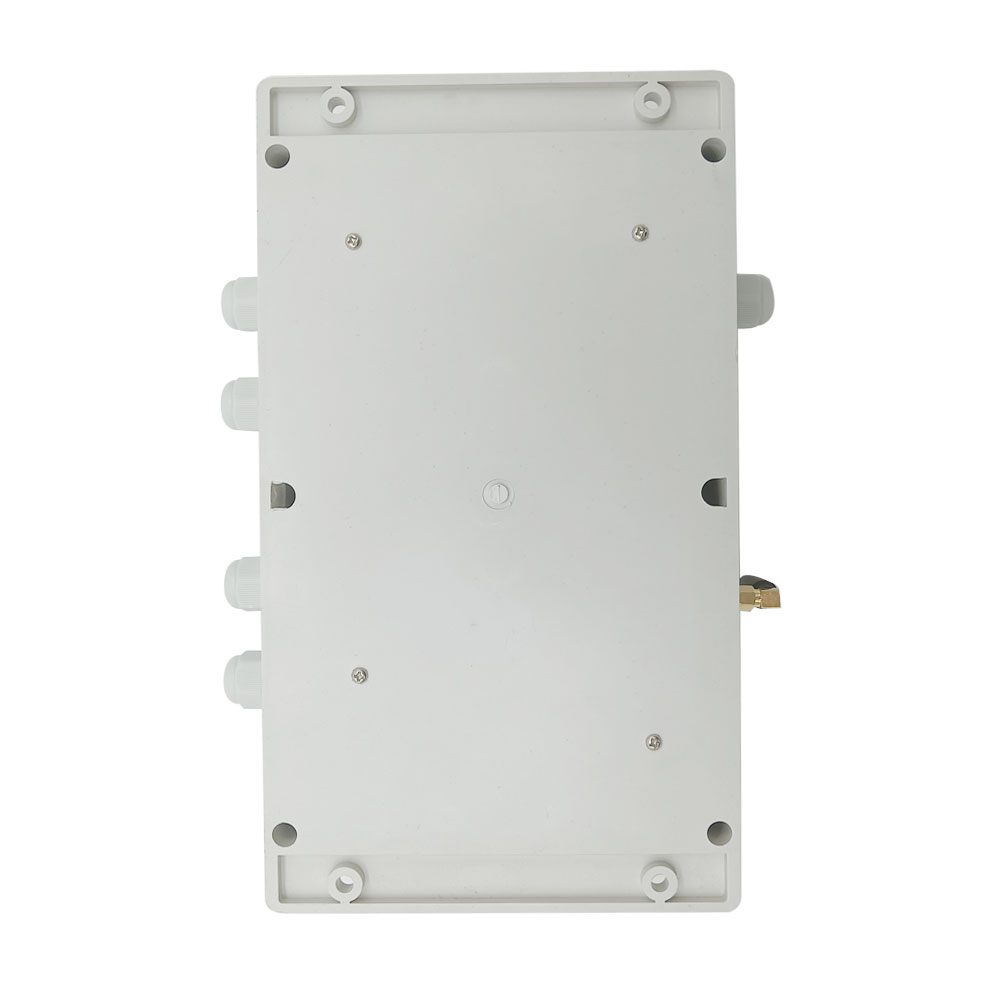

Case size: 270 x 190 x 85 mm (10.6 x 7.5 x 3.4 inches)

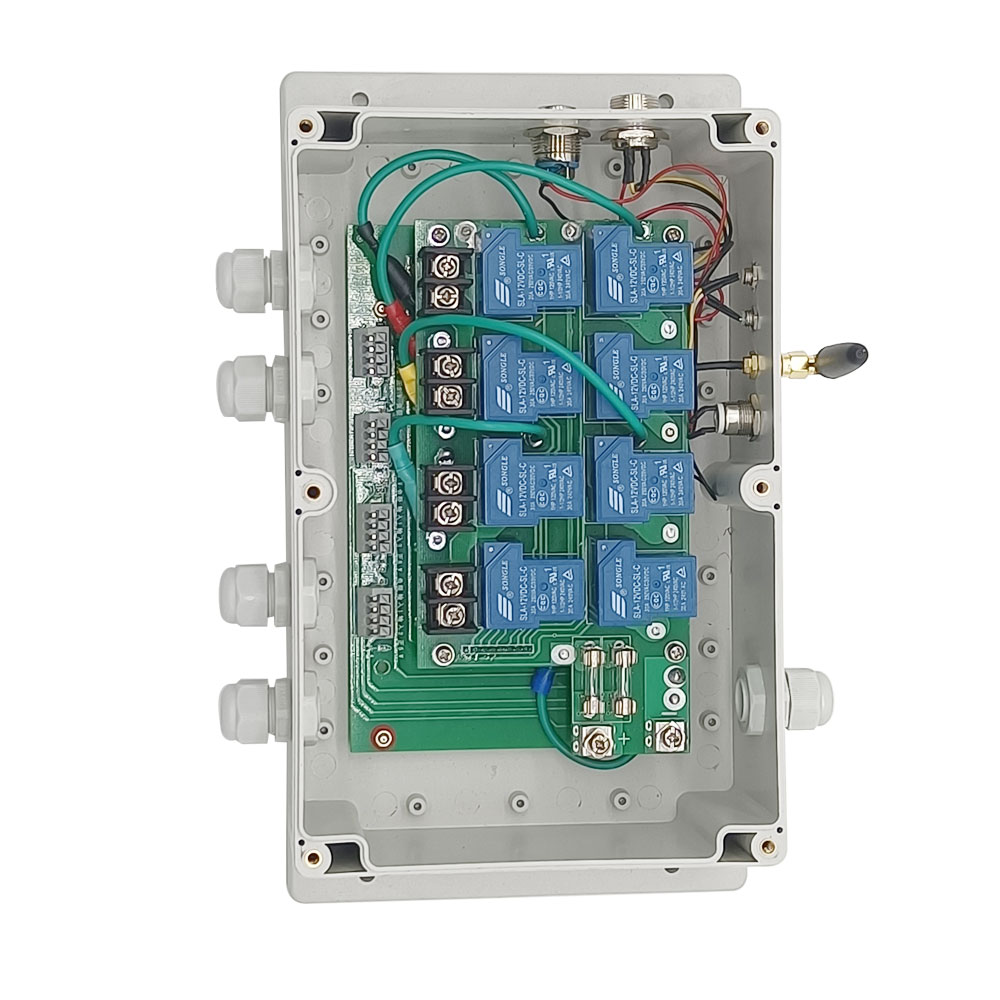

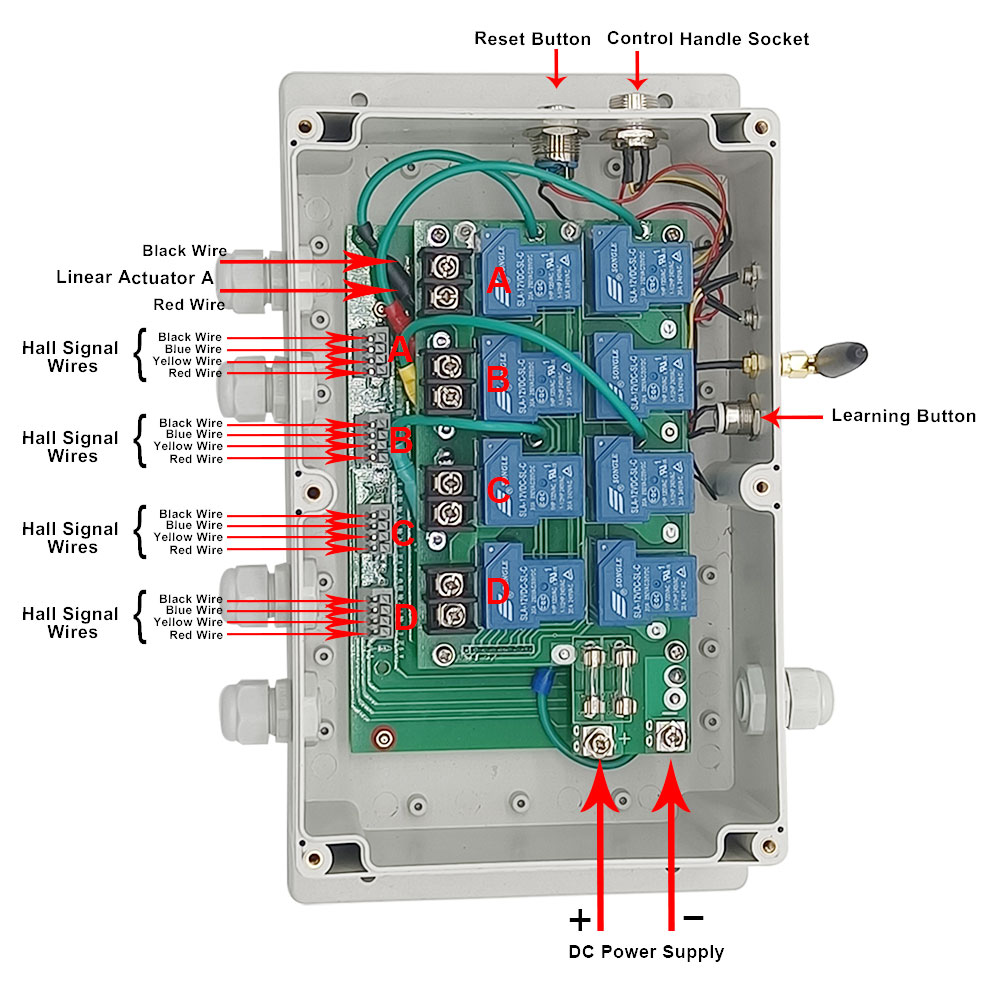

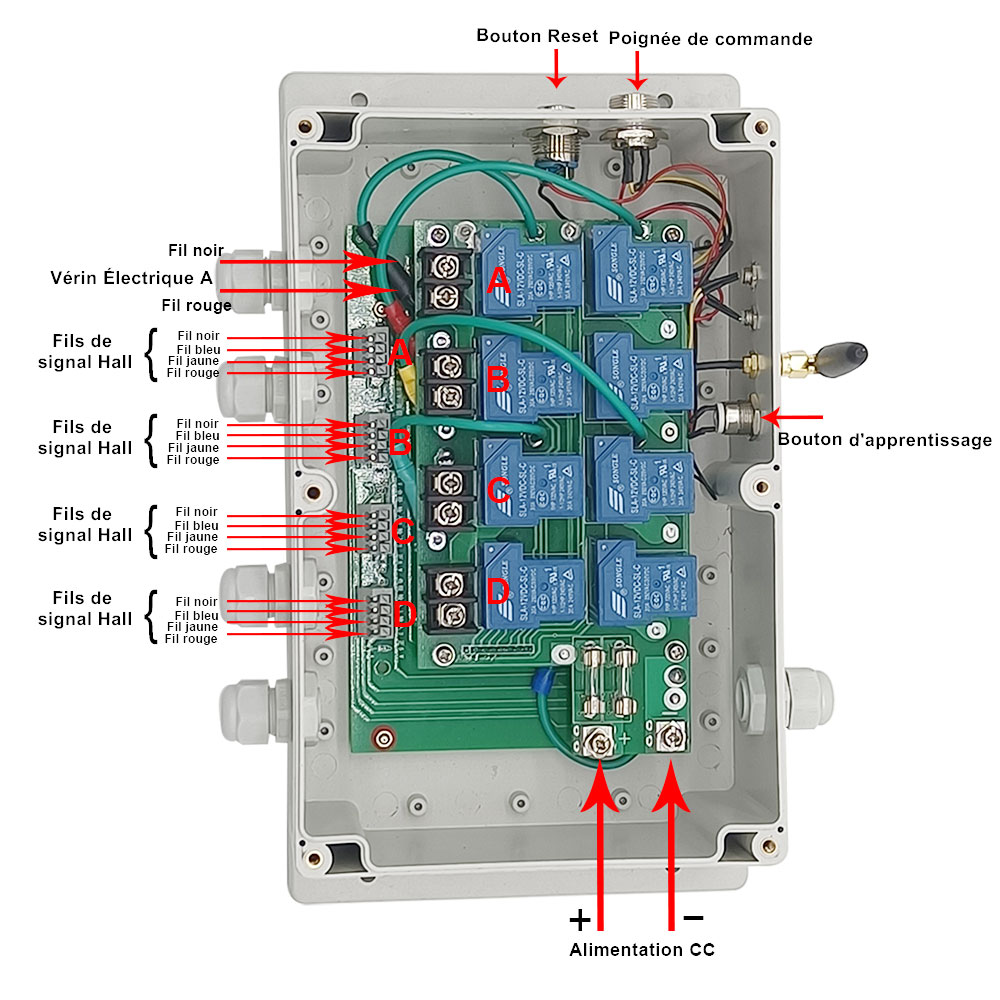

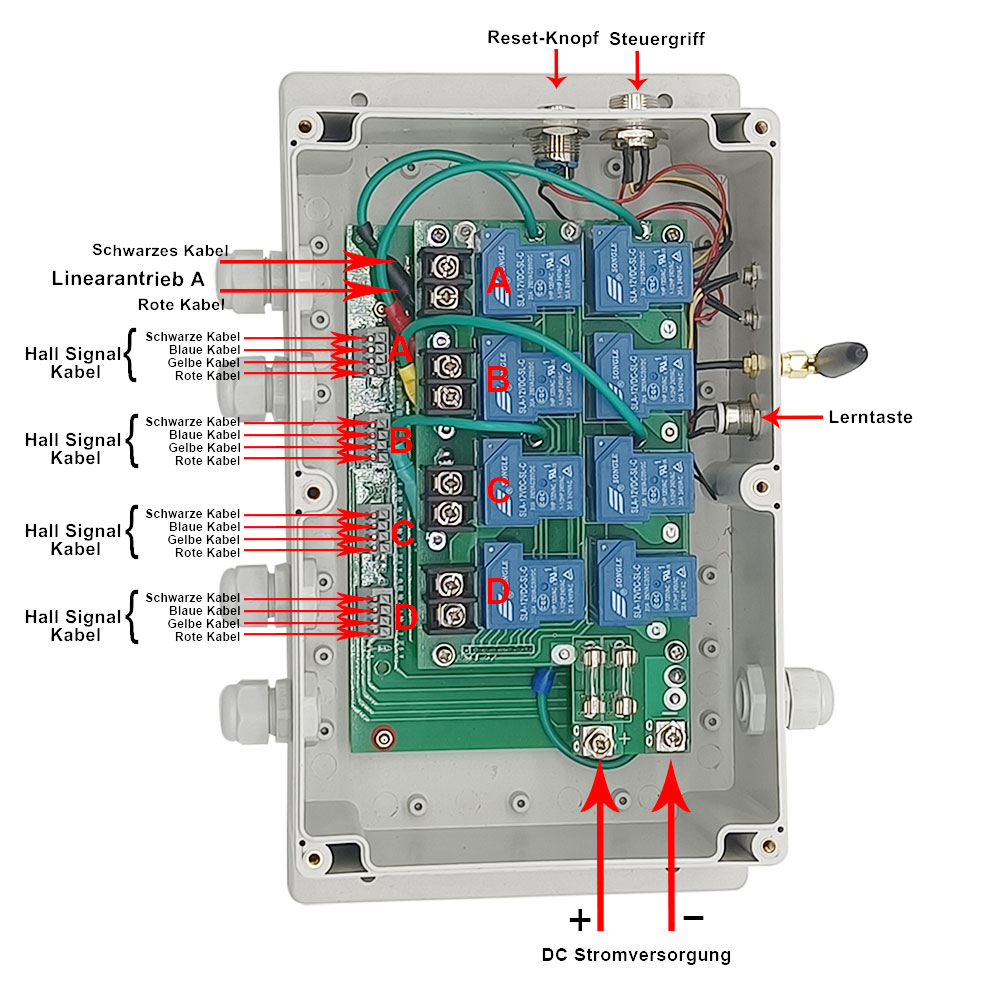

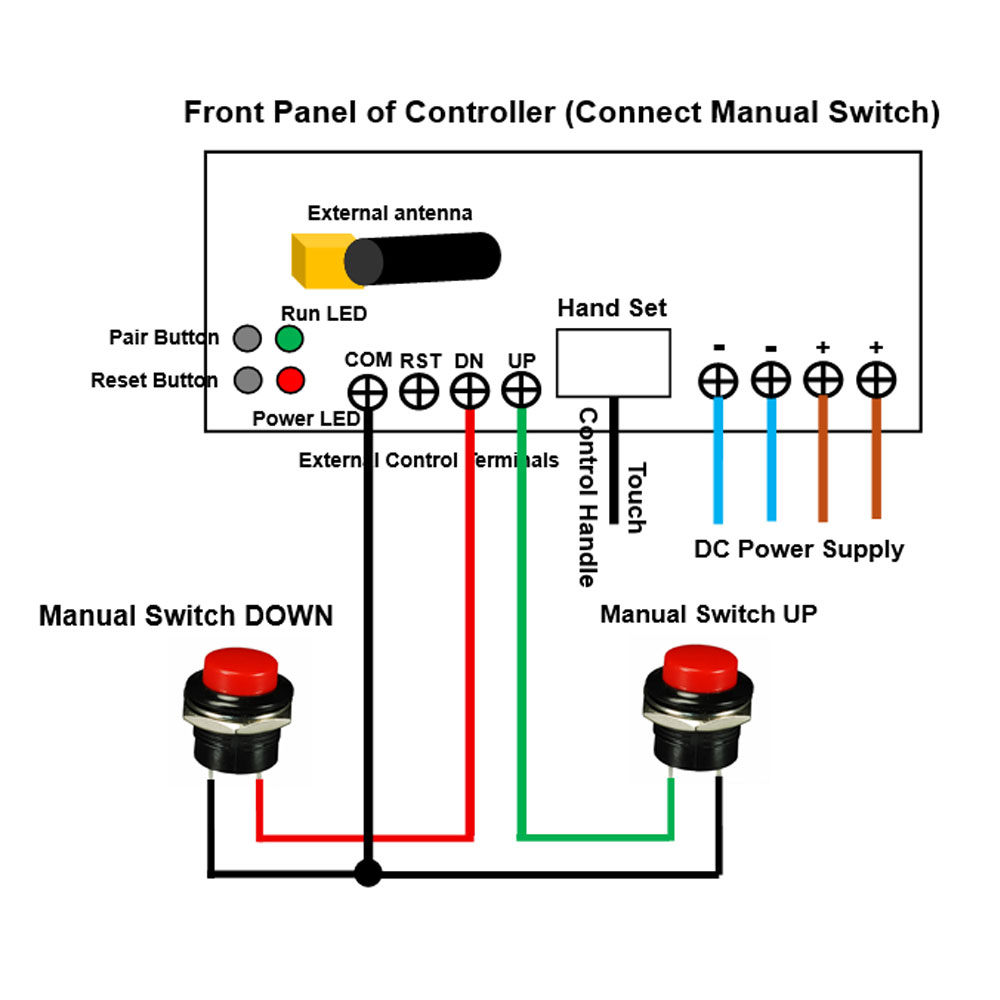

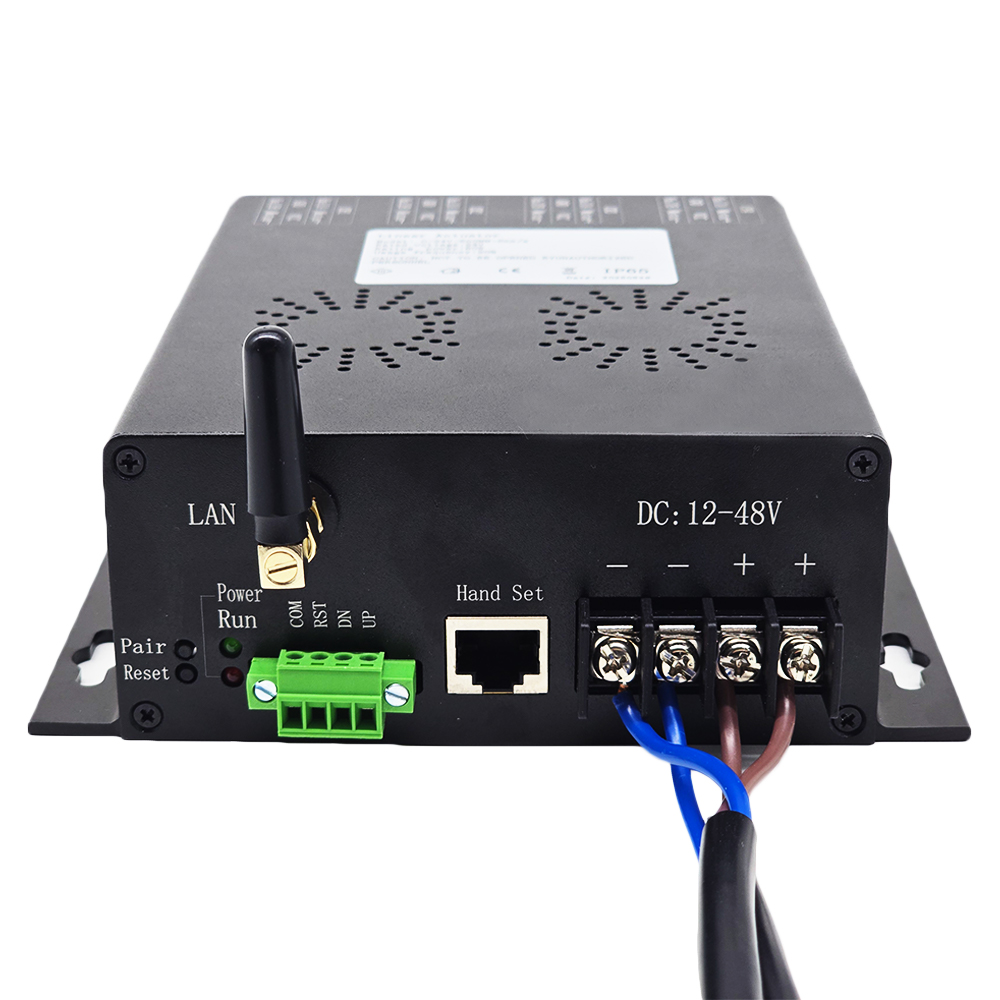

Connection:

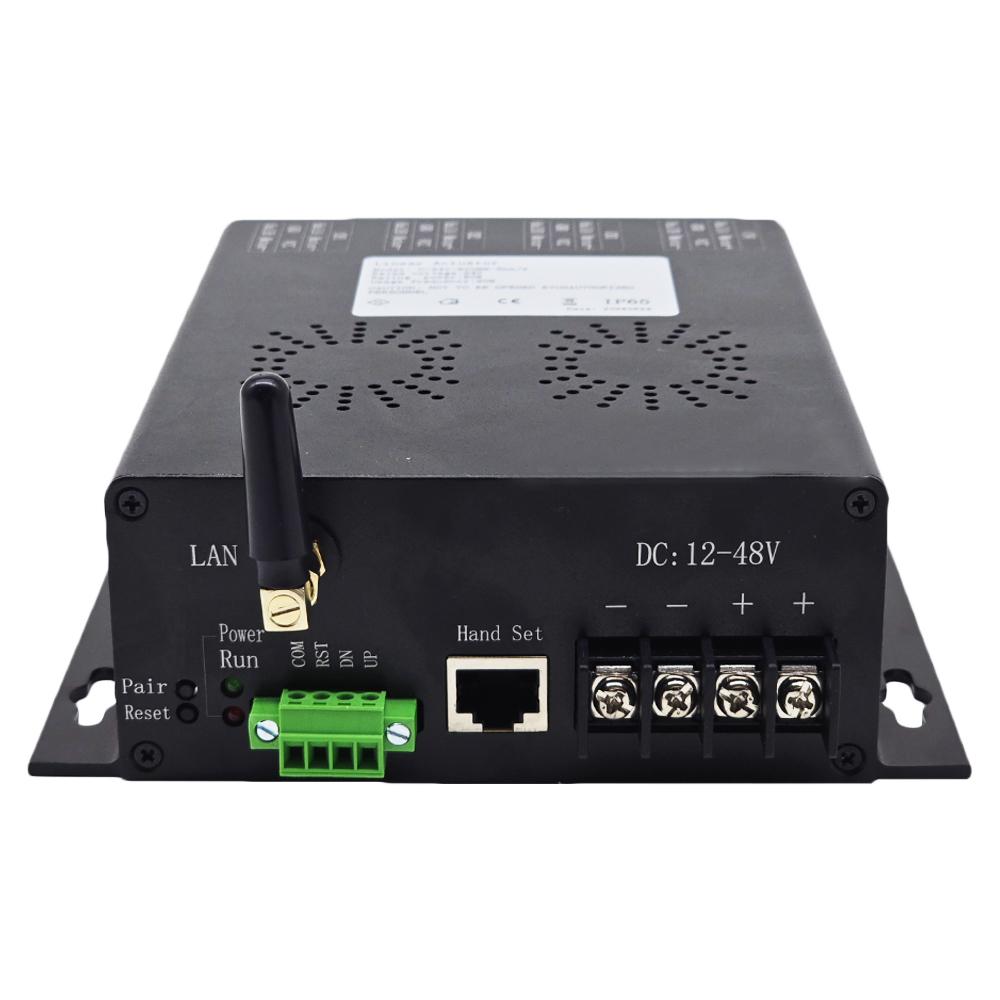

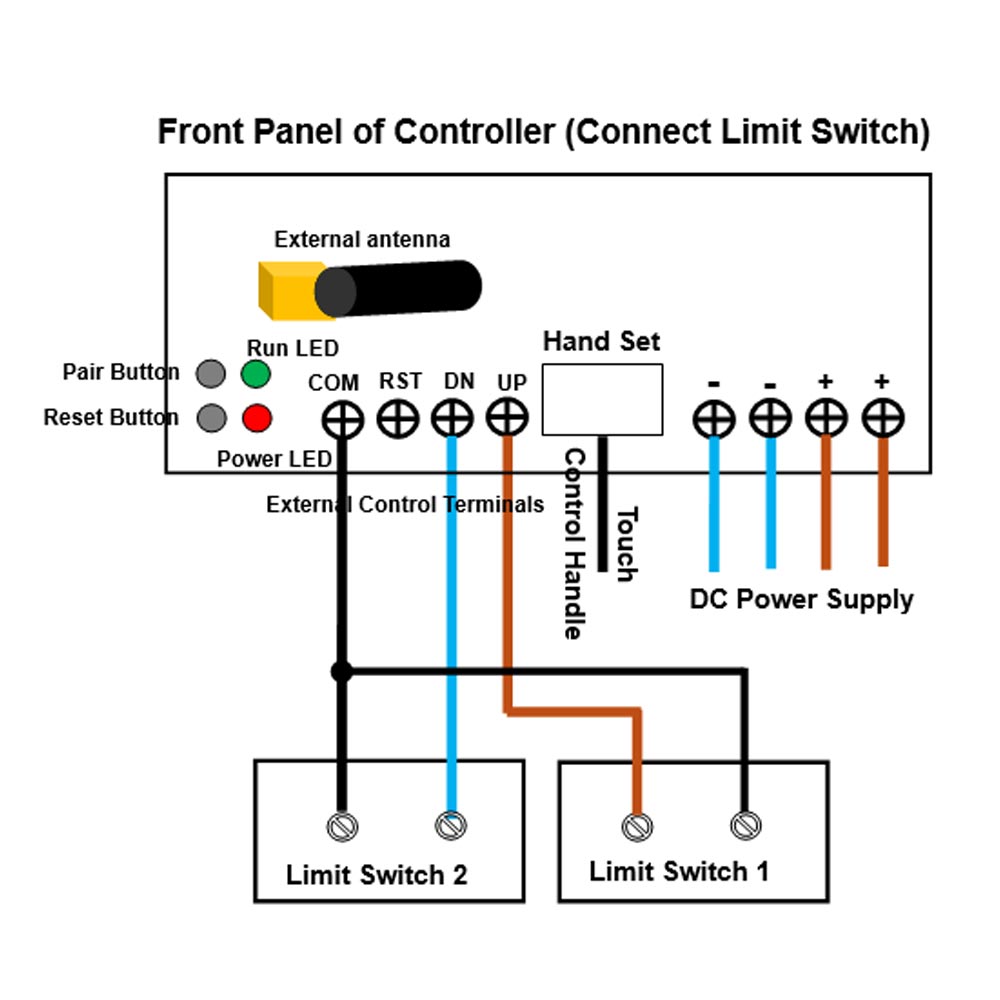

1) Connect the positive pole of DC power supply to terminal + of the
controller, and connect the negative pole of DC power supply to terminal
-
of the controller.

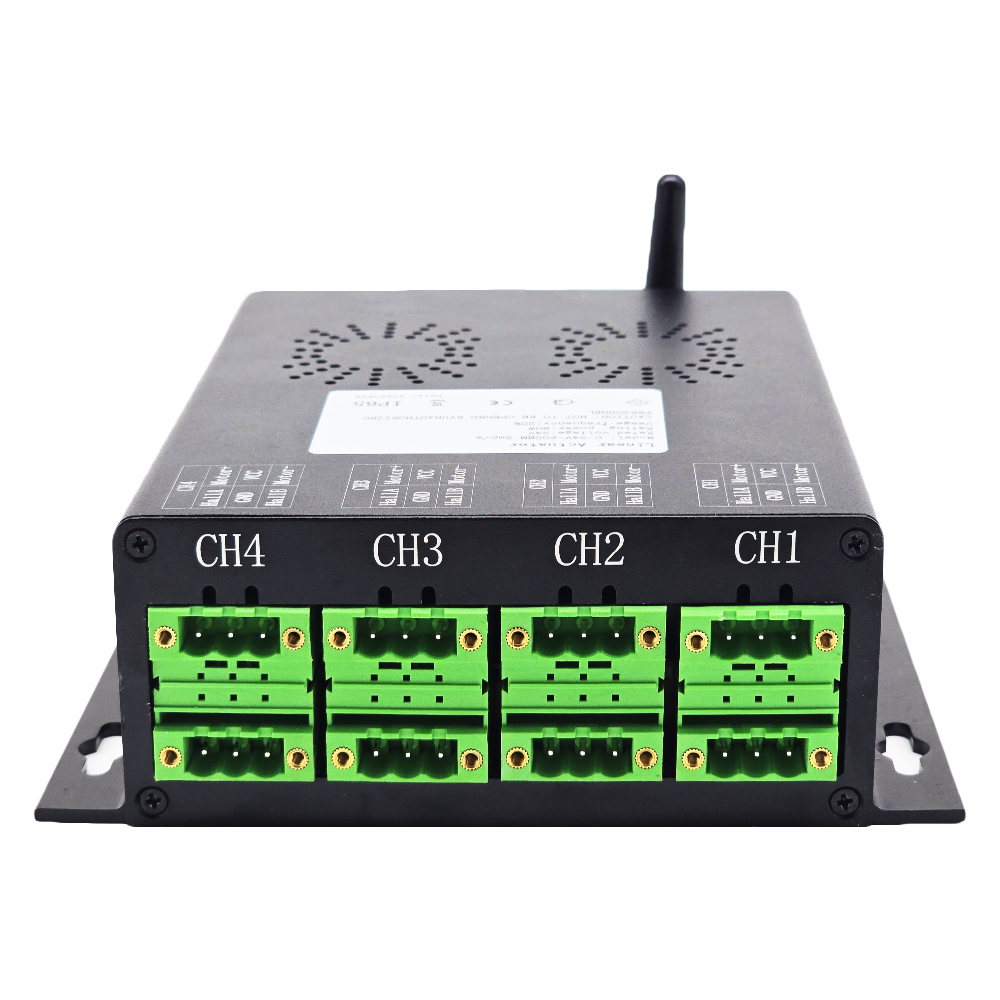

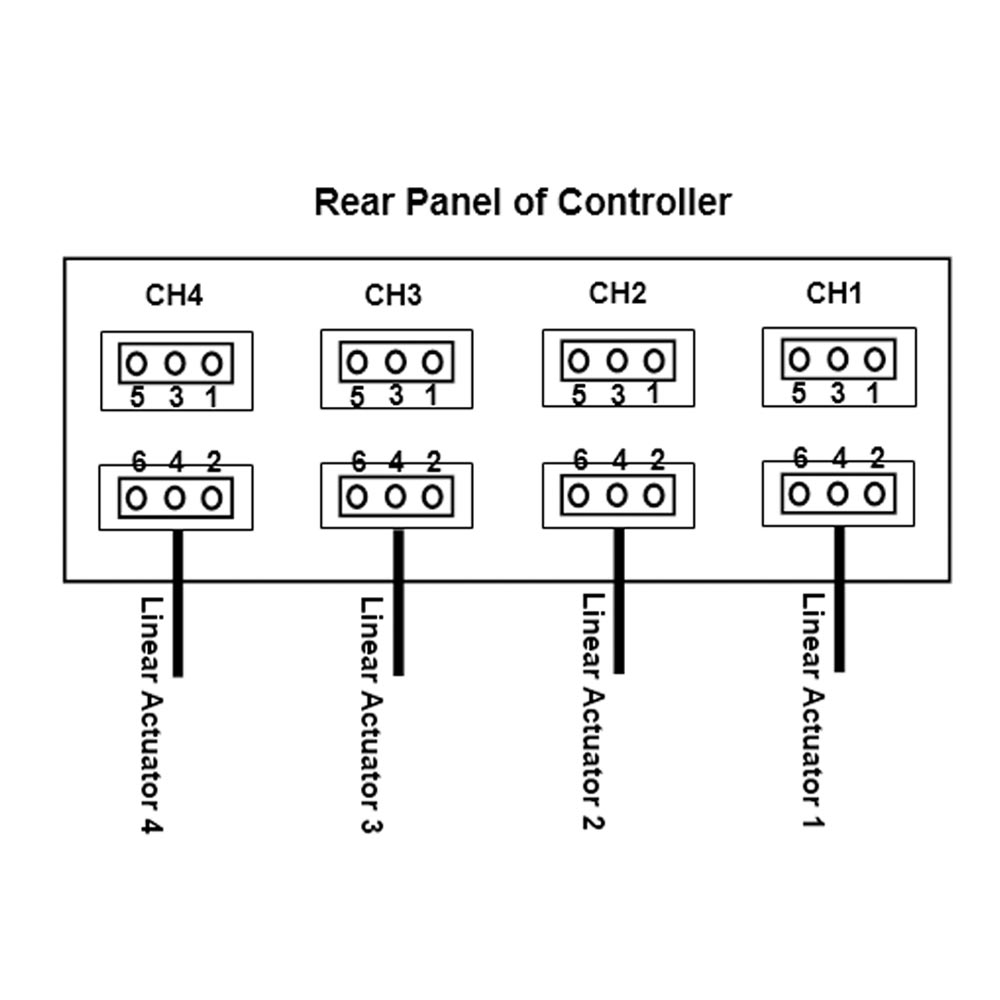

2) Connect red power cable and black power cable of four linear actuators to
linear actuator terminals of the controller. Caution: When operating the linear actuators by the control handle or
remote, if the working direction of the linear actuators do not correspond
to the direction of the button, please exchange the connection terminals of
two power cables of the linear actuators.

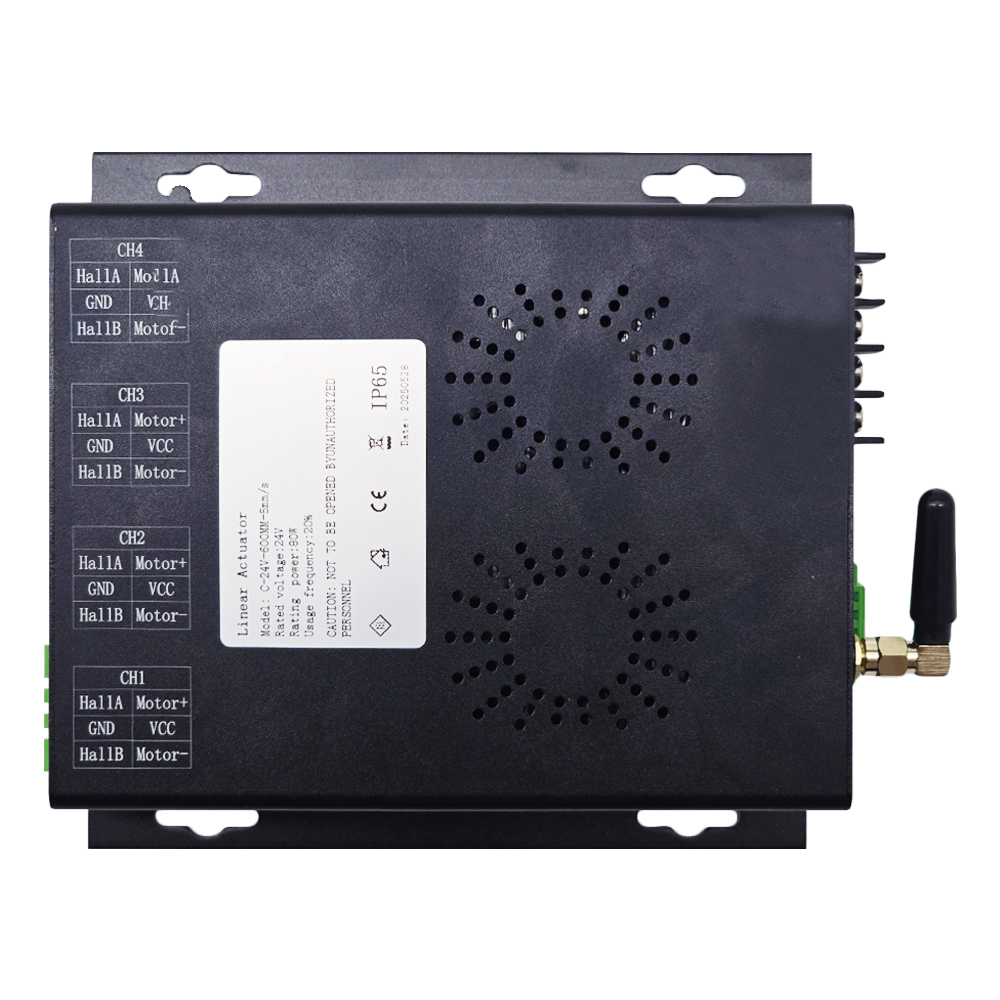

3) Connect four hall signal cables of four linear actuators to hall signal
terminals of the controller.

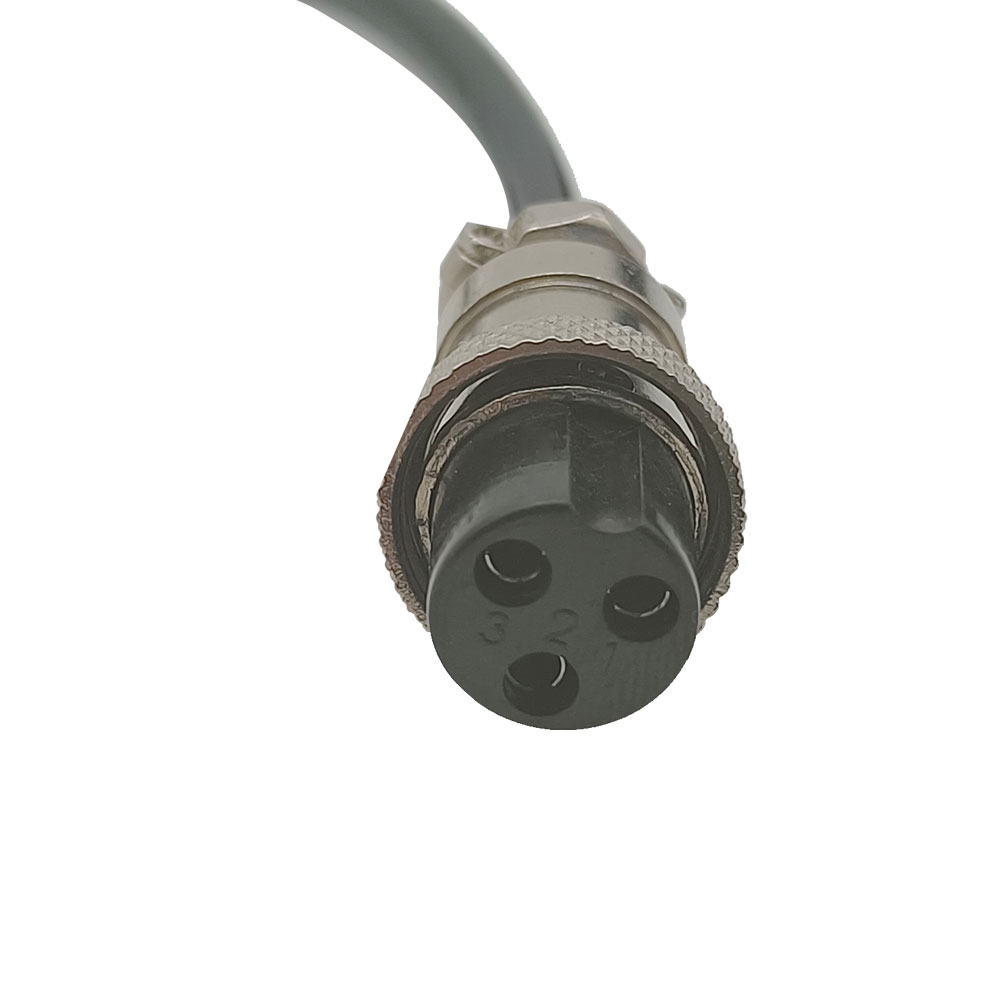

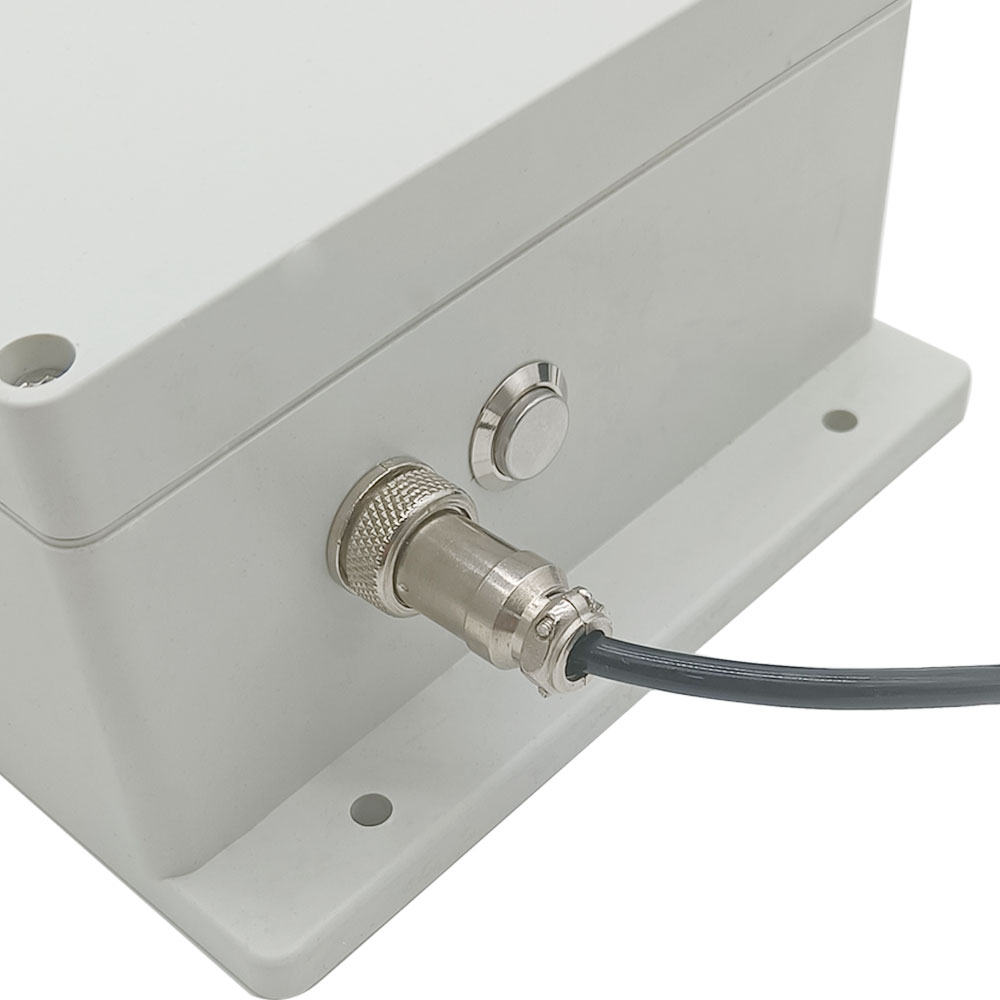

4) Plug the control handle to the controller.
Operation in different control modes: (The
synchronous controller has two control modes, interlocking mode and
momentary mode, please select a control mode you need when ordering.)
1. Interlocking control Mode:
1.1 Operation via the control handle:
1) Press the button ▲ of the control handle, four linear actuators extend
outward at the same time, they will reach the maximum stroke at the same
time and stop automatically. During operation, you can also press the button
▼ to stop four linear actuators at the same time.
2) Press the button ▼ of the control handle, four linear actuators retract
inward at the same time, they will fully retract at the same time and stop
automatically. During operation, you can also press the button ▲ to stop
four linear actuators at the same time.
1.2 Operation via the remote control:
1) Press the button ▲ of the remote control, four linear actuators extend
out at the same time, they will reach the maximum stroke at the same time
and stop automatically. During operation, you can also press the button ▼ to
stop four linear actuators at the same time.
2) Press the button ▼ of the remote control, four linear actuators retract
inward at the same time, they will fully retract at the same time and stop
automatically. During operation, you can also press the button ▲ to stop
four linear actuators at the same time.
2. Momentary Control Mode:
2.1 Operation via the control handle:
1) Press and hold the ▲ button of the control handle, four linear actuators
extend outward at the same time; Release the button, four linear actuators
stop at the same time.
2) Press and hold the ▼ button of the control handle, four linear actuators
retract inward at the same time; Release the button, four linear actuators
stop at the same time.
2.2 Operation via the remote control:
1) Press and hold the button ▲ of the remote control, four linear actuators
extend out at the same time; Release the button, four linear actuators stop
at the same time.
2) Press and hold the button ▼ of the remote control, four linear actuators
retract inward at the same time; Release the button, four linear actuators
stop at the same time.

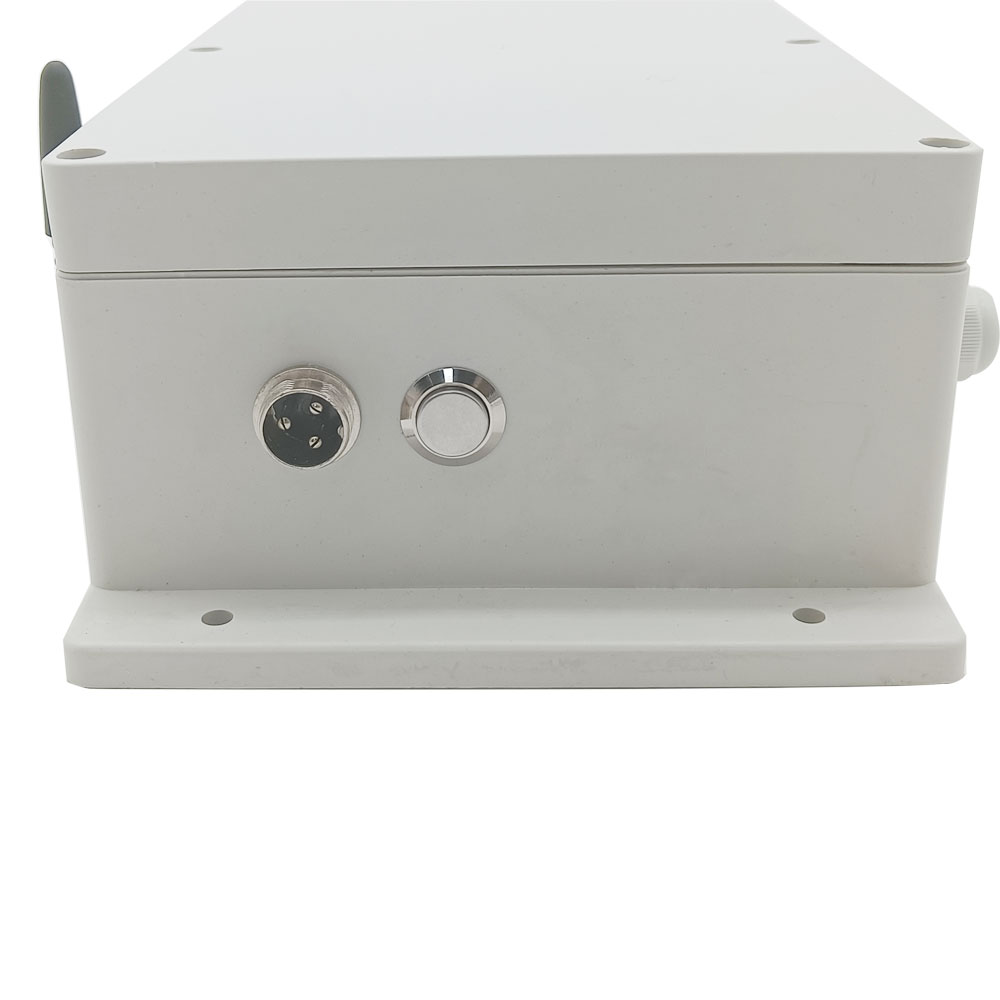

Reset Function:
When this system has been running for a long time, if you find that they are
no longer fully synchronized, you can reset the controller by following
three methods.
Method 1: Press and hold two buttons of the control handle at the same time
for more than 7 seconds.
Method 2: Press and hold the reset button of the controller and the button ▼
of the control handle at the same time for more than 7 seconds.
Method 3: Press and hold the reset button of the controller and the button ▼
of the remote control at the same time for more than 7 seconds.
Note:
1. Each linear actuator would require two mounting brackets, one to fix the
head of linear actuator and another to fix the bottom of linear actuator.
This kit does not contain fixed mounting brackets, please buy them from the
drop down menu.
2. You need to use a DC12V/84A or DC24V/42A switching power supply to power
this kit. This kit does not contain this power supply, please buy it from
the drop down menu.
The linear actuators are the customized products, and these products are not
in stock, we need to spend 3~7 working days to produce them according to the
specified parameters in your order.
Return or Exchange:
The Linear Actuators are the customized products, we need to produce them
according to the specified parameters in your order, so that we do not accept
returns or cancel orders. If customers order unsuitable linear actuators
themselves, we also do not accept exchanges, please understand.
We can provide 3D CAD model files in STEP format for linear actuators.
Please contact us by e-mail if you need them.

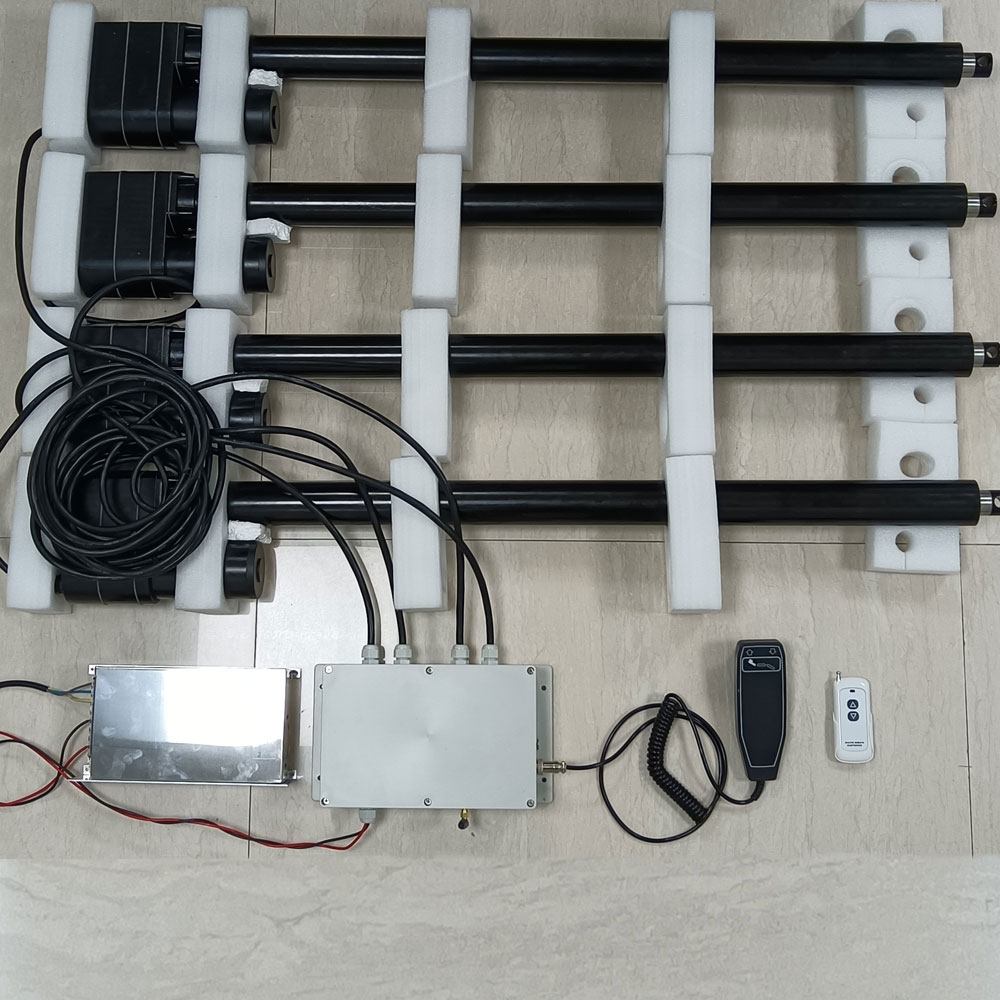

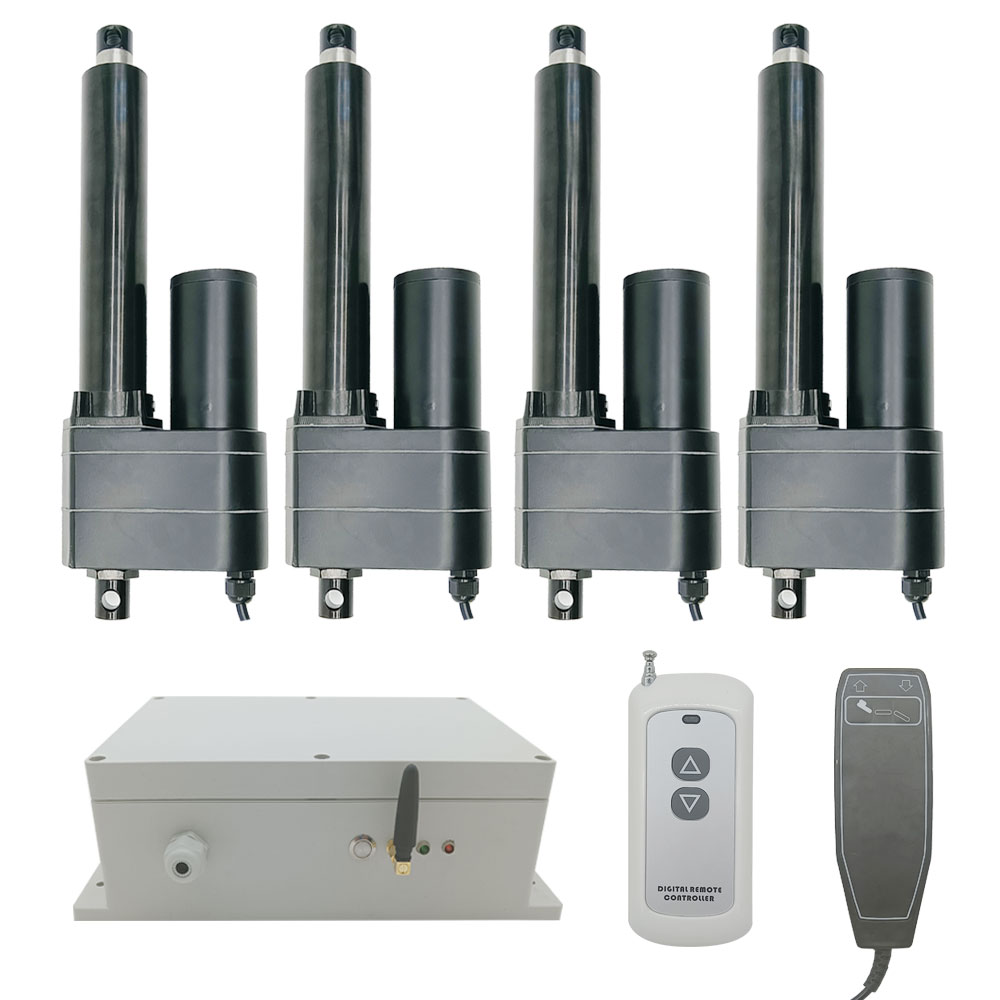

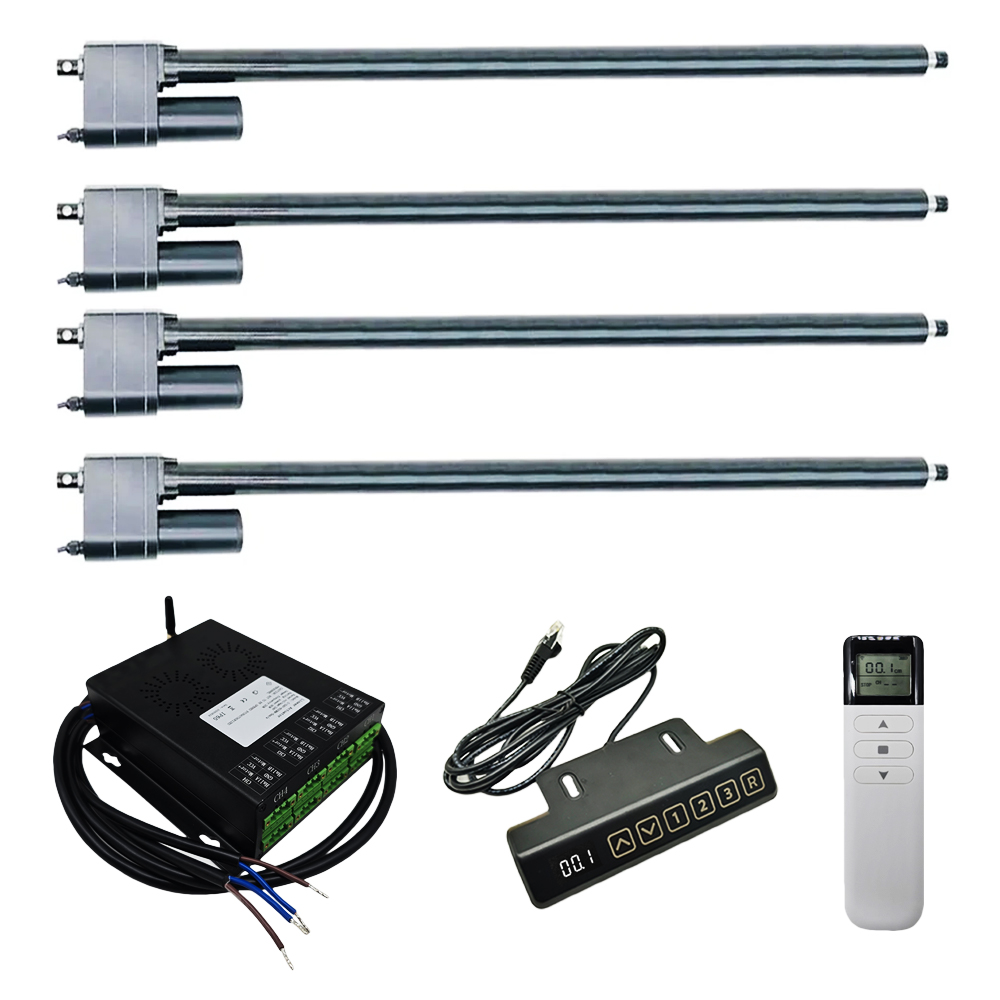

Package Include:

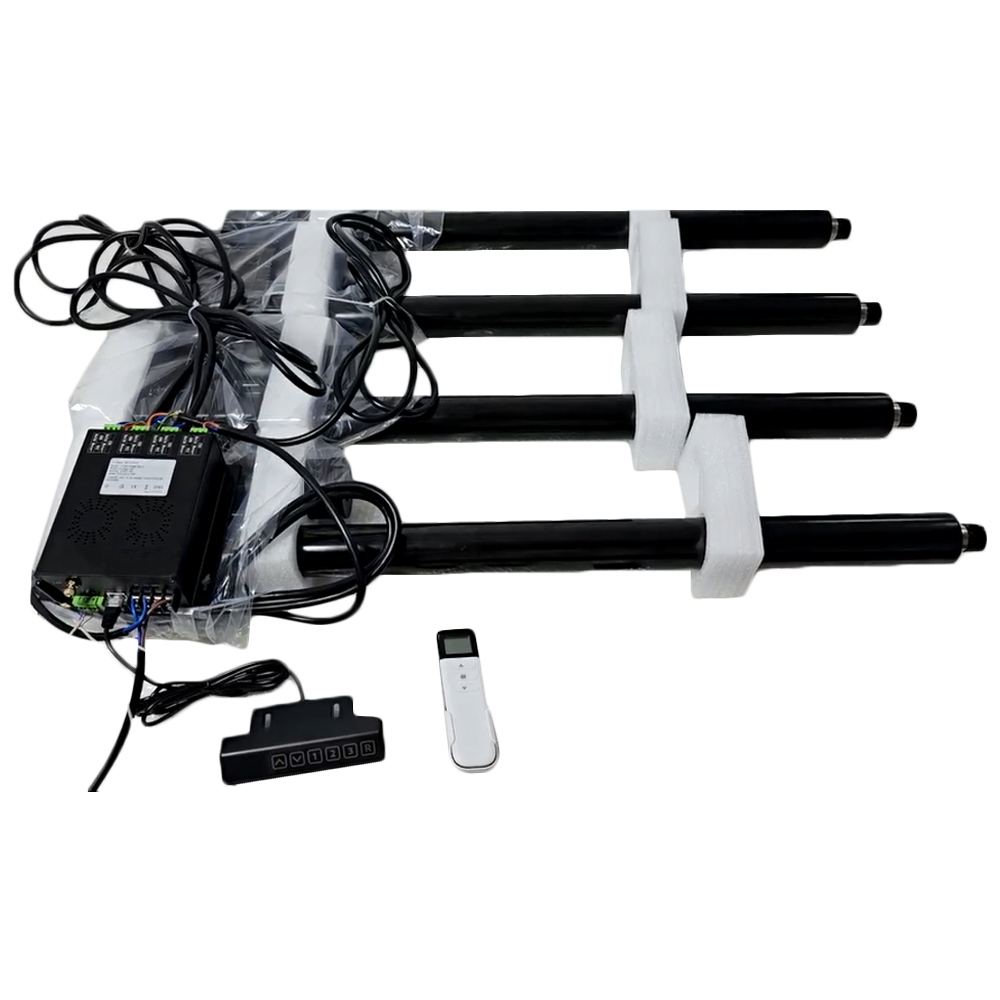

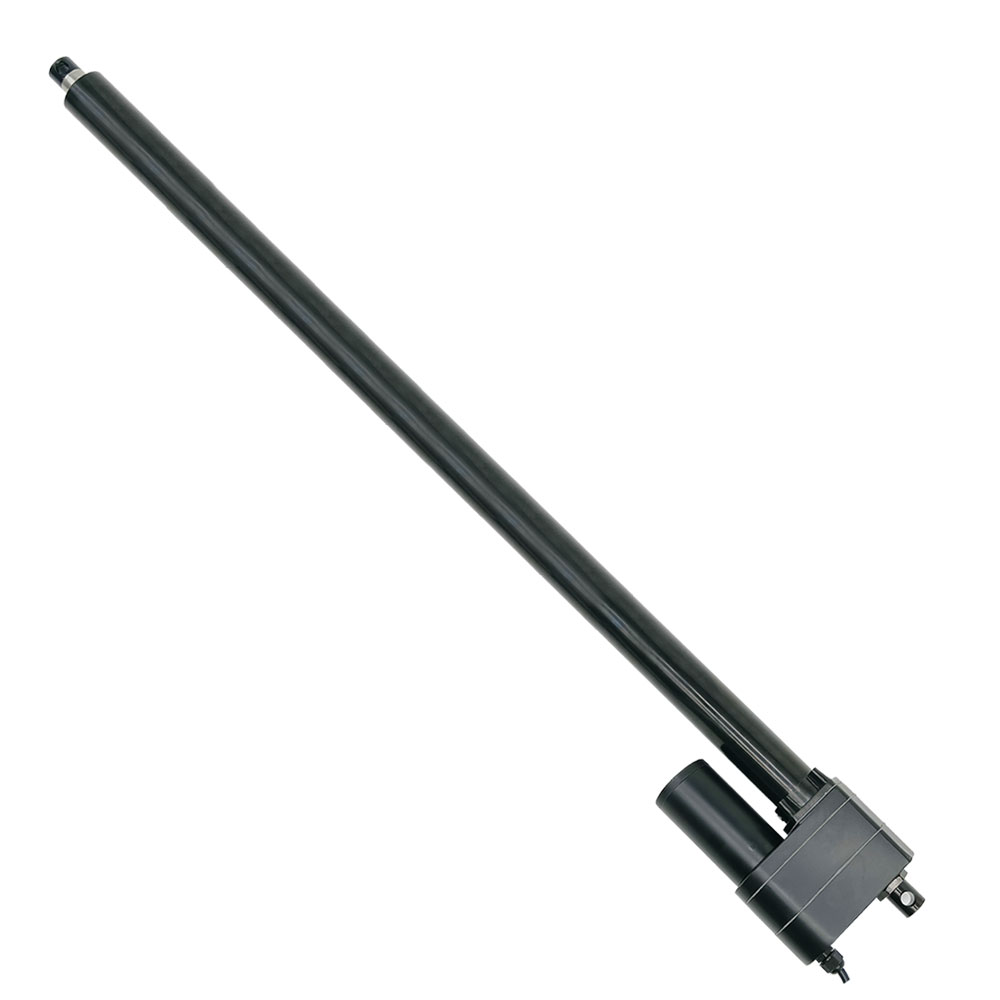

4 x Electric Linear Actuator C With Hall Effect Sensor

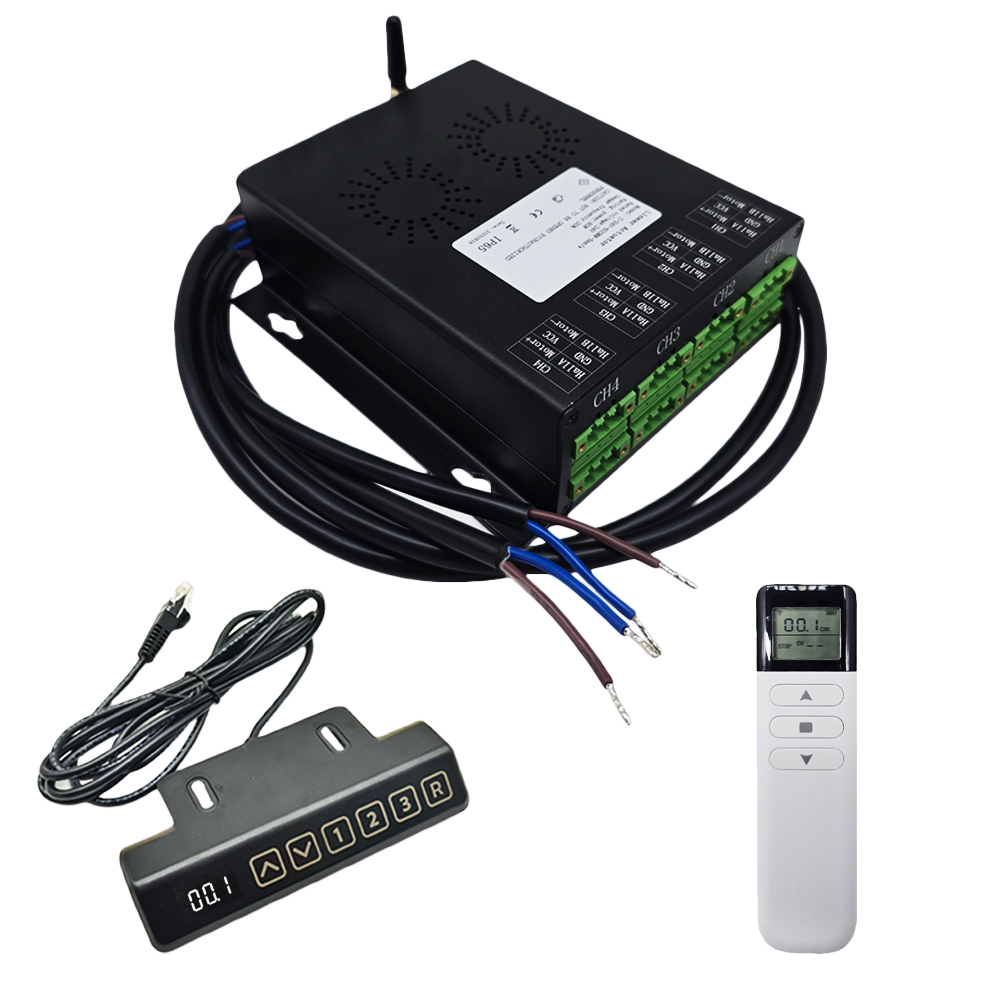

1 x Synchronous Controller (One-Control-Four, For 4 Linear Actuators C)

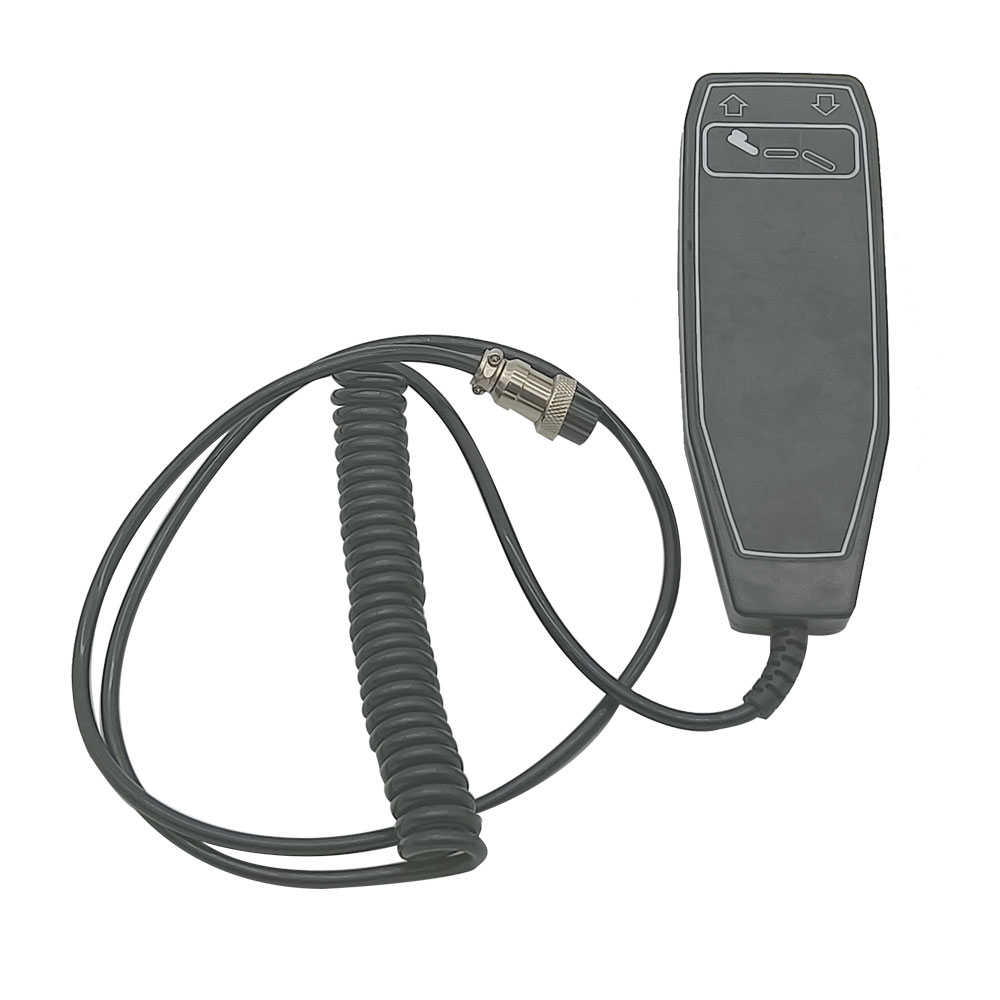

1 x Control Handle

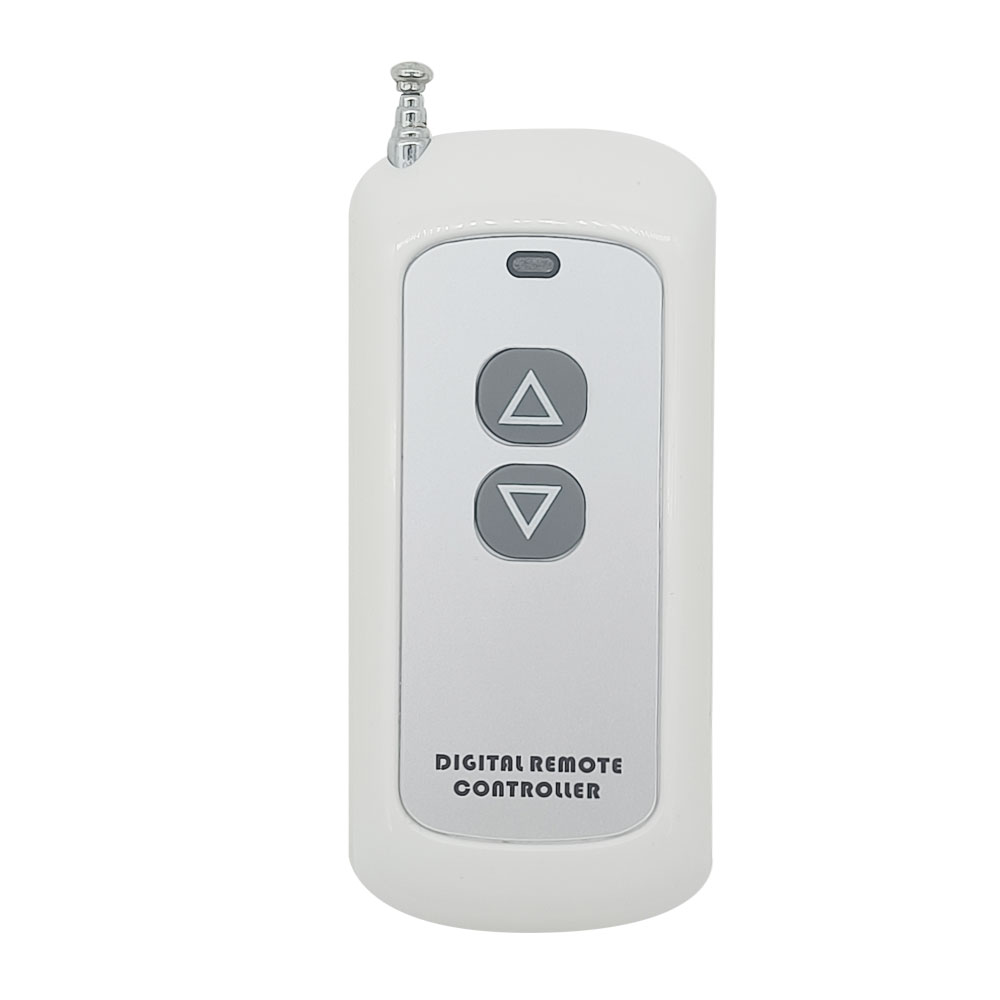

1 x Remote Control (CP-2)
1 x User manual Note: The
synchronous controller has two control modes, interlocking mode and
momentary mode, please select a control mode you need when ordering.
