Package Include:

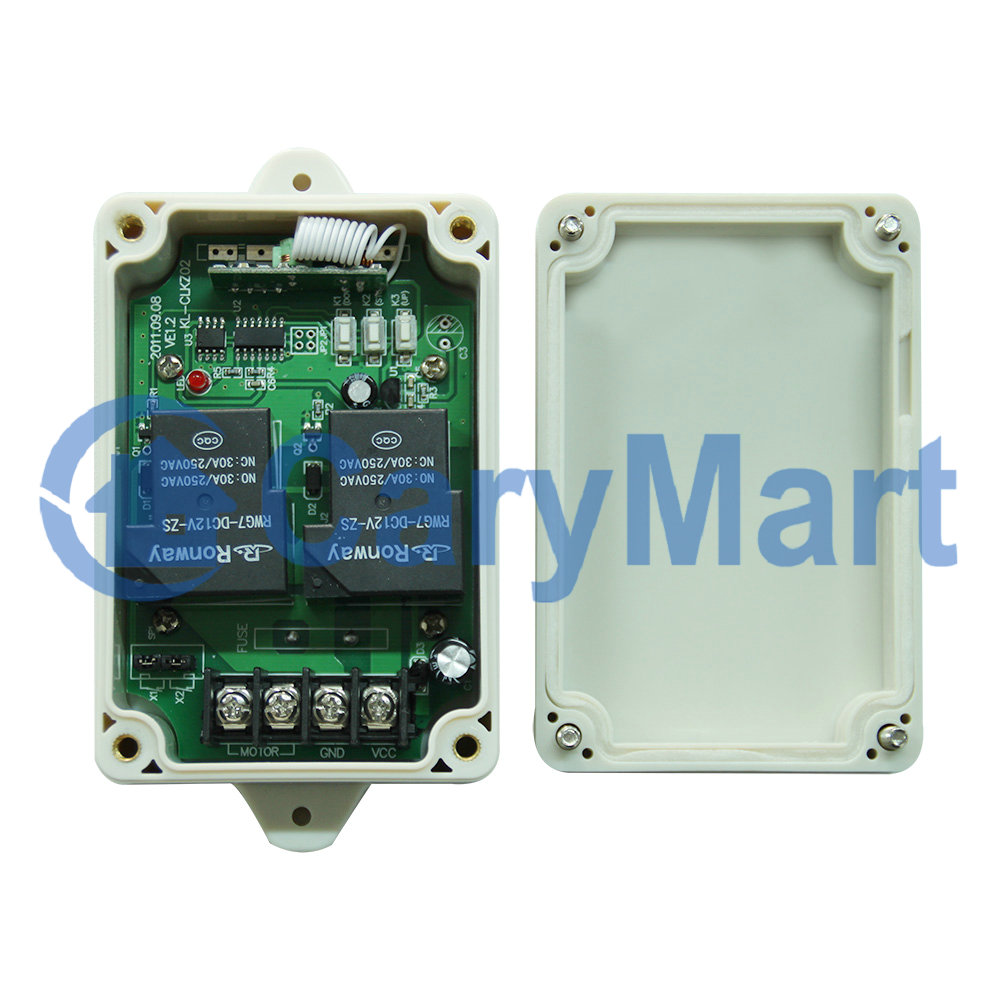

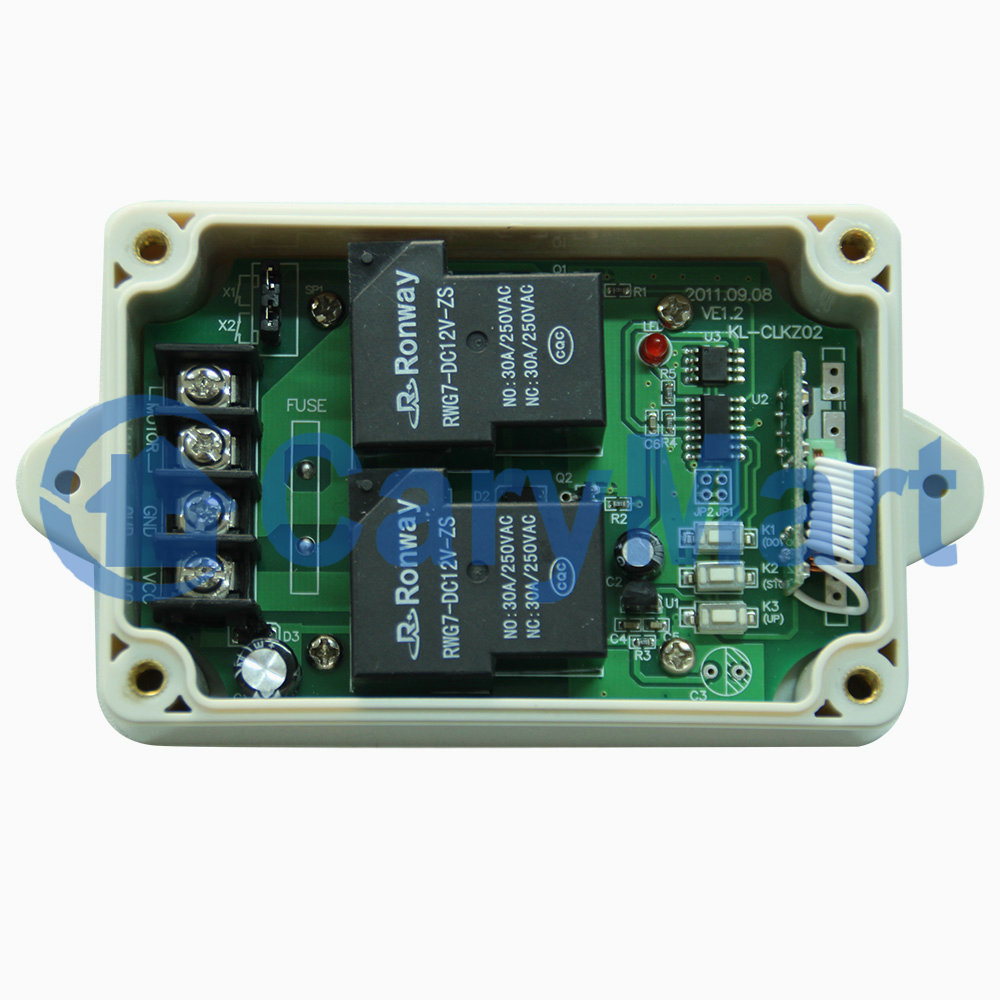

1 x Receiver: S1PF3-DC / S1PF3-DC24
1 x User manual
Application:
This receiver is a DC motor wireless controller, it and the transmitter form a transmitter receiver system. If you connect a DC motor to this receiver, you can operate the motor to rotate in positive or reversal direction by using the remote control. If you connect a DC linear actuator to this receiver, you can operate the linear actuator to extend or retract by using the remote control. You also can connect two limit switches to the receiver and use them to stop the motor or the linear actuator.
Feature:
Wireless control, easy to install.
Two operating voltage versions: DC 12V or 24V optional.
You can operate the motor to rotate in positive or reversal direction by using the buttons in the receiver or by the transmitter.
You can operate the linear actuator to extend or retract by using the buttons in the receiver or by the transmitter.
With limit terminals: You can connect sensors, limit switches, manual switches or external devices to stop the motor or the linear actuator.
If the receiver is equipped with an external antenna, it will have a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:
Model: S1PF3-DC12 / S1PF3-DC24
Operating Voltage: 12±1VDC (model S1PF3-DC12) or 24±2VDC (model S1PF3-DC24), the operating voltage must be specified when ordering.
Output Voltage: 12VDC (model S1PF3-DC12) or 24VDC (model S1PF3-DC24)
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Rated Current: 15A
The Maximum Instantaneous Current of Starting Motor: 30A
Wire range for the terminals: 22-12 AWG
2 Selectable Modes: Interlocking, Momentary
Operating Temperature: -20°C ~ +70°C

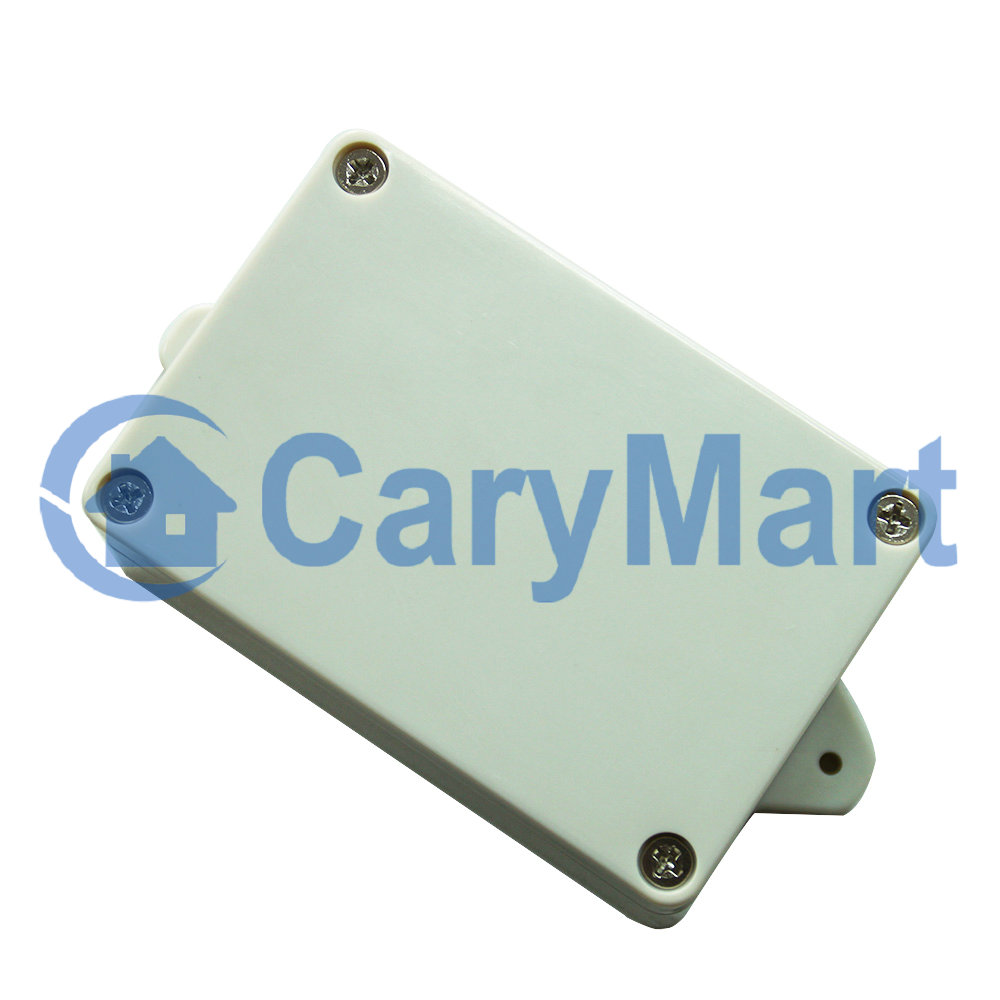

Case size: 100mm x 68mm x 40mm (4.0 x 2.7 x 1.6 inches)
Matching Transmitters:
This receiver can work with different transmitters, such as model CWC-3L (waterproof, 50 Meter / 150 feet range), C-2-2 (100 Meter / 300 feet range), C-3-2 (100 Meter / 300 feet range), CP-3L (100 Meter / 300 feet range), CV-2-2 (500 Meter / 1500 feet range), CG-3 (500 Meter / 1500 feet range) or CB-3-2 (1000 Meter / 3000 feet range).
1) When you set the receiver in Momentary mode, it should work with two button transmitter, such as model C-2-2 or CV-2-2.
2) When you set the receiver in Interlocking mode, it should work with three buttons transmitter, such as model CWC-3L, C-3-2, CP-3L, CG-3 or CB-3-2.
Working Range:
This receiver and different transmitters form a complete set, which can achieve different working distances. For example, it and the transmitter CWC-3L form a complete set, the maximum working distance may reach 50 meters in an open area. Or it and the transmitter CB-3-2 form a complete set, the maximum working distance may reach 1000 meters in an open area.
The maximum working distance is based on theoretical data which would be without barriers and without any RF interference. In practice, it will be hindered by trees, walls or other construction, and will be interfered with by other wireless signals. Therefore, the actual working distance may not reach this maximum distance. If the receiver is equipped with an external antenna, it will have a farther working range.
Usage:
The receiver can be used to control DC 12V / 24V motor or linear actuator. If the power supply of those equipments is DC 12V, you should choose the receiver with same DC 12V version; and if the power supply of those equipments is DC 24V, you should choose the receiver with same DC 24V version.

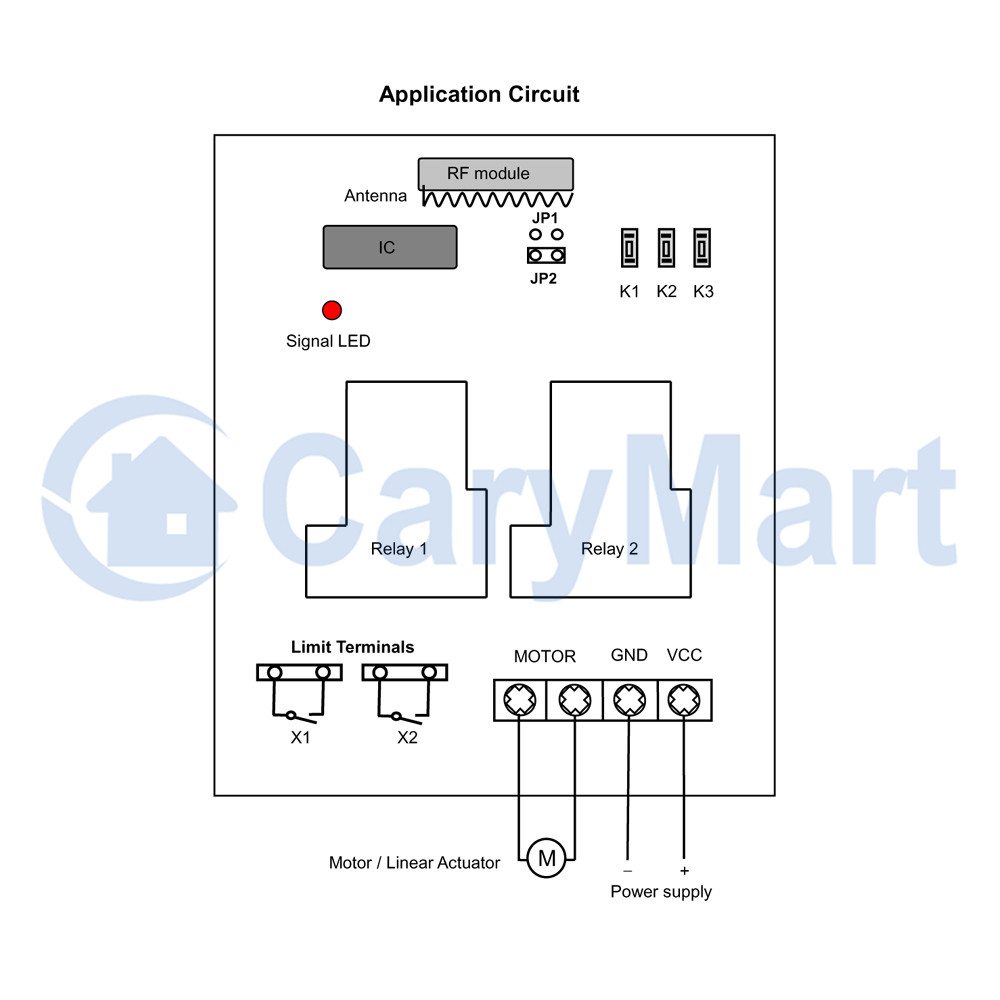

Wiring:
If you want to control a DC 12V / 24V motor or linear actuator, do as following:
1) Connect the positive pole of DC power supply to terminal “VCC” of INPUT, and connect the negative pole of DC power supply to terminal “GND” of INPUT.
2) Connect two wires of motor or linear actuator to terminals “MOTOR”, and you can exchange these two wires to change the rotating direction of motor or the moving direction of linear actuator.
Setting different control modes: 1) Setting Interlocking mode: Only connect Jumper JP1 in the receiver.
The operation by the transmitter, such as CWC-3L:
Press button ▲ on the transmitter: Motor rotates in positive direction, or linear actuator extends.
Press button ▼ on the transmitter: Motor rotates in reversal direction, or linear actuator retracts.
Press button ● on the transmitter: Motor or linear actuator stops.

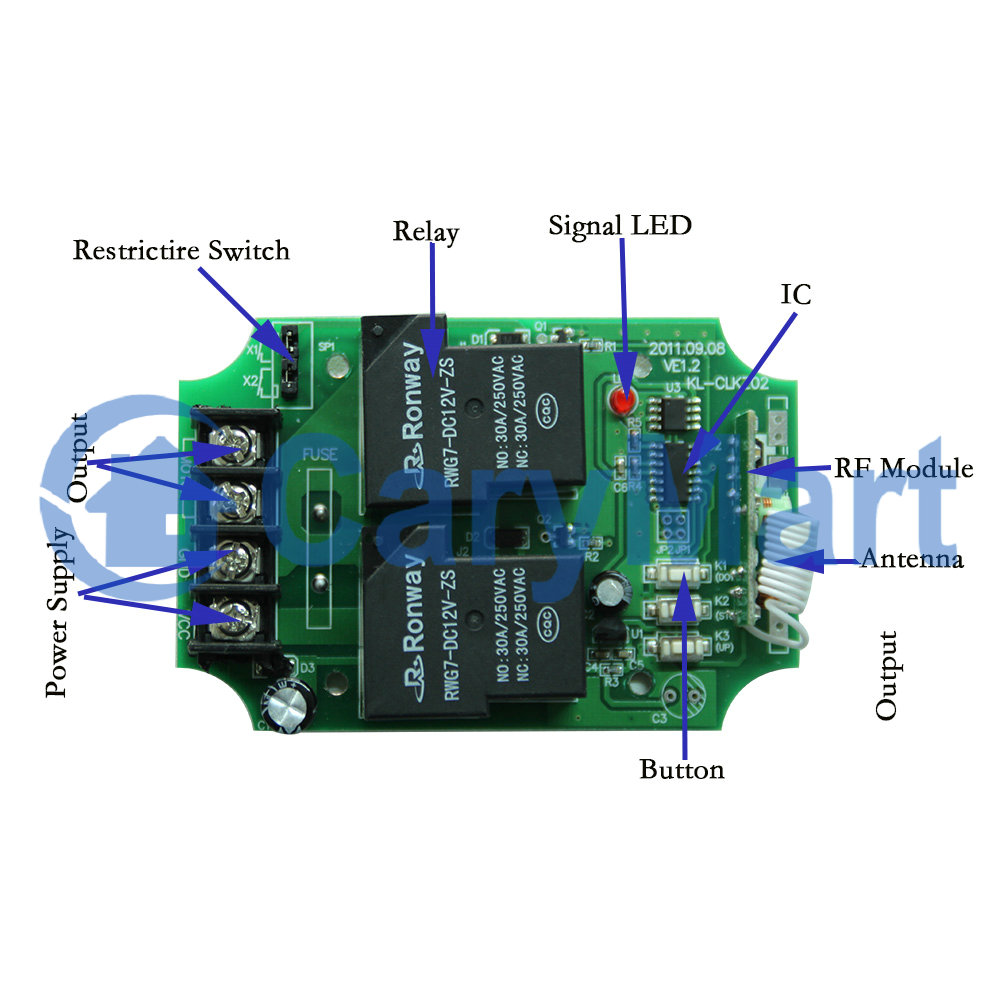

The operation by manual buttons in the receiver:
Press button K3 in the receiver: Motor rotates in positive direction, or linear actuator extends.
Press button K1 in the receiver: Motor rotates in reversal direction, or linear actuator retracts.
Press button K2 in the receiver: Motor or linear actuator stops.
Notice: If you want to change the moving direction of the motor or linear actuator, you should first stop it, then operate it to run in the other direction.
2) Setting Momentary mode: Only connect Jumper JP2 in the receiver.
The operation by the transmitter, such as CWC-3L:
Press and hold button ▲ on the transmitter: Motor rotates in positive direction, or linear actuator extends.
Release button ▲: Motor or linear actuator stops.
Press and hold button ▼ on the transmitter: Motor rotates in reversal direction, or linear actuator retracts.
Release button ▼: Motor or linear actuator stops.
The operation by manual buttons in the receiver:
Press and hold button K3 in receiver: Motor rotates in positive direction, or linear actuator extends. Release button K3: Motor or linear actuator stops.
Press and hold button K1 in receiver: Motor rotates in reversal direction, or linear actuator retracts. Release button K1: Motor or linear actuator stops.
Limit terminals:
The receiver has limit terminals, and you can connect external devices (with normally closed contact), such as sensors, limit switches or manual switches to limit terminals, then use them to stop the motor or the linear actuator.
For example, you can connect two normally closed limit switches to terminals “X1” and “X2”. When motor rotates in positive direction, or linear actuator extends, if discount the limit switch “X1”, motor or linear actuator will stop automatically. When motor rotates in reversal direction, or linear actuator retracts, if discount the limit switch “X2”, motor or linear actuator will stop automatically.
