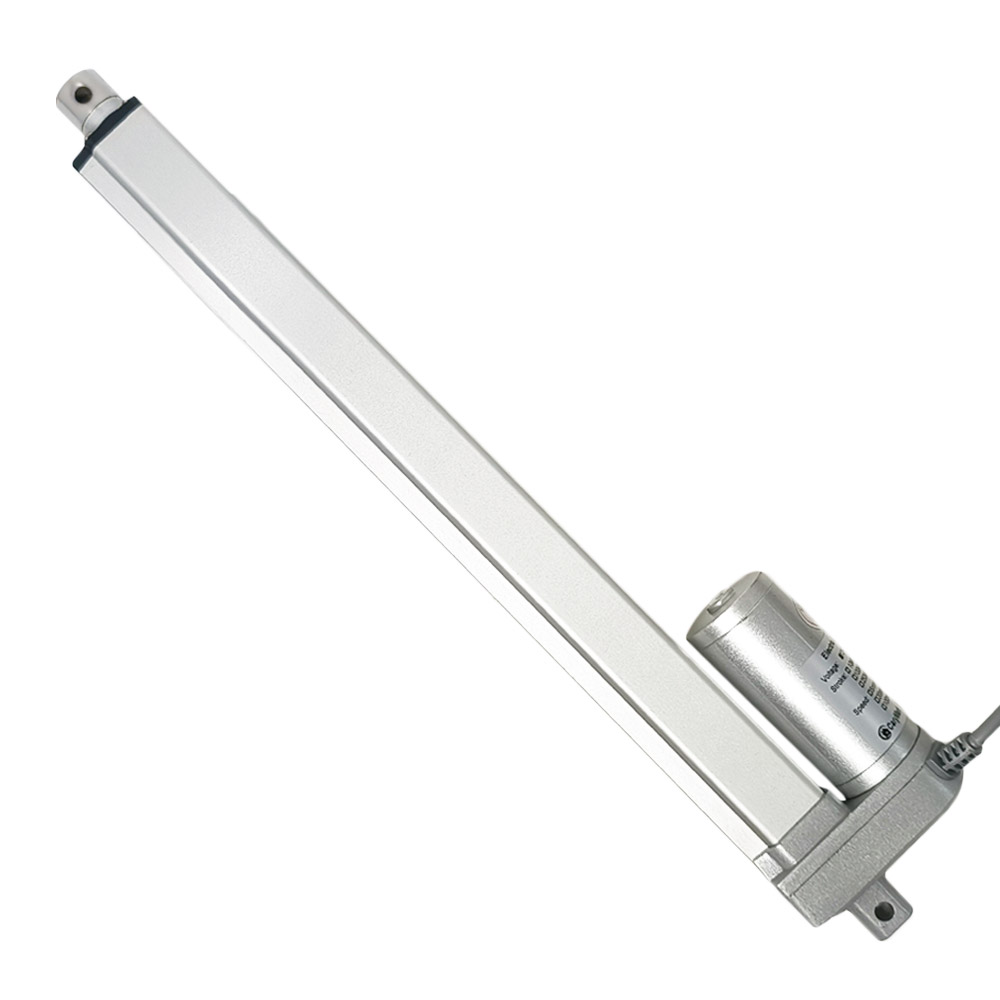

Application:
Mainly used for doors, windows, cellars, trapdoors, hatchways, solar
tracking system, medical devices, agricultural machinery, vehicles, ships,
elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage
sofas, electric beds, medical chairs, and other electrical equipment. It can
open, close, push, pull, lift, and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.
Feature:
High-quality products and high-quality services
New housing design, high working stability
Metal housing, able to work in very harsh environments.
Metal gearbox, high strength wear-resistant gear
Aluminum alloy telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 2000N / 200 Kgs / 450 lbs.
Multiple speed options, from 5 mm/second to 160 mm/second
Multiple stroke options, from 10 mm to 1000 mm
We can customize any stroke length from 10mm to 1000mm, such as 225mm,
660mm, 950mm and so on. Advanced waterproof and dustproof technology
Low power consumption and low noise
Built-in two limit switches, linear actuator will automatically stop when
stroke rod reaches the limit position.
Automatically lock after stopping, and no power supply is required.
Maintenance-free
Specifications:
Optional working voltage: DC 12V or DC 24V. Unless you only have 12V power
supply available, we recommend you choose the linear actuator with 24V
working voltage.
Stroke range: 0.4 ~ 40 inches or 10 ~ 1000 mm
Optional speed: 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 30±5mm/s, 50±10mm/s,
100±15mm/s, 160±20mm/s
The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases.
Max load capacity: 2000N / 200 Kgs / 450 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the
vertical direction, and the pulling force is less than pushing force.
No-load current: 0.5~1A at 12V or 0.3~0.5A at 24V
Full load current: 3~6A at 12V or 1.5~3A at 24V
Please use a 12V/6A or 24V/3A power supply to power a linear actuator or use
a 12V/10A or 24V/5A power supply to power two linear actuators, or use a
12V/20A or 24V/10A power supply to power four linear actuators.

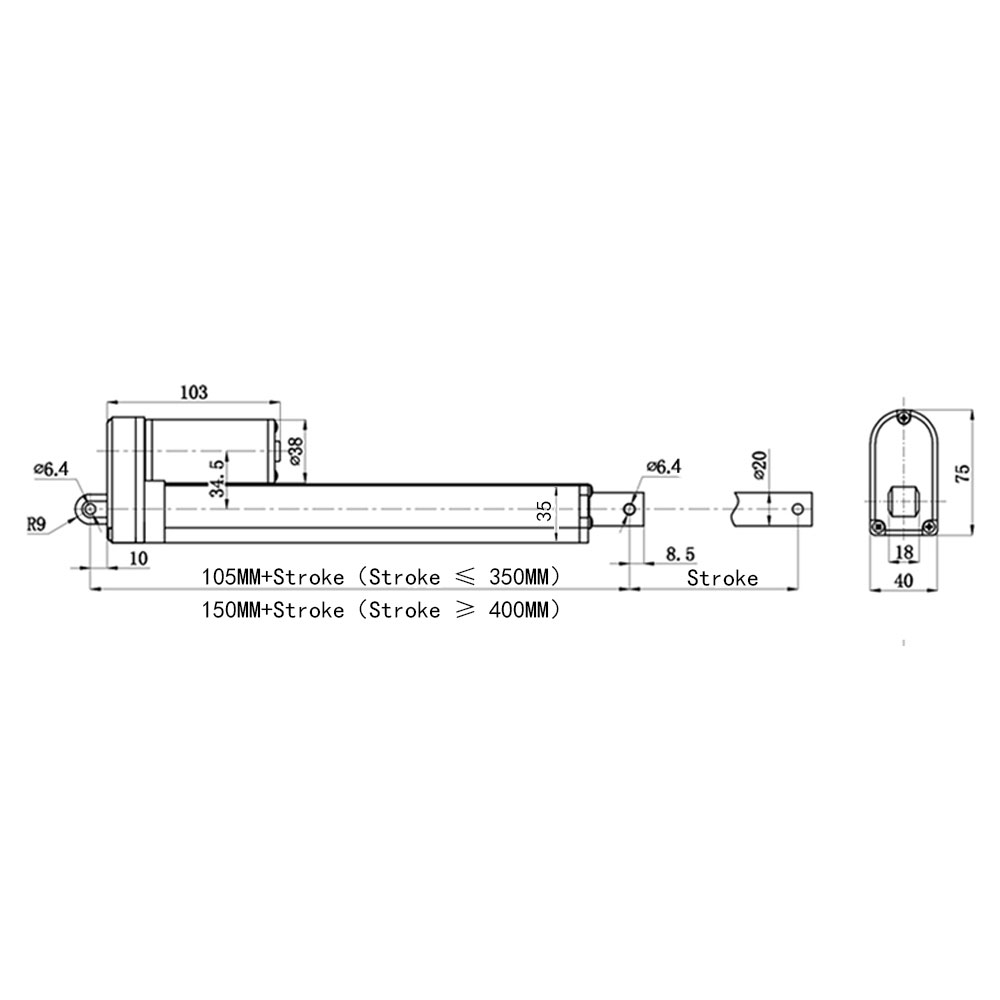

Shaft diameter: 20mm
Mounting holes diameter: 6mm
Housing material: Aluminum Alloy
Stroke rod material: Aluminum Alloy
Gear material: Steel Alloy
Motor type: Brushed DC Motor
Duty cycle: 20%, max 5mins continuous use
Power cable: Ordinary Two-core Wire
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating noise: about 46dB~56dB (Linear actuators with different parameters
will have different noise levels.)
IP rating: IP65
Different no-load speeds and corresponding maximum thrust:
No-load Speed
Maximum Thrust
5mm/s
2000N / 200 kg / 450 lbs
10mm/s
1000N / 100 kg / 200 lbs
15mm/s
800N / 80 kg / 180 lbs
20mm/s
700N / 70 kg / 160 lbs
30mm/s
500N / 50 kg / 110 lbs
50mm/s
300N / 30 kg / 60 lbs
100mm/s
150N / 15 kg / 30 lbs
160mm/s
100N / 10 kg / 20 lbs
Note:
1. The above data is the maximum load capacity that can be obtained when
each linear actuator runs in the vertical direction. The maximum load
capacity of the entire synchronous system is the sum of the maximum load
capacities of the three linear actuators. If the weight of your equipment
(such as a cellar door) is 100kg, and you want to use a linear actuator to
open this door, you need to calculate the actual force acting on the linear
actuator according to your installation method. This force is usually 2-5
times the weight of the cellar door. If you don't know how to calculate it,
please contact us for help.
2. The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases. Full load speed is approximately
60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the
right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under
maximum load, we recommend letting it work at about half of the maximum load
to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not
normally allow them to operate at their maximum stroke under heavy loads. If
the actual stroke you want is 600MM, we recommend that you choose a linear
actuator with a stroke of 700-800MM.
6. When the speed of the linear actuator is 100mm/s or 160mm/s, the
self-locking force is much smaller than the thrust. At other speeds the
self-locking force is greater than the thrust.
7. The maximum pull force of the linear actuator is slightly less than its
maximum thrust force.
The information for synchronous controller:
Introduction:
If you want to use multiple linear actuators to raise and lower an
equipment, for example two, three or four electric actuators. Since the
high-speed DC motors in electric actuators cannot run at exactly the same
speed, so the movement speed of the electric actuator will also be
different. When multiple electric actuators work at the same time, their
actual speeds cannot be exactly the same. In this case, we can use a
synchronous controller to operate multiple linear actuators to rise or fall
synchronously. They work completely in sync without any difference.
Working principle:

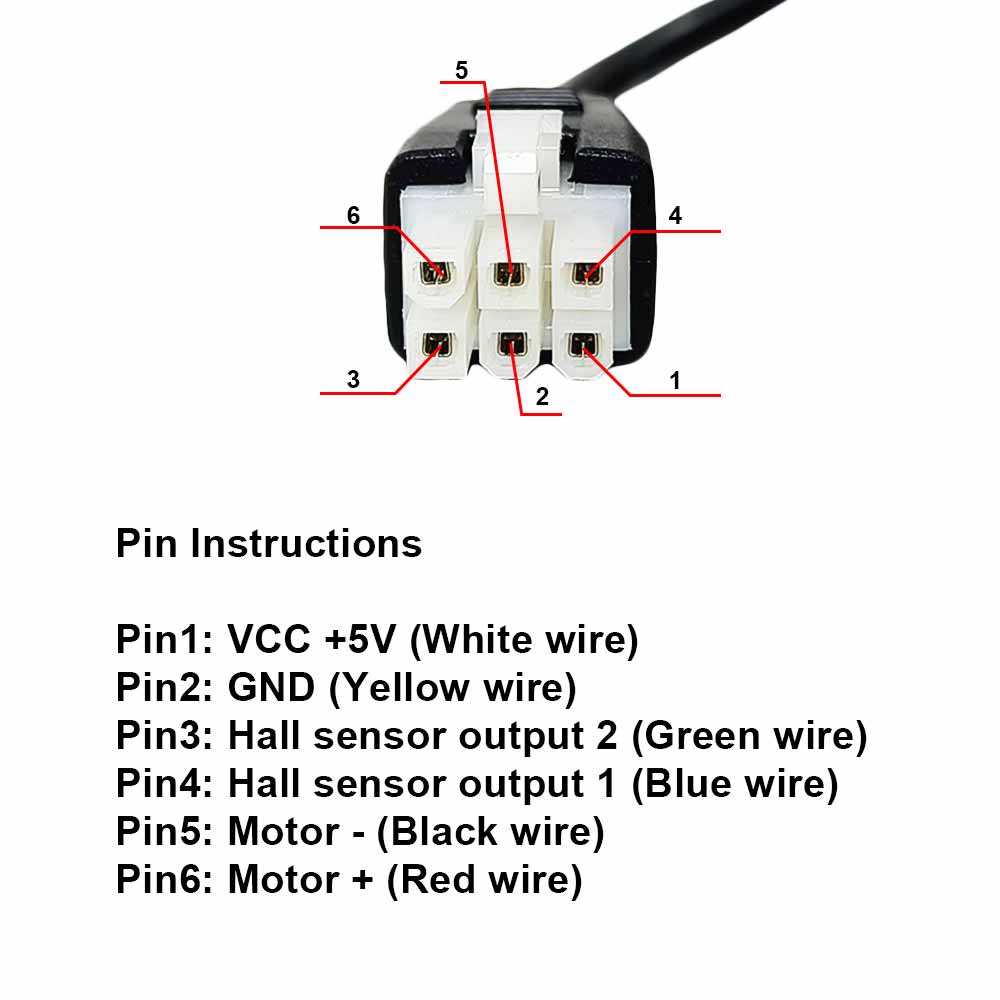

If you want to use a synchronous controller to operate 2, 3 or 4 linear
actuators fully synchronously, you will need to add built-in Hall effect
sensors to each linear actuator. And when you purchased Hall effect sensor
along with linear actuator, we will install Hall effect sensor to linear
actuator for you.
When 2, 3 or 4 linear actuators are running together, Hall sensor will send
Hall signals to the synchronization controller, and the controller will
adjust the running speed of each linear actuator, so that all linear
actuators run at the exact same speed.

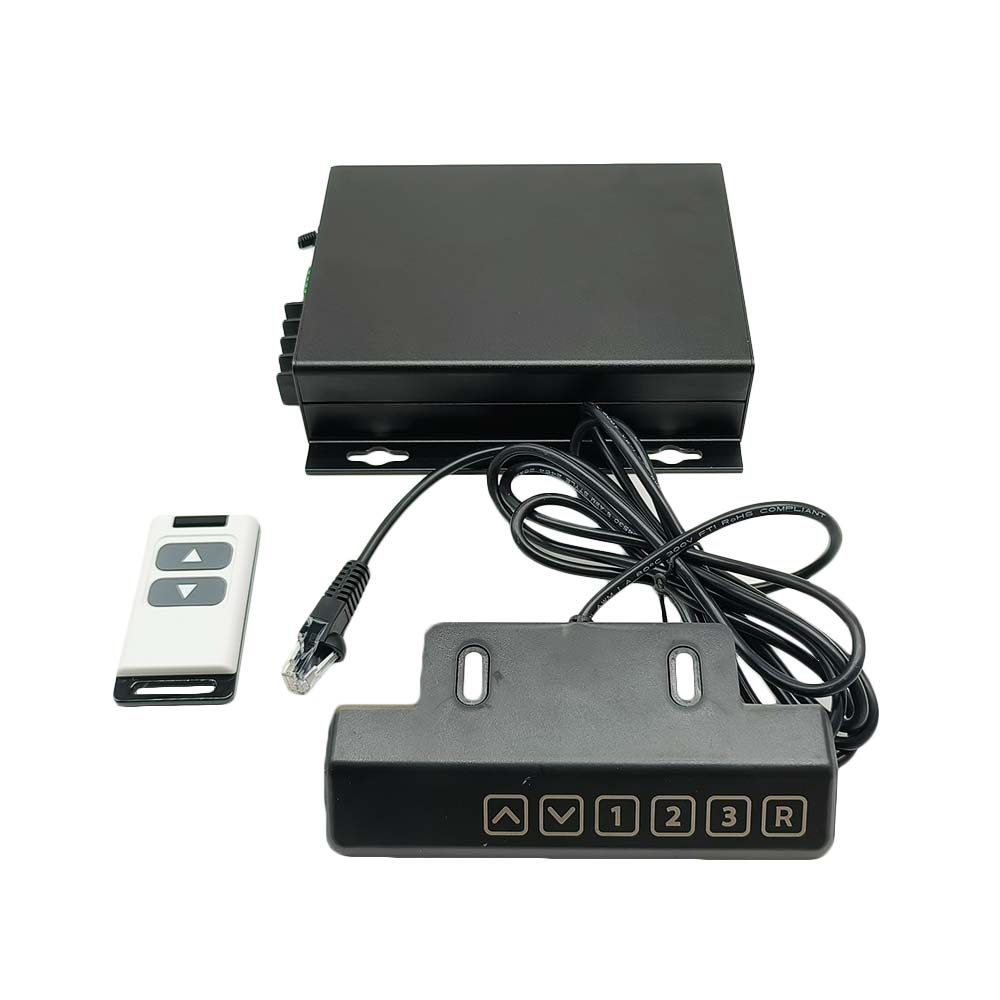

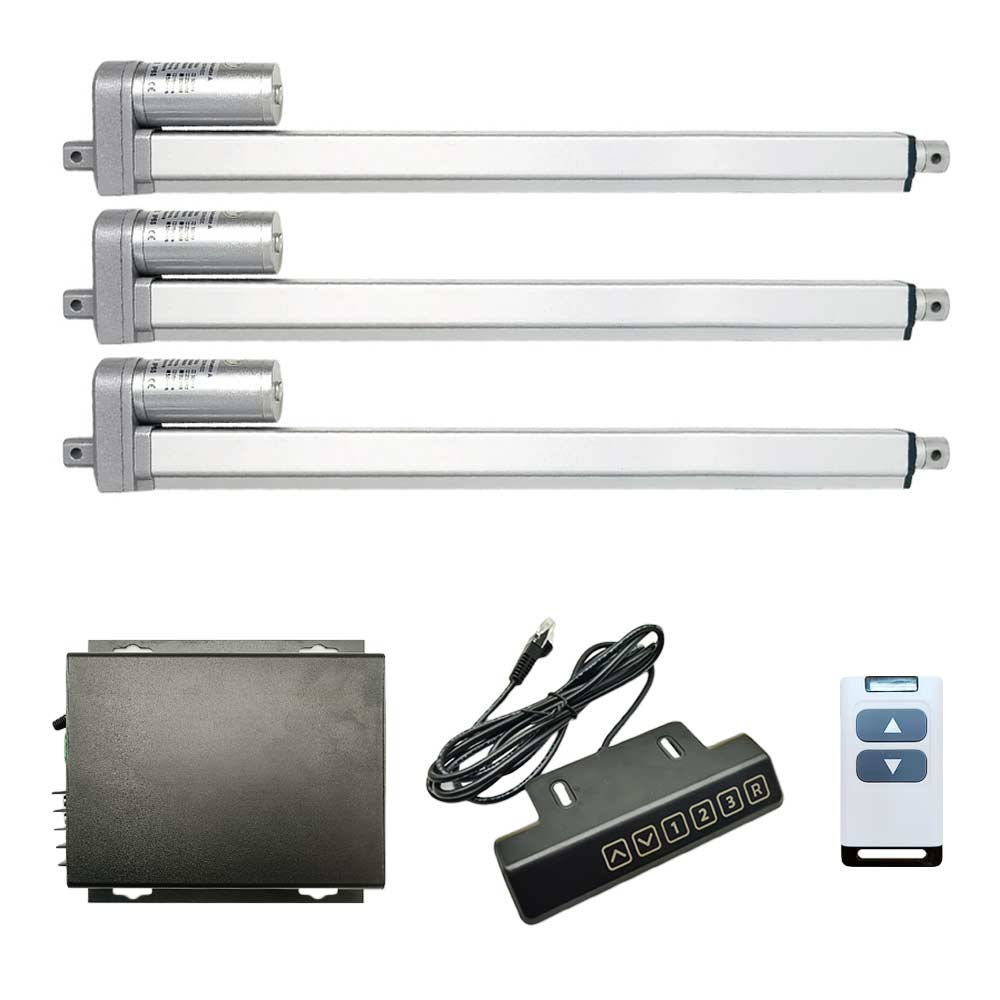

Feature:

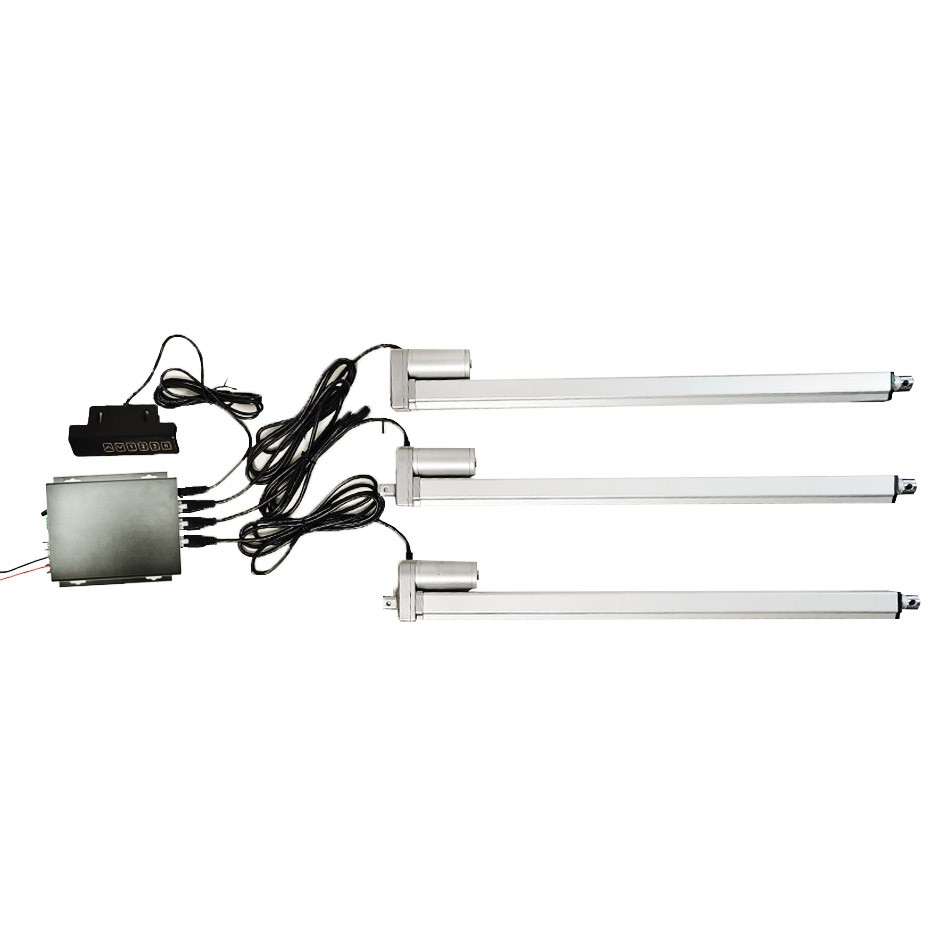

It can operate three electric linear actuators A
to run completely
synchronously.

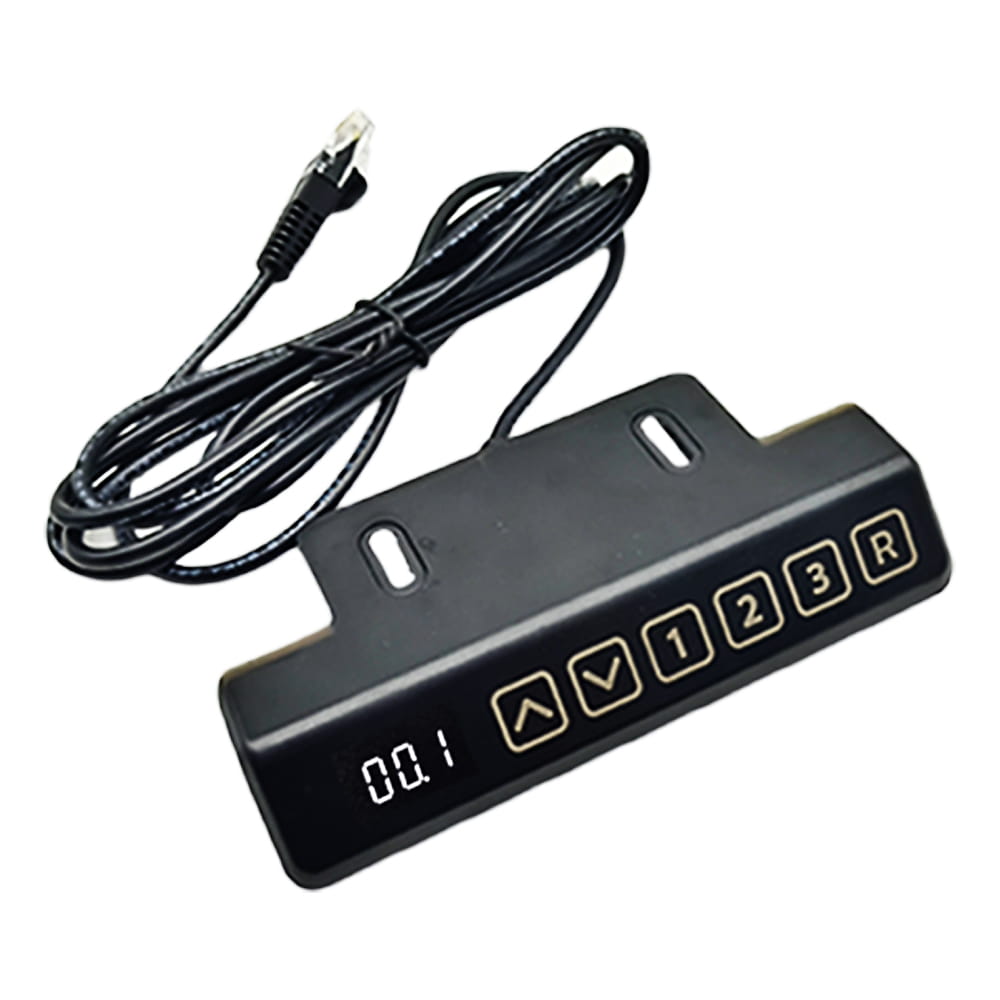

Wired control via a touch control handle.
Wireless control via a remote.
If use an external antenna, the controller has a farther working range.
The LED display on the control handle will display the stroke position in
real time.
Six touch function buttons: ▲, ▼, 1, 2, 3 and R.
Buttons ▲ and ▼ are used to operate the linear actuators extension and
retraction.
Buttons 1, 2 and 3 are used to automatically operate the linear actuators to
three pre-memorized positions.
Button R is the reset button and is used to reset the system in case of an
error.
With wired control terminals: You can connect manual switches to control
linear actuators.
With reset button.
When linear actuators move close to the end position, they will
automatically slow down to protect themselves.
When linear actuators are fully retracted, they will retain 1MM of travel to
protect themselves.
Parameters:
Working Voltage: 12~36 VDC, suitable for 12V or 24V linear actuator
Number of connecting linear actuators: 3
Maximum output current: 10A / channel
Working Frequency: 433.92 MHz
Two selectable control modes: Interlocking mode or Momentary mode, please
select a control mode you need when ordering.
Working Distance: 30m / 90ft (theoretically)
Case size: 158 x 150 x 40 mm (6.2 x 5.9 x 1.6 inches)
Operating Temperature: -20°C ~ +70°C

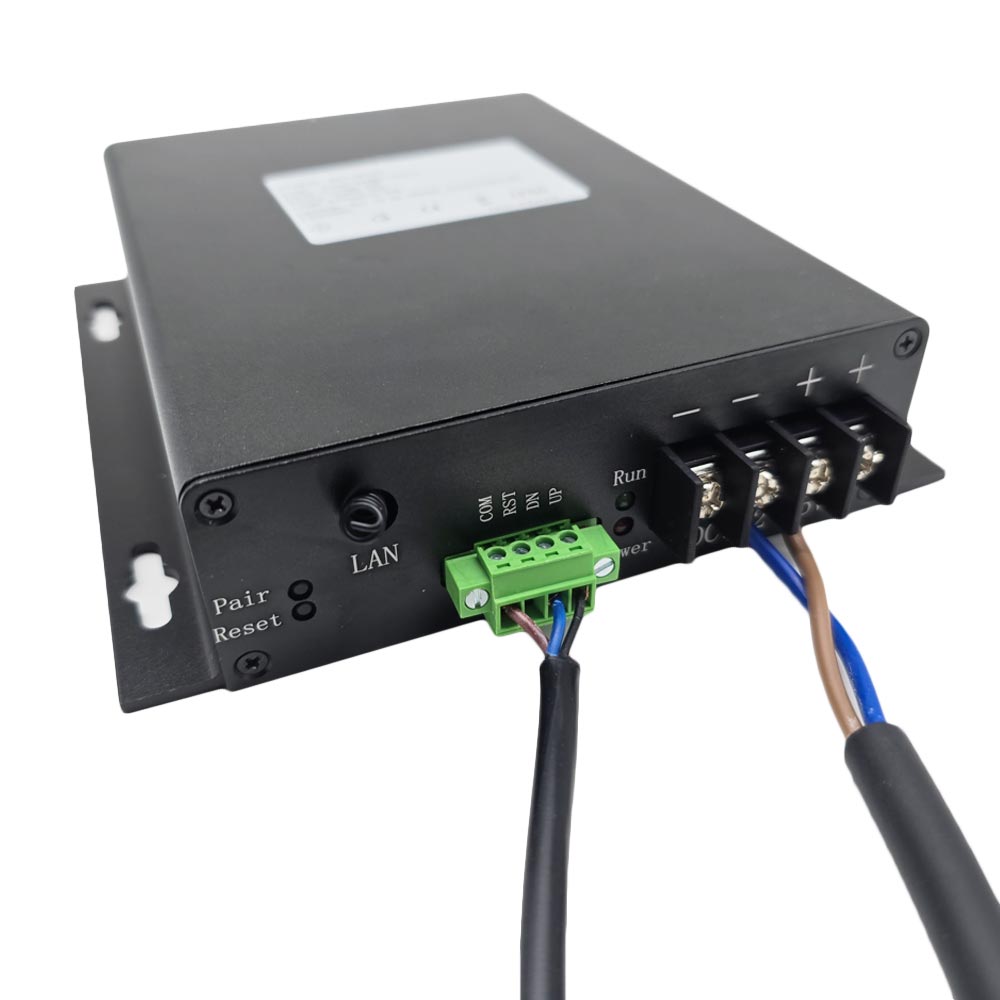

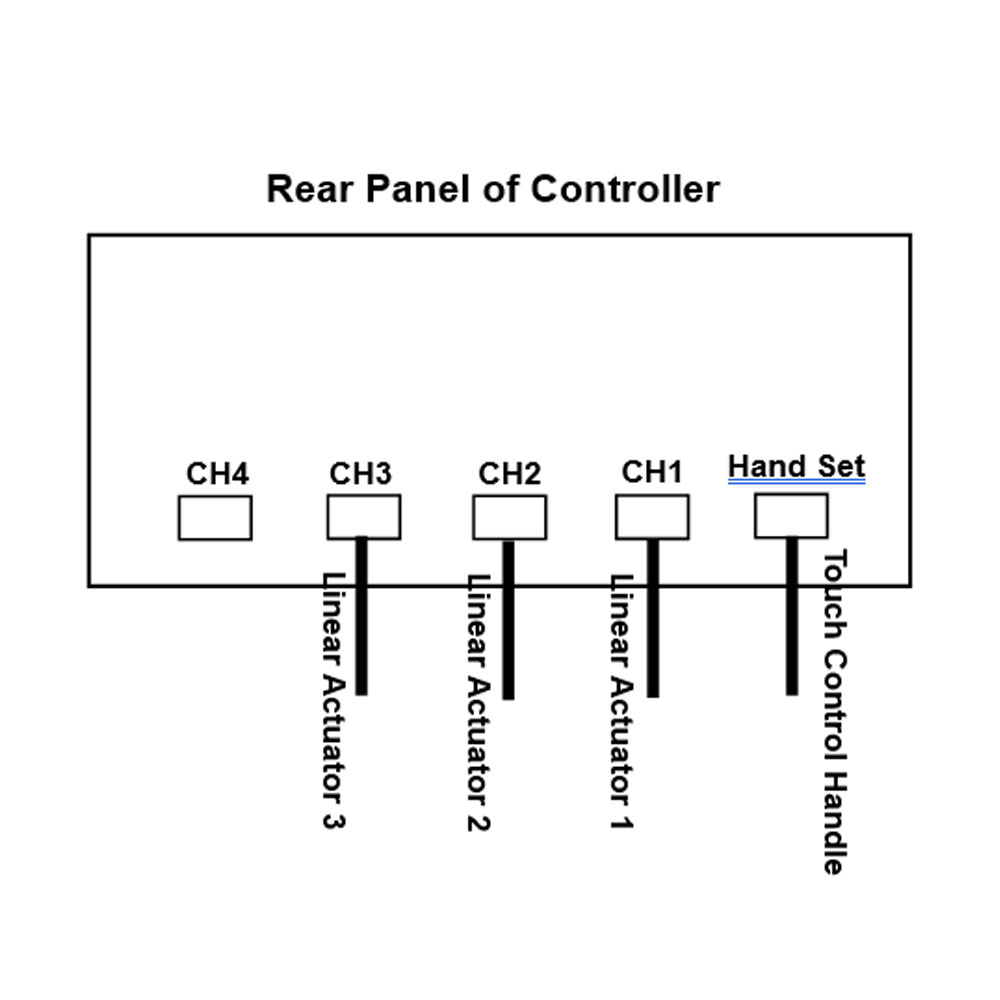

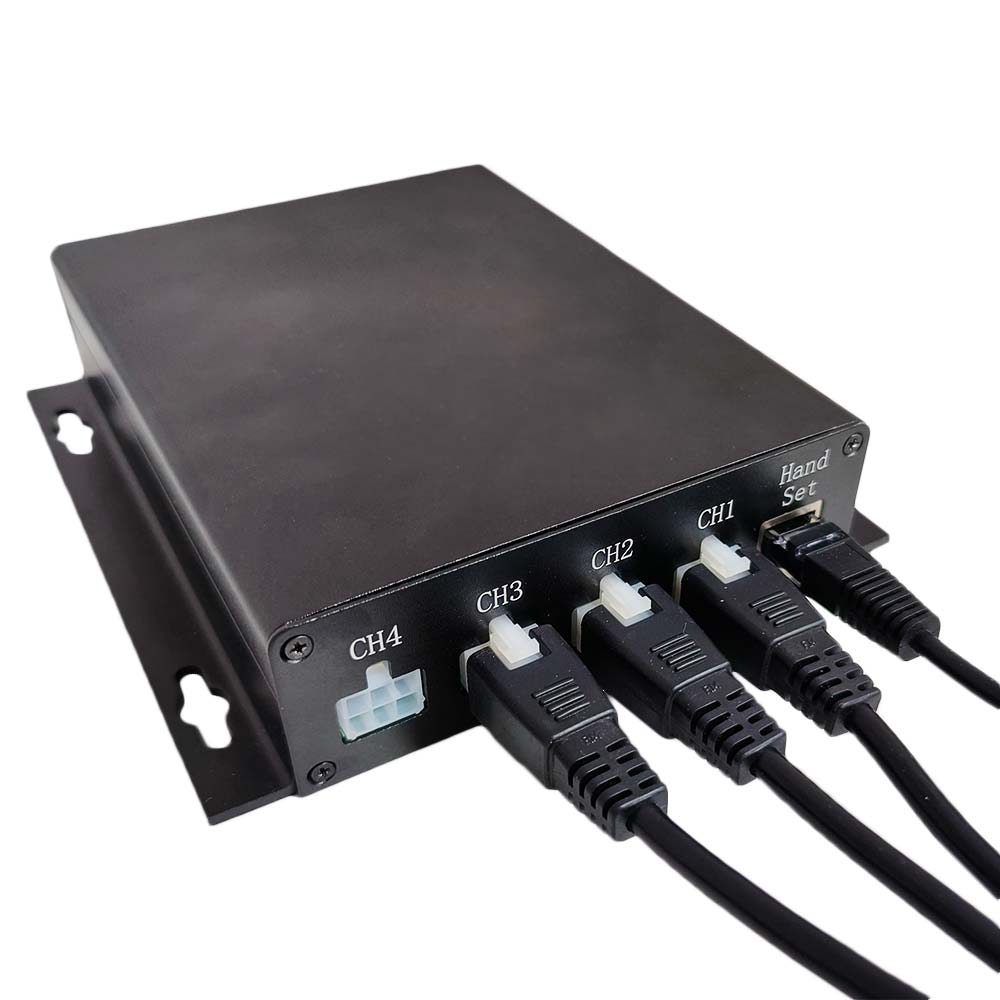

Connection:

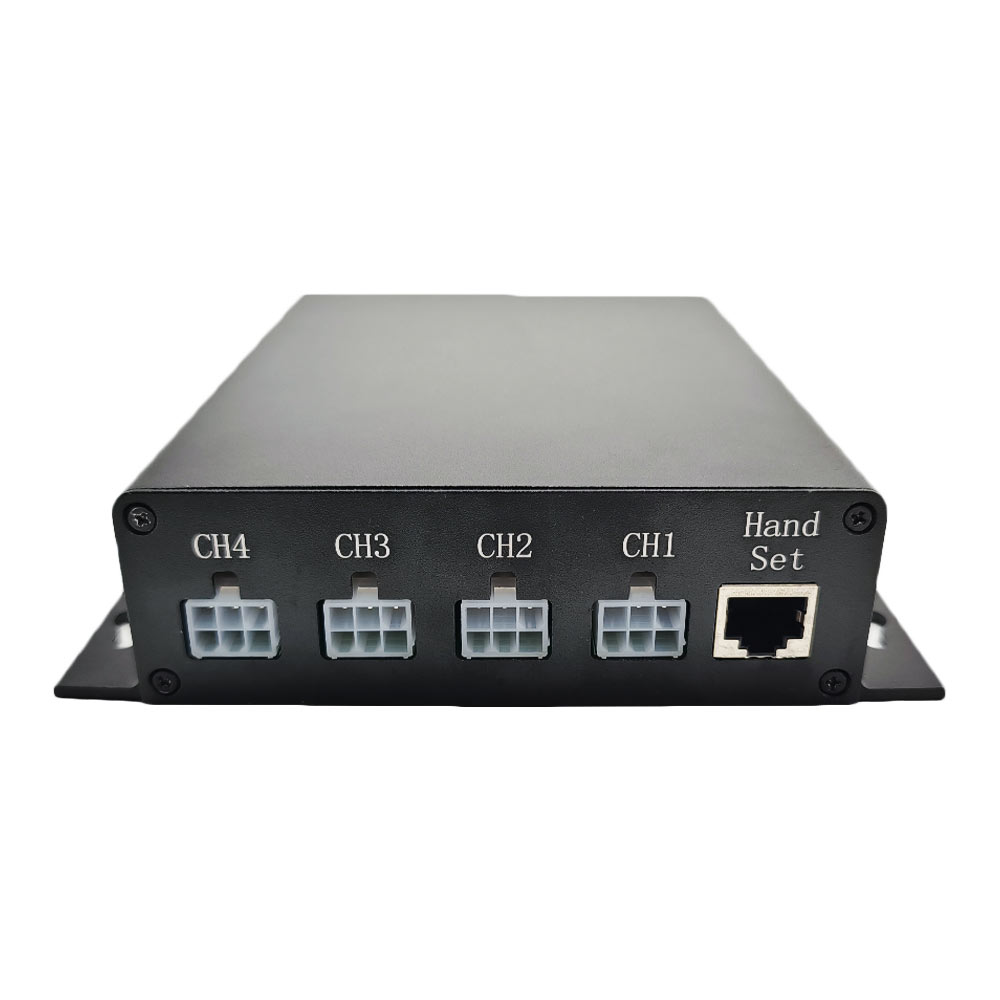

1) Plug the touch control handle into the port Hand Set of the controller.
2) Plug three linear actuators into the ports CH1, CH2 and CH3 of the
controller.

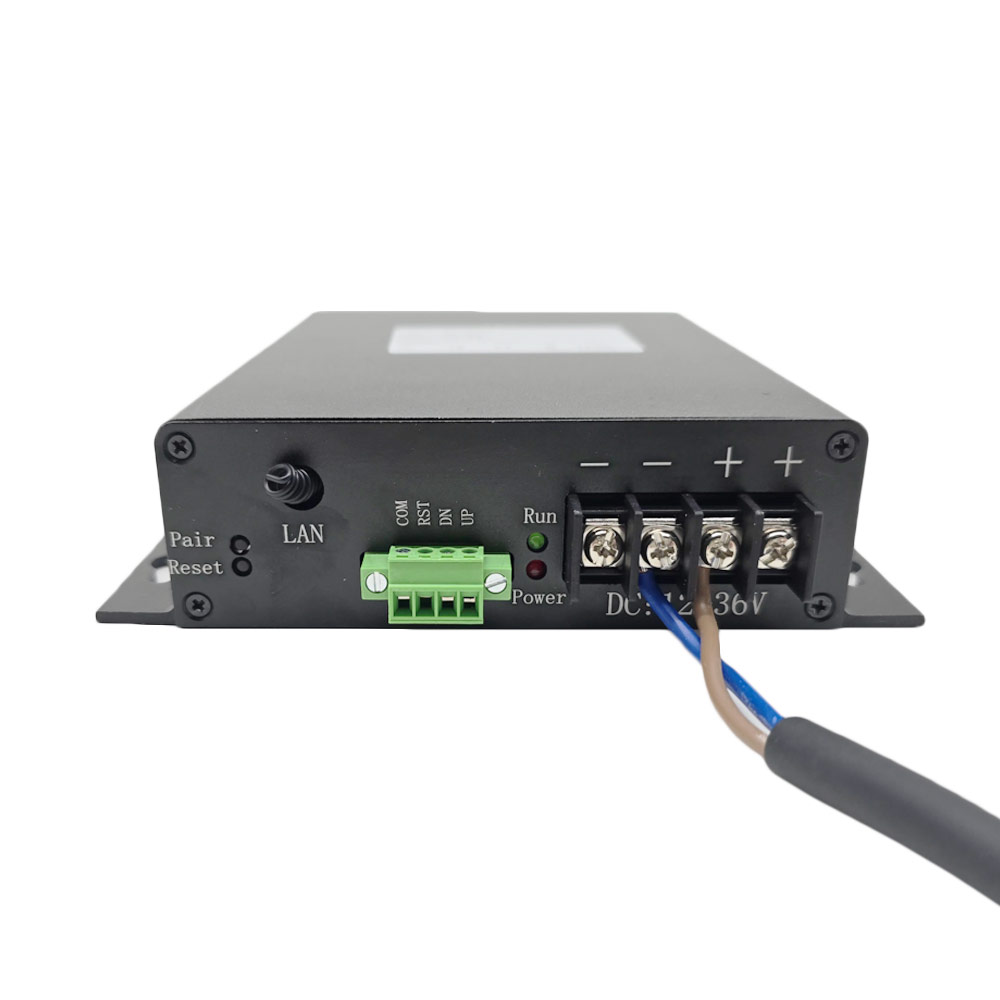

3) Connect the positive pole of DC power supply to the terminal + of the
controller, and connect the negative pole of DC power supply to the terminal
- of the controller. CAUTION: Do not connect AC power directly to the controller!
Operation:
1. Operation via the touch control handle:
Attention: The handle is operated by touch control. The touch sensitivity
can be automatically calibrated when powered on for the first time. Hands
are prohibited from touching the handle when powered on to prevent
interference with the sensitivity calibration and affect the operating
sensitivity.
1) Press and hold the ▲ button of the control handle, three linear actuators
extend outward at the same time; Release the button, three linear actuators
stop at the same time.
2) Press and hold the ▼ button of the control handle, three linear actuators
retract inward at the same time; Release the button, three linear actuators
stop at the same time.
3) Press any of the button 1, 2, or 3 on the control handle, three linear
actuators will automatically move to the position memorized by that button
and then automatically stop.
Note: You will need to first memorize three positions into these three
buttons.
4) The LED display on the control handle will display the stroke position
data in real time. For example, the number 03.5 means that the linear
actuators have reached the stroke position of 35MM.

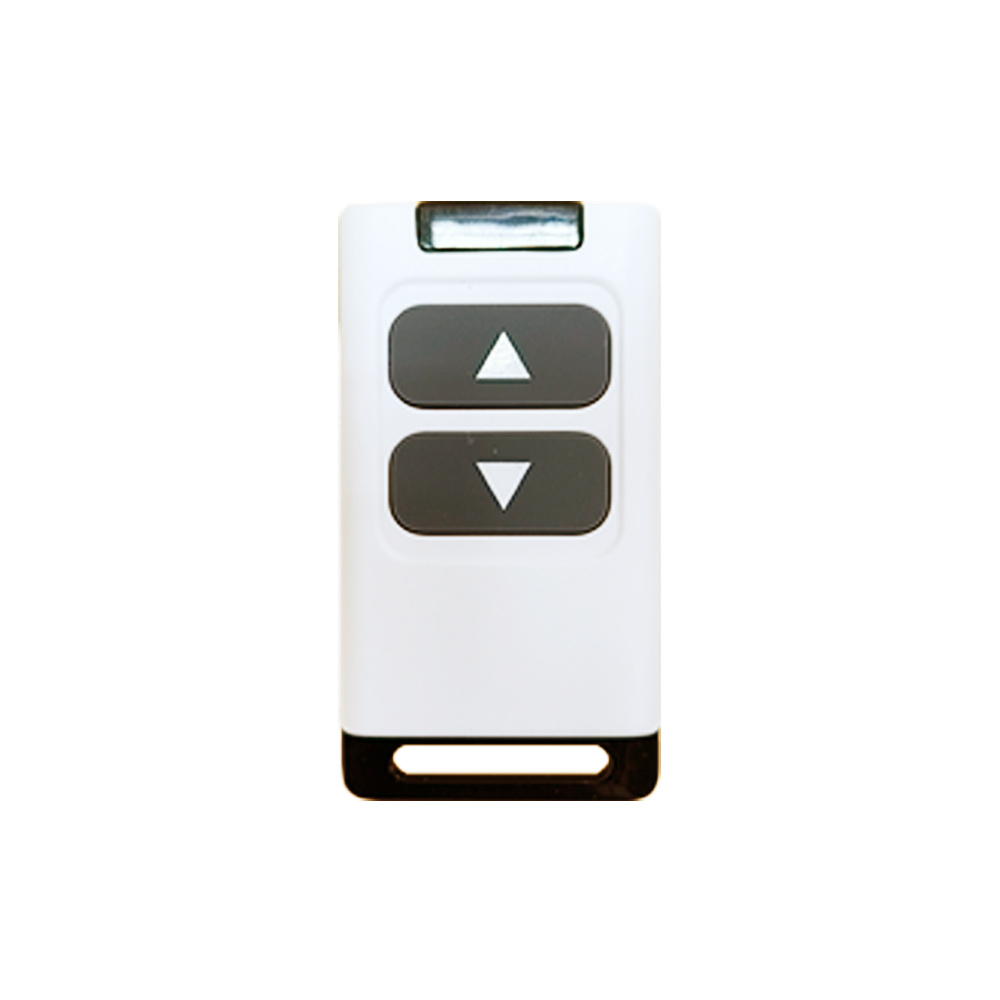

2. Operation via the remote control: (The remote control of the synchronous
controller has two control modes, interlocking mode and momentary mode,
please select a control mode you need when ordering.) 2.1 Momentary Control Mode:
1) Press and hold the button ▲ of the remote control, three linear actuators
extend out at the same time; Release the button, three linear actuators stop
at the same time.
2) Press and hold the button ▼ of the remote control, three linear actuators
retract inward at the same time; Release the button, three linear actuators
stop at the same time.
2.2 Interlocking Control Mode:
1) Press the button ▲ of the remote control, three linear actuators extend
out at the same time, they will reach the maximum stroke at the same time
and stop automatically. During operation, you can also press any button of
the remote control to stop three linear actuators at the same time.
2) Press the button ▼ of the remote control, three linear actuators retract
inward at the same time, they will fully retract at the same time and stop
automatically. During operation, you can also press any button of the remote
control to stop three linear actuators at the same time.
3. Operation via the manual switch:
The controller has wired control terminals, and you can connect external
devices (with normally open contact), such as manual switches to wired
control terminals, then use them to control linear actuators.

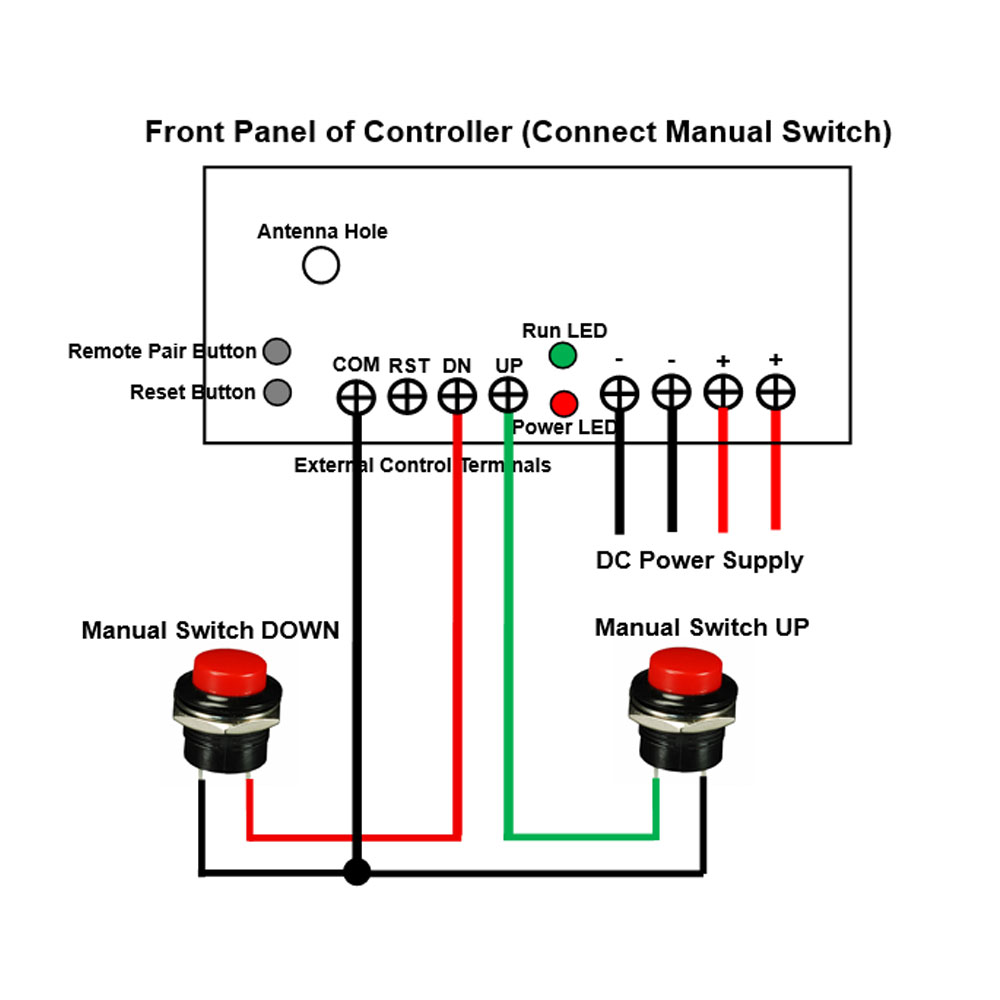

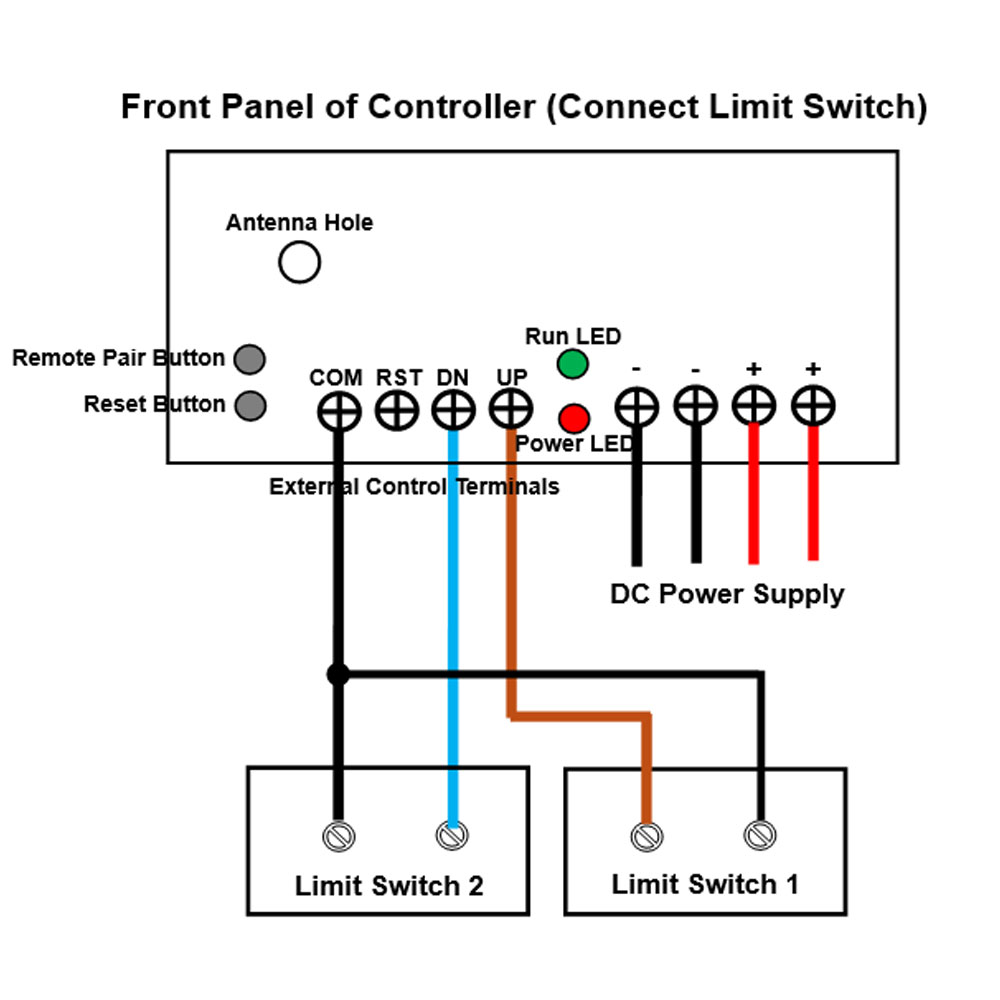

For example, you can connect two manual switches to wired control terminals
UP and DOWN according to following wiring diagram. The operation:
1) Press the UP button of the manual switch, three linear actuators extend
outward at the same time. During operation, you can also press any button of
two manual switches to stop three linear actuators at the same time.
2) Press the DOWN button of the manual switch, three linear actuators
retract inward at the same time. During operation, you can also press any
button of two manual switches to stop three linear actuators at the same
time.
How to memorize three stroke positions:
1) The controller can memorize total three stroke positions, and each button
memorizes one stroke position.
2) First operate three linear actuators to the first suitable stroke
position that you need to store, then press and hold the button 1 of the
control handle for about 5 seconds, the stroke value on the LED display will
flash. This means that the current stroke position is already stored in
button 1.
3) You can continue to store the other two stroke positions into the button
2 and 3 by following the operation above.
Reset Function:
When the LED display on the control handle shows the fault code, you need to
reset the system as follows.
Reset operation: Press and hold the R button of the control handle or
press and hold the Reset button on the controller, or press and hold the ▲
and ▼ buttons on the remote control at the same time, until all linear
actuators are reset to the bottom, and the LED display on the control handle
shows "00.1", then release the button.
How to pair the remote control to the controller:
Notice: We have paired the transmitter to the controller before leaving the
factory.
1) Press and hold the pairing button on the controller for 8-9 seconds, the
signal LED on the receiver board turns on, this indicates that the
controller enters the learning status.
2) Press any one button on the transmitter, if signal LED on the receiver
board flashes 2 times and then goes off, this indicates that the pairing is
successful.
3) The controller can learn several transmitters with different codes.
How to delete the remote control:
We have paired the transmitter to the controller, if you don’t want the
controller to work with the transmitter, you can delete all transmitters
codes stored in the controller.
Operation: Quickly and continuously press the learning button on the
receiver board 8 times, then release the learning button, the signal LED on
the receiver board flashes 8 times and then goes off, this indicates that
all stored codes have been deleted successfully.
Note:
1. Each linear actuator would require two mounting brackets, one to fix the
head of linear actuator and another to fix the bottom of linear actuator.
This kit does not contain fixed mounting brackets, please buy them from the
drop down menu.
2. You need to use a DC12V/20A or DC24V/10A switching power supply to power
this kit. This kit does not contain this power supply, please buy it from
the drop down menu.
Production time:
The linear actuators are the customized products, and these products are not
in stock, we need to spend 3~7 working days to produce them according to the
specified parameters in your order.
Return or Exchange:
The Linear Actuators are the customized products, we need to produce them
according to the specified parameters in your order, so that we do not
accept returns or cancel orders. If customers order unsuitable linear
actuators themselves, we also do not accept exchanges, please understand.
We can provide 3D CAD model files in STEP format for linear actuators.
Please contact us by e-mail if you need them.
Package Include:

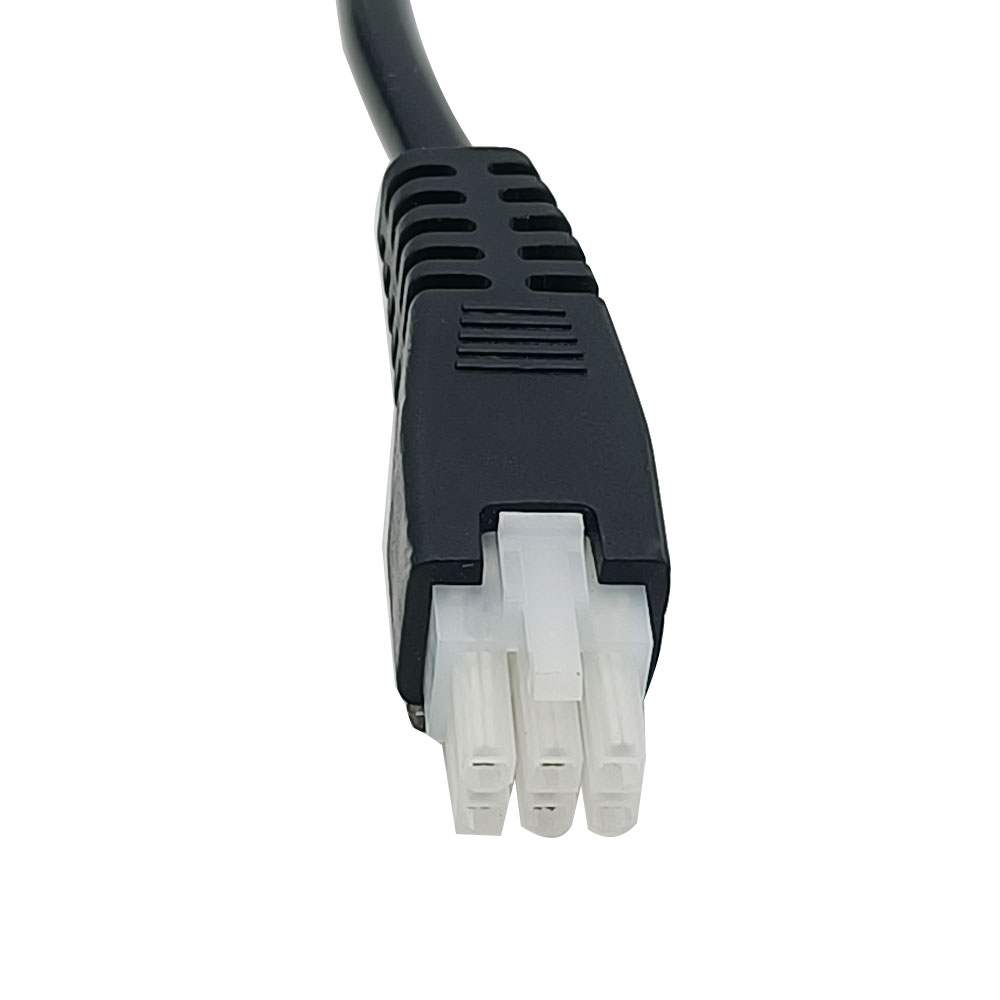

3 x Electric Linear Actuator A With Hall Effekt Sensor

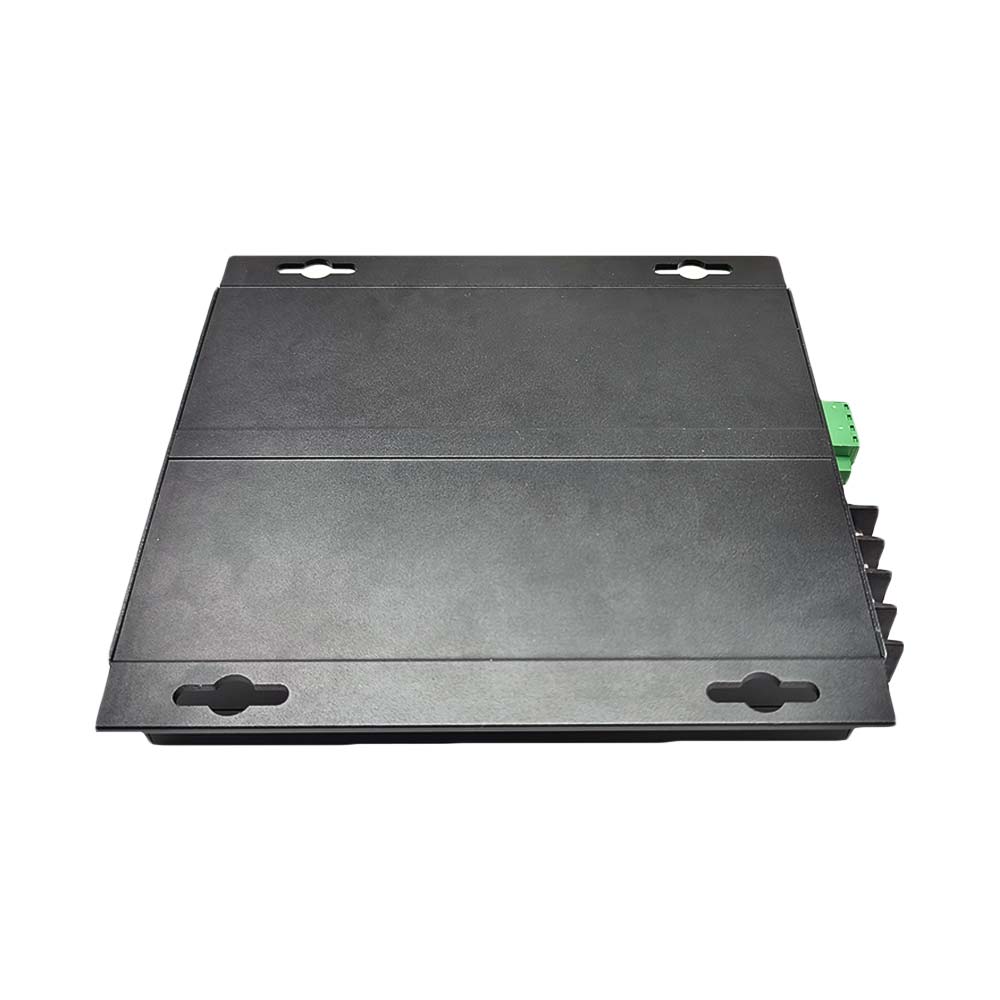

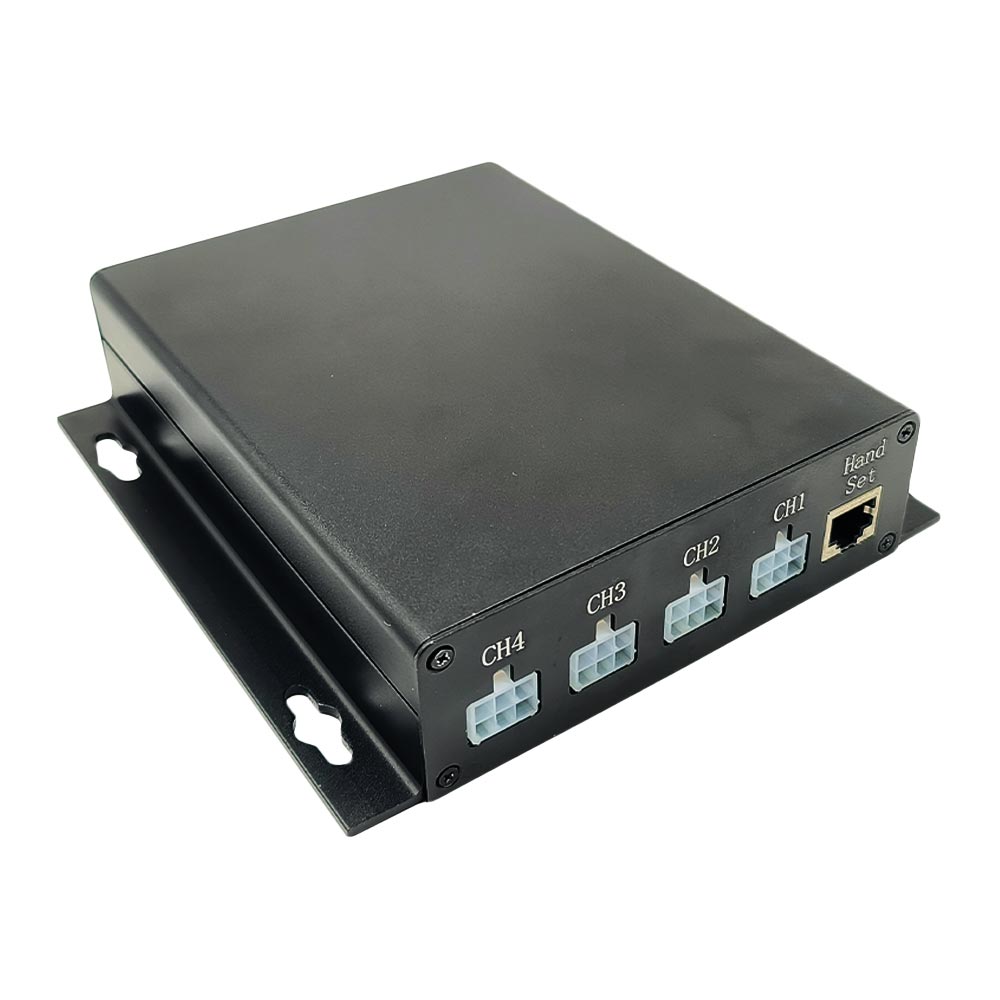

1 x Synchronous Controller (One-Control-Three, For 3 Linear Actuators A)
1 x Touch Control Handle

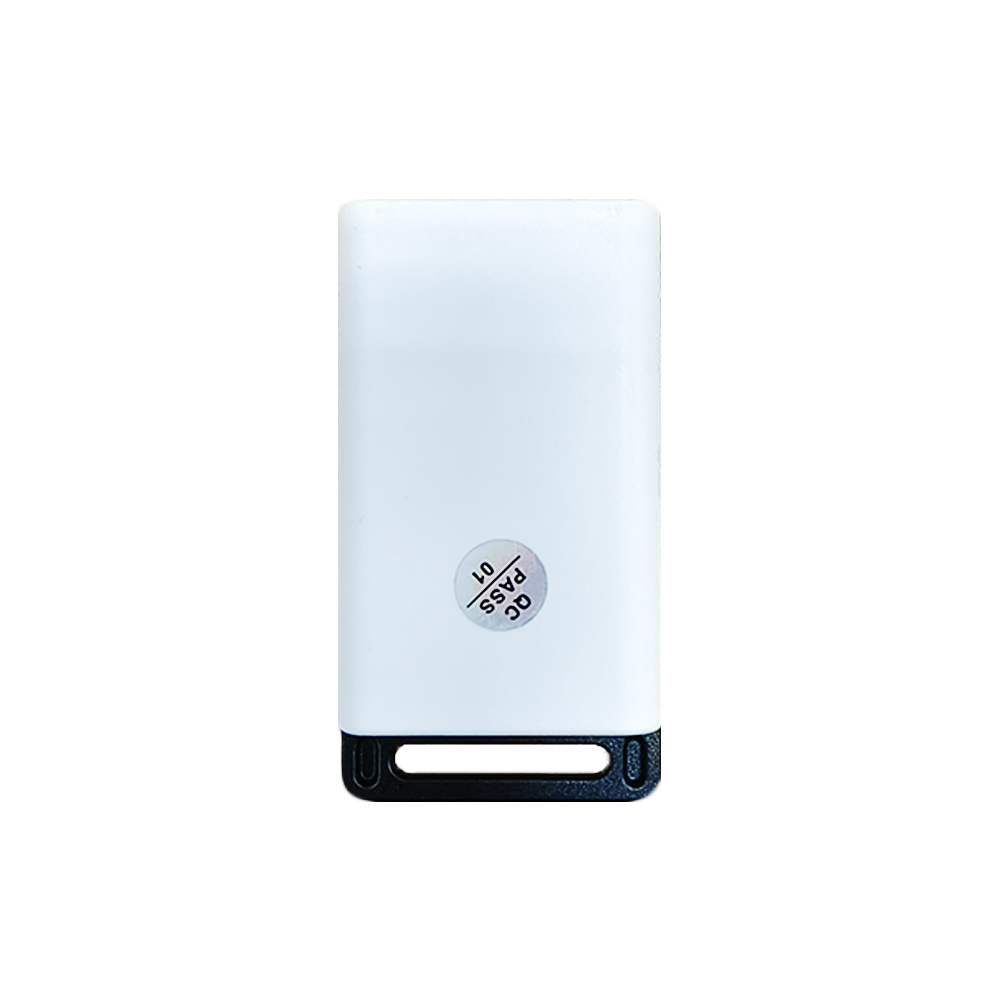

1 x Remote Control
1 x User manual Note: The remote control of the synchronous
controller has two control modes, interlocking mode and momentary mode,
please select a control mode you need when ordering.
