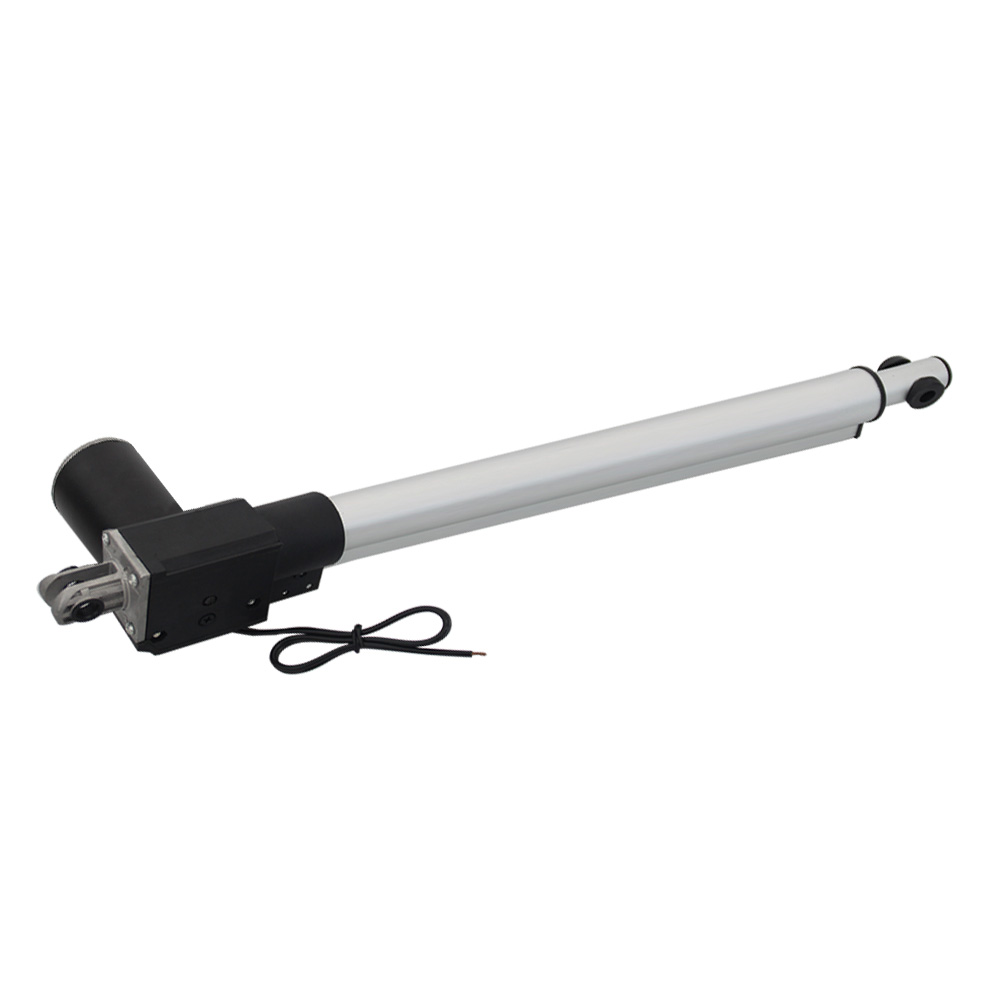

Application:
Mainly used for doors, windows, cellars, trapdoors, solar tracking system,
medical devices, agricultural machinery, vehicles, ships, elevator
platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas,
electric beds, medical chairs and other electrical equipment. It can open,
close, push, pull, lift and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.
Feature:
High-quality products and high-quality services

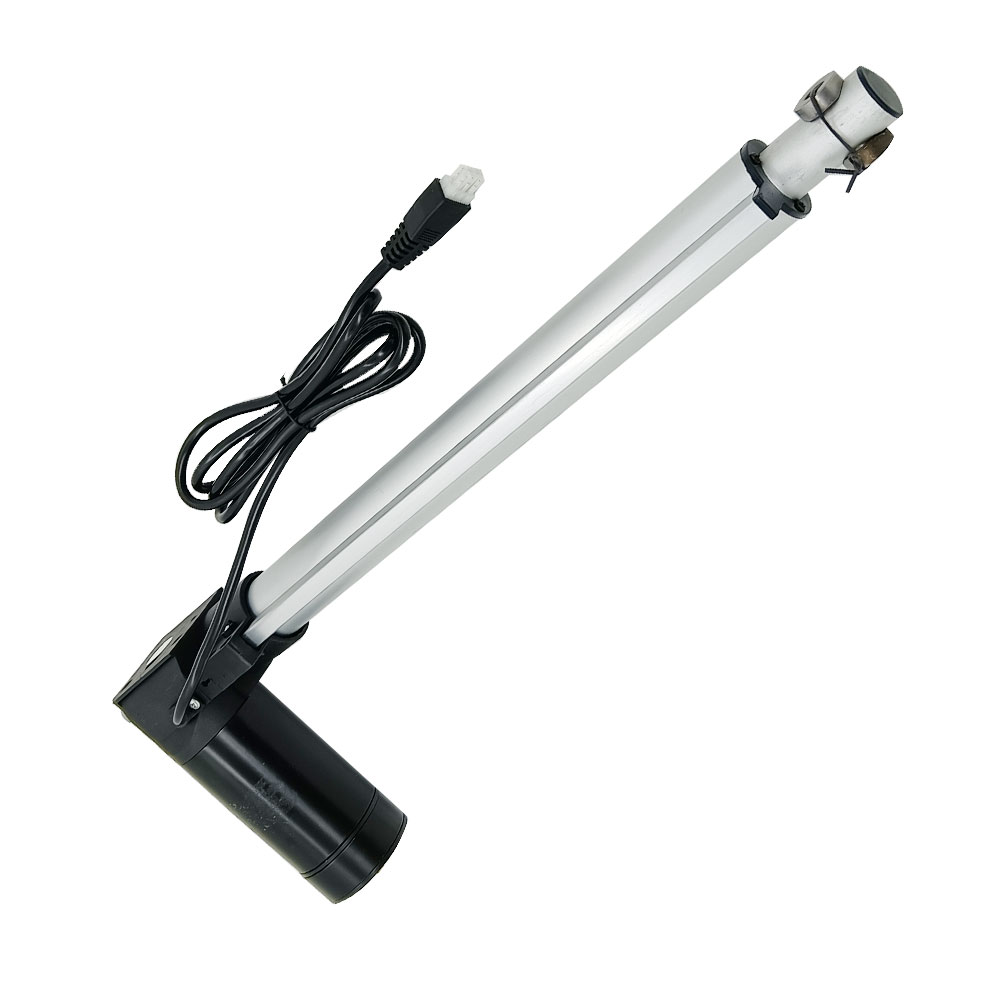

High strength wear-resistant gear
Aluminum alloy telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 6000N / 600 Kgs / 1300 lbs
Multiple speed options, from 5 mm/second to 100 mm/second
Multiple stroke options, from 10 mm to 2000 mm
We can customize any stroke length from 10mm to 2000mm, such as 770mm,
1250mm, 1850mm and so on.
Advanced waterproof and dustproof technology
Low power consumption and low noise
Built-in two limit switches, linear actuator will automatically stop when
stroke rod reaches the limit position.
Built-in Hall sensor is optional, so you can use the synchronous controller
to operate 2 or 4 linear actuators fully synchronously.
Automatically lock after stopping, and no power supply is required.
Maintenance-free

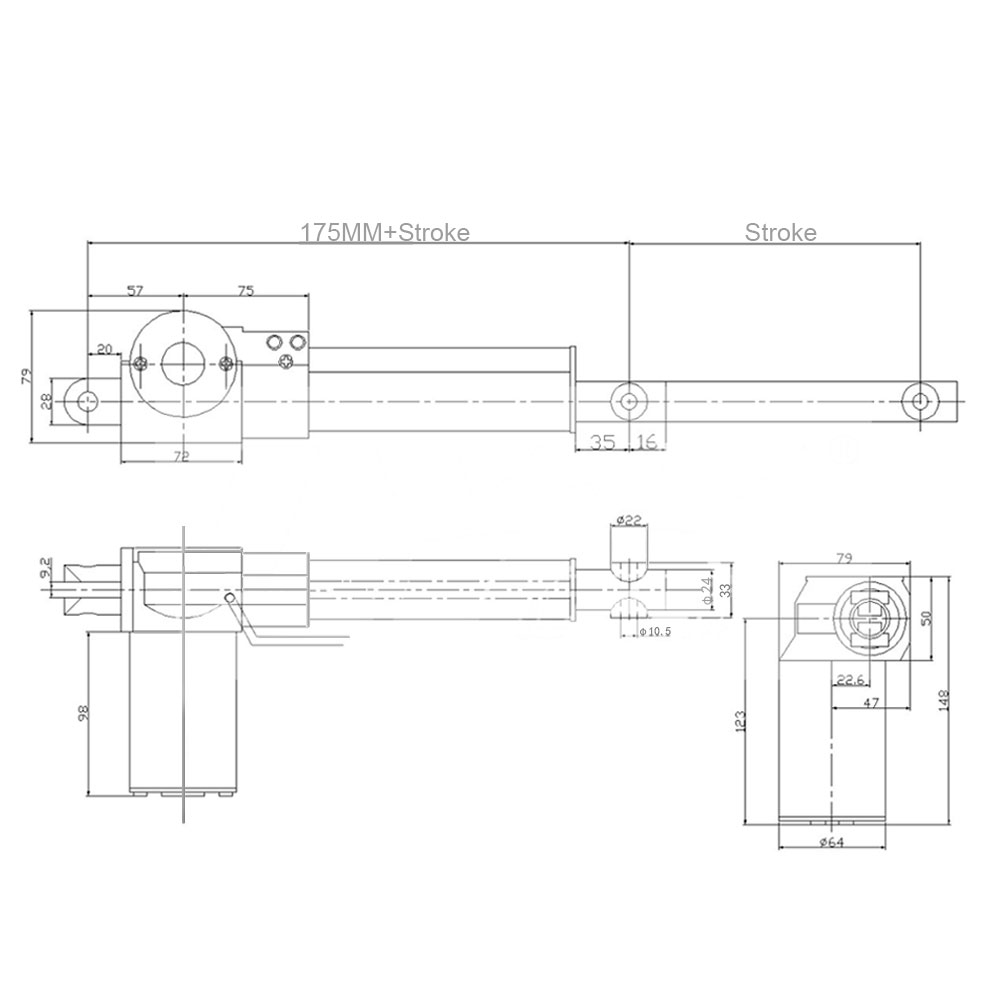

Specifications:
Optional working voltage: DC 12V or DC 24V. Unless you only have 12V power
supply available, we recommend you choose the linear actuator with 24V
working voltage.
Stroke range: 0.4 ~ 79 inches or 10 ~ 2000 mm
Optional speed: 5±1mm/s, 9±2mm/s, 18±4mm/s, 25±5mm/s, 32±6mm/s, 50±10mm/s,
100±15mm/s
The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases.
Max Load capacity: 6000N / 600 Kgs / 1300 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the
vertical direction, and the pulling force is less than pushing force.
No-load current: 1~2A at 12V or 0.5~1A at 24V
Full load current: 6~12A at 12V or 3~6A at 24V
Please use a 12V/10A or 24V/5A power supply to power a linear actuator, or
use a 12V/20A or 24V/10A power supply to power two linear actuators, or use
a 12V/50A or 24V/25A power supply to power four linear actuators.
Shaft diameter: 24mm
Mounting holes diameter: 10mm
Housing Material: Aluminum Alloy
Stroke Rod Material: Aluminum Alloy
Gear Material: Polymer Plastic
Motor Type: Brushed DC Motor
Duty Cycle: 10%, max 3mins continuous use

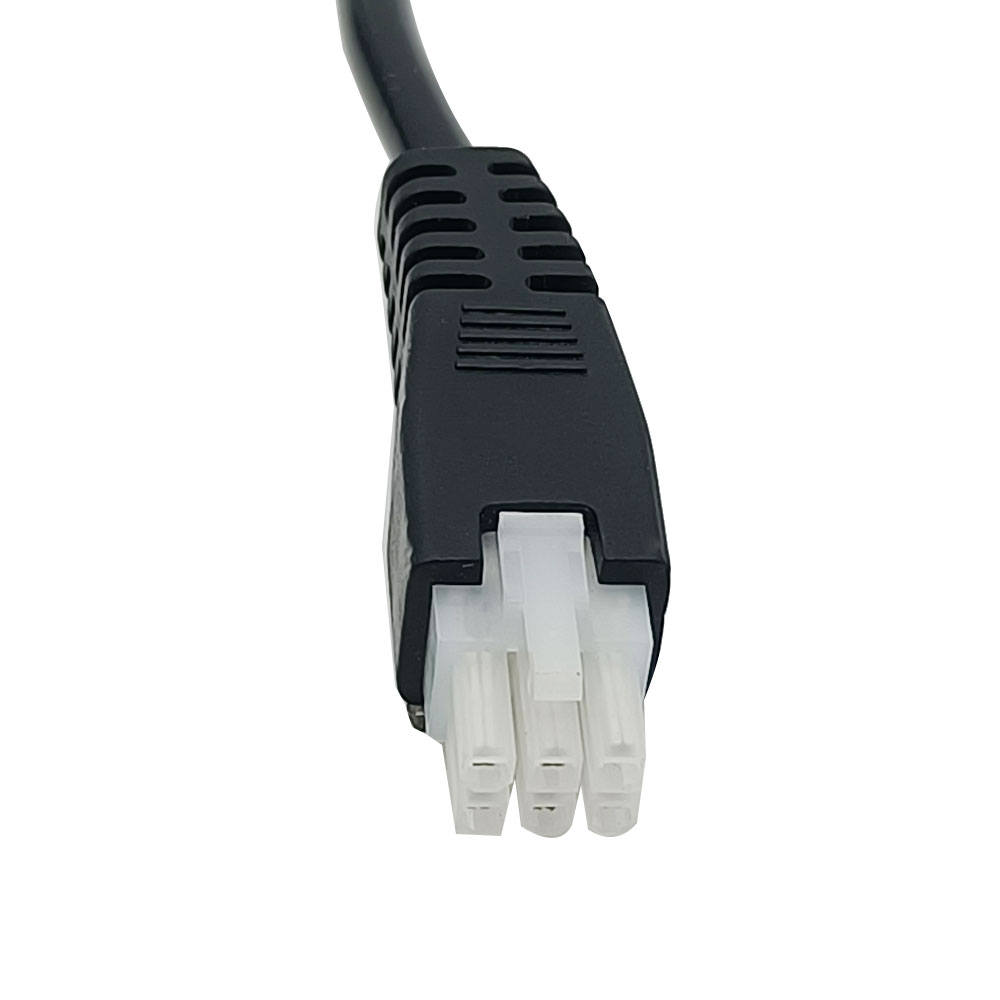

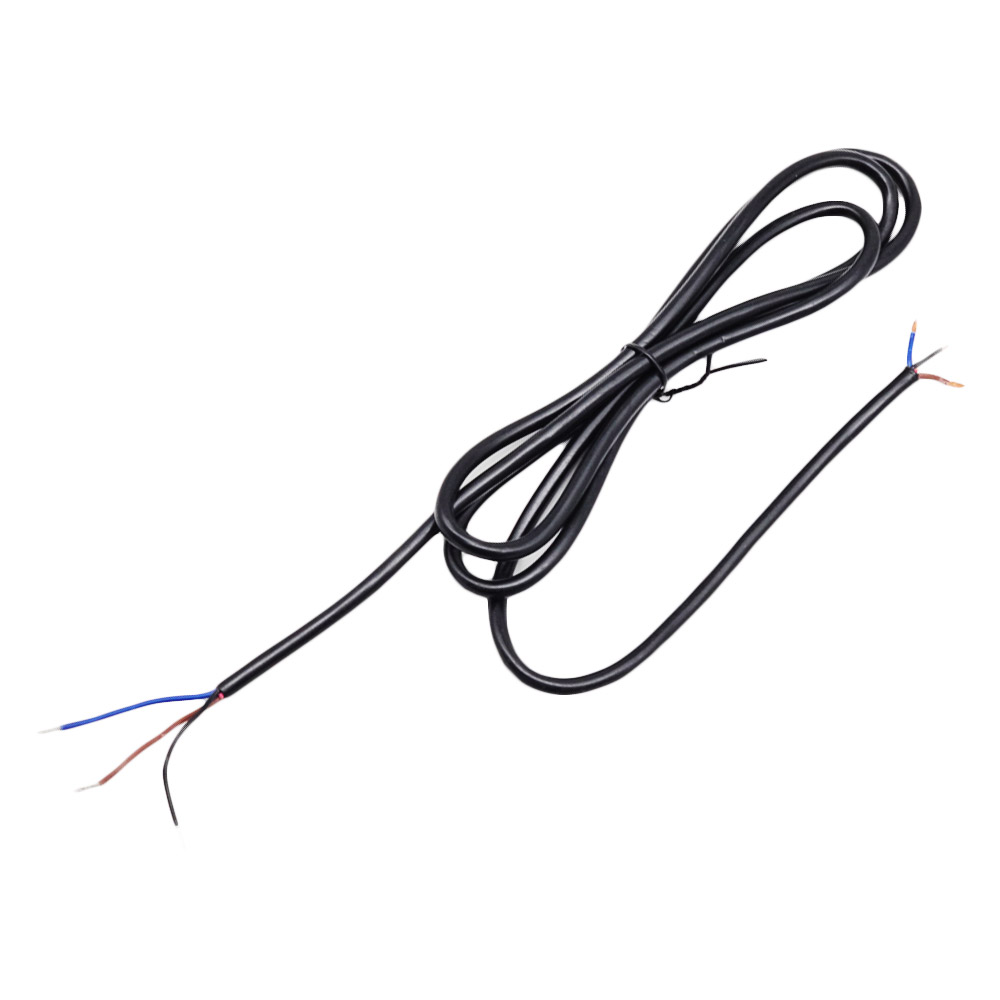

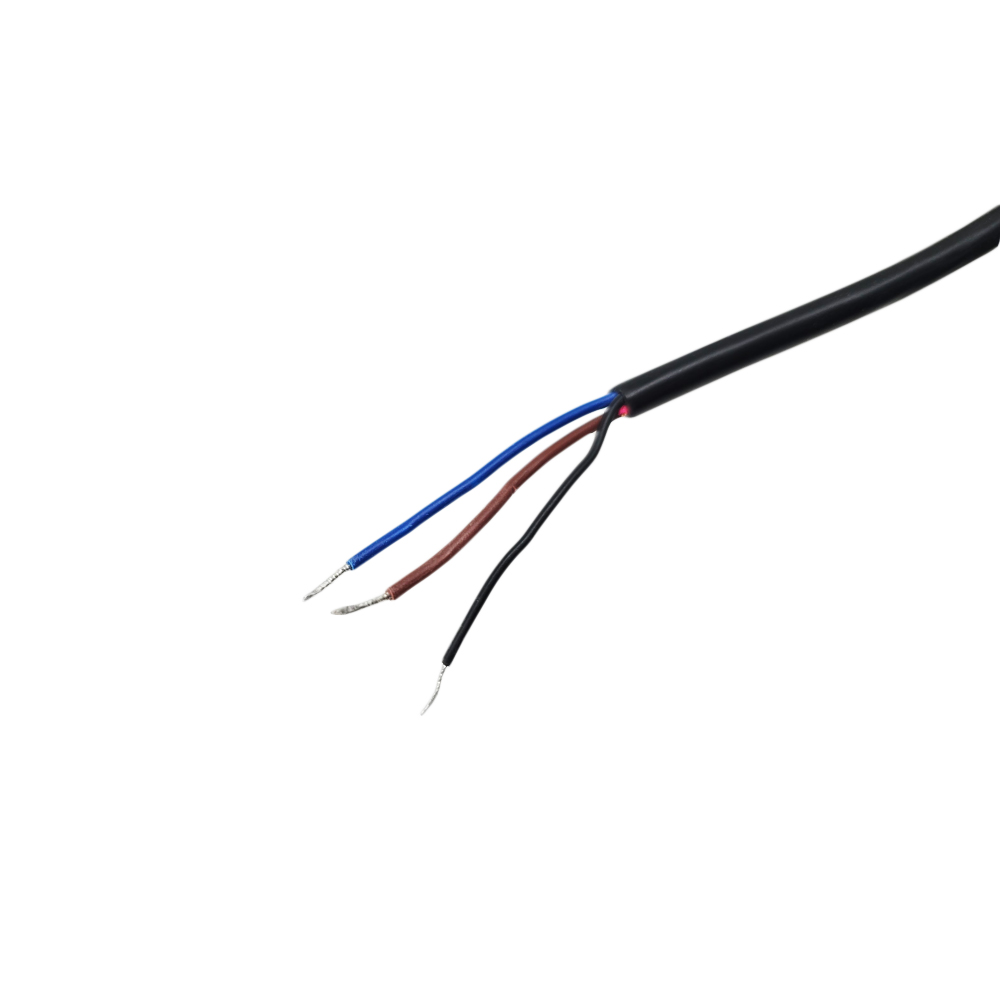

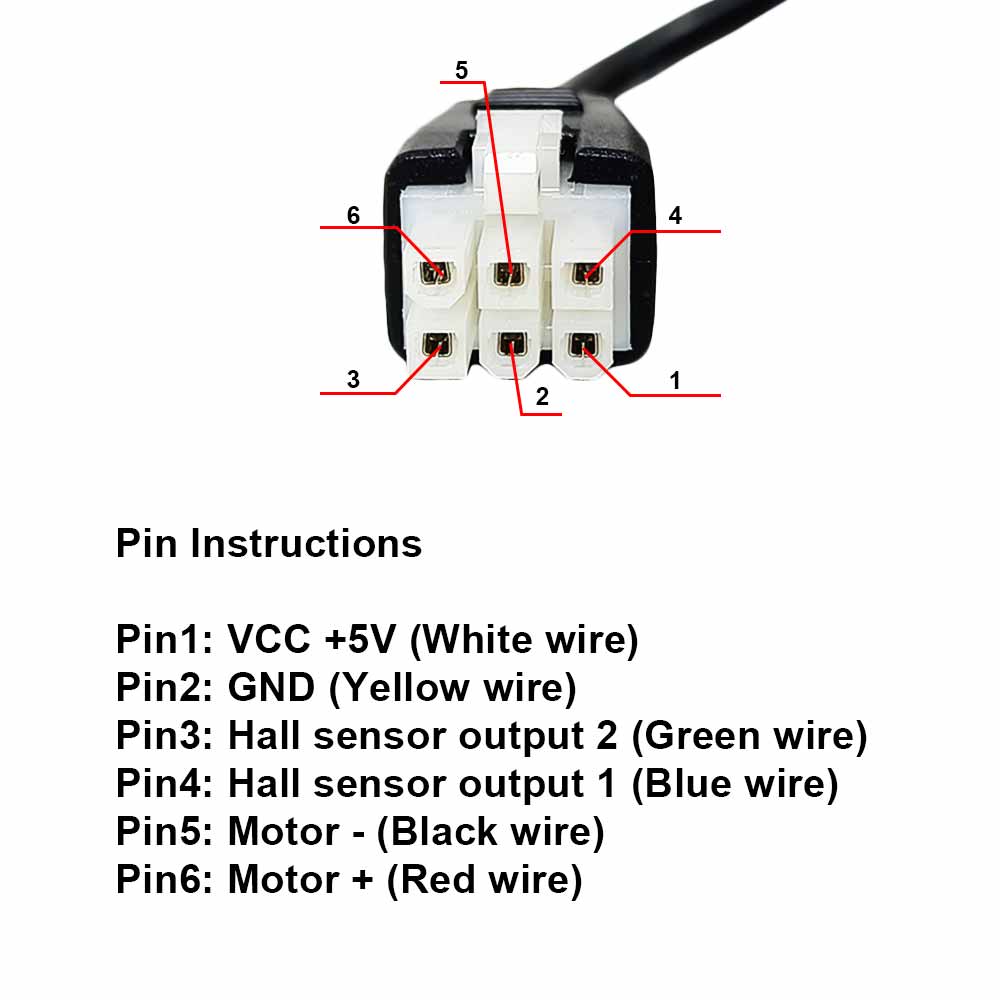

Plug Standard: Ordinary Two-core Wire (Standard Four-pin Plug is optional),
or Six-pin Plug (with Hall effect sensor)
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating Noise: about 42dB~46dB (Linear actuators with different parameters
will have different noise levels.)
IP rating: IP54, not suitable for outdoor use.
Different speeds and corresponding maximum thrust:
No-load Speed
Maximum Thrust
5mm/s
6000N / 600 kg / 1300 lbs
9mm/s
3000N / 300 kg / 660 lbs
18mm/s
2000N / 200 kg / 440 lbs
25mm/s
1000N / 100 kg / 220 lbs
32mm/s
800N / 80 kg / 180 lbs
50mm/s
600N / 60 kg / 130 lbs
100mm/s
300N / 30 kg / 60 lbs
Note:
1. The above data is the maximum load capacity that can be obtained when
each linear actuator runs in the vertical direction. The maximum load
capacity of the entire synchronous system is the sum of the maximum load
capacities of the four linear actuators. If the weight of your equipment
(such as a cellar door) is 100kg, and you want to use a linear actuator to
open this door, you need to calculate the actual force acting on the linear
actuator according to your installation method. This force is usually 2-5
times the weight of the cellar door. If you don't know how to calculate it,
please contact us for help.
2. The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases. Full load speed is approximately
60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the
right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum
load, we recommend letting it work at about half of the maximum load to get a
longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not
normally allow them to operate at their maximum stroke under heavy loads. If the
actual stroke you want is 600MM, we recommend that you choose a linear actuator
with a stroke of 700-800MM.
6. The maximum pull force of the linear actuator is slightly less than its
maximum thrust force.
The information for synchronous controller:
Introduction:
If you want to use multiple linear actuators to raise and lower an
equipment, for example two or four electric actuators. Since the high speed
DC motors in electric actuators cannot run at exactly the same speed, so the
movement speed of the electric actuator will also be different. When
multiple electric actuators work at the same time, their actual speeds
cannot be exactly the same. In this case, we can use a synchronous
controller to operate multiple linear actuators to rise or fall
synchronously. They work completely in sync without any difference.
Working principle:

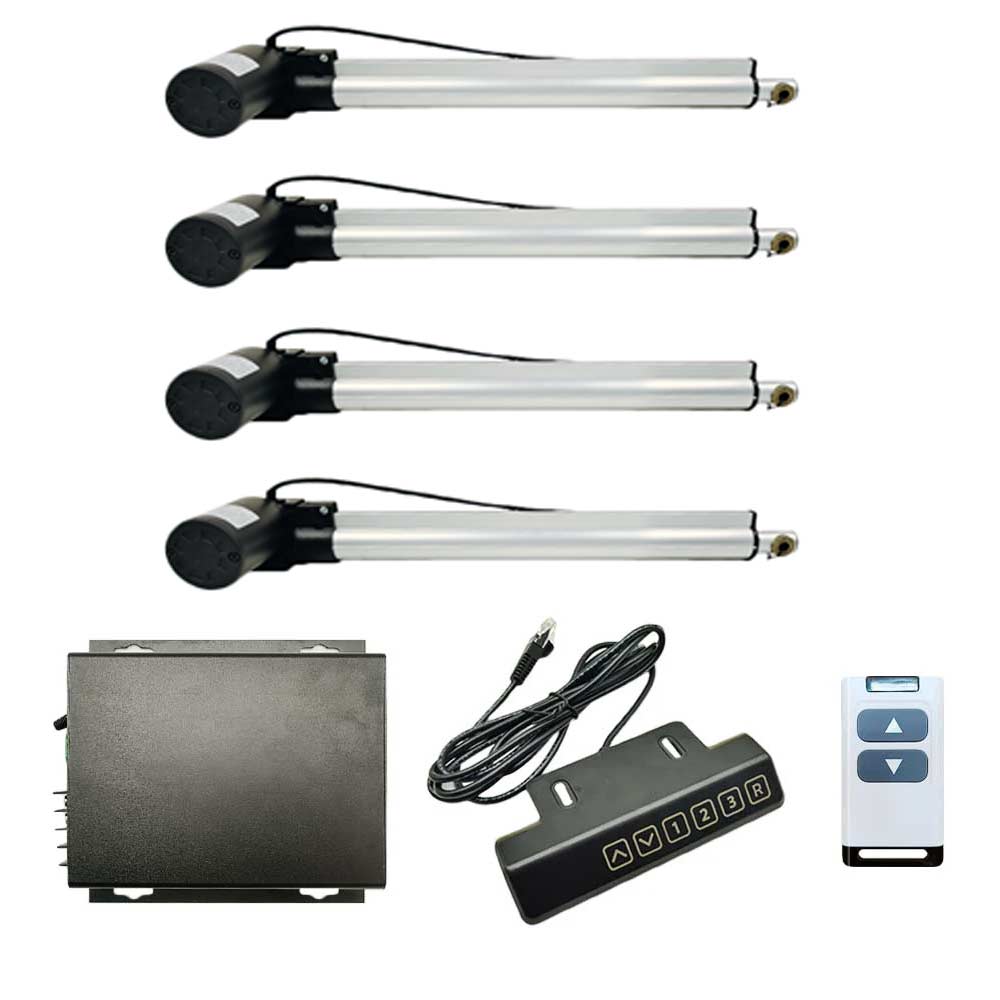

If you want to use a synchronous controller to operate 2 or 4 linear
actuators fully synchronously, you will need to add built-in Hall effect
sensors to each linear actuator. And when you purchased Hall effect sensor
along with linear actuator, we will install Hall effect sensor to linear
actuator for you.
When 2 or 4 linear actuators are running together, Hall sensor will send
Hall signals to the synchronization controller, and the controller will
adjust the running speed of each linear actuator, so that all linear
actuators run at the exact same speed.
Feature:

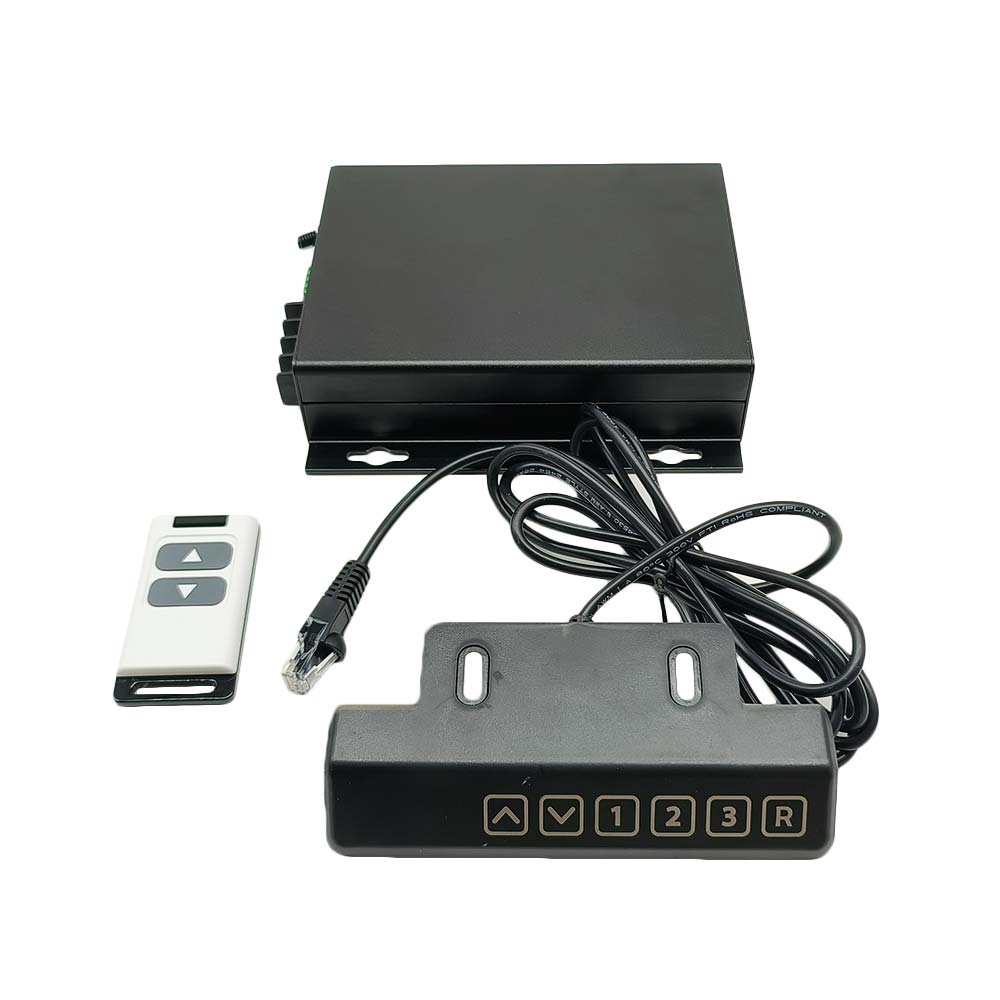

It can operate four electric linear actuators B to run completely
synchronously.

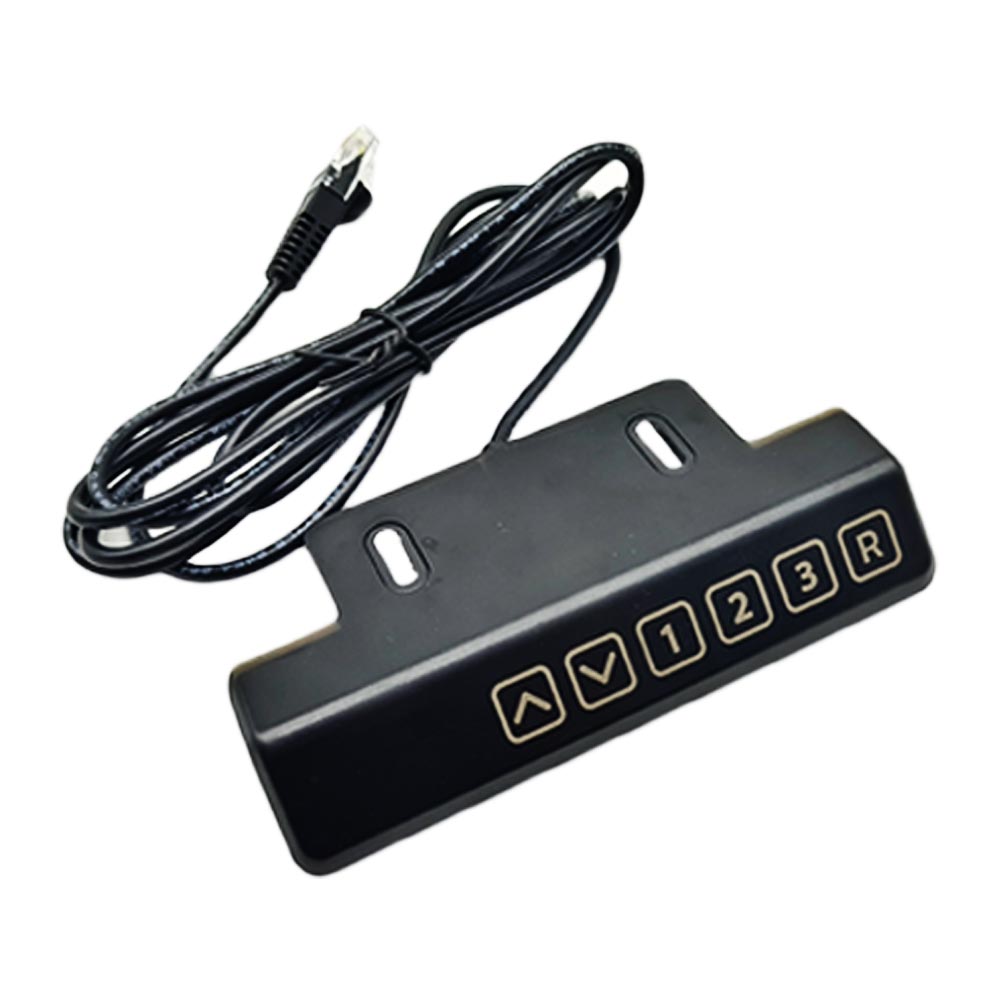

Wired control via a control handle.

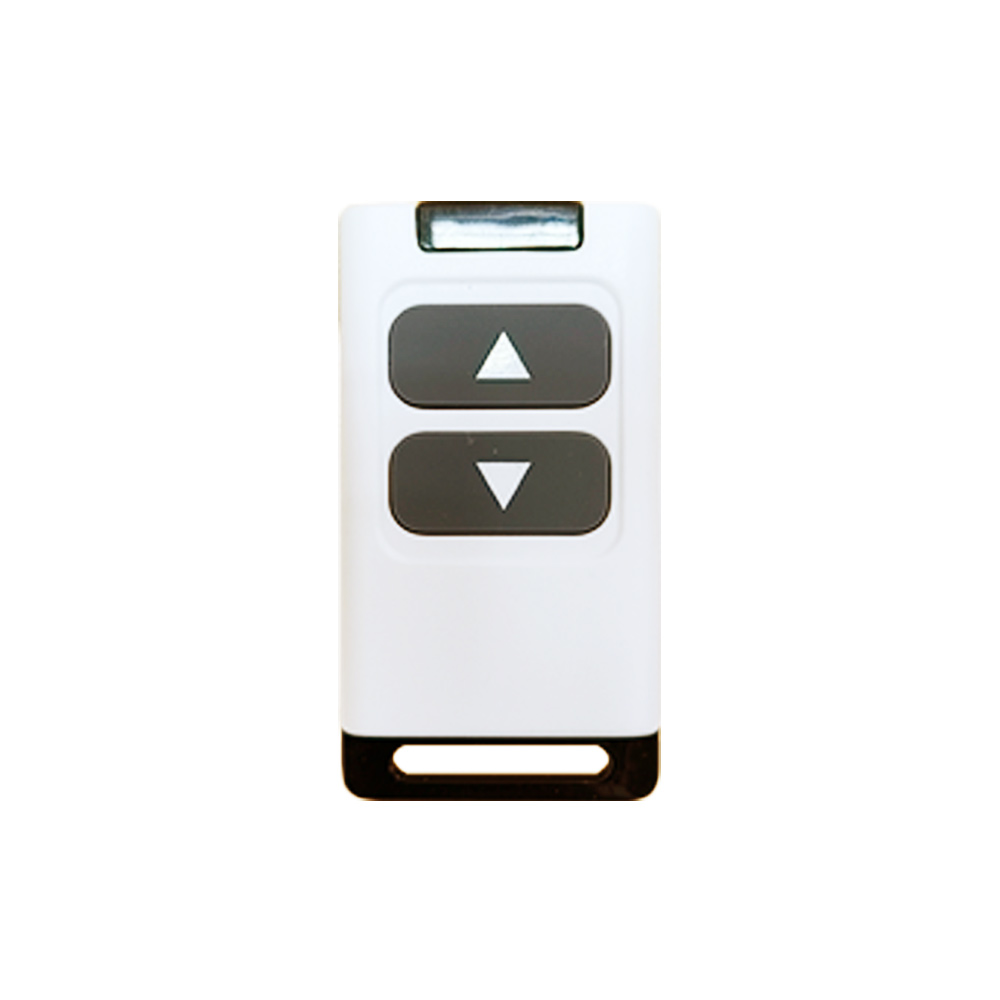

Wireless control via a remote.
Two function buttons: ▲ and ▼.
With reset button.
Parameters:
Working Voltage: 10~30 VDC, suitable for 12V or 24V linear actuator
Working Frequency: 315 MHz
Working Distance: 100m / 300ft (theoretically)
Rated current: 40A at 12V or 20A at 24V
Two selectable control modes: Interlocking mode or Momentary mode.
Operating Temperature: -20°C ~ +70°C

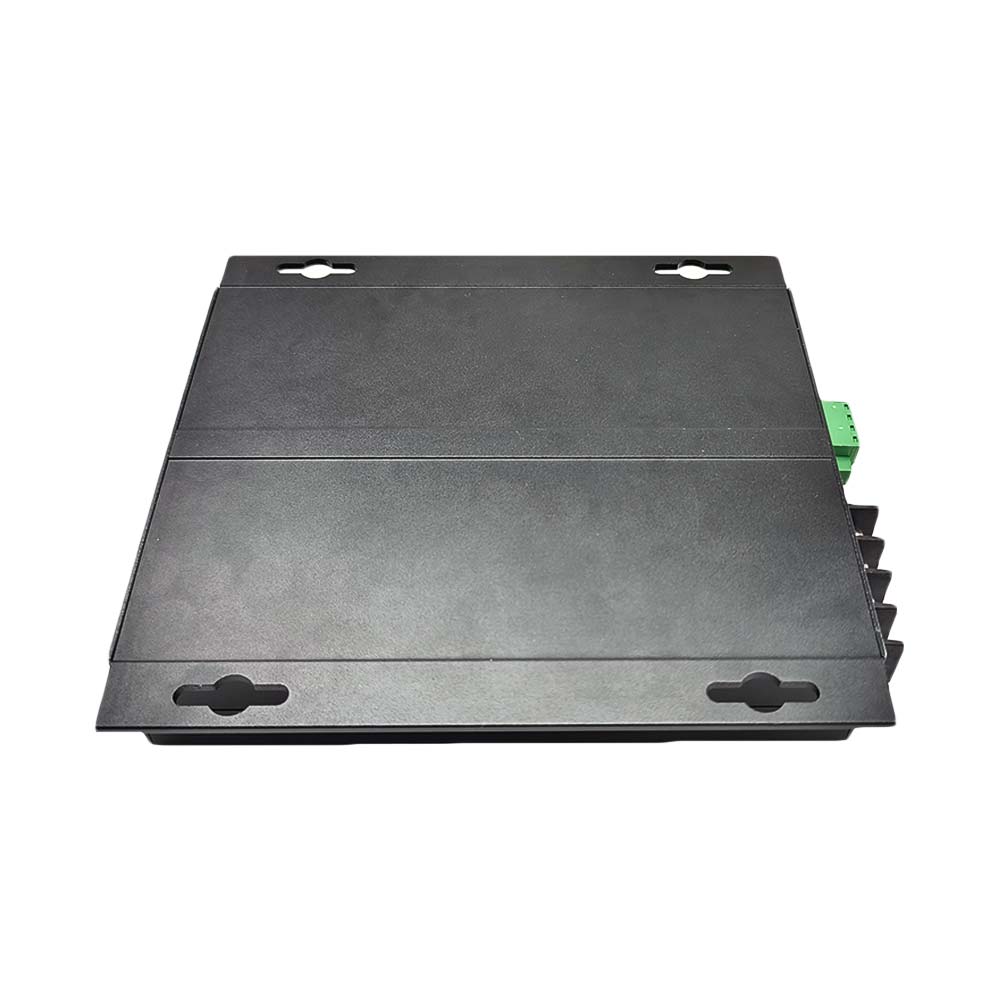

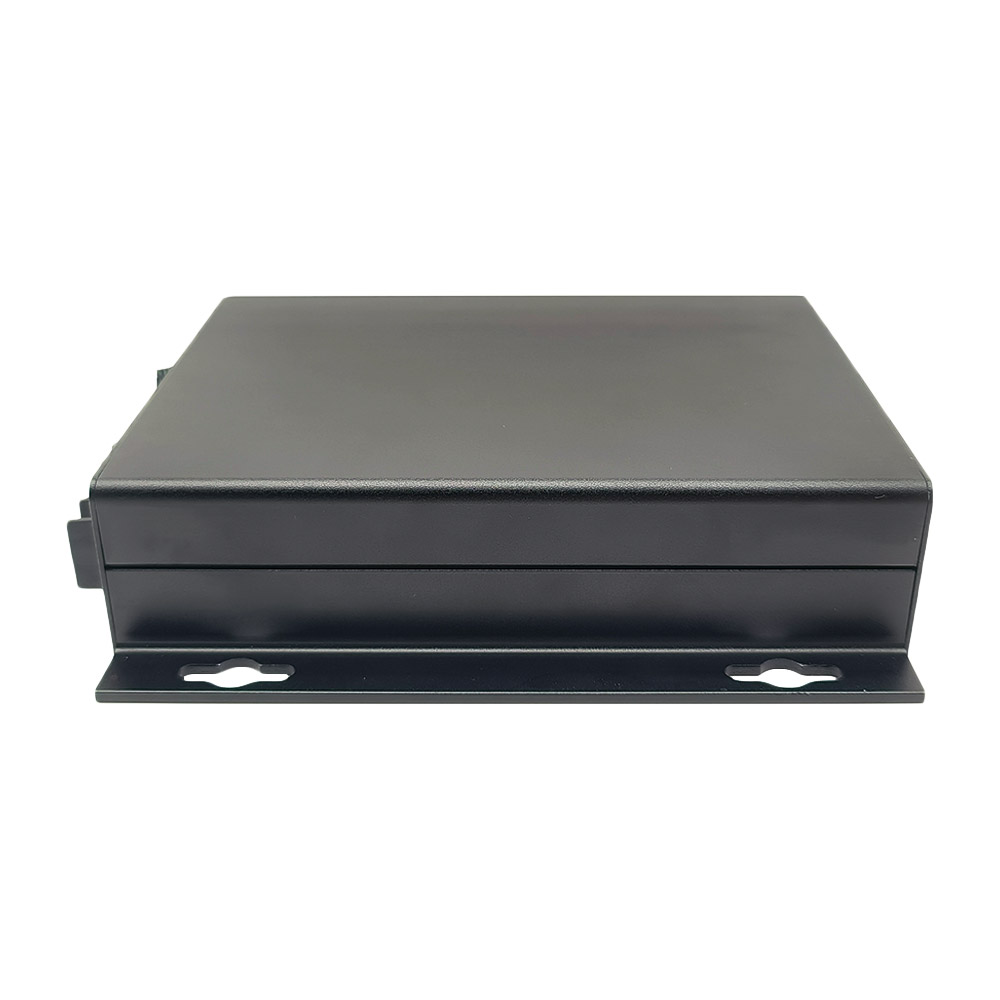

Case size: 150 x 147 x 40 mm (5.9 x 5.8 x 1.6 inches)
Connection:
1) Connect the positive pole of DC power supply to red power cord of the
controller, and connect the negative pole of DC power supply to black power
cord of the controller.

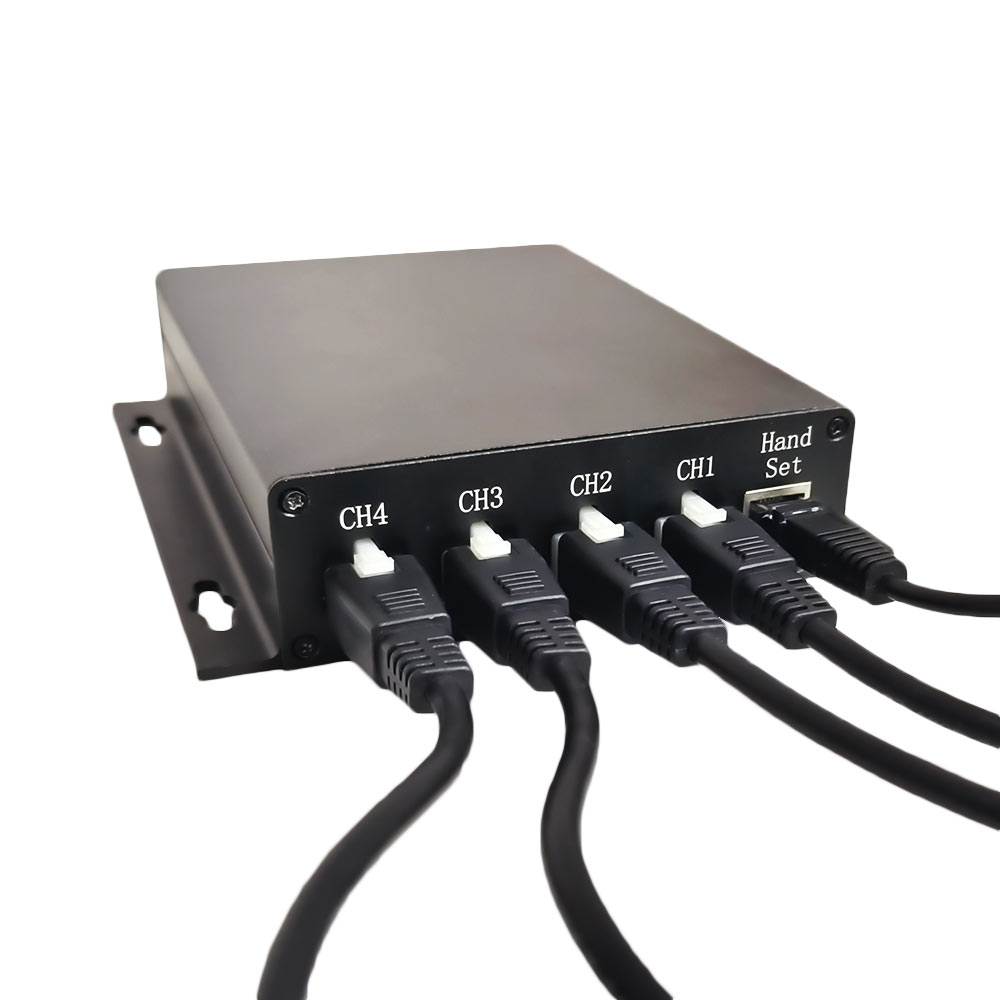

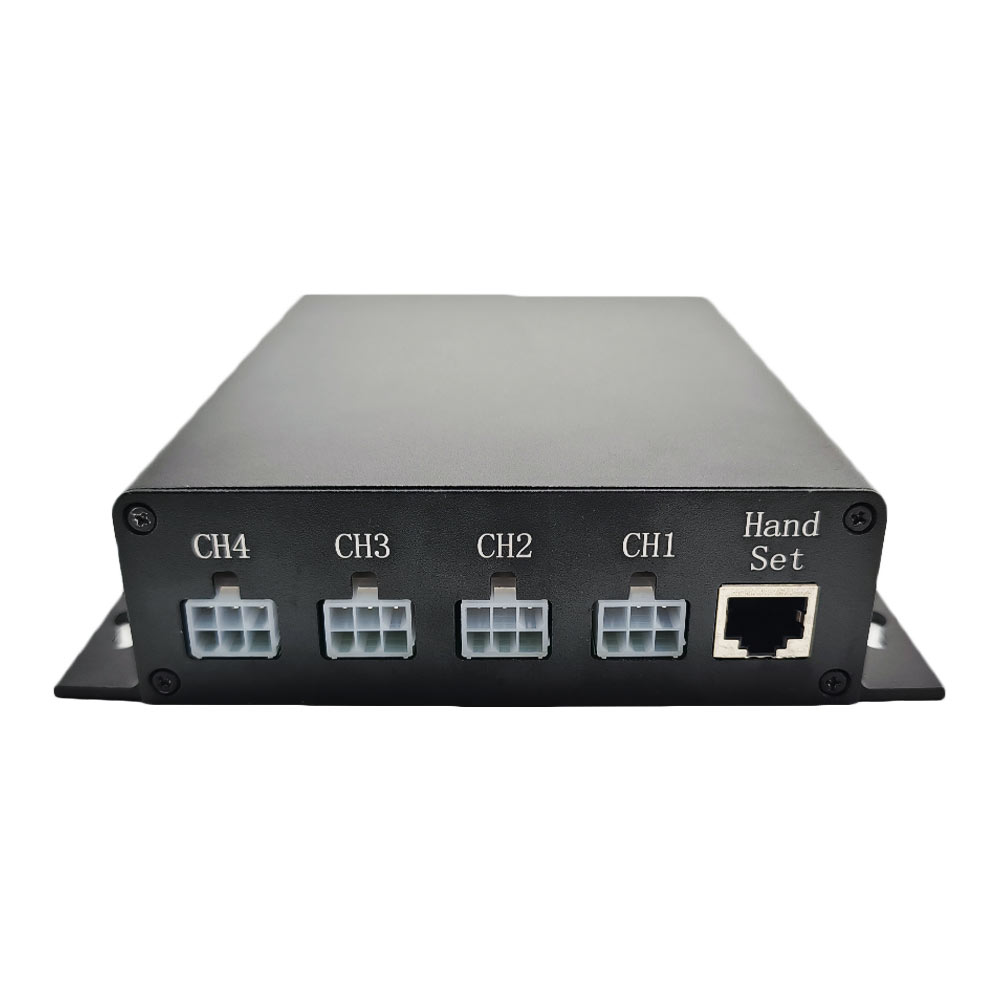

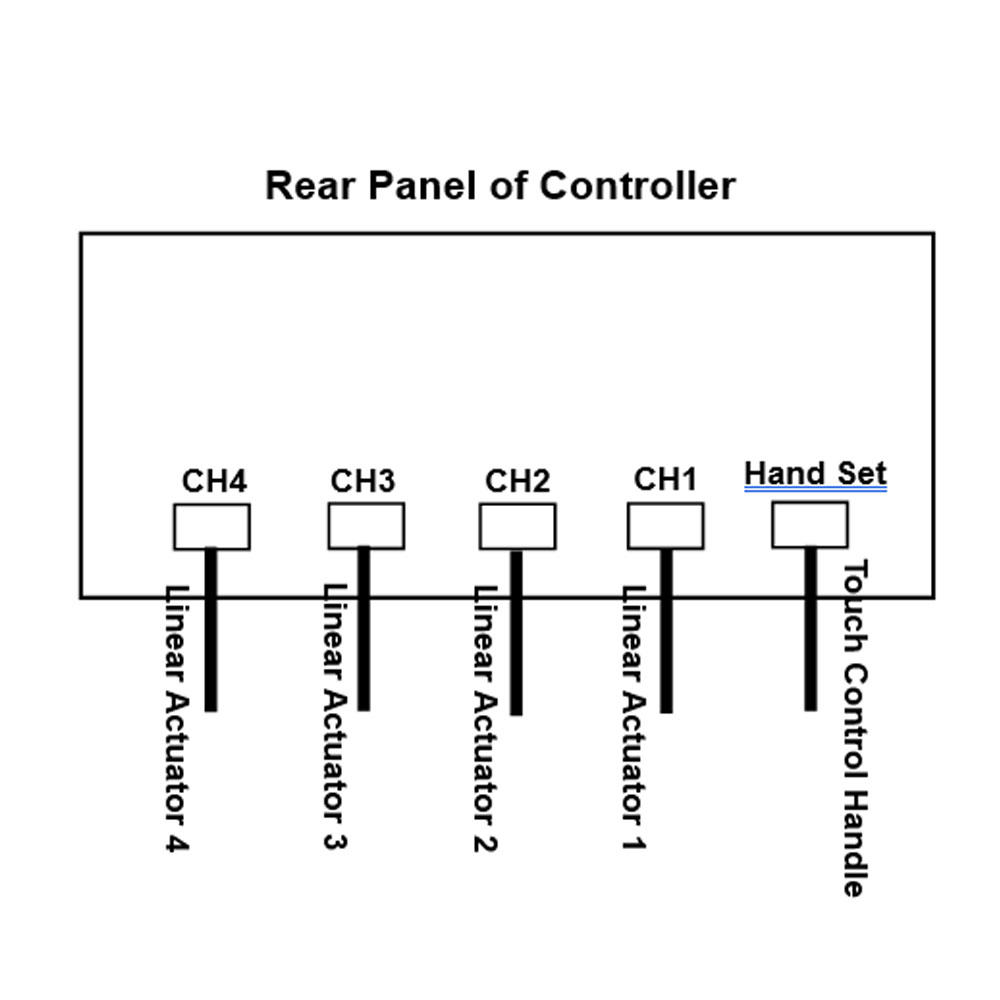

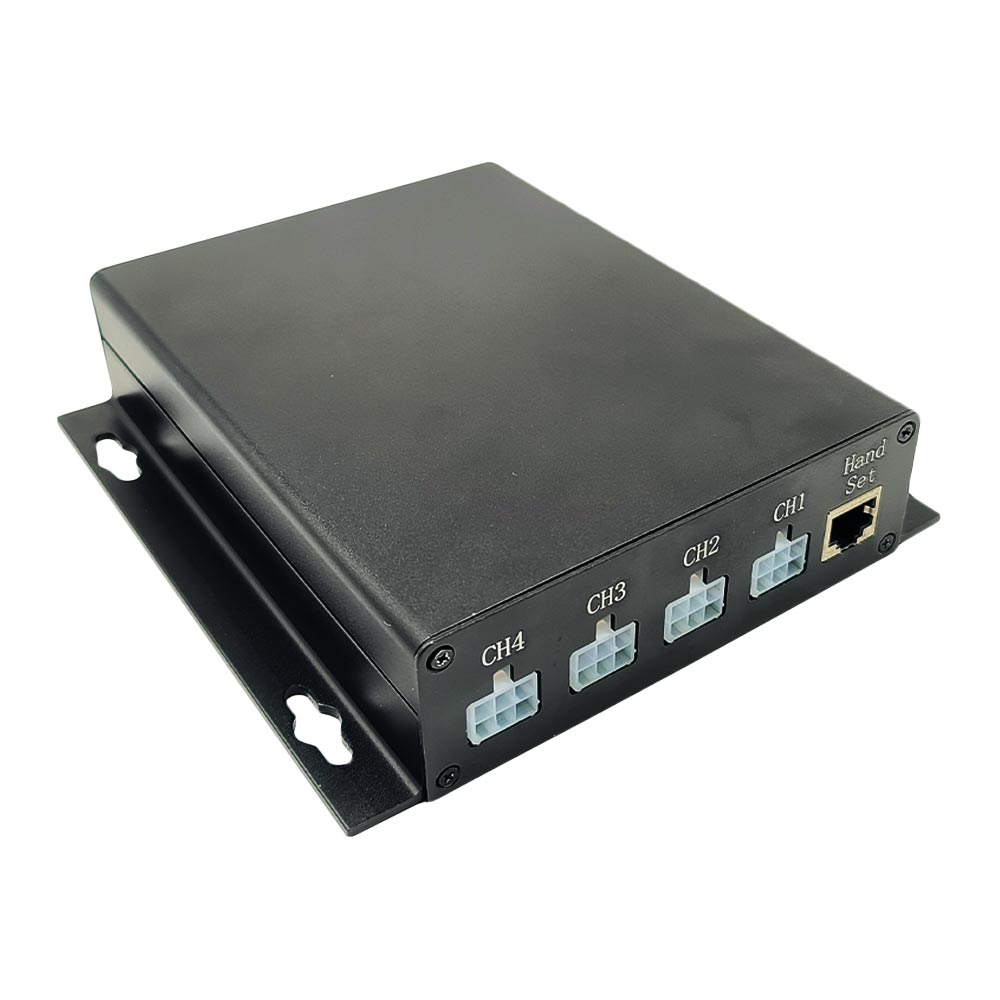

2) Plug four linear actuators to the controller.
3) Plug the control handle to the controller.
How to set the control mode:
The controller has two selectable control modes, interlocking mode and
momentary mode. You can switch the control modes as follows:
Simultaneously press and hold the reset button on the controller and the
button UP on the control handle or remote control for 8-9 seconds.
Operation in different control modes:
1. Interlocking control Mode:
1.1 Operation via the control handle:
1) Press the button ▲ of the control handle, four linear actuators extend
outward at the same time, they will reach the maximum stroke at the same
time and stop automatically. During operation, you can also press any button
to stop four linear actuators at the same time.
2) Press the button ▼ of the control handle, four linear actuators retract
inward at the same time, they will fully retract at the same time and stop
automatically. During operation, you can also press any button to stop four
linear actuators at the same time.
1.2 Operation via the remote control:
1) Press the button ▲ of the remote control, four linear actuators extend
out at the same time, they will reach the maximum stroke at the same time
and stop automatically. During operation, you can also press any button to
stop four linear actuators at the same time.
2) Press the button ▼ of the remote control, four linear actuators retract
inward at the same time, they will fully retract at the same time and stop
automatically. During operation, you can also press any button to stop four
linear actuators at the same time.
2. Momentary Control Mode:
2.1 Operation via the control handle:
1) Press and hold the ▲ button of the control handle, four linear actuators
extend outward at the same time; Release the button, four linear actuators
stop at the same time.
2) Press and hold the ▼ button of the control handle, four linear actuators
retract inward at the same time; Release the button, four linear actuators
stop at the same time.
2.2 Operation via the remote control:
1) Press and hold the button ▲ of the remote control, four linear actuators
extend out at the same time; Release the button, four linear actuators stop
at the same time.
2) Press and hold the button ▼ of the remote control, four linear actuators
retract inward at the same time; Release the button, four linear actuators
stop at the same time.
Reset Function:
When the system is being used for the first time, or when the system is not
working properly, or when the linear actuators are no longer perfectly
synchronized, you can reset the controller by any of the following three
methods.
Method 1: Press and hold two buttons of the control handle at the same time
for more than 7 seconds.
Method 2: Press and hold the reset button of the controller and the button ▼
of the control handle at the same time for more than 7 seconds.
Method 3: Press and hold the reset button of the controller and the button ▼
of the remote control at the same time for more than 7 seconds.

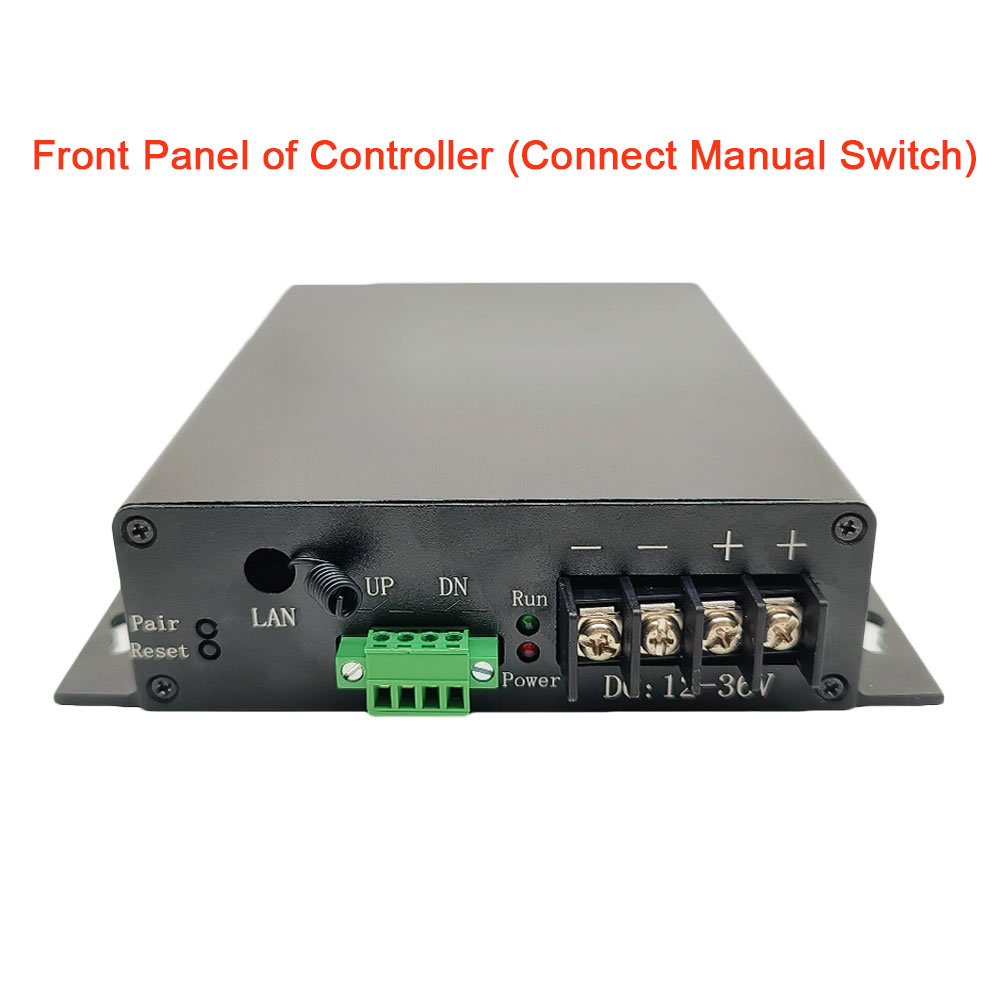

Working status and LED indicators:
1. Power on is normal: The green light is on, and the red light is off.
2. Normal work: The green light is on, the red light is on, and the red
light is off after the work is over.
3. Overload: The green light is on, and the red light is on. At this time,
it cannot work normally, and it must be reset first.
4. The error is too large: The green light is flashing, and the red light is
off. At this time, it cannot work normally, and it must be reset first.
5. Low voltage: The green light is off, and the red light is off.
6. Hall sensor failure: The green light is off, and the red light is
flashing.
7. During the reset operation: The green light flashes, and the red light
flashes. When the reset is completed, the green light is on, and the red
light is off.
Note:
1. Each linear actuator would require two mounting brackets, one to fix the
head of linear actuator and another to fix the bottom of linear actuator.
This kit does not contain fixed mounting brackets, please buy them from the
drop down menu.
2. You need to use a DC12V/50A or DC24V/25A switching power supply to power
this kit. This kit does not contain this power supply, please buy it from
the drop down menu.
Production time:
The linear actuators are the customized products, and these products are not in
stock, we need to spend 3~7 working days to produce them according to the
specified parameters in your order.
Return or Exchange:
The Linear Actuators are the customized products, we need to produce them
according to the specified parameters in your order, so that we do not accept
returns or cancel orders. If customers order unsuitable linear actuators
themselves, we also do not accept exchanges, please understand.
We can provide 3D CAD model files in STEP format for linear actuators.
Please contact us by e-mail if you need them.
Package Include:
4 x Electric Linear Actuator B With Hall Effect Sensor
1 x Synchronous Controller (One-Control-Four, For 4 Linear Actuators B)
1 x Control Handle
1 x Remote Control (CP-2)
1 x Power Cord
1 x User Manual
