Application:
Mainly used for doors, windows, cellars, trapdoors, solar tracking system,
medical devices, agricultural machinery, vehicles, ships, elevator
platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas,
electric beds, medical chairs and other electrical equipment. It can open,
close, push, pull, lift and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.

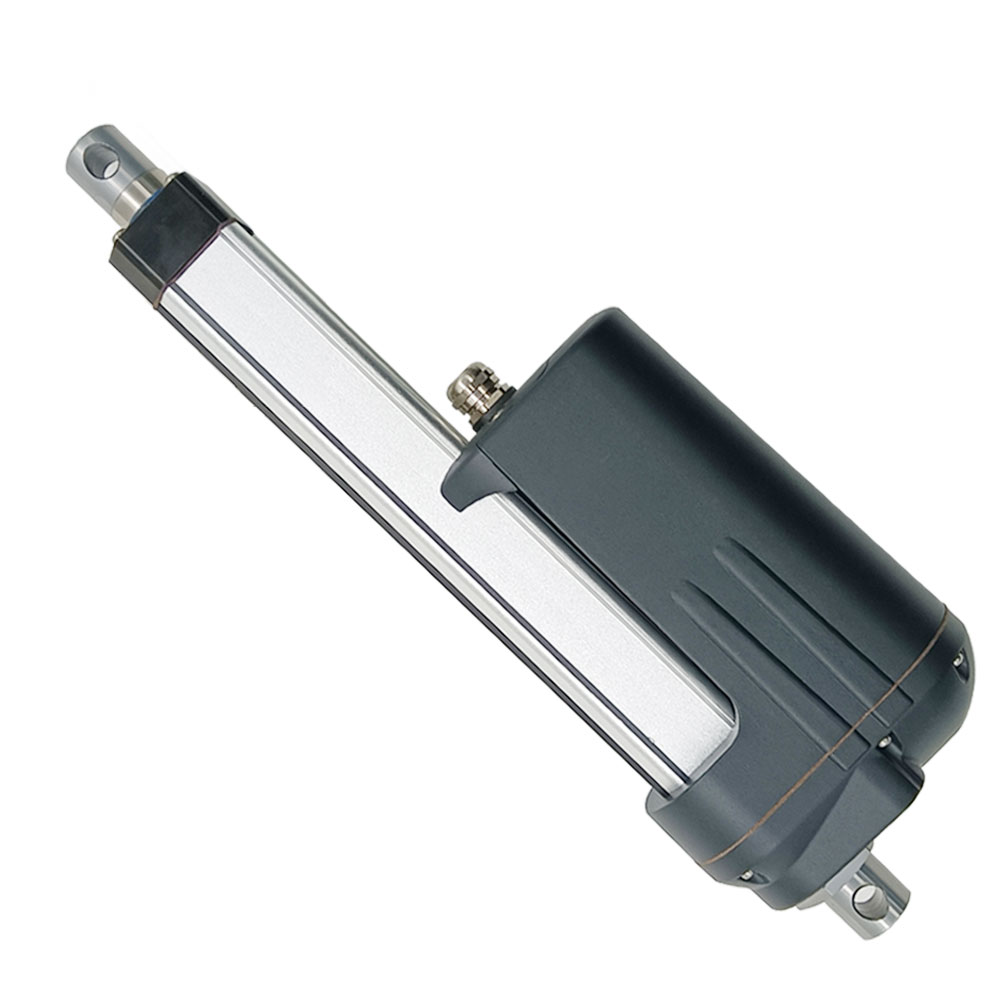

Feature:
High-quality products and high-quality services
Metal housing, able to work in very harsh environments
Metal gearbox, high strength wear-resistant gear
Stainless steel telescopic tube and aluminum alloy outer tube, good
corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 12000N / 1200 Kgs / 2700 lbs
Multiple speed options, from 6 mm/second to 60 mm/second
Multiple stroke options, from 10 mm to 2000 mm
We can customize any stroke length from 10mm to 2000mm, such as 770mm,
1250mm, 1850mm and so on.
Advanced waterproof and dustproof technology
Low power consumption
Built-in motor overload and overheat protection
Built-in two limit switches, linear actuator will automatically stop when
stroke rod reaches the limit position.
Built-in Hall sensor is optional, so you can use the synchronous controller
to operate 2 or 4 linear actuators fully synchronously.
Automatically lock after stopping, and no power supply is required.
Maintenance-free
Specifications:
Optional working voltage: DC 12V or DC 24V. Unless you only have 12V power
supply available, we recommend you choose the linear actuator with 24V
working voltage.
Stroke range: 0.4 ~ 79 inches or 10 ~ 2000 mm
Optional speed: 6±1mm/s, 8±2mm/s, 12±2mm/s, 16±3mm/s, 20±4mm/s, 25±5mm/s,
38±6mm/s, 60±12mm/s
The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases.
Max load capacity: 12000N / 1200 Kgs / 2700 lbs at 6mm/s
Linear actuator can get maximum load capacity when it operates in the
vertical direction, and the pulling force is less than pushing force.
No-load current: 3~4A at 12V or 1.5~2A at 24V
Full load current: 15~22A at 12V or 8~12A Hat 24V
Please use a 12V/30A or 24V/15A power supply to power a linear actuator, or
use a 12V/50A or 24V/25A power supply to power two linear actuators, or use
a 12V/100A or 24V/50A power supply to power four linear actuators.

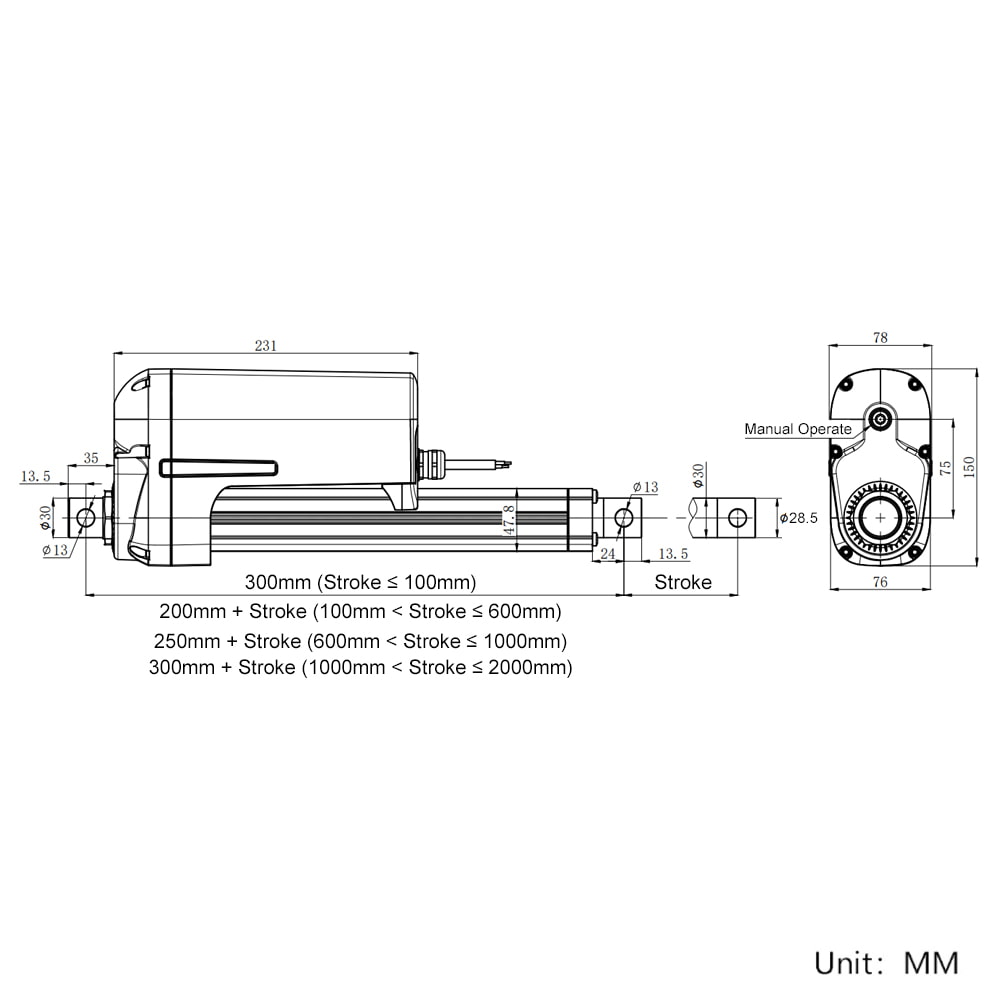

Shaft diameter: 29mm
Mounting holes diameter: 13mm
Housing material: Cast aluminum alloy
Stroke rod material: Stainless steel
Gear material: Steel alloy
Motor type: Brushed DC Motor
Duty cycle: 10%, max 2mins continuous use

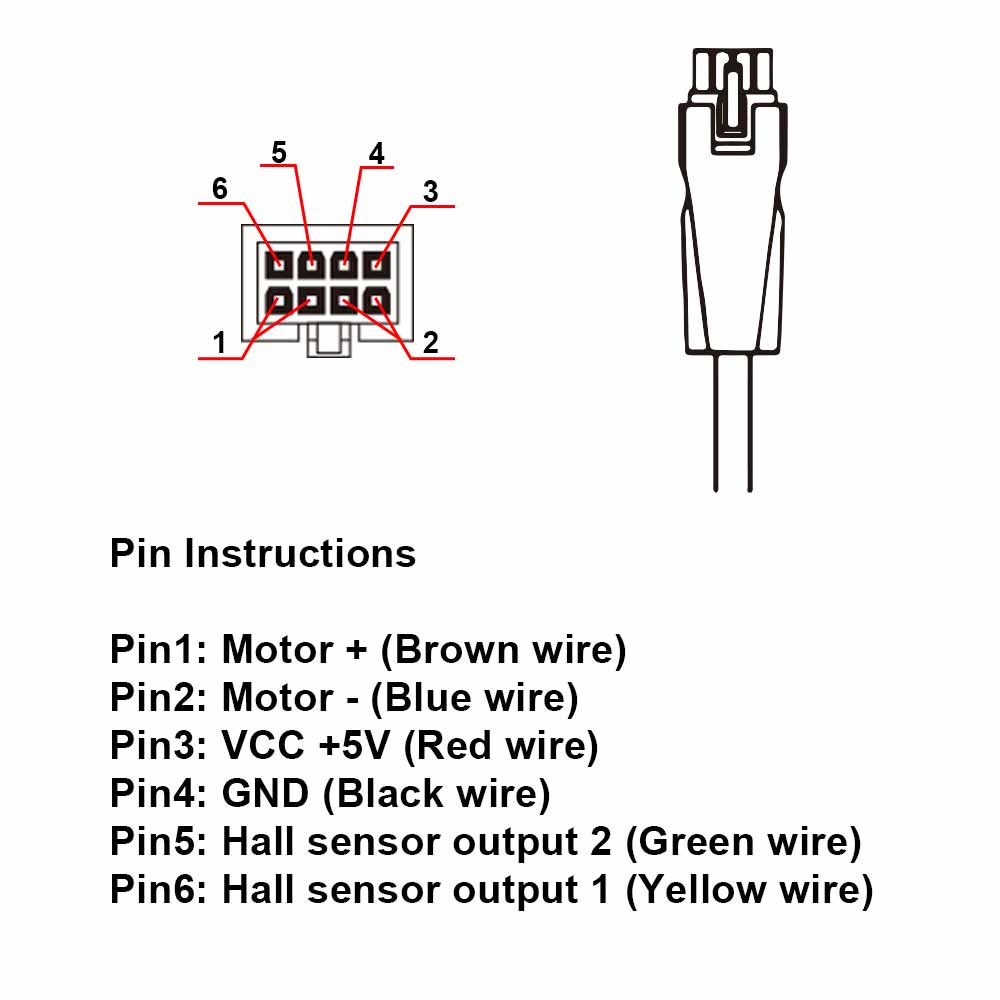

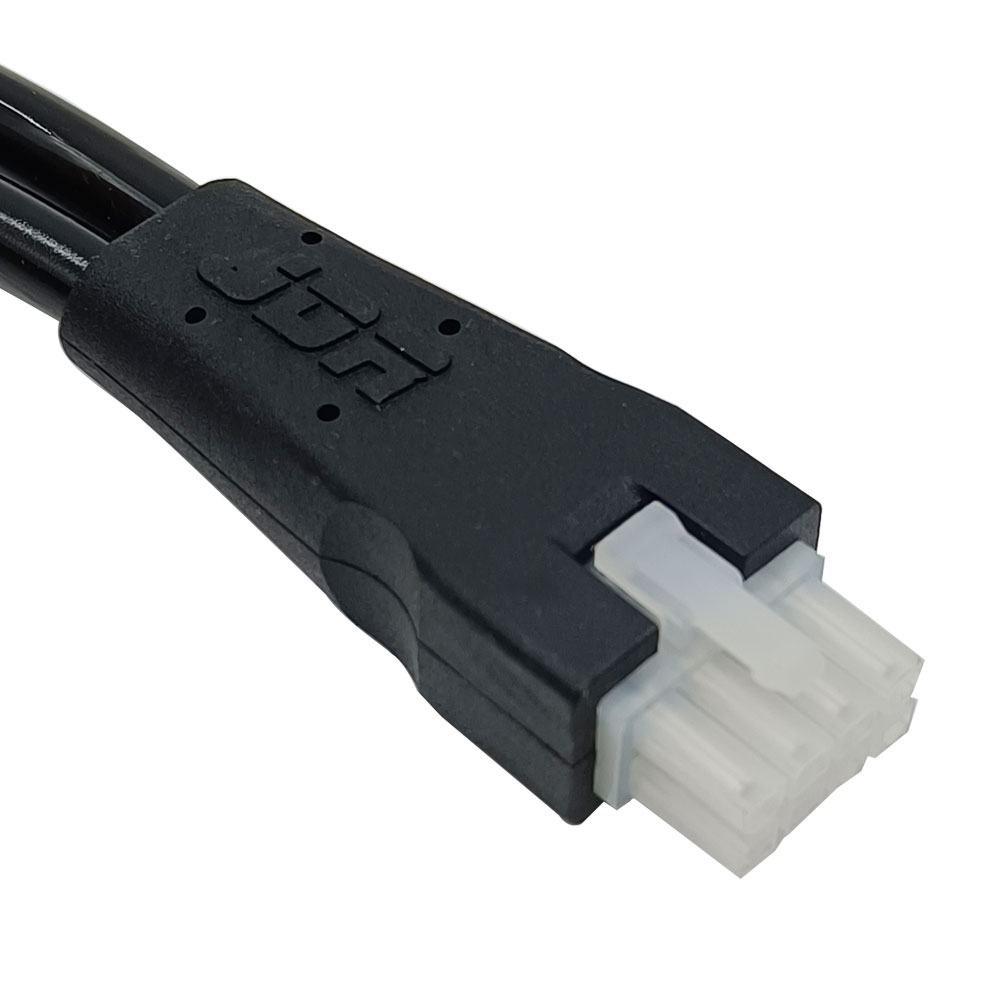

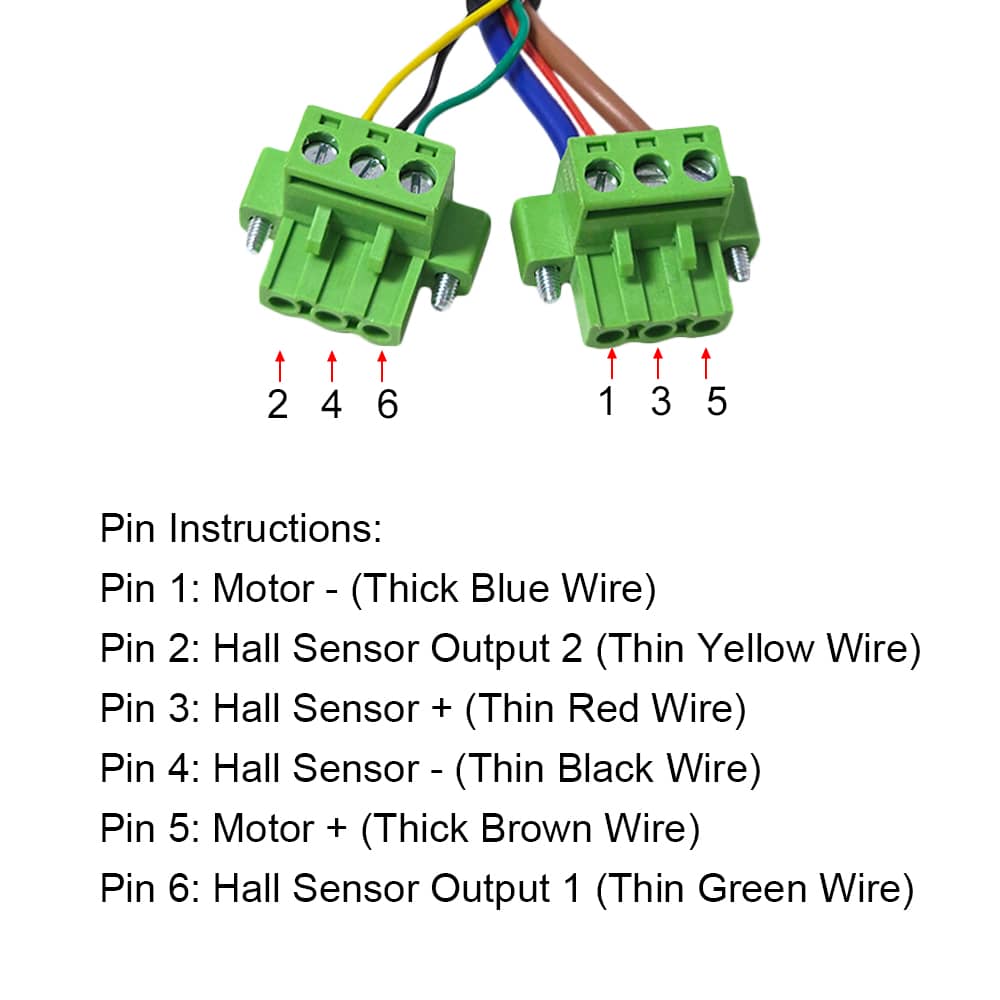

Plug standard: Ordinary Two-core Wire, or Six-core Wire (with Hall effect
sensor)
Certifications: CE
Environment temperature: -25℃ to 85℃
Operating noise: about 65dB~80dB (Linear actuators with different parameters
will have different noise levels.)
IP rating: IP66
Different speeds and corresponding maximum thrust:
No-load Speed
Full load Speed
Maximum Thrust
Self-locking Force
6mm/s
5mm/s
12000N / 1200 kg / 2700 lbs
15000N / 1500 kg / 3300 lbs
8mm/s
6mm/s
11000N / 1100 kg / 2400 lbs
12000N / 1200 kg / 2700 lbs
12mm/s
9mm/s
10000N / 1000 kg / 2200 lbs
12000N / 1200 kg / 2700 lbs
16mm/s
10mm/s
7000N / 700 kg / 1500 lbs
8000N / 800 kg / 1800 lbs
20mm/s
11mm/s
6500N / 650 kg / 1400 lbs
8000N / 800 kg / 1800 lbs
25mm/s
14mm/s
5000N / 500 kg / 1100 lbs
6000N / 600 kg / 1300 lbs
38mm/s
24mm/s
3200N / 320 kg / 700 lbs
4000N / 400 kg / 900 lbs
60mm/s
30mm/s
2000N / 200 kg / 440 lbs
3000N / 300 kg / 660 lbs
Note:
1. The above data is the maximum load capacity that can be obtained when
each linear actuator runs in the vertical direction. The maximum load capacity
of the entire synchronous system is the sum of the maximum load capacities of
the four linear actuators. If the weight of your equipment (such as a cellar
door) is 100kg, and you want to use a linear actuator to open this door, you
need to calculate the actual force acting on the linear actuator according to
your installation method. This force is usually 2-5 times the weight of the
cellar door. If you don't know how to calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases. Full load speed is approximately
60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the
right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum
load, we recommend letting it work at about half of the maximum load to get a
longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not
normally allow them to operate at their maximum stroke under heavy loads. If the
actual stroke you want is 600MM, we recommend that you choose a linear actuator
with a stroke of 700-800MM.
6. The maximum pull force of the linear actuator is slightly less than its
maximum thrust force.

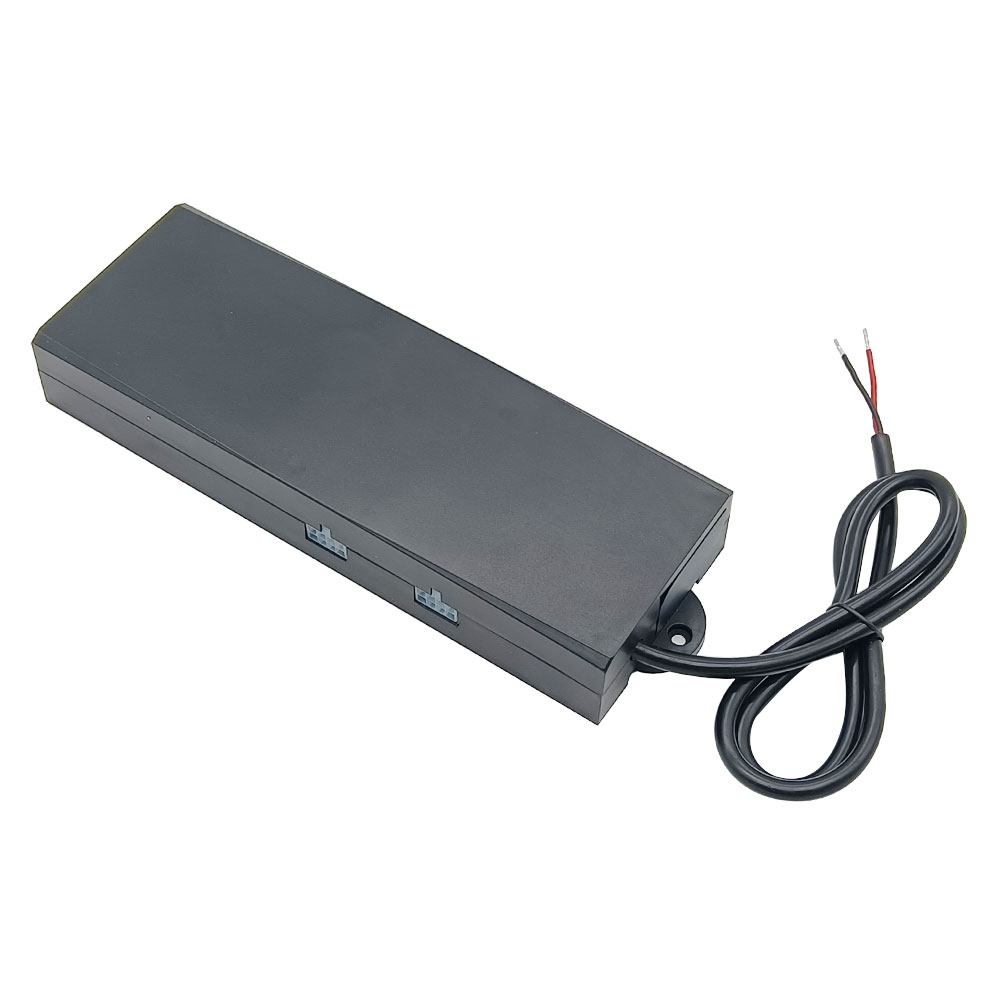

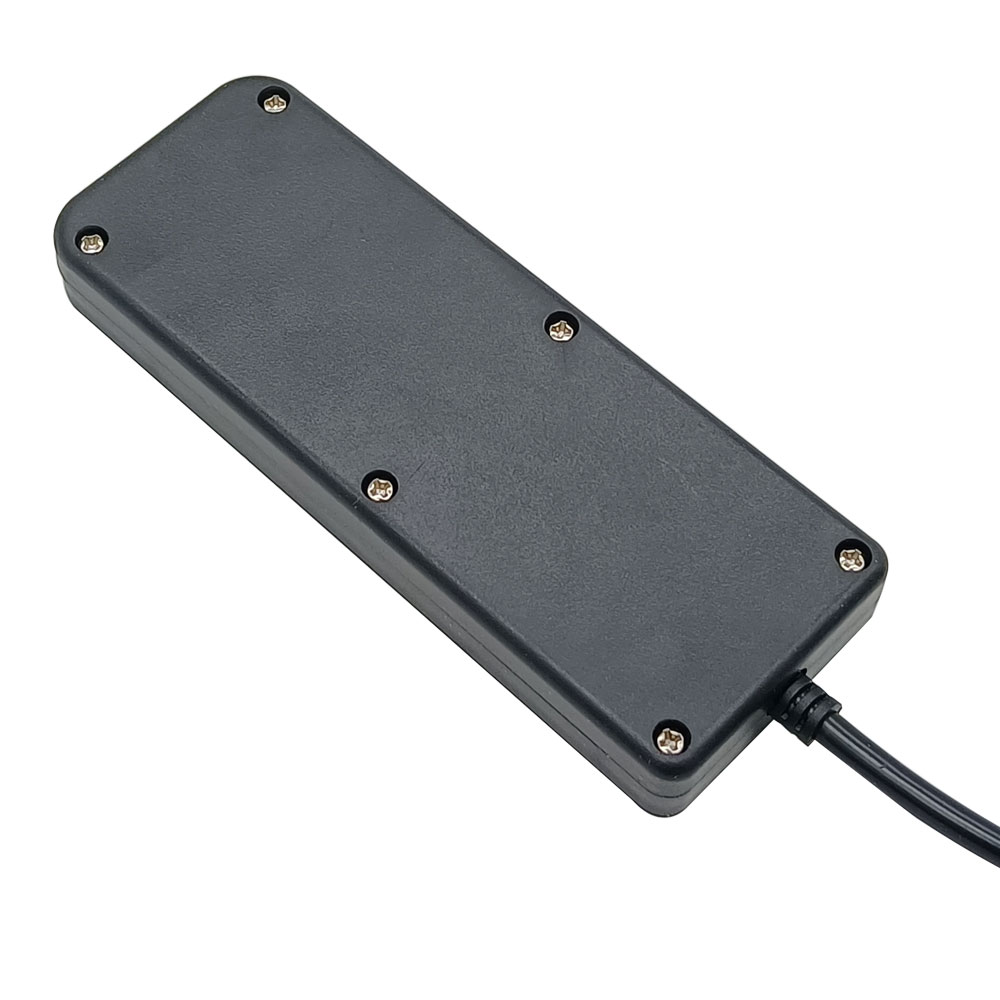

The information for synchronous controller:
Introduction:
If you want to use multiple linear actuators to raise and lower an
equipment, for example two or four electric actuators. Since the high-speed
DC motors in electric actuators cannot run at exactly the same speed, so the
movement speed of the electric actuator will also be different. When
multiple electric actuators work at the same time, their actual speeds
cannot be exactly the same. In this case, we can use a synchronous
controller to operate multiple linear actuators to rise or fall
synchronously. They work completely in sync without any difference.
Working principle:
If you want to use a synchronous controller to operate 2 or 4 linear
actuators fully synchronously, you will need to add built-in Hall effect
sensors to each linear actuator. And when you purchased Hall effect sensor
along with linear actuator, we will install Hall effect sensor to linear
actuator for you.
When 2 or 4 linear actuators are running together, Hall sensor will send
Hall signals to the synchronization controller, and the controller will
adjust the running speed of each linear actuator, so that all linear
actuators run at the exact same speed.
Feature:

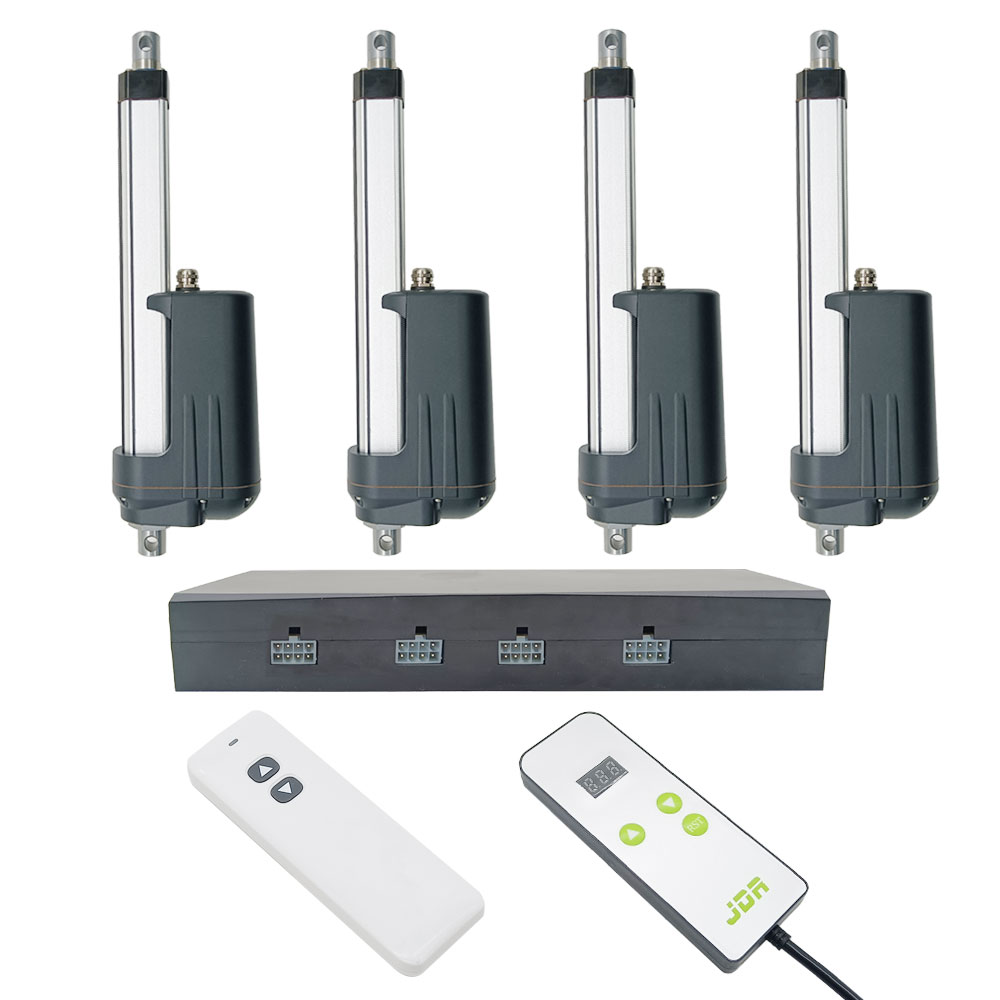

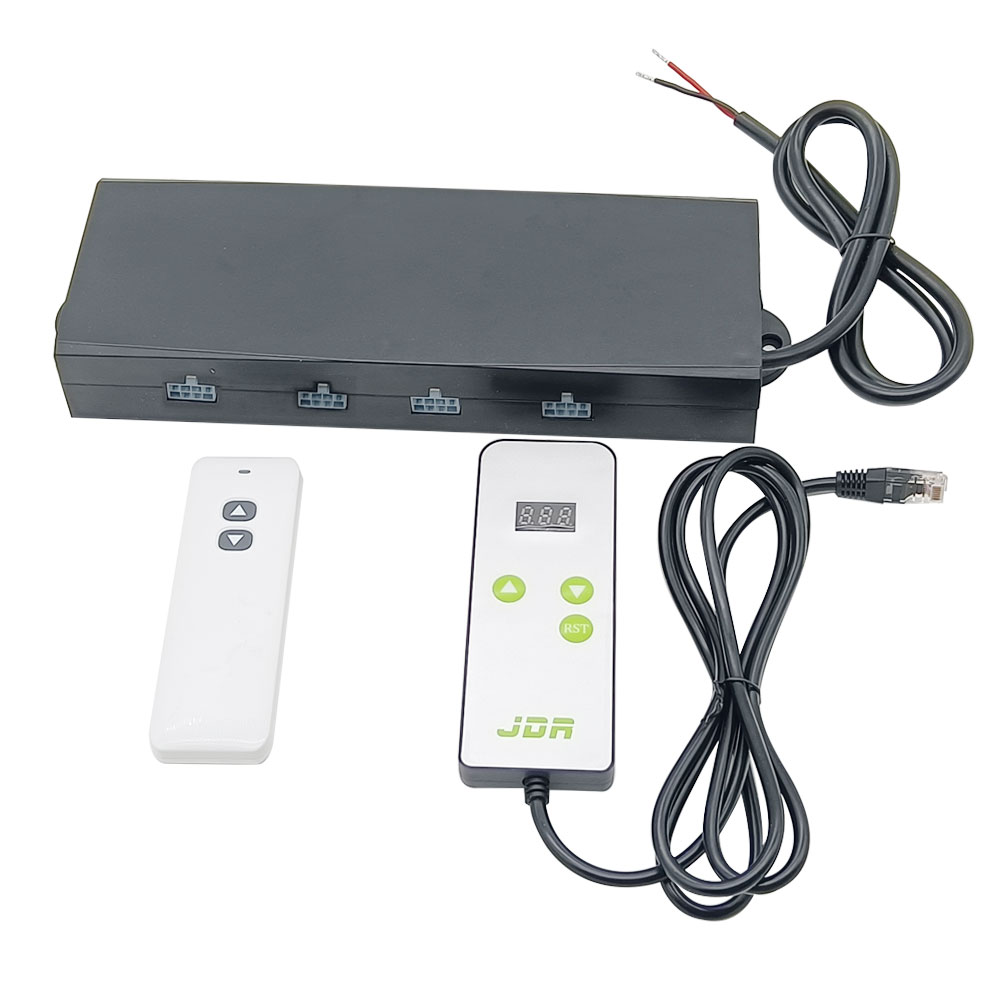

It can operate four
electric linear actuators F to run completely
synchronously.
Wired control via a control handle.

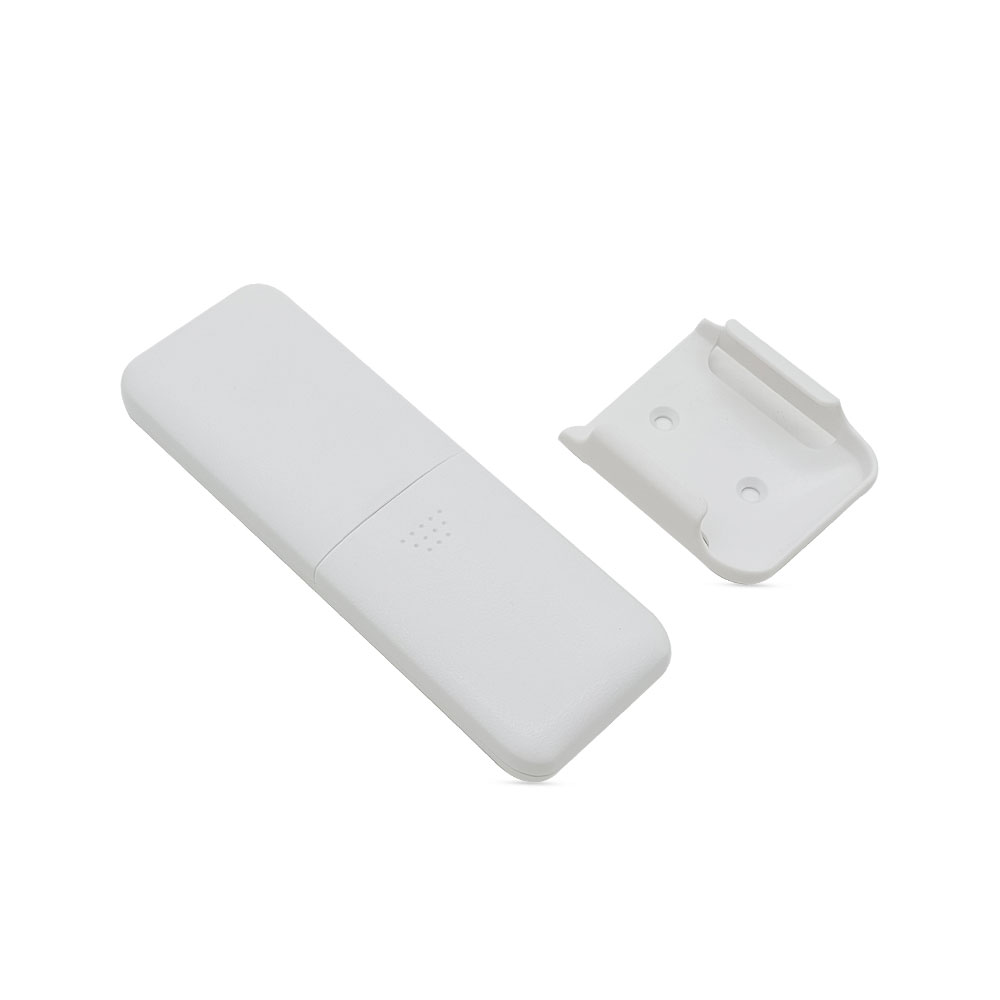

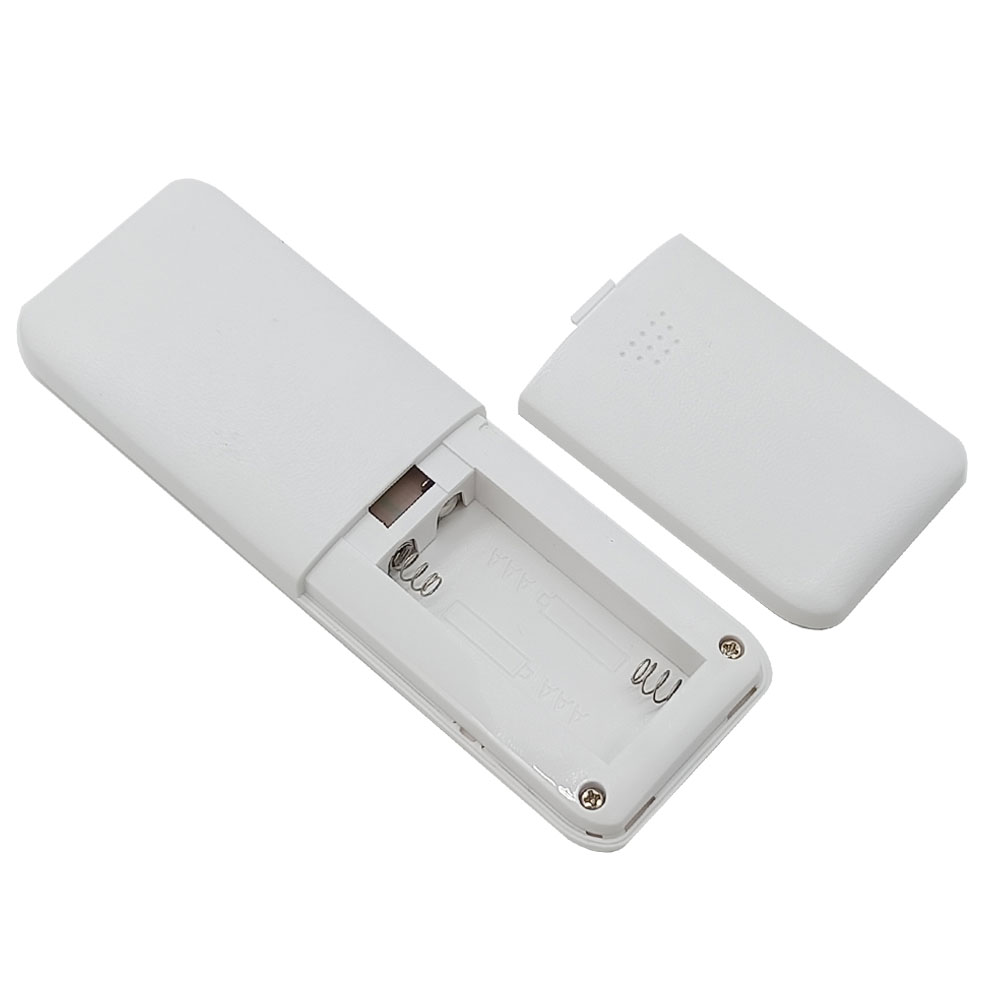

Wireless control via a remote.

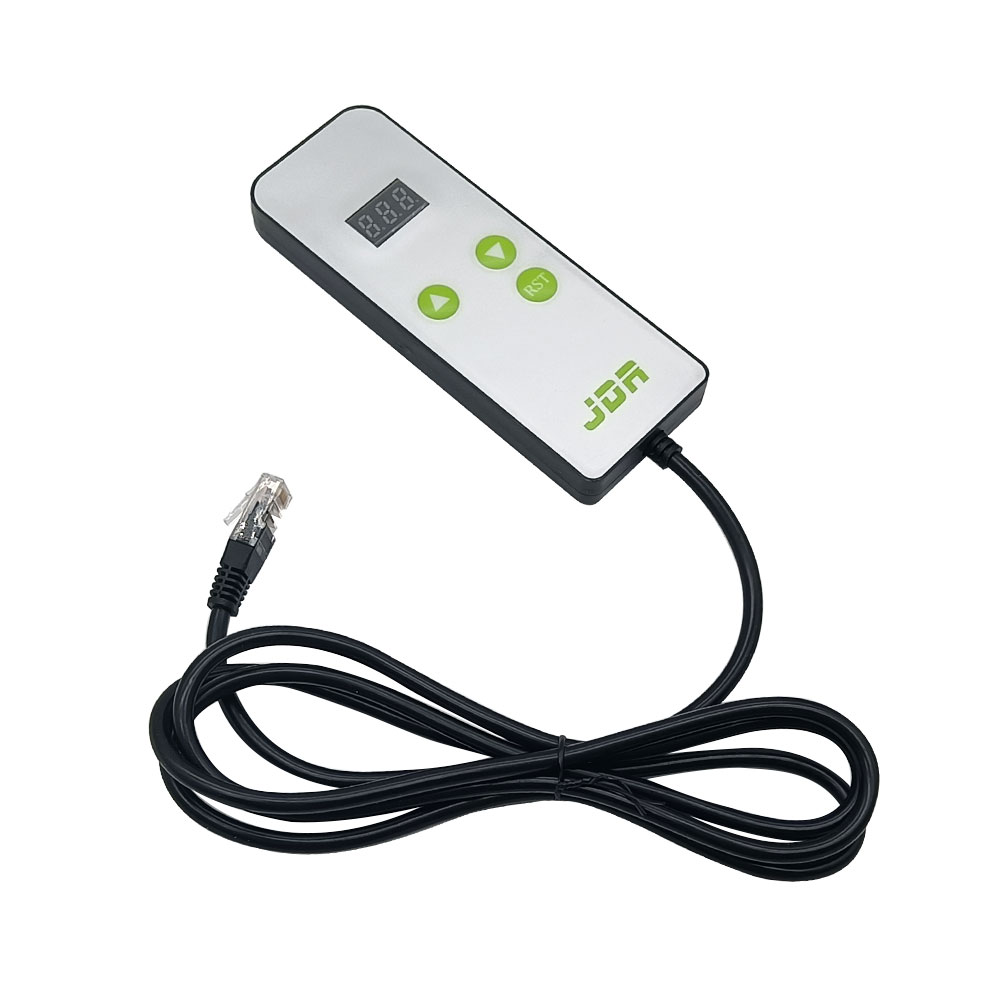

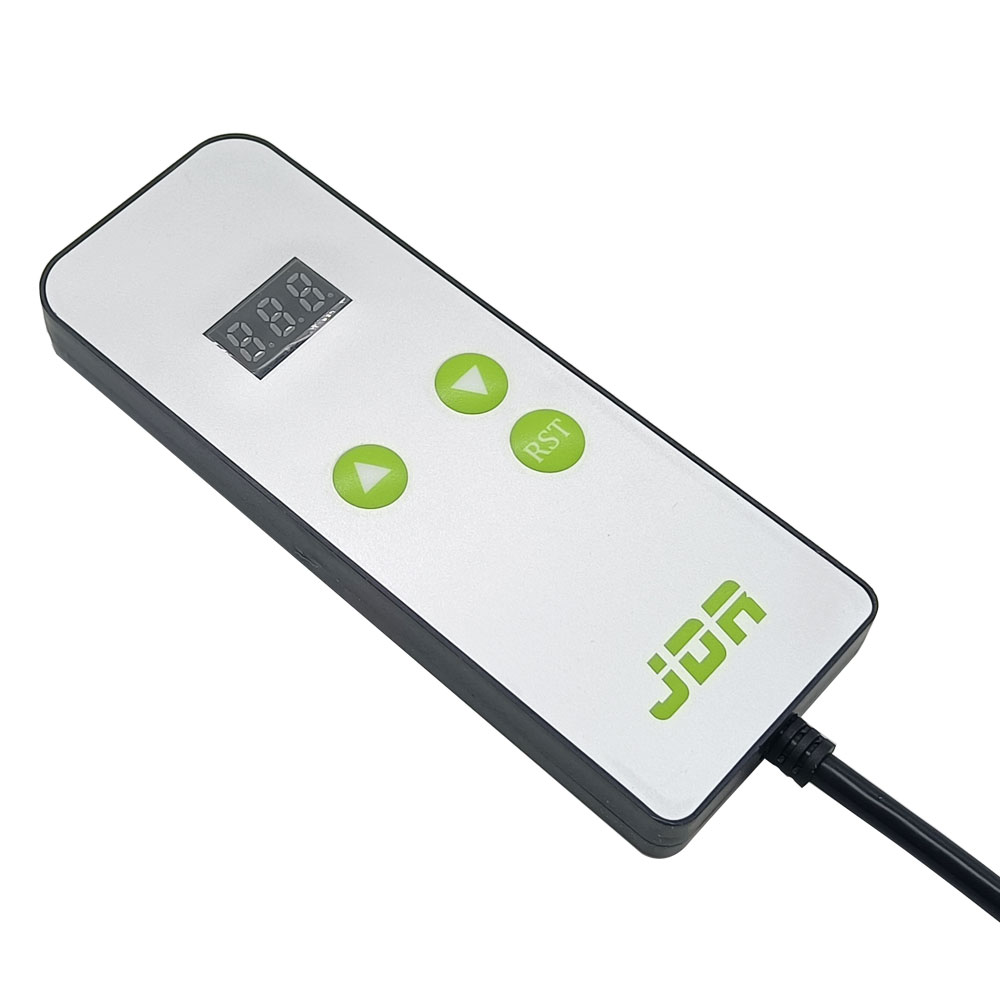

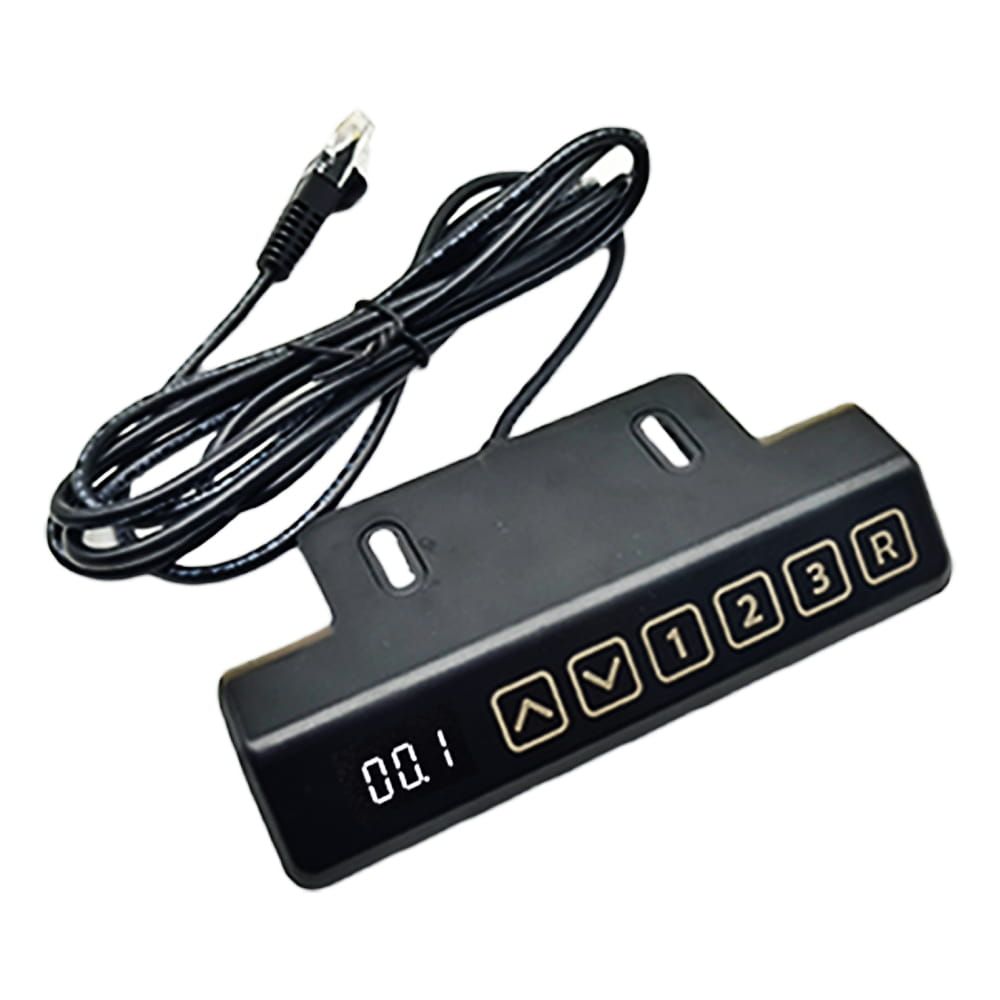

The LED display on the control handle will display the stroke position in
real time.
Three function buttons: ▲, ▼ and RST.
Parameters:
Working Voltage: 12±1VDC (suitable for 12V linear actuator), or 24±2VDC
(suitable for 24V linear actuator)
Working Frequency: 433.92 MHz
Working Distance: 50m / 150ft (theoretically)
Two selectable control modes: Interlocking mode or Momentary mode, please
select a control mode you need when ordering.
Operating Temperature: -20°C ~ +70°C

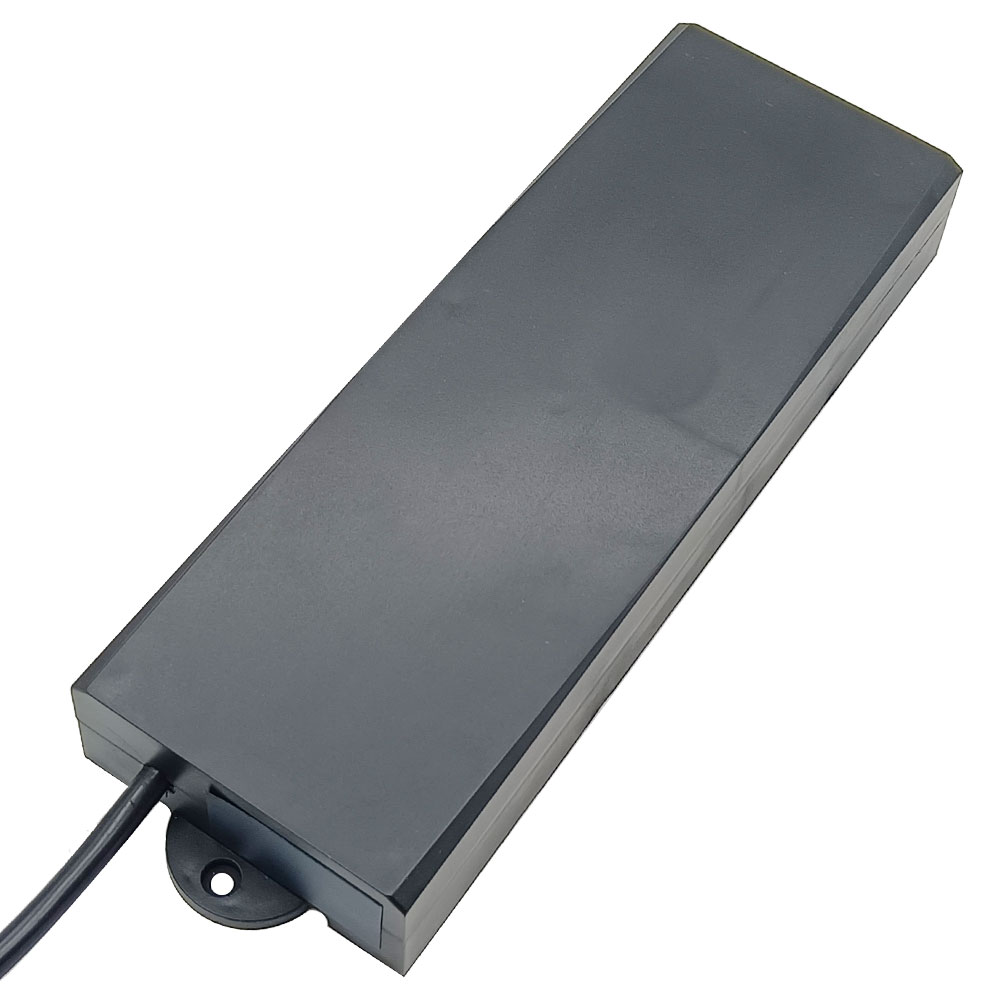

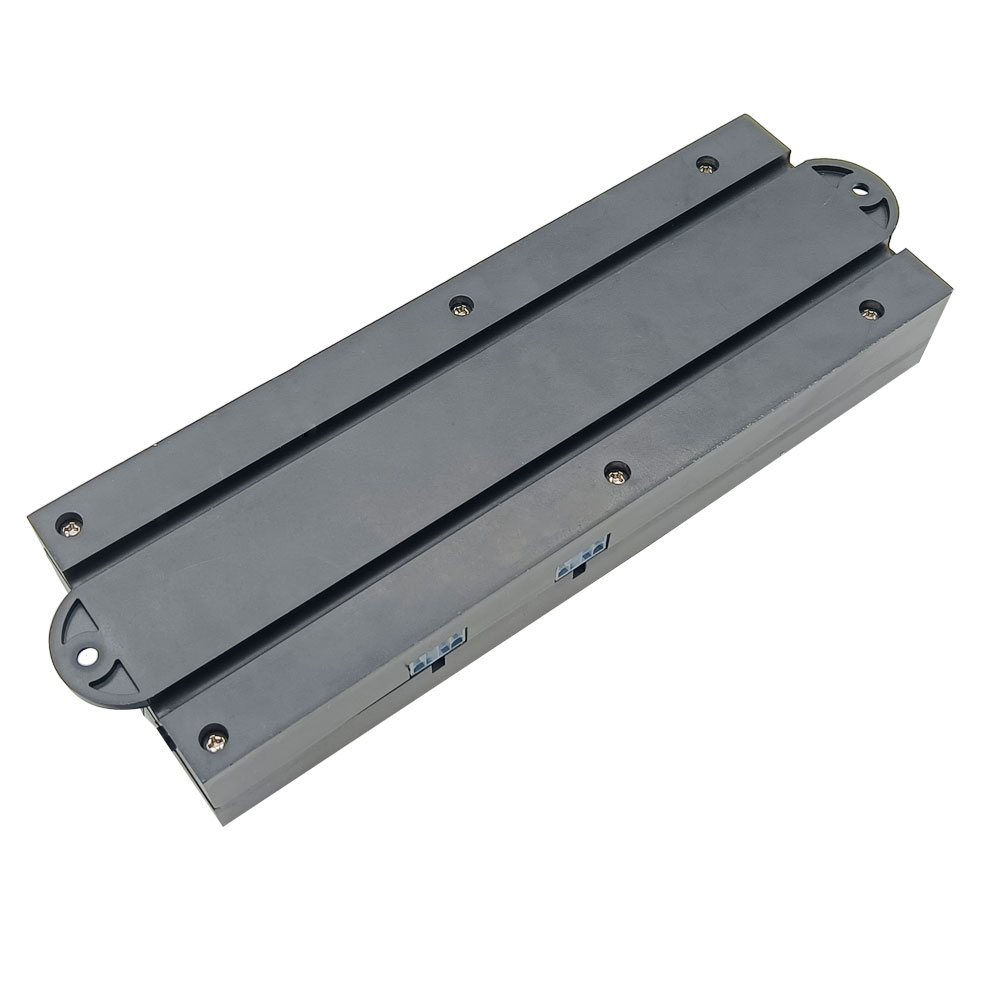

Case size: 265 x 94 x 40 mm (10.5 x 3.7 x 1.6 inches)

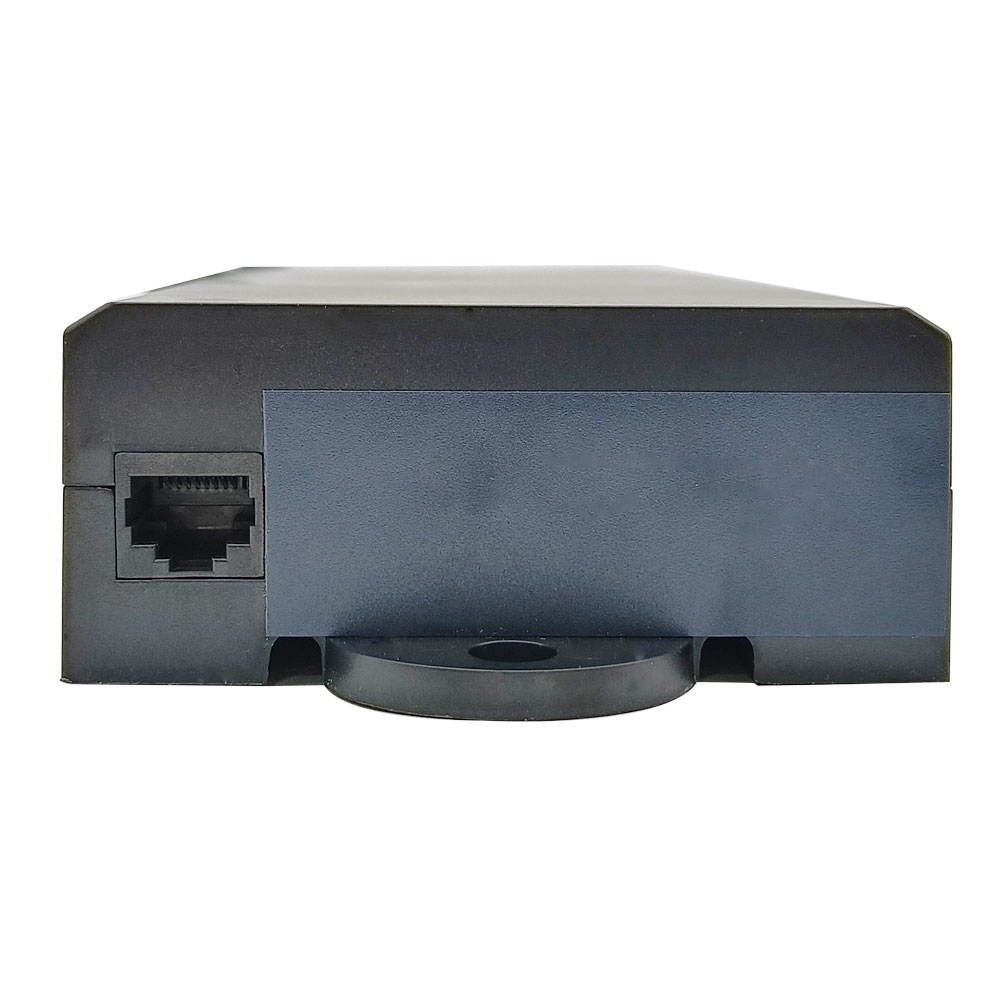

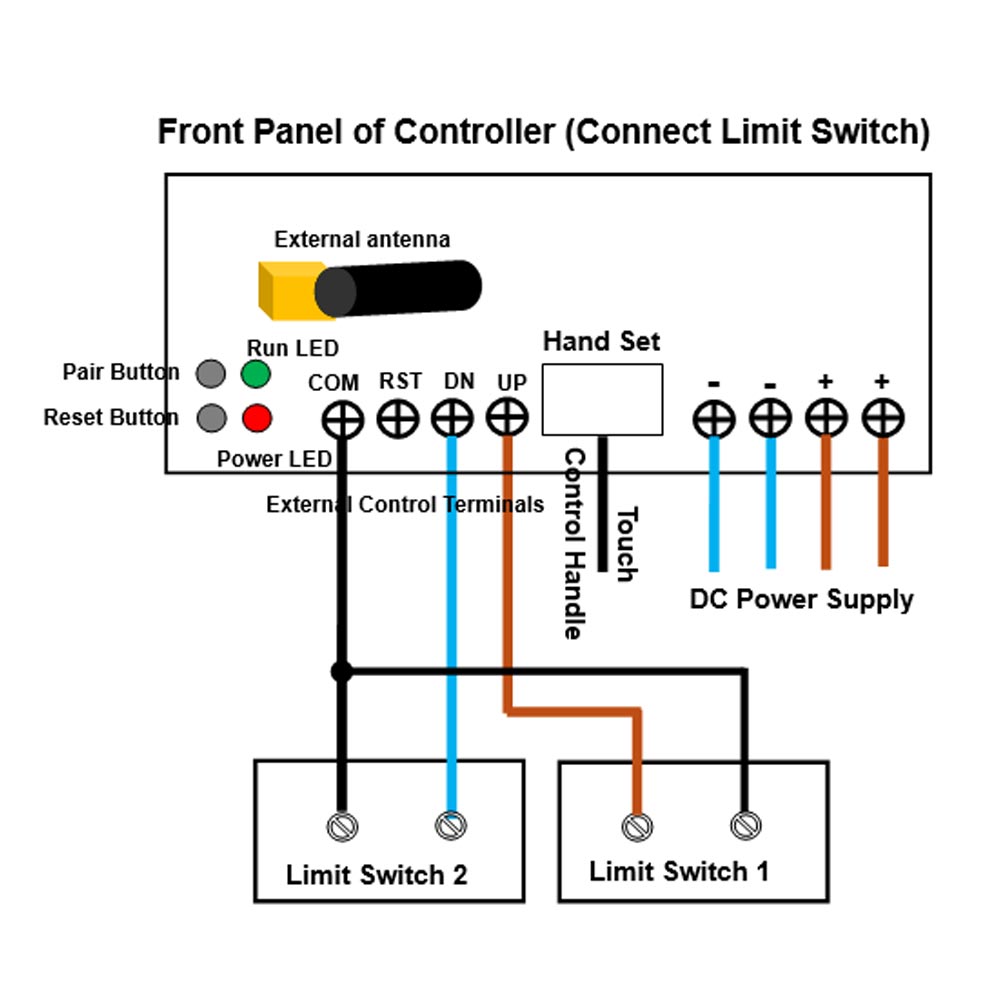

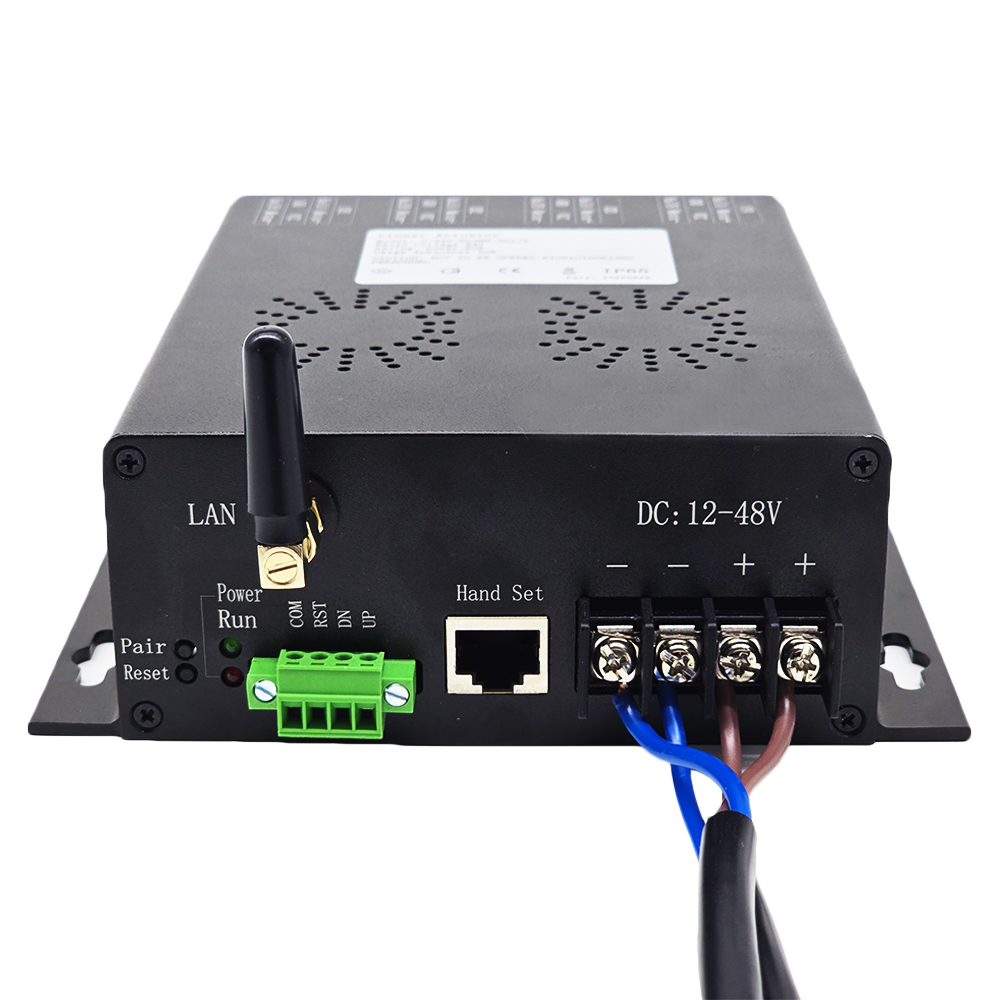

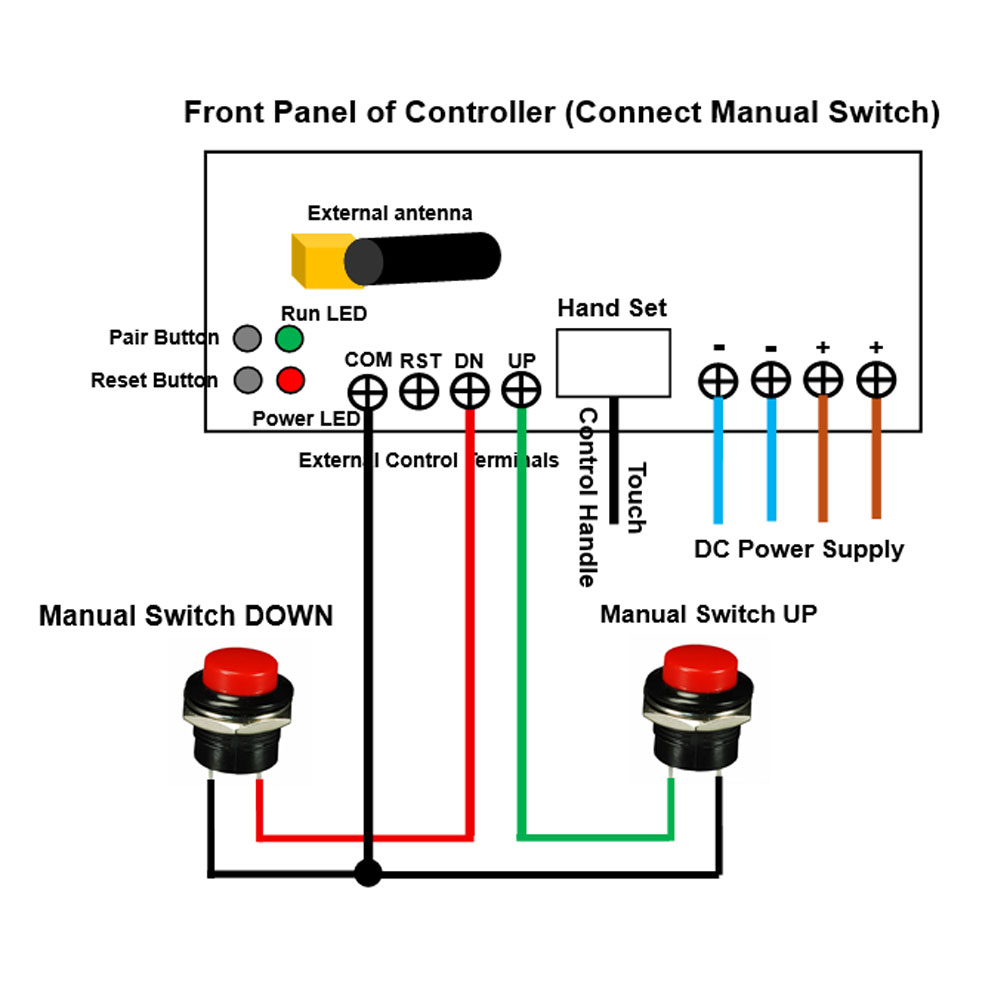

Connection:

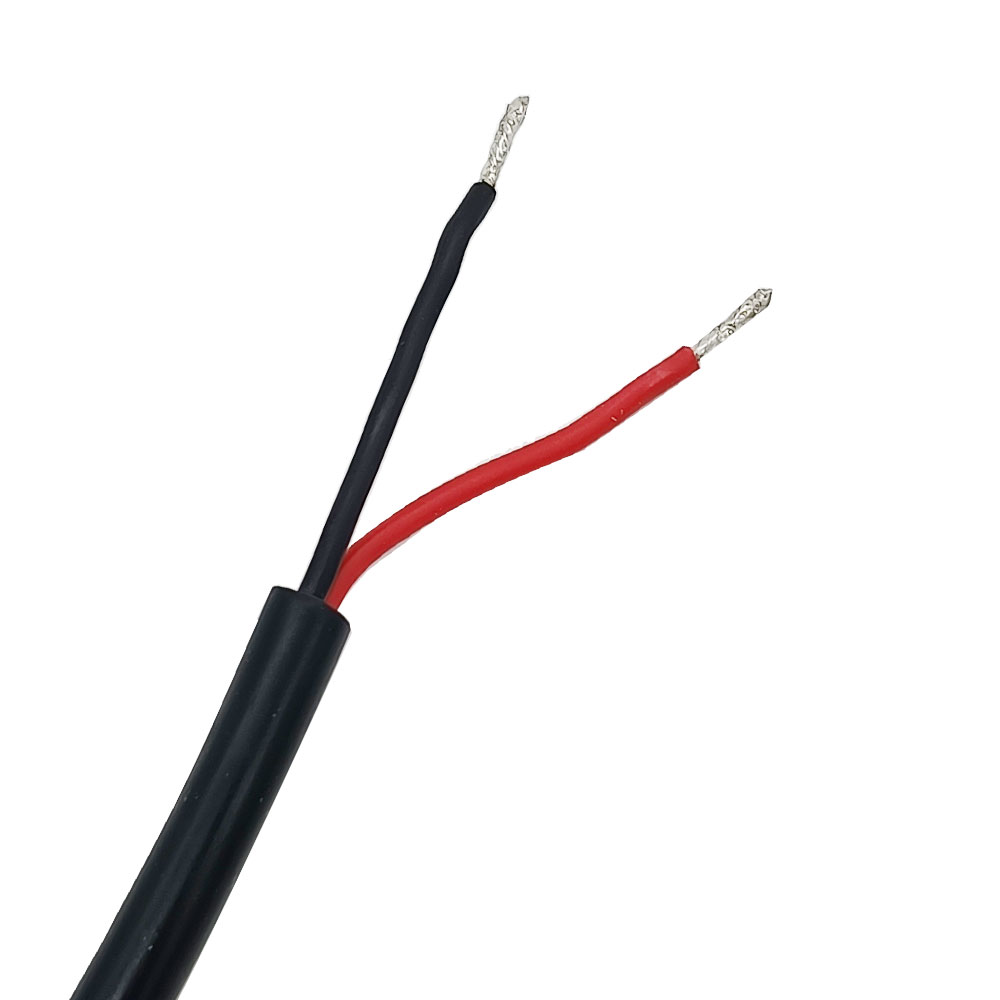

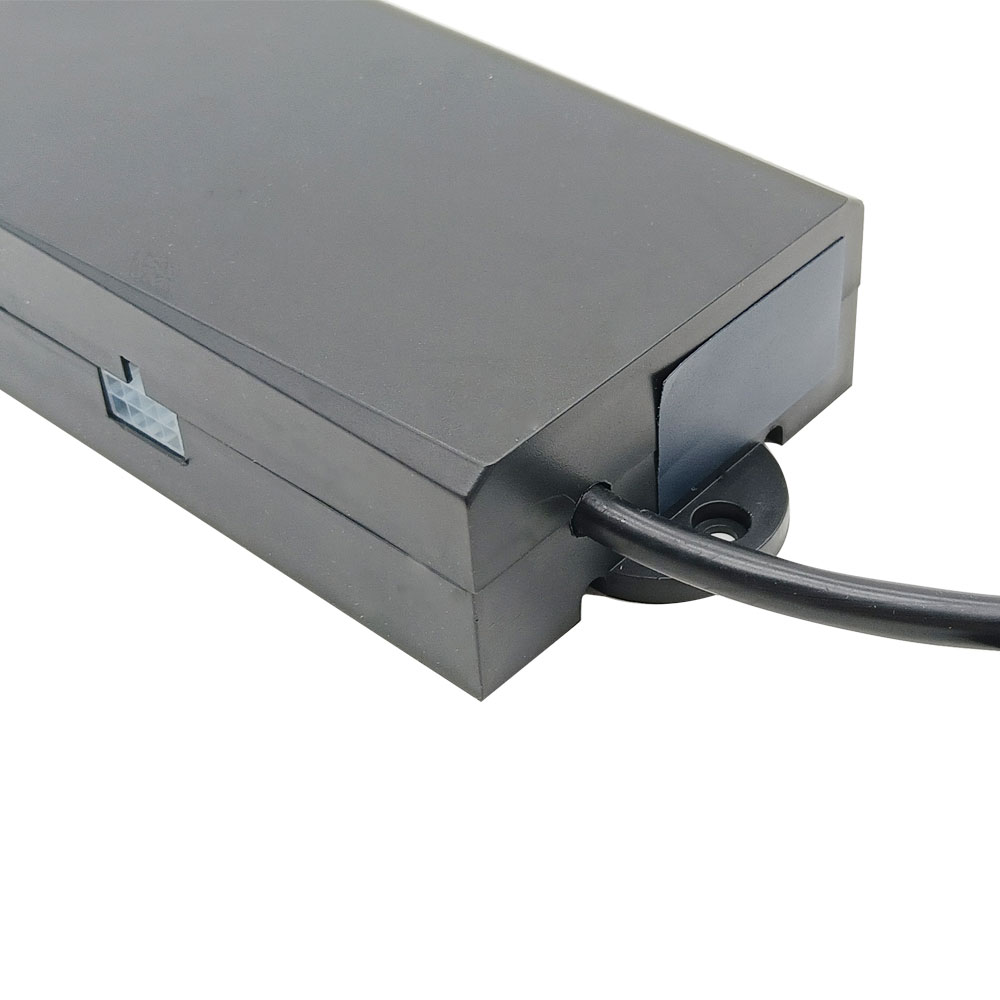

1) Connect the positive pole of DC power supply to the red wire of the
controller and connect the negative pole of DC power supply to the black
wire of the controller.

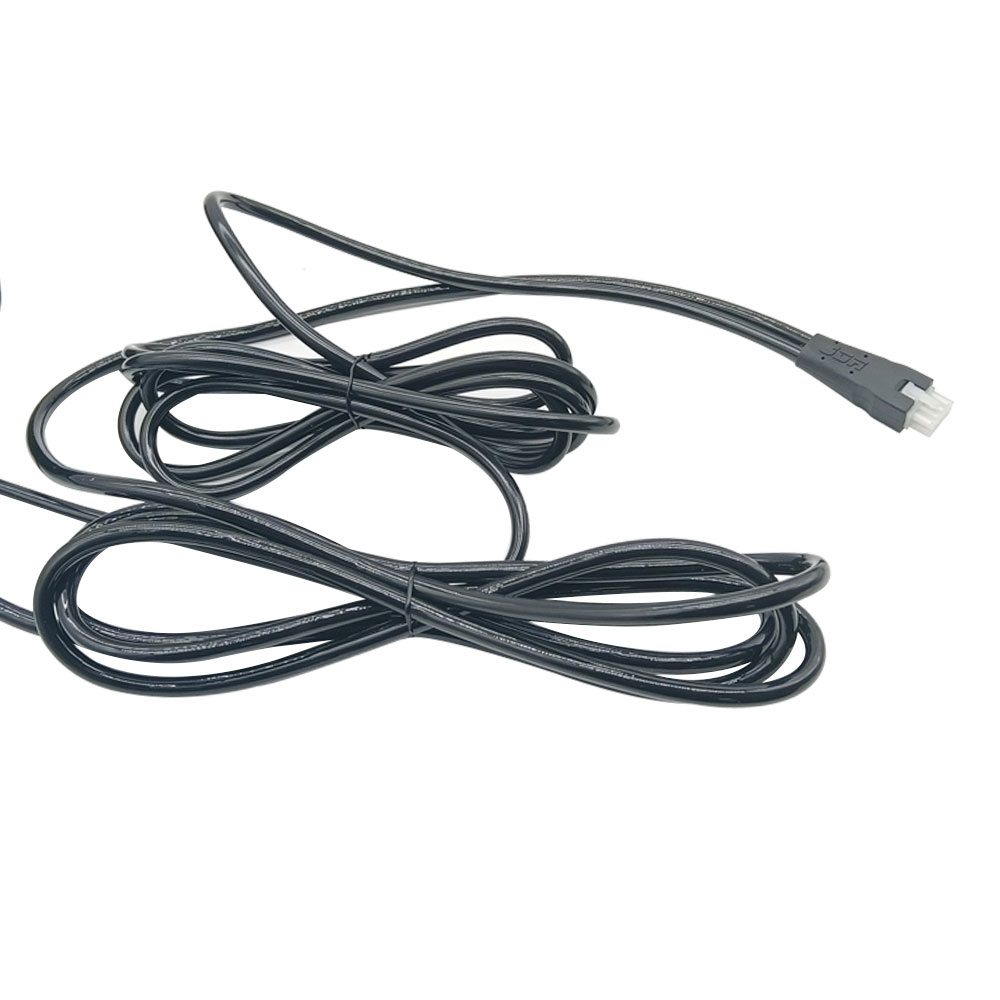

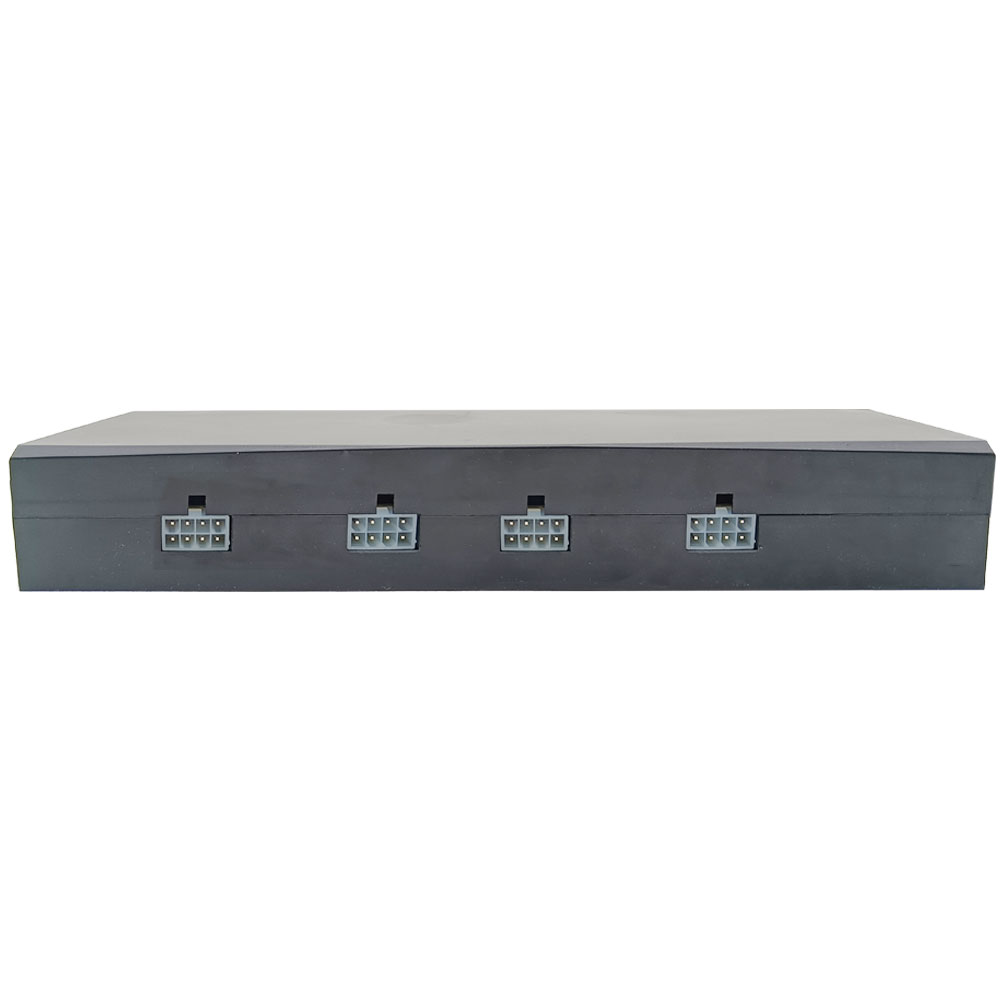

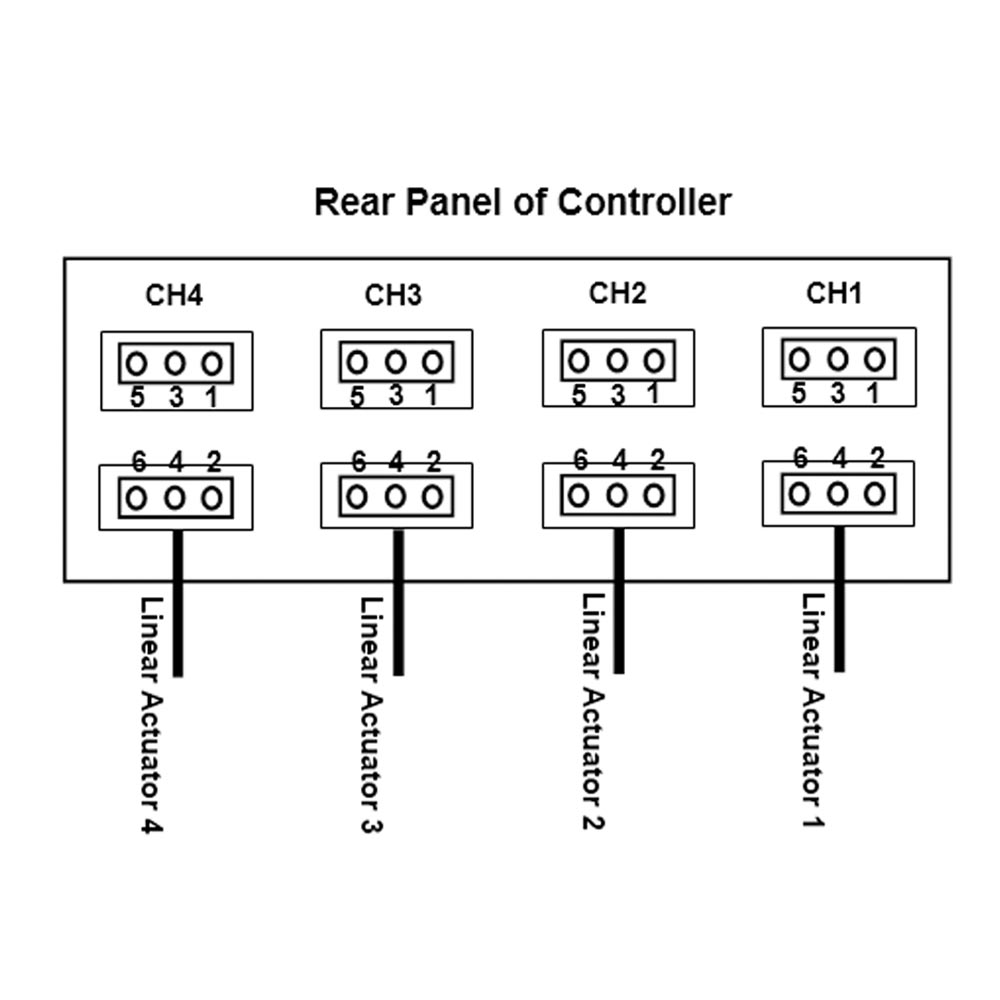

2) Plug four linear actuators to the controller.

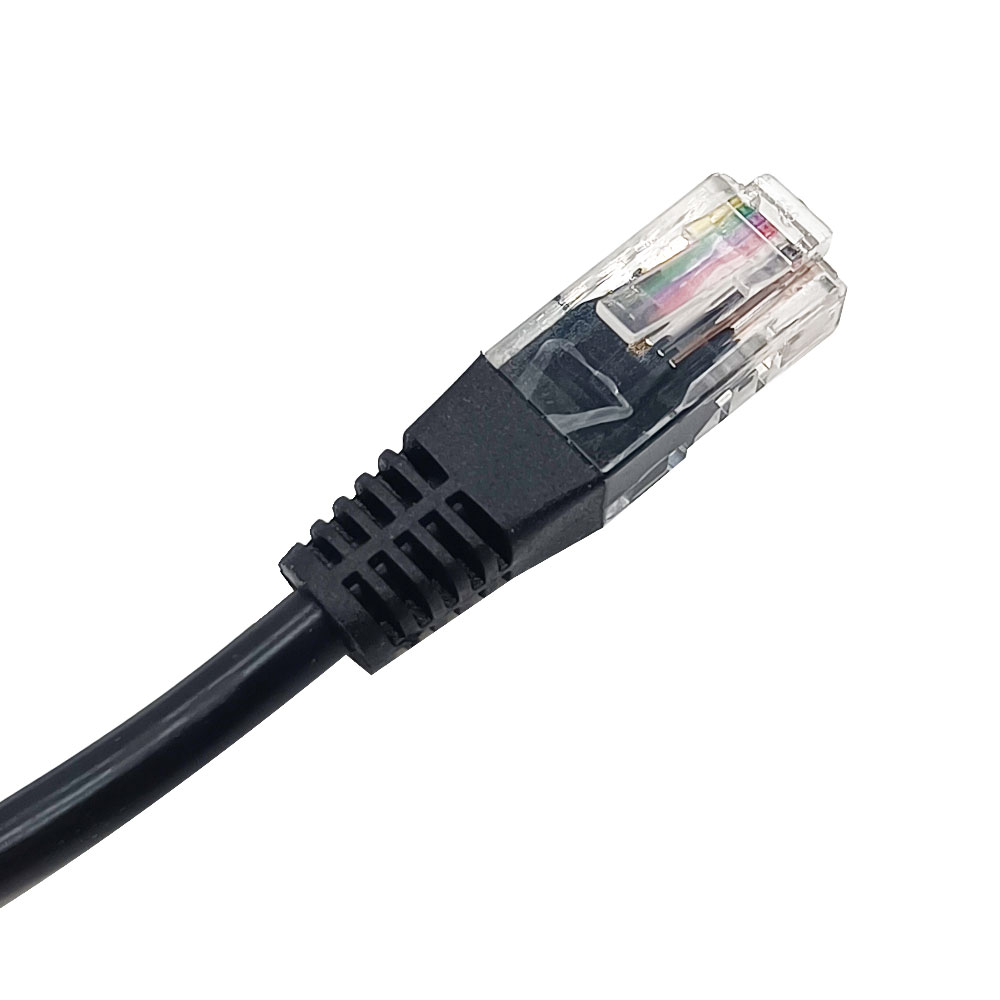

3) Plug the control handle to the controller.
Operation in different control modes: (The
synchronous controller has two control modes, interlocking mode and
momentary mode, please select a control mode you need when ordering.)
1. Momentary Control Mode:
1.1 Operation via the control handle:
1) Press and hold the ▲ button of the control handle, four linear actuators
extend outward at the same time; Release the button, four linear actuators
stop.
2) Press and hold the ▼ button of the control handle, four linear actuators
retract inward at the same time; Release the button, four linear actuators
stop.
3) You can also briefly press the RST button, four linear actuators will
retract inwards to their original positions simultaneously.
4) The LED display on the control handle will display the stroke position in
real time. For example, if the number 030 means that the linear actuators
have reached the stroke position of 30CM.

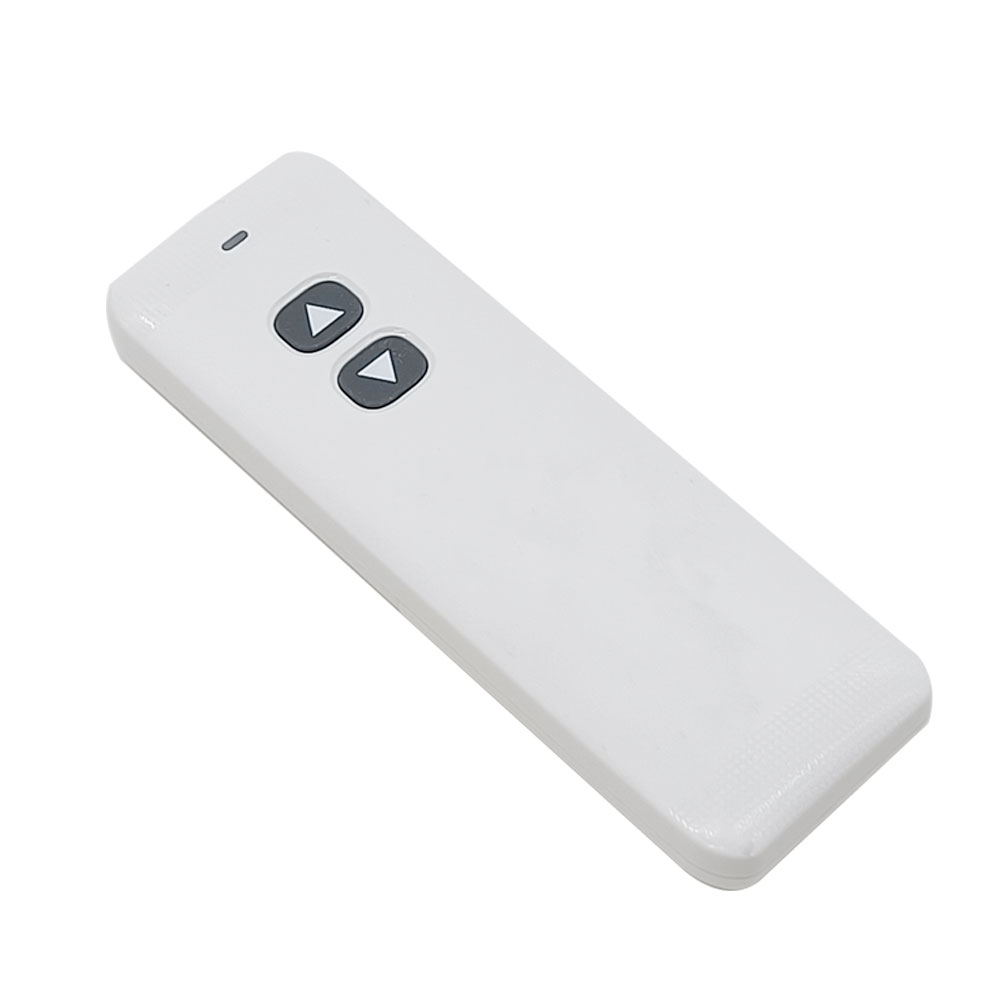

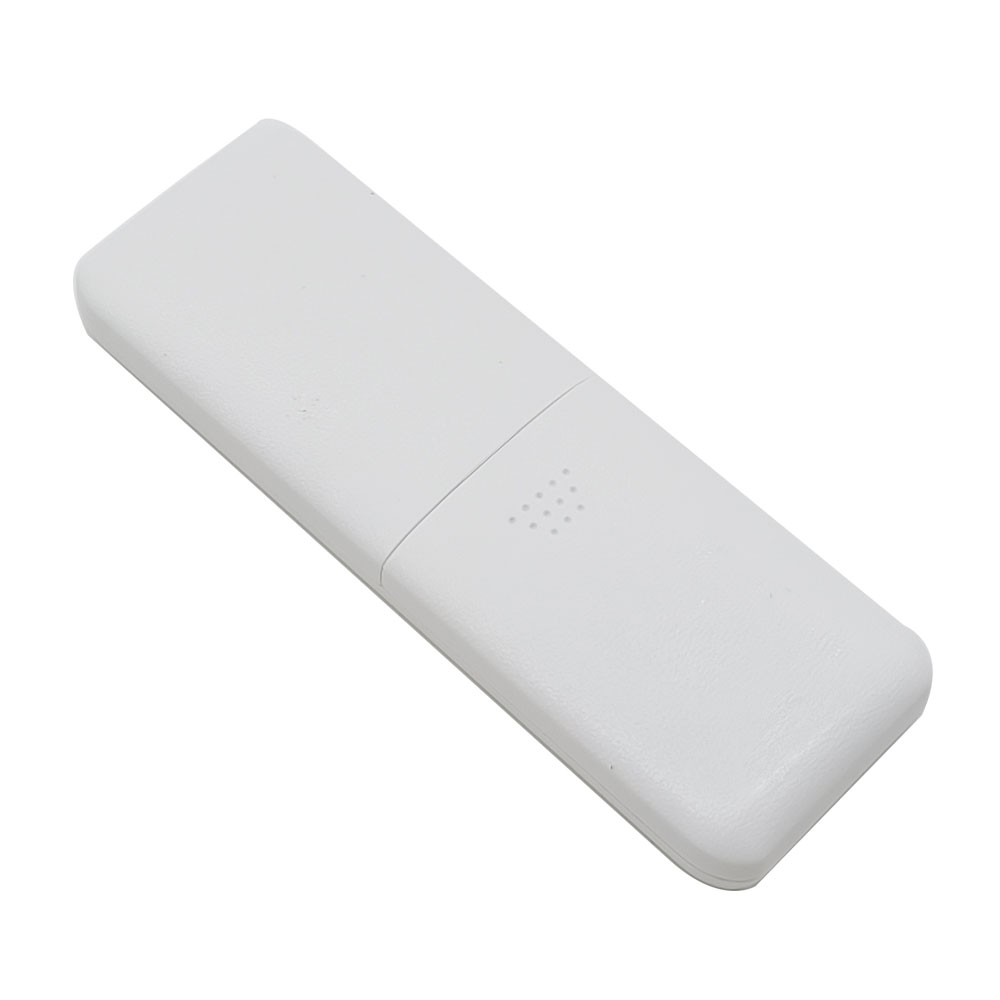

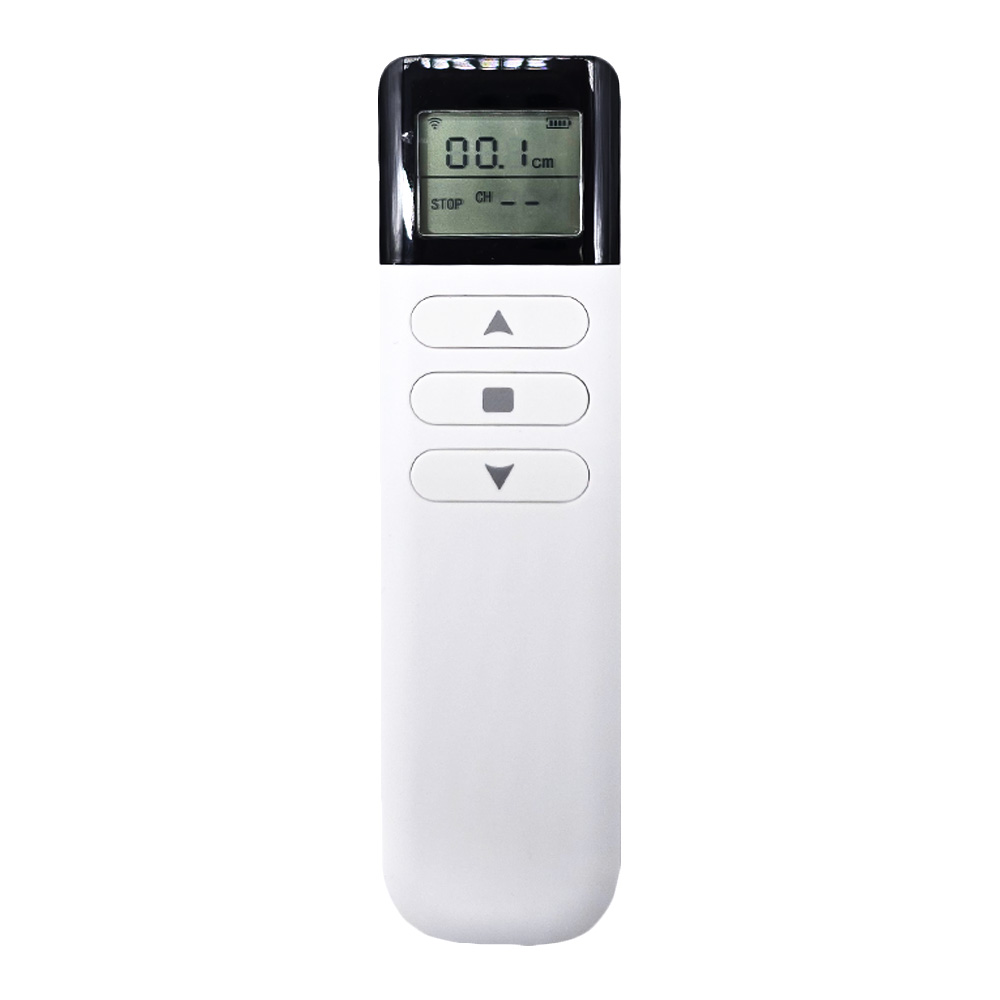

1.2 Operation via the remote control:
1) Press and hold the ▲ button of the remote control, four linear actuators
extend outward at the same time; Release the button, four linear actuators
stop.
2) Press and hold the ▼ button of the remote control, four linear actuators
retract inward at the same time; Release the button, four linear actuators
stop.
2. Interlocking control Mode: 2.1 Operation via the control handle:
1) Press the button ▲ of the control handle, four linear actuators extend
outward at the same time, they will reach the maximum stroke at the same
time and stop automatically. During operation, you can also press any button
to stop four actuators at the same time.
2) Press the button ▼ of the control handle, four linear actuators retract
inward at the same time, they will fully retract at the same time and stop
automatically. During operation, you can also press any button to stop four
actuators at the same time.
3) You can also briefly press the RST button, four linear actuators will
retract inwards to their original positions simultaneously.
4) The LED display on the control handle will display the stroke position in
real time. For example, if the number 030 means that the linear actuators
have reached the stroke position of 30CM.
2.2 Operation via the remote control:
1) Press the button ▲ of the remote control, four linear actuators extend
out at the same time, they will reach the maximum stroke at the same time
and stop automatically. During operation, you can also press any button to
stop four actuators at the same time.
2) Press the button ▼ of the remote control, four linear actuators retract
inward at the same time, they will fully retract at the same time and stop
automatically. During operation, you can also press any button to stop four
actuators at the same time.
Reset Function:
When the LED display on the control handle shows the fault code "RST" or
"E05", you need to reset the system as follows.
Reset operation: Press and hold the ▼ button of the control handle for 5-10
seconds until all linear actuators are reset to the bottom, and the LED
display on the control handle shows "000", then release the ▼ button.
Fault Display Code Descriptions:
The control handle is equipped with an LED display screen.
LED screen displays "RST": Abnormal state, reset operation required.
LED screen displays "E01": Linear actuator 1 overload, check if the load is too
large.
LED screen displays "E02": Linear actuator 2 overload, check if the load is too
large.
LED screen displays "E03": Linear actuator 3 overload, check if the load is too
large.
LED screen displays "E04": Linear actuator 4 overload, check if the load is too
large.
LED screen displays "E05": Four linear actuators are not synchronized, and you
need to perform a reset operation.
LED screen displays "E06": Input power under-voltage, check if the power supply
voltage or power matches the linear actuator, replace with a suitable power
supply.
LED screen displays “E11”: Linear actuator 1 HALL signal abnormal, check if the
connection cable is in poor contact, replace the linear actuator or connection
cable.
LED screen displays “E12”: Linear actuator 2 HALL signal abnormal, check if the
connection cable is in poor contact, replace the linear actuator or connection
cable.
LED screen displays “E13”: Linear actuator 3 HALL signal abnormal, check if the
connection cable is in poor contact, replace the linear actuator or connection
cable.
LED screen displays “E14”: Linear actuator 4 HALL signal abnormal, check if the
connection cable is in poor contact, replace the linear actuator or connection
cable.
Note:
1. Each linear actuator would require two mounting brackets, one to fix the
head of linear actuator and another to fix the bottom of linear actuator.
This kit does not contain fixed mounting brackets, please buy them from the
drop down menu.
2. You need to use a DC12V/100A or DC24V/50A switching power supply to power
this kit. This kit does not contain this power supply, please buy it from
the drop down menu.
Production time:
The linear actuators are the customized products, and these products are not
in stock, we need to spend 6~10 working days to produce them according to
the specified parameters in your order.
Return or Exchange:
The Linear Actuators are the customized products, we need to produce them
according to the specified parameters in your order, so that we do not accept
returns or cancel orders. If customers order unsuitable linear actuators
themselves, we also do not accept exchanges, please understand.
We can provide 3D CAD model files in STEP format for linear actuators.
Please contact us by e-mail if you need them.
Package Include:
4 x Electric Linear Actuator F With Hall Effect Sensor
1 x Synchronous Controller (One-Control-Four, For 4 Linear Actuator F)

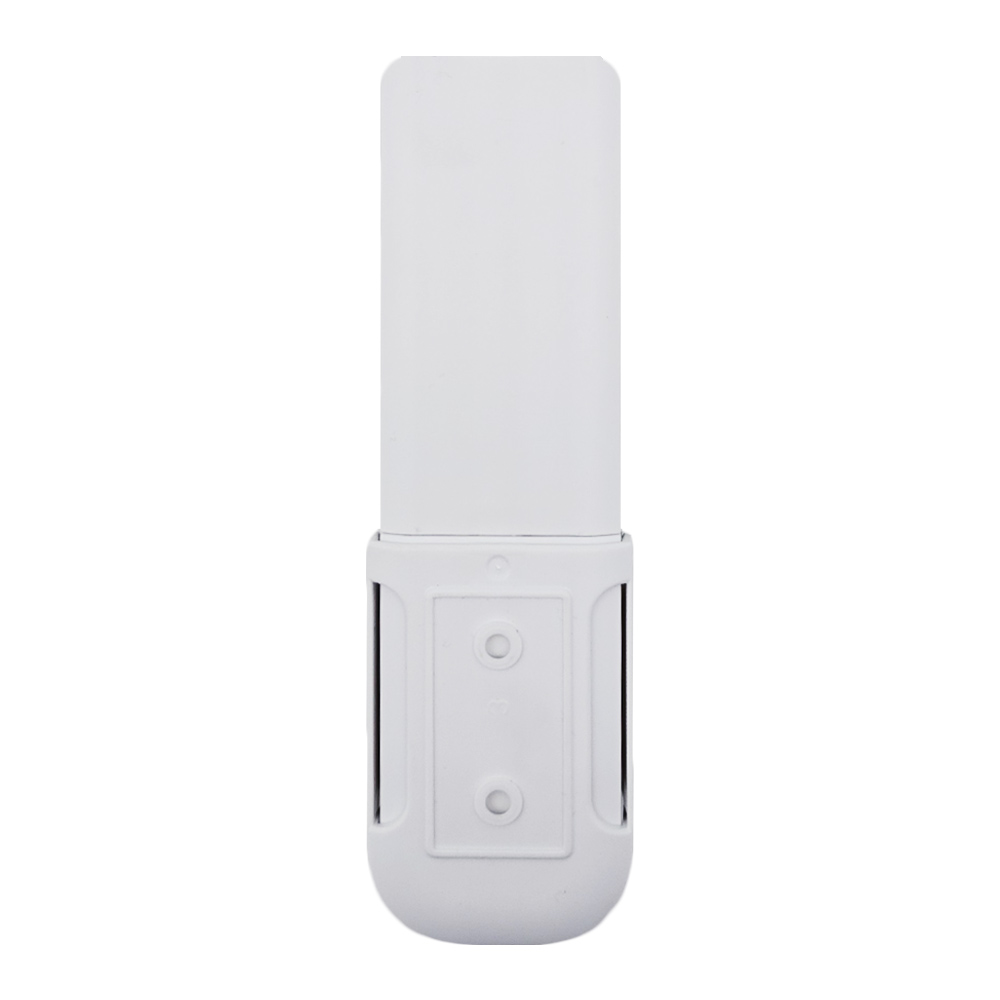

1 x Control Handle
1 x Remote Control
1 x User manual Note: The
synchronous controller has two control modes, interlocking mode and
momentary mode, please select a control mode you need when ordering.
