Introduction:

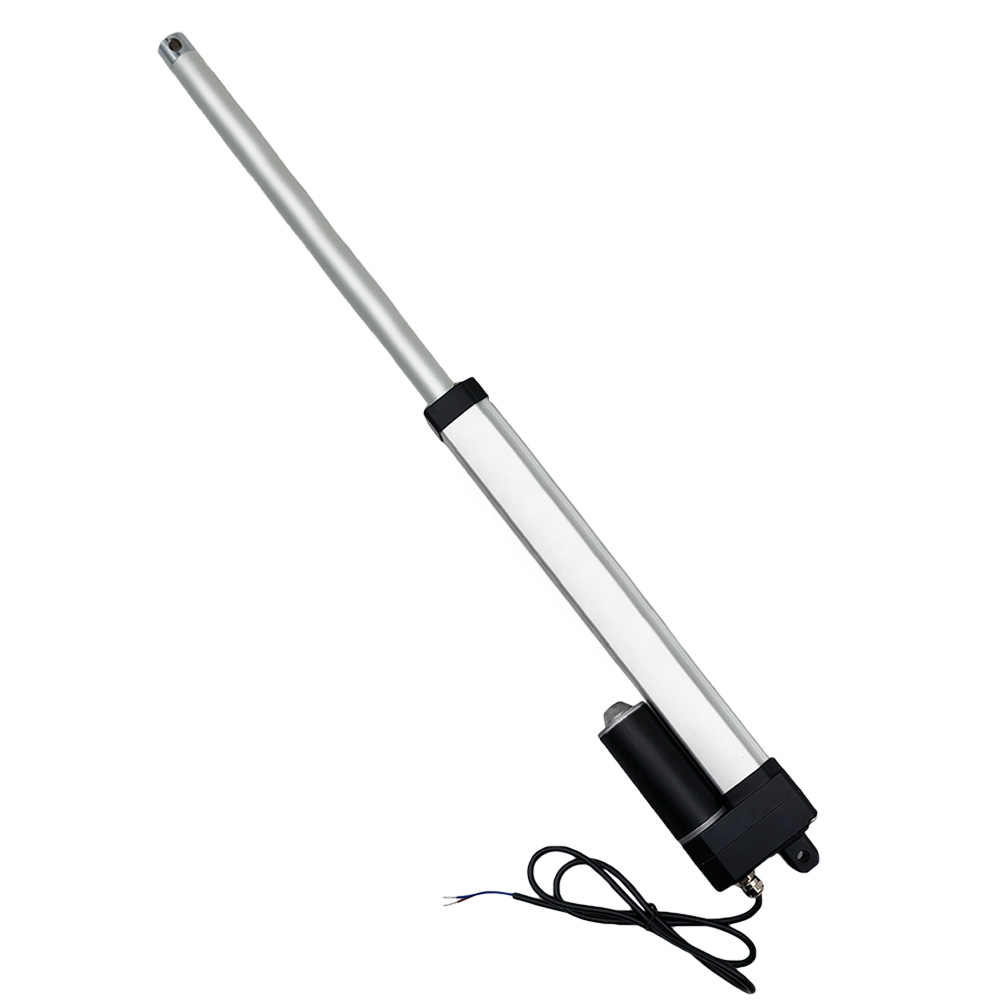

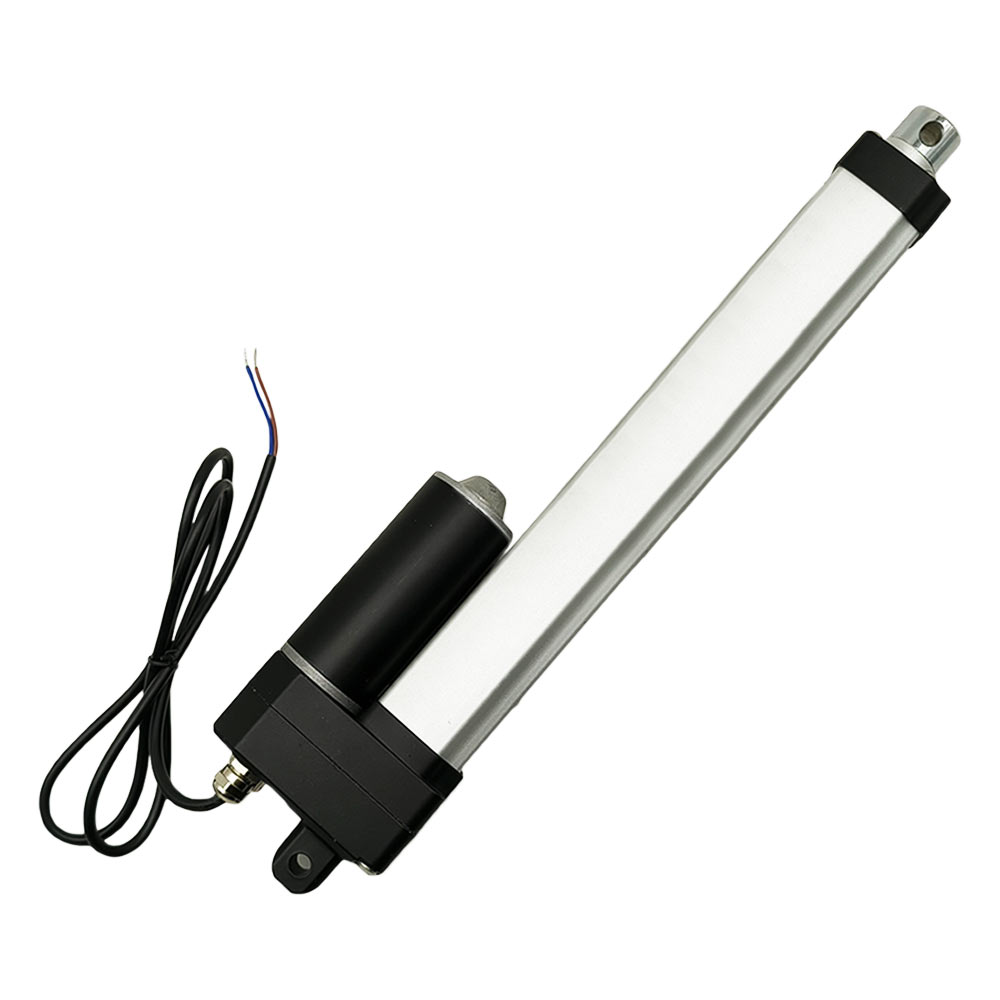

The linear actuator is equipped with a waterproof breather valve, which
allows air to freely flow in and out of the cylinder. When the linear
actuator is running, a pressure difference will be generated inside and
outside the cylinder, and air will flow in and out of the cylinder through
the breather valve to ensure that the pressure inside and outside the
cylinder is balanced. At the same time, the breather valve will prevent
impurities such as water and dust from entering the cylinder. In this way,
the internal components of the linear actuator are effectively protected,
ensuring that the linear actuator can operate for a long time in damp
conditions without experiencing performance degradation or damage.
Application:
It has a wide range of applications, mainly for scenes with high
requirements for noise level and waterproof level. Such as water
entertainment, on-water or on-board equipment, aquaculture, sewage treatment
systems, outdoor electric windows and doors, irrigation devices and other
water-related industrial automation equipment, household equipment and
medical equipment.
And it is mainly used for doors, windows, cellars, trapdoors, hatchways,
solar tracking system, medical devices, agricultural machinery, vehicles,
ships, elevator platforms, lifting tables, TV lifts, robots, cabinets,
massage sofas, electric beds, medical chairs, and other electrical
equipment. It can open, close, push, pull, lift, and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.
Feature:
High-quality products and high-quality services
New housing design, high working stability
Metal housing, able to work in very harsh environments
Metal gearbox, high strength wear-resistant gear
Aluminum alloy telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Worm gear structure design, strong self-locking force
POM engineering plastic worm gear, low noise
Strong thrust, up to 3500N / 350 Kgs / 780 lbs.
Three speed options, 5±1mm/s, 10±2mm/s, and 16±3mm/s
Multiple stroke options, from 10 mm to 1500 mm
We can customize any stroke length from 10mm to 1500mm, such as 380mm,
750mm, 1250mm and so on.
Advanced waterproof and dustproof technology
With waterproof breather valve, ideal for use outdoors or in the rain.
Low power consumption and low noise
Built-in two limit switches, linear actuator will automatically stop when
stroke rod reaches the limit position.
Built-in Hall sensor is optional, so you can use the synchronous controller
to operate 4 linear actuators fully synchronously.
Automatically lock after stopping, and no power supply is required.
Maintenance-free
Specifications:
Optional working voltage: Optional working voltage: DC 12V, DC 24V, DC 36V
or DC 48V, and 24V is the most commonly used working voltage.

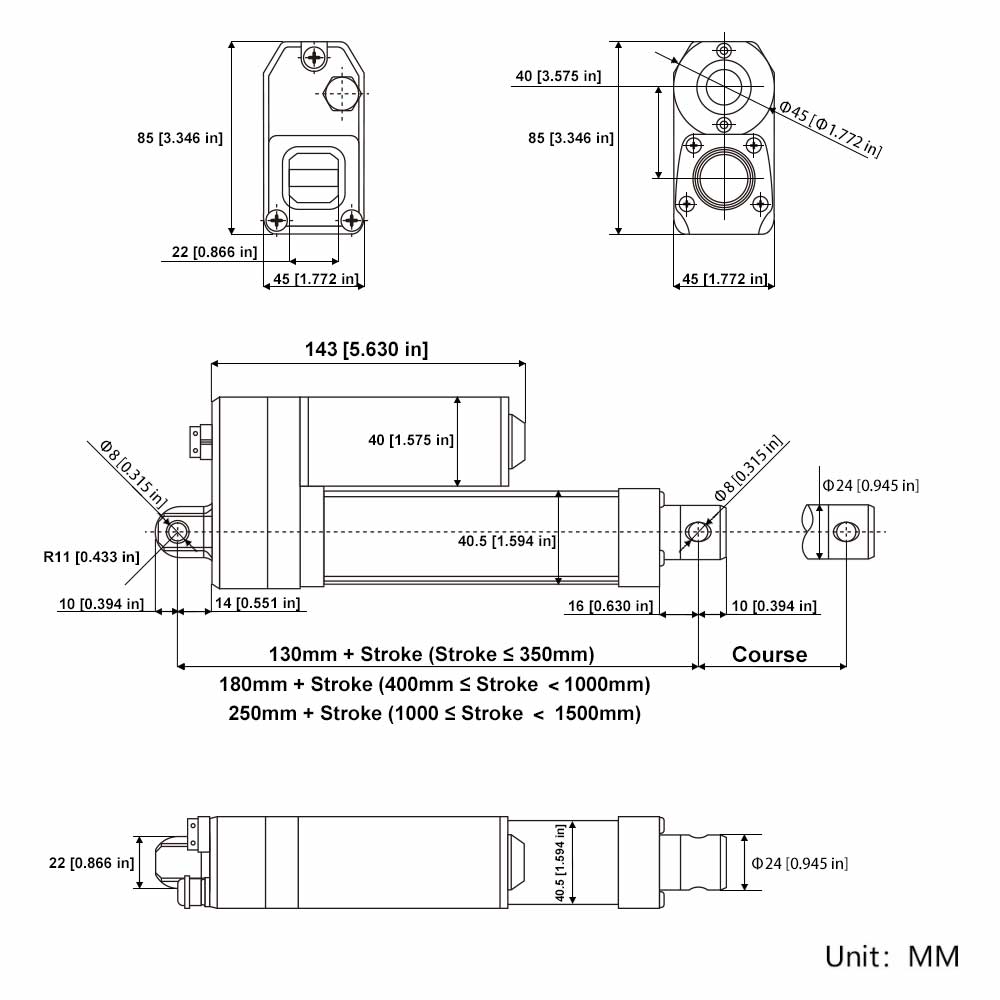

Stroke range: 0.4 ~ 60 inches or 10 ~ 1500 mm (If you want to view detailed information of linear actuators with different
strokes, such as detailed drawings and dimensional drawings, please click
the following link to view:
Linear Actuator J)
Optional speed: 5±1mm/s, 10±2mm/s, 16±3mm/s
The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases.
Max load capacity: 3500N / 350 Kgs / 780 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the
vertical direction, and the pulling force is less than pushing force.
No-load current: 0.5~1A at 12V or 0.3~0.5A at 24V
Full load current: 7A at 12V or 3.5A at 24V
Please use a 12V/30A or 24V/15A power supply to power four linear actuators.
Shaft diameter: 20mm
Mounting holes diameter: 8mm [0.315 in]
Housing material: Aluminum Alloy
Stroke rod material: Aluminum Alloy
Gear material: Steel Alloy
Motor type: Brushed DC Motor
The front connector style can be customized: the default is an open hole
connector, which can be customized with slotted connector, internal thread
connector, etc. And you can provide drawings for customization.
The orientation of the front connector is default, we can rotate it 90
degrees during the production according to the customer's needs.
Duty cycle: 20%, max 5mins continuous use
Service life: approx. 25,000 cycles

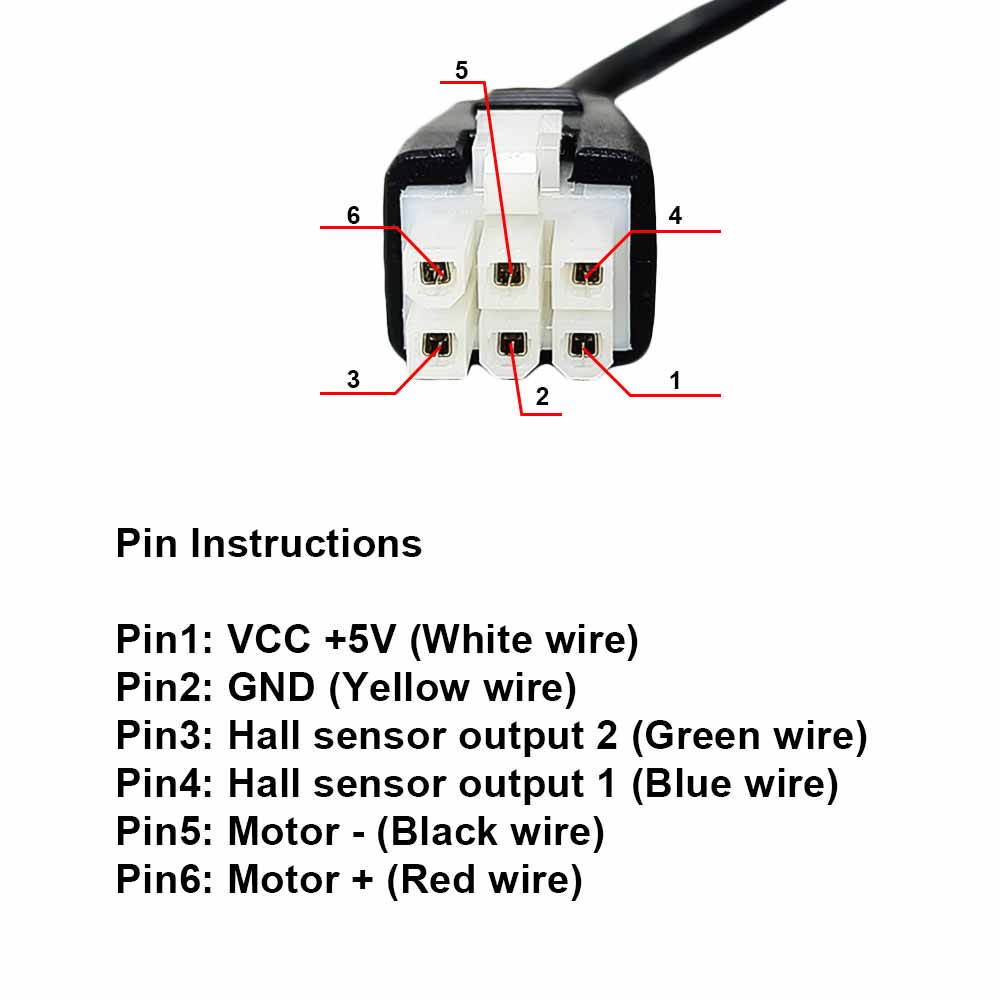

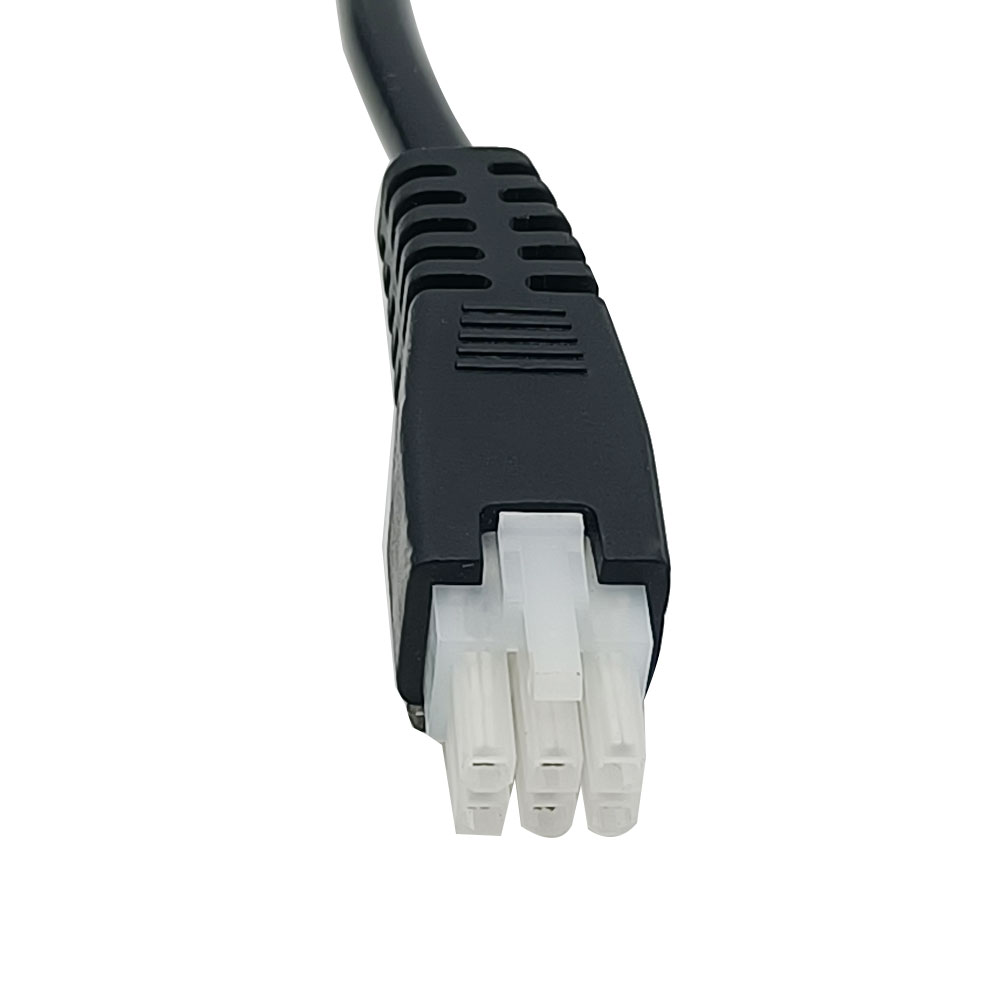

Power cable: Six-core Wire
Cable length: 1000±10%mm [40 in], the length can also be customized
according to your specific needs.
Certifications: CE
Environment temperature: -20℃ to 80℃
Operating noise: ≤45dB (Linear actuators with different parameters will have
different noise levels.)
IP rating: IP67 (Ideal for use outdoors or in the rain, but it is not
suitable for use submerged in water.)
Different no-load speeds and corresponding maximum thrust:
No-load Speed
Full load Speed
Maximum Thrust
Self-locking Force
5mm/s
3mm/s
3500N / 350 kg / 780 lbs
5000N / 500 kg / 1100 lbs
10mm/s
5.5mm/s
2500N / 250 kg / 560 lbs
3500N / 350 kg / 780 lbs
16mm/s
8.5mm/s
2000N / 200 kg / 450 lbs
3000N / 300 kg / 670 lbs
Note:
1. The above data is the maximum load capacity that can be obtained when
each linear actuator runs in the vertical direction. The maximum load
capacity of the entire synchronous system is the sum of the maximum load
capacities of the four linear actuators. If the weight of your equipment
(such as a cellar door) is 100kg, and you want to use a linear actuator to
open this door, you need to calculate the actual force acting on the linear
actuator according to your installation method. This force is usually 2-5
times the weight of the cellar door. If you don't know how to calculate it,
please contact us for help.
2. The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases. Full load speed is approximately
60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the
right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under
maximum load, we recommend letting it work at about half of the maximum load
to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not
normally allow them to operate at their maximum stroke under heavy loads. If
the actual stroke you want is 600MM, we recommend that you choose a linear
actuator with a stroke of 700-800MM.
6. The maximum pull force of the linear actuator is slightly less than its
maximum thrust force.
The information for synchronous controller:
Introduction:
If you want to use multiple linear actuators to raise and lower an
equipment, for example two, three or four electric actuators. Since the
high-speed DC motors in electric actuators cannot run at exactly the same
speed, so the movement speed of the electric actuator will also be
different. When multiple electric actuators work at the same time, their
actual speeds cannot be exactly the same. In this case, we can use a
synchronous controller to operate multiple linear actuators to rise or fall
synchronously. They work completely in sync without any difference.
Working principle:
If you want to use a synchronization controller to operate 2, 3 or 4 linear
actuators fully synchronously, you will need to add built-in Hall effect
sensors for each linear actuator. And when you purchased Hall effect sensors
along with linear actuators, we will install Hall effect sensors in the
linear actuators during production for you. When 2, 3 or 4 linear actuators
are running together, Hall sensor will send Hall signals to the
synchronization controller, and the controller will adjust the running speed
of each linear actuator, so that all linear actuators run at the exact same
speed.
Feature:

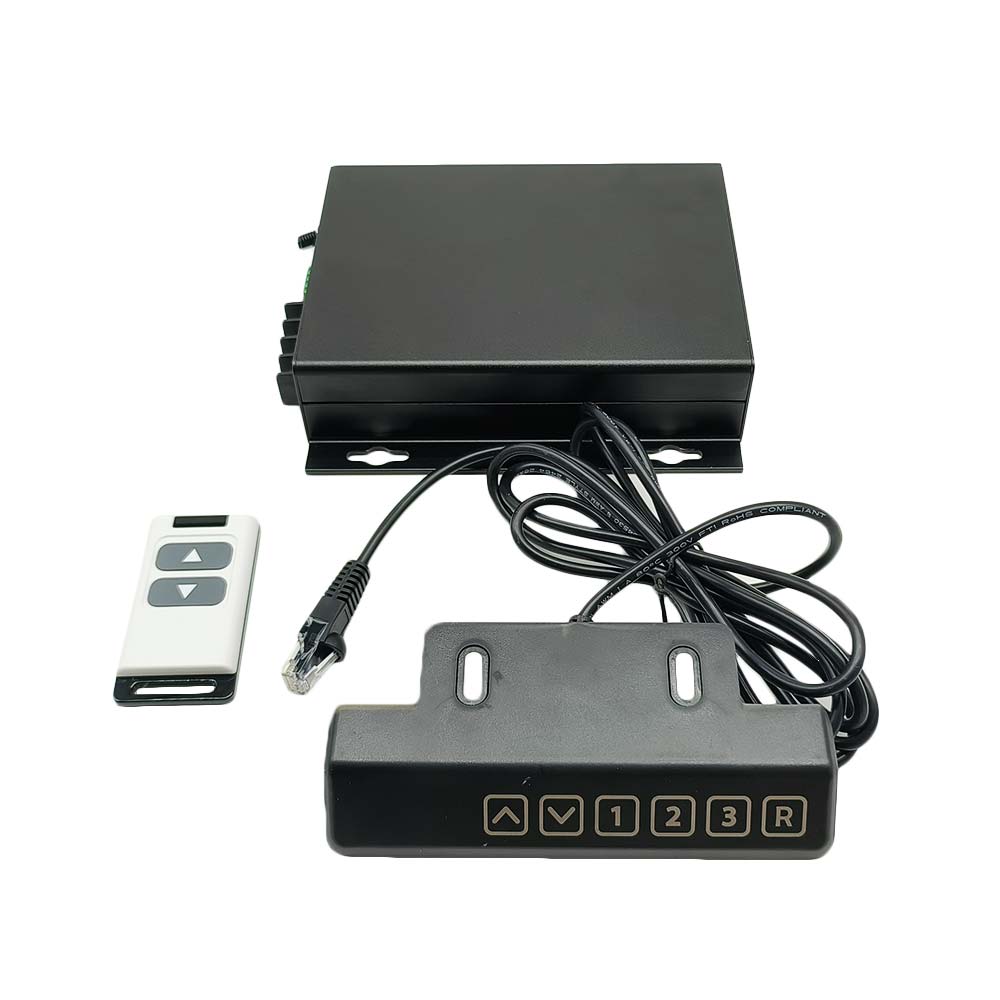

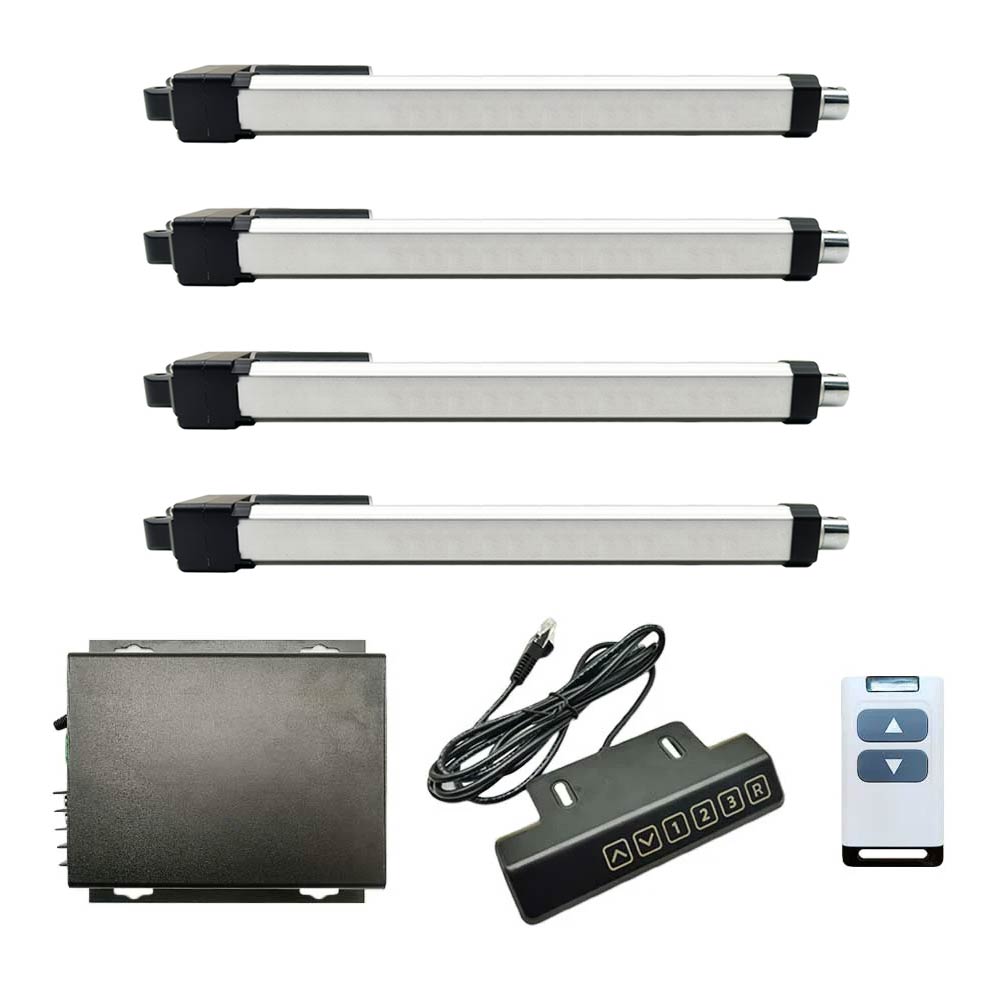

It can operate four electric linear actuators J to run completely
synchronously.

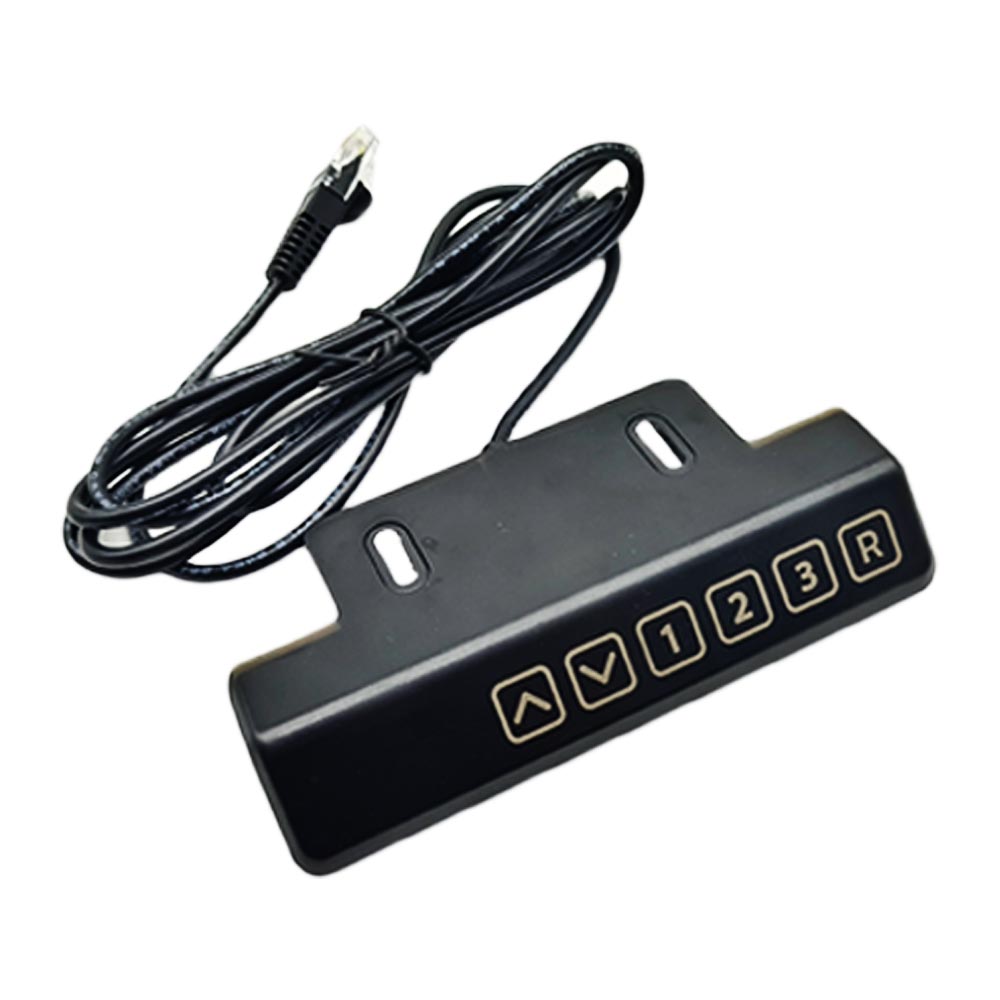

Wired control via a touch control handle.
Wireless control via a remote.
If use an external antenna, the controller has a farther working range.
The LED display on the control handle will display the stroke position in
real time.
Six touch function buttons: ▲, ▼, 1, 2, 3 and R.
Buttons ▲ and ▼ are used to operate the linear actuators extension and
retraction.
Buttons 1, 2 and 3 are used to automatically operate the linear actuators to
three pre-memorized positions.
Button R is the reset button and is used to reset the system in case of an
error.

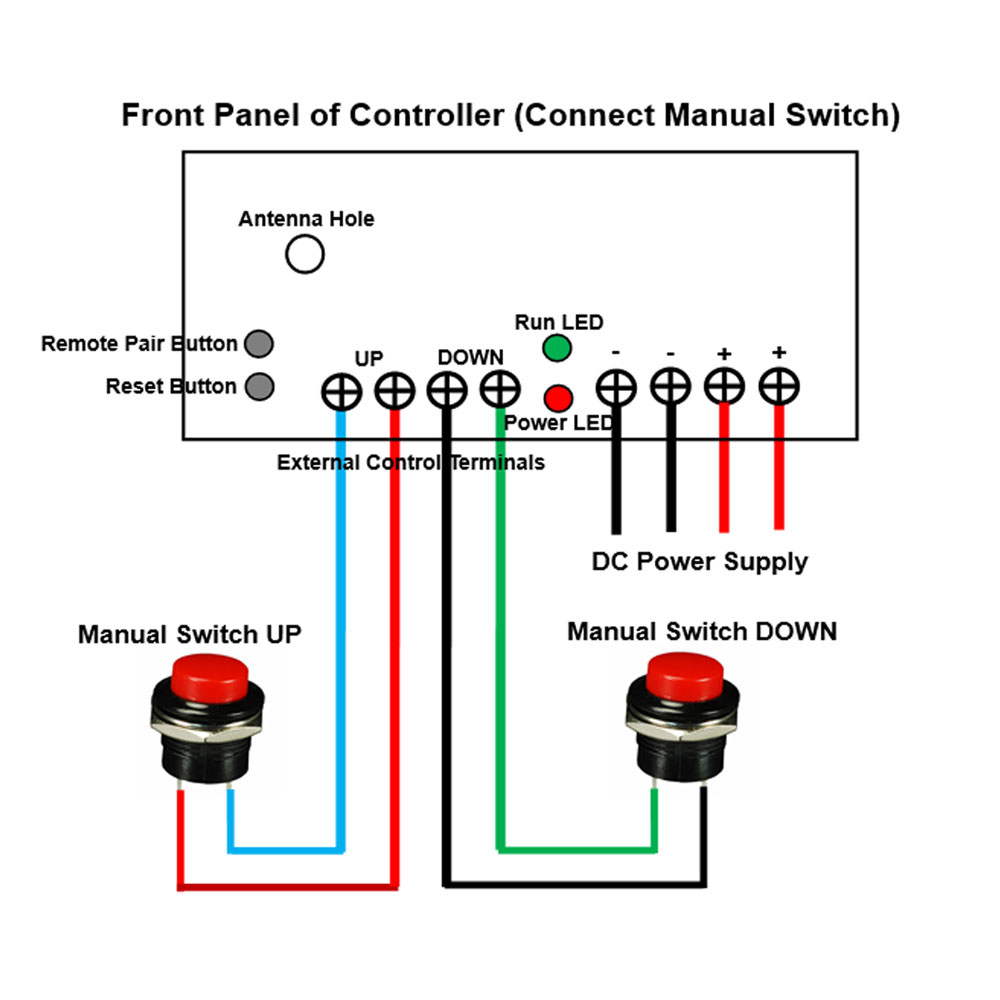

Two selectable external control functions: manual switch function or limit
switch function, please select an external control function you need when
ordering.
With reset button.
When linear actuators move close to the end position, they will
automatically slow down to protect themselves.
When linear actuators are fully retracted, they will retain 1MM of travel to
protect themselves.
Parameters:
Working Voltage: 12~36 VDC, suitable for 12V or 24V linear actuator
Number of connecting linear actuators: 4
Maximum output current: 10A / channel
Working Frequency: 433.92 MHz
Two selectable control modes: Interlocking mode or Momentary mode, please
select a control mode you need when ordering.
Working Distance: 30m / 90ft (theoretically)

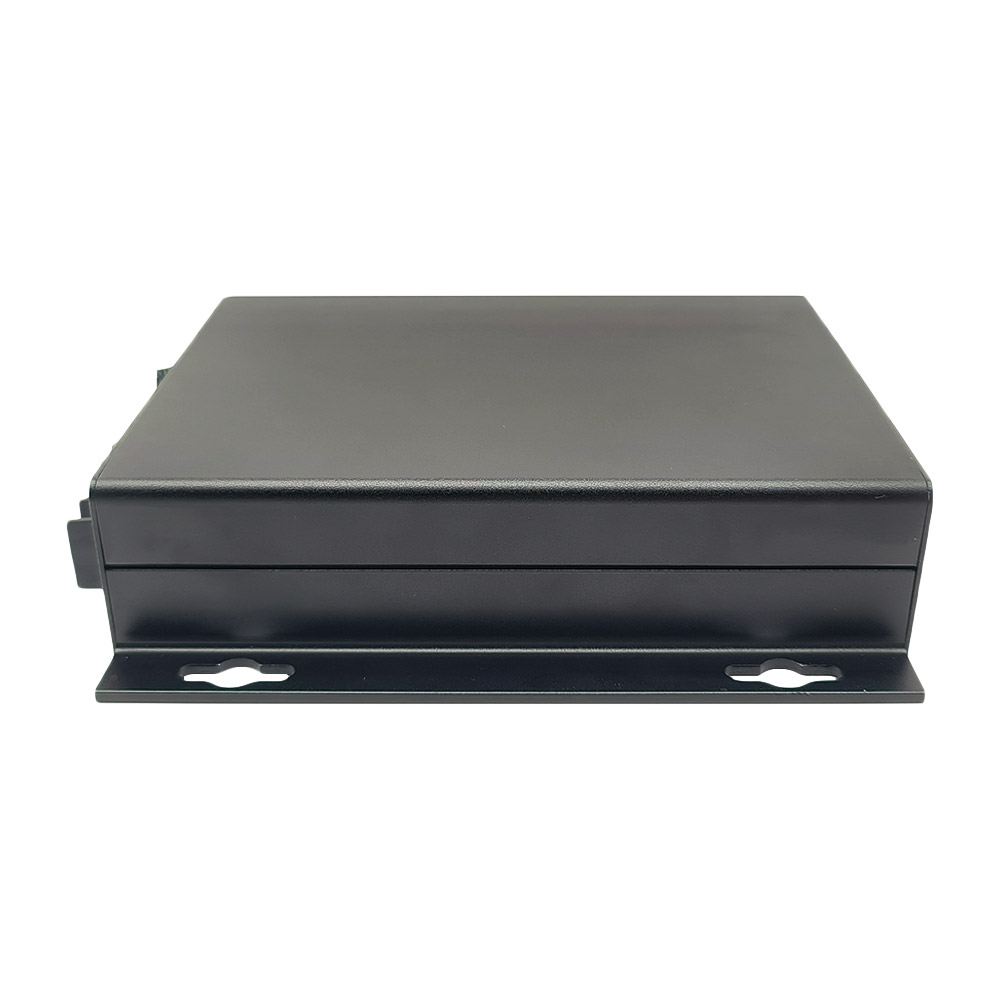

Case size: 158 x 150 x 40 mm (6.2 x 5.9 x 1.6 inches)
Operating Temperature: -20°C ~ +70°C Cable length of the touch control handle: 2000±10%MM [80 in]

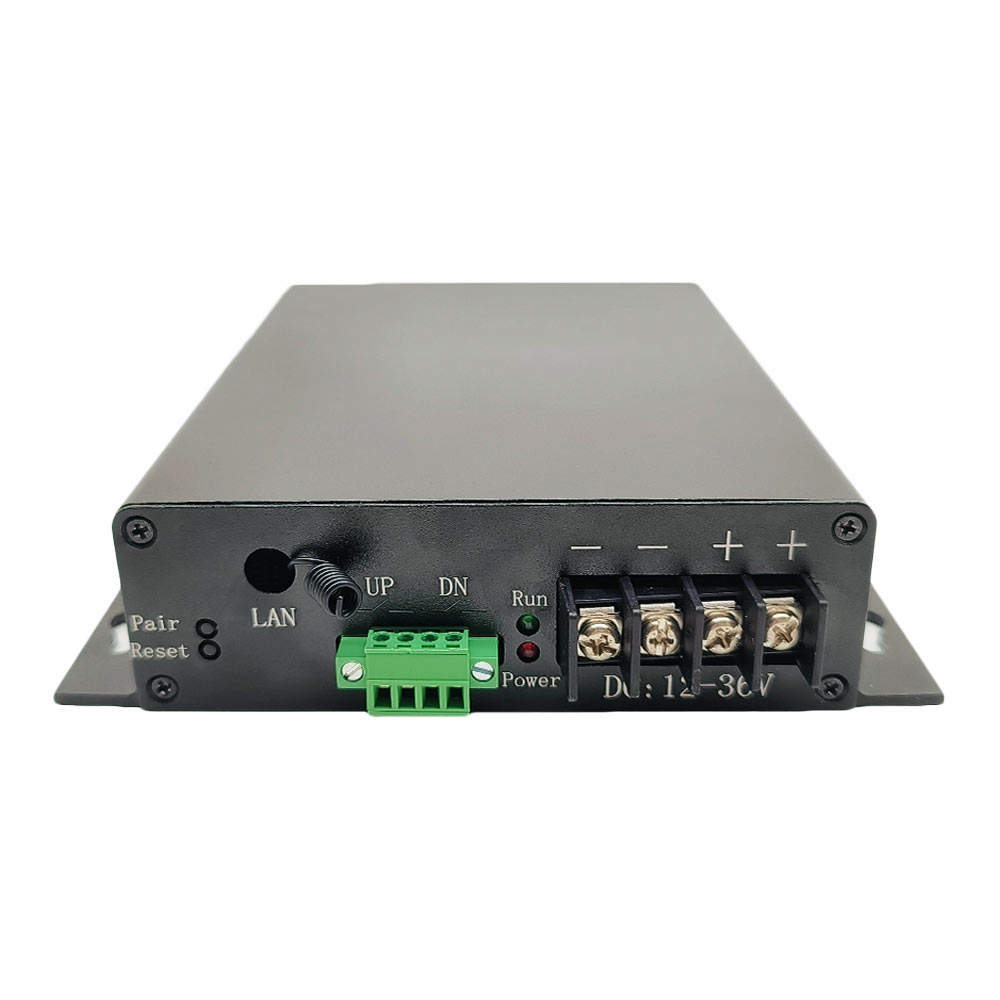

Connection:

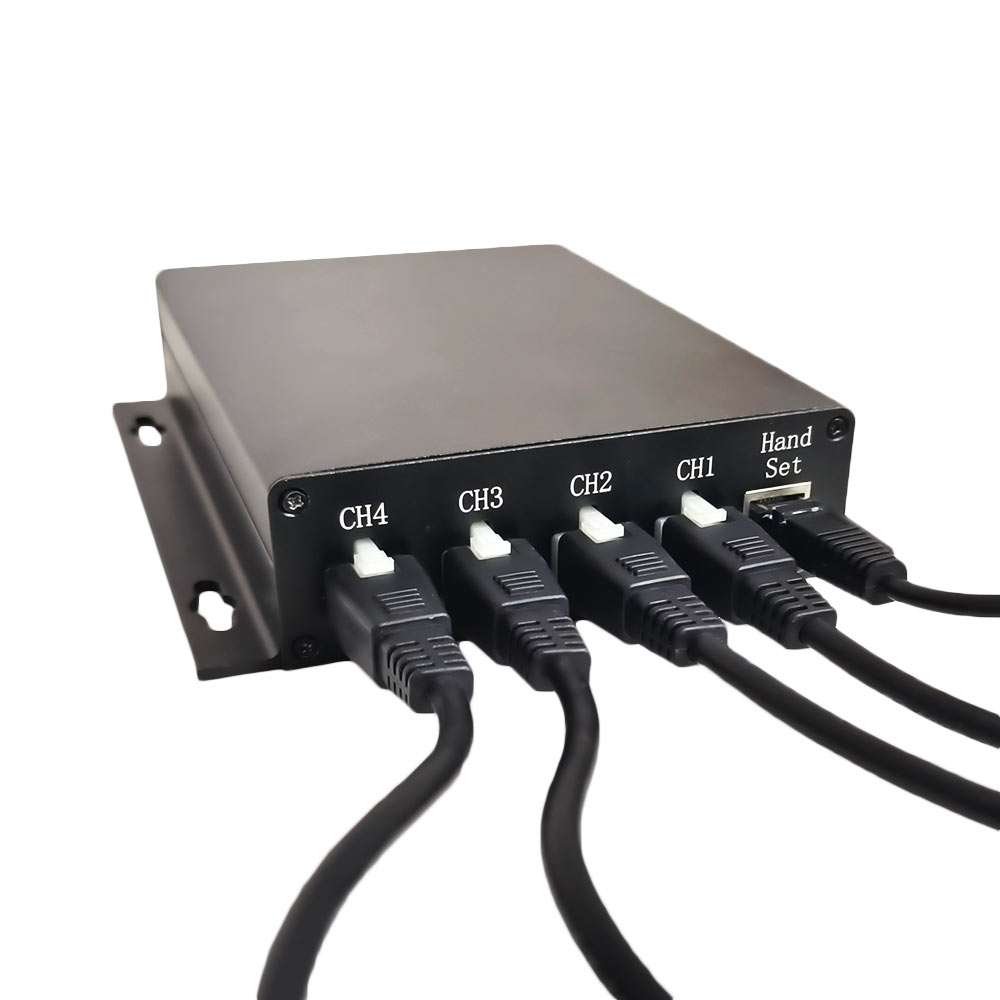

1) Plug the touch control handle into the port Hand Set of the controller.

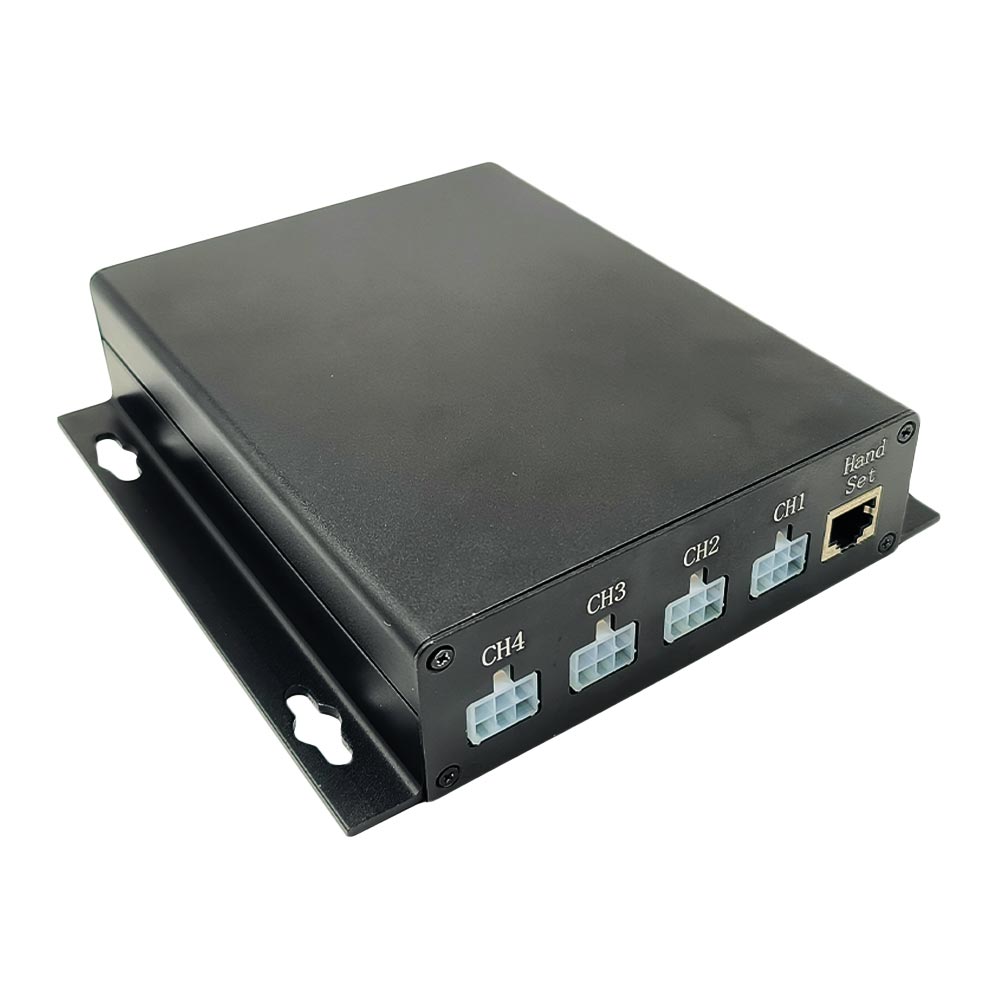

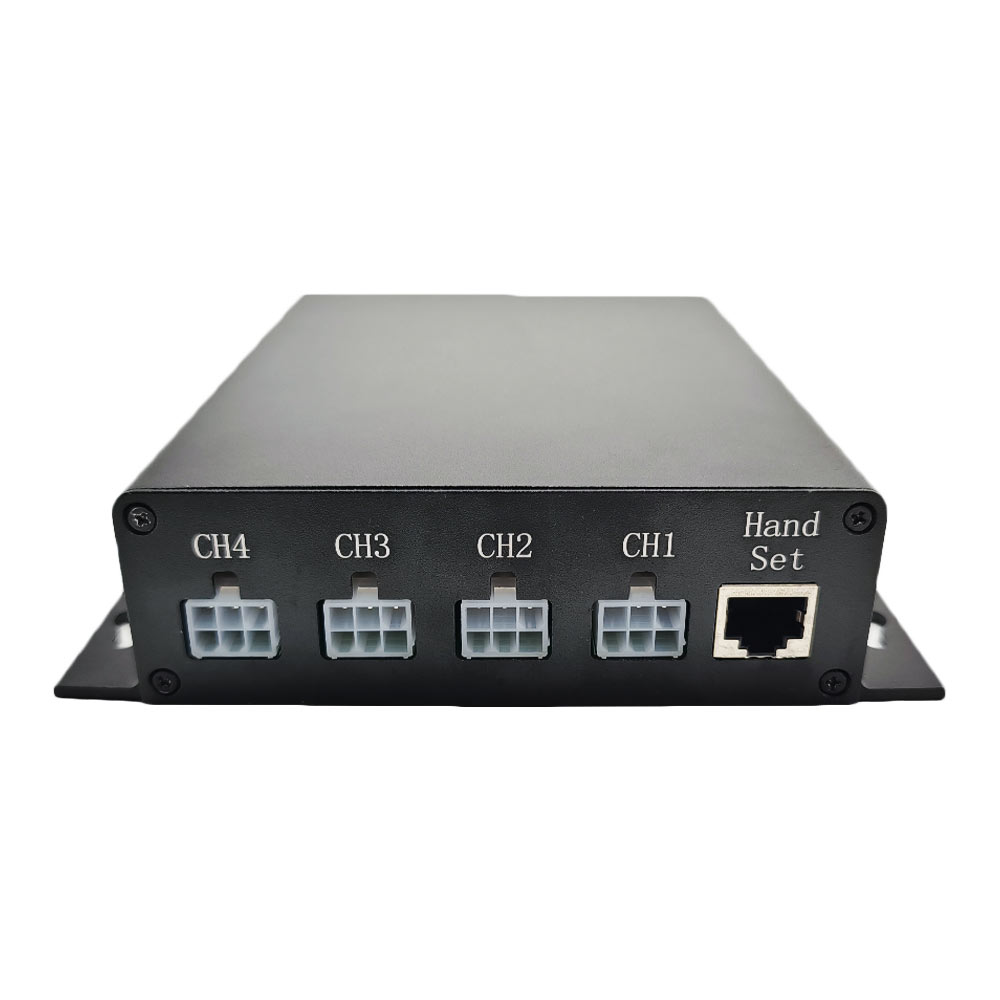

2) Plug four linear actuators into the ports CH1, CH2, CH3 and CH4 of the
controller.

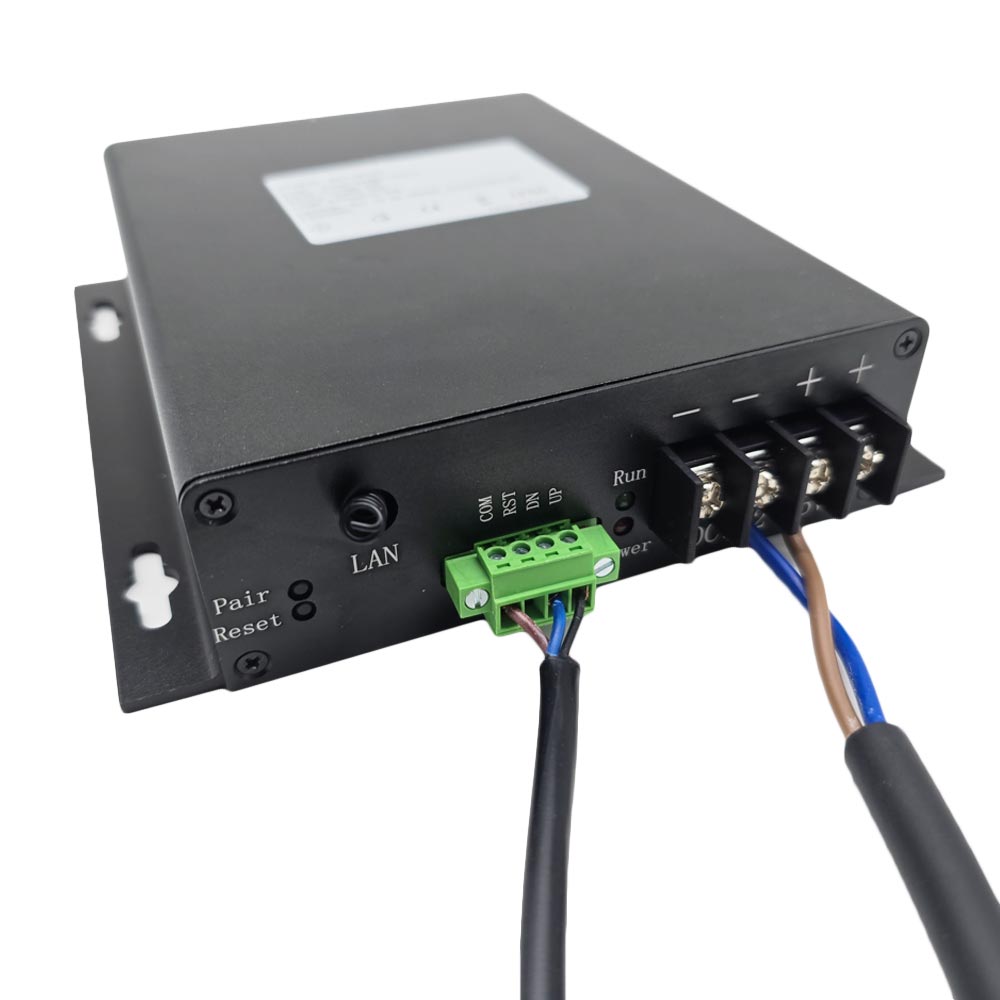

3) Connect the positive pole of DC power supply to the terminal <+> of the
controller, and connect the negative pole of DC power supply to the terminal
<-> of the controller. CAUTION: Do not connect AC power directly to the controller!
Operation:
1. Operation via the touch control handle:
Attention: The handle is operated by touch control. The touch sensitivity
can be automatically calibrated when powered on for the first time. Hands
are prohibited from touching the handle when powered on to prevent
interference with the sensitivity calibration and affect the operating
sensitivity.
1) Press and hold the ▲ button of the control handle, four linear actuators
extend outward at the same time; Release the button, four linear actuators
stop at the same time.
2) Press and hold the ▼ button of the control handle, four linear actuators
retract inward at the same time; Release the button, four linear actuators
stop at the same time.
3) Press any button 1, 2, or 3 on the control handle, four linear actuators
will automatically move to the position memorized by that button and then
automatically stop.
Note: You will need to first memorize three positions into these three
buttons.
4) The LED display on the control handle will display the stroke position
data in real time. For example, the number 03.5 means that the linear
actuators have reached the stroke position of 35MM.

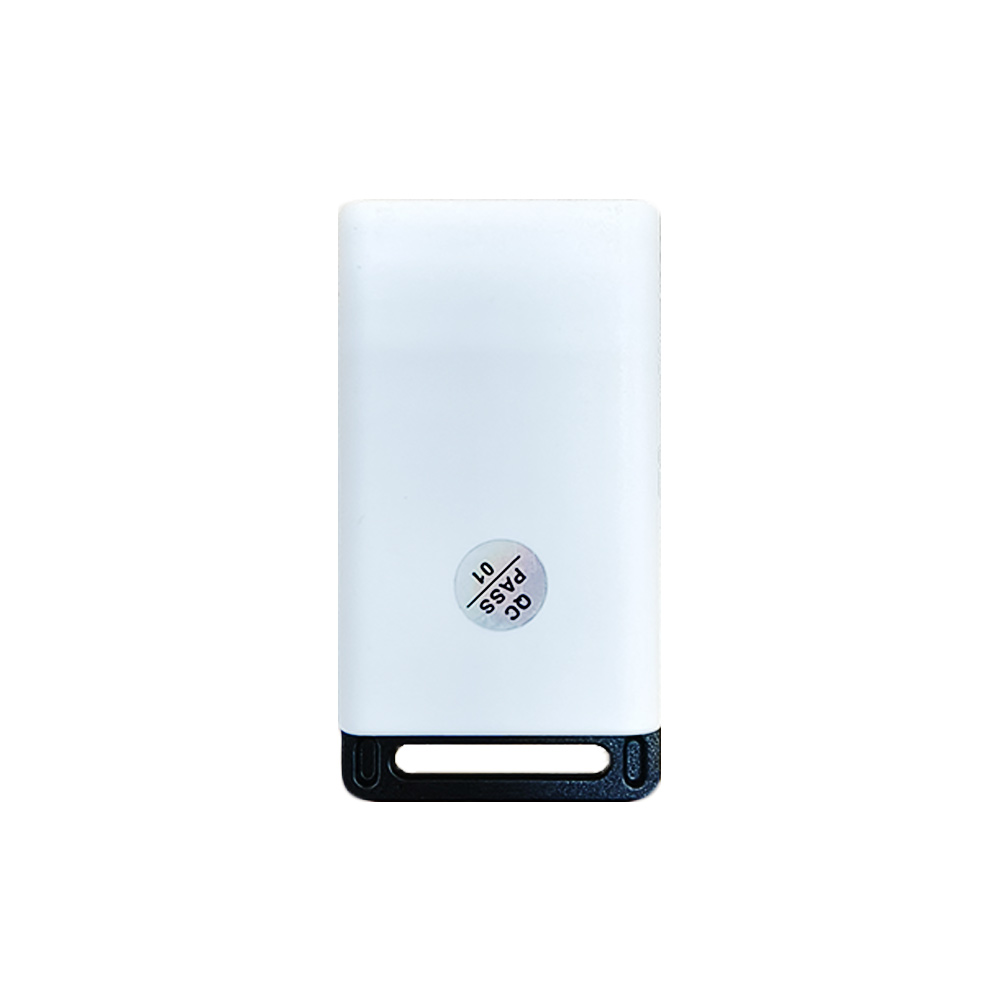

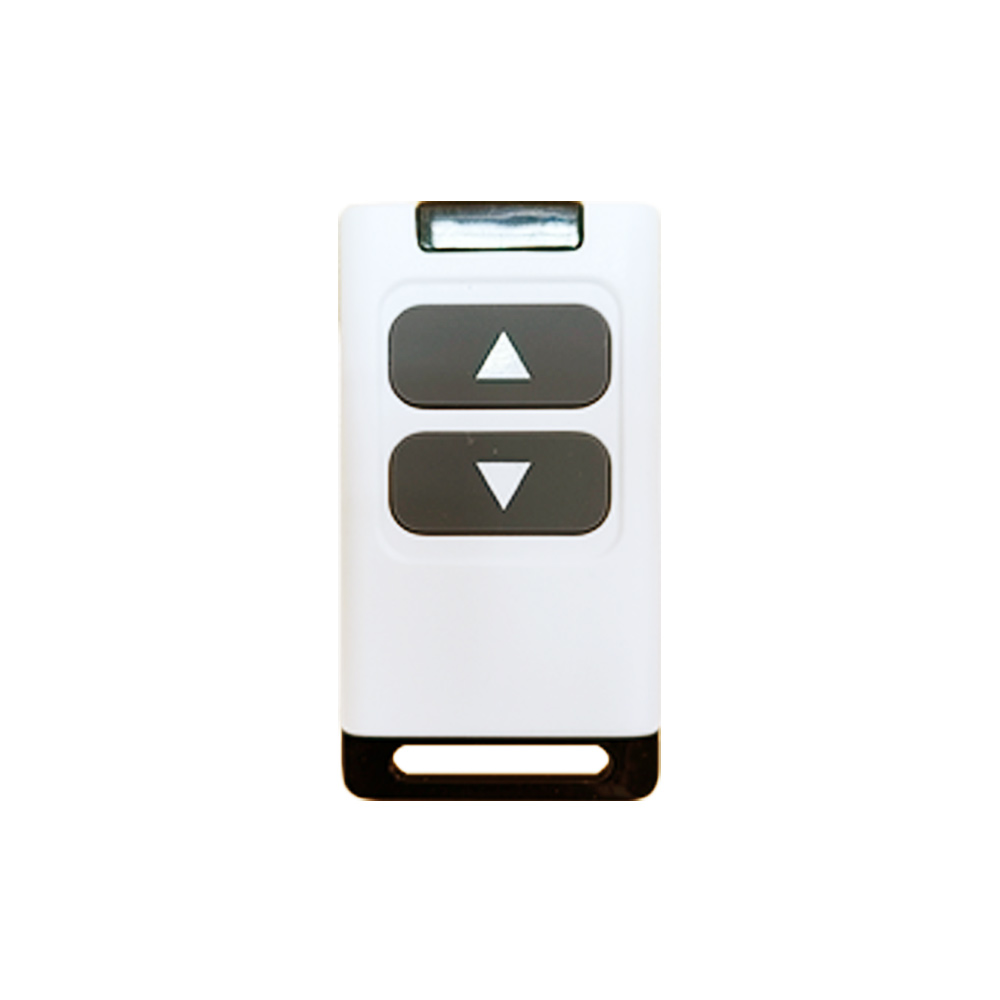

2. Operation via the remote control:(The remote control of the
synchronous controller has two control modes, interlocking mode and
momentary mode, please select a control mode you need when ordering.) 2.1 Momentary Control Mode:
1) Press and hold the button ▲ of the remote control, four linear actuators
extend out at the same time; Release the button, four linear actuators stop
at the same time.
2) Press and hold the button ▼ of the remote control, four linear actuators
retract inward at the same time; Release the button, four linear actuators
stop at the same time.
2.2 Interlocking Control Mode:
1) Press the button ▲ of the remote control, four linear actuators extend
out at the same time, they will reach the maximum stroke at the same time
and stop automatically. During operation, you can also press any button of
the remote control to stop four linear actuators at the same time.
2) Press the button ▼ of the remote control, four linear actuators retract
inward at the same time, they will fully retract at the same time and stop
automatically. During operation, you can also press any button of the remote
control to stop four linear actuators at the same time.
Two selectable external control functions:
The external control terminals offer a choice of two functions: manual
switch function or limit switch function. When you choose the manual switch
function, you can connect one external manual switch (such as model 0040025)
to operate the linear actuators. When you choose the limit switch function,
you can connect two external limit switches (such as model 0010010) to
automatically stop the linear actuators.
1. Manual switch function:
When you choose the manual switch function, you can connect one external
manual switch (such as model 0040025) to this controller and then operate the
linear actuators through it.
1) The manual switch has an UP button and a DOWN button, and each button has two
normally open terminals 3 and 4.
2) Connect terminals 3 and 4 of the UP button to the two terminals of UP on the
controller, and connect terminals 3 and 4 of the DOWN button to the two
terminals of DOWN on the controller.
The operation:
1) Press the UP button of the manual switch, four linear actuators extend
outward at the same time. During operation, you can also press any button of two
manual switches to stop four linear actuators at the same time.
2) Press the DOWN button of the manual switch, four linear actuators retract
inward at the same time. During operation, you can also press any button of two
manual switches to stop four linear actuators at the same time.
2. Limit switch function:
When you choose the limit switch function, you can connect two external limit
switches with normally open contact (such as model 0010010) to this controller
and then automatically stop the linear actuators through it.
1) You can connect two limit switches, each limit switch has two normally open
terminals.
2) Connect two normally open terminals of a limit switch to terminals UP and COM
on the controller, connect two normally open terminals of another limit switch
to terminals DOWN and COM on the controller.
The operation:
1) When four linear actuators extend outward, if the limit switch is triggered,
it will connect two terminals UP and COM, then four linear actuators will stop
automatically.
2) When four linear actuators inward retract, if the limit switch is triggered,
it will connect two terminals DOWN and COM, then four linear actuators will stop
automatically.
How to memorize three stroke positions:
1) The controller can memorize total three stroke positions, and each button
memorizes one stroke position.
2) First operate four linear actuators to the first suitable stroke position
that you need to store, then press and hold the button 1 of the control
handle for about 5 seconds, the stroke value on the LED display will flash.
This means that the current stroke position is already stored in button 1.
3) You can continue to store the other two stroke positions into the button
2 and 3 by following the operation above.
Reset Function:
When the LED display on the control handle shows the fault code, you need to
reset the system as follows.
Reset operation: Press and hold the <R> button of the control handle or
press and hold the <Reset> button on the controller, or press and hold the ▲
and ▼ buttons on the remote control at the same time, until all linear
actuators are reset to the bottom, and the LED display on the control handle
shows "00.1", then release the button.
How to pair the transmitter to the controller:
Notice: We have paired the transmitter to the controller before leaving the
factory. If you want to pair more transmitters, please follow the following
steps.
1) Press and hold the pairing button on the controller for 8-9 seconds,
until the green light flashes quickly, this indicates that the controller
enters the learning status.
2) Press any one button on the transmitter, this indicates that the pairing
is successful.
3) The controller can learn several transmitters with different codes.
How to delete all transmitters codes stored in the controller:
We have paired the transmitter to the controller, if you don’t want the
controller to work with the transmitter, you can delete all transmitters
codes stored in the controller.
Operation:
1) You need to open the controller case, then you can see a small RF
receiver module and there is a small learning button on the module.
2) Quickly and continuously press the learning button on the receiver module
8 times, then release the learning button, the signal LED on the receiver
module flashes 8 times and then goes off, this indicates that all stored
codes have been deleted successfully.
Note:
1. Each linear actuator would require two mounting brackets, one to fix the
head of linear actuator and another to fix the bottom of linear actuator. This
kit does not contain fixed mounting brackets, please buy them from the drop down
menu.
2. You need to use a DC24V/15A or DC12V/30A switching power supply to power this
kit. This kit does not contain this power supply, please buy it from the drop
down menu.
Production time:
The linear actuators are the customized products, and these products are not
in stock, we need to spend 3~7 working days to produce them according to the
specified parameters in your order.
Return or Exchange:
The Linear Actuators are the customized products, we need to produce them
according to the specified parameters in your order, so that we do not
accept returns or cancel orders. If customers order unsuitable linear
actuators themselves, we also do not accept exchanges, please understand.
We can provide 3D CAD model files in STEP format for linear actuators.
Please contact us by e-mail if you need them.
Package Include:
4 x Waterproof Linear Actuator J
1 x Synchronous Controller (One-Control-Four, For 4 Linear Actuators J with
Hall effect sensors)
1 x Touch Control Handle
1 x Remote Control: CF-2
1 x User manual
Note: The remote control of the synchronous controller has two control
modes, interlocking mode and momentary mode, please select a control mode
you need when ordering. And the synchronous controller has two selectable
external control functions, manual switch function or limit switch function,
please select an external control function you need when ordering.
