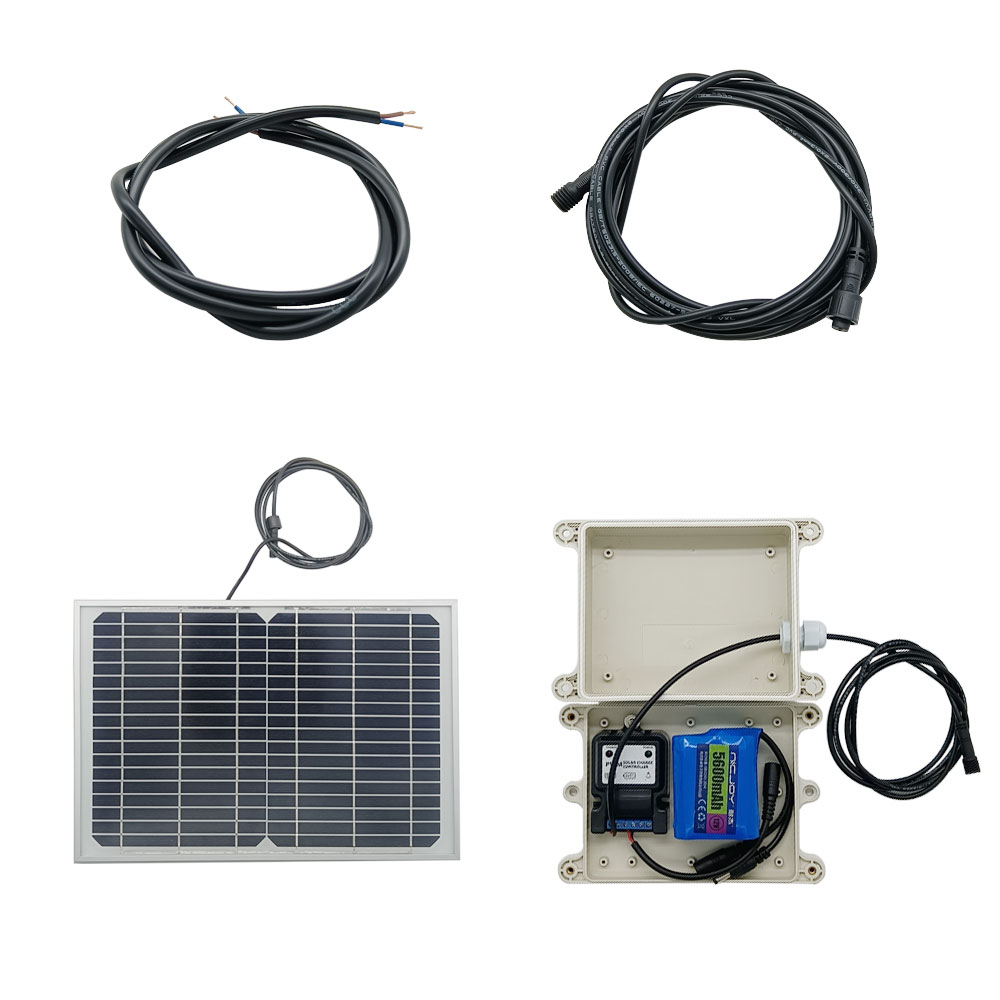

Package Include:

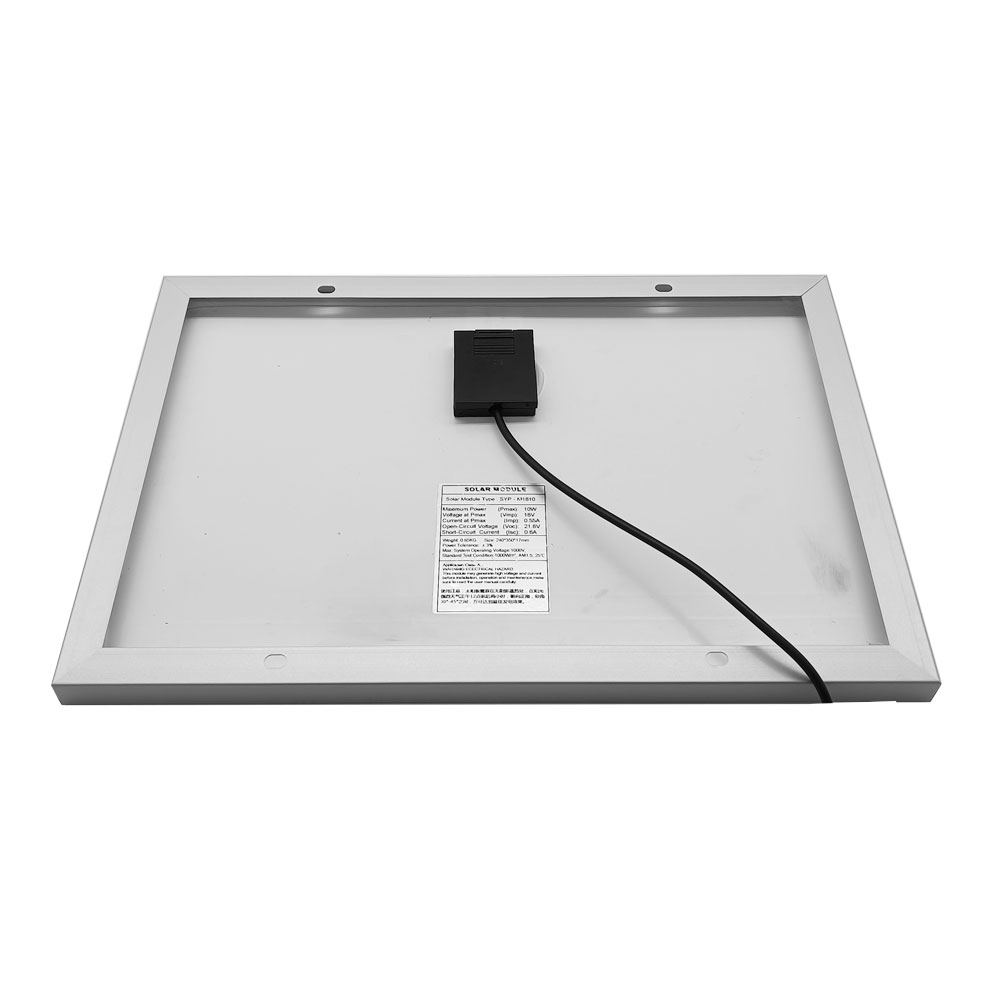

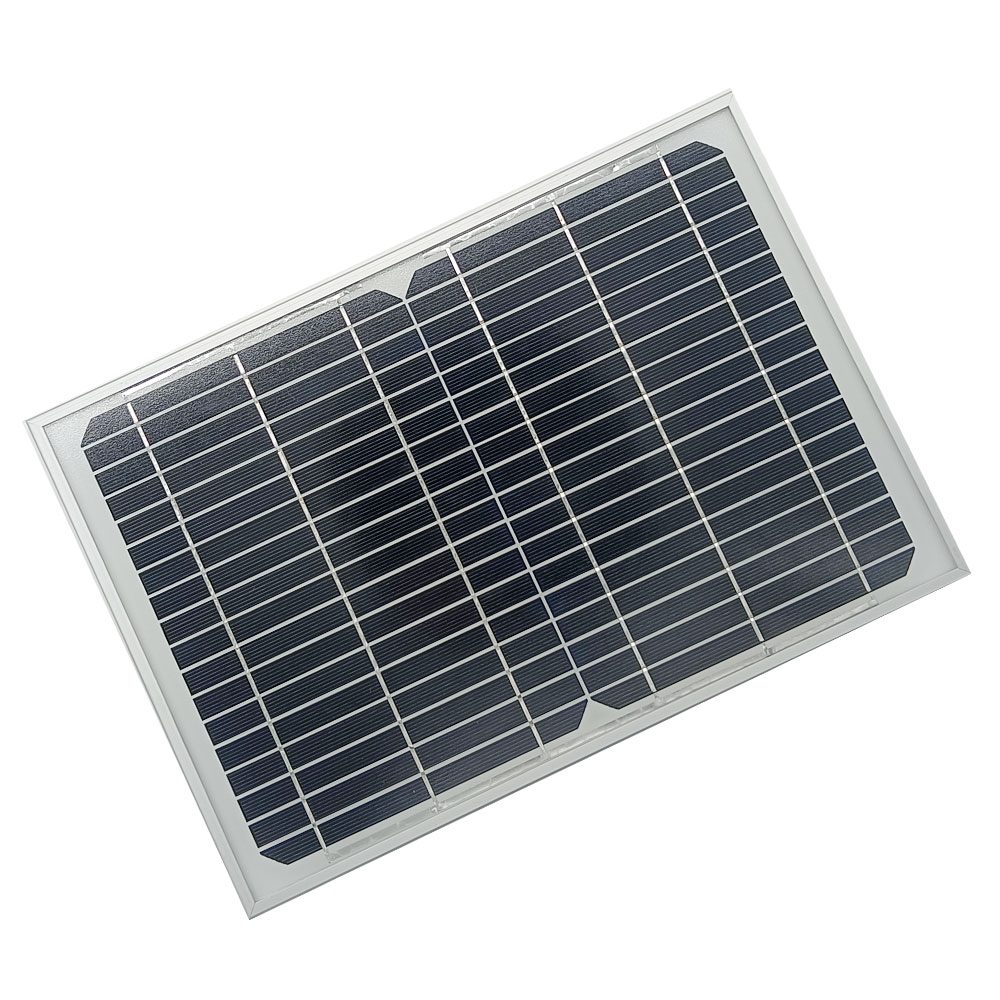

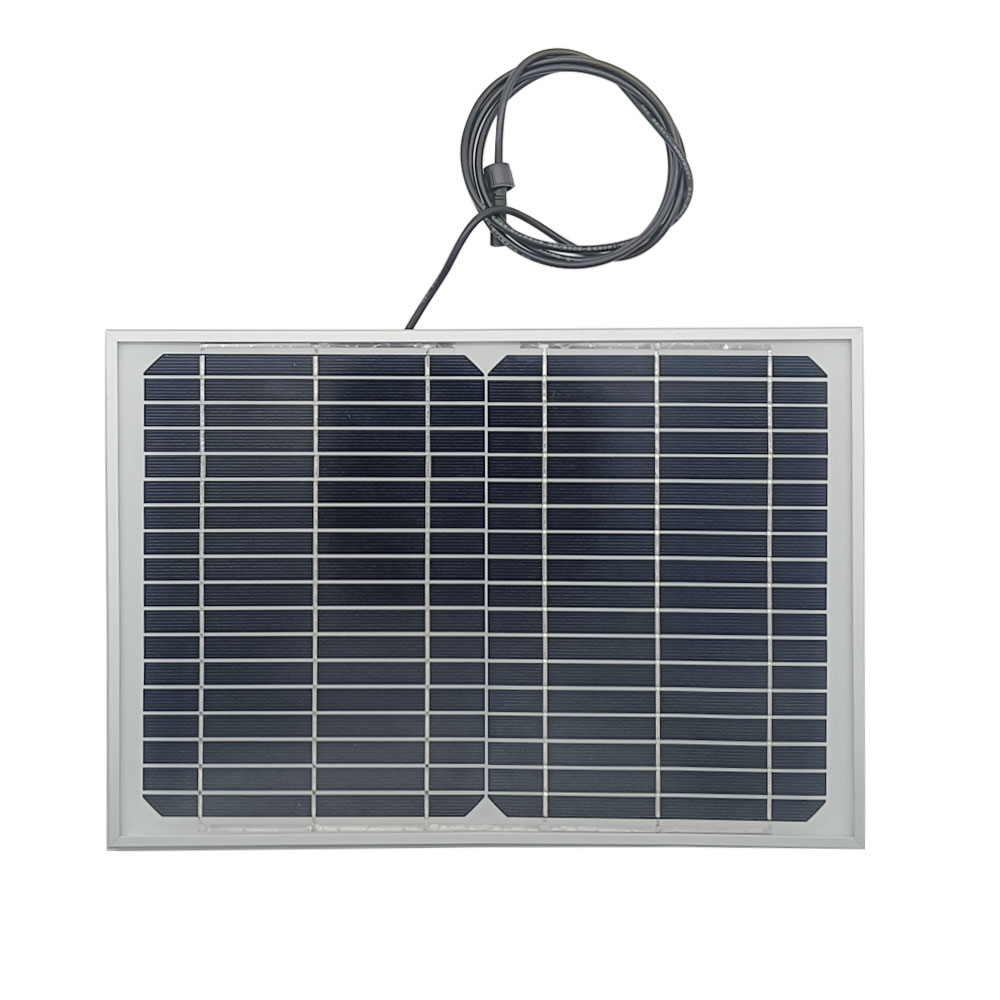

1 x 18V/10W Monocrystalline silicon solar panel
1 x 11.1V/3A Solar charge controller (special for 12V lithium battery)

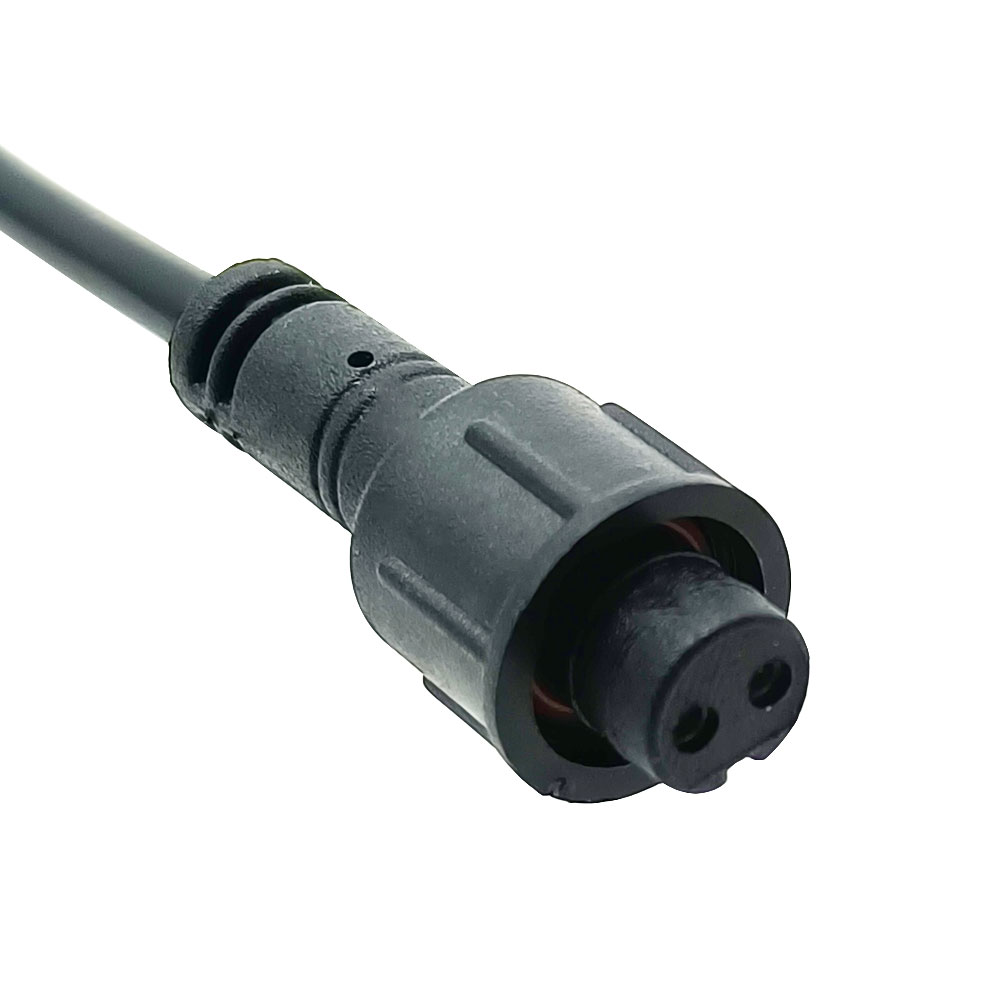

1 x 1.5 Meters cable with waterproof female plug (for solar panel)
1 x 1.5 Meters cable with waterproof male plug (for solar controller)

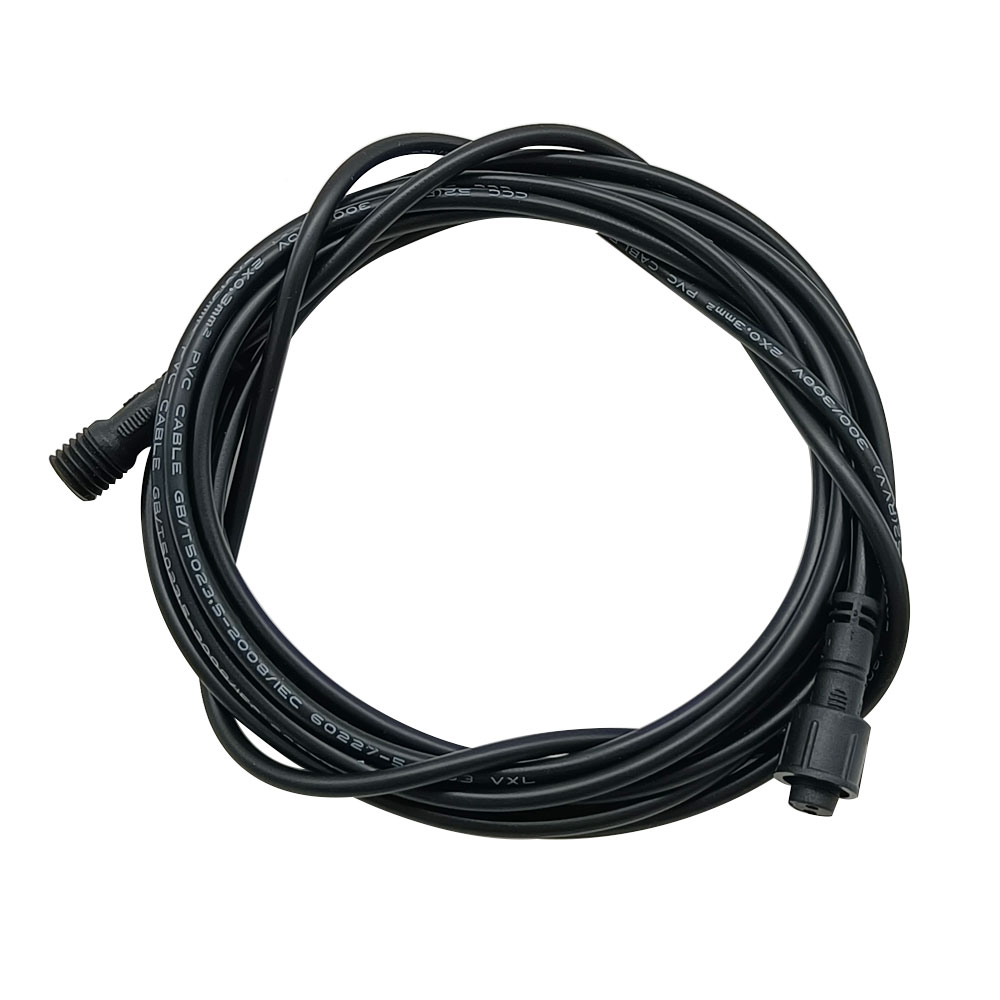

1 x 3 Meters extension cable with waterproof male and female plug
1 x 15CM 5.5*2.1 female power cord (for connecting lithium battery to solar
controller)

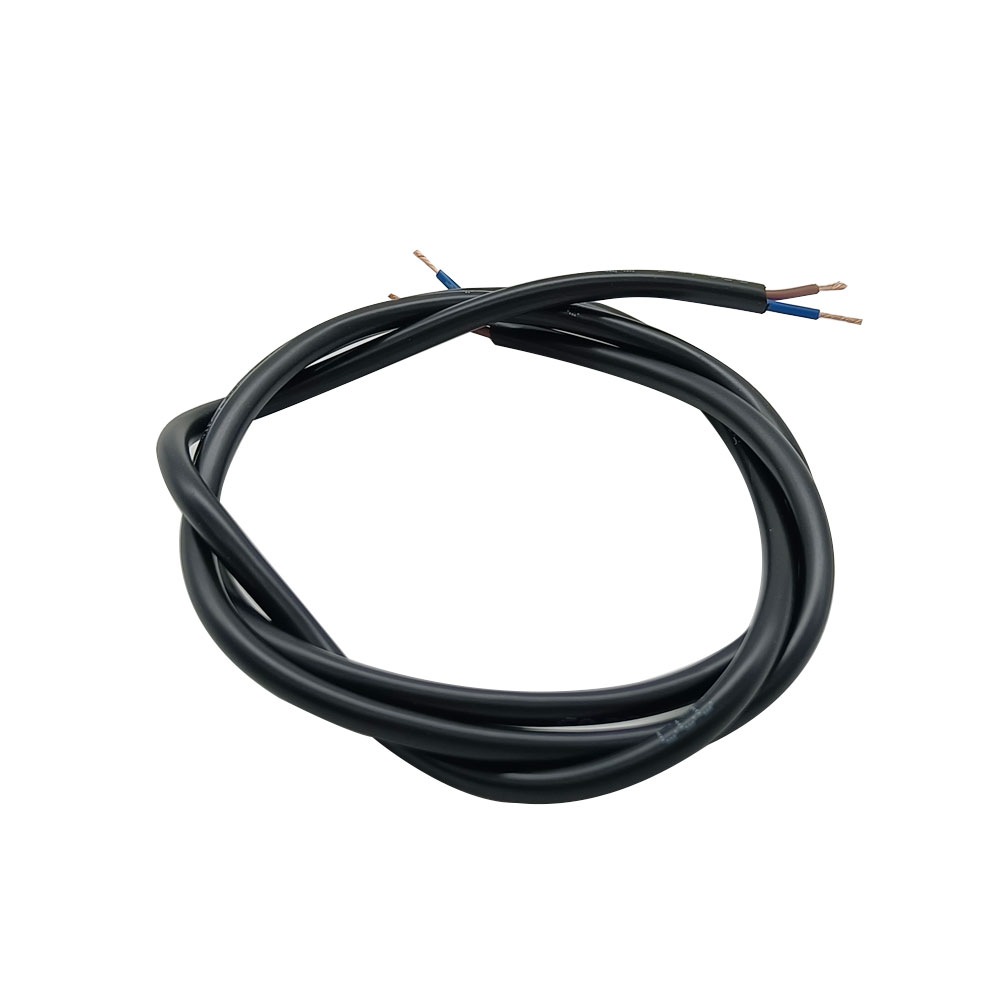

1 x 1 Meter 2-core cable (for connecting customer load to solar controller)
1 x 12V/5600mAh lithium battery

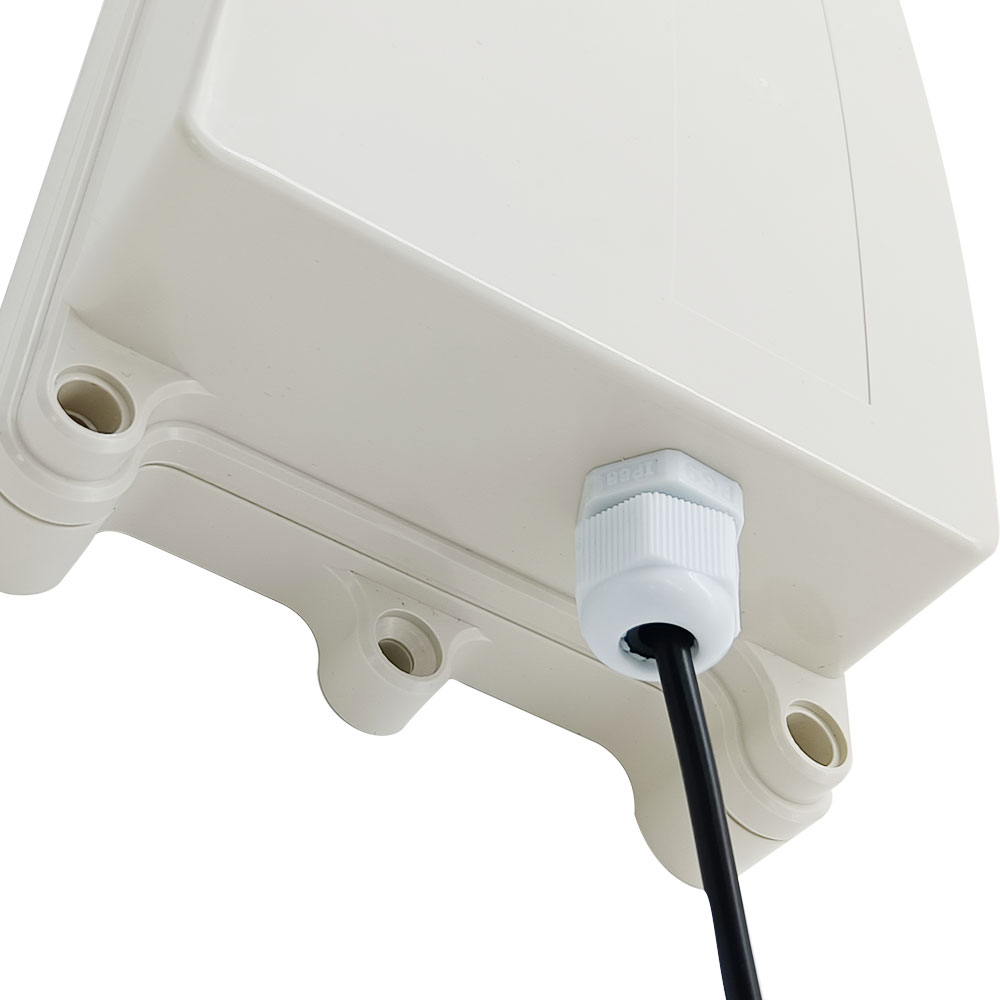

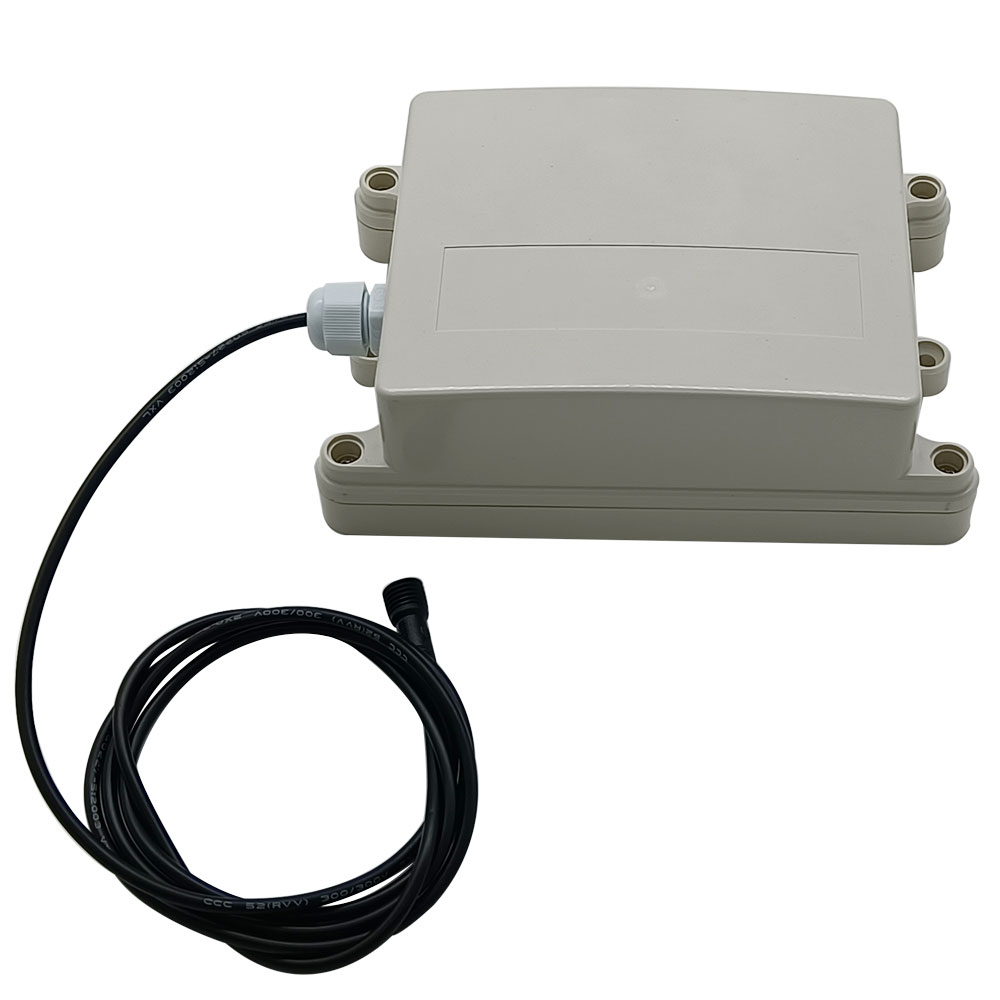

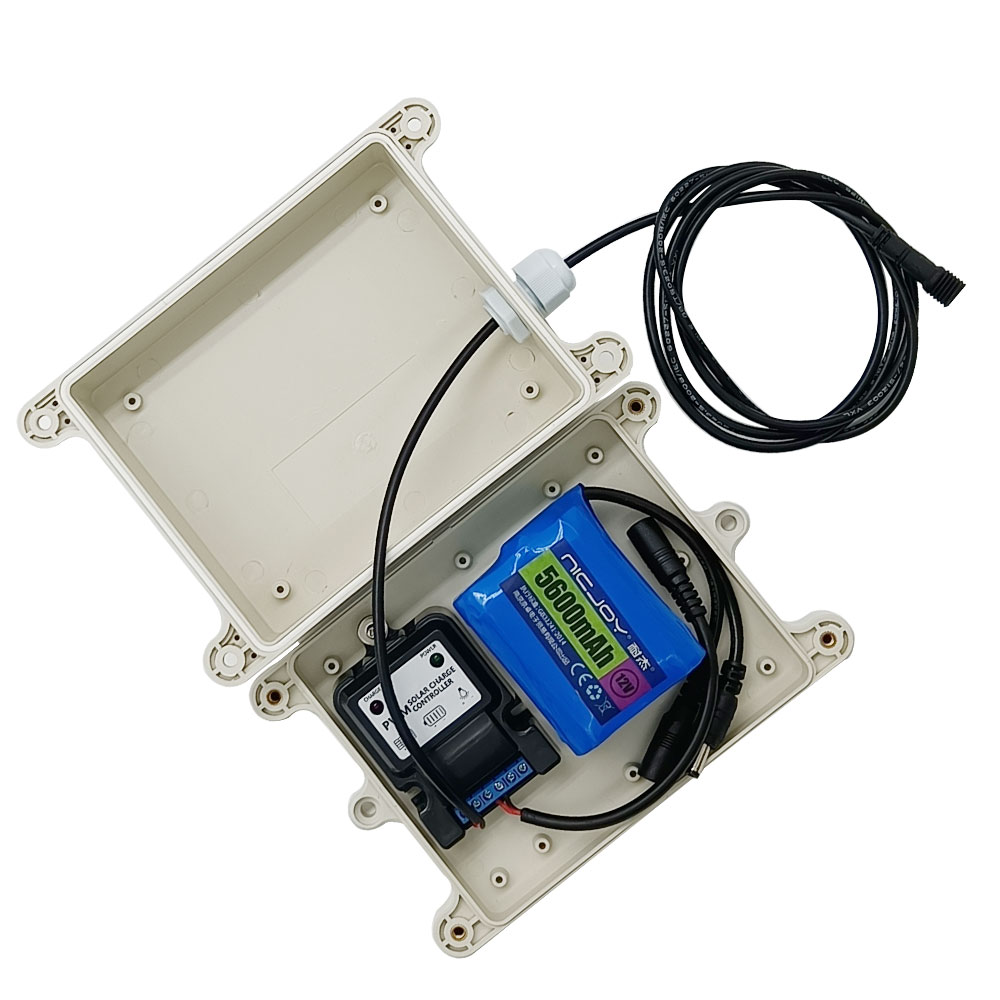

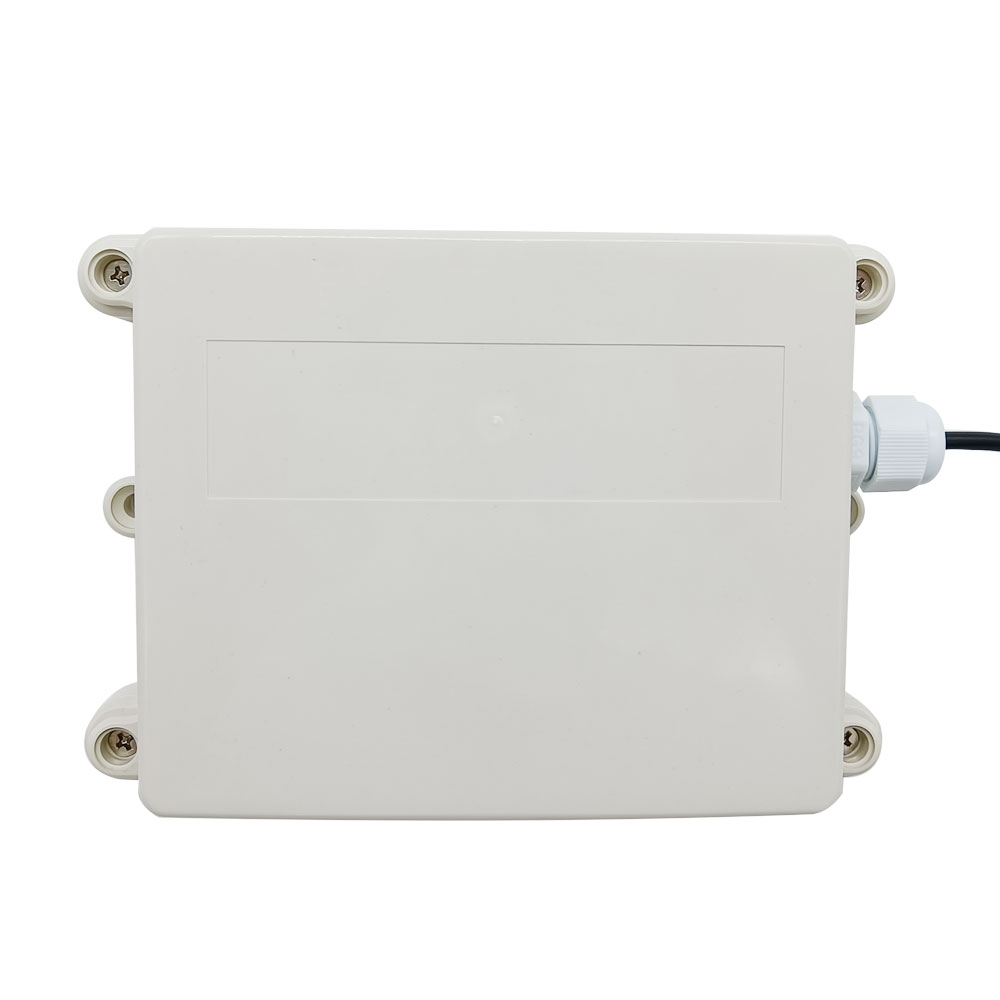

1 x Waterproof case with waterproof connector
1 x User manual
Applications:
It is important electric parts for transferring the sun light power into
electrical power for your application.
With a built-in 12V lithium battery, it is a complete solar panel kit that
can be used as a power source for our wireless transmitter or receiver.
Suitable for all kinds of small power appliances, such as emergency lights,
advertising lights, traffic lights, household lights, electric fans, solar
water pumps, solar streetlamps, wireless control devices.
Solar Panel:
Max Power: 10W
Max Output Voltage: 18VDC
Max Output Current: 550MA
Open Circuit Voltage: 21.6VDC
Short Circuit Current: 600MA
Power Tolerance: ±3%
Operating Temperature: -20°C ~ +70°C
Size: 310 x 210 x 17 mm (12.2 x 8.3 x 0.7 inches)
Lightweight design, 3.2MM tempered glass package.
Frame: Anodized aluminum alloy
Monocrystalline silicon material.
Waterproof laminated panel construction.
Includes 150 CM cable with waterproof female plug.
3 year warranty.
High conversion rate, high efficiency output.
100% power output - clear sky midday sun with the panel fully tilted toward
the sun's position in the sky.
70-80% power output - clear sky midday sun but with the panel laid flat.
40-60% power output - thin cloud, or intermittent small clouds.
10-20% power output - midday overcast sky or rainy conditions.

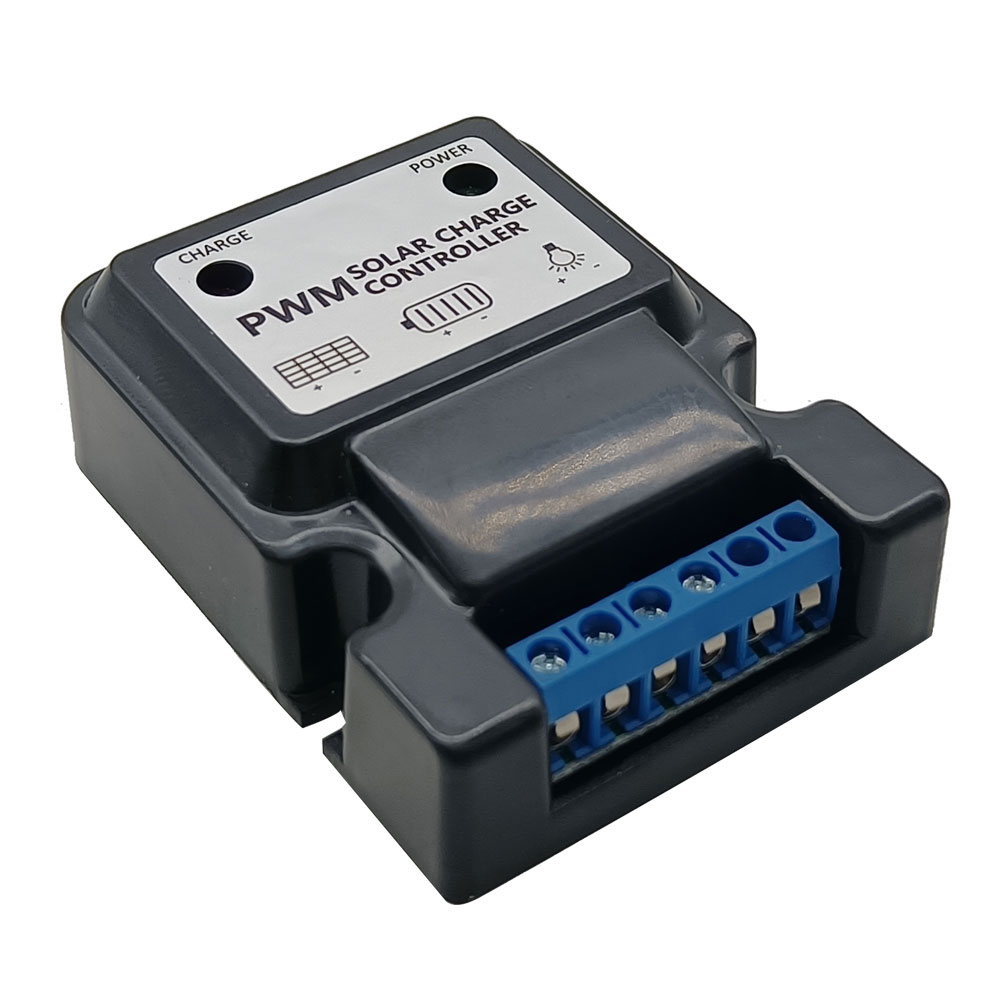

Solar Charge Controller:
Rated Voltage: 11.1V
Charge Cut-off Voltage: 12.6V
Discharge Cut-off Voltage: 9.6V
Max Solar Panel Voltage: 30V DC
Max Charging Current: 3A
Max Load Current: 3A
Static Current: ≤3mA
Charging Mode: PWM
Fully automatic operation
With charge LED indicator and power LED indicator
Three operating modes selectable: normally open mode, light control mode,
light and timer control mode.
Comprehensive protection: overcharge protection, over discharge protection,
overload protection, short circuit protection, reverse polarity protection.
Overload protection: When the load current reaches 4.5A, the controller
shuts down the load output after 5 minutes; when the load current reaches 9A
or above, the controller shuts down the load output immediately.
Operating temperature: -20°C ~ +70°C
Size: 77 x 51 x 22 mm (3 x 2 x 0.9 inches)
Lithium Battery:
Rated Voltage: 12V DC
Rated Capacity: 5600mAh
Cell Type: 18650
Cell Number: 6
Discharge Cut-off Voltage: 9V
Charge Cut-off Voltage: 12.6V
Maximum continuous discharge current: 9A
Maximum instantaneous discharge current: 18A
Cycle Life: More than 1000 times
Connector: DC 5.5*2.1mm Male Plug and Female Plug
With over current, overcharge, over discharge, and short circuit protection
Size: 56 x 40 x 67 mm (2.2 x 1.6 x 2.6 inches)
Wiring Sequence:

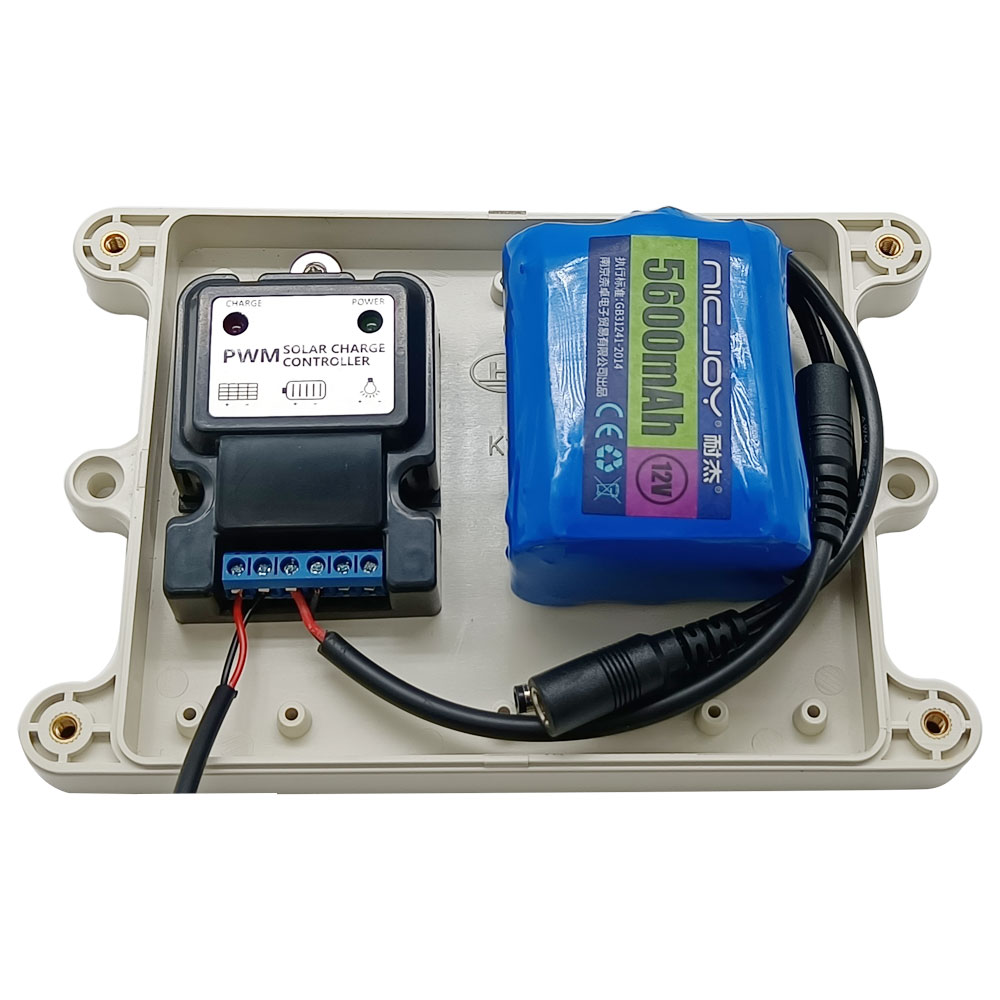

1. Connect 12V lithium battery to the controller as shown.
2. Connect the solar panel to the controller as shown.
3. Connect 12V load to the controller as shown. (No connection is required
without a load.)
Note: Disassembly sequence is reversed to wiring sequence.
