15000 Feet 5000 Meters 12 Channels RF Wireless Remote Control Switch System


Price: US $120.00

  • Model: 0020033 (S12UW-DC-ANT3 & CC-12)

Please Choose:





Qty:



Package Include:

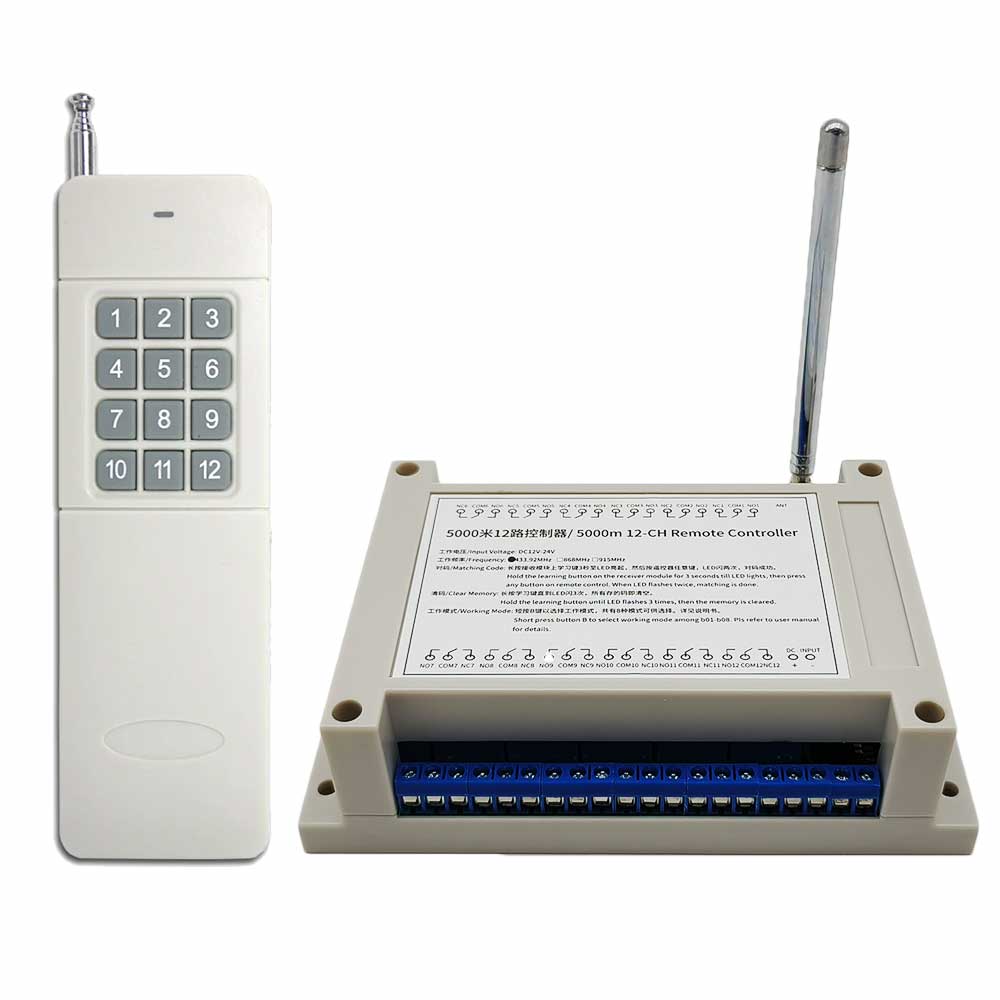

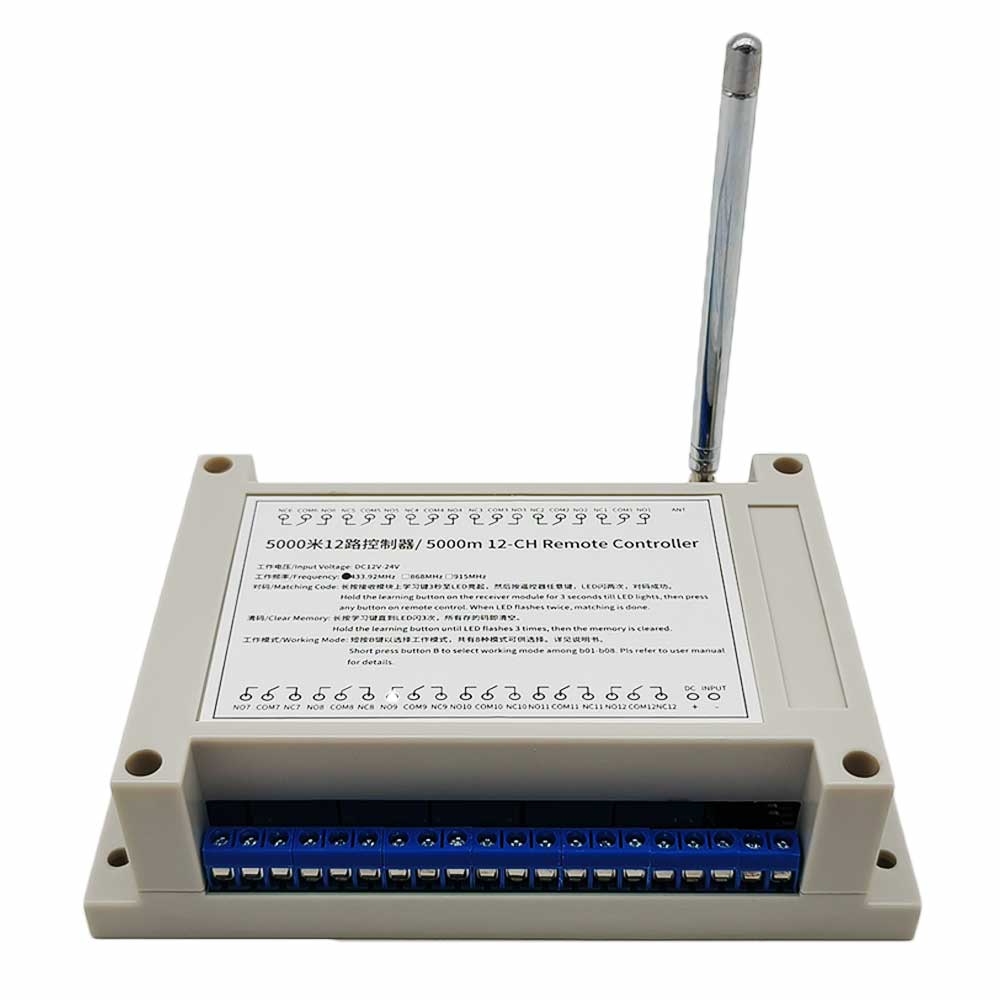

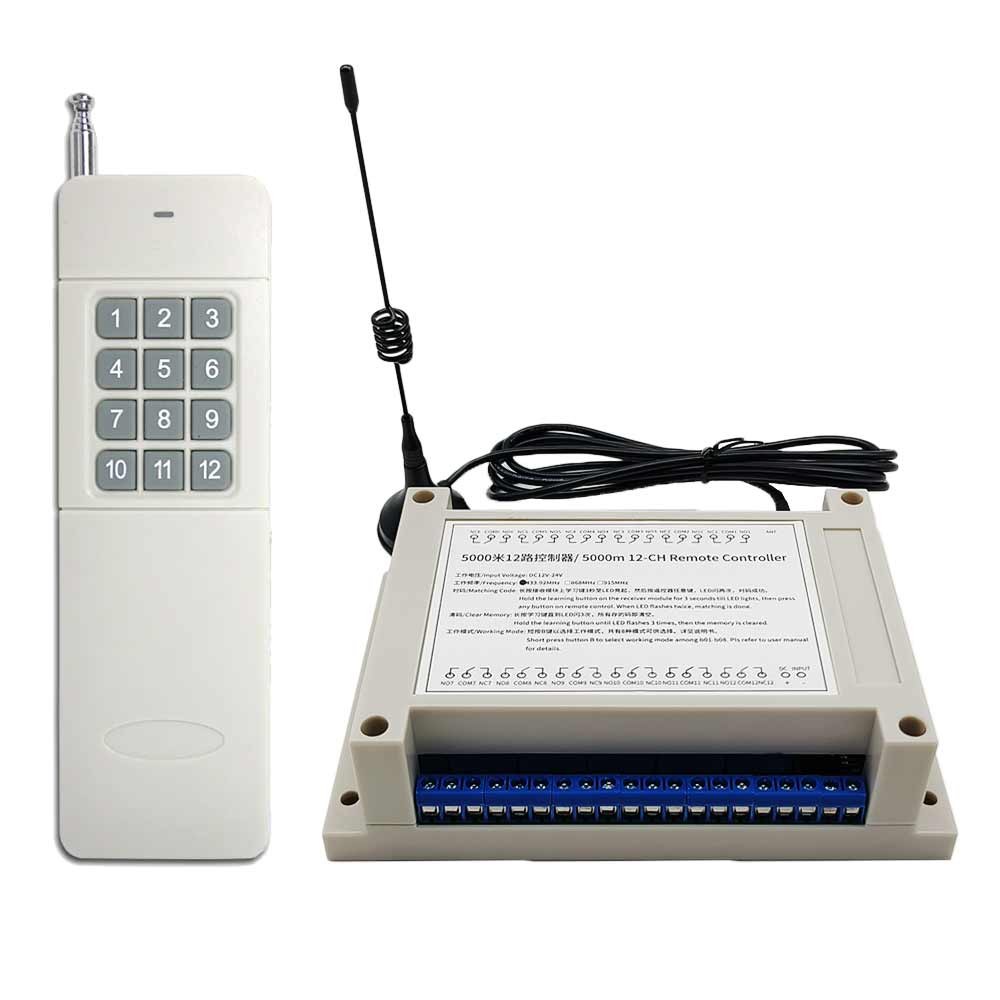

1 x Receiver: S12UW-DC-ANT3

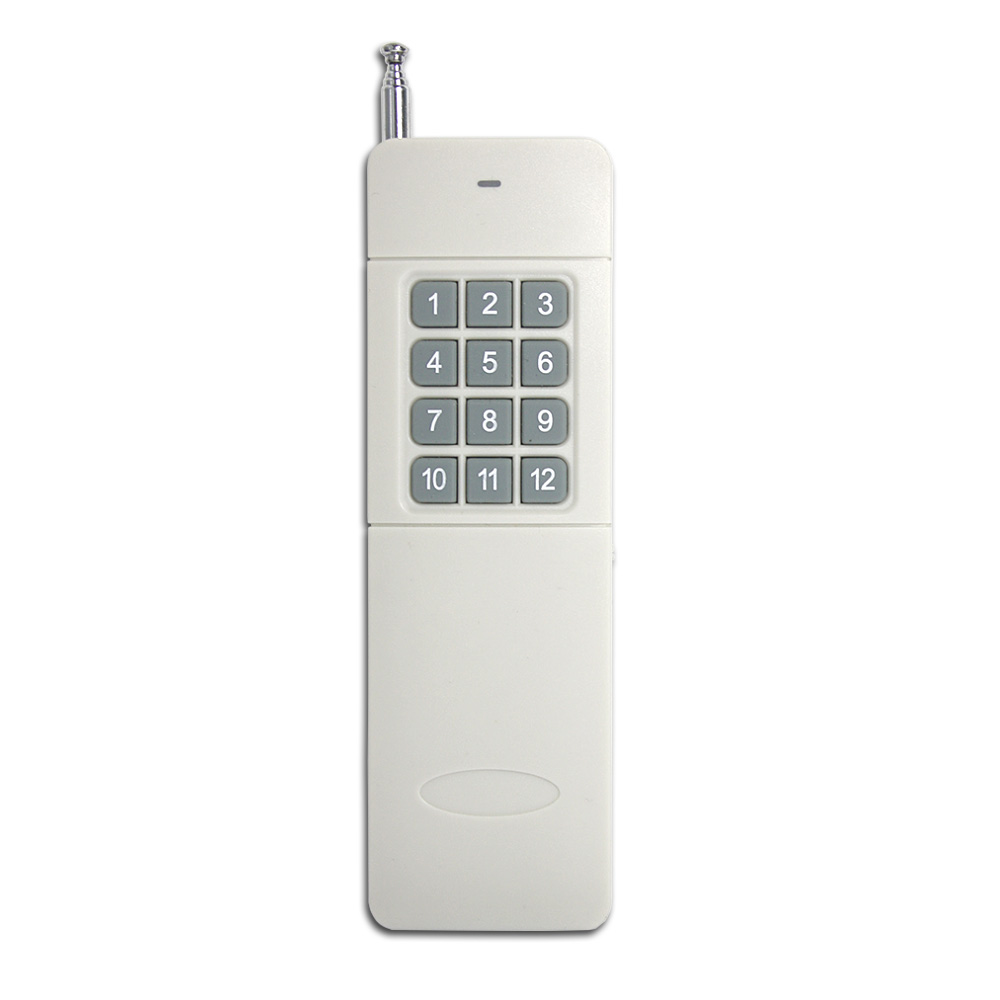

1 x Transmitter: CC-12
1 x User manual

Introduction:
This receiver is a super long range remote switch. It is developed by LORA (Long Range) wireless communication technology, so it has ultra-long working distance, ultra-high receiving sensitivity, superior anti-interference ability, and smaller power consumption. It uses a transceiver chip to implement bidirectional communication. It’s ideal working distance is up to 5 kilometers, which is an excellent device for remote control and long-distance communication.

Application:
This receiver is an electric device with 12 dry relay outputs, it and the transmitter form a wireless remote-control system. This system may be used in all types of industry automation, agriculture, business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote control different AC or DC equipment on land, water, and air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, winches, curtains, blinds, linear actuators, electric solenoid valves, and security alarm systems. The applications are endless.

Feature:
Wireless control, easy to install.
Super long working range: With the transmitter forming a complete set, the maximum working distance may reach 5000 meters in an open area.
Two operating voltage versions: DC 12V, 24V optional.
Relay Output: This receiver is dry relay output; it can be used to operate both DC and AC equipment. The output terminals are NO / NC (normally open / normally closed), serving as a switch.
With working mode button: 8 different working modes can be switched.
With working mode display screen: Different numbers on the LED screen correspond to different working modes.

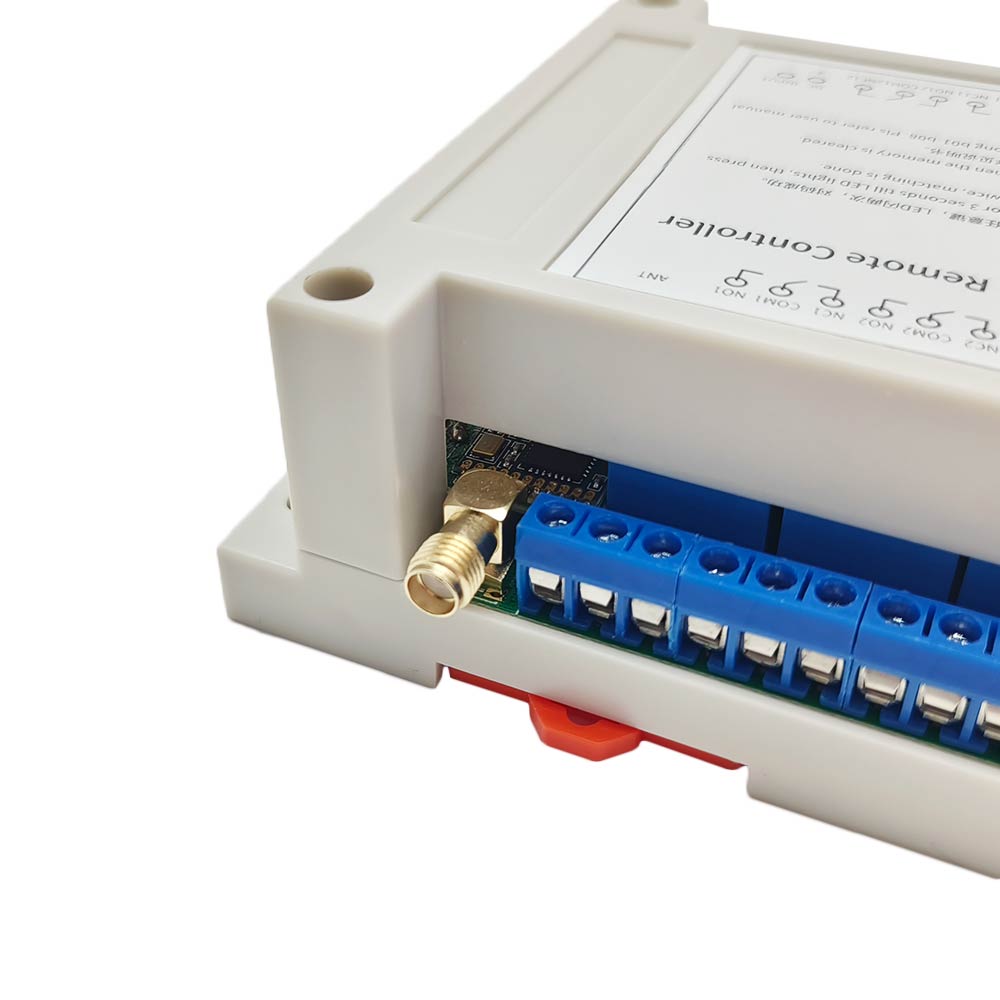

With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
Wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

Feedback Function:
The receiver and the transmitter have a Two-way working mode, so the user can know the working status of the receiver by the transmitter.
Two-way working mode: When the receiver is successfully triggered by the signal from the transmitter, it will immediately transmit a feedback signal to the transmitter. When the transmitter receives this signal, it will send out a buzzing sound to inform you that the receiver has been successfully triggered.

Receiver Parameters:
Model: S12UW-DC-ANT3
Operating Voltage: 9~28VDC
Working Frequency: 433.92 MHz
Quiescent Current: ≤10mA
Channel: 12 CH
Output Type: Dry Relays Output (With Normally Open and Normally Closed Terminals)
Maximum Load Voltage of Relay: 240VAC or 28VDC
Maximum Load Current of Relay: 10A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
8 Different Control Modes: Self-locking, Momentary, Interlocking, and 5 Mixed modes
Operating Temperature: -20 °C ~ +70 °C
PCB size: 122 x 87 x 18 mm (4.8x 3.4 x 0.7 inches)
Case size: 145 x 90 x 40 mm (5.7 x 3.5 x 1.6 inches)

Transmitter Parameters:
Model: 0021078 (CC-12)
Channel / Button: 12
Button Symbol: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12

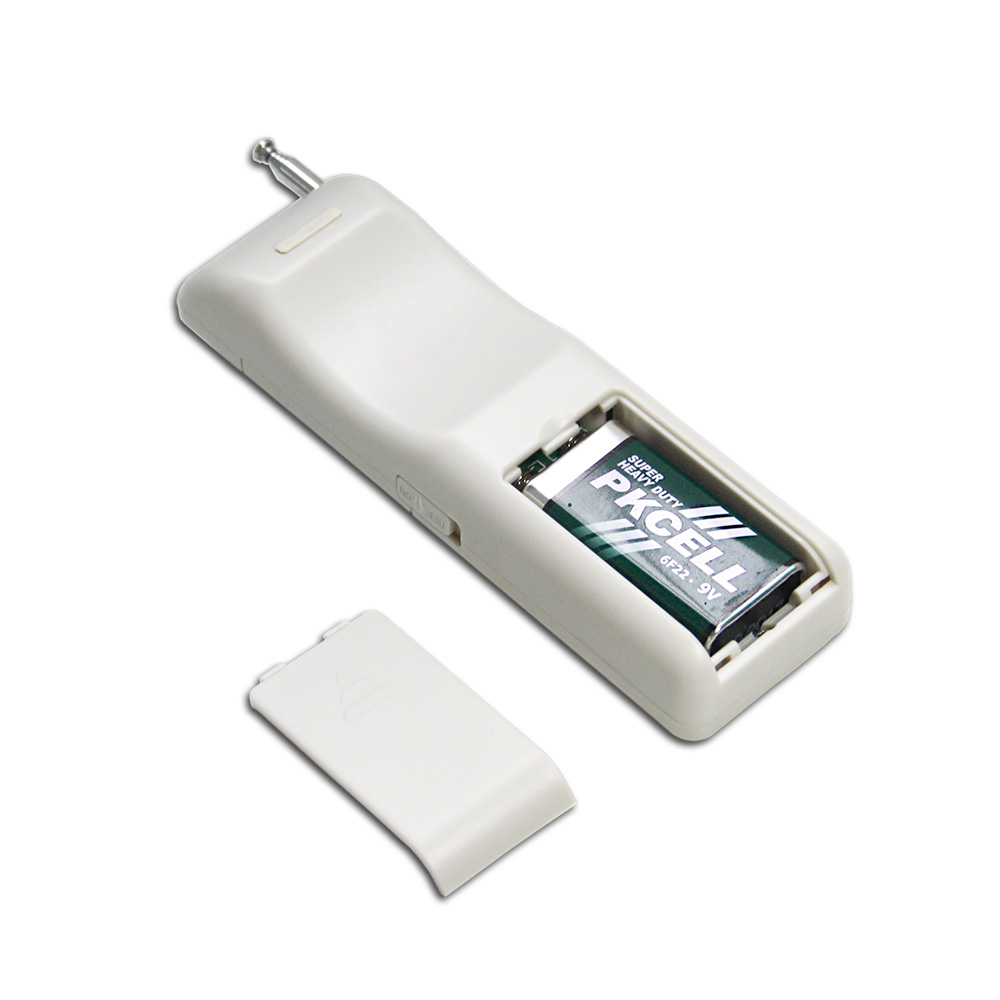

Operating Voltage: 9V (1 x 6F22-9V battery, can be used for 12 months)
Quiescent Current: 5μA
Working Current: 65mA (when the transmitter is transmitting the signal), 16mA( when the transmitter is receiving the signal).
Operating Frequency: 433.92 MHz
Modulation Mode: FSK + LORA
Feedback indication: buzzing sound
Transmitting Distance: 5000 meters / 15000 feet (theoretically)
With power switch on the side.
Operating Temperature: -20°C ~ +70°C
Unit Size: 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches)

Matching Transmitters:
This receiver only works with 5000m transmitters, such as model CC-12 (5000 Meter / 15000 feet range).

Super Long Working Range:
The receiver and the transmitter form a complete kit, the maximum working distance may reach 15000 feet or 5000 meters in an open area.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no interference. But in the practice, it will be hindered by trees, walls, or other construction, and will be interfered by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.

Usage:
The receiver can be used to control both 0~28VDC and 110~240VAC devices.
Notice: The receiver is dry relay output, not DC/AC power output. Initial state of relay output terminals: Terminals <NO> and <COM> are Normally Open; Terminals <NC> and <COM> are Normally Closed.

Wiring:

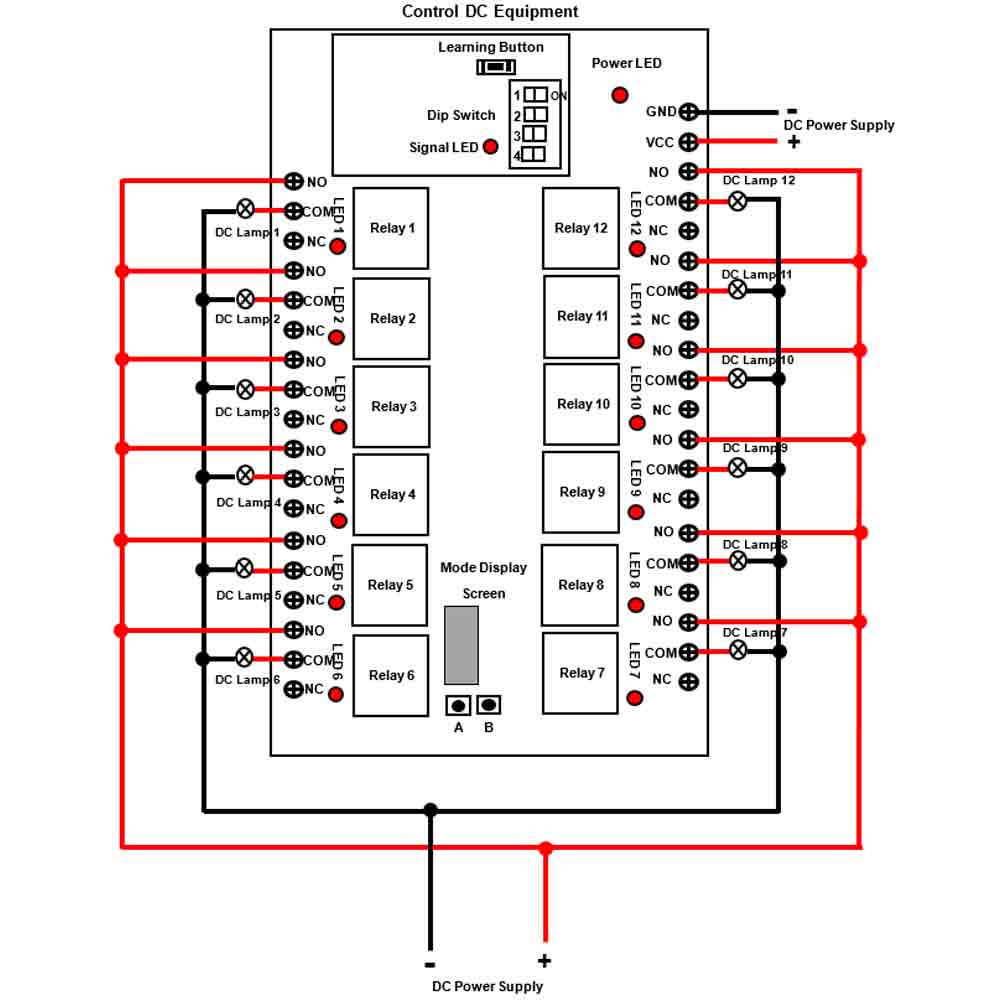

1) If you want to control a DC 12V lamp, do as following:

1.1 Connect the positive pole of DC power supply to terminal <VCC> and connect the negative pole of DC power supply to terminal <GND>.
1.2 Connect terminal <NO> to the positive pole of DC power supply, connect terminal <COM> to the positive pole of DC lamp, and connect the negative pole of DC lamp to the negative pole of DC power supply.

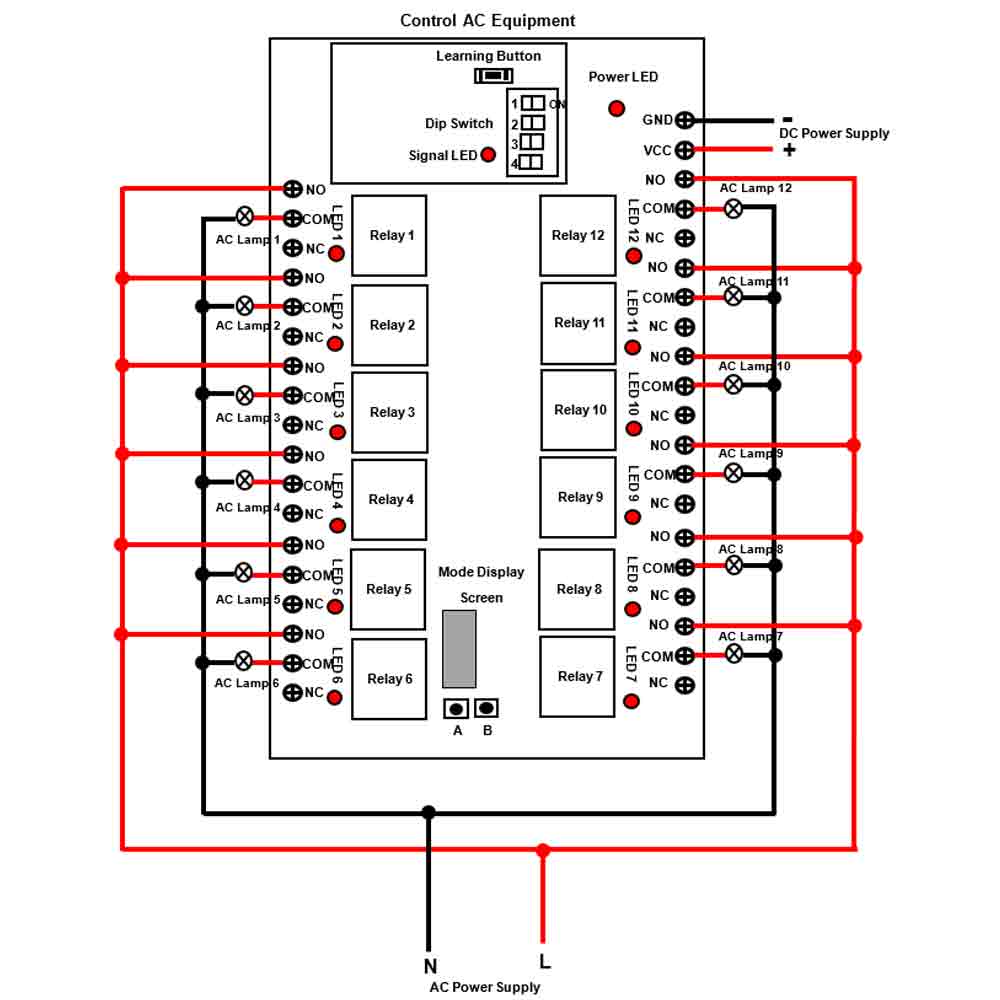

2) If you want to control an AC 220V lamp, do as following:
2.1 Connect the positive pole of DC power supply to terminal <VCC> and connect the negative pole of DC power supply to terminal <GND>.
2.2 Connect terminal <NO> to the live wire of AC power supply, connect terminal <COM> to one side of AC lamp, and connect another side of AC lamp to the neutral wire of AC power supply.

Switch the working mode or switch the number of operating channels:
The receiver has two buttons, button A is the channel number switching button, and button B is the working mode switching button.

1) When the receiver is powered on, the LED screen will display "A12".
2) If you press and hold the button A for 2-3 seconds, the LED screen will flash, and the receiver enters the channel number switching status. At this time, you may press the button A to switch the display text of the LED screen. The text will switch from A12 to A06 then to A08. A12 indicates that all 12 channels of the receiver are operational. A06 indicates that only 6 channels of the receiver are operational. A08 indicates that only 8 channels of the receiver are operational. If you again press and hold the button A for 2-3 seconds, the LED screen stops flashing, and the receiver exits the channel number switching status.
3) If you press and hold the button B for 2-3 seconds, the LED screen will flash, and the receiver enters the working mode switching status. At this time, you may press the button B to switch the display text of the LED screen. The text will switch from b01 to b08. Different numbers correspond to different working modes. If you again press and hold the button B for 2-3 seconds, the LED screen stops flashing, and the receiver exits the working mode switching status.

Setting different working modes:
The receiver will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps.

1) Setting Momentary mode: When the receiver is in the working mode switching state, press button B until the LED screen displays "b01".
The operation of Momentary mode with the transmitter CC-12:
Press and hold the button 1 on the transmitter: The relay 1 in the receiver is activated; Release the button 1: The relay 1 is deactivated.
Press and hold the button 2 on the transmitter: The relay 2 in the receiver is activated; Release the button 2: The relay 2 is deactivated.
............
Press and hold the button 12 on the transmitter: The relay 12 in the receiver is activated; Release the button 12: The relay 12 is deactivated.

2) Setting Self-locking mode: When the receiver is in the working mode switching state, press button B until the LED screen displays "b02".
The operation of Self-locking mode with the transmitter CC-12:
Press the button 1 on the transmitter: The relay 1 in the receiver is activated; Press the button 1 again: The relay 1 is deactivated.
Press the button 2 on the transmitter: The relay 2 in the receiver is activated; Press the button 2 again: The relay 2 is deactivated.
............
Press the button 12 on the transmitter: The relay 12 in the receiver is activated; Press the button 12 again: The relay 12 is deactivated.

3) Setting Interlocking mode: When the receiver is in the working mode switching state, press button B until the LED screen displays "b03".
The operation of Interlocking mode with the transmitter CC-12:
Press the button 1 on the transmitter: The relay 1 in the receiver is activated, and other 11 relays are deactivated.
Press the button 2 on the transmitter: The relay 2 in the receiver is activated, and other 11 relays are deactivated.
............
Press the button 12 on the transmitter: The relay 12 in the receiver is activated, and other 11 relays are deactivated.

4) Setting Momentary (Channels 1~6) + Self-locking (Channels 7~12) mode: When the receiver is in the working mode switching state, press button B until the LED screen displays "b04".

5) Setting Momentary (Channels 1~6) + Interlocking (Channels 7~12) mode: When the receiver is in the working mode switching state, press button B until the LED screen displays "b05".

6) Setting Self-locking (Channels 1~6) + Interlocking (Channels 7~12) mode: When the receiver is in the working mode switching state, press button B until the LED screen displays "b06".

7) Setting Special Interlocking mode (Every two channels form a special interlocking mode): When the receiver is in the working mode switching state, press button B until the LED screen displays "b07".
Press the button 1 on the transmitter: The relay 1 in the receiver is activated, and the relay 2 is deactivated.
Press the button 1 again: The relay 1 is deactivated.
Press the button 2 on the transmitter: The relay 2 in the receiver is activated, and the relay 1 is deactivated.
Press the button 2 again: The relay 2 is deactivated.
............

8) Setting dual button control single channel mode (Each two buttons on the transmitter controls one channel. This mode supports up to 6 channels, the other 6 channels are not used.): When the receiver is in the working mode switching state, press button B until the LED screen displays "b08".
Press the button 1 on the transmitter: The relay 1 in the receiver is activated; Press the button 2: The relay 1 is deactivated.
Press the button 3 on the transmitter: The relay 2 in the receiver is activated; Press the button 4: The relay 2 is deactivated.
............
Press the button 11 on the transmitter: The relay 6 in the receiver is activated; Press the button 12: The relay 6 is deactivated.

How to set the feedback function:
You can turn on the fourth bit of the dip switch to activate the feedback function; or turn off the fourth bit to deactivate the feedback function.

Attention: The first bit of the dip switch needs to be set in the ON position.

How to pair the transmitter to the receiver:
Notice: We have paired the transmitter to the receiver before leaving the factory.
1) Press the learning button in the receiver for 1-2 seconds, until the signal LED on the receiver turns on, this indicates that the receiver enters the learning status.
2) Press any one button on the transmitter, if signal LED flashes 3 times and then goes off, this indicates that the pairing is successful.
3) The receiver can learn several transmitters with different codes.

How to delete all transmitters codes stored in the receiver:
We have paired the transmitter to the receiver, if you don’t want the receiver to work with the transmitter, you can delete all transmitters codes stored in the receiver.
Operation: Press and hold the learning button in the receiver for 3-4 seconds, the signal LED lights up, then flashes three times quickly and then goes out, at this time release the learning button, this indicates that all stored codes have been successfully deleted.
