Introduction:
This receiver is a super long range remote switch. It is developed by LORA
(Long Range) wireless communication technology, so it has ultra-long working
distance, ultra-high receiving sensitivity, superior anti-interference
ability, and smaller power consumption. It uses a transceiver chip to
implement bidirectional communication. Its ideal working distance is up to 5
kilometers, which is an excellent device for remote control and
long-distance communication.
Application:
This receiver is an electric device with 1 channel DC power output, it and
the transmitter form a wireless remote-control system. This system may be
used in all types of industry automation, agriculture, business, home,
factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can
remote control different DC equipment on land, water, and air, such as
lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters,
motors, fans, winches, curtains, blinds, linear actuators, electric solenoid
valves, and security alarm systems. The applications are endless.
Feature:
Wireless control, easy to install.
Super long working range: With the transmitter forming a complete set, the
maximum working distance may reach 5000 meters in an open area.

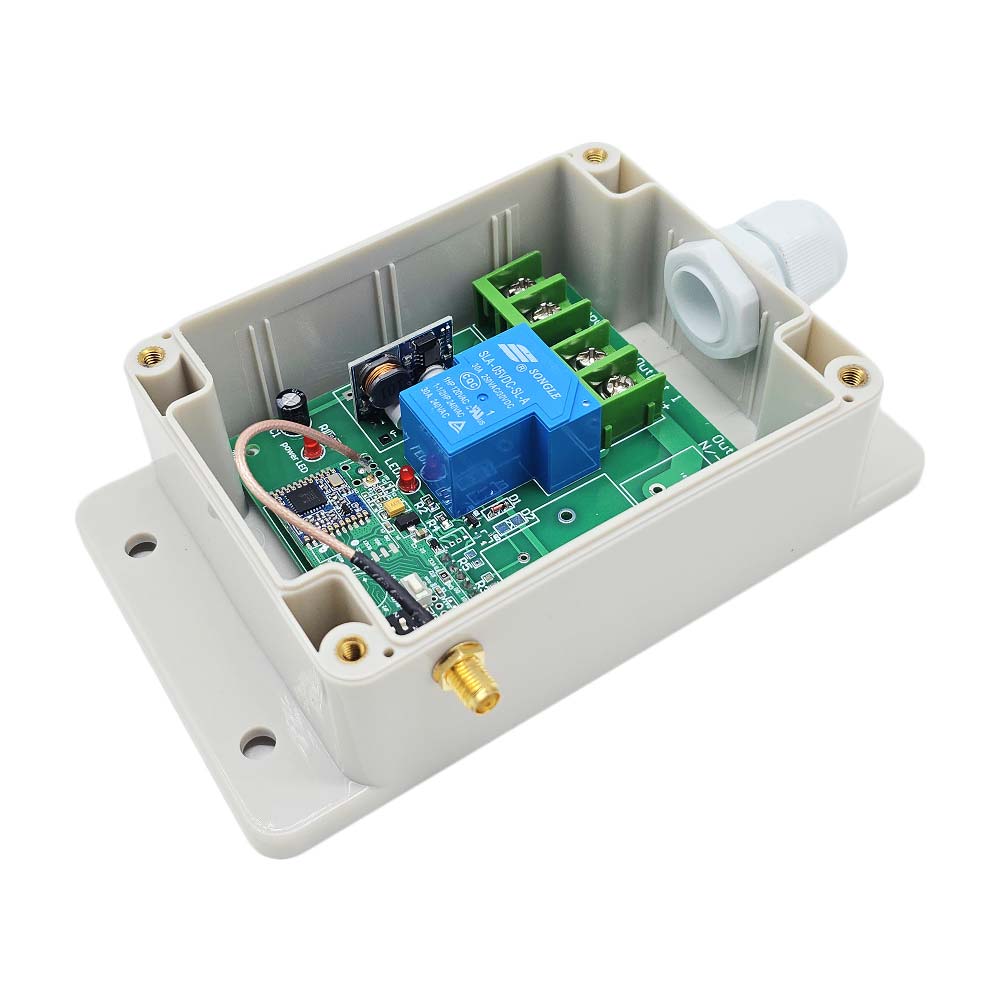

Waterproof: The receiver has waterproof case and waterproof connector; it
can be installed outdoors.
Four operating voltage versions: DC 6V, 9V, 12V, 24V optional.
DC Power Output: It can control DC equipment with voltage DC 6V / 9V / 12V /
24V.
High Power: Each channel can work at maximum load current 30A.
With wired control terminals: You can connect sensors, limit switches,
manual switches, or external devices to control the receiver.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a
reliable working distance.
Wireless RF signal from the transmitter can pass through walls, floors,
doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers
simultaneously.
Two or more receivers may be used in the same area.
Feedback Function:
The receiver and the transmitter have a Two-way working mode, so the user
can know the working status of the receiver by the transmitter.
Two-way working mode: When the receiver is successfully triggered by the
signal from the transmitter, it will immediately transmit a feedback signal
to the transmitter. When the transmitter receives this signal, it will send
out a buzzing sound to inform you that the receiver has been successfully
triggered.

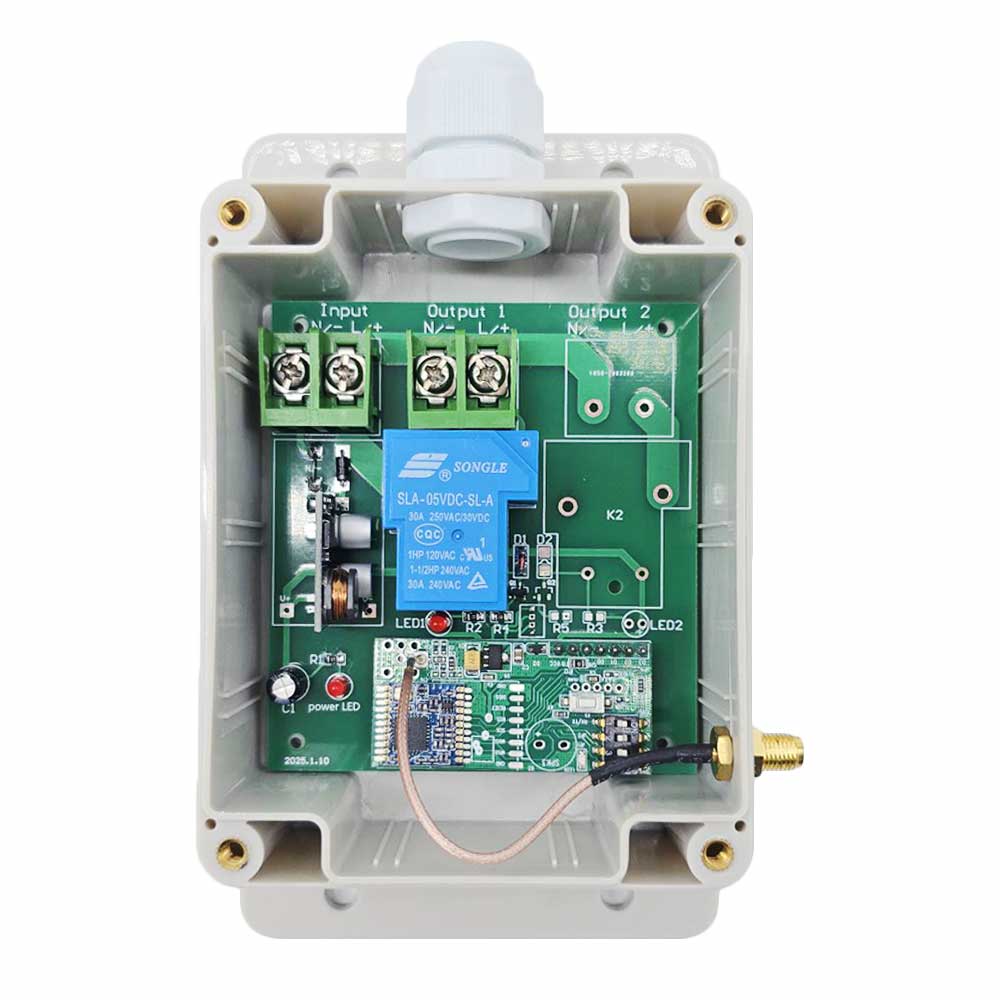

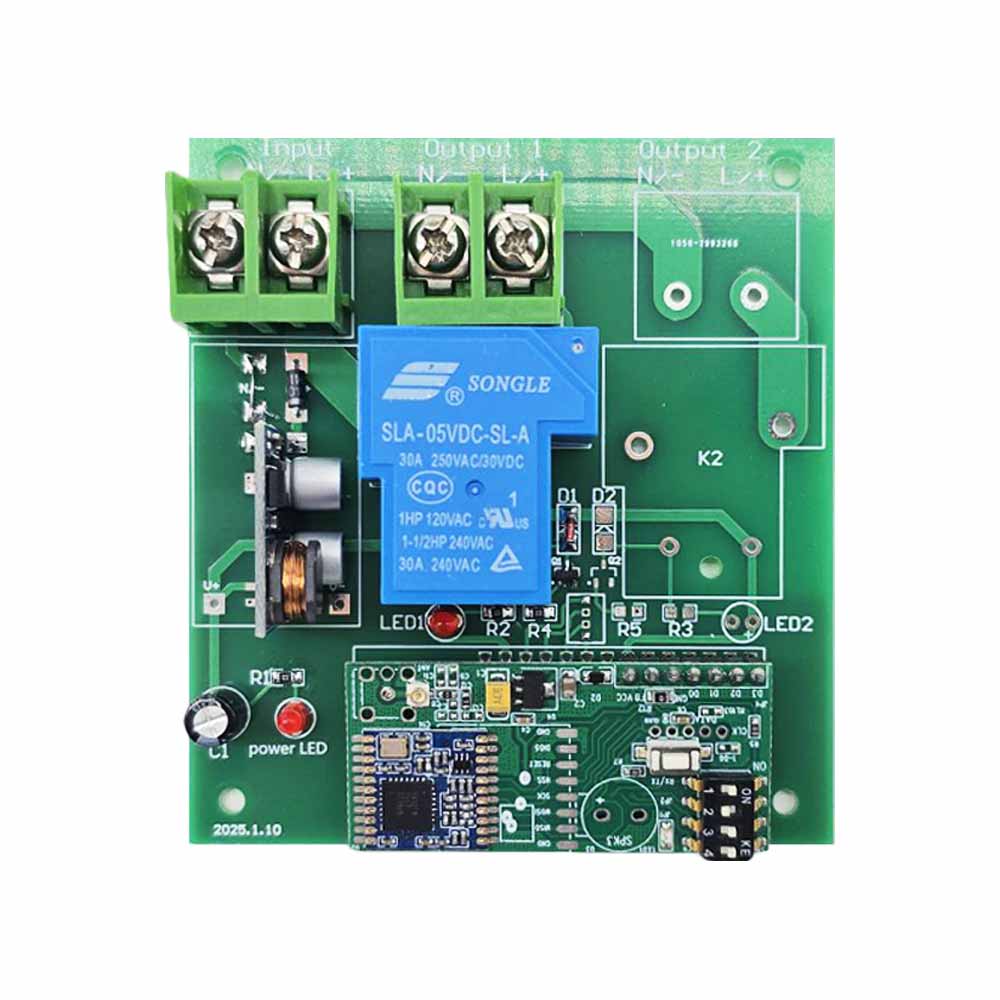

Receiver Parameters:
Model: S1PXW-DC-ANT3
Operating Voltage: 6VDC (model S1PXW-DC06), or 9±1VDC (model S1PXW-DC09), or
12±1VDC (model S1PXW-DC12), or 24±2VDC (model S1PXW-DC24), the operating
voltage must be specified when ordering.
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Channel: 1 CH
Output Type: DC power output
Maximum Load Current of Relay: 30A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
3 Selectable Working Modes: Self-locking, Momentary, Interlocking
Operating Temperature: -20 °C ~ +70 °C
PCB size: 140 x 73 x 18 mm (5.5 x 2.9 x 0.7 inches)
Case size: 192 x 100 x 45 mm (7.6 x 4.0 x 1.8 inches)

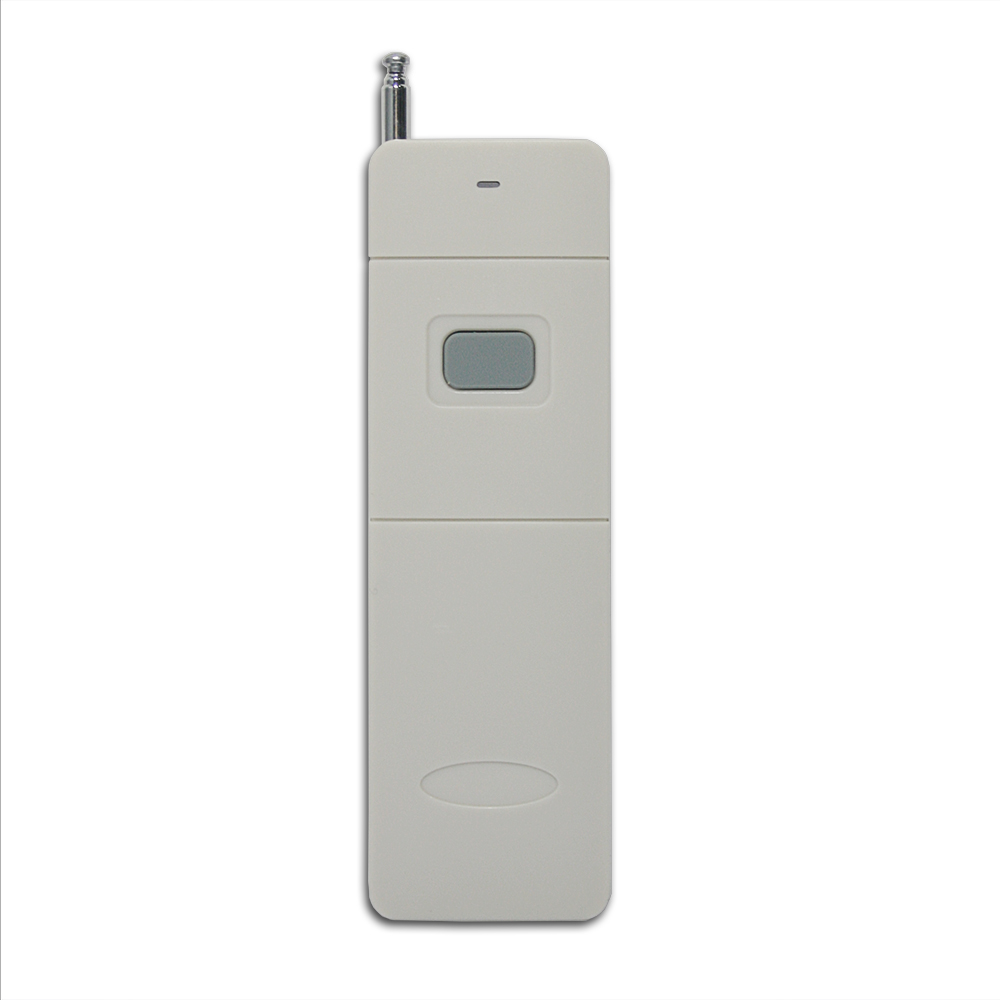

Transmitter Parameters:
Model : 0021060 (CC-1) or 0021061 (CC-2)
Channel / Button: 1 or 2
Button Symbol: No Symbol or A, B
Operating Voltage: 9V (1 x 6F22-9V battery, can be used for 12 months)
Working Current: 65mA (when the transmitter is transmitting the signal),
16mA( when the transmitter is receiving the signal).
Standby Current: 5μA
Operating Frequency: 433.92 Mhz
Transmitting Distance: 5000m / 15000ft (theoretically)
Modulation Mode: FSK + LORA
Operating Temperature: -20°C ~ +70°C
Unit Size: 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches)
Matching Transmitters:
This receiver only works with 5000m transmitters, such as model

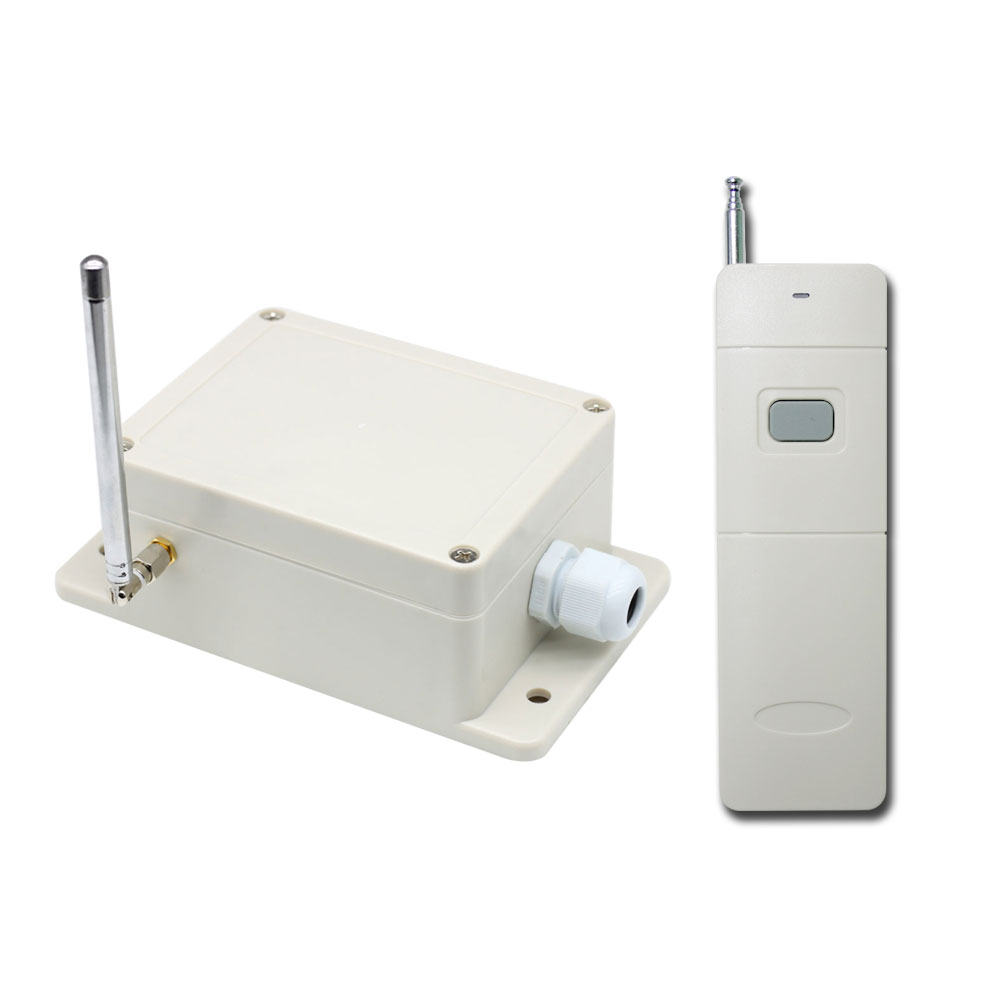

CC-1
(1 button, 5000 Meter / 15000 feet),

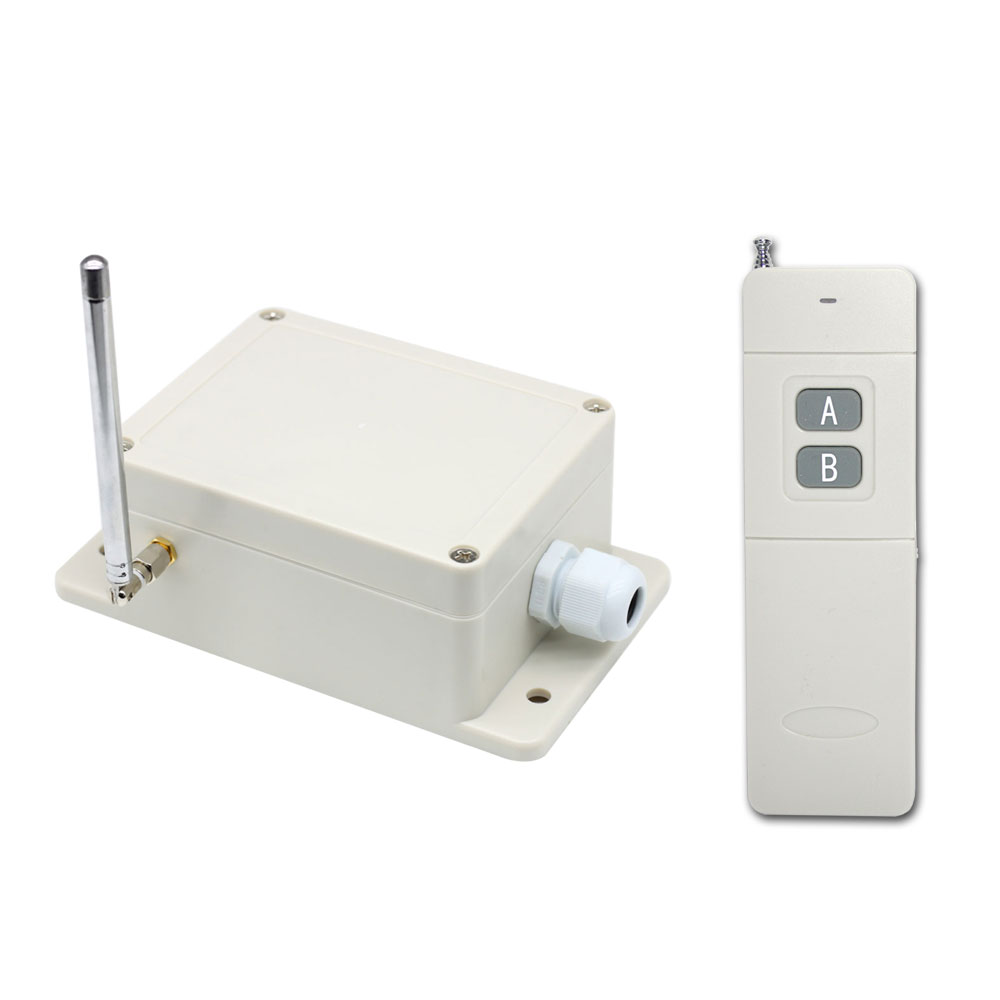

CC-2
(2 buttons, 5000 Meter / 15000 feet),
CCW-1
(1 button, waterproof, 5000 Meter / 15000 feet), or
CCW-2
(2 buttons,
waterproof, 5000 Meter / 15000 feet).
When you set the receiver in Self-locking mode or Momentary mode, it should
work with single button transmitter, such as model CC-1 or CCW-1. When you
set the receiver in Interlocking mode, it should work with two buttons
transmitter, such as model CC-2 or CCW-2.
Super Long Working Range:
The receiver and the transmitter form a wireless remote control switch, the
maximum working distance may reach 15000 feet or 5000 meters in an open
area.
The maximum working distance is a theoretical data, it shall be operated in
an open ground, no barriers, no interference. But in the practice, it will
be hindered by trees, walls or other construction, and will be interfered by
other wireless signals. Therefore, the actual working distance may not reach
this maximum distance.
Usage:
The receiver can be used to control DC 6V / 9V / 12V / 24V devices.If the
power supply of those equipments is DC 12V, you should choose the receiver
with same DC 12V version; and if the power supply of those equipments is DC
24V, you should choose the receiver with same DC 24V version.

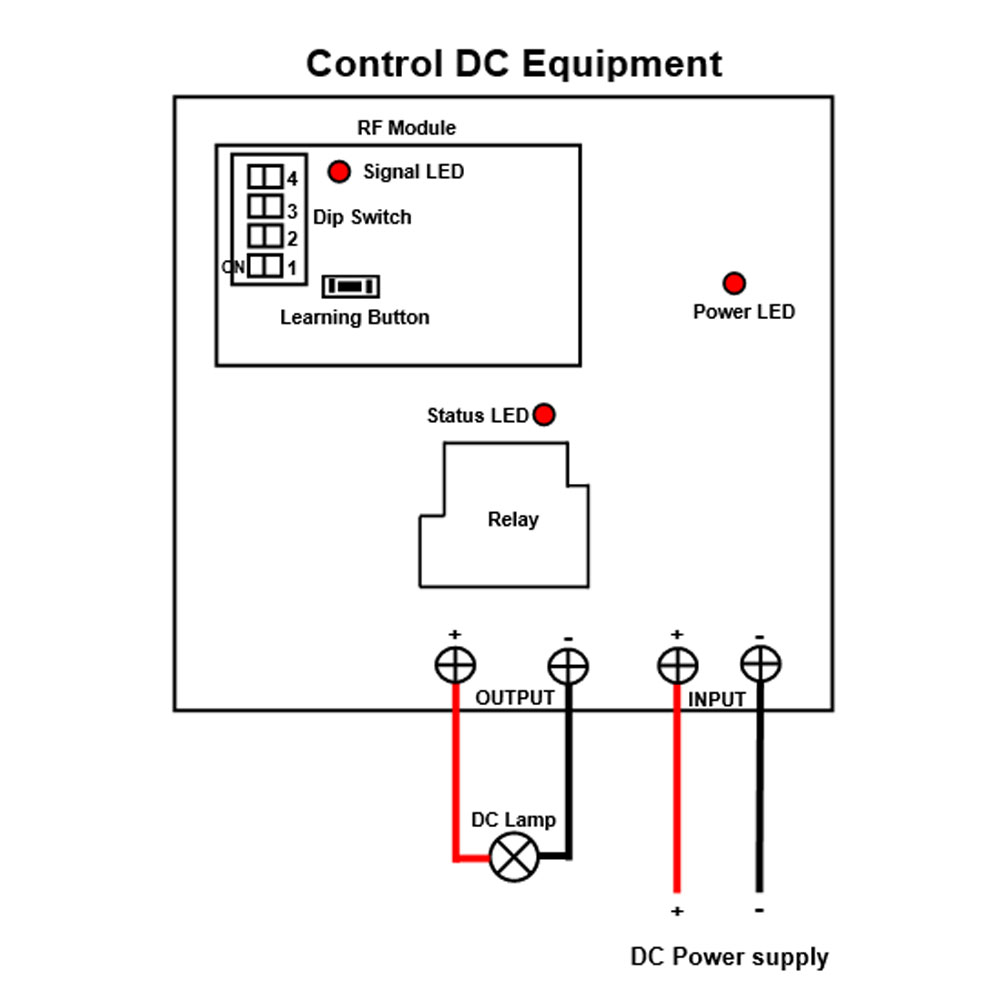

Wiring:
If you want to control a DC 12V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal L/+, and
connect the negative pole of DC power supply to terminal N/-.
2) Connect terminal B to the positive pole of DC lamp, and connect terminal
A to the negative pole of DC lamp.
Setting different working modes:
The receiver will be set in Self-locking mode before leaving the factory, if
you want to use another mode, please follow the following steps.
1) Setting Self-locking mode: Turn on the third bit of the dip switch.
The operation of Self-locking mode with the transmitter CC-1:
Press the button on the transmitter: The terminal A and B output DC power,
and the connected lamp is turned on.
Press the button again: The terminal A and B stop outputting, and the
connected lamp is turned off.
2) Setting Momentary mode: Turn off the second bit and the third bit of the
dip switch.
The operation of Momentary mode with the transmitter CC-1:
Press and hold the button on the transmitter: The terminal A and B output DC
power, and the connected lamp is turned on.
Release the button: The terminal A and B stop outputting, and the connected
lamp is turned off.
3) Setting Interlocking mode: Turn on the second bit of the dip switch.
The operation of Interlocking mode with the transmitter CC-2:
Press the button A on the transmitter: The terminal A and B output DC power,
and the connected lamp is turned on.
Press the button B on the transmitter: The terminal A and B stop outputting,
and the connected lamp is turned off.
Wired control terminals:
The receiver has wired control terminals, and you can connect external
devices, sensors, or manual switches to these terminals, then use them to
control the receiver.
1) By low level signal:
You can connect the external devices (with low level output signal) to the
terminal 2 (Signal+) and the terminal 3 (Signal-), then use the external
devices to control the receiver.
When the external device outputs low level signal to the terminals 2 and 3,
the terminal A and B output DC power, and the connected lamp is turned on.
When the external device stops to output signal, the terminal A and B stop
outputting, and the connected lamp is turned off.
2) By NO/NC contact:
You can connect the manual switches (with NO/NC contact) to the terminals 2
and 3, then use the manual switches to control the receiver.
When connect the terminals 2 and 3 by the manual switch, the terminal A and
B output DC power, and the connected lamp is turned on.
When disconnect the terminals 2 and 3 by the manual switch, the terminal A
and B stop outputting, and the connected lamp is turned off.
How to set the feedback function:
You can turn on the fourth bit of the dip switch to activate the feedback
function; or turn off the fourth bit to deactivate the feedback function.
Attention: The first bit of the dip switch needs to be set in the ON
position.
How to pair the transmitter to the receiver:
Notice: We have paired the transmitter to the receiver before leaving the
factory.

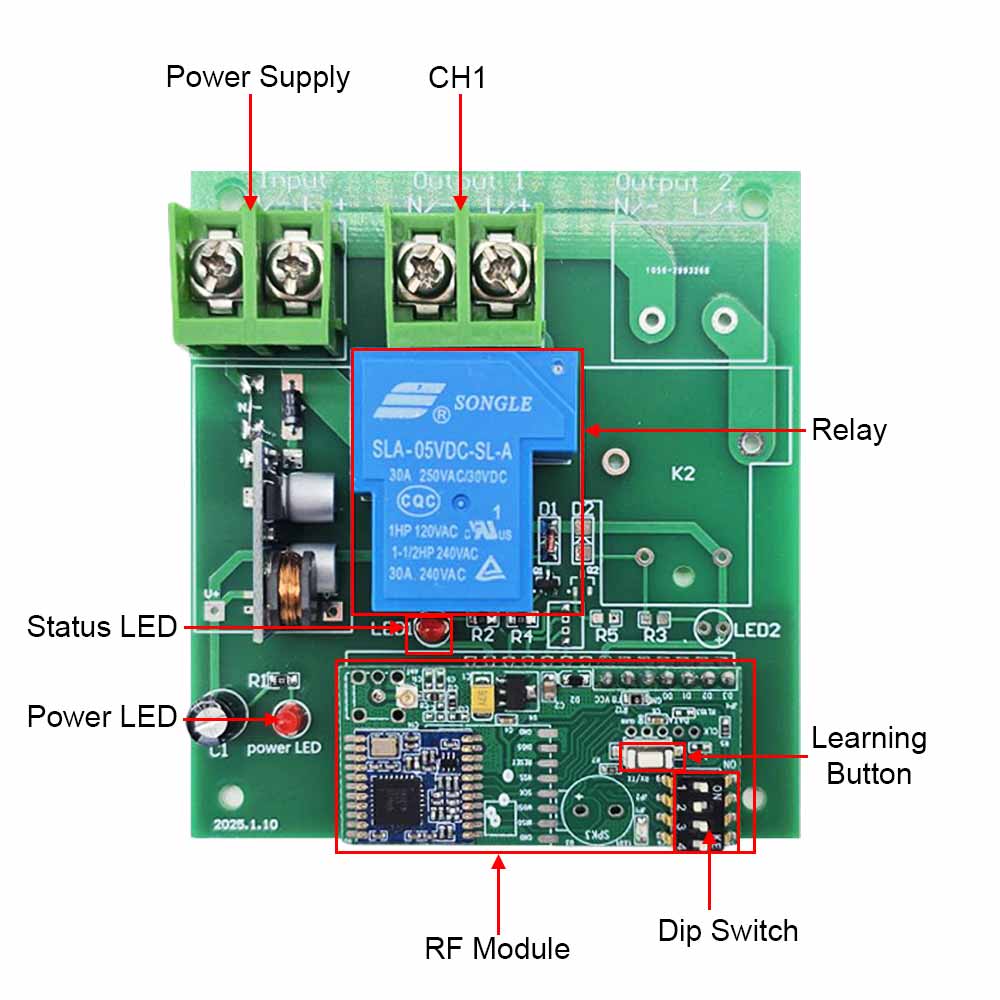

1) Press the learning button in the receiver for 1-2 seconds, signal LED on
the receiver turns on, this indicates that the receiver enters the learning
status.
2) Press any one button on the transmitter, if signal LED flashes twice,
this indicates that the pairing is successful.
3) The receiver can learn several transmitters with different codes.
How to delete all transmitters codes stored in the receiver:
We have paired the transmitter to the receiver, if you don’t want the
receiver to work with the transmitter, you can delete all transmitters codes
stored in the receiver.
Operation: Press and hold the learning button in the receiver for 4-5
seconds, signal LED first comes on, then flashes three times and then goes
off, then release the learning button, this indicates that all stored codes
have been deleted successfully.
Package Include:
1 x Receiver: S1PXW-DC-ANT3
1 x Transmitter: CC-1 or CC-2
1 x User manual
