Package Include:

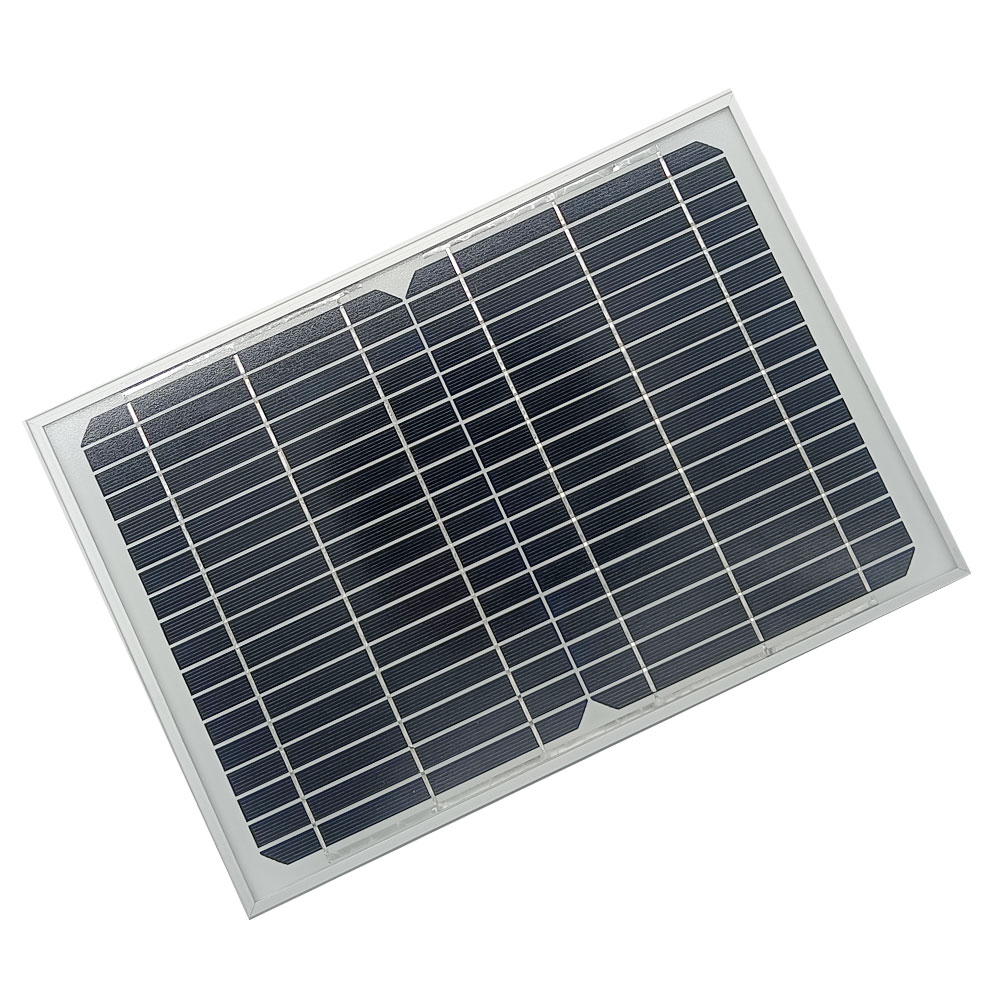

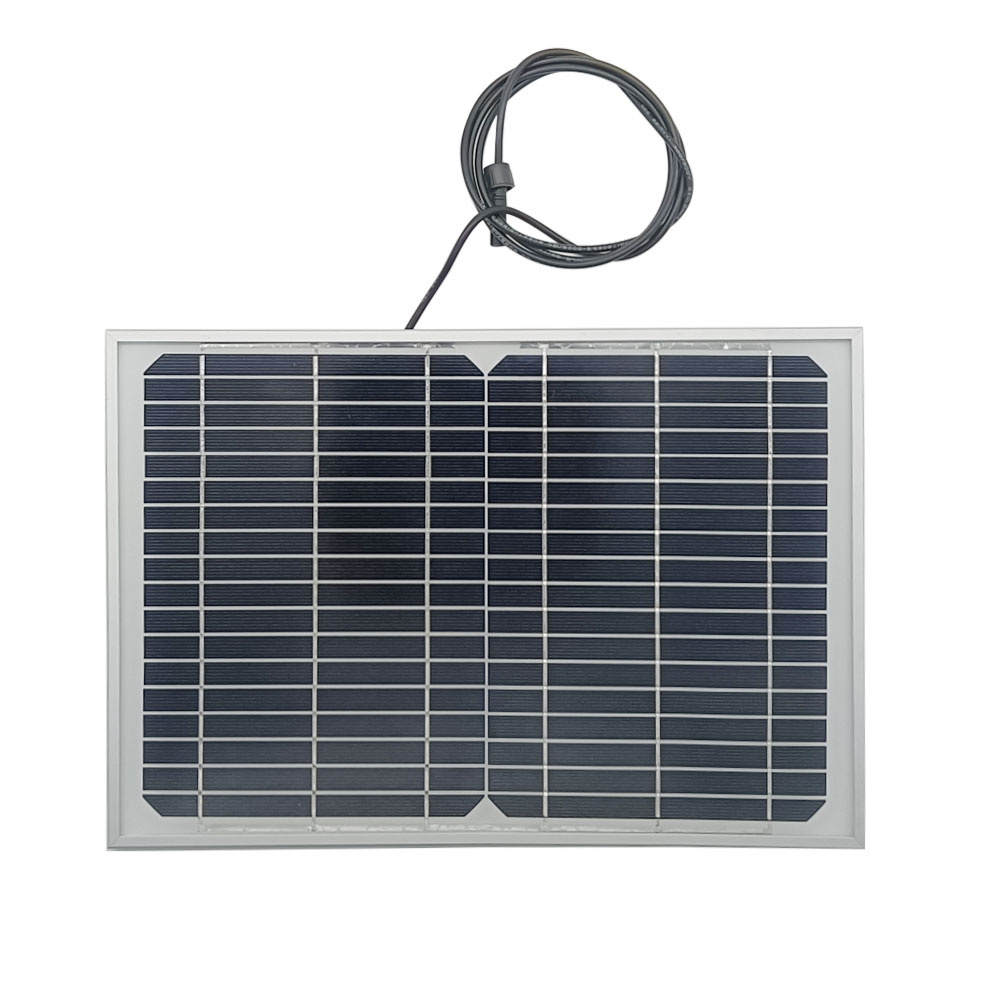

1 x 18V/10W Monocrystalline silicon solar panel

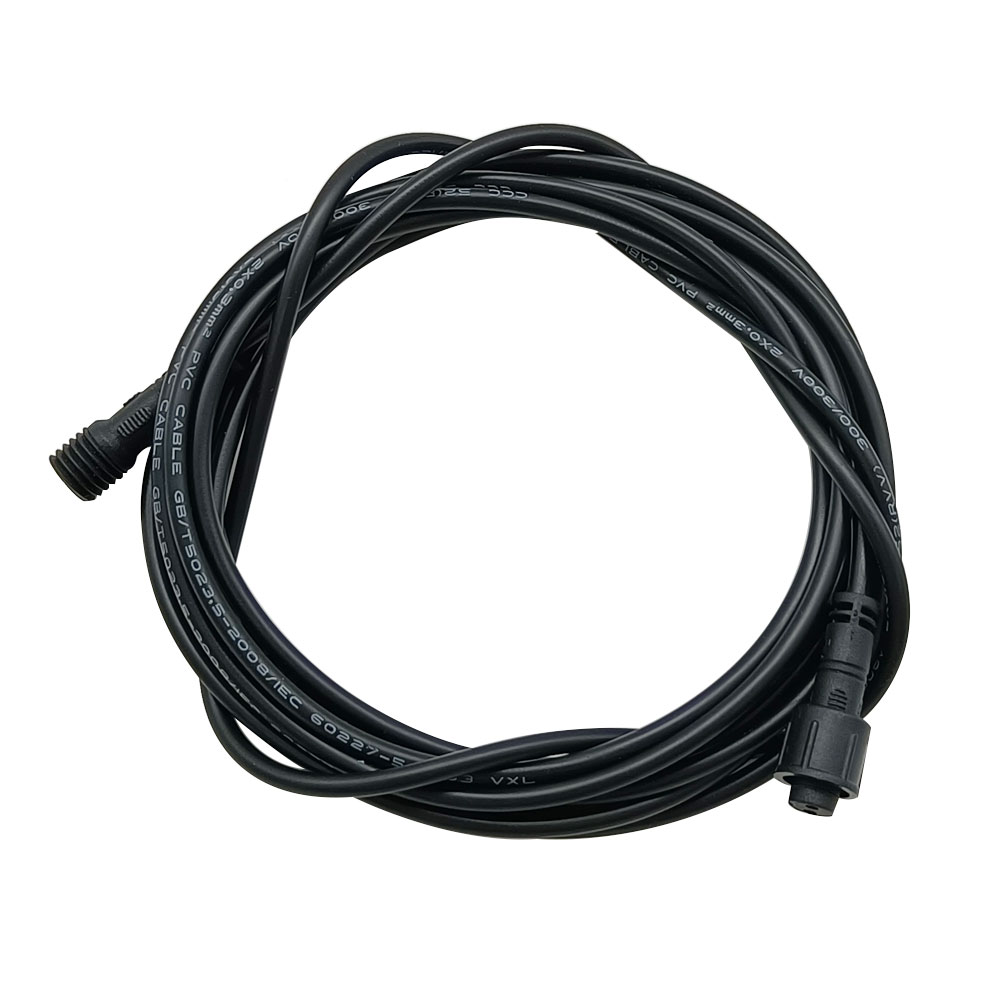

1 x 1.5 Meters cable with waterproof female plug (for solar panel)
1 x 1.5 Meters cable with waterproof male plug (for solar controller)
1 x User manual
Applications:
This solar panel and a solar charge controller forms a mini monocrystalline
silicon solar panel charging system that can be used as an alternative
charger for any 12V lithium battery.
This solar panel and a solar charge controller with a 12V lithium battery
form a solar panel kit that can be used as a power source for our wireless
transmitter or receiver.
Suitable for all kinds of small power appliances, such as emergency lights,
advertising lights, traffic lights, household lights, electric fans, solar
water pumps, solar street lamps, wireless control devices.
Product parameters:
Max Power: 10W
Max Output Voltage: 18VDC
Max Output Current: 550MA
Open Circuit Voltage: 21.6VDC
Short Circuit Current: 600MA
Power Tolerance: ±3%
Operating Temperature: -20°C ~ +70°C
Size: 310 x 210 x 17 mm (12.2 x 8.3 x 0.7 inches)
Lightweight design, 3.2MM tempered glass package.
Frame: Anodized aluminum alloy
Monocrystalline silicon material.
Waterproof laminated panel construction.
Includes 150 CM cable with waterproof female plug.
3 year warranty.
High conversion rate, high efficiency output.
100% power output - clear sky midday sun with the panel fully tilted toward
the sun's position in the sky.
70-80% power output - clear sky midday sun but with the panel laid flat.
40-60% power output - thin cloud, or intermittent small clouds.
10-20% power output - midday overcast sky or rainy conditions.
