1CH 12V Power Input / Output RF Receiver Circuit ( for One to Many Serie)


 Manual

Feature:

• Wireless control, easy to install
• Direct power output; control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances.
• You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
• With characteristics of reverse power protection and over current protection
• Audible / visual indication
• Use microcontroller model of EM78P156, an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
• Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
• One/ several transmitters can control one/ several receivers simultaneously.
• If you use two or more receivers in the same place, you can set them with different codes.
• Transmitting Frequency: 433MHz

Receiver:

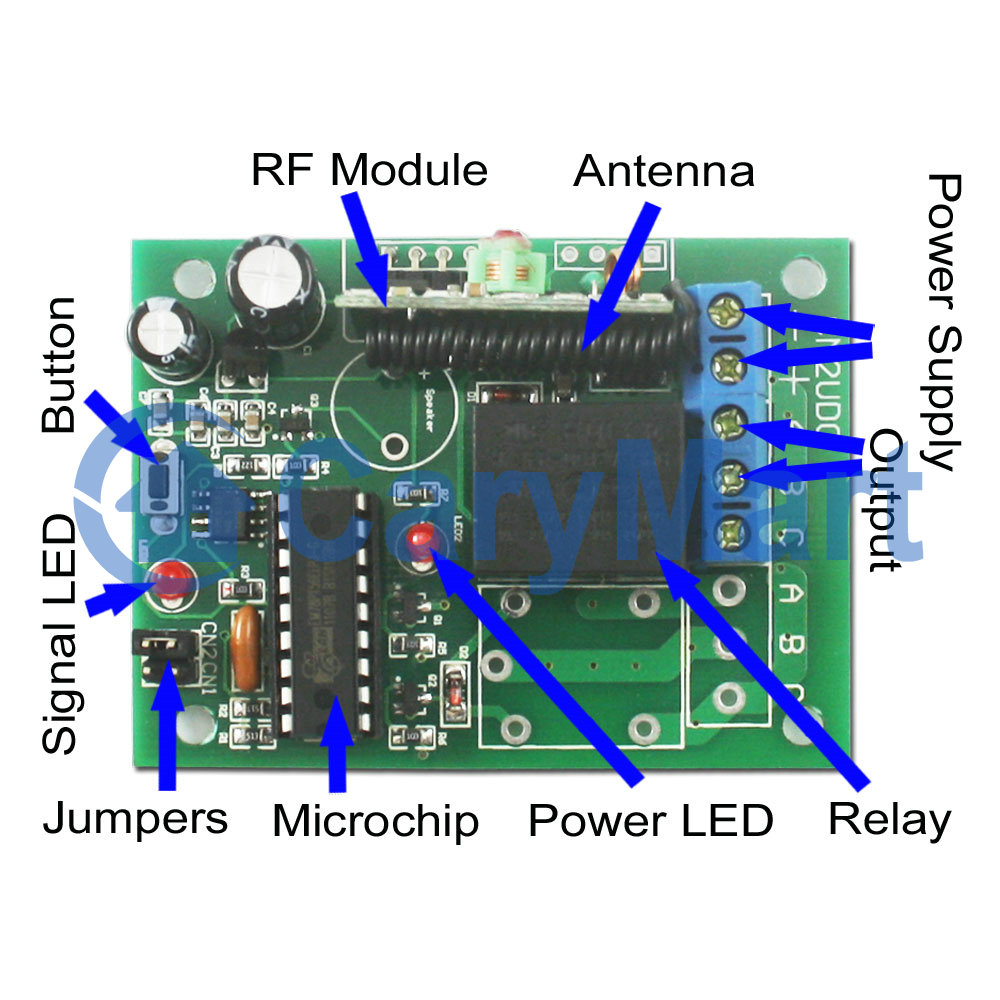

• Model No.: S1XB-DC06 / S1XB-DC09 / S1XB-DC12 / S1XB-DC24
• Channel: 1 CH
• Control Modes: Self-locking, Momentary, Interlocking
• Coding Type: Fixed code
• Coding Setting: By learning
• Power Supply (Operating Voltage): DC6V (S1XB-DC06), DC12V±1V (S1XB-DC12), DC9V±1V (S1XB-DC09), DC24V±1V (S1XB-DC24)
• Output: DC6V (S1XB-DC06), DC12V (S1XB-DC12), DC9V (S1XB-DC09), DC24V (S1XB-DC24)
• PCB Size: 67mm x 50mm x 18mm
• Case Size: 75mm x 54mm x 27mm
• Static Current: ≤6mA
• Maximum Working Current: 10A

Usage:

• Setting different control modes (We have set the receiver as Self-locking control mode before delivery. If you want to use other control modes, do as following):
• 1) Setting control mode Self-locking: Only connect Jumper-2.

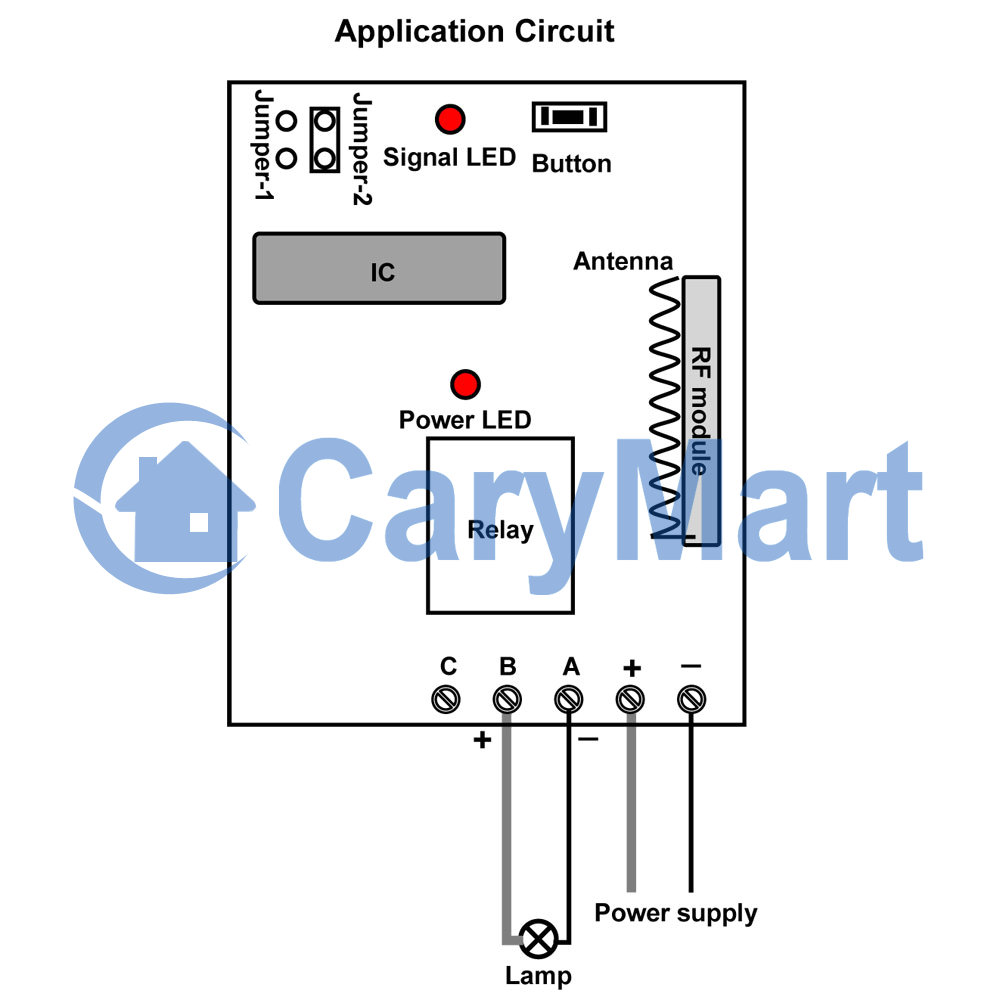

  Press button 1: Turn on the relay, terminal A&B of receiver 1 outputs DC power.
  Press button 1 again: Turn off the relay, terminal A&B of receiver 1 no output.
  …
  Press button 6: Turn on the relay, terminal A&B of receiver 6 outputs DC power.
  Press button 6 again: Turn off the relay, terminal A&B of receiver 6 no output.
• 2) Setting control mode Momentary: Only connect Jumper-1.
  Press and hold button 1: Turn on the relay, terminal A&B of receiver 1 outputs DC power.
  Release button 1: Turn off the relay, terminal A&B of receiver 1 no output.
  …
  Press and hold button 6: Turn on the relay, terminal A&B of receiver 6 outputs DC power.
  Release button 6: Turn off the relay, terminal A&B of receiver 6 no output.
• 3) Setting control mode Interlocking: Do not connect Jumper-1 and Jumper-2.
  Press button 1: Turn on the relay, terminal A&B of receiver 1 outputs DC power.
  Press other buttons: Turn off the relay, terminal A&B of receiver 1 no output.
  …
  Press button 6: Turn on the relay, terminal A&B of receiver 6 outputs DC power.
  Press other buttons: Turn off the relay, terminal A&B of receiver 6 no output.

Package Include:

• 1 x Receiver: S1XB-DC06 / S1XB-DC09 / S1XB-DC12 / S1XB-DC24 (1 Channel / Three Control Modes)
• 1 x User manual
