1CH DC9V/12V/24V RF Motor Inversion Controller Self-locking / Momentary / Interlocking Control Mode

Video: wireless remote control DC motor

 Manual

Feature:

• Wireless control, easy to install
• Control motors of rolling blinds / doors, projection screens, awnings, pumps, winches, conveyors or other appliances and mechanicals with voltage DC 12V.
• You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless signal can pass through walls, floors and doors.
• With characteristics of reverse power protection and over current protection
• Audible / visual indication
• Use microcontroller model of EM78P156, an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
• Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
• One/several transmitters can control one/several receivers simultaneously.
• If you use two or more receivers in the same place, you can set them with different codes.
• Transmitting Frequency: 433MHz

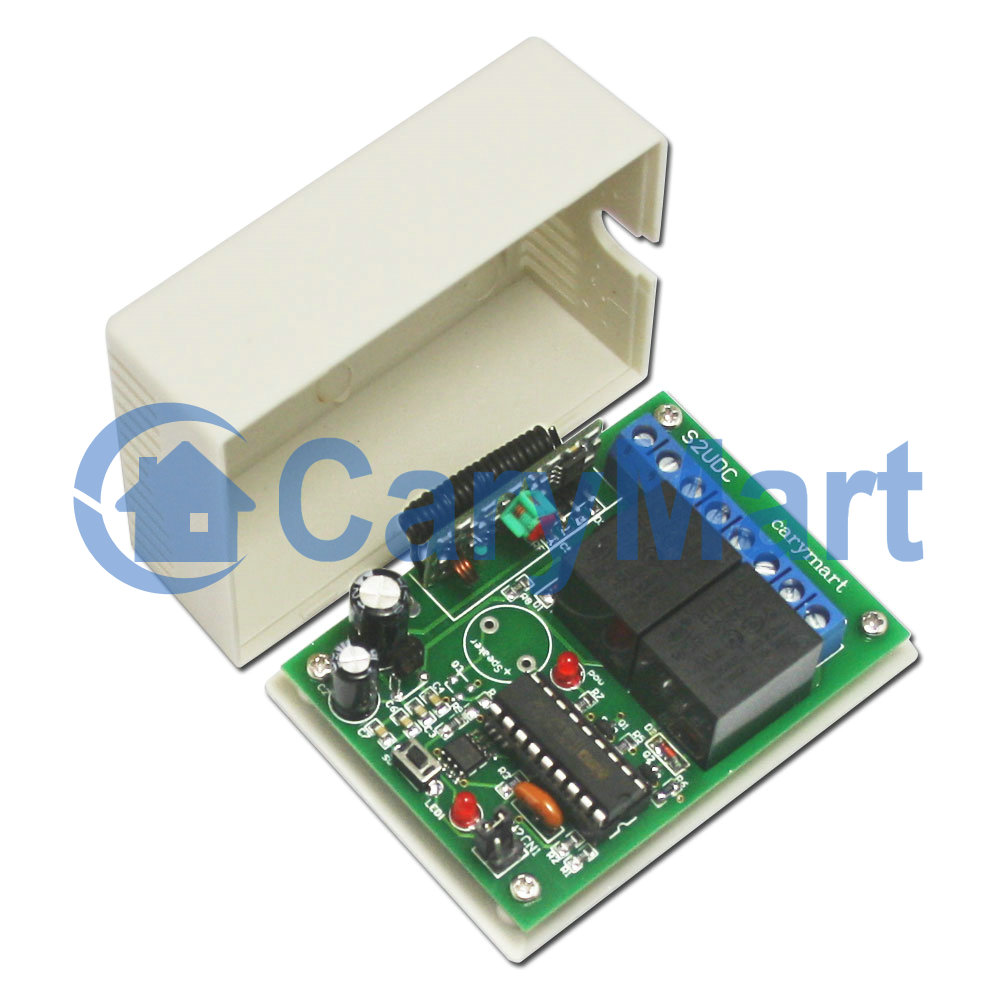

Receiver:

• Model No.: S1FU-DC09 / S1FU-DC12 / S1FU-DC24
• Control Modes: Self-locking, Momentary, Interlocking
• Coding Type: Fixed code
• Coding Setting: By learning
• Power Supply (Operating Voltage): DC12V±1V (S1FU-DC12), DC9V±1V (S1FU-DC09), DC24V±1V (S1FU-DC24)
• Output: DC12V (S1FU-DC12), DC9V (S1FU-DC09), DC24V (S1FU-DC24)
• PCB size: 67mm x 50mm x 18mm
• Case size: 75mm x 54mm x 27mm
• Static Current: ≤6mA
• Maximum Working Current: 10A

Usage:

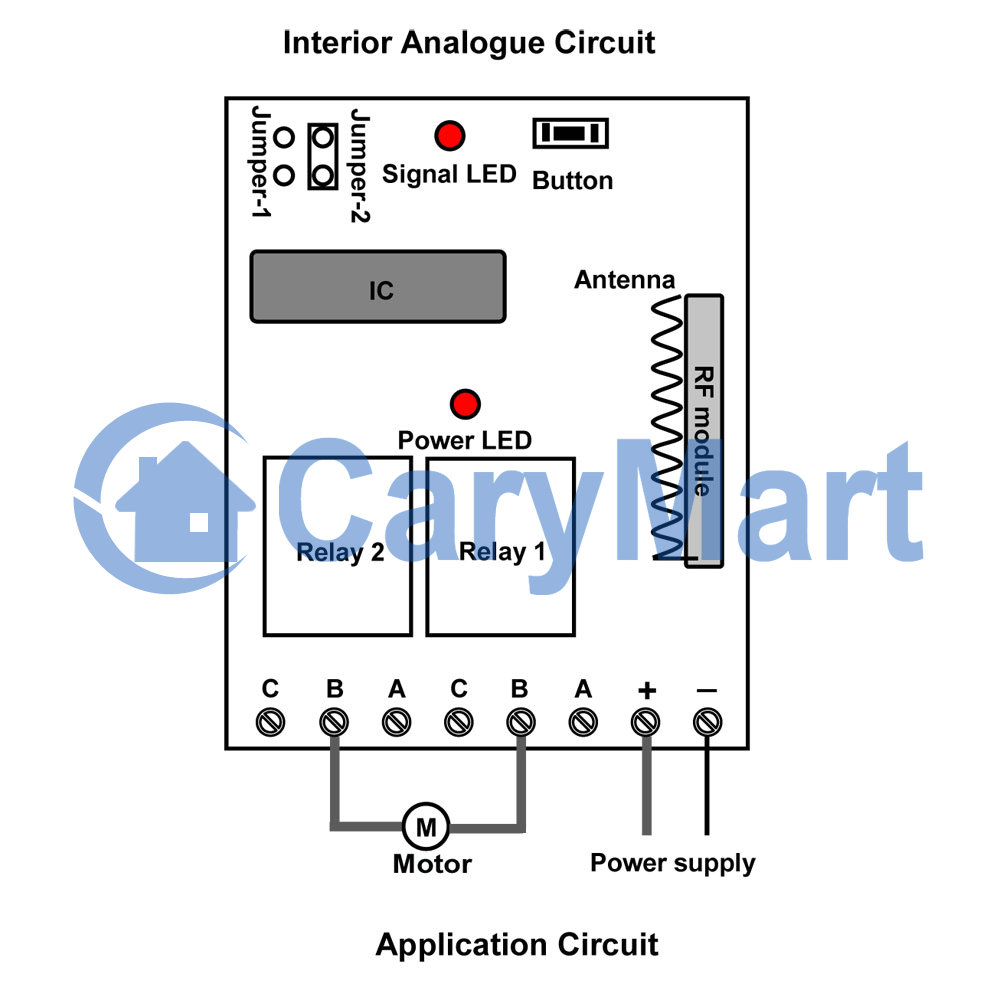

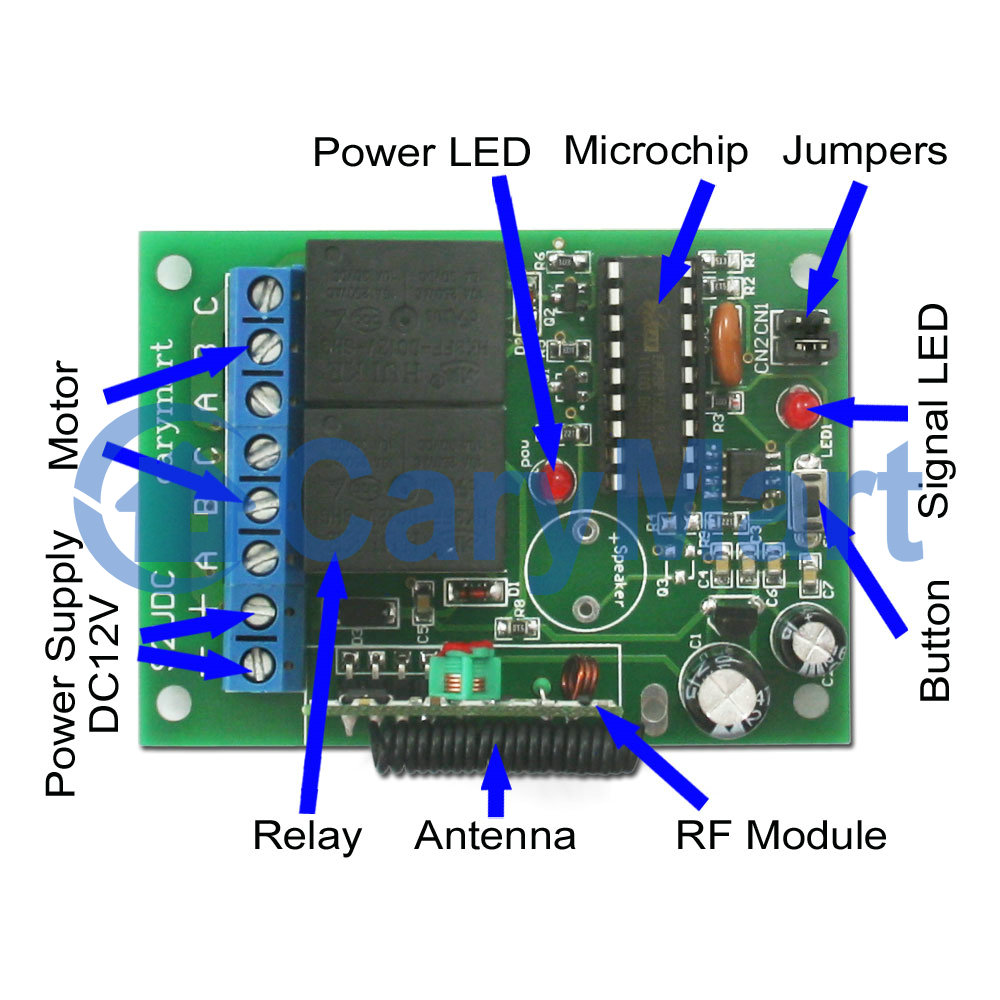

• Connect the motor to Terminal B of relay 1 and relay 2.
  Setting different control modes (We have set the receiver as Self-locking control mode before delivery. If you want to use other control modes, do as following operation):
• Setting control mode Self-locking: Only connect Jumper-2.
  Control mode Self-locking: Press -> Rotate; Press again -> Stop.
  Press button ▲: Terminal B of relay 1 and relay 2 output ＋ DC 12V (1: ＋, 2: －), motor rotates in the positive direction.
  Press button ▲ again: Terminal B of relay 1 and relay 2 no output, motor stops
  Press button ▼: Terminal B of relay 1 and relay 2 output － DC 12V (1: －, 2: ＋), motor rotates in the reversal direction.
  Press button ▼ again: Terminal B of relay 1 and relay 2 no output, motor stops
• Setting control mode Momentary: Only connect Jumper-1.
  Control mode Momentary: Press and hold -> Rotate; Release -> Stop.
  Press and hold button ▲: Terminal B of relay 1 and relay 2 output ＋ DC 12V (1: ＋, 2: －), motor rotates in the positive direction.
  Release button ▲: Terminal B of relay 1 and relay 2 no output, motor stops
  Press and hold button ▼: Terminal B of relay 1 and relay 2 output － DC 12V (1: －, 2: ＋), motor rotates in the reversal direction.
  Release button ▼: Terminal B of relay 1 and relay 2 no output, motor stops
• Setting control mode Interlocking: Do not connect Jumper-1 and Jumper-2.
  Control mode Interlocking: Press button ▲ and ▼ -> Rotate; Press button ■ -> Stop.
  Press button ▲: Terminal B of relay 1 and relay 2 output ＋ DC 12V (1: ＋, 2: －), motor rotates in the positive direction.
  Press button ▼: Terminal B of relay 1 and relay 2 output － DC 12V (1: －, 2: ＋), motor rotates in the reversal direction.
  Press button ■: Terminal B of relay 1 and relay 2 no output, motor stops

Package Include:

• 1 x Receiver: S1FU-DC09 / S1FU-DC12 / S1FU-DC24 (Inversion Control Mode)
• 1 x User manual
