Hi, I'm Tom. Welcome to our shop,
Carymart offers you the premium rf remote control equipment.
We suggest you reading our FAQs before making your decision.
If you have any other question, please contact us.
We will reply you as soon as possible.
Control Lights, Motors, Fans, electrically operated Doors/ Locks/ Windows/ Blinds/ Cars or Other Appliances.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless signal can pass through walls, floors and doors.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
Transmitting Frequency: 433MHz.

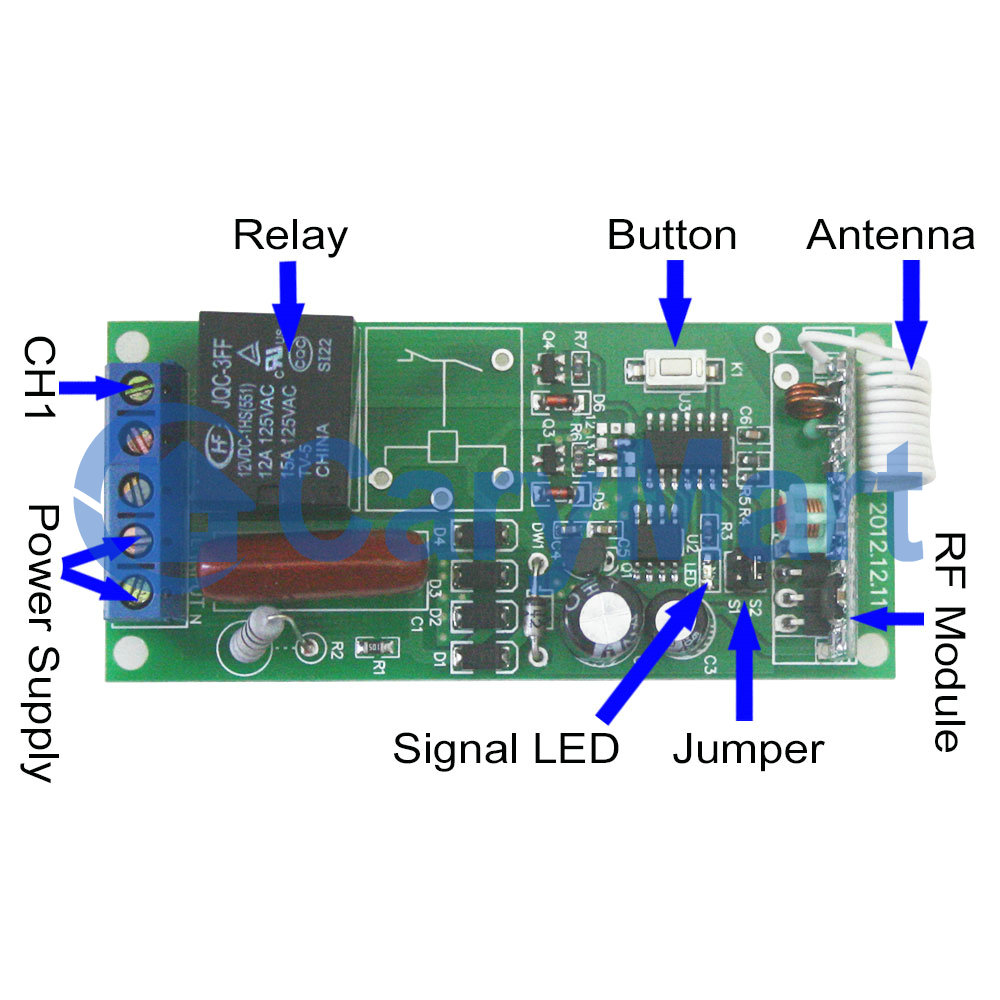

Receiver:
Model No.: S1T-AC110 / S1T-AC220
Channel: 1 CH
Control Modes: Self-locking
Coding Type: Fixed code
Coding Setting: By learning
Power Supply (Operating Voltage): AC100~120V (S1T-AC110), AC200~240V (S1T-AC220)
PCB size: 80mm x 35mm x 14mm

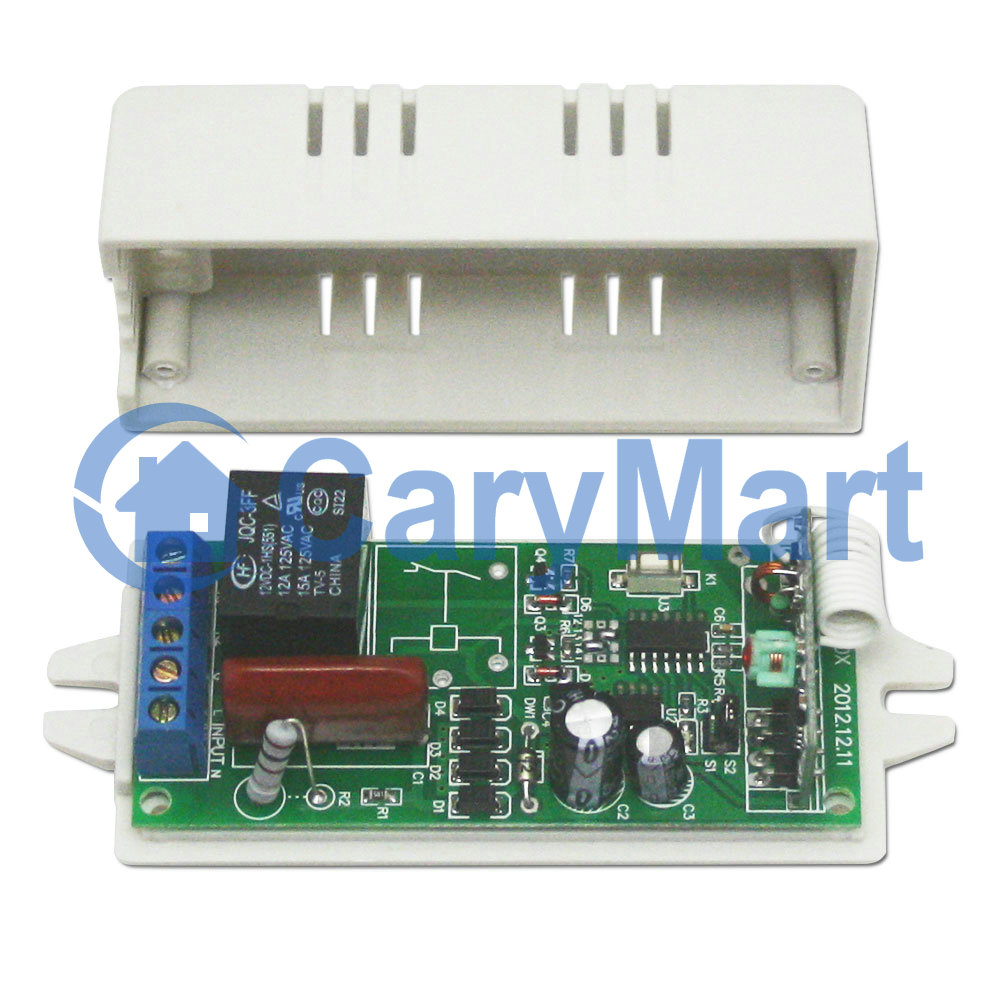

Case size: 100mm x 40mm x 24mm
Maximum Working Current: 3A / each channel
Usage:

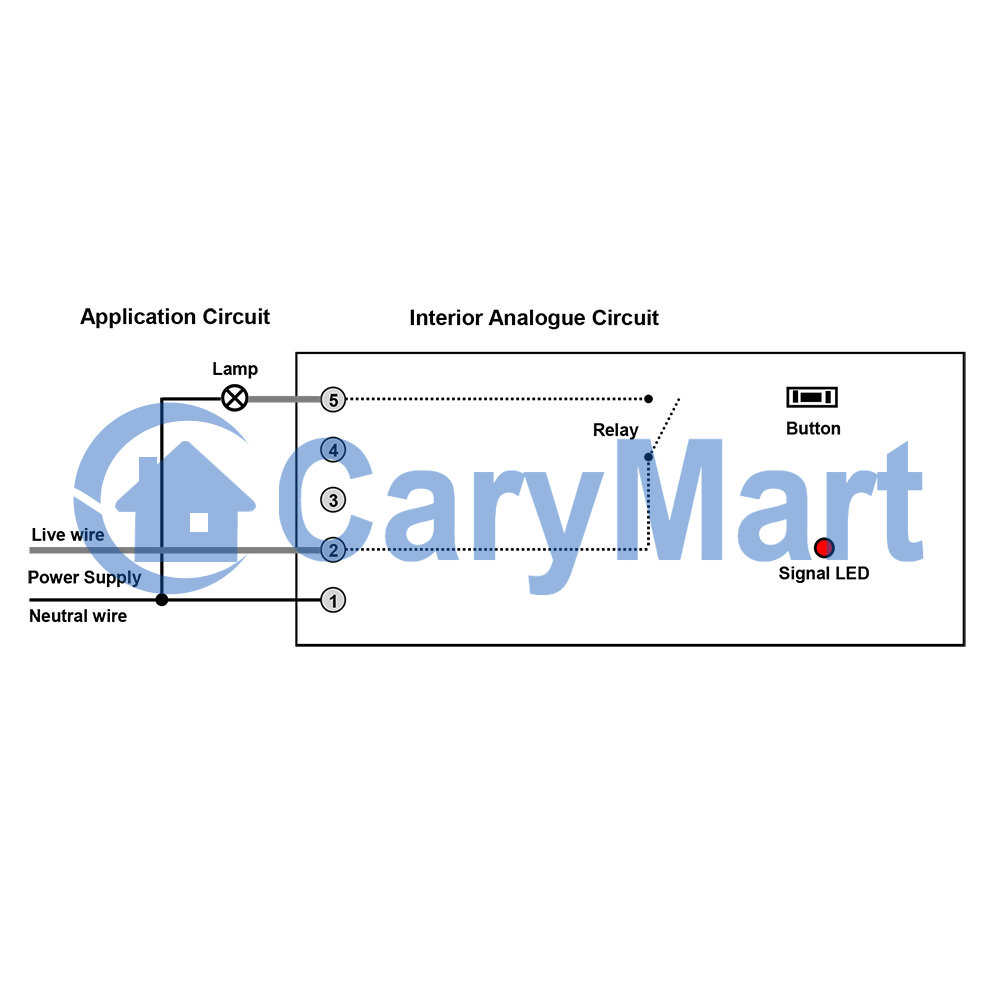

Connect the neutral wire to the terminal “1”, and the live wire to the terminal “2”. Connect the lamp to the terminal “5” and the neutral wire.
Press button, turn on the lamp; Press button again, turn off the lamp.
Package Include:
1 x Receiver: S1T-AC110 / S1T-AC220 (1 Channel / Self-locking Control Mode)
