2 CH 2000m Long Range Remote Control Firework Ignitor System


 Manual

Feature:

• Wireless control, easy to install
• It can ignite various kinds of electric fireworks directly, or ordinary fireworks through fireworks electric igniter, which reduces accidents like skin burn and accidental explosions.
• One ignitor can light several fireworks at the same time.
• One transmitter can control many ignitors simultaneously.
• The ignitor can be remotely controlled from any place within a reliable distance; wireless signal pass through walls, floors and doors.
• More reliable than fixed code: The transmitter use EV1527 Learning code, which is up to 1 million codes, reducing code collision and unauthorized code scanning possibilities.
• Transmitting Frequency: 433MHz
• Working distance of transmitter and receiver with external extend antenna: 2000M /6000ft (theoretically)

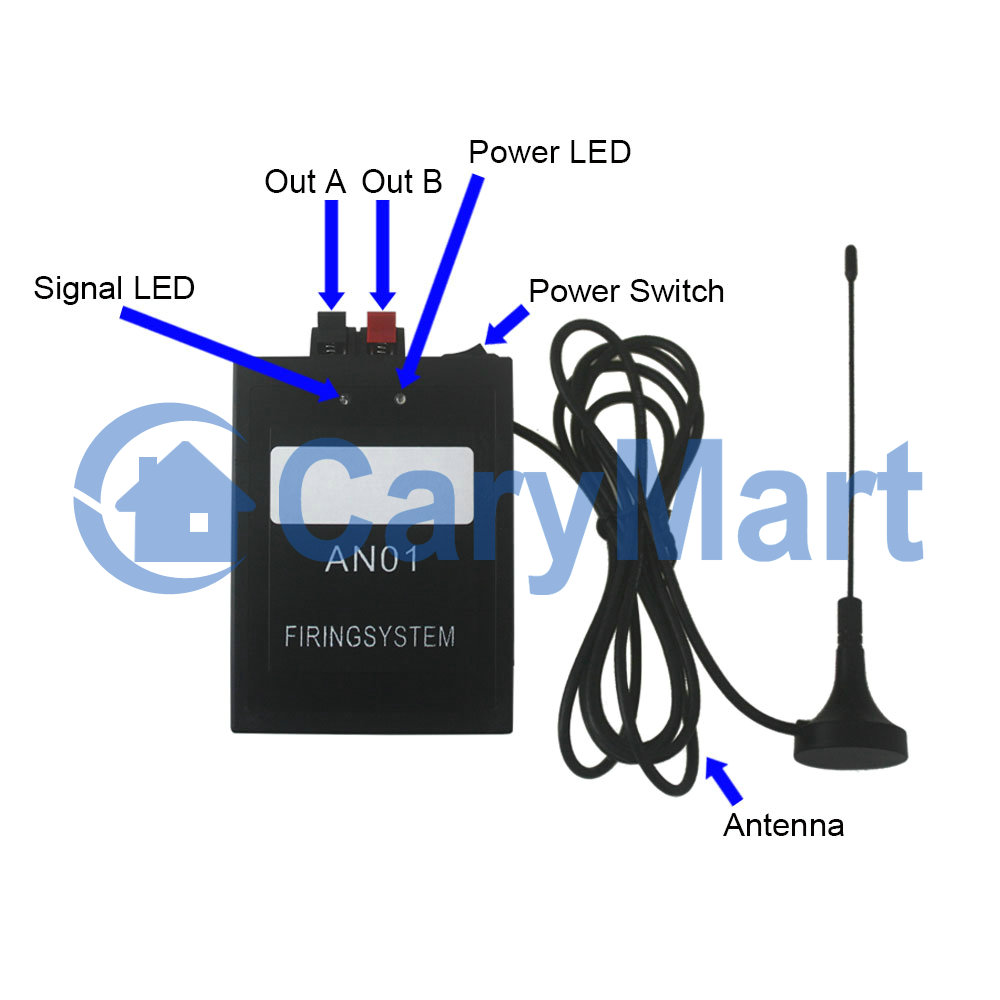

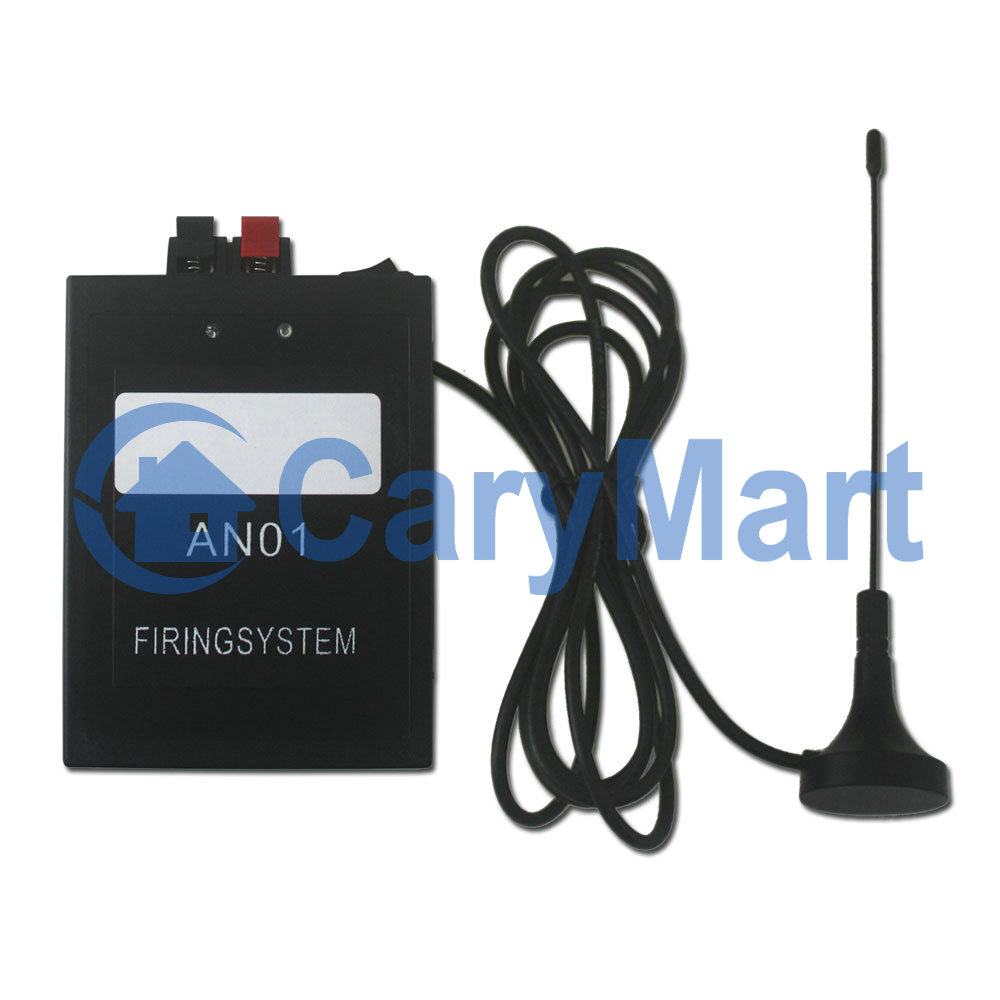

Receiver:

• Model No.: S1PS1-DC06-ANT2
• Channel: 1 CH
• Power Supply (Operating Voltage): 4 x1.5V AA batteries (excluded)
• Power Output: DC6V
• Case size: 105mm x 72mm x 20mm
• Static Current: ≤5mA

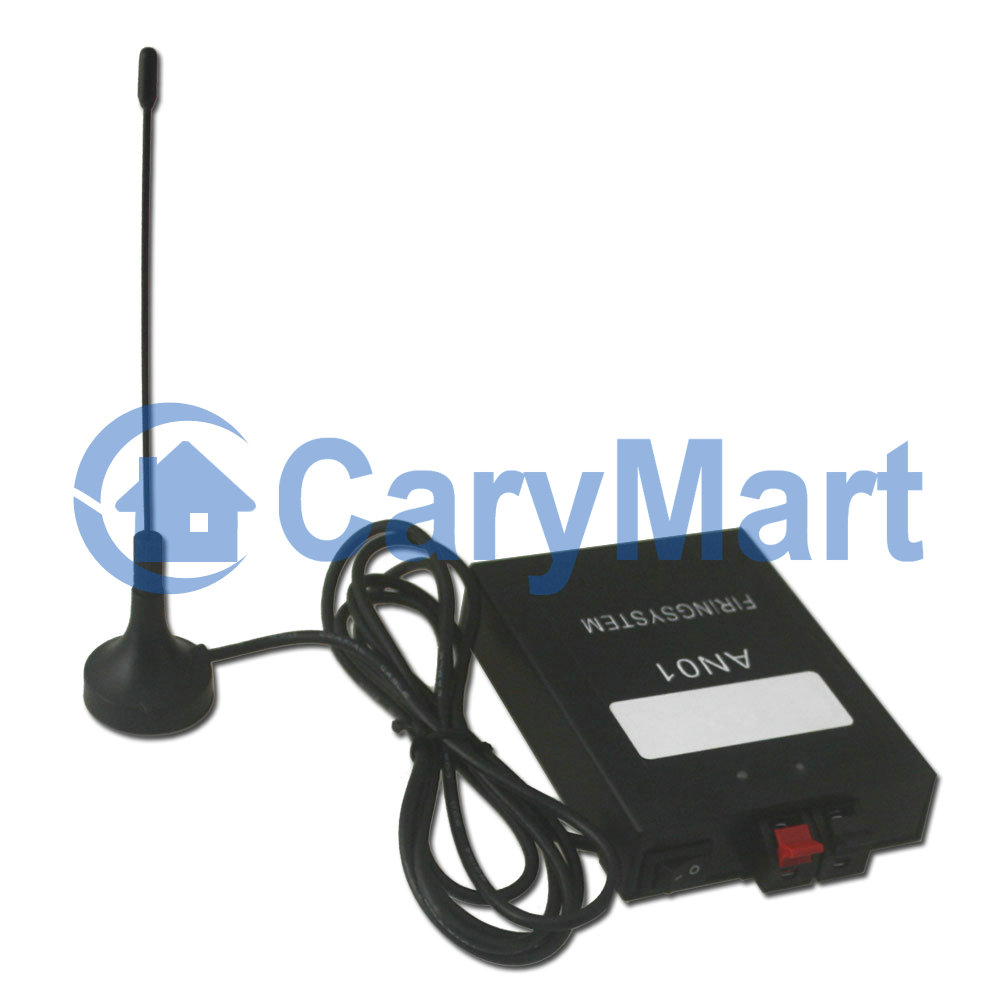

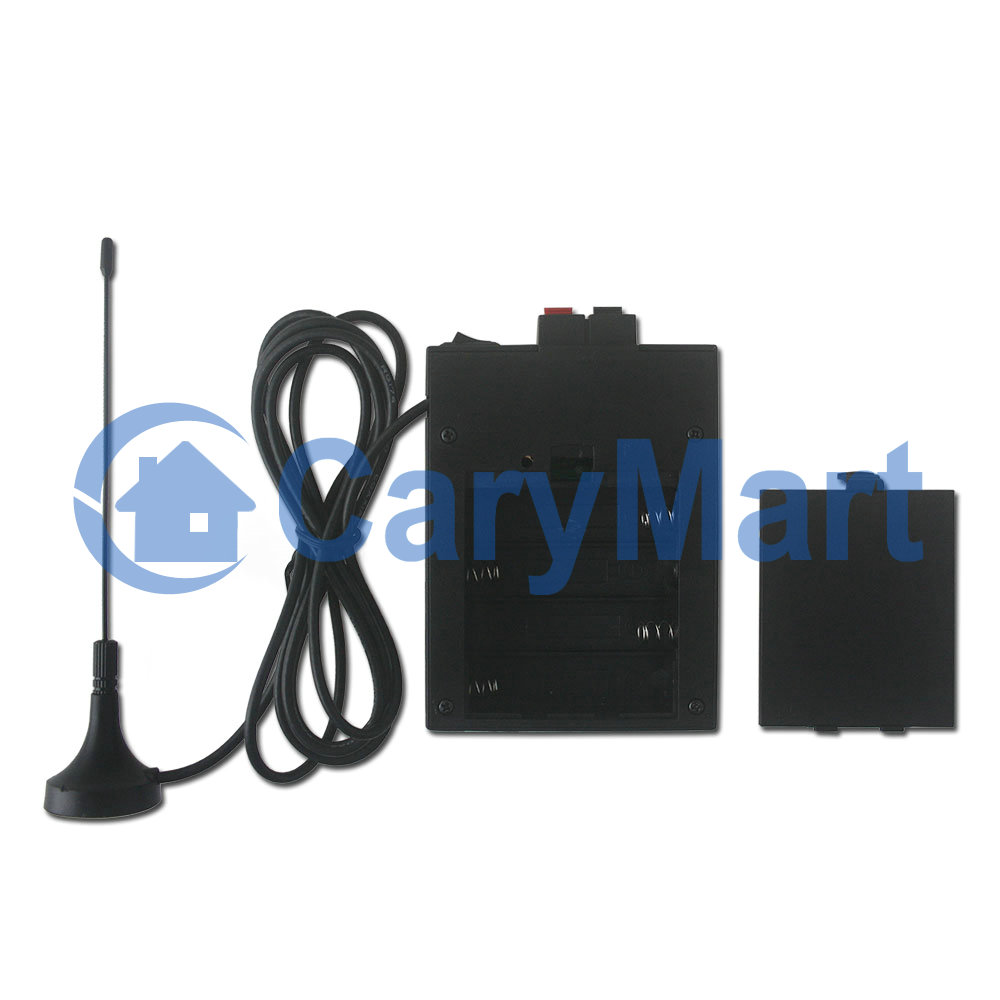

External Extend Antenna:

• Frequency Range: 300~450MHz
• Impedance: 50Ω
• Antenna Length: 15cm
• Cable Length: 150cm
• Weight: 35g
• Anti-interference, waterproof, shielded wire set inside
• Magnetic stand design for easy to install

Transmitter:

• Model No.: CB-2L
• Button: 2 buttons
• Remote Control Distance: 1000m / 3000ft (theoretically)
• Encode: EV1527 Learning code (up to 1 million codes, reducing code collision)
• Unit Size: 135mm x 42mm x 25mm

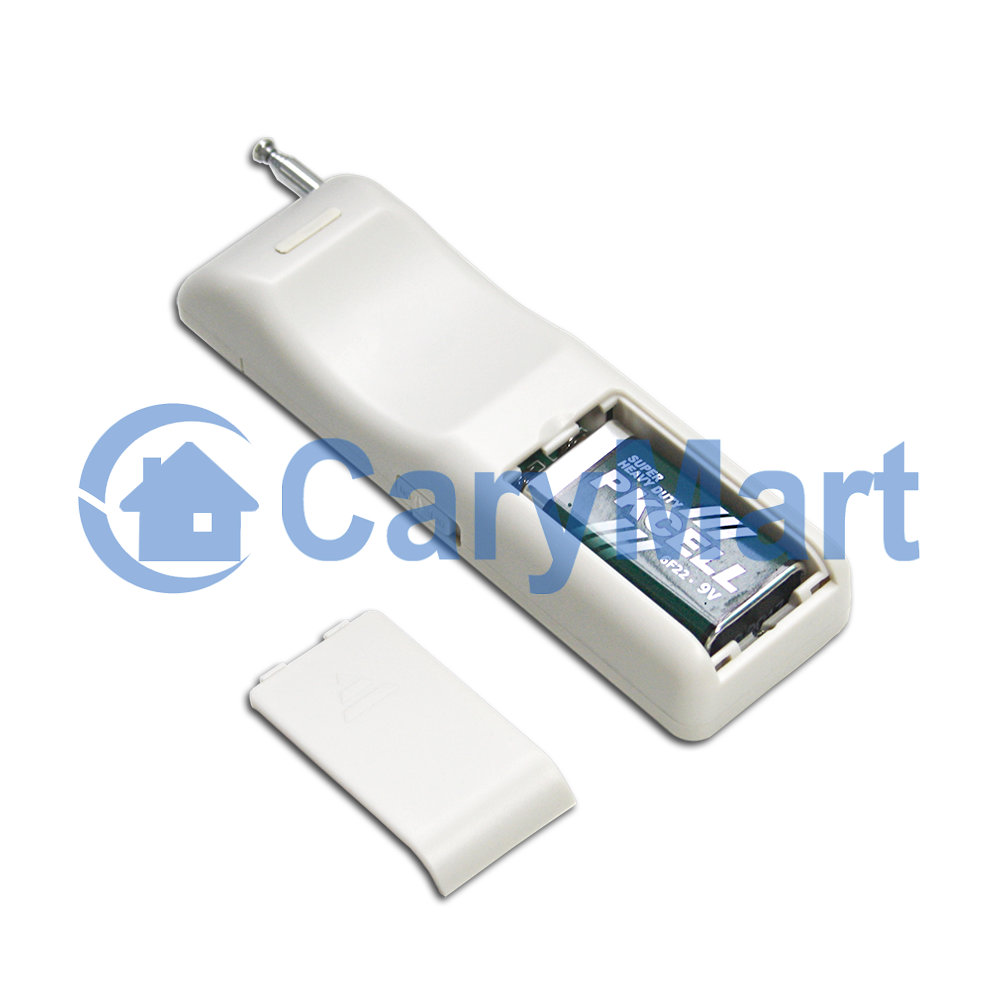

• Power Supply: 1 x 6F22-9V battery (included, can be used for 12 months)

Operation:

• 1. Test the firework ignitor system: switch on the receiver box, press the big button on the transmitter, signal light will be off and the power LED light flashes 2 times, then signal light is on again. It means that remote control firework ignitor system is in good condition.

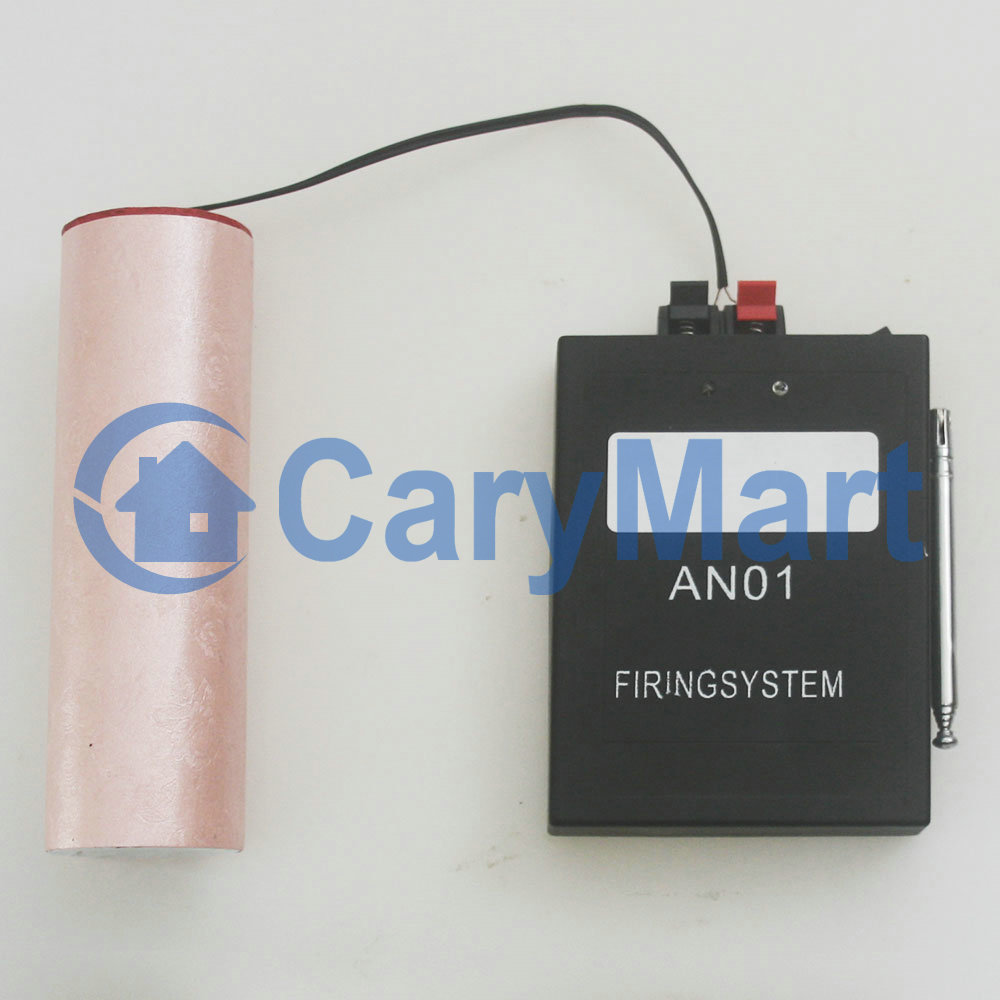

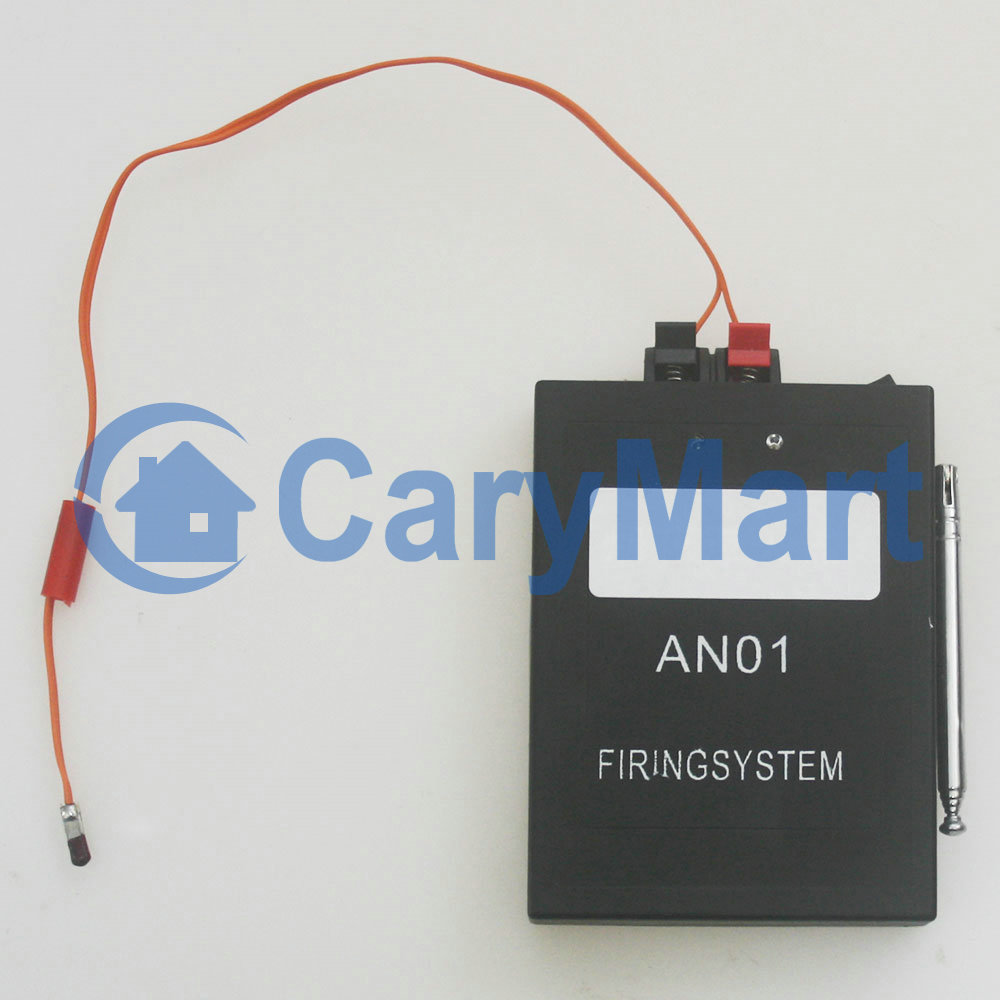

• 2. Connect fireworks: Switch off the receiver and connect two wires of electric firework or fireworks electric igniter of firework to black and red terminals on the receiver. Switch on the receiver after connections. The fireworks connections are correct if the signal light is on. Likewise, connect fireworks to another receiver and use small button on the transmitter to test and control another receiver.

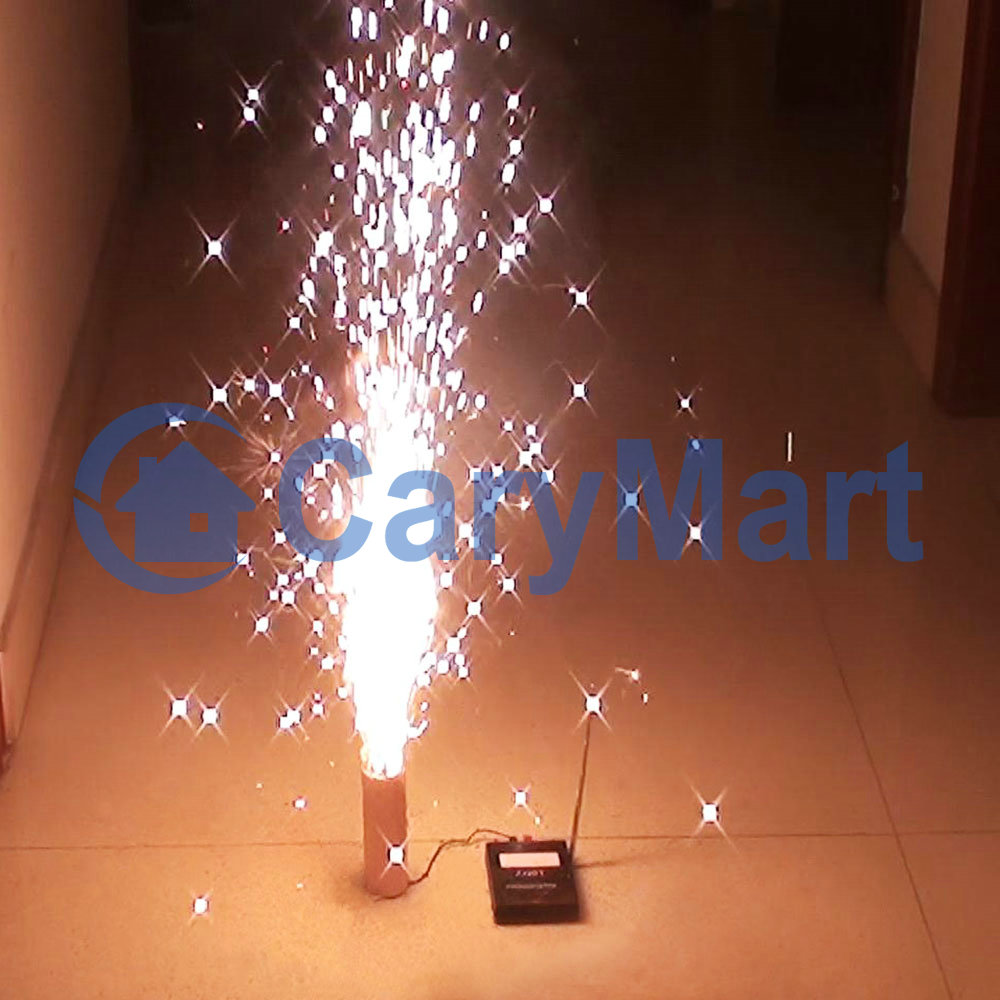

• 3. Ignite fireworks: Switch on each receiver box, press buttons one by one, ignite fireworks.

Caution:

• 1. Please make sure that the power of receiver is off when you connect two wires of electric fireworks or fireworks electric igniter to black & red terminals.
• 2. Any inflammable and explosives must be far away when igniting fireworks.
• 3. Please make sure that anyone is far away from the firework more than 50m when it is ignited.

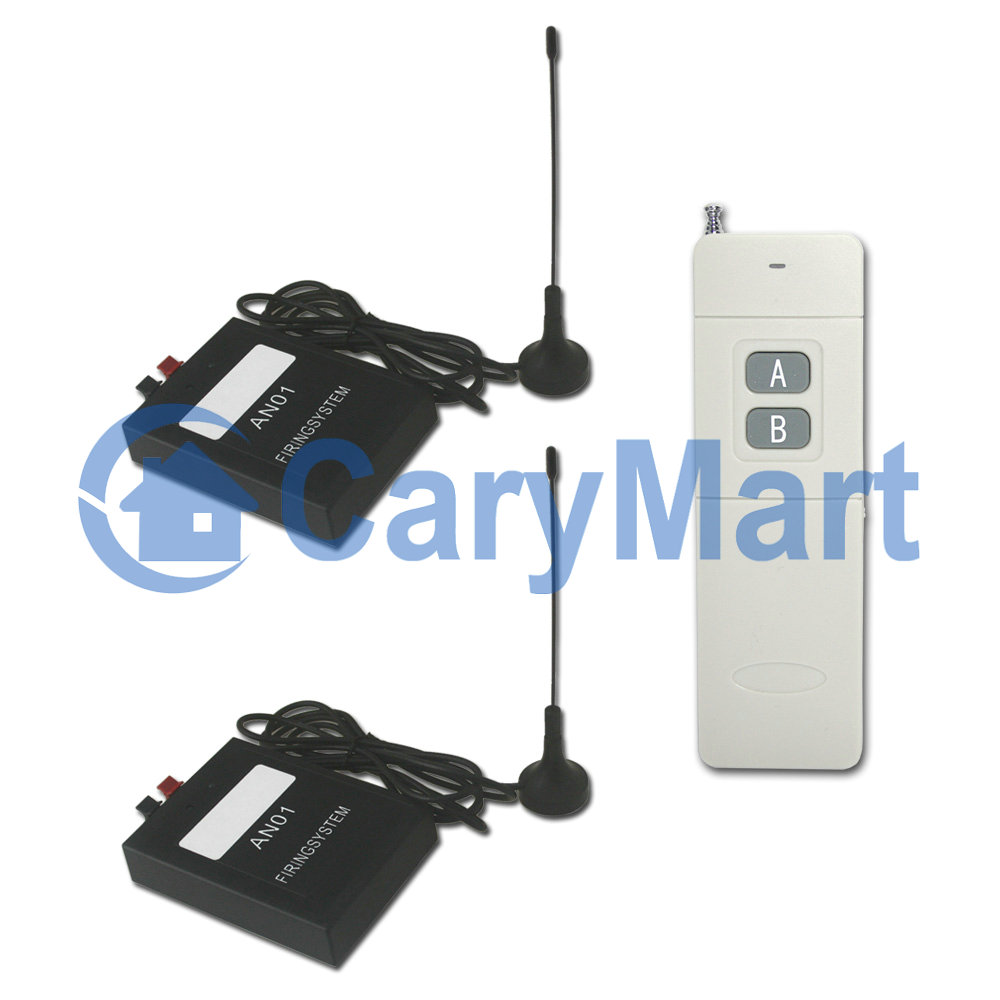

Package Include:

• 2 x Receiver: S1PS1-DC06-ANT2 (1 Channel / DC6V)
• 1 x Transmitter: CB-2L
• 1 x User manual

Note:

• The distance of 2000m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it may be hindered by trees, walls or other constructions, and may be exposed to some interference by other signals. Therefore, the actual distance can not reach 2000m. It depends on the actual working environment.
