The receiver
is designed for one-transmitter-many-receivers system. You can use a 6 buttons transmitter
to control 3 receivers, or use an 8 buttons transmitter to control 4 receivers,
or use a 12 buttons transmitter to control 6 receivers.
1 x User manual Feature: Application:
It can be used in industry automation, agriculture automation and home
automation, such as factory, house, farm, pasture, vehicle, ship, offshore
operation, aerial vehicle, field call, etc. It can remote control equipments on
land, water and air, such as remote control lights, sirens, locks, motors,
fans, winches, blinds, linear actuators, doors, windows, electric solenoid
valves, security alarm, business signs and various devices. Wireless control, easy
to install. Waterproof:

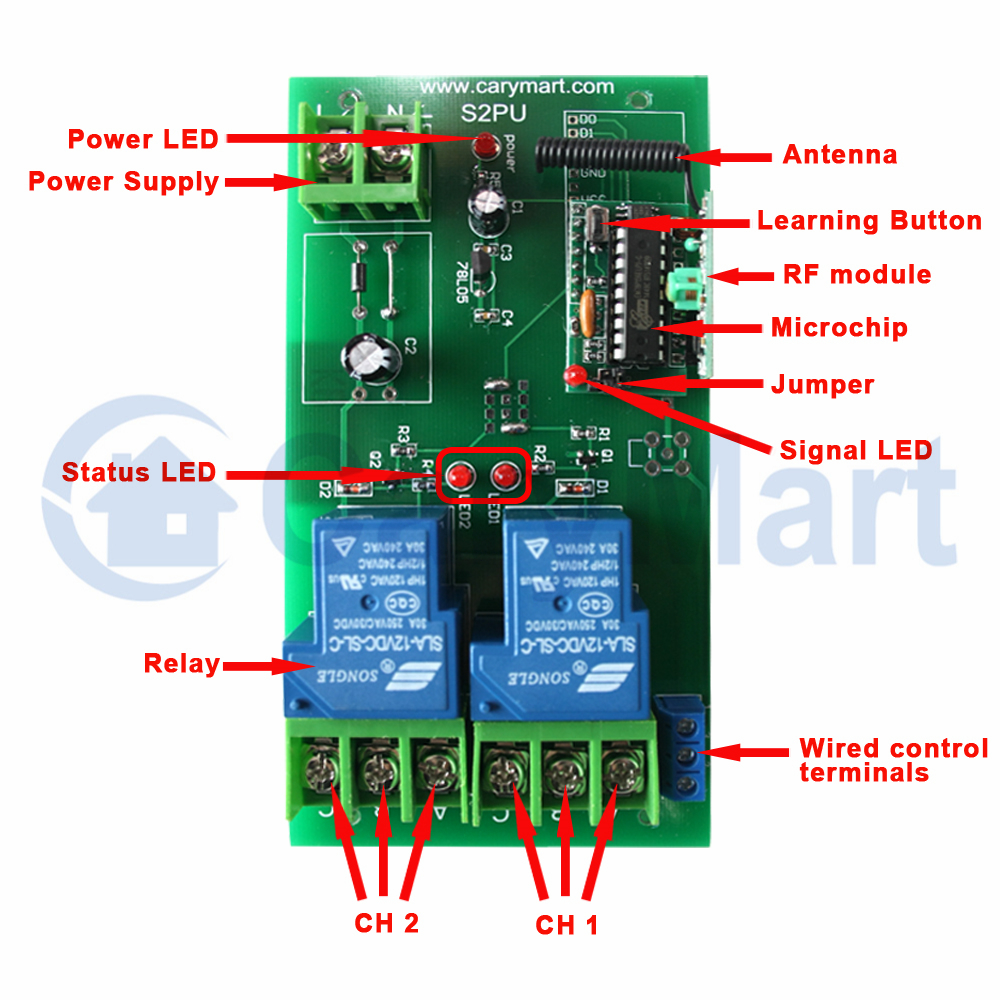

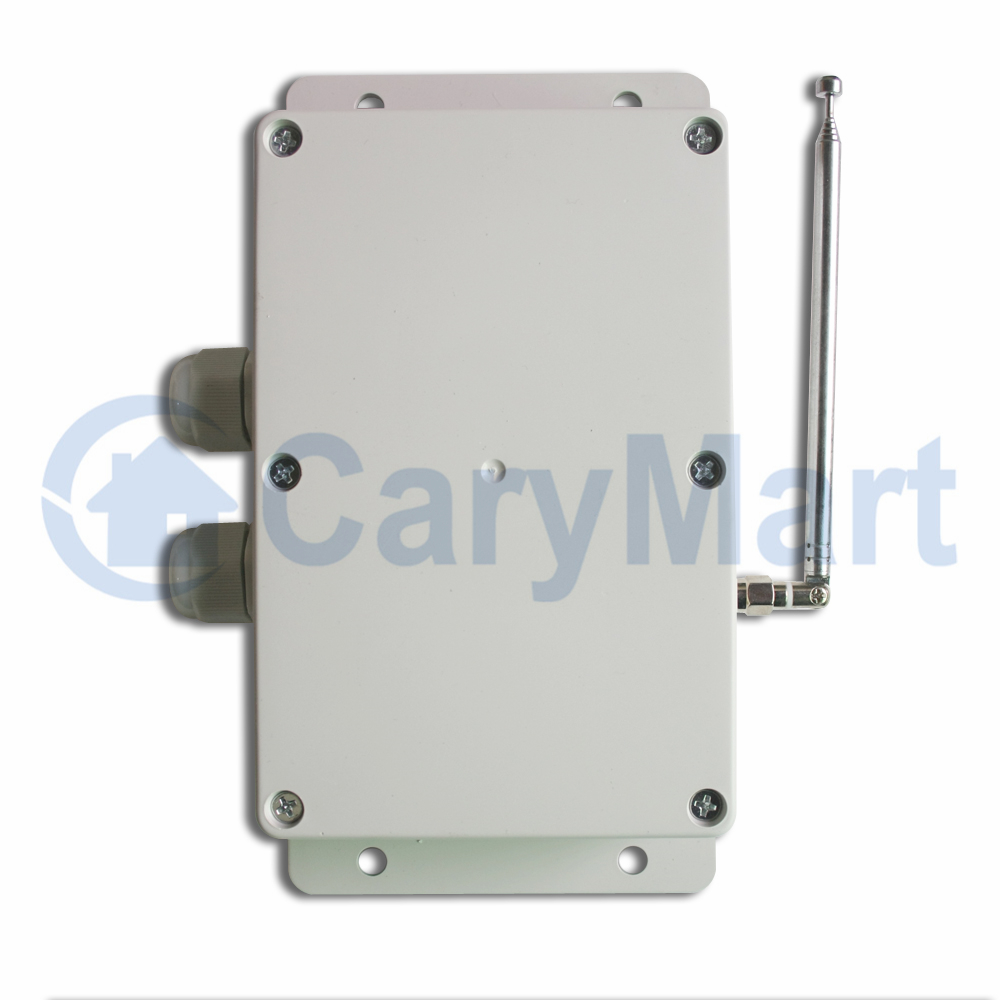

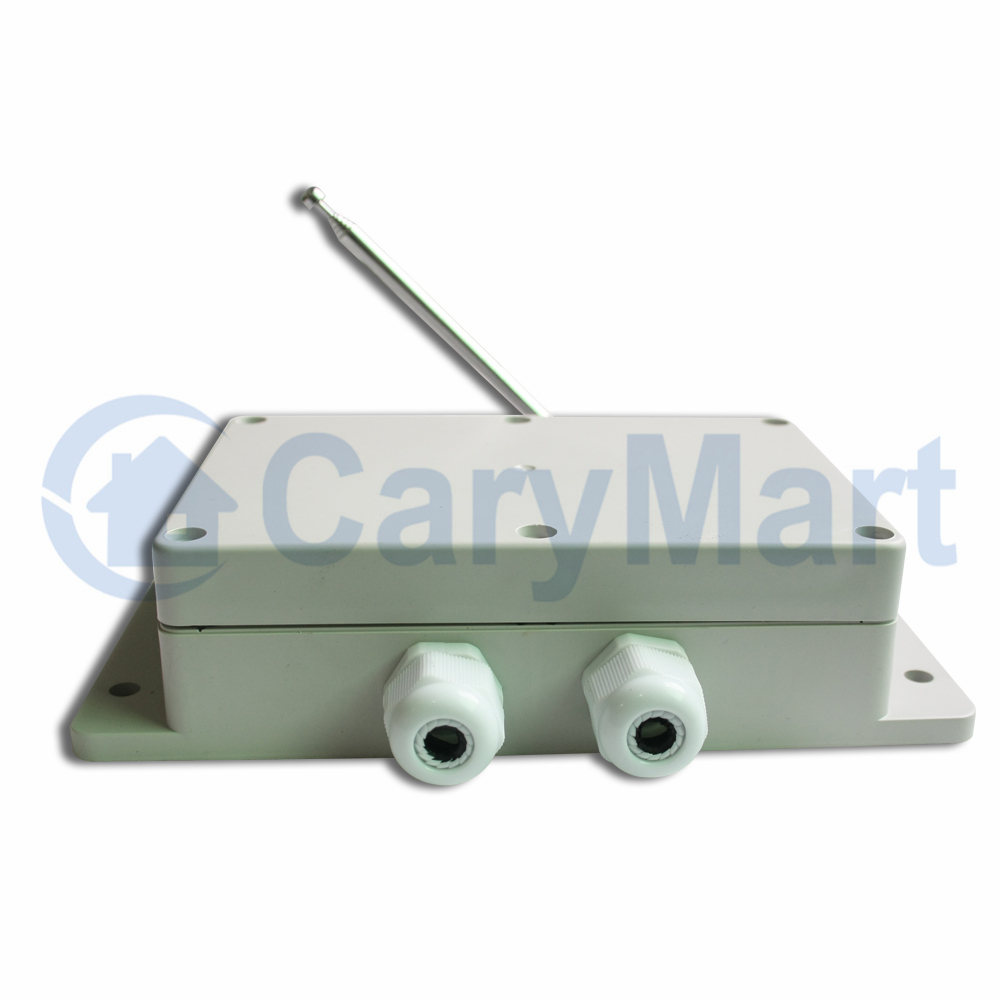

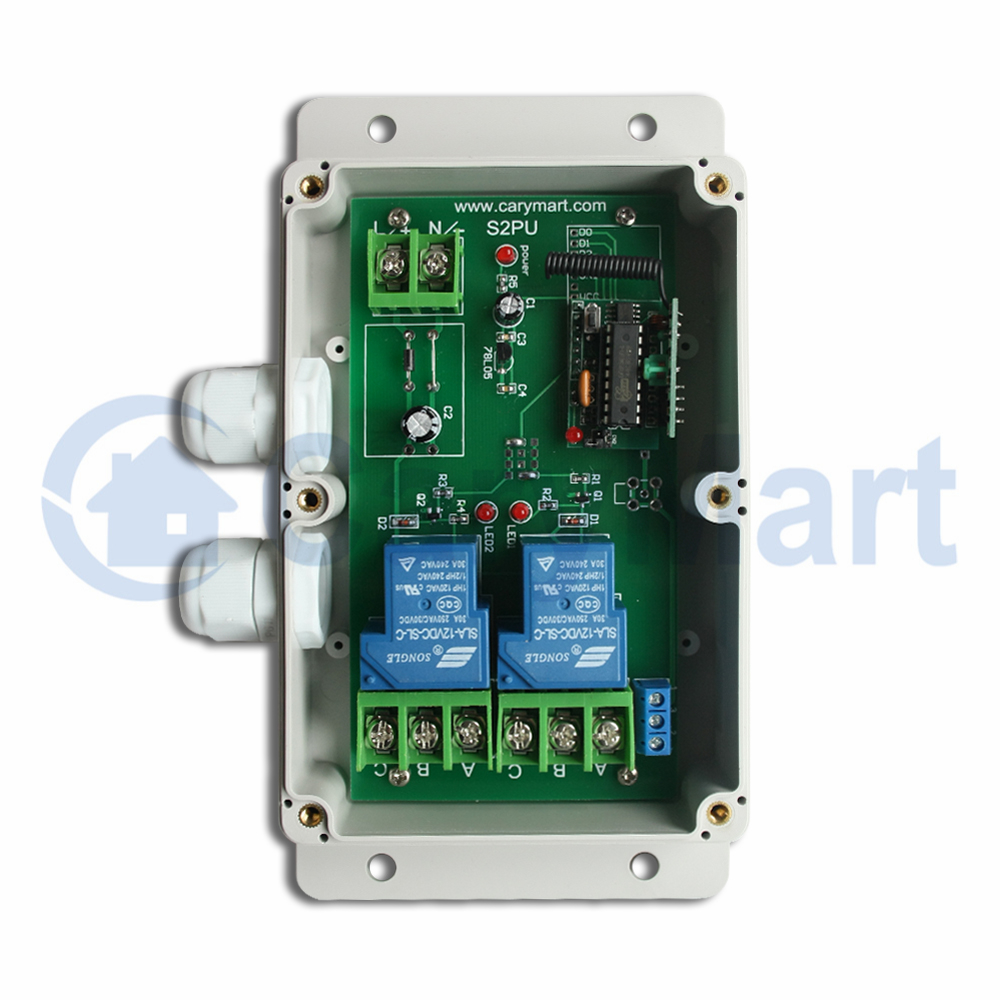

The receiver has waterproof case and waterproof connector, it can be installed
outdoors. Relay
Output: This receiver is relay output, it can be used to operate both DC and AC
equipments. The terminals are NO / NC (normally open / normally closed), which
serves as a switch. That means you should also connect a separate power supply
to equipments. High
Power: Each channel can work at maximum current 30A, such as 360W/12V, 180W/6V,
270W/9V, 720W/24V, 3000W/110V, 6000W/220V. With wired control terminals:
You can connect sensors, limit switches,
manual switches or external devices to control the receiver. You can
turn on/ off the receiver with transmitter (remote control) from any place
within a reliable distance. Wireless RF
signal can pass through walls, floors, doors or windows. With
reverse power protection and over current protection. Reliable
control: The receiver only works with the transmitter which use same code. One/several
transmitters can control one/several receivers simultaneously. You can use
two or more units in the same place. Receiver Parameters: Model No. S2PUB-DC06 /
S2PUB-DC09 / S2PUB-DC12 / S2PUB-DC24 Power
Supply (Operating Voltage): DC6V (S2PUB-DC06), DC9V±1V (S2PUB-DC09), DC12V±1V
(S2PUB-DC12), DC24V±2V (S2PUB-DC24) Output: Relay output
(Normally open and normally closed) Working Voltage Range
of Relay: AC110~240V or DC0~28V Working Frequency: 433MHz Channel: 2 CH Control Modes: Self-locking, Momentary, Interlocking, Momentary + Self-locking Static Current: ≤6mA Maximum Working
Current: 30A / each channel PCB size: 140mm x 73mm
x 18mm Case size:
192mm x 100mm x 45mm Work with Fixed code transmitters. Matching Transmitters: The
receiver can work with different transmitters, such as model CP-6 / CV-6 / CV-8
/ CV-12 (500M), or CB-6 / CB-8 / CB-12 (1000M) etc. Working
Range: With a transmitter (such as CV-12) to form a complete
set, the maximum working distance can reach 500M in an open ground. The maximum working
distance is a theoretical data, it shall be operated in an open ground, no
barriers, no any interference. But in the practice, it will be hindered by
trees, walls or other constructions, and will be interfered by other wireless
signals. Therefore, the actual distance may not reach this
maximum working distance. If you
want to have a further working range, you can install an external antenna to
the receiver, and you also can use a powerful
transmitter, such as CB series transmitters. Usage: The receiver can be used to control both DC 0~28V and AC 110~240V
equipments. Notice: The receiver is relay output, not DC/AC power output. Initial
state of relay output terminals: Terminals A and B are Normally Open; Terminals

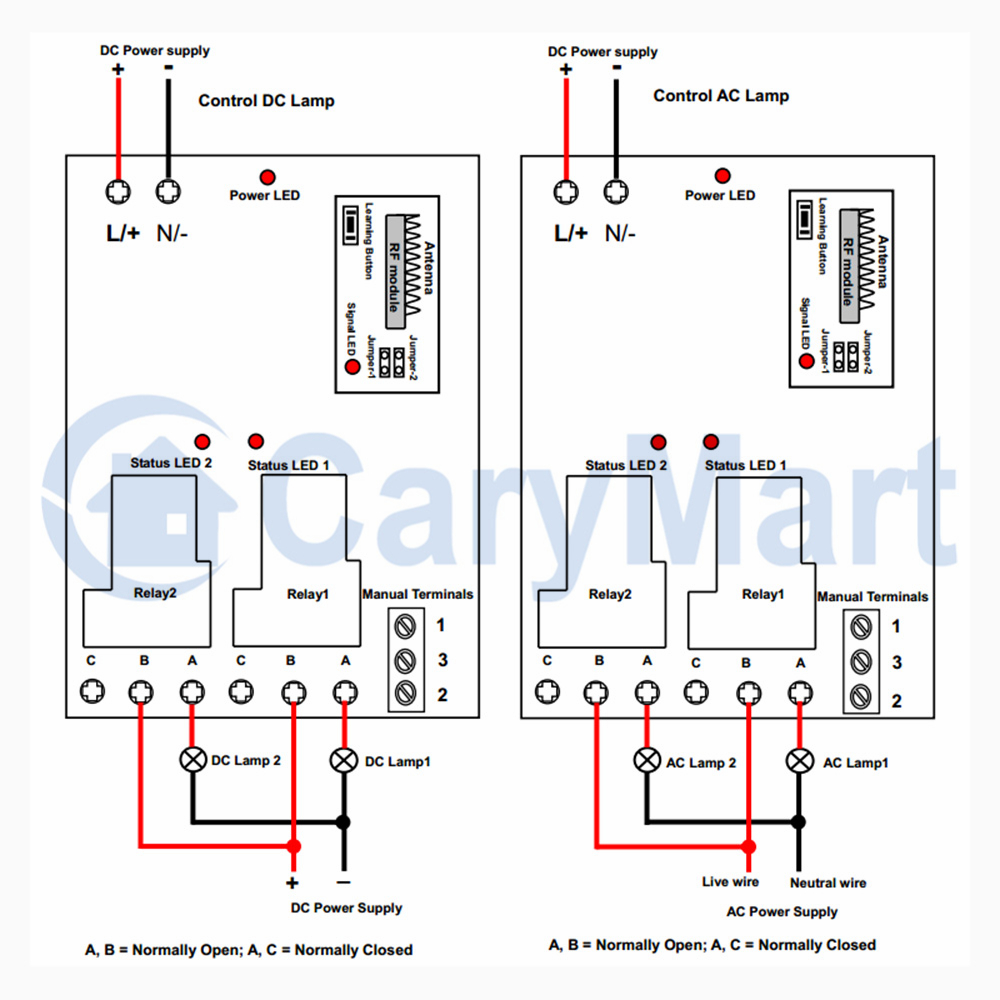

A and C are Normally Closed. Wiring: If you want to control a DC 12V lamp, do as following: 1) Connect the positive pole of DC power supply to terminal “L / +”, and
connect the negative pole of DC power supply to terminal “N / -”. 2) Connect terminal B to the positive pole of DC power supply, connect terminal
A to the positive pole of DC lamp, and connect the negative pole of DC lamp to
the negative pole of DC power supply. If you want to control an AC 220V lamp, do as following: 1) Connect the positive pole of DC power supply to terminal “L / +”, and
connect the negative pole of DC power supply to terminal “N / -”. 2) Connect terminal B to the live wire of AC power supply, connect terminal
A to one side of AC lamp, and connect another side of AC lamp to the neutral
wire of AC power supply. Setting
different control modes (We have set the receiver as Self-locking control mode before
delivery. If you want to use other control modes, do as following operation): Setting
control mode Self-locking: Only connect Jumper-2. Control
mode Self-locking (with transmitter CV-12): Press -> On; Press again -> Off. Press
button 1: Turn on relay 1 of Receiver 1 (connect A and B, disconnect A and C),
the lamp 1 is on. Press
button 1 again: Turn off relay 1 of Receiver 1 (disconnect A and B, connect A
and C), the lamp 1 is off. Press
button 2: Turn on relay 2 of Receiver 1 (connect A and B, disconnect A and C),
the lamp 2 is on. Press
button 2 again: Turn off relay 2 of Receiver 1 (disconnect A and B, connect A
and C), the lamp 2 is off. … Press
button 11: Turn on relay 1 of Receiver 6 (connect A and B, disconnect A and C),
the lamp 11 is on. Press
button 11 again: Turn off relay 1 of Receiver 6 (disconnect A and B, connect A
and C), the lamp 11 is off. Press
button 12: Turn on relay 2 of Receiver 6 (connect A and B, disconnect A and C),
the lamp 12 is on. Press button
12 again: Turn off relay 2 of Receiver 6 (disconnect A and B, connect A and C),
the lamp 12 is off. Setting
control mode Momentary: Only connect Jumper-1. Control
mode Momentary (with transmitter
CV-12): Press and hold -> On; Release -> Off. Press and
hold button 1: Turn on relay 1 of Receiver 1 (connect A and B, disconnect A and
C), the lamp 1 is on. Release
button 1: Turn off relay 1 of Receiver 1 (disconnect A and B, connect A and C),
the lamp 1 is off. Press and
hold button 2: Turn on relay 2 of Receiver 1 (connect A and
B, disconnect A and C), the lamp 2 is on. Release
button 2: Turn off relay 2 of Receiver 1 (disconnect A and B, connect A and C),
the lamp 2 is off. … Press and
hold button 11: Turn on relay 1 of Receiver 6 (connect A and B, disconnect A
and C), the lamp 11 is on. Release
button 11: Turn off relay 1 of Receiver 6 (disconnect A and B, connect A and C),
the lamp 11 is off. Press and
hold button 12: Turn on relay 2 of Receiver 6 (connect A and B, disconnect A
and C), the lamp 12 is on. Release
button 12: Turn off relay 2 of Receiver 6 (disconnect A and B, connect A and C),
the lamp 12 is off. Setting
control mode Interlocking: Do not connect Jumper-1 and Jumper-2. Control
mode Interlocking (with transmitter CV-12): Press -> On, other relays Off; Press
another button -> Off. Press
button 1: Turn on relay 1 of Receiver 1 (connect A and B, disconnect A and C), the
lamp 1 is on. Turn off relay 2 of
Receiver 1 (disconnect A and B, connect A and C), the lamp 2 is off. Press
button 2: Turn on relay 2 of Receiver 1 (connect A and B, disconnect A and C), the
lamp 2 is on. Turn off relay 1 of
Receiver 1 (disconnect A and B, connect A and C) the lamp 1 is off. … Press
button 11: Turn on relay 1 of Receiver 6 (connect A and B, disconnect A and C),
the lamp 11 is on. Turn off relay 2 of
Receiver 6 (disconnect A and B, connect A and C), the lamp 12 is off. Press
button 12: Turn on relay 2 of Receiver 6 (connect A and B, disconnect A and C),
the lamp 12 is on. Turn off relay 1 of
Receiver 6 (disconnect A and B, connect A and C), the lamp 11 is off. Setting
control mode Momentary + Self-locking (with transmitter CV-12): connect Jumper-1& Jumper-2 1) Control
mode Momentary (Channel 1 of Receiver 1, 2, 3, 4，5，6): Press and hold -> On; Release ->
Off. Press and
hold button 1: Turn on relay 1 of Receiver 1 (connect A and B, disconnect A and
C), the lamp 1 is on. Release
button 1: Turn off relay 1 of Receiver 1 (disconnect A and B, connect A and C),
the lamp 1 is off. … Press and
hold button 11: Turn on relay 1 of Receiver 6 (connect A and B, disconnect A
and C), the lamp 11 is on. Release
button 11: Turn off relay 1 of Receiver 6 (disconnect A and B, connect A and C)
the lamp 11 is off. 2) Control
mode Self-locking (Channel 2 of Receiver 1, 2, 3, 4，5，6): Press -> On; Press again -> Off. Press
button 2: Turn on relay 2 of Receiver 1 (connect A and B, disconnect A and C), the
lamp 2 is on. Press
button 2 again: Turn off relay 2 of Receiver 1 (disconnect A and B, connect A
and C), the lamp 2 is off. … Press
button 12: Turn on relay 2 of Receiver 6 (connect A and B, disconnect A and C),
the lamp 12 is on. Press
button 12 again: Turn off relay 2 of Receiver 6 (disconnect A and B, connect A
and C), the lamp 12 is off. Wired control terminals: The
receiver has manual control terminals, you can connect external devices,
sensors, or manual switches to control the receiver. 1) Signal
input: You can
connect external devices (with low level output signal) to manual terminals 1
(Signal +), terminal 2 (Signal +) and terminal 3 (Signal -), then the external
device’s output signal can control the receiver. When the
external device outputs low level signal to manual terminal 1 and terminal 3, turns on the
relay 1, (connect A and B, disconnect A and C), the lamp 1 is on. When the external device stops to output signal, turns off the relay 1(disconnect A and B, connect A
and C), the lamp 1 is off. When the
external device outputs low level signal to manual terminal 2 and terminal 3, turns on the
relay 2(connect A and B, disconnect A and C), the lamp 2 is on. When the external device stops to output signal, turns off
the relay 2(connect A and B, disconnect A and C), the lamp 2 is on. 2) The manual switches: You can
connect manual switches to manual terminals 1, 2 and 3, then you can use
manual switches to control the receiver. When connect terminals
1 and 3, turns on the relay 1(connect A and B,
disconnect A and C), the lamp 1 is on. And when disconnect
terminals 1 and 3, turns off the relay 1(disconnect A and B, connect A and C),
the lamp 1 is off. When
connect terminals 2 and 3, turns on the relay
2(connect A and B, disconnect A and C), the lamp 2 is on. And when
disconnect terminals 2 and 3,turns off the
relay 2(disconnect A and B, connect A and C), the lamp 2 is off.
