Application:
This receiver is an electric device with 2 channels AC 12V / 24V power
outputs, it and the transmitter form a wireless remote-control system. This
system may be used in all types of industry automation, agriculture,
business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle,
etc. It can remote control AC 12V or 24V equipment on land, water, and air,
such as lights, doors, windows, lamps, sockets, locks, sirens, outlets,
heaters, motors, fans, winches, curtains, blinds, linear actuators, electric
solenoid valves, and security alarm systems. The applications are endless.
Feature:
Wireless remote control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector; it
can be installed outdoors.
Compatible with two operating voltages: AC 12V or 24V.
AC Power Output: It can control AC equipment with voltage AC 12V or 24V.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a
reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors,
doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers
simultaneously.
Two or more receivers may be used in the same area.

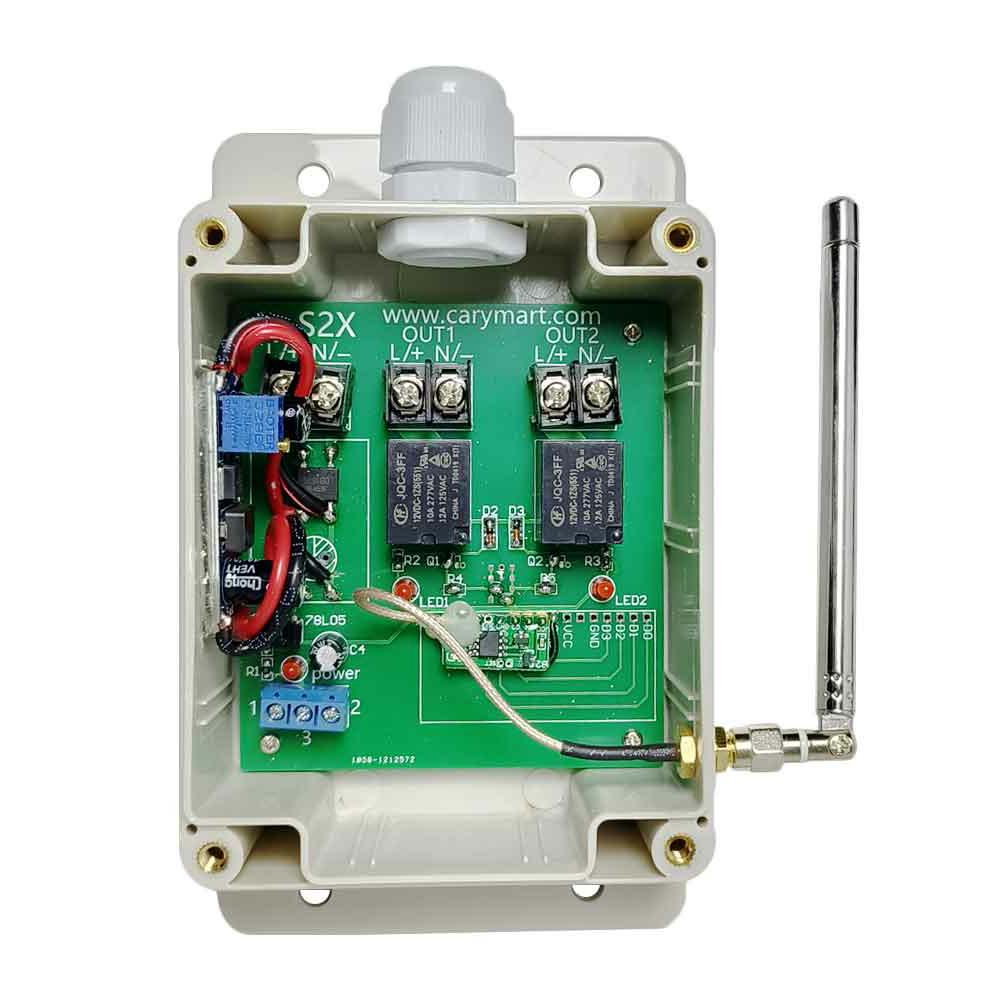

Receiver Parameters:
Model: S2X-AC12-ANT3
Operating Voltage: 12V or 24V AC
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Channel: 2 CH
Output Type: 12V or 24V AC, same as input voltage
Maximum Load Current of Relay: 10A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
4 Selectable Working Modes: Self-locking, Momentary, Interlocking, Momentary
+ Self-locking
Operating Temperature: -20 °C ~ +70 °C
PCB size: 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches)
Case size: 153 x 90 x 55 mm (6.0 x 3.6 x 2.2 inches)
Matching Transmitters:
This receiver can work with different transmitters, such as model
C-2
/
C-3
(100M),
CWB-2
/
CWB-3
(50M, waterproof),
CP-2
/
CP-3
(500M), or
CB-2
/
CB-3
(1000M) etc.
When you set the receiver in Self-locking mode or Momentary mode, it should
work with two buttons transmitter, such as model C-2, CWB-2, CP-2, or CB-2
etc.
When you set the receiver in Interlocking mode, it should work with three
buttons transmitter, such as model C-3, CWB-3, CP-3, or CB-3 etc.
Working Range:
The receiver and the transmitter (such as CWB-2) form a complete kit, the
maximum working distance may reach 150 feet or 50 meters in an open area.
The maximum working distance is theoretical data, it shall be operated in an
open ground, no barriers, no interference. But in practice, it will be
hindered by trees, walls, or other construction, and will be interfered by
other wireless signals. Therefore, the actual working distance may not reach
this maximum distance.
If you want to have a further working range, you can install an external
antenna to the receiver, and you also can use a powerful transmitter, such
as CB series transmitters.
Usage:
The receiver can be used to control AC 12 or 24V devices.

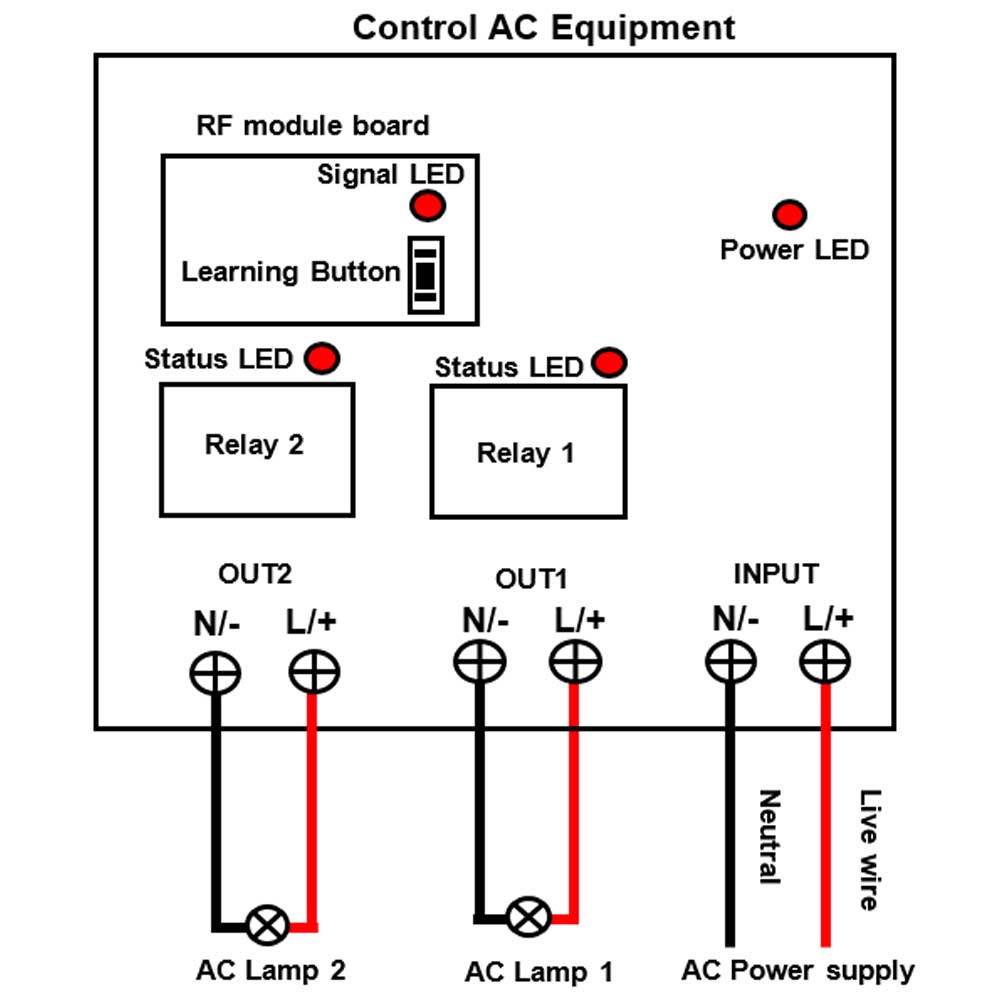

Wiring:
If you want to control an AC 12V or AC 24V lamp, do as follows:
1) Connect the live wire of AC power supply to terminal <L> of INPUT, and
connect the neutral wire of AC power supply to terminal <N> of INPUT.
2) Connect the live pole of AC lamp to terminal <L> of OUT, and connect the
neutral pole of AC lamp to terminal <N> of OUT.
Setting different working modes:
The receiver will be set in Self-locking mode before leaving the factory, if
you want to use another mode, please follow the following steps.
1) Setting Momentary mode: Press the learning button in the receiver 2
times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter CWB-2:
Press and hold the button A on the transmitter: The terminal <OUT1> of the
receiver outputs AC power, and the connected lamp 1 is turned on.
Release the button A: The terminal <OUT1> of the receiver stops outputting,
and the connected lamp 1 is turned off.
Press and hold the button B on the transmitter: The terminal <OUT2> of the
receiver outputs AC power, and the connected lamp 2 is turned on.
Release the button B: The terminal <OUT2> of the receiver stops outputting,
and the connected lamp 2 is turned off.
2) Setting Self-locking mode: Press the learning button in the receiver 3
times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter CWB-2:
Press the button A on the transmitter: The terminal <OUT1> of the receiver
outputs AC power, and the connected lamp 1 is turned on.
Press the button A again: The terminal <OUT1> of the receiver stops
outputting, and the connected lamp 1 is turned off.
Press the button B on the transmitter: The terminal <OUT2> of the receiver
outputs AC power, and the connected lamp 2 is turned on.
Press the button B again: The terminal <OUT2> of the receiver stops
outputting, and the connected lamp 2 is turned off.
3) Setting Interlocking mode: Press the learning button in the receiver 4
times, signal LED continuously flashes 4 times and then goes off.
The operation of Interlocking mode with the transmitter CWB-3:
Press the button A on the transmitter: The terminal <OUT1> of the receiver
outputs AC power, and the connected lamp 1 is turned on. The terminal <OUT2>
of the receiver stops outputting, and the connected lamp 2 is turned off.
Press the button B on the transmitter: The terminal <OUT2> of the receiver
outputs AC power, and the connected lamp 2 is turned on. The terminal <OUT1>
of the receiver stops outputting, and the connected lamp 1 is turned off.
Press the button C on the transmitter: The terminal <OUT1> and <OUT2> of the
receiver stop outputting, and the lamps 1 and 2 are turned off.
4) Setting Momentary (Channel 1) + Self-locking (Channel 2) mode: Press the
learning button in the receiver 5 times, signal LED continuously flashes 5
times and then goes off.
How to pair the transmitter to the receiver:
Notice: We have paired the transmitter to the receiver before leaving the
factory. If you want to pair more remote controls, please follow the
following steps.
1) Press the learning button once in the receiver, signal LED on the
receiver flashes one time and then stays on, this indicates that the
receiver enters the learning status.
2) Press button A on transmitter, if the signal LED flashes one time, this
indicates that the pairing with button A is successful. Then press button B
on transmitter, if the signal LED flashes one time, this indicates that the
pairing with button B is successful.
3) Press the learning button in the receiver again for 1-2 seconds, signal
LED turns off, this indicates that the receiver exits the learning status.
4) The receiver can learn several transmitters with different codes.
How to delete all transmitters codes stored in the receiver:
Notice: We have paired the transmitter to the receiver, if you don’t want
the receiver to work with the transmitter, you can delete all transmitters
codes stored in the receiver.
Operation: Press the learning button in the receiver 10 times and then
release the learning button, signal LED flashes 10 times quickly and then
goes off, this indicates that all stored codes have been deleted
successfully.
Package Include:
1 x Receiver: S2X-AC12-ANT3
1 x User manual
