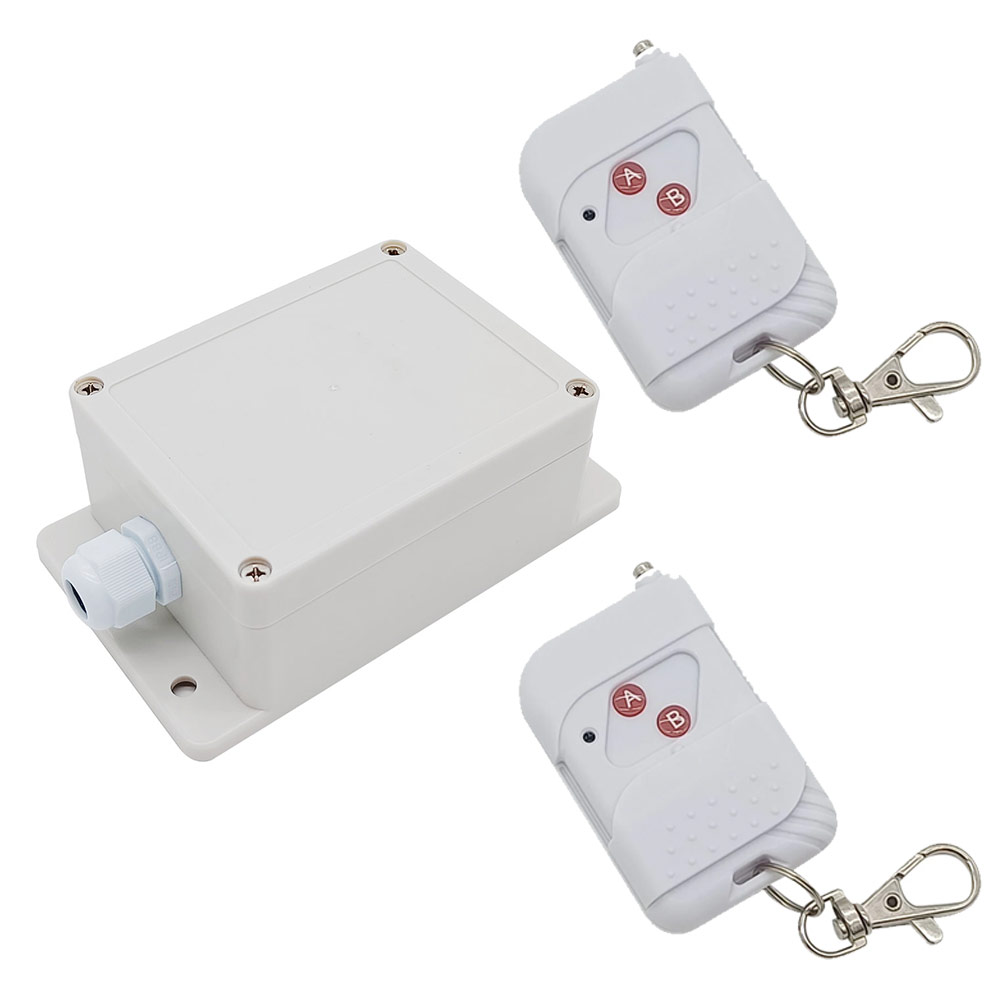

Package Include:
1 x Receiver: S2PX-DC
2 x Transmitter: C-2
1 x User manual
Feature:
Application: It can be used in industry automation, agriculture automation and home automation, such as factory, house, farm, pasture, vehicle, ship, offshore operation, aerial vehicle, field call, etc. It can remote control equipments on land, water and air, such as remote control lights, sirens, locks, motors, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, business signs and various devices.
Wireless control, easy to install.
Use an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
With characteristics of reverse power protection and over current protection
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use the custom code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

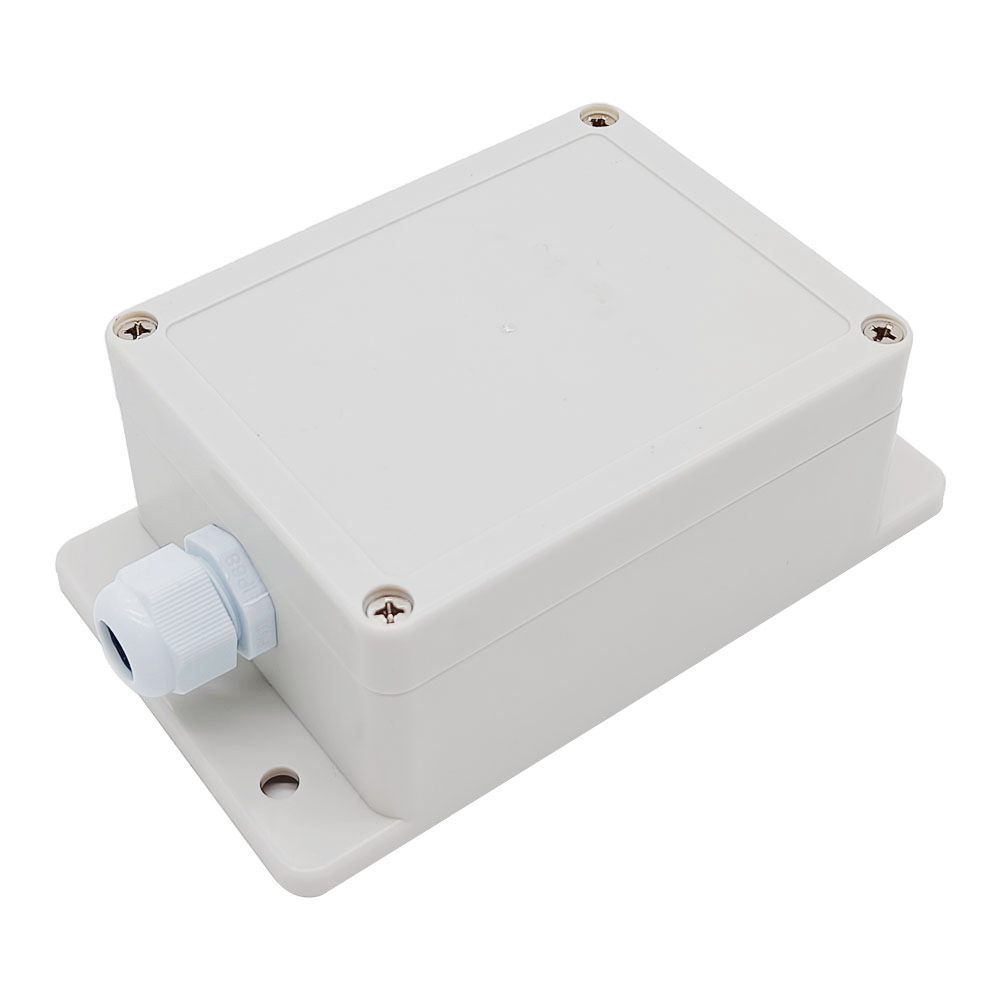

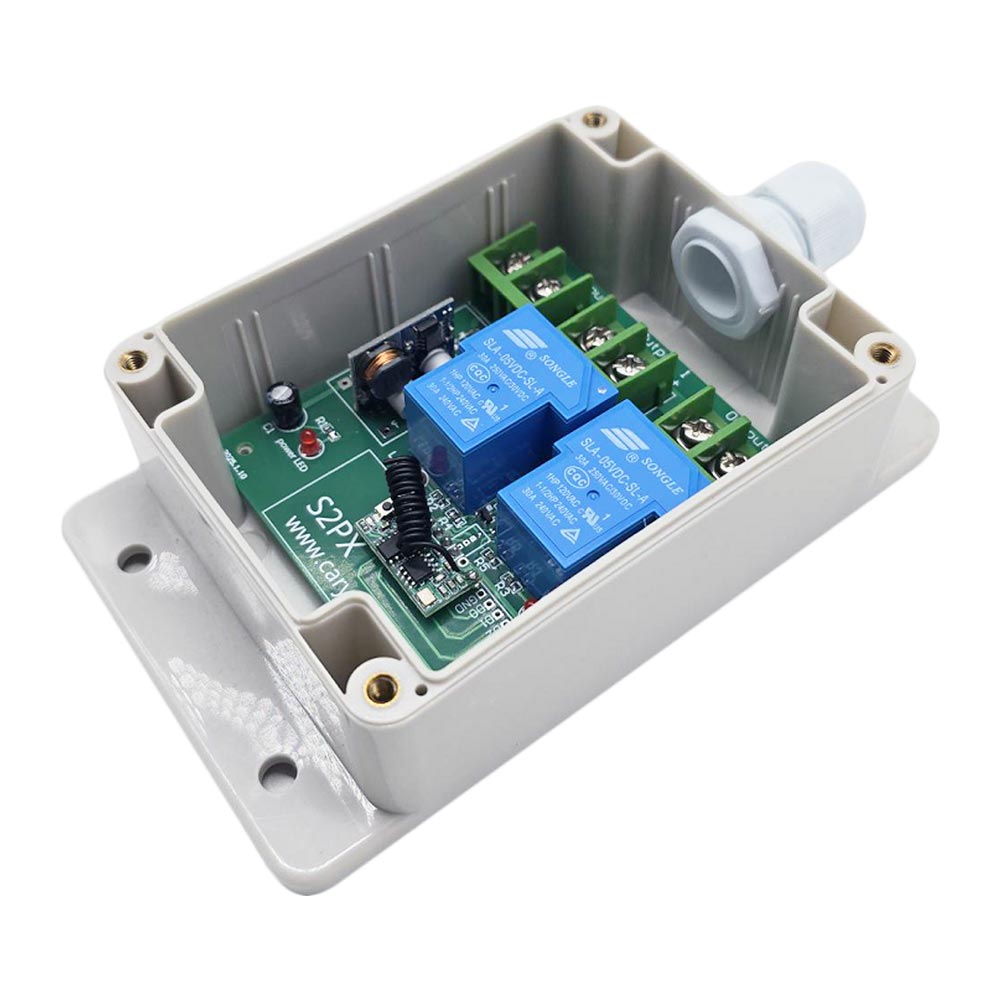

Waterproof: The receiver has waterproof case and waterproof connectors, it can be installed outdoors.
With manual terminals: The receiver allows you to connect external devices, sensors, or manual switches to control the receiver.
High Power: Each relay output can work at maximum current 30A. The maximum power of the device is 360W/12V, 180W/6V, 250W/9V, 700W/24V, 3000W/110V, 6000W/220V.
Power Supply: Support operating voltage of DC 6V, 9V, 12V, 24V.
DC Power Output: It can control equipment in the power DC 6V/ 9V/ 12V / 24V and its wiring is easier.
Working Range: With a transmitter to form a complete set, the working distance can reach 100m in an open ground. The maximum working distance 100m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may or may not reach 100m. If you need longer range, please choose powerful transmitters, such as CB Series (1000m/3000ft); or you can add the external antenna to the receiver for improving the range.

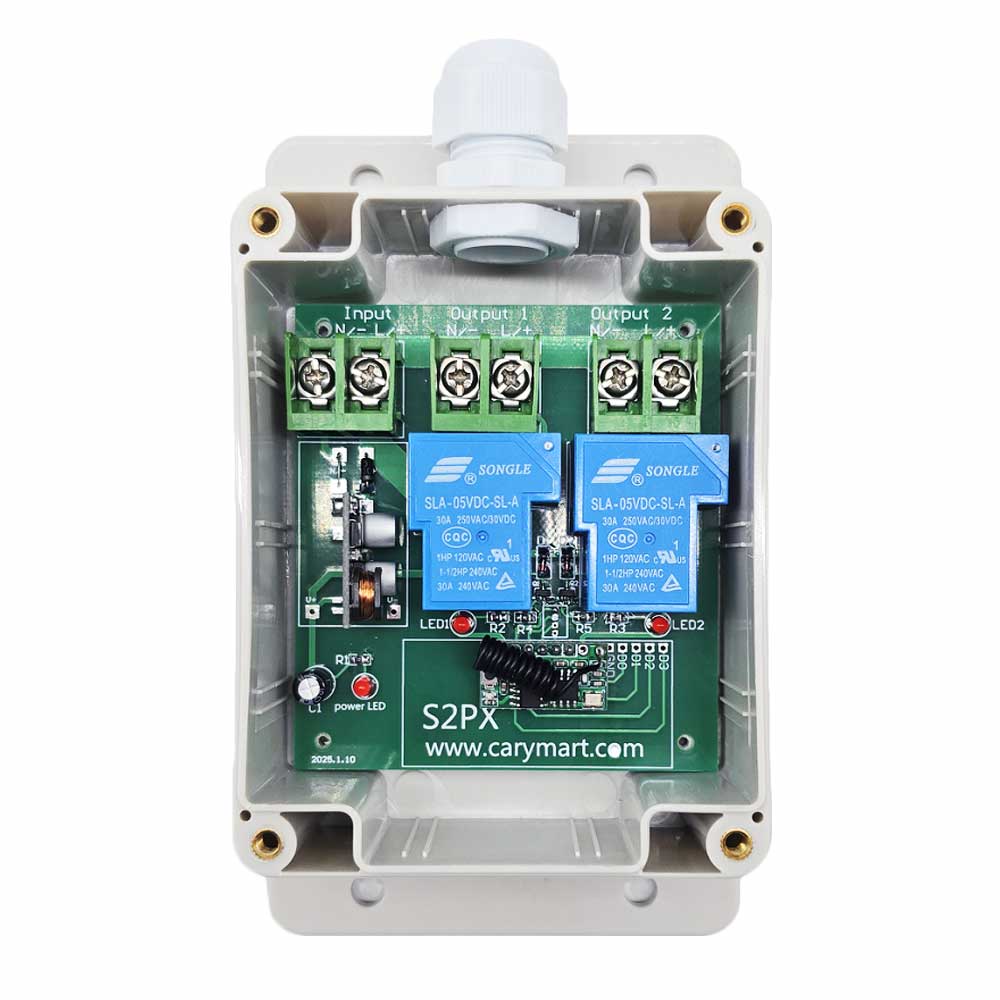

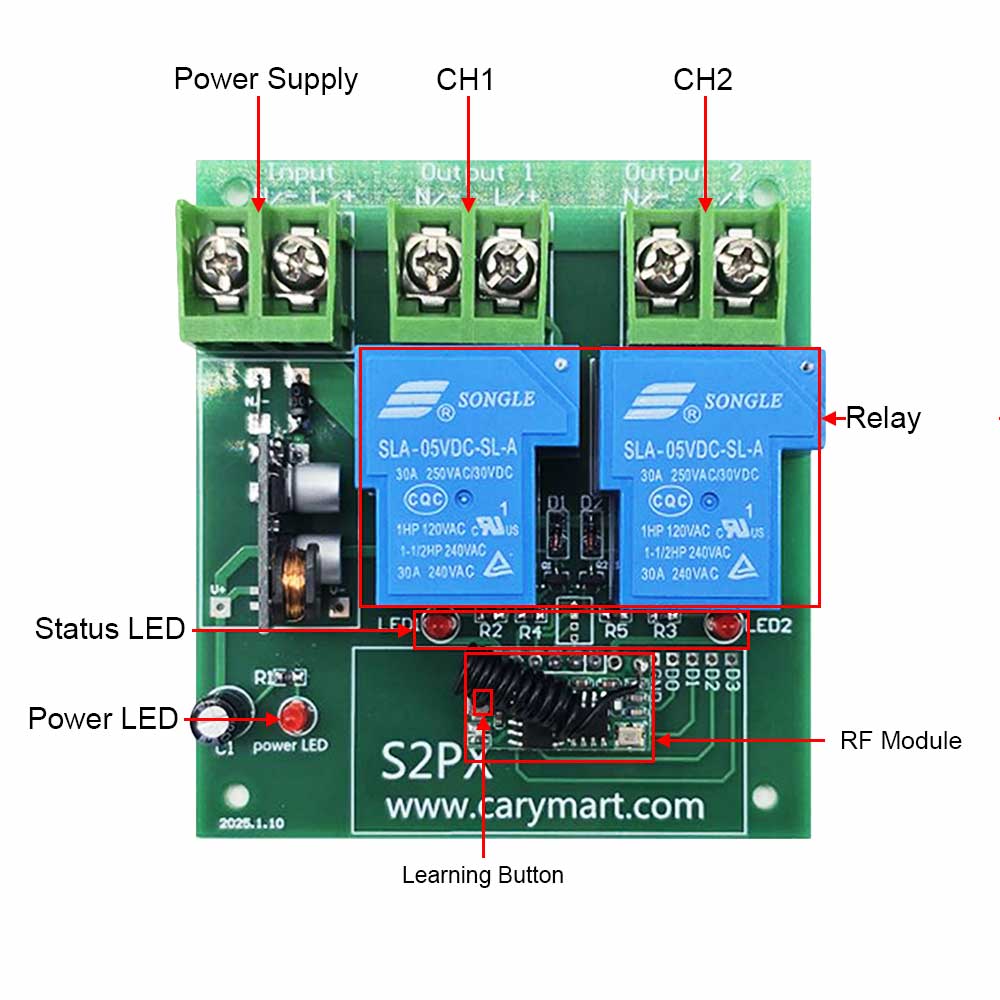

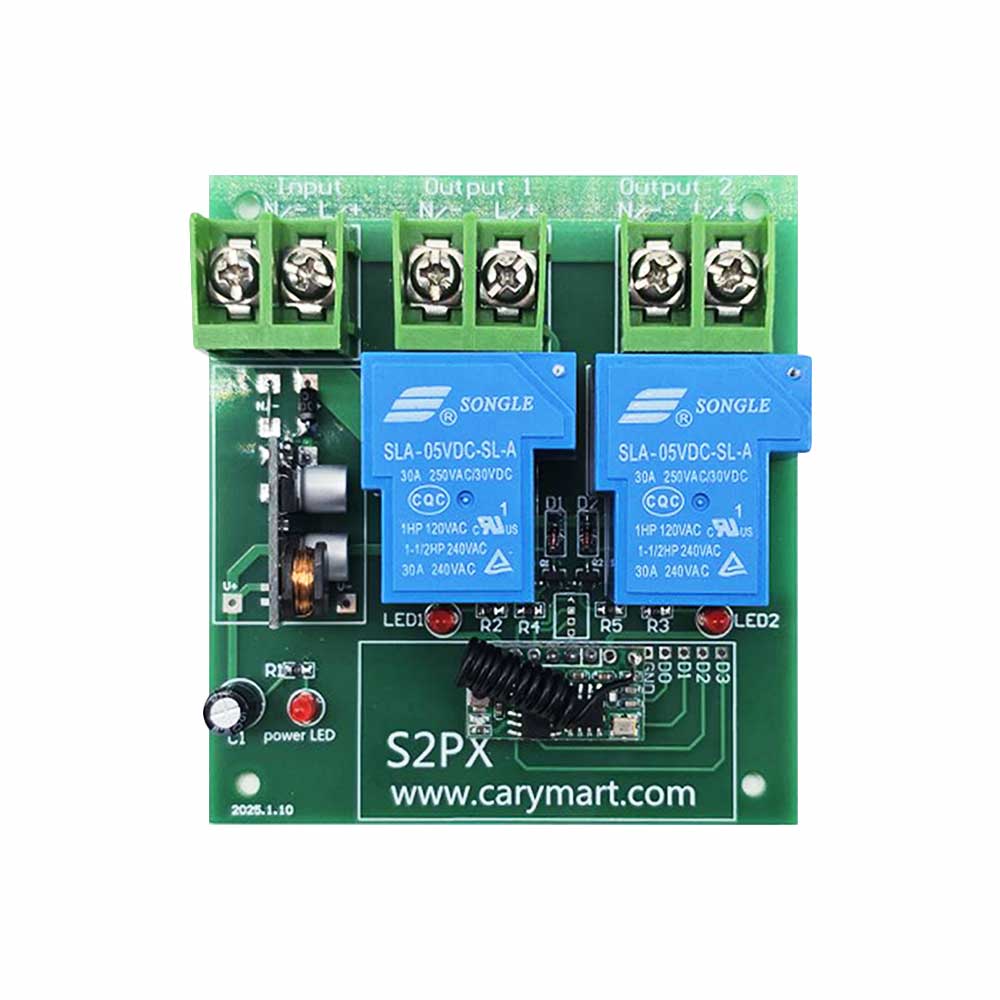

Receiver parameters:
Model No.: S2PX-DC06 / S2PX-DC09 / S2PX-DC12 / S2PX-DC24
Power Supply (Operating Voltage): DC6V (S2PX-DC06), DC9V±1V (S2PX-DC09), DC12V±1V (S2PX-DC12), DC24V±2V (S2PX-DC24)
Output: DC6V (S2PX-DC06), DC9V (S2PX-DC09), DC12V (S2PX-DC12), DC24V (S2PX-DC24)
Working Frequency: 433MHz
Channel: 2 CH
Control Modes: Self-locking, Momentary, Interlocking, Momentary + Self-locking
Maximum Working Current: 30A / each channel
Static Current: ≤6mA
PCB size: 140mm x 73mm x 18mm

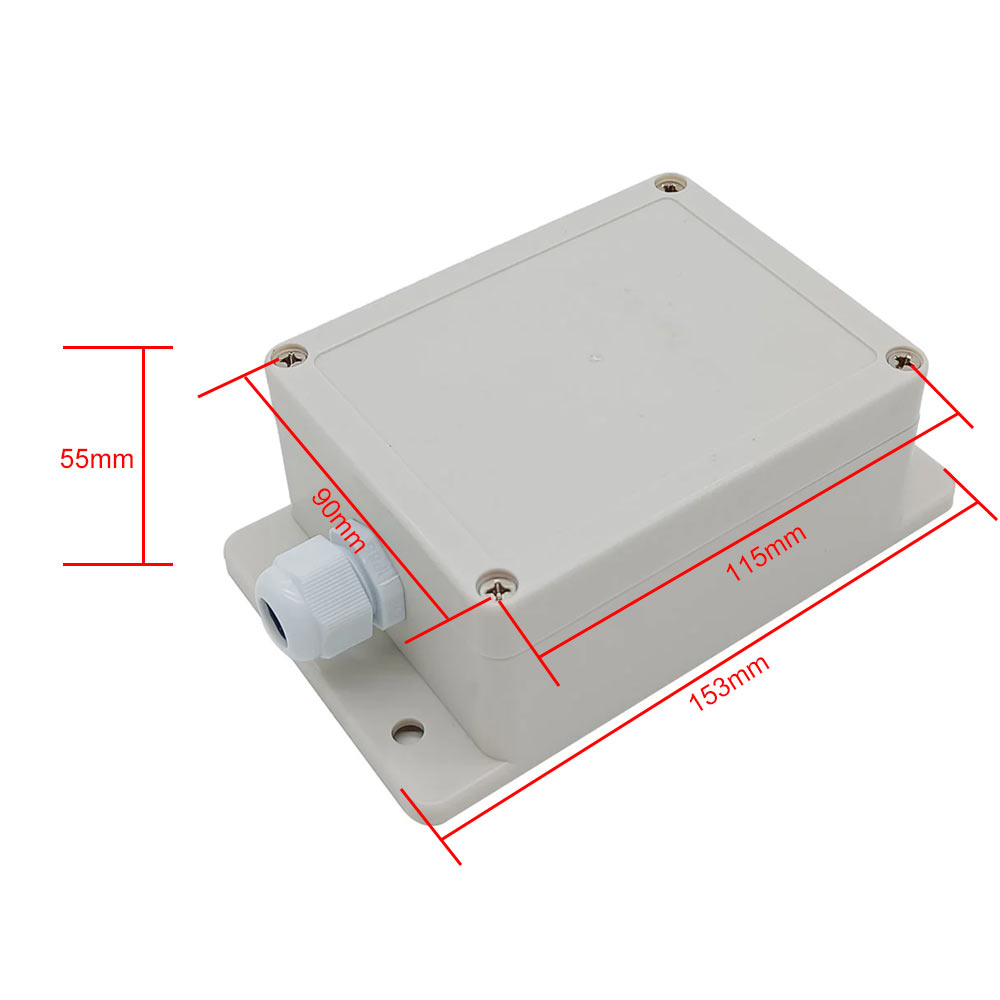

Case size: 192mm x 100mm x 45mm
Work with custom code transmitters.
If you want to have a further working range, you can install an external antenna to the receiver, such as magnetic mount antenna, which working range is three times as much as it used to be. Or telescopic antenna, which working range is twice as much as it used to be.

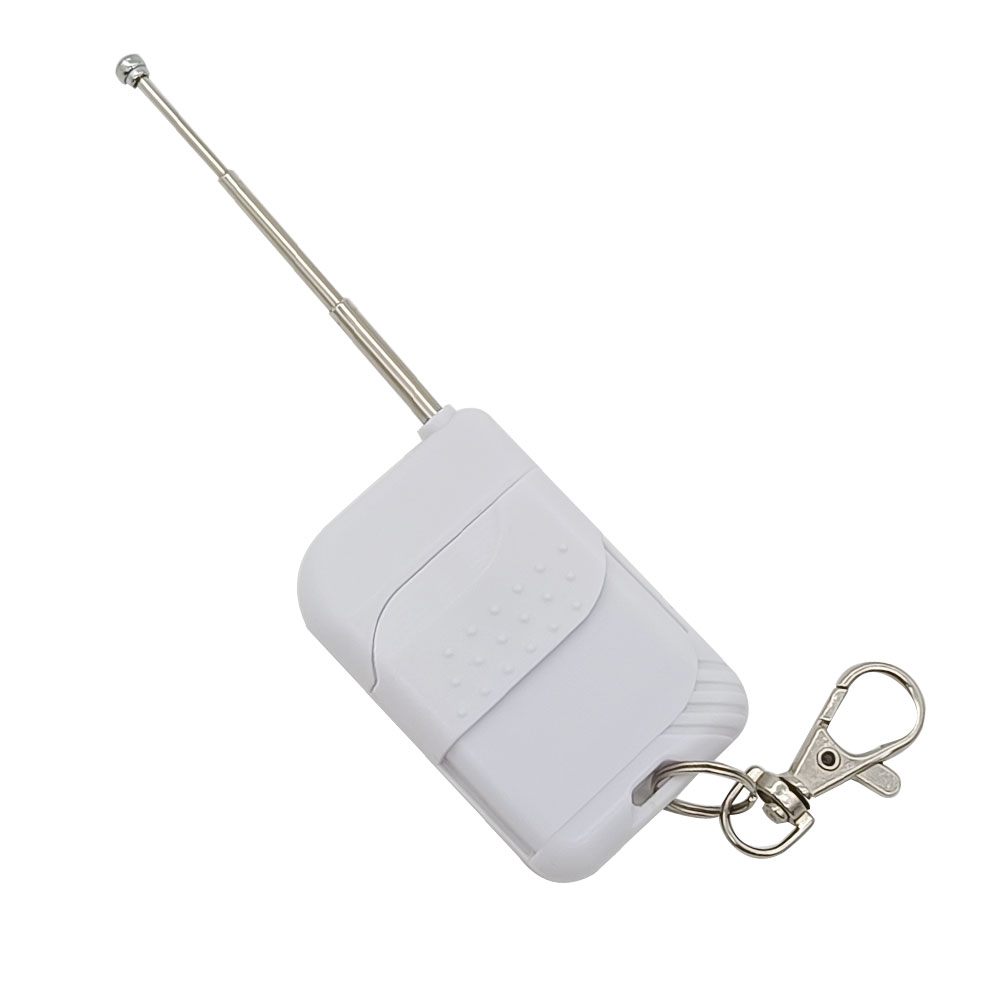

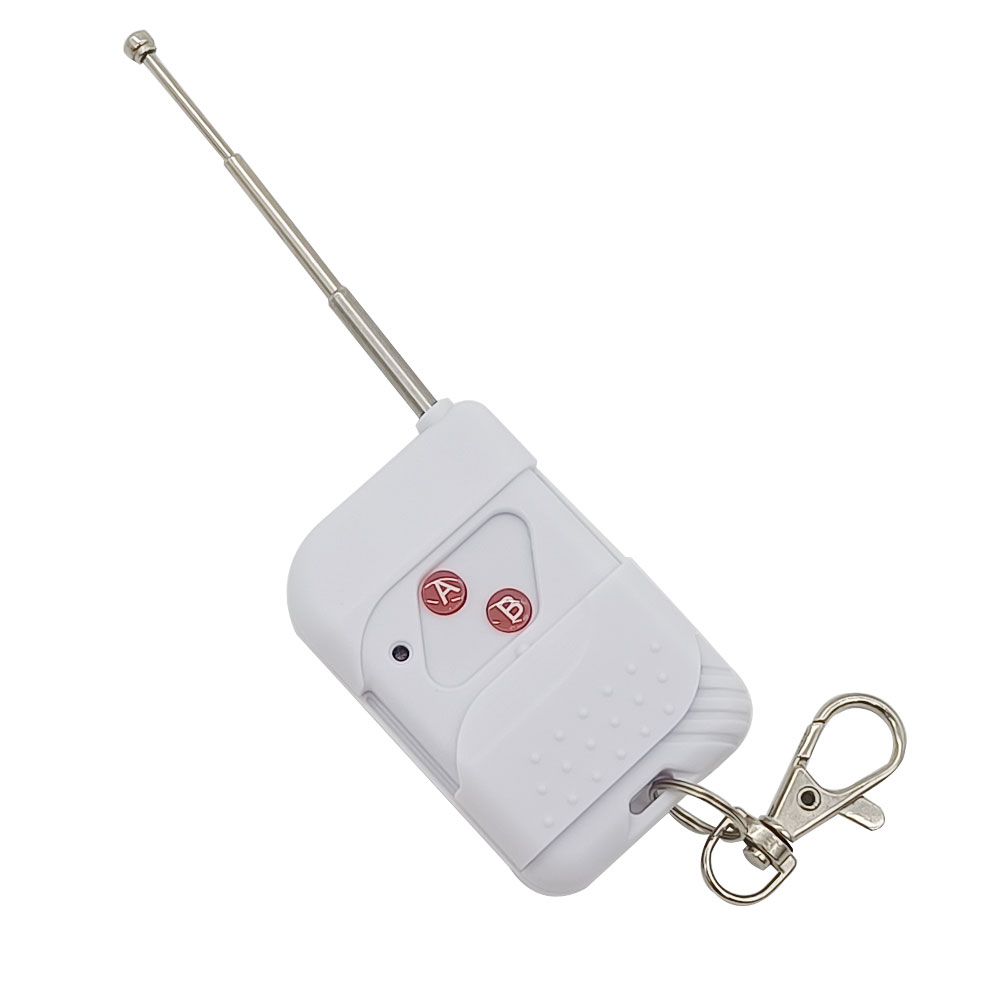

Transmitter parameters:
Model No.: 0021001 (C-2)
With Sliding Cover to protect the button.
Channel/Button: 2
Button Symbol:1, 2
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 6mA
Operating Frequency: 433Mhz
Encoding Chip: PT2262/ PT2264/ SC2262
Encoding Type: Fixed code by soldering, up to 6561 codes.
Transmitting Distance: 100m / 300ft (theoretically)
The distance of 100m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance may or may not reach 100m.
If you stretches the telescopic antenna, it can have a further working range, which is twice as much as it used to be.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 58mm x 39mm x 16mm
Weight: 30g
Usage (with the transmitter like C-2 and C-3):
The receiver can be used to control DC 6V/ 9V/ 12V / 24V equipments. You can use it to control two DC equipments. If the power supply of those equipments is DC 12V, you should choose the receiver with same DC 12V version; and if the power supply of those equipments is DC 24V, you should choose the receiver with same DC 24V version.

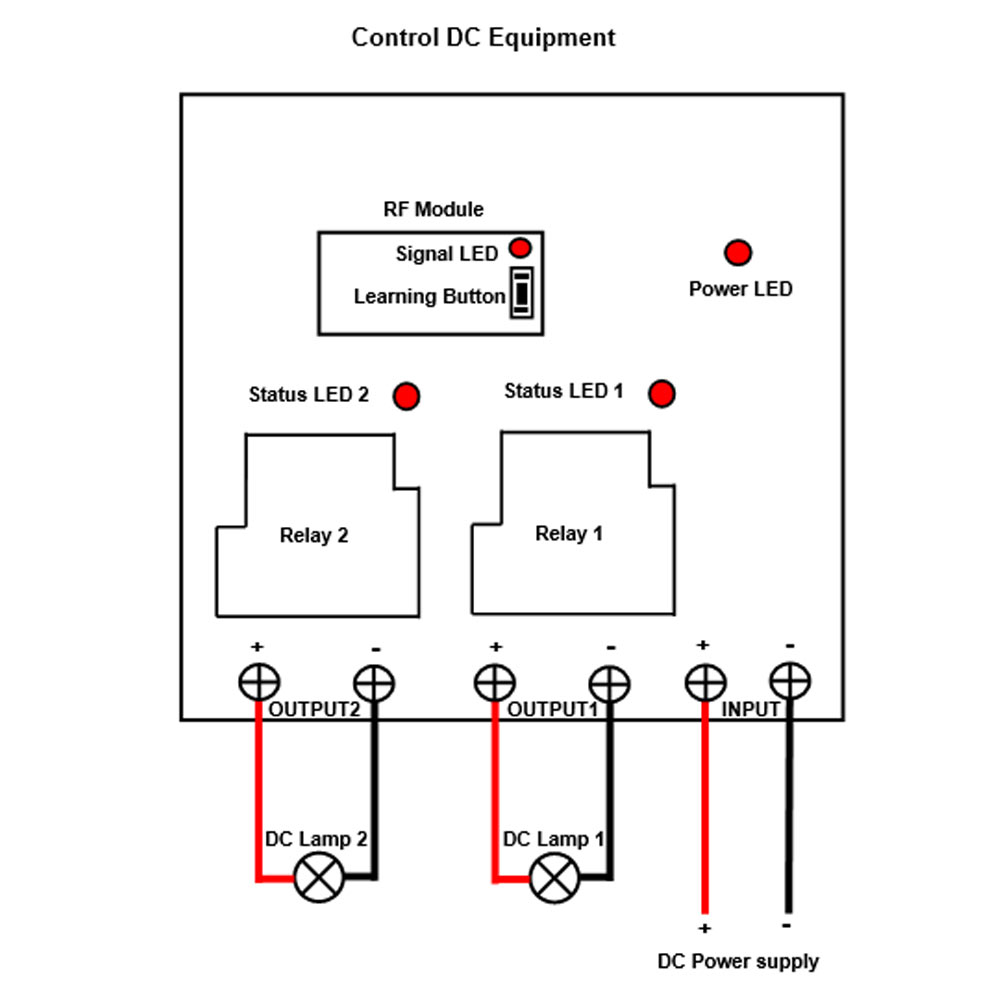

Wiring:
If you want to control two DC 12 lamps, do as following:
1) Connect the red wire of the DC power supply to terminal “L / +”, and connect the black wire of the DC power supply to terminal “N / -“.
2) Connect lamp 1 to terminal "A" and "B" of OUT 1, and connect lamp 2 to terminal "A" and "B" of OUT 2..
Setting different control modes: (We have set the receiver as Self-locking control mode before delivery. If you want to use other control modes, do as following operation):
Setting control mode Self-locking: Only connect Jumper-2.
Control mode Self-locking (with transmitter C-2): Press -> On; Press again -> Off.
Press button 1 of the transmitter: Terminal OUT1 outputs DC power, the lamp 1 is on.
Press button 1 again: Terminal OUT1 stops outputting, the lamp 1 is off.
Press button 2 of the transmitter: Terminal OUT2 outputs DC power, the lamp 2 is on.
Press button 2 again: Terminal OUT2 stops outputting, the lamp 2 is off.
Setting control mode Momentary: Only connect Jumper-1.
Control mode Momentary (with transmitter C-2): Press and hold -> On; Release -> Off.
Press and hold button 1 of the transmitter: Terminal OUT1 outputs DC power, the lamp 1 is on.
Release button 1 of the transmitter: Terminal OUT1 stops outputting, the lamp 1 is off.
Press and hold button 2 of the transmitter: Terminal OUT2 outputs DC power, the lamp 2 is on.
Release button 2 of the transmitter: Terminal OUT2 stops outputting, the lamp 2 is off.
Setting control mode Interlocking: Do not connect Jumper-1 and Jumper-2.
Control mode Interlocking (with transmitter C-3): Press -> On, Press another button -> Off.
Press button A of the transmitter: Terminals OUT1 outputs DC power, the lamp 1 is on; And terminals OUT2 no output, the lamp 2 is off.
Press button B of the transmitter: Terminals OUT2 outputs DC power, the lamp 2 is on; And terminals OUT1 no output, the lamp 1 is off.
Press button C of the transmitter: Terminals OUT1 and OUT2 stops outputting, the lamps 1 and 2 are off.
Setting control mode Self-locking + Momentary: Connect Jumper-1 and Jumper-2.
Control mode Momentary (Channel 1) + Self-locking (Channel 2), with transmitter C-2:
Press and hold button 1 of the transmitter: Terminal OUT1 outputs DC power, the lamp 1 is on.
Release button 1 of the transmitter: Terminal OUT1 stops outputting, the lamp 1 is off.
Press button 2 of the transmitter: Terminal OUT2 outputs DC power, the lamp 2 is on.
Press button 2 again: Terminal OUT2 stops outputting, the lamp 2 is off.
Notice:
The receiver can pair different transmitters, includes model C-2 / C-3 (100M), CWB-2 / CWB-3 (50M, waterproof), CP-2 / CP-4 (500M) and CB-2 / CB-3 (1000M) etc.. If you set the receiver with Toggle mode or Momentary mode, you can use two buttons transmitter (like C-2) to control the receiver. Otherwise, if you set the receiver with Latched mode, you should use three buttons transmitter (like C-3) to control the receiver.
Manual control terminals:
The receiver has manual control terminals, you can connect external devices, sensors, or manual switches to control the receiver.
1) Signal input:
You can connect external devices (with low level output signal) to manual terminals 1 (Signal 1 “+”), terminal 2 (Signal 2 “+”) and 3 (Signal “-“) , then the external device’s output signal can control the receiver.
When the external device outputs low level signal to manual terminal 1 (Signal 1 “+”) and 3 (Signal “-“), terminals A and B of OUT1 outputs DC power. And when disconnect manual terminals 1 (Signal 1 “+”) and 3 (Signal “-“), terminals A and B of OUT1 stop outputting.
When the external device outputs low level signal to manual terminal 2 (Signal 2 “+”) and 3 (Signal “-“), Terminals A and B of OUT2 outputs DC power. And when disconnect manual terminals 2 (Signal 2 “+”) and 3 (Signal “-“), terminals A and B of OUT2 stop outputting.
2) The manual switches:
You can connect one manual switch to manual terminals 1, 2, 3, then you can use this manual switch to control the receiver.
When connect terminals 1 and 3, terminals A and B of OUT1 outputs DC power. And when disconnect terminals 1 and 3, terminals A and B of OUT1 stop outputting.
When connect terminals 2 and 3, terminals A and B of OUT2 outputs DC power. And when disconnect terminals 2 and 3, terminals A and B of OUT2 stop outputting.
