Feature: Application:
It can be used in industry automation, agriculture automation and home
automation, such as factory, house, farm, pasture, vehicle, ship, offshore
operation, aerial vehicle, field call, etc. It can remote control equipments on
land, water and air, such as remote control lights, sirens, locks, motors,
fans, winches, blinds, linear actuators, doors, windows, electric solenoid
valves, security alarm, business signs and various devices. Wireless control, easy
to install. DC Power
Output: It can control DC equipment with voltage DC 6V / 9V / 12V / 24V. You can
turn on/ off the receiver with transmitter (remote control) from any place
within a reliable distance. Wireless RF
signal can pass through walls, floors, doors or windows. With
reverse power protection and over current protection. Reliable
control: The receiver only works with the transmitter which use same code. One/several
transmitters can control one/several receivers simultaneously. You can use

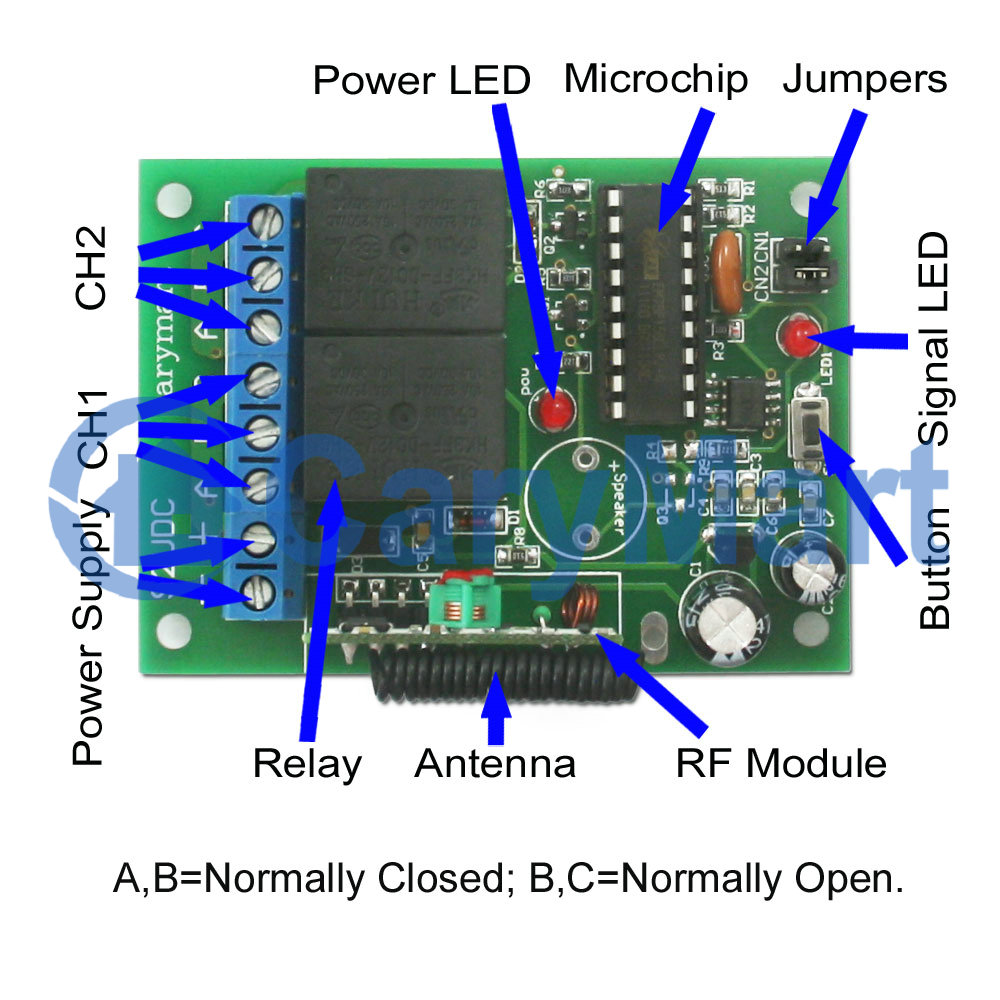

two or more units in the same place. Receiver Parameters: Model No.: S2XT-DC06 / S2XT-DC09 / S2XT-DC12 / S2XT-DC24 Power Supply
(Operating Voltage): DC6V (S2XT-DC06), DC12V±1V
(S2XT-DC12), DC9V±1V (S2XT-DC09), DC24V±1V (S2XT-DC24) Output: DC6V (S2XT-DC06),
DC12V (S2XT-DC12), DC9V (S2XT-DC09), DC24V (S2XT-DC24) Working Frequency: 433MHz Channel: 2 CH Control Modes: Self-locking Static Current: ≤6mA Maximum Working
Current: 10A / each channel PCB Size: 67mm x 50mm

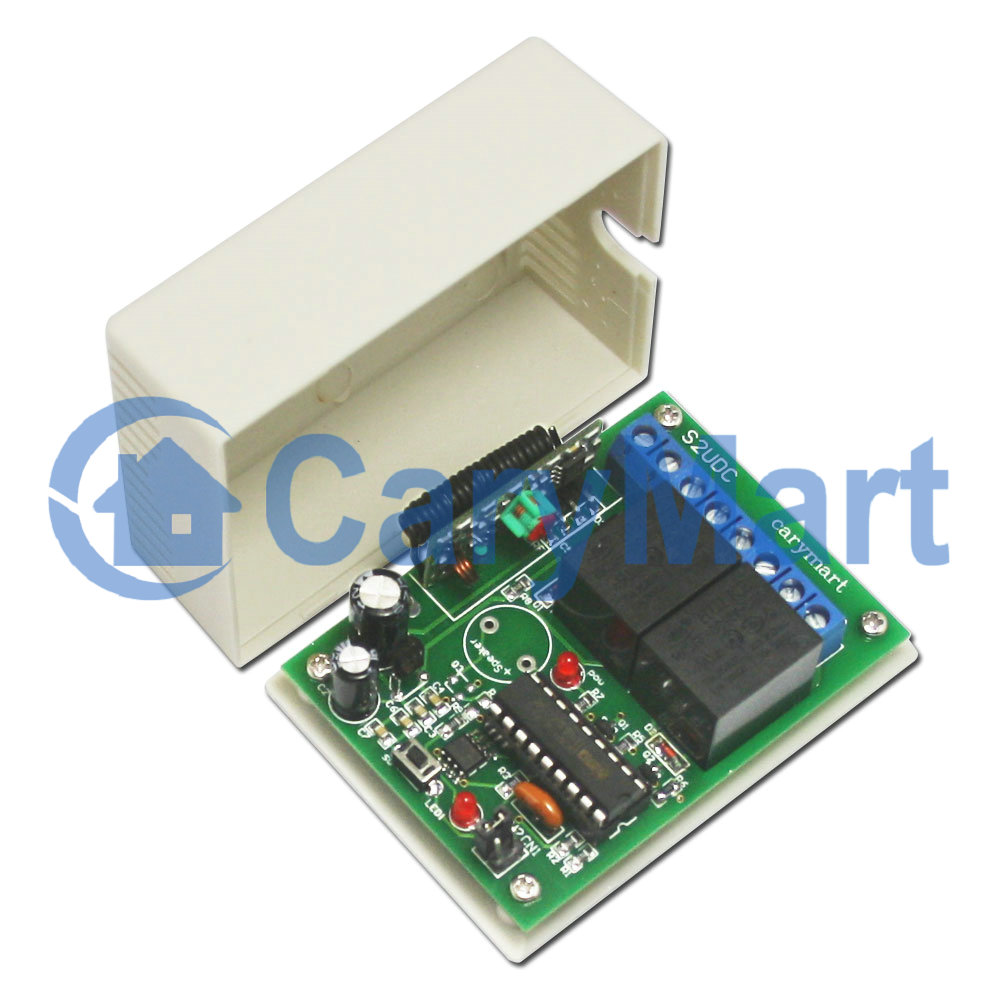

x 18mm Case Size: 75mm x 54mm x 27mm Work with Fixed code transmitters or Learning code transmitters. Matching Transmitters: The
receiver can work with different transmitters, such as model C-2 (100M), CWB-2
(50M, waterproof), CP-2 (500M), or CB-2 (1000M) etc. Working
Range: With a transmitter (such as C-2) to form a complete
set, the maximum working distance can reach 100Min
an open ground. The maximum working
distance is a theoretical data, it shall be operated in an open ground, no
barriers, no any interference. But in the practice, it will be hindered by
trees, walls or other constructions, and will be interfered by other wireless
signals. Therefore, the actual distance may not reach this
maximum working distance. If you
want to have a further working range, you can install an external antenna to
the receiver, and you also can use a powerful
transmitter, such as CB series transmitters. Usage (with
the transmitter C-2): The receiver can be used to control DC 6V / 9V /
12V / 24V equipments. If the power
supply of those equipments is DC 12V, you should choose the receiver with same
DC 12V version; and if the power supply of those equipments is DC 24V, you

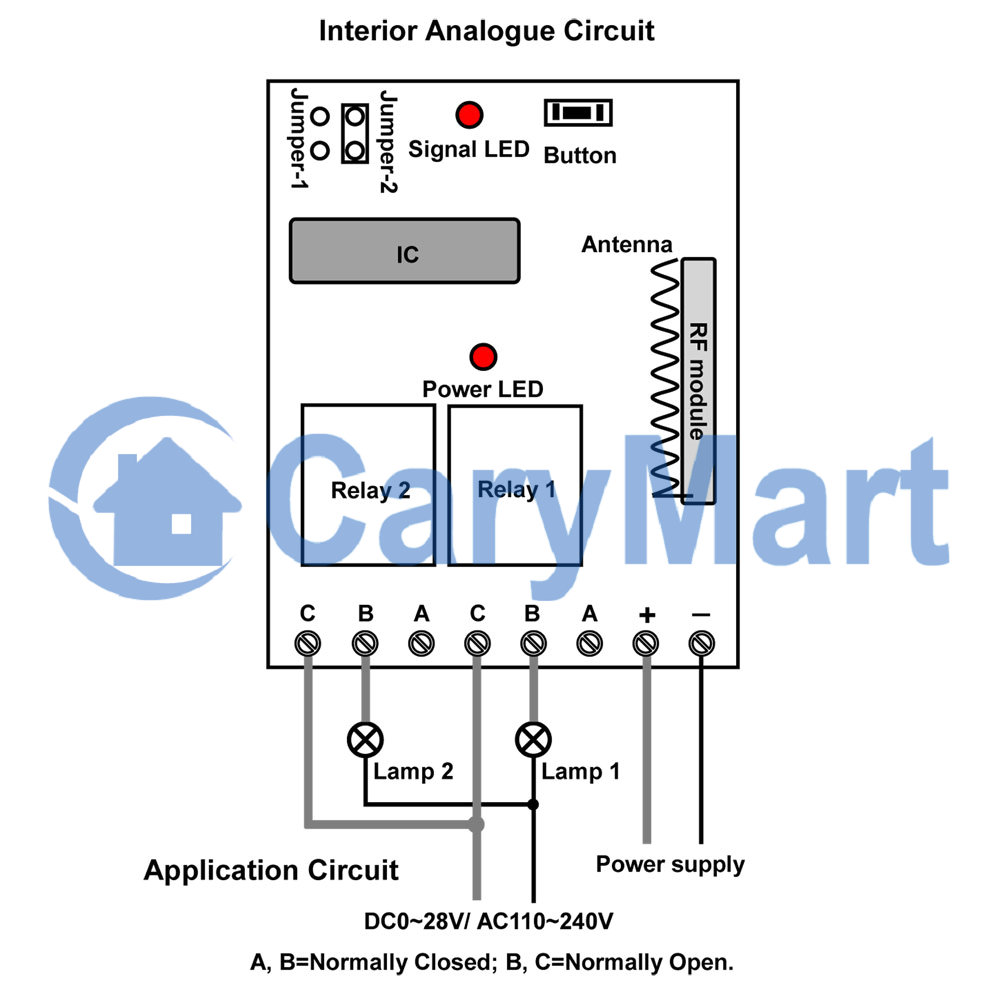

should choose the receiver with same DC 24V version. Wiring: If you want to control a DC 12V lamp, do as following: 1) Connect the positive pole of DC power supply to terminal “+”, and
connect the negative pole of DC power supply to terminal “-”. 2) Connect the
positive pole of lamp to
terminal "B", and connect
the negative pole of lamp to
terminal "A". Operation: Control
mode Self-locking (with the transmitter C-2): Press ->
On; Press again -> Off. Press
button 1: Turn on the relay 1, terminal OUT 1
(A&B) outputs DC power, the lamp 1 is on. Press
button 1 again: Turn off the relay 1, terminal OUT 1
no output, the lamp 1 is off. Press
button 2: Turn on the relay 2, terminal OUT 2
(A&B) outputs DC power, the lamp 2 is on. Press button
2 again: Turn off the relay 2, terminal OUT 2 no
output, the lamp 2 is off.
