2 Gang Wall Light Lamp Wireless Remote Control Switch with Two Remotes

Package Include:

• 1 x Wall Switch (HS-2)
• 2 x Remote control (C-2)
• 1 x User manual

Feature:

• Wireless control, easy to install.
• Control lamps, fans or other appliances with voltage AC 100~250V.
• Suitable for Incandescent lamps, Halogen lamps, Fluorescent lamps and Energy saving lamps.
• You can turn on/ off the lamp with remote control from any place within a reliable distance, the wireless signal can pass through walls, floors and doors.
• Reliable control: The remote control (Encoding) and wall switch (Decoding) use an 8-bit code.
• One/ several remote controls can control one/ several wall switches simultaneously.
• If you use two or more wall switches in the same place, you can set them with different codes.
• Transmitting Frequency: 315MHz.
• Note: Cannot work in LED lamps.

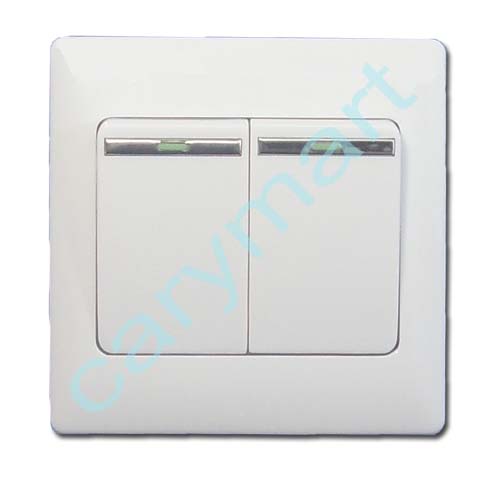

Wall Switch:

• Model No.: HS-2
• Channel: 2 CH
• Decode: Learning code
• Working Voltage: AC 100~250V (50/60Hz)
• Size: 86mm x 86mm x 35mm
• Static Current: 50uA (<0.015W)
• Maximum Power for 2 gangs: Incandescent lamps or Halogen lamps: 200W/220V, 100W/110V
                                                     Energy saving lamps or Fluorescent lamps: 150~200W/220V, 100W/110V
• Mount box should be standard "86" style and the dimensions at least 75mmx75mmx35mm. We also can offer this mount box.

Remote Control:

• Model No.: C-2
• Channel: 2 CH
• Remote Control Distance: 50m / 150ft (theoretically)
• Encode: Fixed code by Soldering
• Size: 58mm x 39mm x 16mm
• Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)

Usage of Wall Switch:

• 1) Press button 1, turn on the lamp 1; Press button 1 again, turn off the lamp 1.
• 2) Press button 2, turn on the lamp 2; Press button 2 again, turn off the lamp 2.

Usage A of remote control:

• 1) Press button 1, turn on the lamp 1; Press button 1 again, turn off the lamp 1.
• 2) Press button 2, turn on the lamp 2; Press button 2 again, turn off the lamp 2.

Usage B of remote control:

• 1) Press button 1, turn on two lamps.
• 2) Press button 2, turn off two lamps.
