Only Live wire is connected to this switch, without Neutral wire!

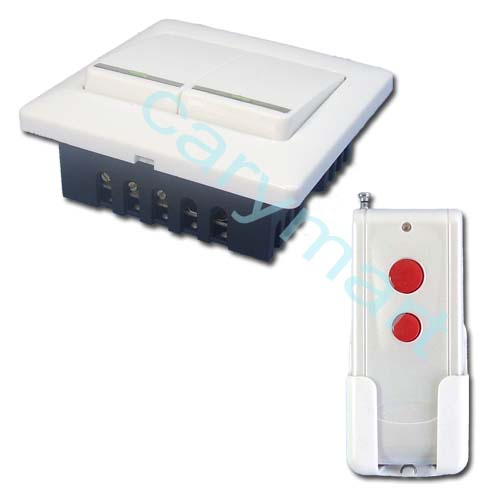

Package Include:
1 x Switch (HS-2)
1 x Remote (CP-2)
1 x User manual
Feature:
Wireless control, easy to install.
Control lamps, fans or other appliances with voltage AC 100~250V.
Suitable for Incandescent lamps, Halogen lamps, Fluorescent lamps and Energy saving lamps.
You can turn on/ off the lamp with remote control from any place within a reliable distance, the wireless signal can pass through walls, floors and doors.
Reliable control: The remote control (Encoding) and wall switch (Decoding) use an 8-bit code.
One/ several remote controls can control one/ several wall switches simultaneously.
If you use two or more wall switches in the same place, you can set them with different codes.
Note: Cannot work in LED lamps.
Wall Switch:
Model No.: HS-2
Channel: 2 CH
Decode: Learning code
Working Voltage: AC 100~250V (50/60Hz)
Size: 86mm x 86mm x 35mm
Static Current: 50uA (<0.015W)
Maximum Power for 2 gangs: Incandescent lamps or Halogen lamps: 200W/220V, 100W/110V
Energy saving lamps or Fluorescent lamps:150~200W/220V, 100W/110V
Mount box should be standard "86" style and the dimensions at least 75mmx75mmx35mm. We also can offer this mount box.
Remote:
Model No.: CP-2
Channel: 2 CH
Remote Control Distance: 500m / 1500ft (theoretically)
Encode: Fixed code by soldering
Unit size: 85mm x 36mm x 16mm
Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)
Usage of Switch:
Press button 1, turn on the lamp 1; Press button 1 again, turn off the lamp 1.
Press button 2, turn on the lamp 2; Press button 2 again, turn off the lamp 2.
Usage A of remote :
Press big button, turn on the lamp 1; Press big button again, turn off the lamp 1.
Press small button, turn on the lamp 2; Press small button again, turn off the lamp 2.
Usage B of remote :
Press big button, turn on two lamps at the same time.
Press small button, turn off two lamps at the same time.
