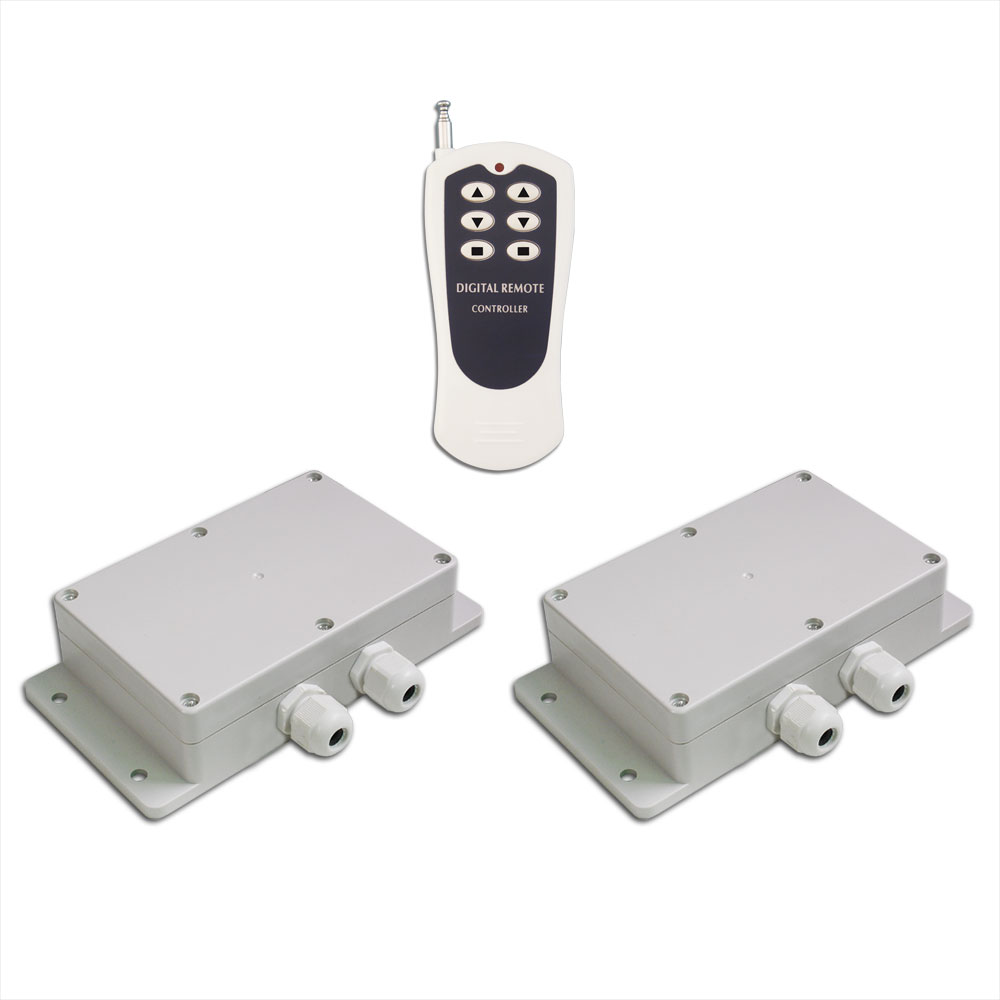

The receiver is designed for one-transmitter-many-receivers system. You can use a 4 buttons transmitter to control 2 receivers, or use a 6 buttons transmitter to control 3 receivers, or use a 8 buttons transmitter to control 4 receivers, or use a 12 buttons transmitter to control 6 receivers.
Features:
Application: It can be used in rolling blinds, rolling doors, projection screens, awnings, pumps, winches, conveyors or other appliances and equipments with AC motors, it can remote control AC motor rotates in the positive or reversal direction.
Wireless control, easy to install.

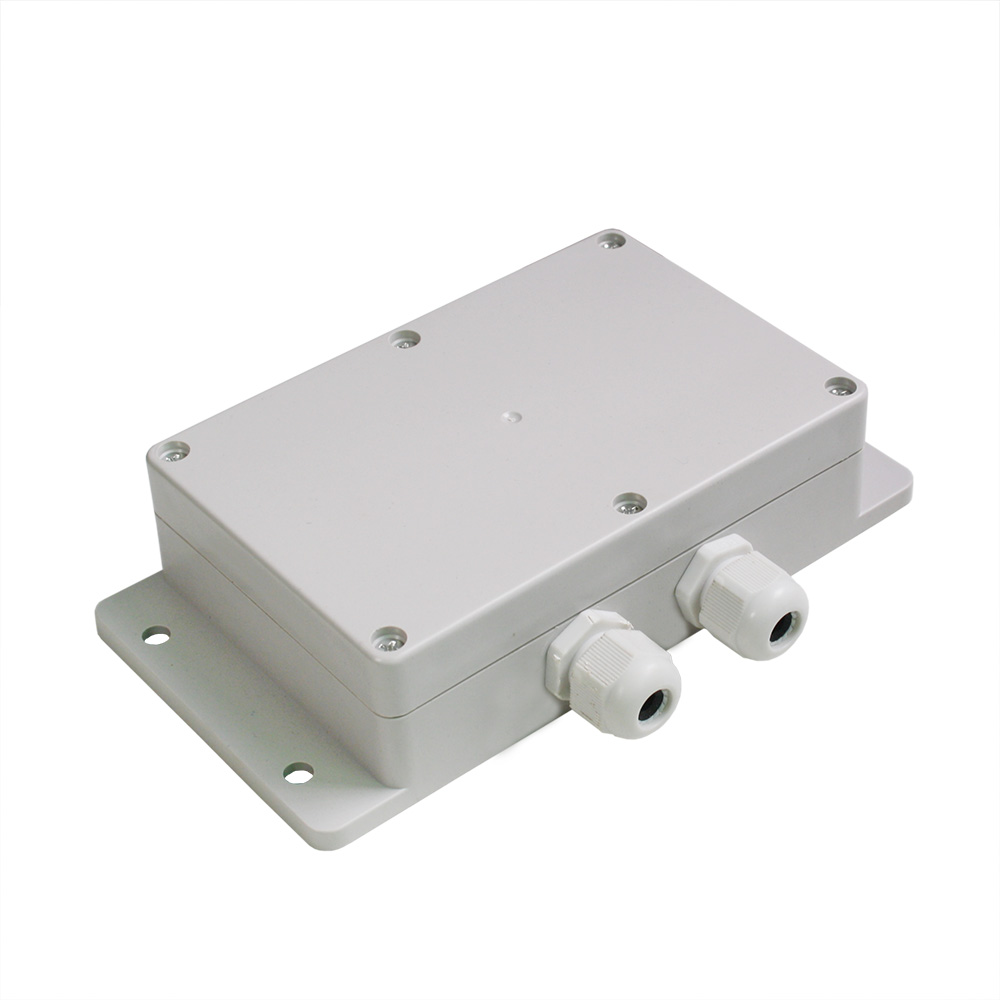

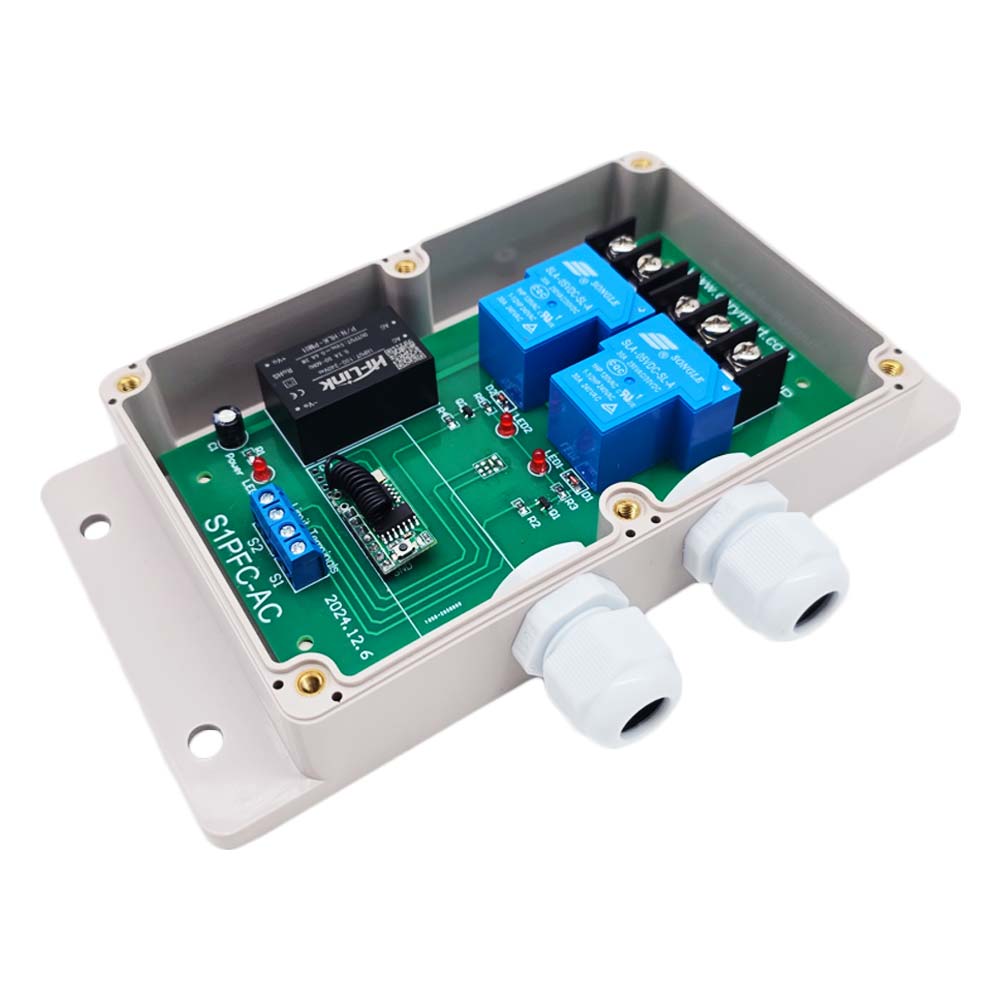

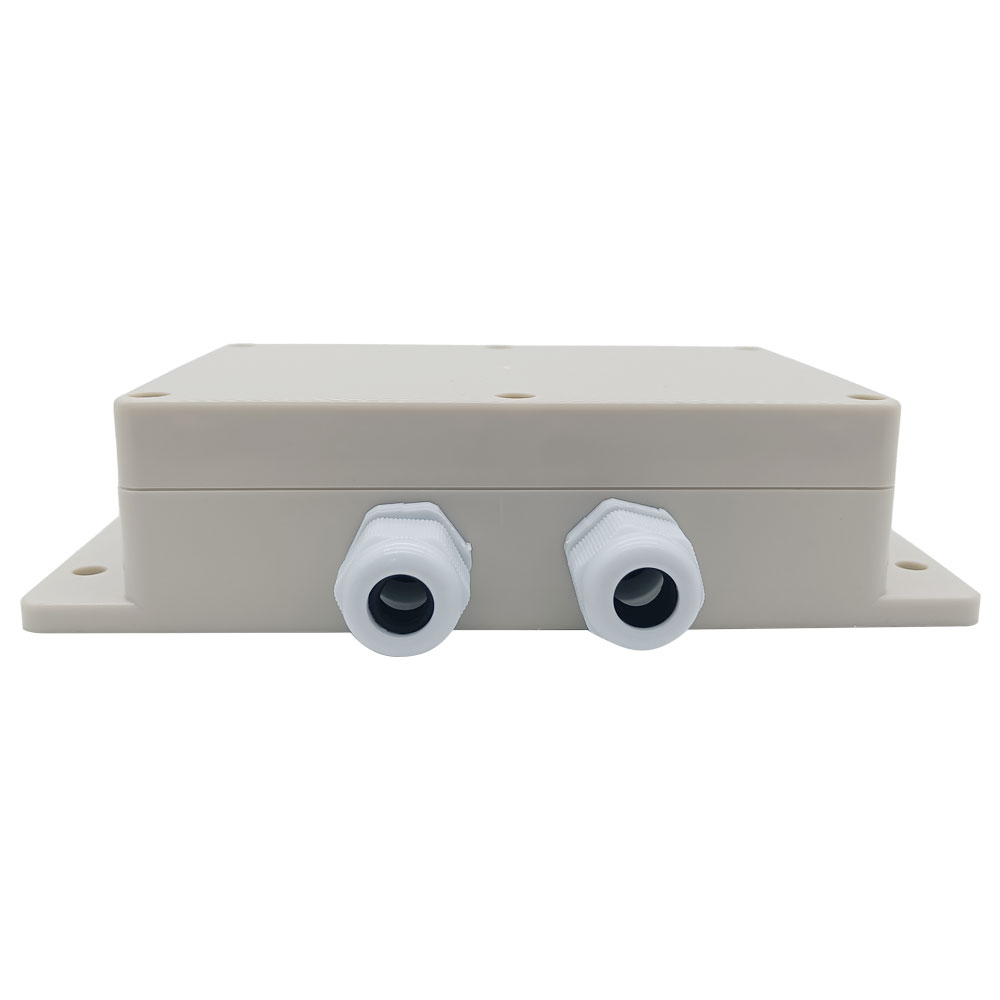

Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
You can rotate a motor in the positive or reversal direction with the transmitter (remote control) from any place within a reliable distance.
The RF wireless signal can pass through walls, floors and doors.
High Power: Each channel can work at maximum current 30A.
With limit control terminals: You can connect limit switches or sensors to stop the motor.
With wired control terminals: You can connect manual switches or external devices (with low level output signal, such as sensors) to control the motor.
You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance.
With reverse power protection and over current protection.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.
Receiver Parameters:
Model No: S1PFC-AC
Control Modes: Momentary, Interlocking,
Coding Type: Fixed code or learning code
Coding Setting: By learning
Power Supply (Operating Voltage): AC100~240V (110V/120V/220V/240V)
Output: AC100~240V (110V/120V/220V/240V)
Working Frequency: 433MHz
Channel: 1 CH, can work with 1 AC motor
Static Current: ≤6mA
Maximum Working Current: 30A / each channel, so motor's maximum starting current can not exceed 30A.

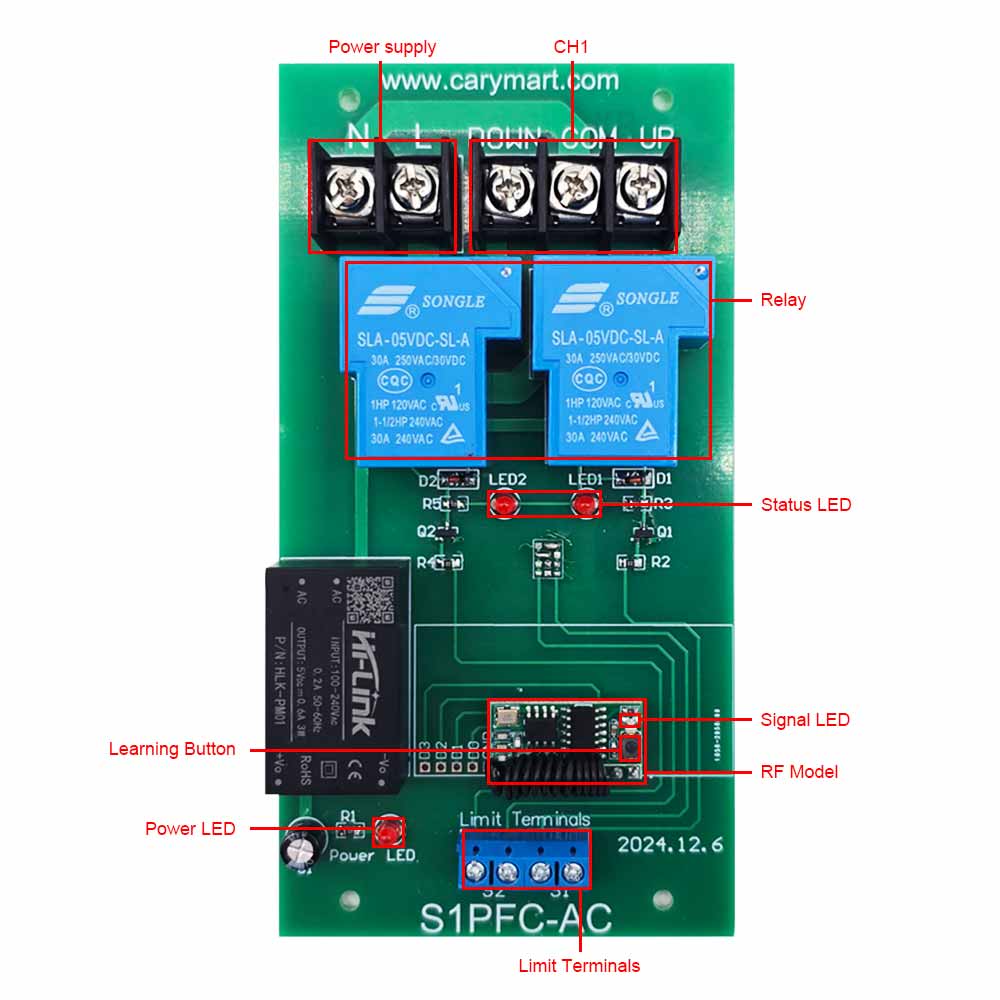

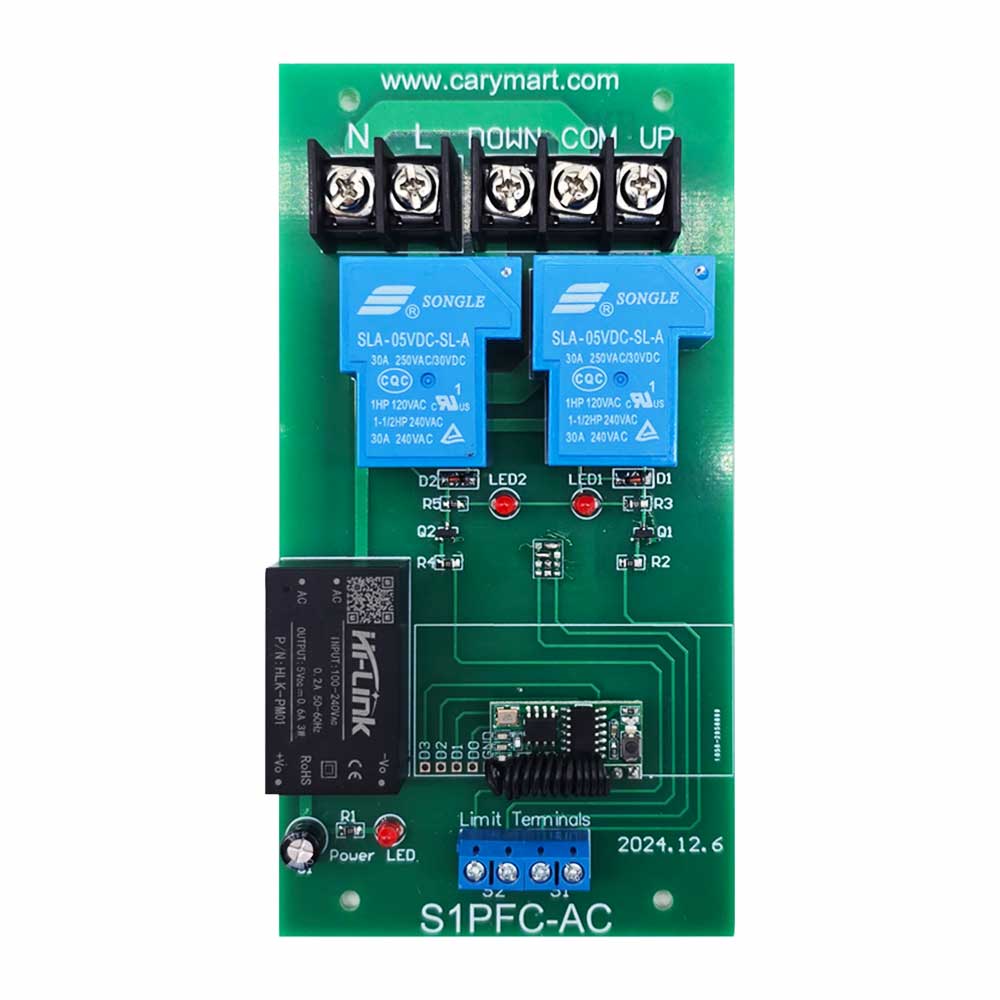

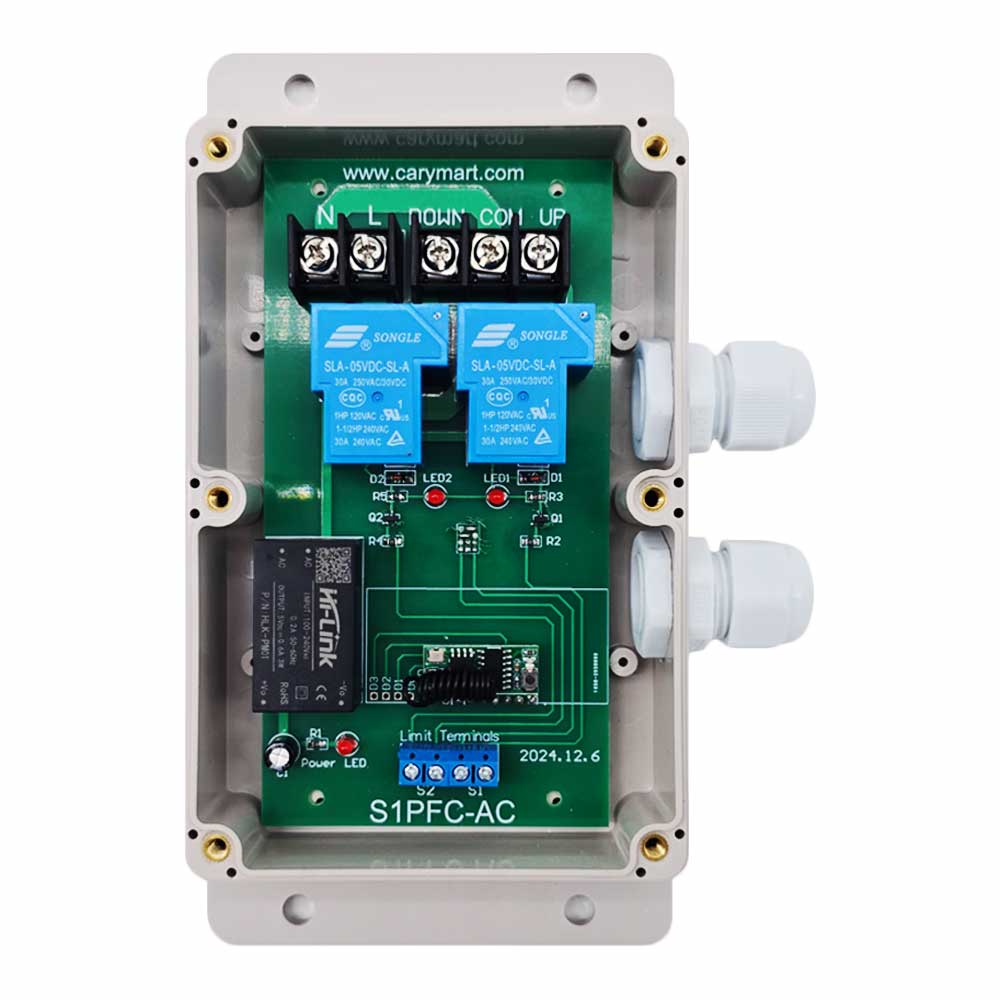

PCB Size: 140mm x 73mm x 18mm

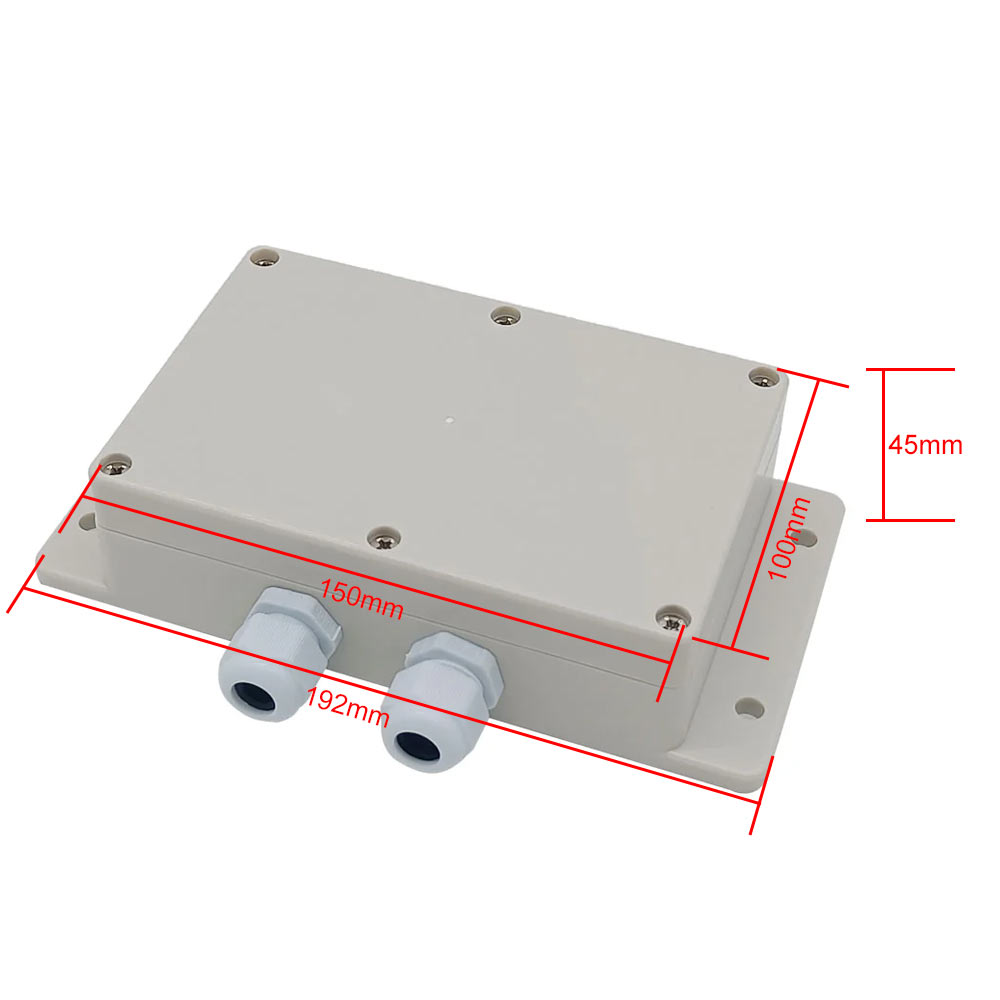

Case Size: 192mm x 100mm x 45mm
Transmitter:
Model No.: CV-4-3
Shell Color: White
Channel/Button: 4
Button Symbol: Two▲, Two▼,

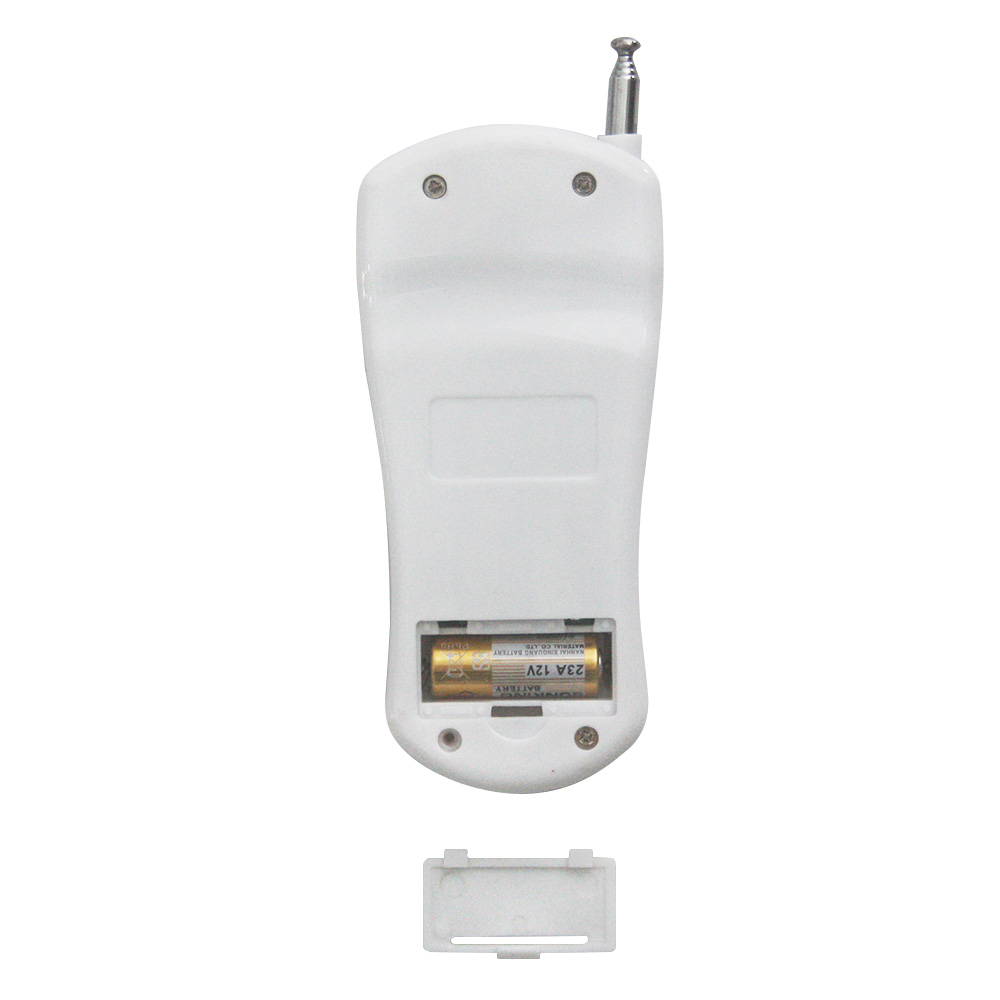

Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 15mA
Encoding Chip: PT2262
Encoding Type: Fixed code by soldering, up to 6561 codes
With a transmitter (such as CV-4-3) to form a complete set, the working distance can reach 500M in an open ground. The maximum working distance 500M is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may or may not reach 500M.
Usage (with transmitter CV-4-3):

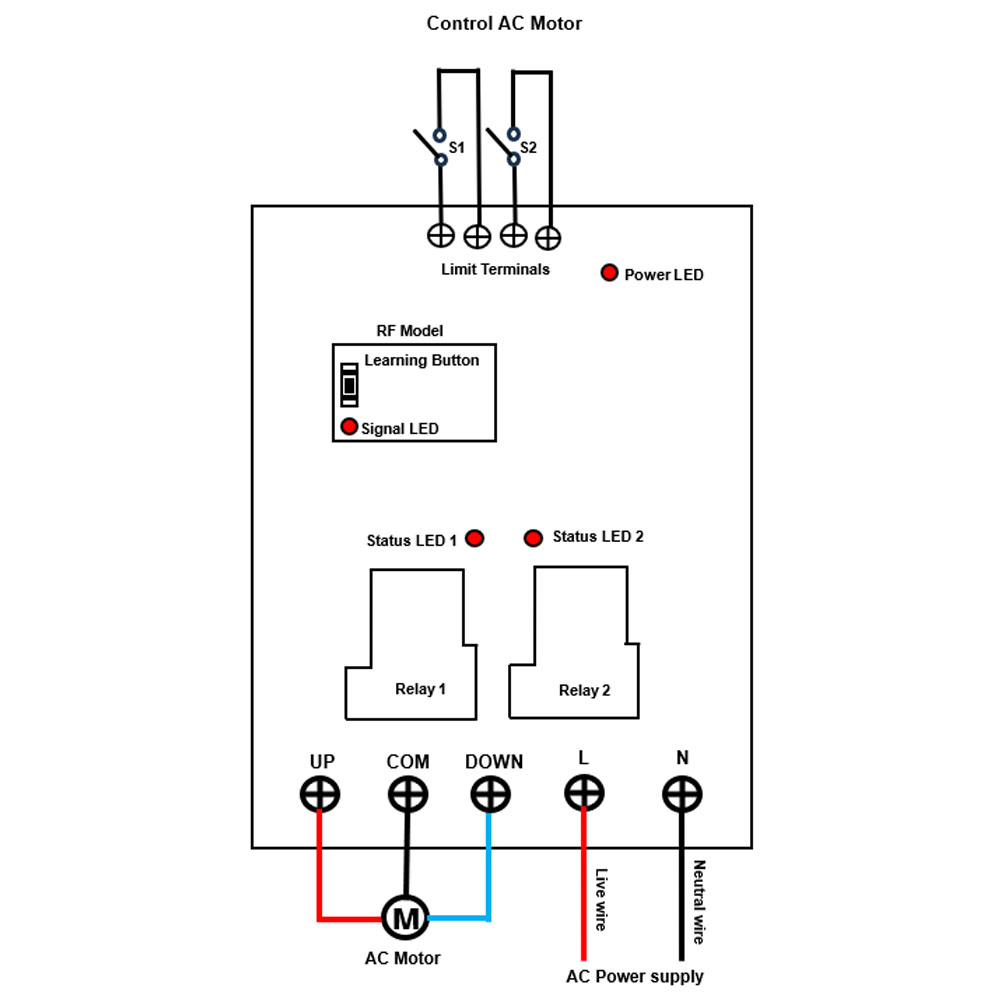

Connect live wire to terminal “L” and neutral wire to terminal “N”. Then connect AC motor to terminals “UP”, “COM” and “DOWN”. You can exchange “UP” and “DOWN” wires of motor to change the rotating direction of motor.
Setting control mode Interlocking: Do not connect Jumper-1 (CN1) or Jumper-2 (CN2)
Press button ▲ of first row: motor of receiver 1 rotates in positive direction.
Press button ▼ of first row: motor of receiver 1 rotates in reversal direction.
Press button ▲ of second row: motor of receiver 1 stops;
motor of receiver 2 rotates in positive direction.
Press button ▼ of second row: motor of receiver 2 rotates in reversal direction.
Setting control mode Momentary: Only connect Jumper-1 (CN1)
Press and hold button ▲ of first row: motor of receiver 1 rotates in positive direction. Release button ▲ of first row: Motor stops.
Press and hold button▼ of first row: motor of receiver 1 rotates in reversal direction. Release button ▼ of first row: Motor stops.
Press and hold button ▲ of second row: motor of receiver 2 rotates in positive direction. Release button ▲ of second row: Motor stops.
Press and hold button▼ of second row: motor of receiver 2 rotates in reversal direction. Release button ▼ of second row: Motor stops.
Limit control terminals:
Limit control terminals S1 and S2 are normally open, you can connect limit switches or sensors (normally open type) to terminals S1 and S2, and then you can use limit switches or sensors to stop the motor.
When motor rotates in positive direction, if connect two terminals of S1, the motor will stop automatically.
When motor rotates reversal direction, if connect two terminals of S2, the motor will stop automatically.
Wired control terminals:
You can connect manual switches, external devices or sensors (with low level output signal) to control the motor.
1) The manual switches:
You can connect manual switches to terminals “Signal 1+”, “Signal 1-”, “Signal 2+”, “Signal 2-”, then you can use manual switches to control the motor.
When connect terminals “Signal 1+” and “Signal 1-”, motor rotates in positive direction. And when disconnect “Signal 1+” and “Signal 1-”, motor stops.
When connect terminals “Signal 2+” and “Signal 2-”, motor rotates in reversal direction. And when disconnect “Signal 2+” and “Signal 2-”, motor stops.
2) Signal input:
You can connect external devices (with low level output signal) to terminals “Signal 1+”, “Signal 1-”, “Signal 2+”, “Signal 2-”, then the external device’s output signal can control the motor.
When the external device outputs low level signal to terminal “Signal 1-” and “Signal 1+“, motor rotates in positive direction.
When the external device outputs low level signal to terminal “Signal 2-” and “Signal 2+“, motor rotates in reversal direction.
