2000M 12CH DC Power Output 1 Transmitter 12 Receiver Remote Control Kit

Manual

Feature:

• Wireless control, easy to install
• Control Lights, Motors, Fans, electrically operated Doors / Locks / Windows / Blinds / Cars or Other Appliances with AC110~240V or DC0~28V.
• You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
• With characteristics of reverse power protection and over current protection
• One/ several transmitters can control one/ several receivers simultaneously.
• If you use two or more receivers in the same place, you can set them with different codes.
• Transmitting Frequency: 433MHz
• Working distance of transmitter and receiver with external extend antenna: 2000M / 6000ft (theoretically)

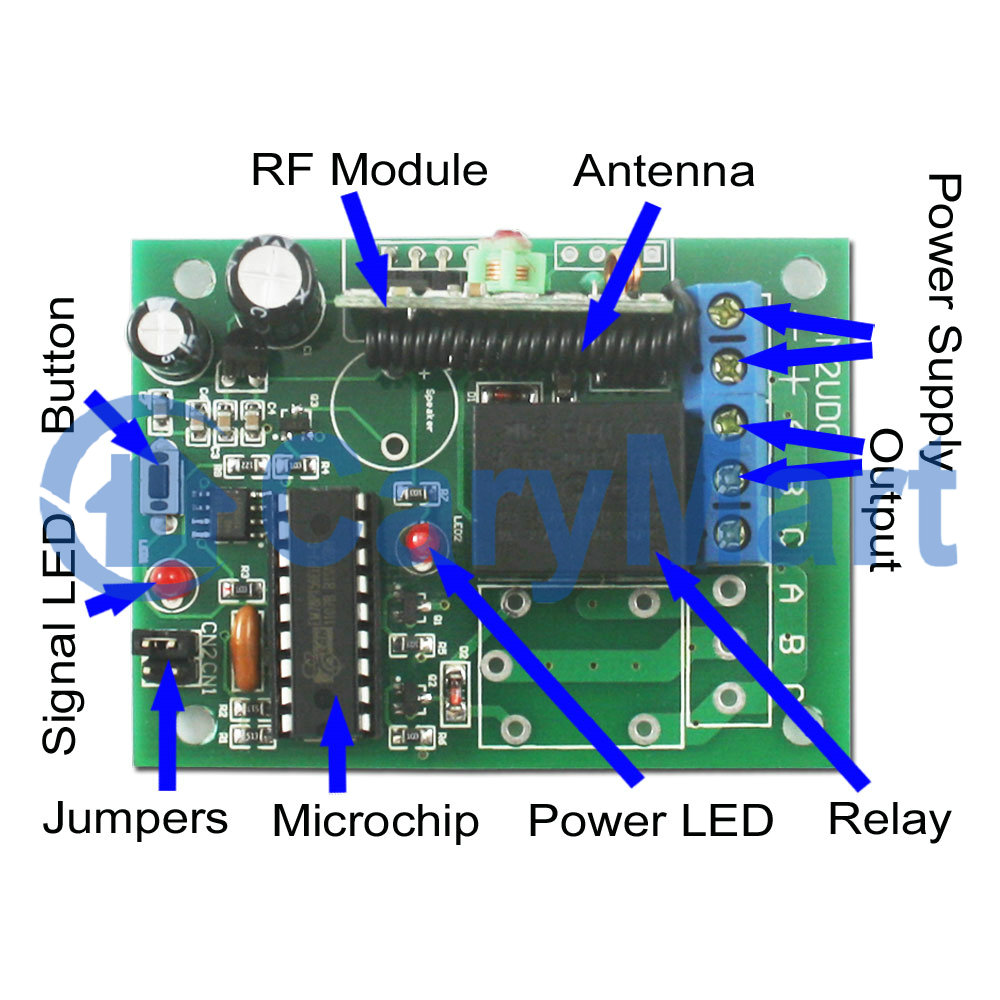

Receiver:

• Model No.: S1XB-DC06-ANT2 / S1XB-DC09-ANT2 / S1XB-DC12-ANT2 / S1XB-DC24-ANT2
• Channel: 1 CH
• Control Modes: Self-locking, Momentary, Interlocking
• Coding Type: Fixed code
• Coding Setting: By learning
• Power Supply (Operating Voltage): DC6V (S1XB-DC06-ANT2), DC12V±1V (S1XB-DC12-ANT2), DC9V±1V (S1XB-DC09-ANT2), DC24V±1V (S1XB-DC24-ANT2)
• Output: DC6V (S1XB-DC06-ANT2), DC12V (S1XB-DC12-ANT2), DC9V (S1XB-DC09-ANT2), DC24V (S1XB-DC24-ANT2)
• PCB Size: 67mm x 50mm x 18mm
• Case Size: 75mm x 54mm x 27mm
• Static Current: ≤6mA
• Maximum Working Current: 10A

External Extend Antenna:

• Frequency Range: 300~450MHz
• Impedance: 50Ω
• Antenna Length: 15cm
• Cable Length: 150cm
• Weight: 35g
• Anti-interference, waterproof, shielded wire set inside
• Magnetic stand design for easy to install

Transmitter:

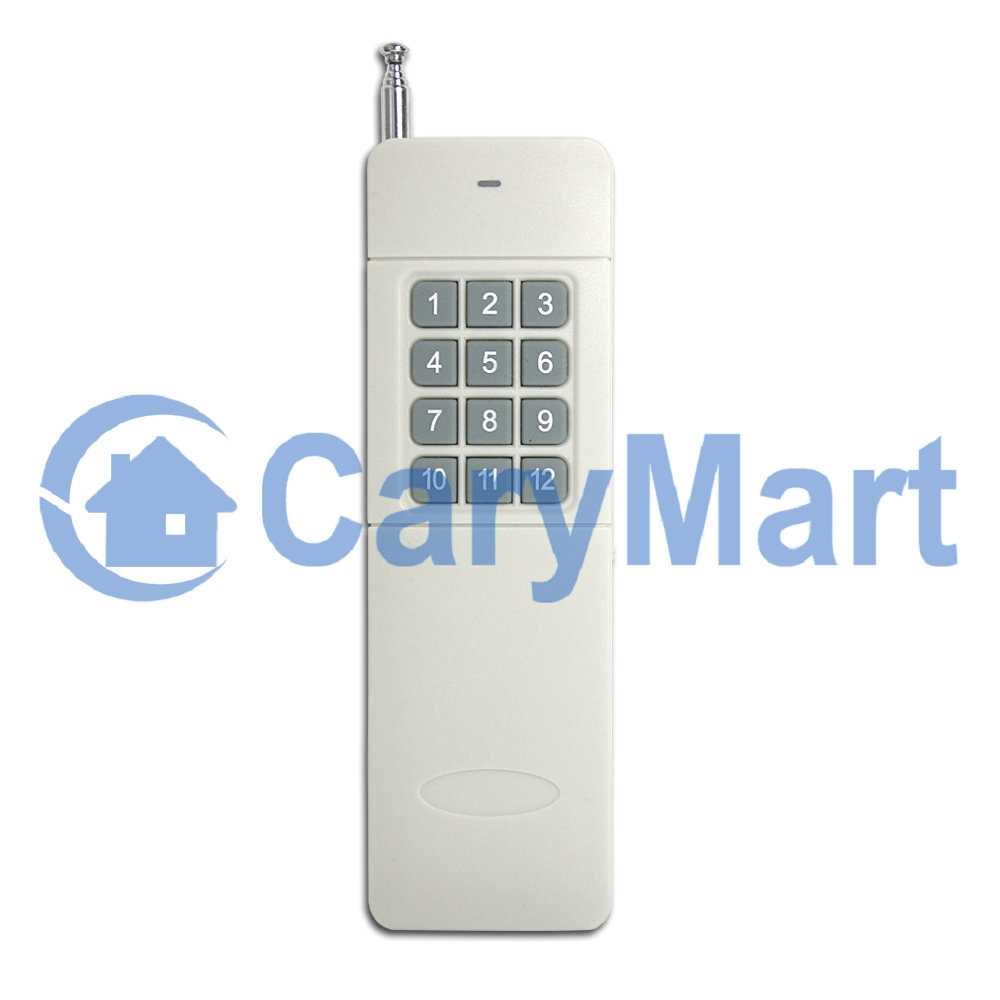

• Model No.: CB-12
• Channel: 12 CH
• Remote Control Distance: 1000m / 3000ft (theoretically)
• Encode: Fixed code by soldering
• Unit size: 135mm x 42mm x 25mm

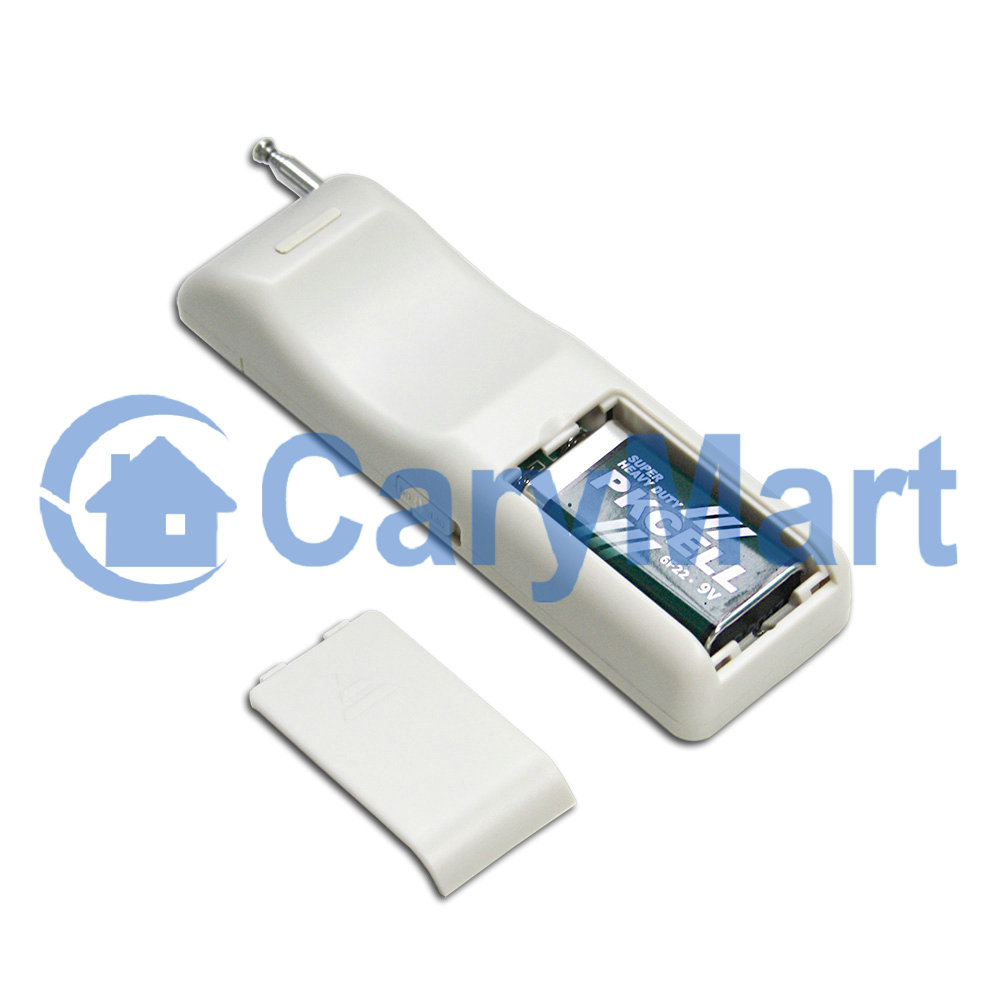

• Power Supply: 1 x 6F22-9V battery (included, can be used for 12 months)

Usage:

• 1) Setting control mode Self-locking: Only connect Jumper-2.

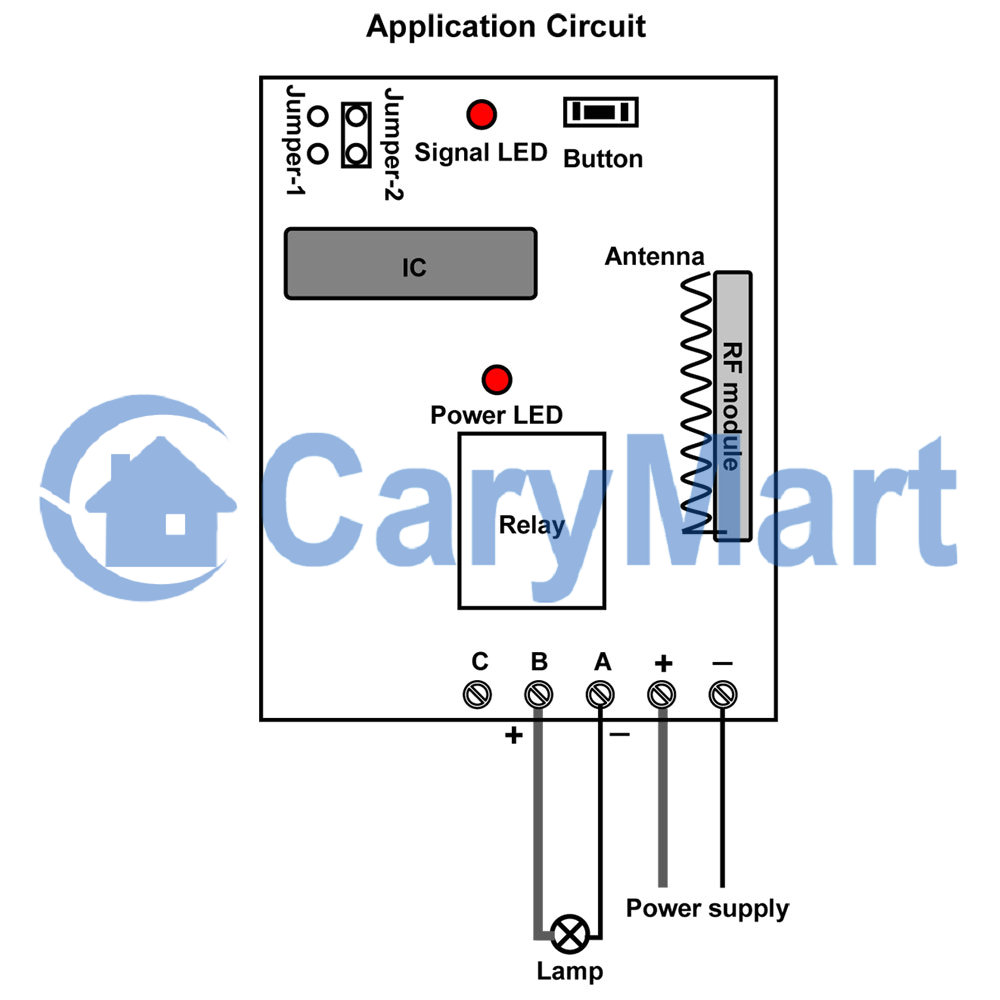

  Press button 1: Turn on the relay, terminal A&B of receiver 1 outputs DC power.
  Press button 1 again: Turn off the relay, terminal A&B of receiver 1 no output.
  …
  Press button 12: Turn on the relay, terminal A&B of receiver 12 outputs DC power.
  Press button 12 again: Turn off the relay, terminal A&B of receiver 12 no output.
• 2) Setting control mode Momentary: Only connect Jumper-1.
  Press and hold button 1: Turn on the relay, terminal A&B of receiver 1 outputs DC power.
  Release button 1: Turn off the relay, terminal A&B of receiver 1 no output.
  …
  Press and hold button 12: Turn on the relay, terminal A&B of receiver 12 outputs DC power.
  Release button 12: Turn off the relay, terminal A&B of receiver 12 no output.
• 3) Setting control mode Interlocking: Do not connect Jumper-1 and Jumper-2.
  Press button 1: Turn on the relay, terminal A&B of receiver 1 outputs DC power.
  Press other buttons: Turn off the relay, terminal A&B of receiver 1 no output.
  …
  Press button 12: Turn on the relay, terminal A&B of receiver 12 outputs DC power.
  Press other buttons: Turn off the relay, terminal A&B of receiver 12 no output.

Package Include:

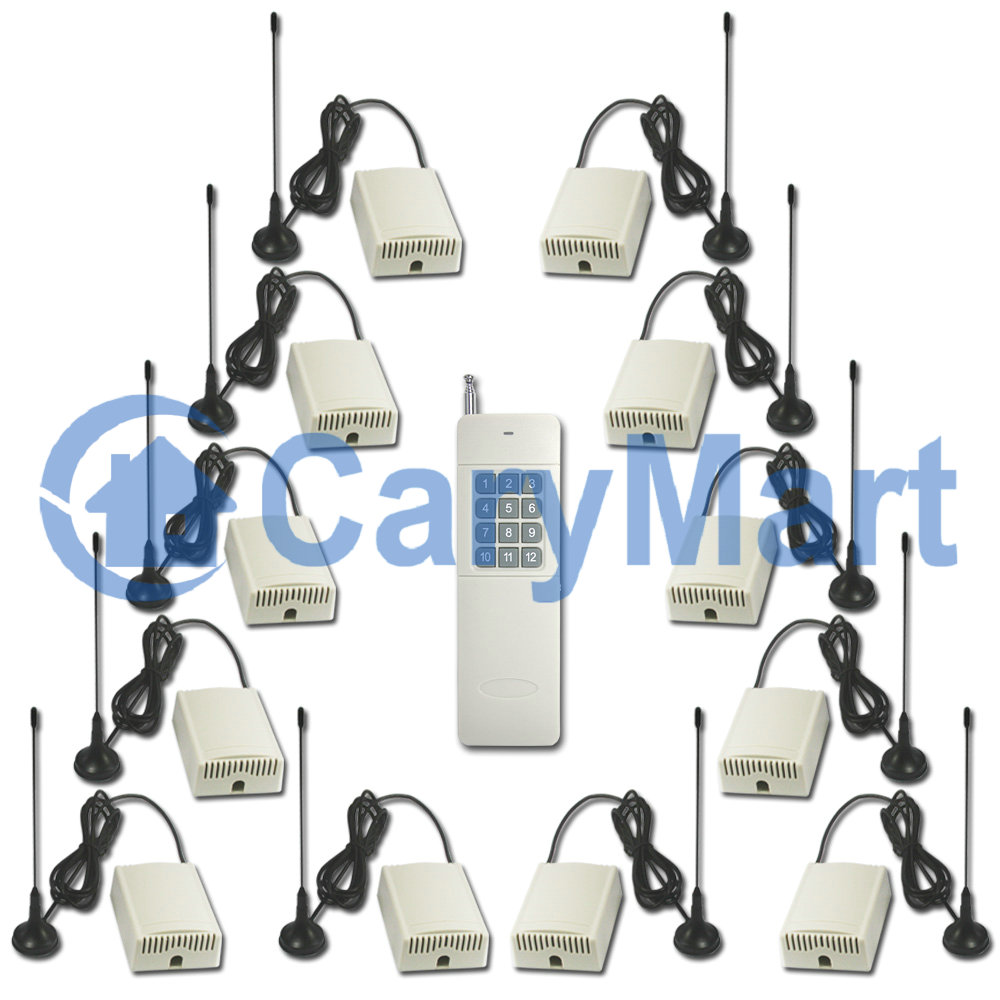

• 12 x Receiver: S1XB-DC-ANT2
• 1 x Transmitter: CB-12
• 1 x User manual

Note:

• The distance of 2000m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it may be hindered by trees, walls or other constructions, and may be exposed to some interference by other signals. Therefore, the actual distance can not reach 2000m. It depends on the actual working environment.
