200W 400W DC Motor / Linear Actuator Wireless Controller with Speed Adjustment Function

Price: US $85.00

Model: 0020153 (S1FB-DC & CP-6)

Please Choose:

Add Transmitter CP-6 (500m):

Add Limit Switch:

Qty:

Video:

Use the wireless controller to remotely controls the linear actuator speed

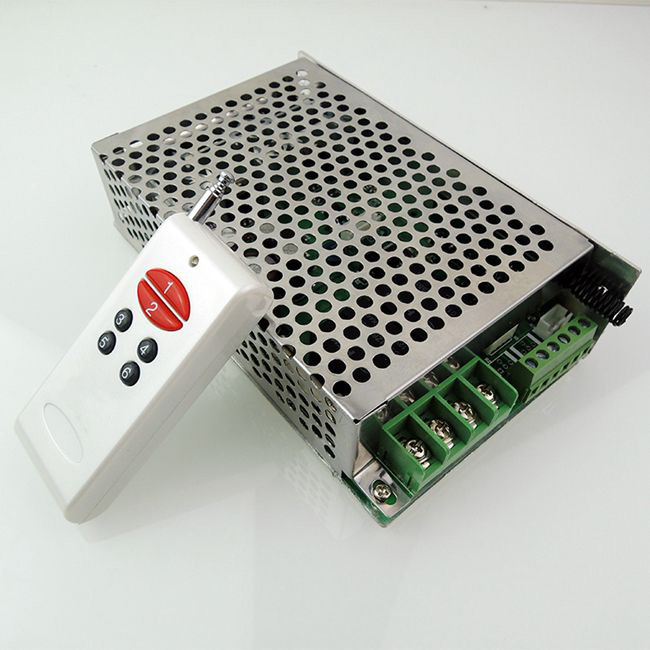

Package Include:
1 x Receiver: S1FB-DC
1 x Transmitter: CP-6
1 x User manual

Application:
This receiver is a wireless controller for DC motor or linear actuator, it and the transmitter form a wireless transmitter receiver system. It can be used for rolling blinds / doors, projection screens, awnings, winches, conveyors or other equipment with brushed DC motors or linear actuators.
If you connect a brushed DC motor to this receiver, you can operate the motor to rotate in positive or reversal direction by the remote control. If you connect a DC linear actuator to this receiver, you can operate the linear actuator to extend or retract by the remote control. You can also adjust the speed of the motor or linear actuator with a knob on the receiver or two buttons on the transmitter.
You can connect two limit switches, optoelectronic switches, proximity switches, or hall switches (NPN normally open type) to the receiver and use them to stop the motor or the linear actuator. You also can connect a manual switch to the receiver and use it to control the motor or the linear actuator.

Feature:
Wireless control, easy to install.
Suitable for brushed DC motor or linear actuator.
DC 12~30V operating voltage range.
You can operate the motor to rotate in positive or reversal direction by the transmitter.
You can operate the linear actuator to extend or retract by the transmitter.
You can adjust the speed of the motor or linear actuator with a knob on the receiver or two buttons on the transmitter.
With limit control terminals: You can connect limit switches, optoelectronic switches, proximity switches, or hall switches (NPN normally open type) to stop the motor or the linear actuator.
With wired control terminals: You can connect manual switches to control the motor or linear actuator.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The receiver has reverse power protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

Receiver Parameters:

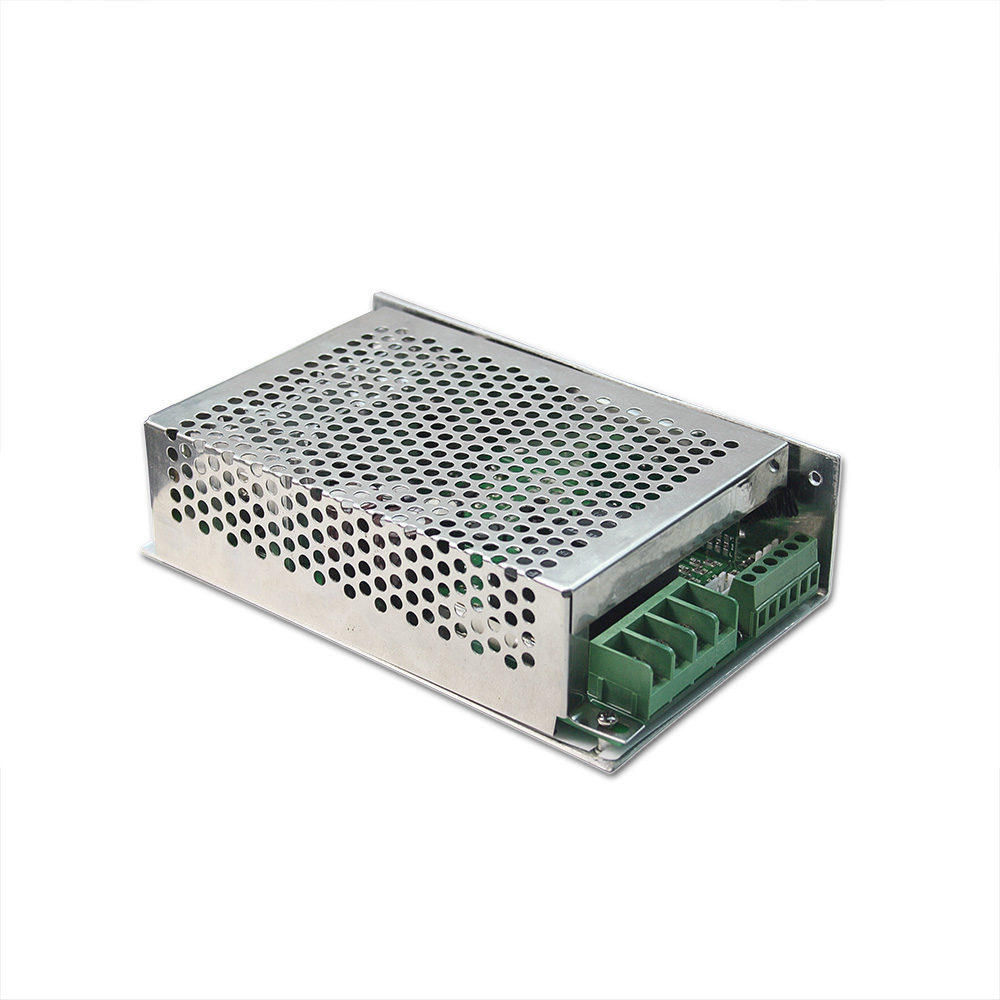

Model: S1FB-DC
Operating Voltage: 12~30 VDC
Output Voltage: 12~30 VDC same as input voltage
Working Frequency: 433.92 MHz
Channel: 1 CH, can work with 1 brushed DC motor or 1 linear actuator
Quiescent Current: ≤6mA
The maximum starting current of motor or linear actuator cannot exceed 30 A.
Maximum Rated Power: 200W for 12VDC, or 400W for 24VDC.
Wire range for the terminals: 22-14 AWG
Coding Type: Fixed code
Coding method: By soldering
Operating Temperature: -20°C ~ +70°C

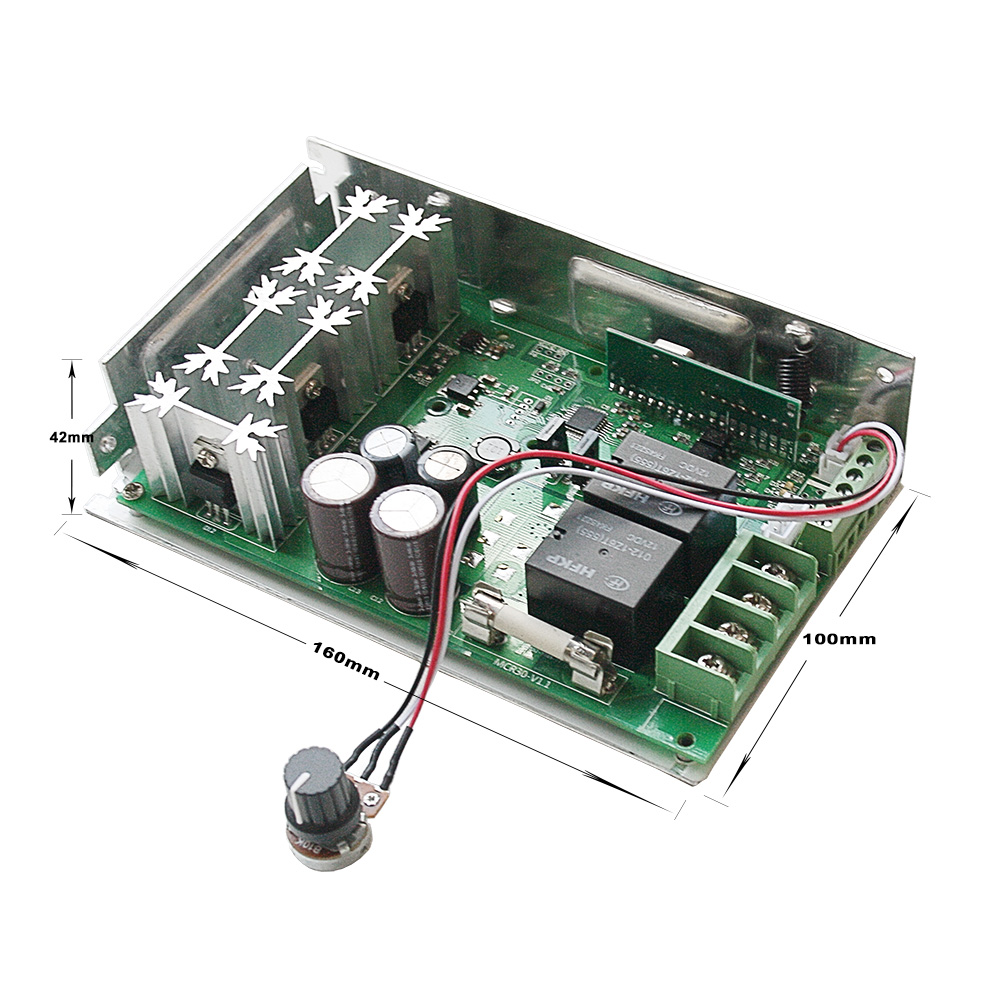

Case Size: 160 x 100 x 42 mm (6.3 x 3.94 x 1.65 inches)

Transmitter Parameters:

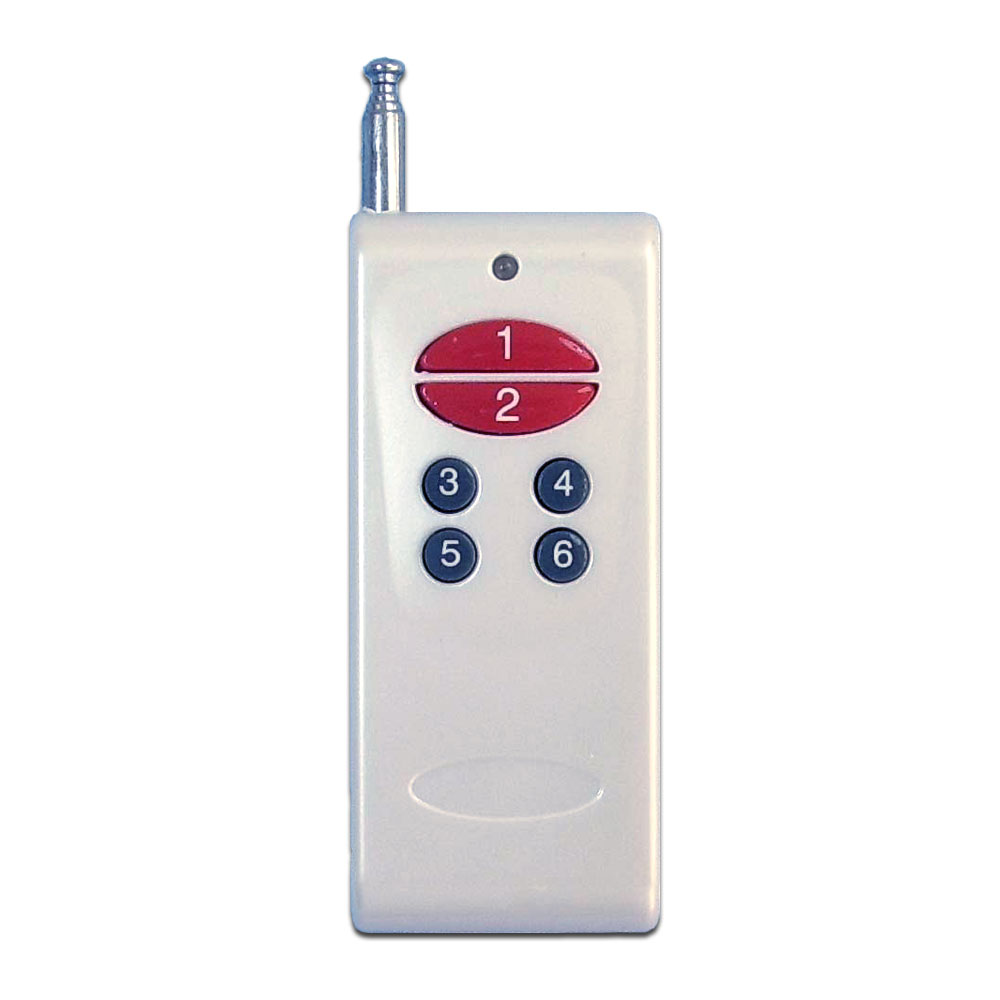

Model: CP-6

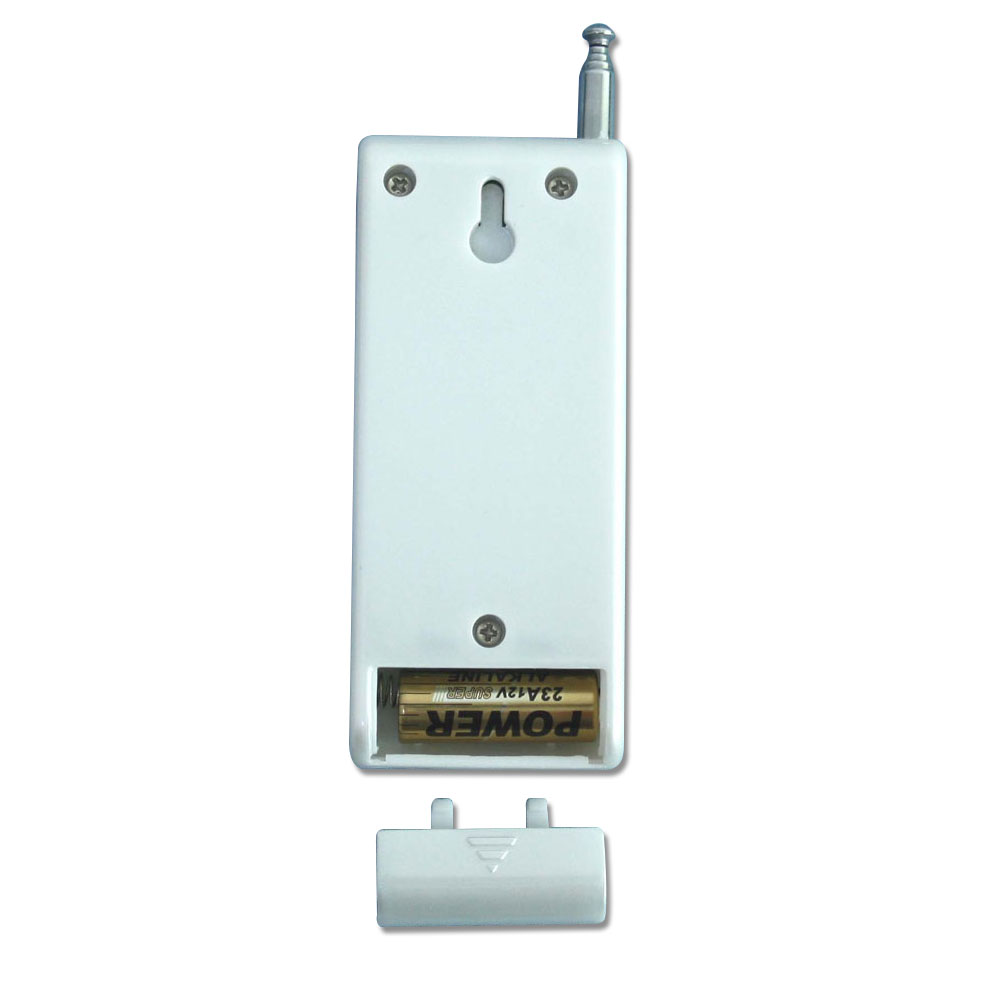

Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)
Channel/Button: 6
Button Symbol: 1, 2, 3, 4, 5, 6
Operating Frequency: 433.92MHz
Modulation Mode: ASK
Encode: Fixed code by soldering
Remote Control Distance: 500m / 1500ft (theoretically)
Unit size: 85 x 36 x 16 mm (3.3 x 1.4 x 0.6 inches)

Matching Transmitters:
This receiver can only work with the transmitter CP-6.

Working Range:
This receiver and the transmitter CP-6 form a complete set, the maximum working distance may reach 500 meters in an open area.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no interference. But in the practice, it will be hindered by trees, walls, or other construction, and will be interfered by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
The receiver equipped with an external antenna has a larger working range than the receiver equipped with an internal antenna.

Usage:
The receiver can be used to control DC 12V / 24V motor or linear actuator.

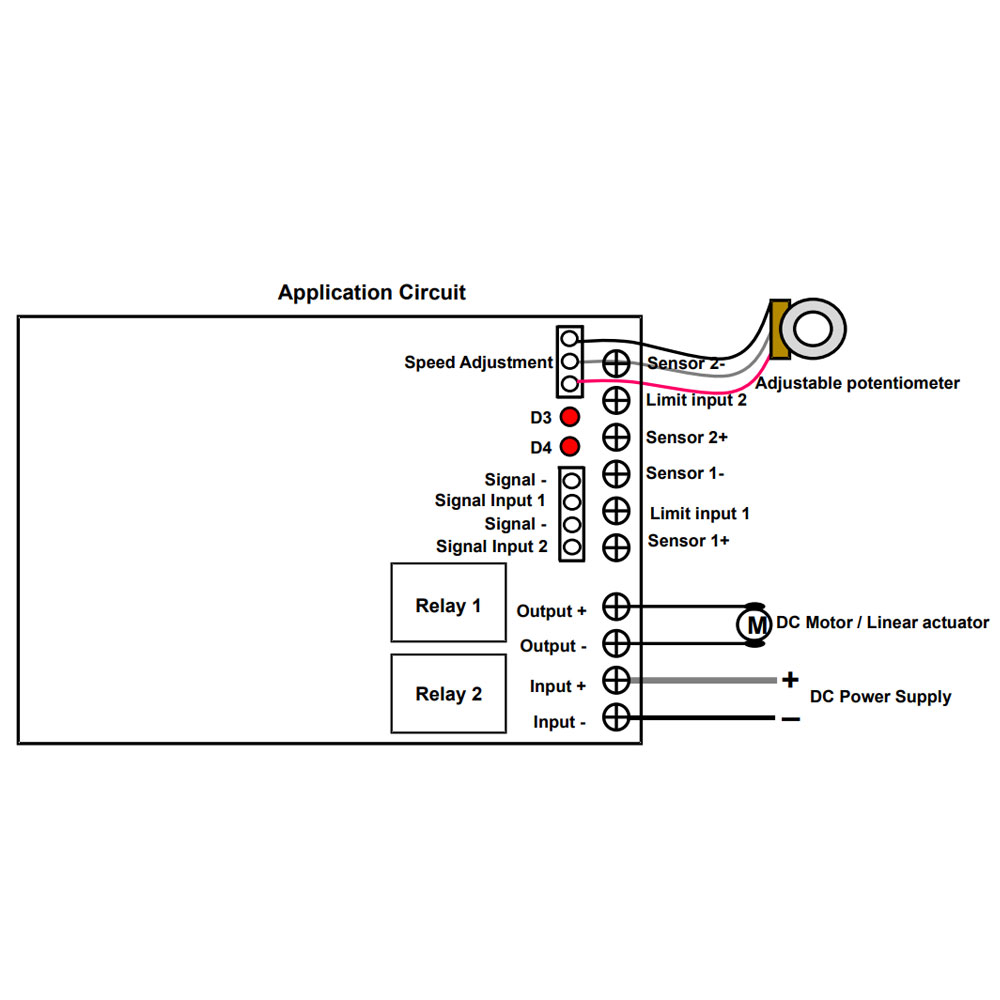

Wiring:
If you want to control a DC 12V / 24V motor or linear actuator, do as following:
1) Connect the positive pole of DC power supply to terminal , and connect the negative pole of DC power supply to terminal .
2) Connect two wires of motor or linear actuator to terminals and , and you can exchange these two wires to change the rotating direction of motor or the moving direction of linear actuator.

Operation by the transmitter CP-6:
Press the button 1 on the transmitter: Motor rotates in positive direction, or linear actuator extends outward.
Press the button 2 on the transmitter: Motor rotates in reversal direction, or linear actuator inward retracts.
Press the button 3 on the transmitter: Motor or linear actuator stops.
Press and hold the button 4 on the transmitter: The speed of the motor or linear actuator will gradually speed up.
Press and hold the button 6 on the transmitter: The speed of the motor or linear actuator will gradually slow down.
The button 5 is useless.

Speed adjustment:
You can twist to adjust the speed of the motor or linear actuator.
Turn the knob clockwise, the speed will gradually speed up.
Turn the knob counterclockwise, the speed will gradually slow down.

Limit control terminals:
The receiver has limit control terminals, and you can connect external devices (with normally open contact), such as limit switches, optoelectronic switches, proximity switches, or hall switches (NPN normally open type) to limit terminals, then use them to stop the motor or the linear actuator.
For example, you can connect a normally open limit switch to terminals and , and connect another normally open limit switch to terminals and .
When motor rotates in positive direction, or linear actuator extends outward, if a limit switch is activated, the motor or linear actuator will stop automatically.
When motor rotates in reversal direction, or linear actuator inward retracts, if another limit switch is activated, the motor or linear actuator will stop automatically.

Wired control terminals:
The receiver has wired control terminals, and you can connect external devices (with normally open contact), such as manual switches to wired control terminals, then use them to stop the motor or the linear actuator.

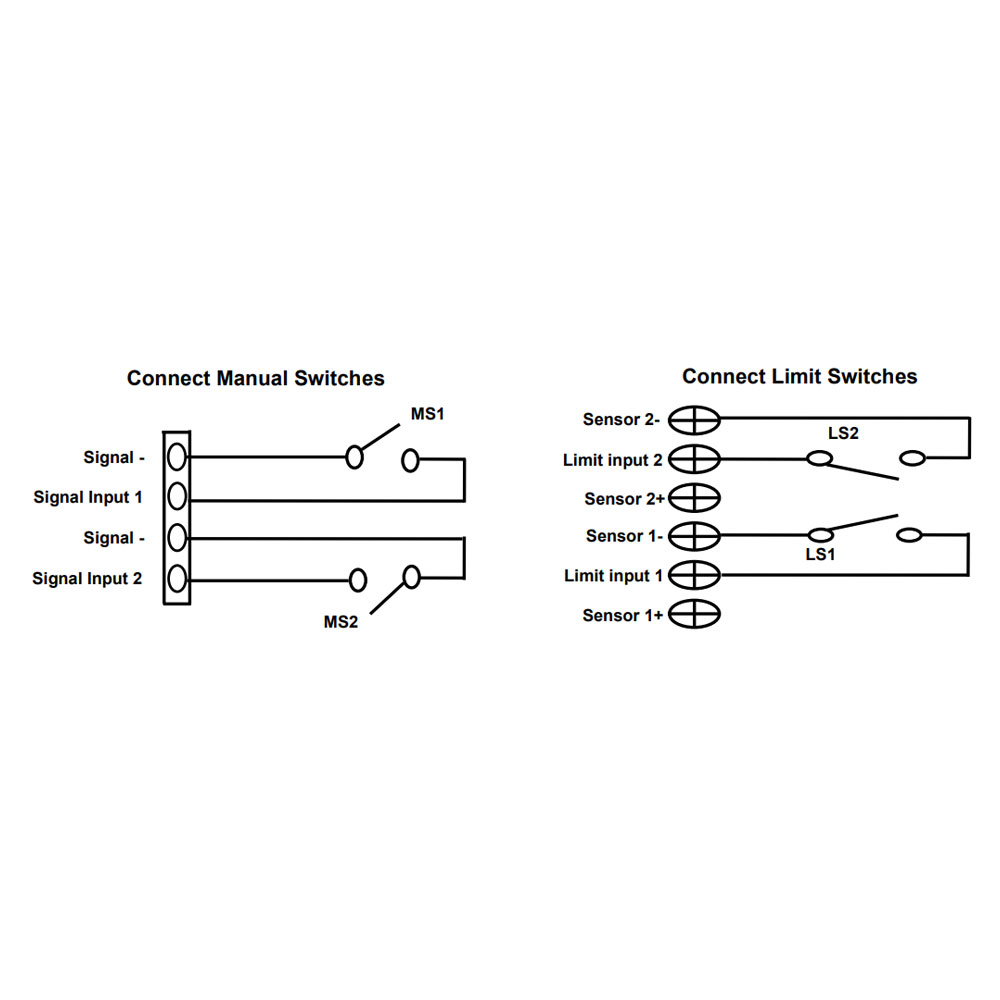

For example, you can connect two manual switches to wired control terminals , , and according to following wiring diagram.
When you press and hold a manual switch, it will connect two terminals and , the motor rotates in positive direction, or the linear actuator extends outward. When you release the manual switch, motor or linear actuator stops.
When you press and hold another manual switch, it will connect two terminals and , the motor rotates in reversal direction, or the linear actuator inward retracts. When you release the manual switch, motor or linear actuator stops.
