Feature:
Flame retardant ABS shell
DC 12~60V ultra-wide operating voltage range.
Stepless speed regulation, 0%-100% PWM output.
Using special motor speed control drive Chip
Using original filter capacitors and field effect power tubes
With advanced technology, high efficiency, large torque, and low heat
generation.
With adjustable knob, you can adjust the speed freely.
Control the forward rotation, stop, reverse rotation and speed regulation of
DC brush motor.
Control the extension, stop, retraction and speed regulation of DC linear
actuator.
Specification:
Model: 0044011
Input voltage range: DC 12V ~ 60V
Output voltage range: 0 ~ Input voltage
Rated working current: 15A
Maximum instantaneous current: 20A
Work mode: PWM
PWM Frequency: 15 Khz

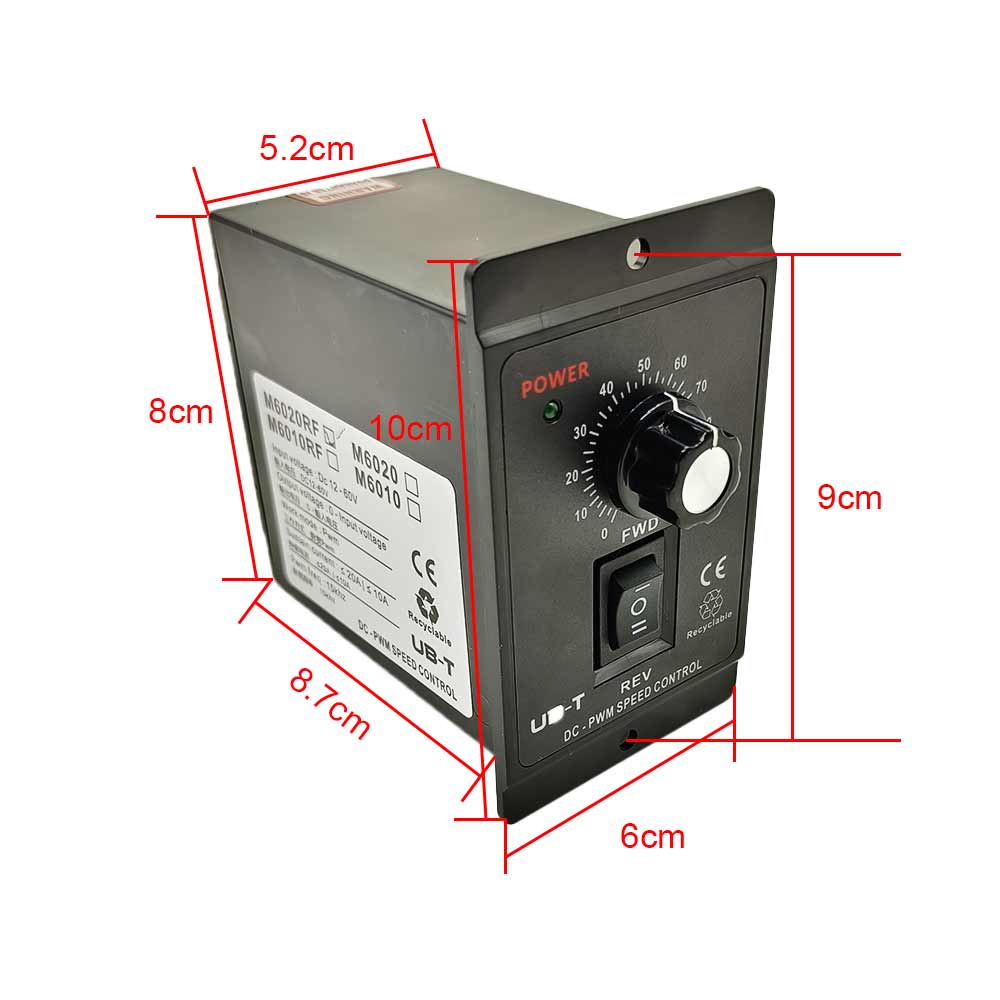

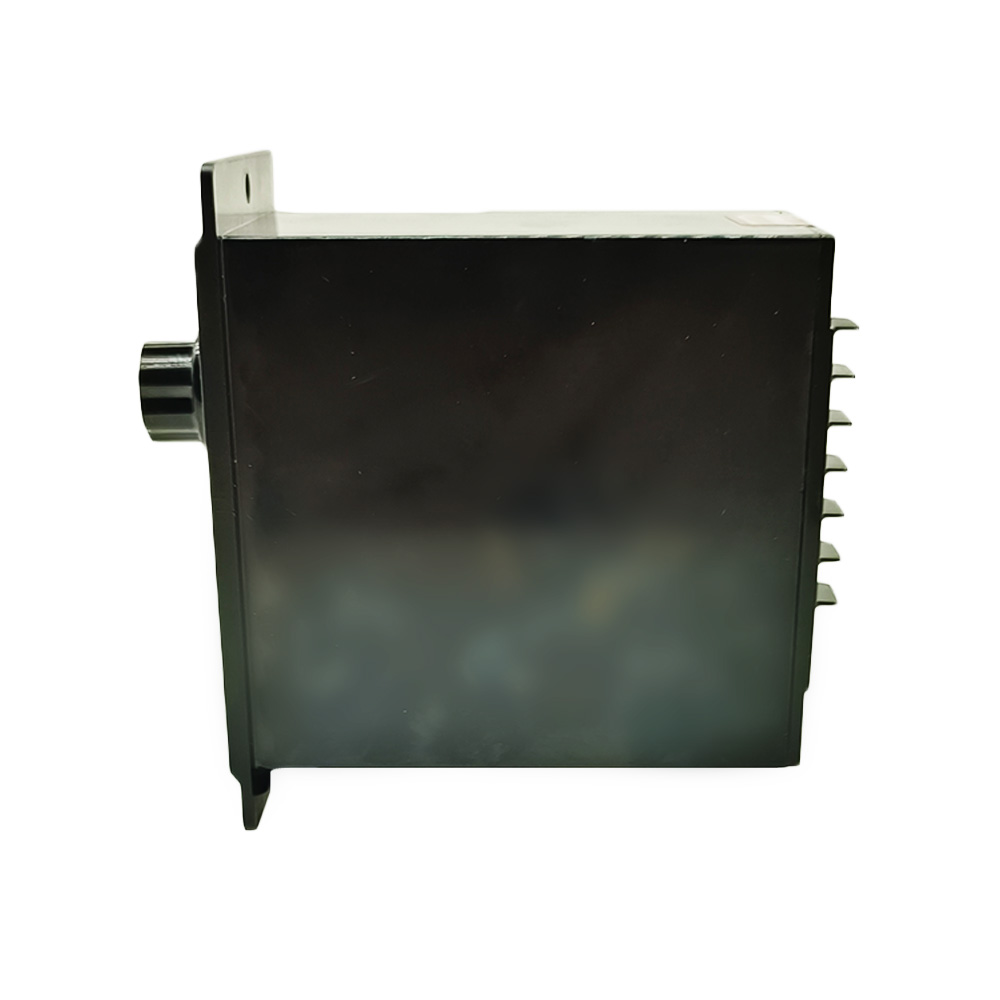

Size: 100 x 90 x 60 mm (3.9 x 3.5 x 2.4 inches)
Speed Adjustment Range: 5%~100%.

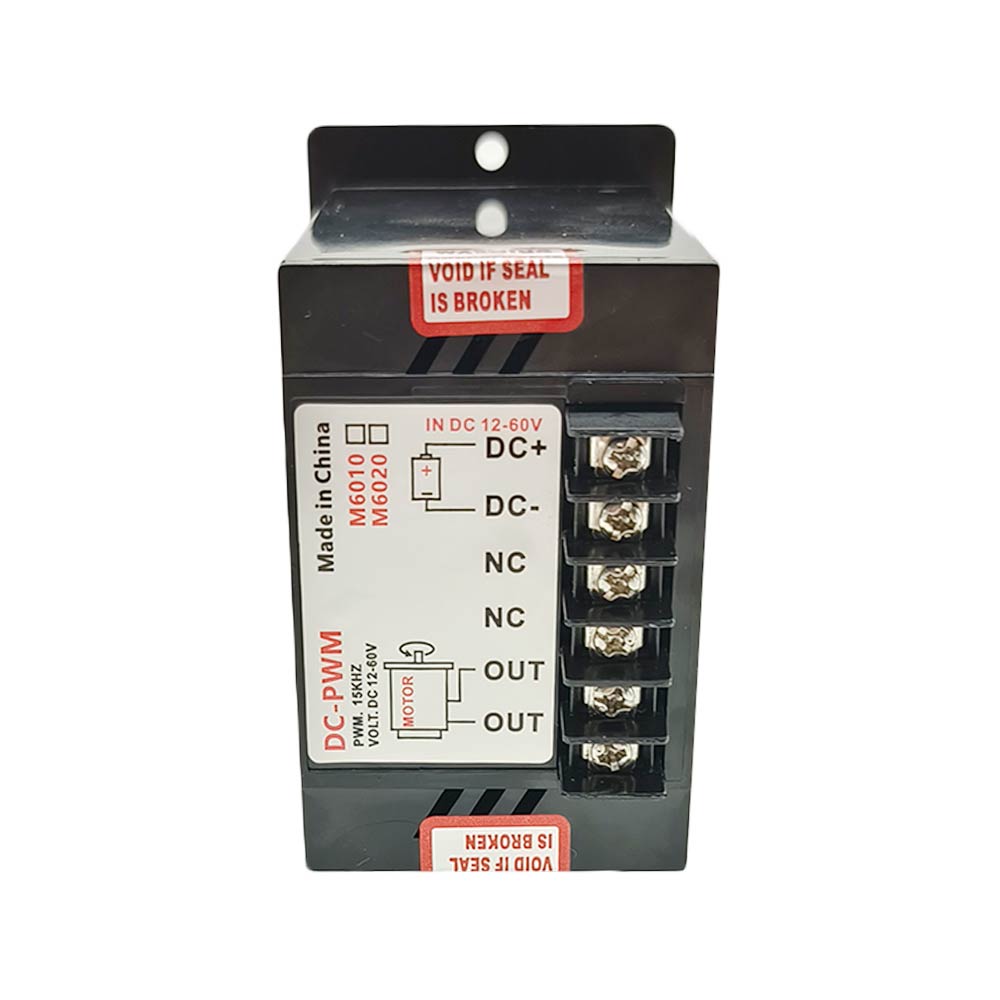

Wiring:
1) Connect the positive pole of DC power supply to the power terminal ,
and connect the negative pole of DC power supply to the power terminal
.
Notice: Can only be connected to DC power supply, not AC power supply, and
the positive and negative poles cannot be reversed, otherwise the controller
will be damaged.
2) Connect two wires of motor or linear actuator to the two terminals ,
and you can exchange these two wires to change the rotating direction of
motor or the moving direction of linear actuator.

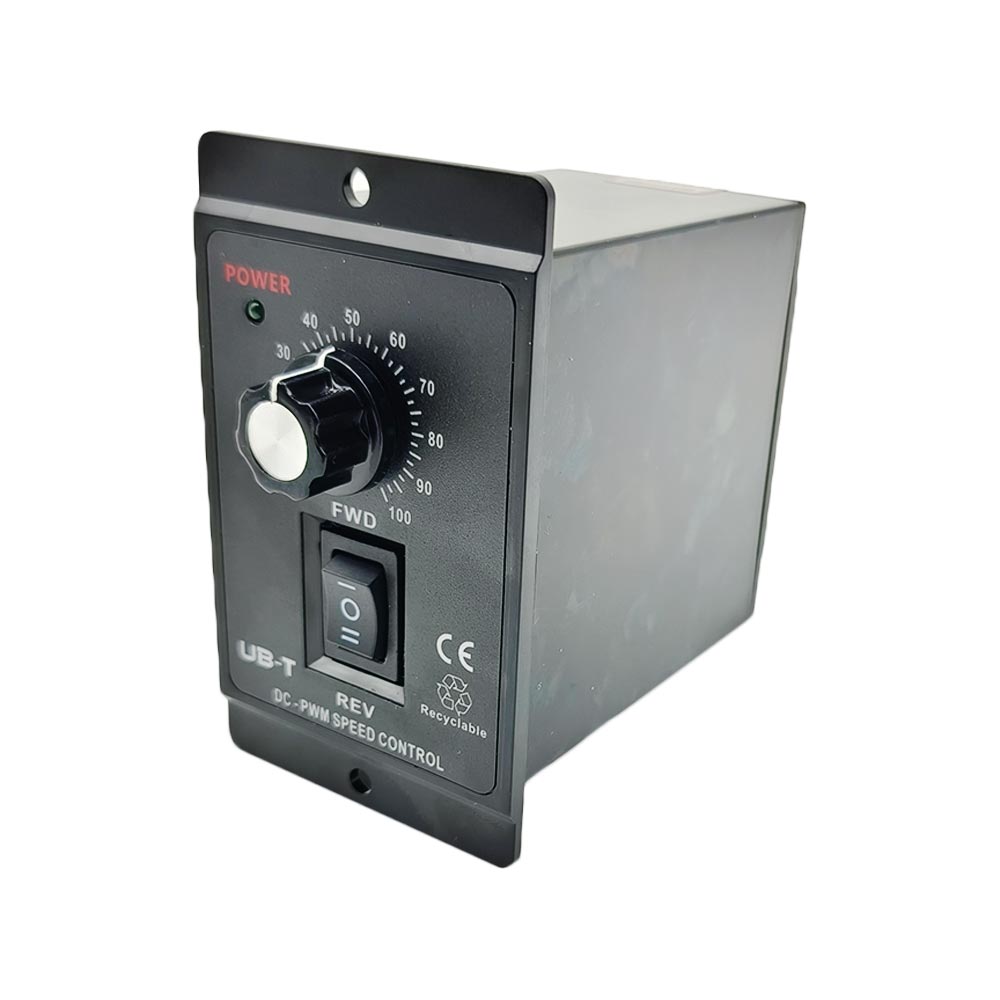

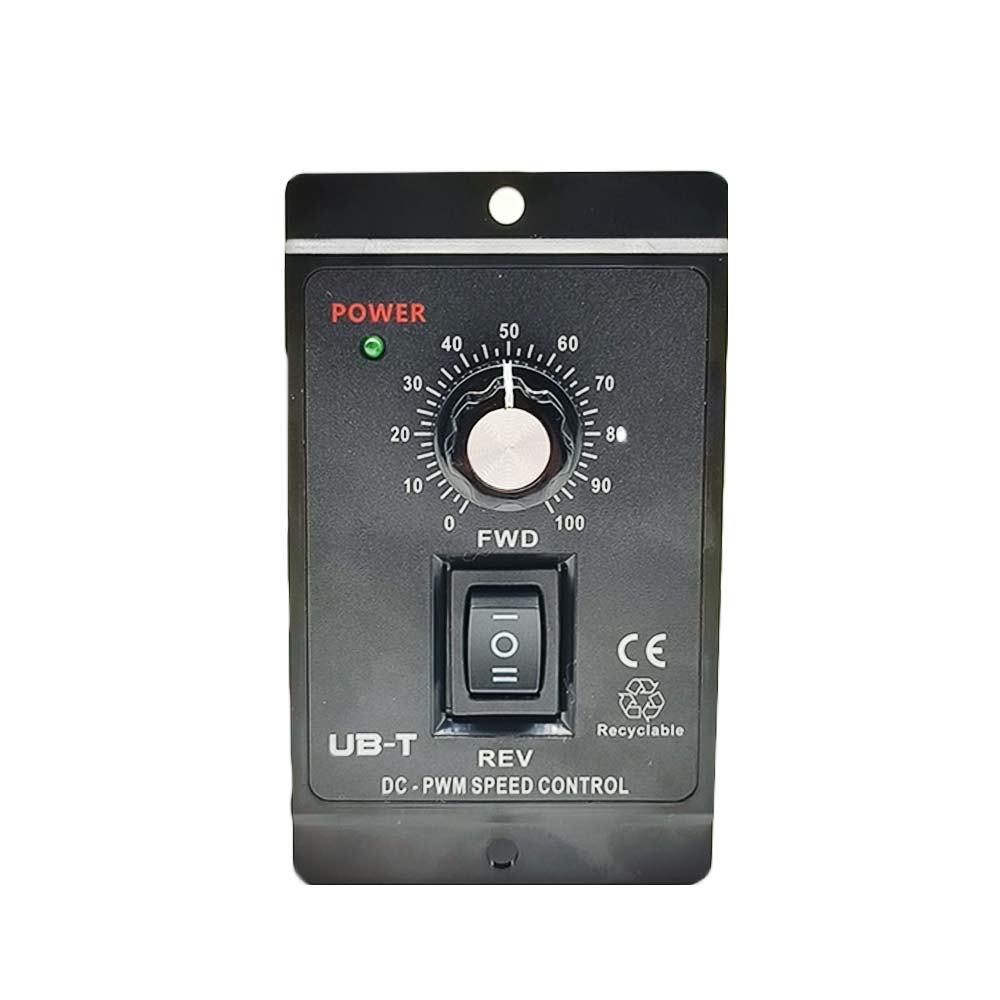

Operation for linear actuator:
Toggle the switch to the top position, linear actuator extends outward.
Toggle the switch to the middle position, linear actuator stops.
Toggle the switch to the bottom position, linear actuator retracts inward.
Twist the knob to adjust the movement speed of linear actuator.
Twist clockwise, the moving speed of linear actuator will speed up.
Twist anti-clockwise, the moving speed of linear actuator will slow down.
Operation for DC motor:
Toggle the switch to the top position, motor rotates in positive direction.
Toggle the switch to the middle position, motor stops.
Toggle the switch to the bottom position, motor rotates in reversal
direction.
Twist the knob to adjust the rotation speed of DC motor.
Twist clockwise, the rotation speed of motor will speed up.
Twist anti-clockwise, the rotation speed of motor will slow down.
