Package Include:

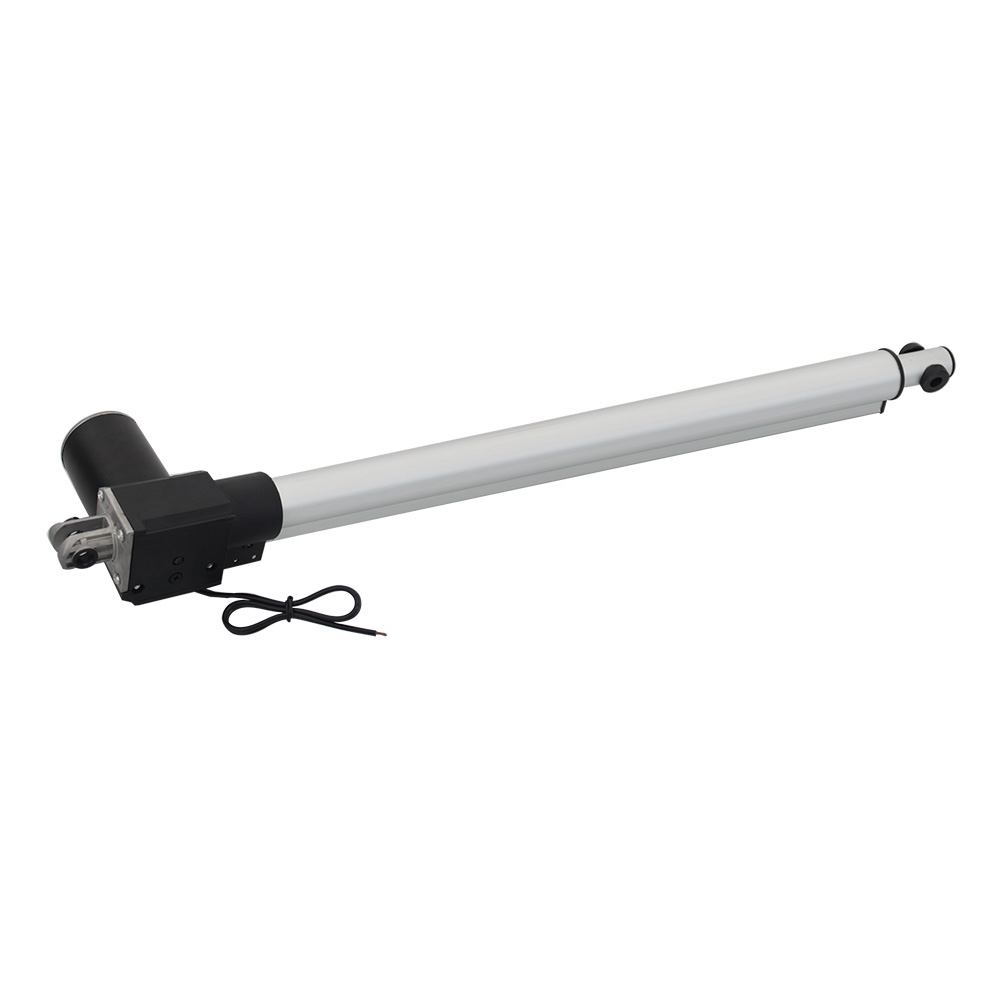

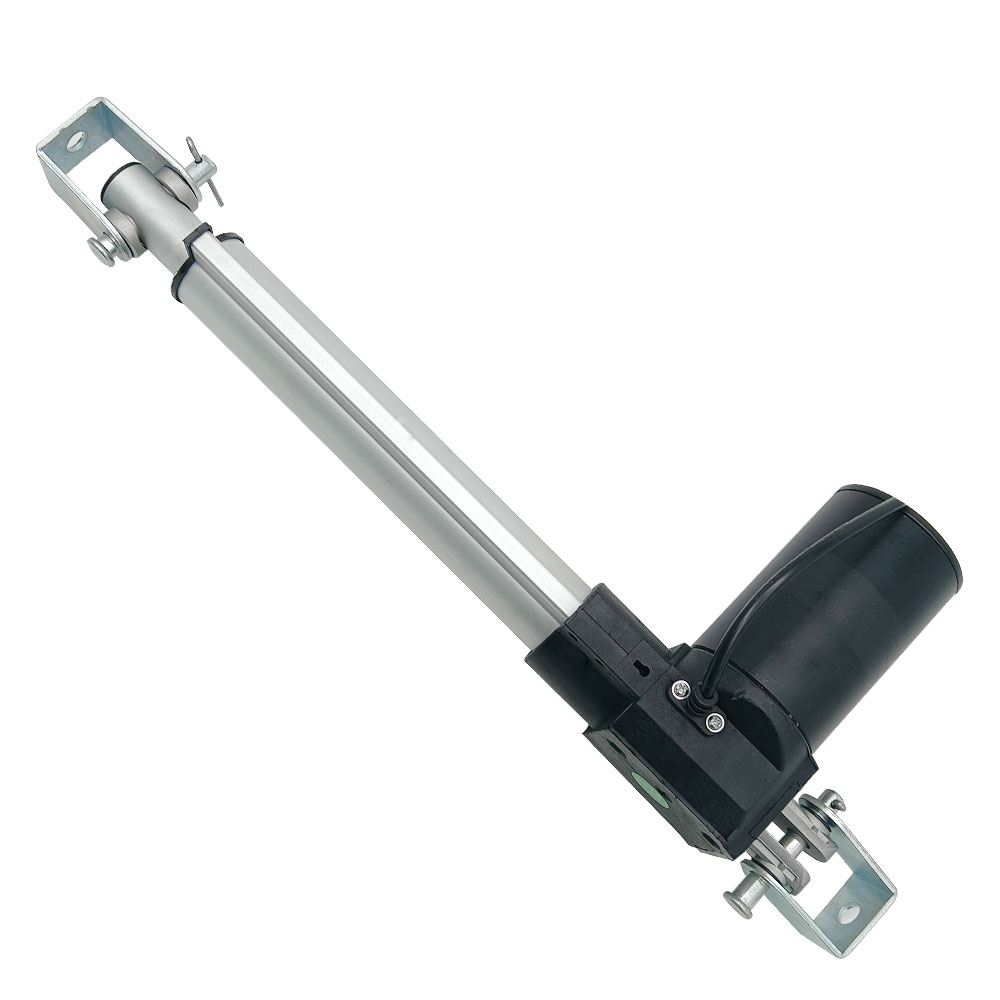

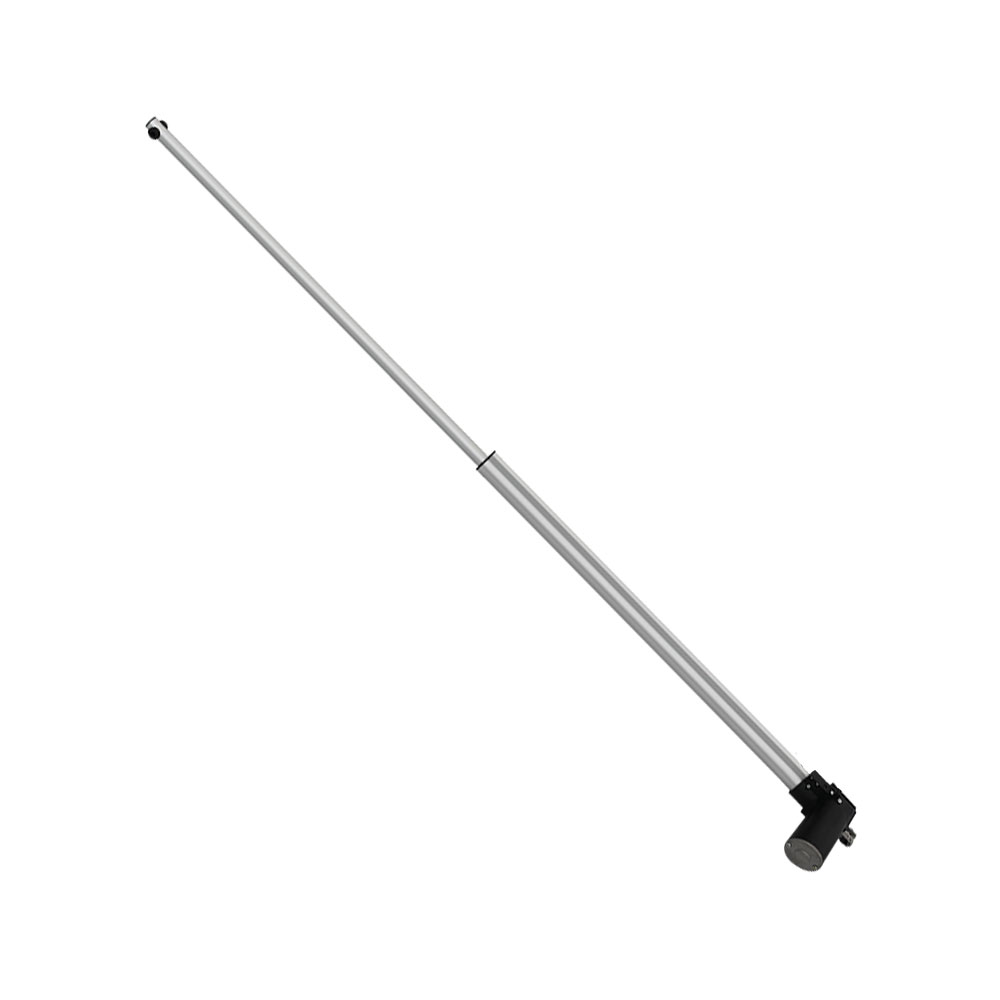

1 x Heavy Duty Linear Actuator B

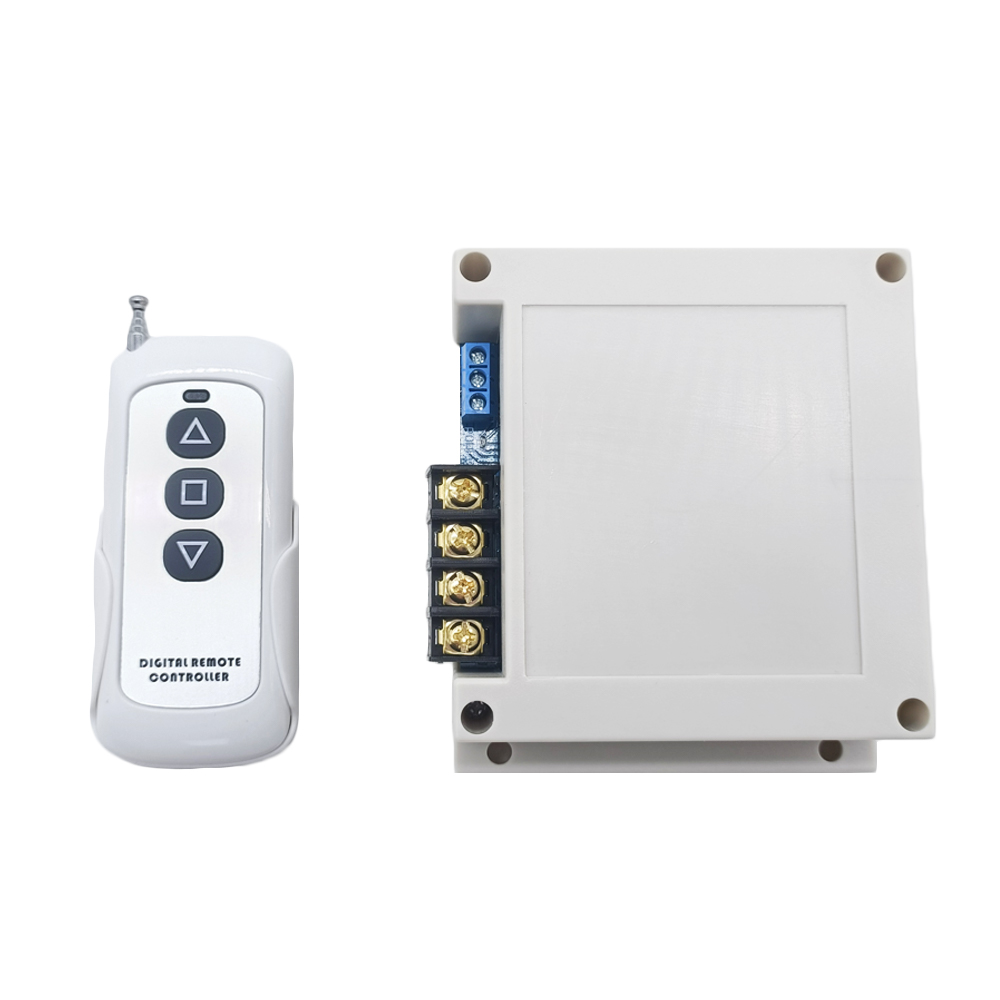

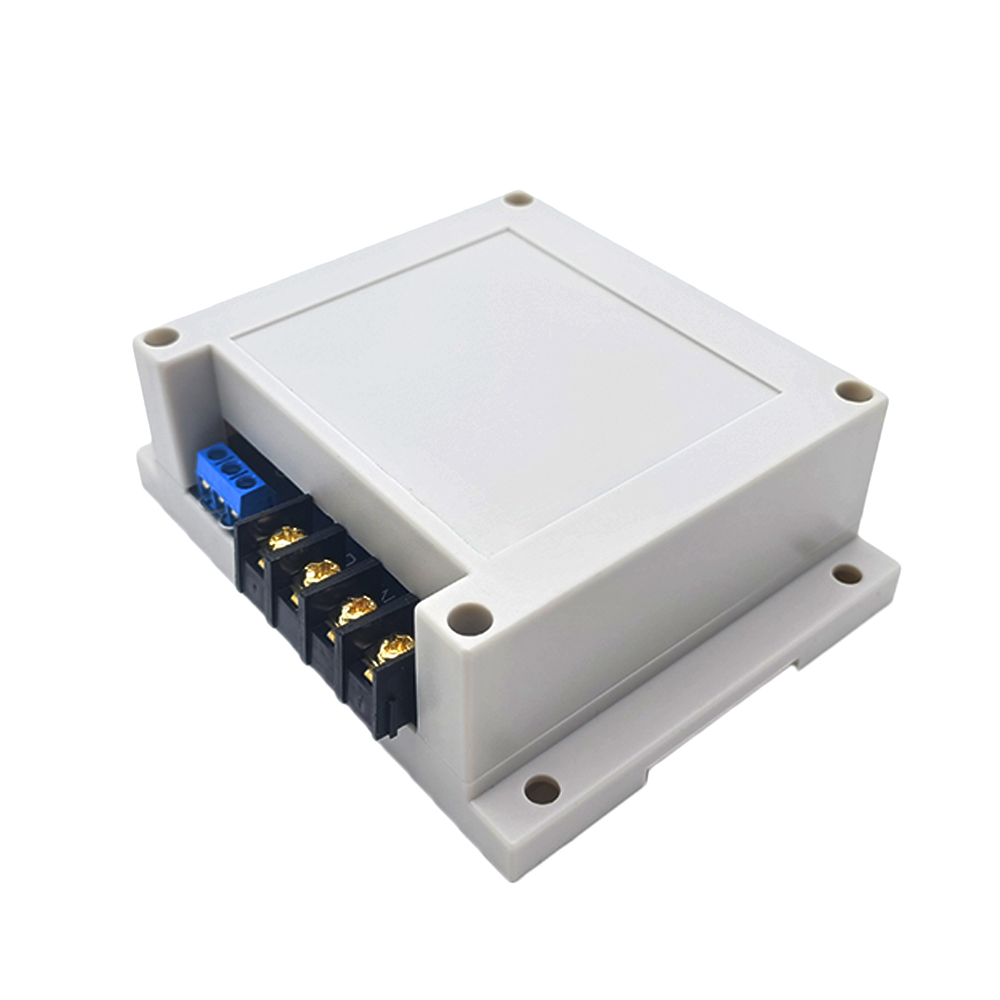

1 x Receiver: S1PF-DC12 / S1PF-DC24

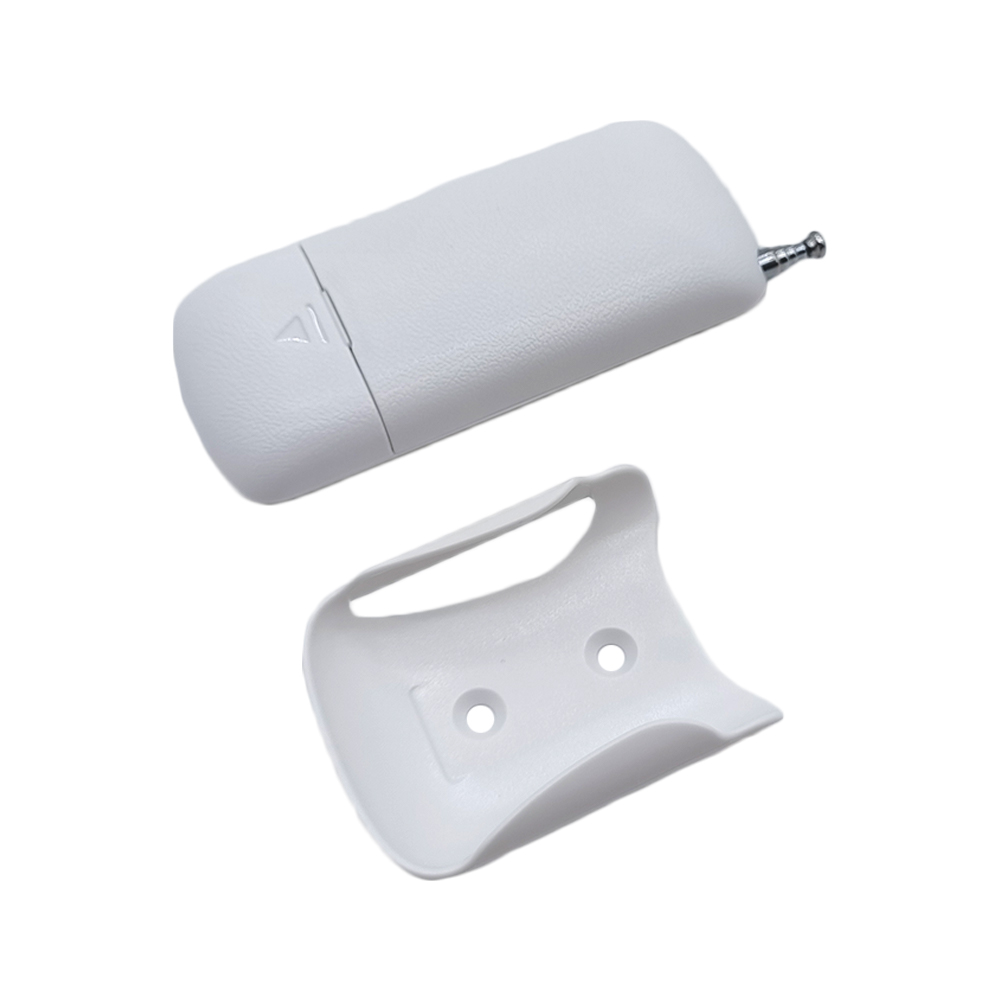

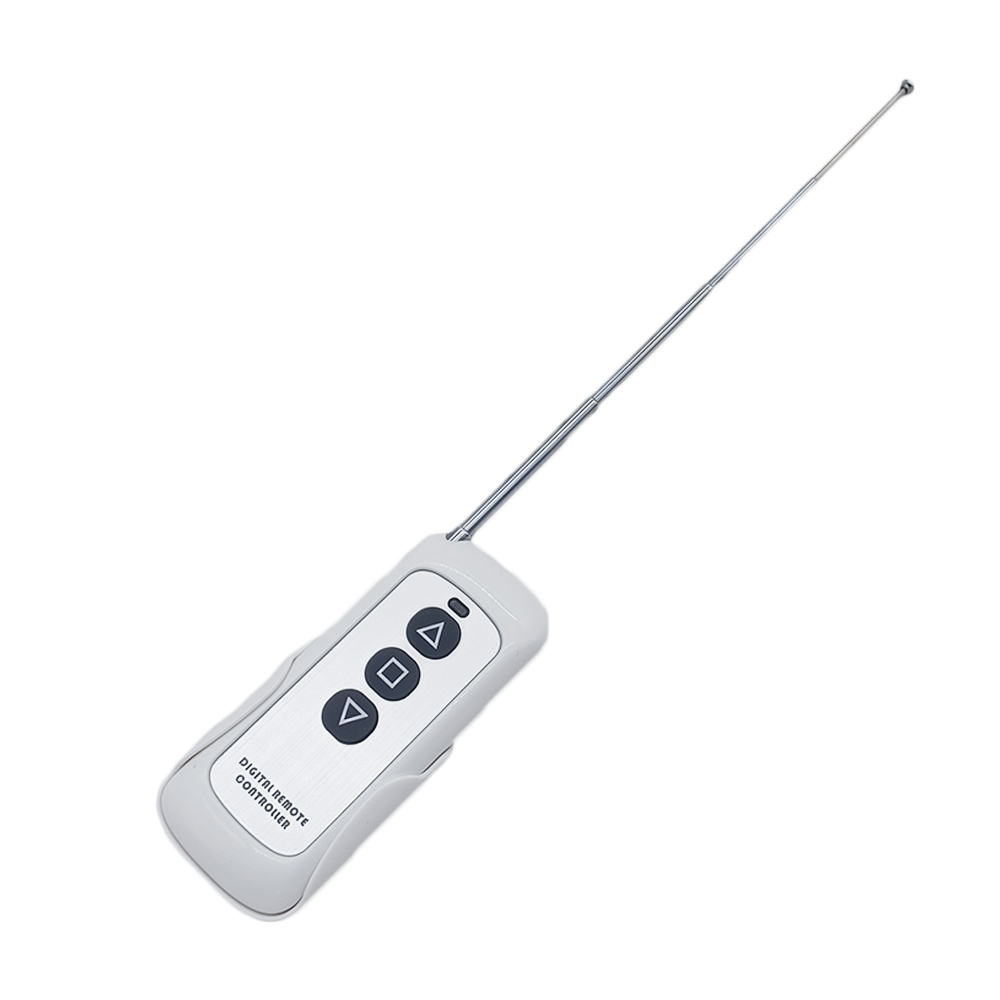

2 x Transmitter: CP-3

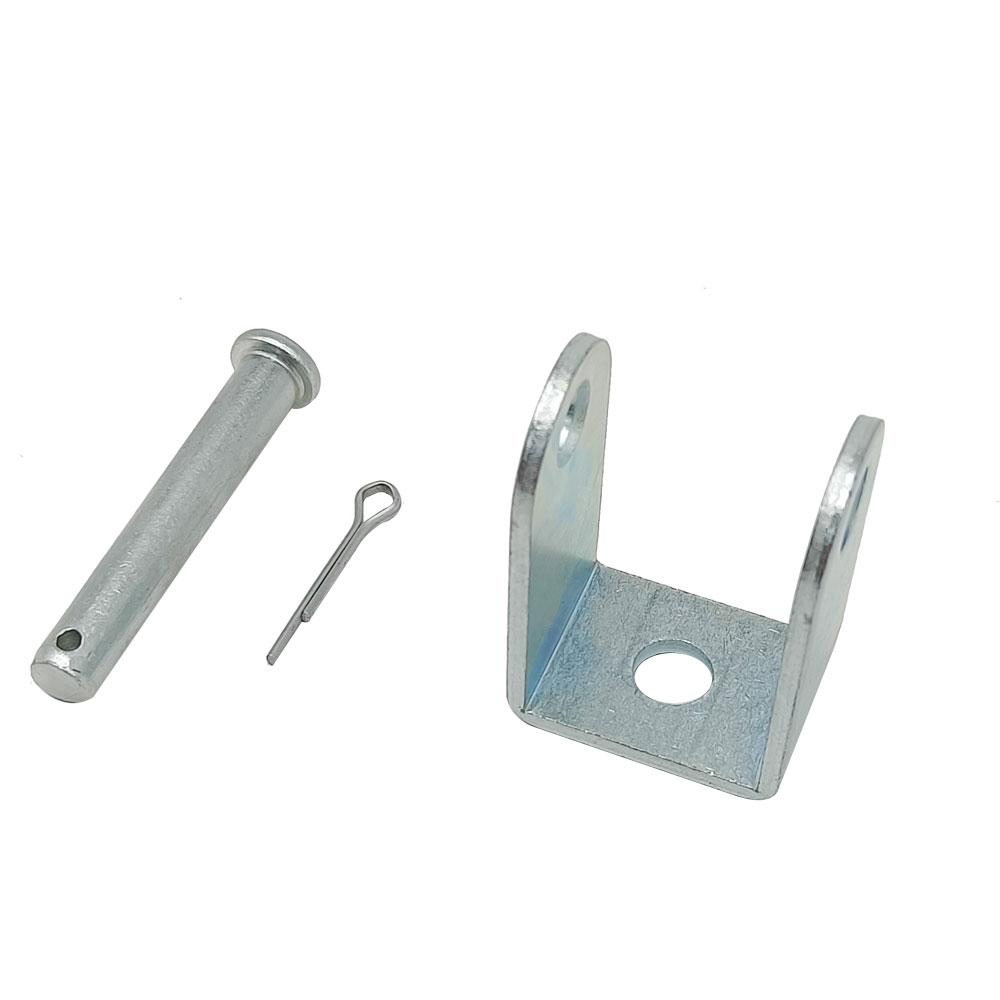

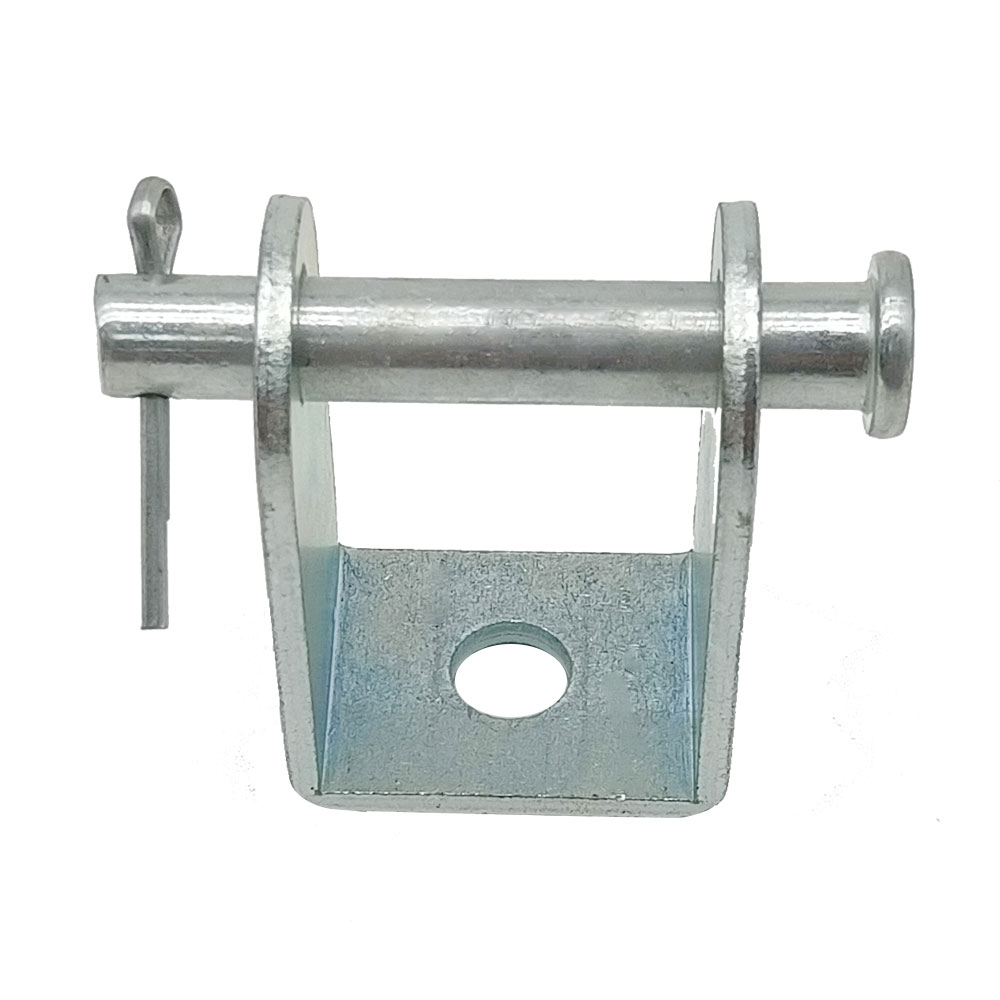

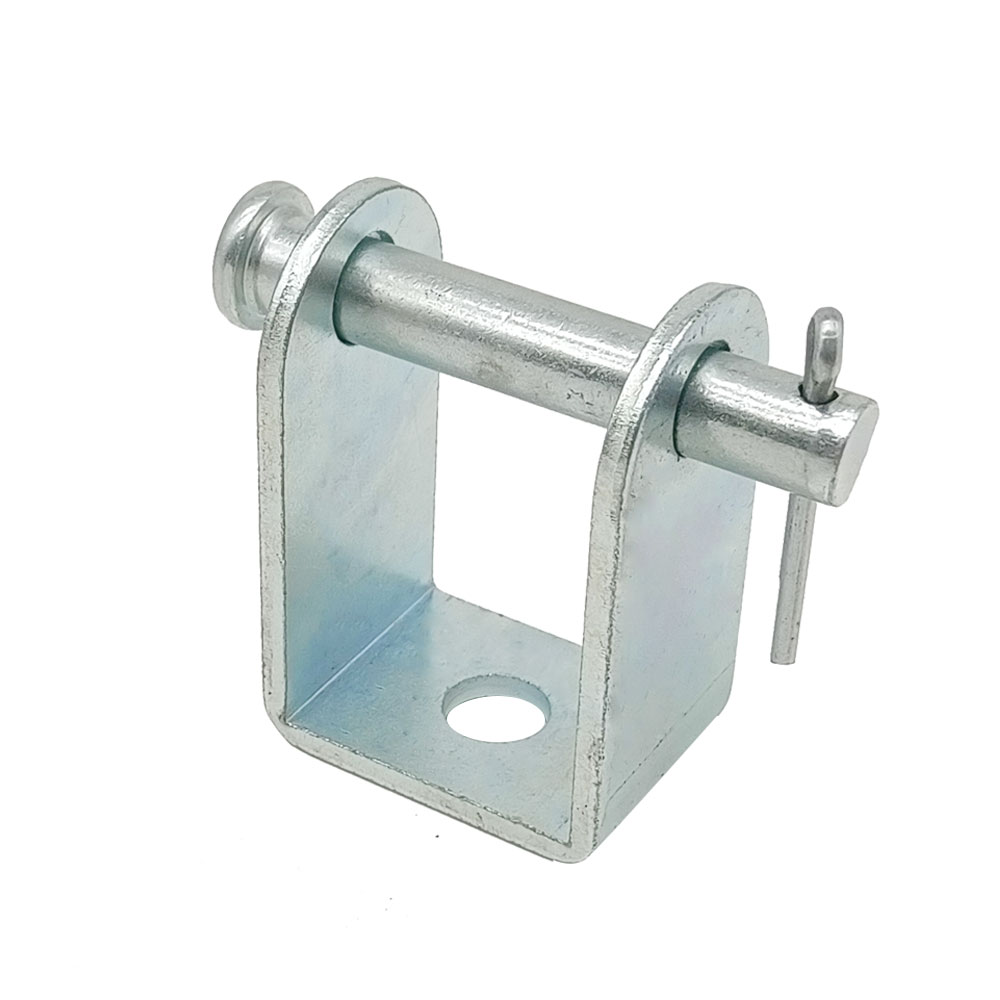

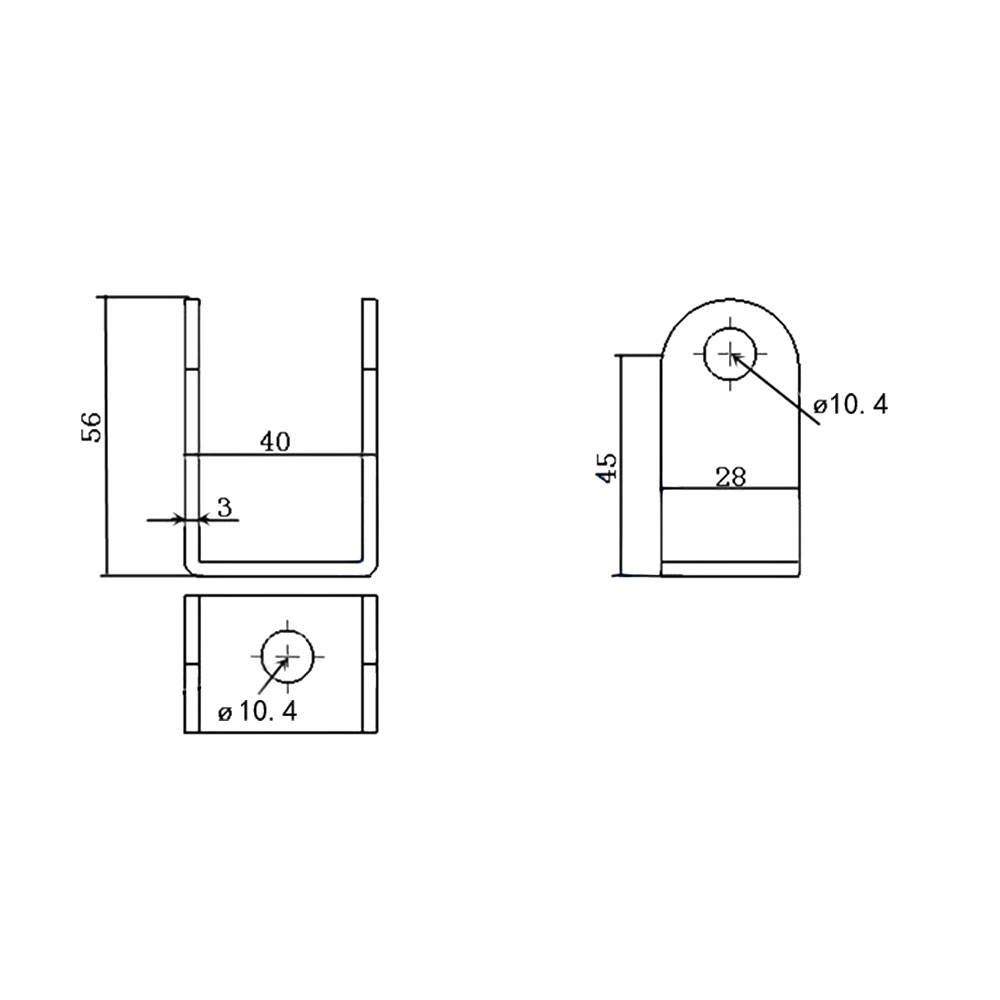

2 x Fixing Brackets B
1 x User manual
The information for electric linear actuator:
Feature:
High-quality products and high-quality services
High strength wear-resistant gear
Aluminum alloy telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 6000N / 600 Kgs / 1300 lbs
Multiple speed options, from 5 mm/second to 100 mm/second
Multiple stroke options, from 10 mm to 2000 mm
We can customize any stroke length from 10mm to 2000mm, such as 770mm,
1250mm, 1850mm and so on.
Advanced waterproof and dustproof technology
Low power consumption and low noise
Built-in two limit switches, linear actuator will automatically stop when
stroke rod reaches the limit position.
Built-in Hall sensor is optional, so you can use the synchronous controller
to operate 2 or 4 linear actuators fully synchronously.
Automatically lock after stopping, and no power supply is required.
Maintenance-free
Specifications:
Optional working voltage: DC 12V or DC 24V. Unless you only have 12V power
supply available, we recommend you choose the linear actuator with 24V
working voltage.

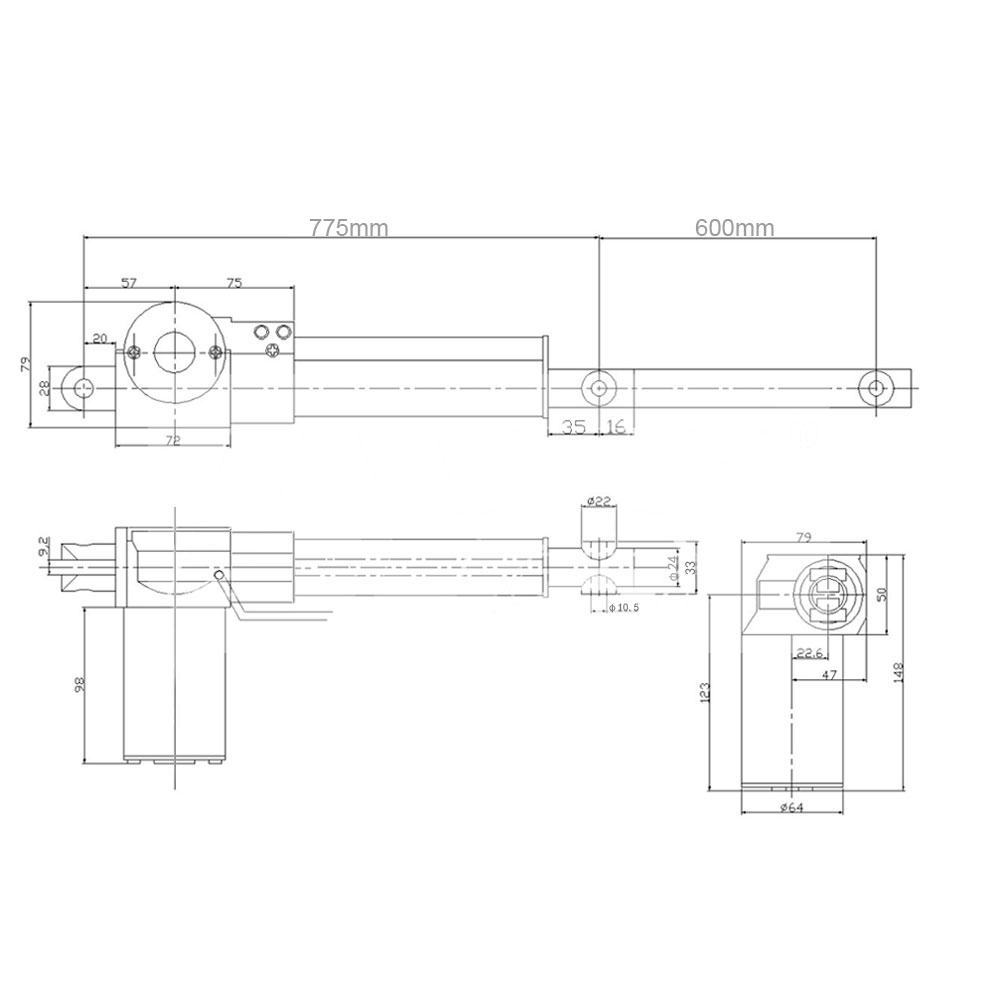

Stroke range: 24 inches or 600 mm
Optional speed: 5±1mm/s, 9±2mm/s, 18±4mm/s, 25±5mm/s, 32±6mm/s, 50±10mm/s,
100±15mm/s
The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases.
Max Load capacity: 6000N / 600 Kgs / 1300 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the
vertical direction, and the pulling force is less than pushing force.
No-load current: 1~2A at 12V or 0.5~1A at 24V
Full load current: 6~12A at 12V or 3~6A at 24V
Please use a 12V/10A or 24V/5A power supply to power a linear actuator, or
use a 12V/20A or 24V/10A power supply to power two linear actuators, or use
a 12V/50A or 24V/25A power supply to power four linear actuators.
Shaft diameter: 24mm
Mounting holes diameter: 10mm
Housing Material: Aluminum Alloy
Stroke Rod Material: Aluminum Alloy
Gear Material: Polymer Plastic
Motor Type: Brushed DC Motor
Duty Cycle: 10%, max 3mins continuous use
Plug Standard: Ordinary Two-core Wire (Standard Four-pin Plug is optional),
or Six-pin Plug (with Hall effect sensor)
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating Noise: about 42dB~46dB (Linear actuators with different parameters
will have different noise levels.)
IP rating: IP54, not suitable for outdoor use.
Different speeds and corresponding maximum thrust:
No-load Speed
Maximum Thrust
5mm/s
6000N / 600 kg / 1300 lbs
9mm/s
3000N / 300 kg / 660 lbs
18mm/s
2000N / 200 kg / 440 lbs
25mm/s
1000N / 100 kg / 220 lbs
32mm/s
800N / 80 kg / 180 lbs
50mm/s
600N / 60 kg / 130 lbs
100mm/s
300N / 30 kg / 60 lbs
Note:
1. The above data is the maximum load capacity that can be obtained when the
linear actuator runs in the vertical direction. If the weight of your equipment
(such as a cellar door) is 100kg, and you want to use a linear actuator to open
this door, you need to calculate the actual force acting on the linear actuator
according to your installation method. This force is usually 2-5 times the
weight of the cellar door. If you don't know how to calculate it, please contact
us for help.
2. The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases. Full load speed is approximately
60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the
right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum
load, we recommend letting it work at about half of the maximum load to get a
longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not
normally allow them to operate at their maximum stroke under heavy loads. If the
actual stroke you want is 600MM, we recommend that you choose a linear actuator
with a stroke of 700-800MM.
6. The maximum pull force of the linear actuator is slightly less than its
maximum thrust force.
Wireless remote control information:
Application:
This receiver is a wireless controller for DC motor or linear actuator, it
and the transmitter form a wireless transmitter receiver system. If you
connect a DC motor to this receiver, you can operate the motor to rotate in
positive or reversal direction by using the remote control. If you connect a
DC linear actuator to this receiver, you can operate the linear actuator to
extend or retract by using the remote control. You also can connect two
limit switches to the receiver and use them to stop the motor or the linear
actuator.
Features:
Wireless control, easy to install.
Suitable for DC motor or linear actuator.
Two operating voltage versions: DC 12V or 24V optional.
You can operate the motor to rotate in positive or reversal direction by
using the buttons in the receiver or by the transmitter.
You can operate the linear actuator to extend or retract by using the
buttons in the receiver or by the transmitter.
With limit control terminals: You can connect sensors, limit switches or
external devices to stop the motor or the linear actuator.
With wired control terminals: You can connect manual switches to control the
motor or linear actuator.
You can use the transmitter / remote to control the receiver from any place
within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors,
doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built
in.
The receiver only works with the selected transmitter which is matched to
the receiver.
One or more transmitters / remotes can control one or several receivers
simultaneously.
Two or more receivers may be used in the same area.

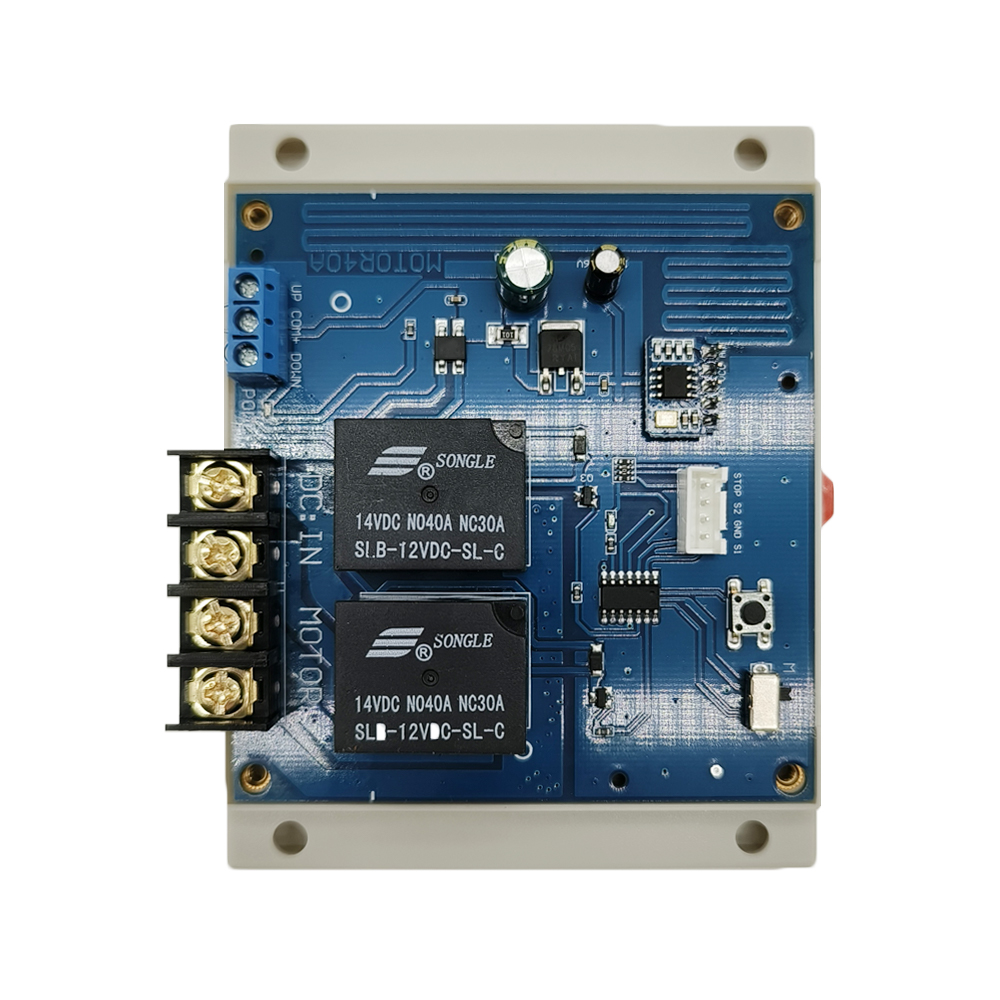

Receiver Parameters:

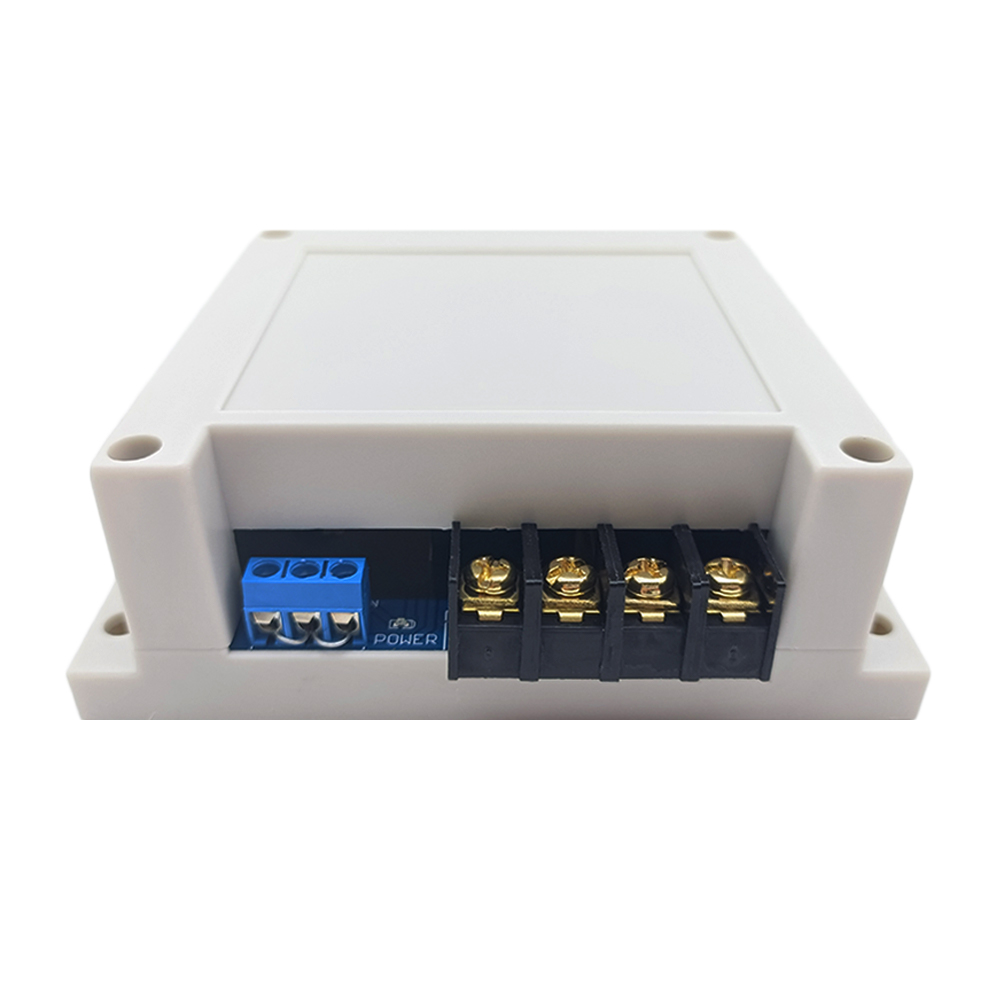

Model: S1PF-DC12 / S1PF-DC24
Operating Voltage: 12±1VDC (model S1PF-DC12), or 24±2VDC (model S1PF-DC24),
the operating voltage must be specified when ordering.
Output Voltage: 12VDC (model S1PF-DC12) or 24VDC (model S1PF-DC24)
Working Frequency: 433.92 MHz
Quiescent Current: ≤10mA
Rated Current: 40A, so linear actuator or motor's maximum starting current
cannot exceed 40A.
Wire range for the terminals: 22-12 AWG
2 Selectable Modes: Interlocking, Momentary
Operating Temperature: -20°C ~ +70°C
Case size: 115mm x 95mm x 40mm (4.5 x 3.7 x 1.6 inches)
Transmitter Parameters:

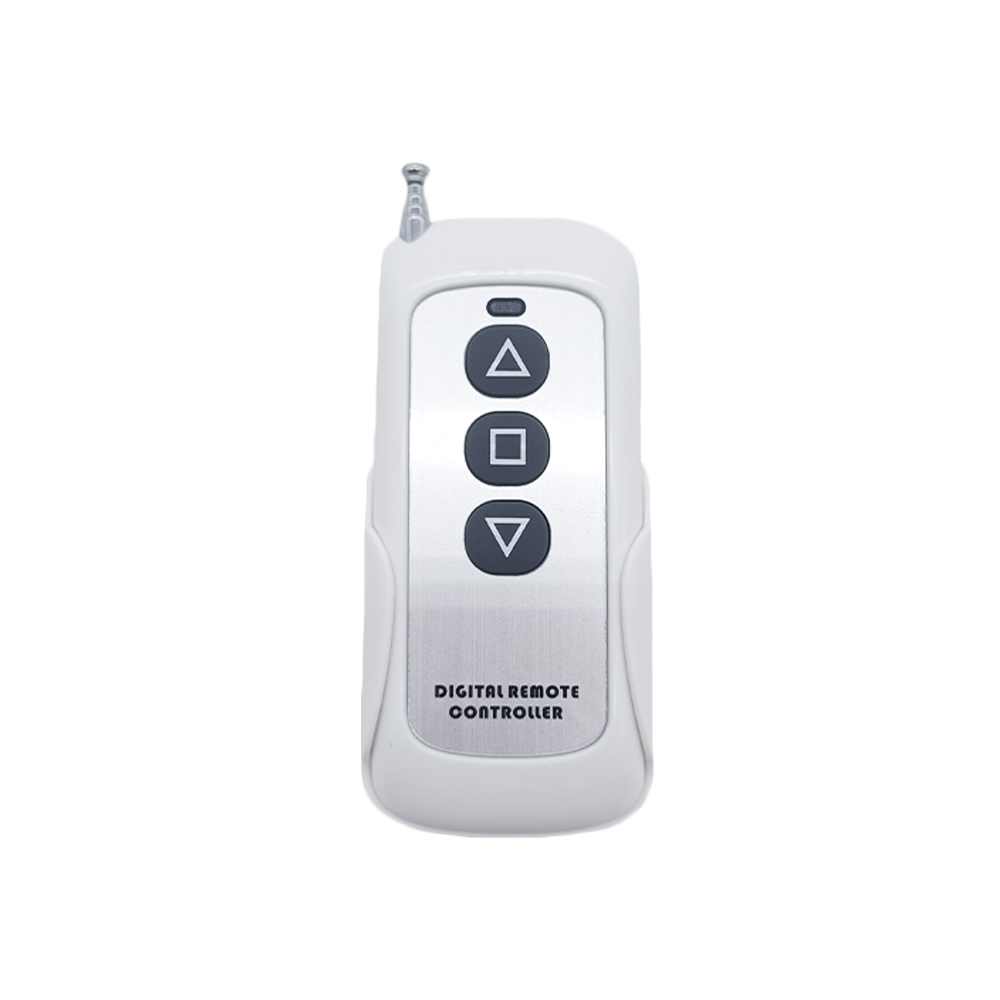

Model No: CP-3
Channel/Button: 3
Button Symbol:▲▇▼
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Standby current: 4uA
Operating Current: 14mA
Operating Frequency: 433Mhz
Transmitting Distance: 500m / 1500ft (theoretically)
If you stretches the telescopic antenna, it can have a further working range,
which is twice as much as it used to be.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 92mm x 40mm x 15mm
Matching Transmitters:
This receiver can work with different transmitters, such as model
CWC-3L
(waterproof, 50 Meter / 150 feet),
C-2-2
or
C-3-2
(100 Meter / 300 feet),
CV-2-2
(500 Meter / 1500 feet),
CG-3
(500 Meter / 1500 feet) or
CB-3-2
(1000 Meter / 3000 feet).
1) When you set the receiver in Momentary mode, it should work with two
button transmitter, such as model C-2-2 or CV-2-2.
2) When you set the receiver in Interlocking mode, it should work with three
or four buttons transmitter, such as model CWC-3L, C-3-2, CP-3, CG-3 or
CB-3-2.
Working Range:
This receiver and different transmitters form a complete set, which can
achieve different working distances. For example, when it and the
transmitter CP-3 form a complete set, the maximum working distance may reach
500 meters in an open area. When it and the transmitter CB-3-2 form a
complete set, the maximum working distance may reach 1000 meters in an open
area.
The maximum working distance is based on theoretical data without obstacles
and any RF interference. In practice, it will be hindered by trees, walls,
or other construction, and will be interfered with by other wireless
signals. Therefore, the actual working distance may not reach this maximum
distance.
The receiver equipped with an external antenna has a larger working range
than the receiver equipped with an internal antenna.
Usage:
The receiver can be used to control DC 12V / 24V motor or linear actuator.
If the power supply of those equipments is DC 12V, you should choose the
receiver with same DC 12V version; and if the power supply of those
equipments is DC 24V, you should choose the receiver with same DC 24V
version.
Wiring:

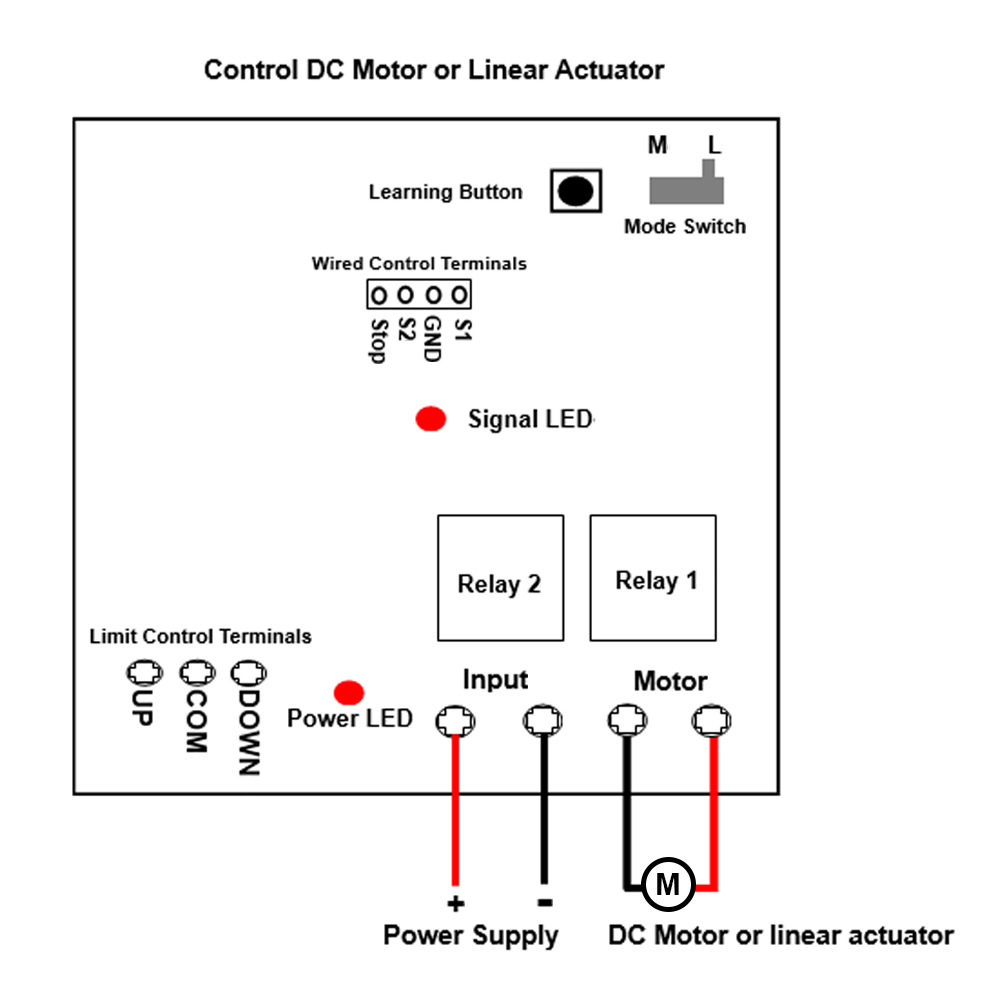

If you want to control a DC 12V / 24V motor or linear actuator, do as
following:
1) Connect the positive pole of DC power supply to terminal <+> of Input,
and connect the negative pole of DC power supply to terminal <-> of Input.
2) Connect two wires of motor or linear actuator to terminals , and
you can exchange these two wires to change the rotating direction of motor
or the moving direction of linear actuator.
Setting different working modes:
The receiver will be set in Interlocking mode before leaving the factory, if you
require momentary mode, please follow the following steps.
Note: Need to restart the receiver after changing the working mode.
1) Setting Interlocking mode: Turn the mode switch in the receiver to
location L.
The operation by the transmitter, such as CP-3:
Press the button ▲ on the transmitter: Motor rotates in positive direction,
or linear actuator extends outward.
Press the button ▼ on the transmitter: Motor rotates in reversal direction,
or linear actuator inward retracts.
Press the button ■ on the transmitter: Motor or linear actuator stops.
2) Setting Momentary mode: Turn the mode switch in the receiver to location
M.
The operation by the transmitter, such as CP-3:
Press and hold the button ▲ on the transmitter: Motor rotates in positive
direction, or linear actuator extends outward.
Release the button ▲: Motor or linear actuator stops.
Press and hold the button ▼ on the transmitter: Motor rotates in reversal
direction, or linear actuator inward retracts.
Release the button ▼: Motor or linear actuator stops.
Limit control terminals:
The receiver has limit control terminals, and you can connect external
devices (with normally closed contact), such as sensors, limit switches to
limit terminals, then use them to stop the motor or the linear actuator.

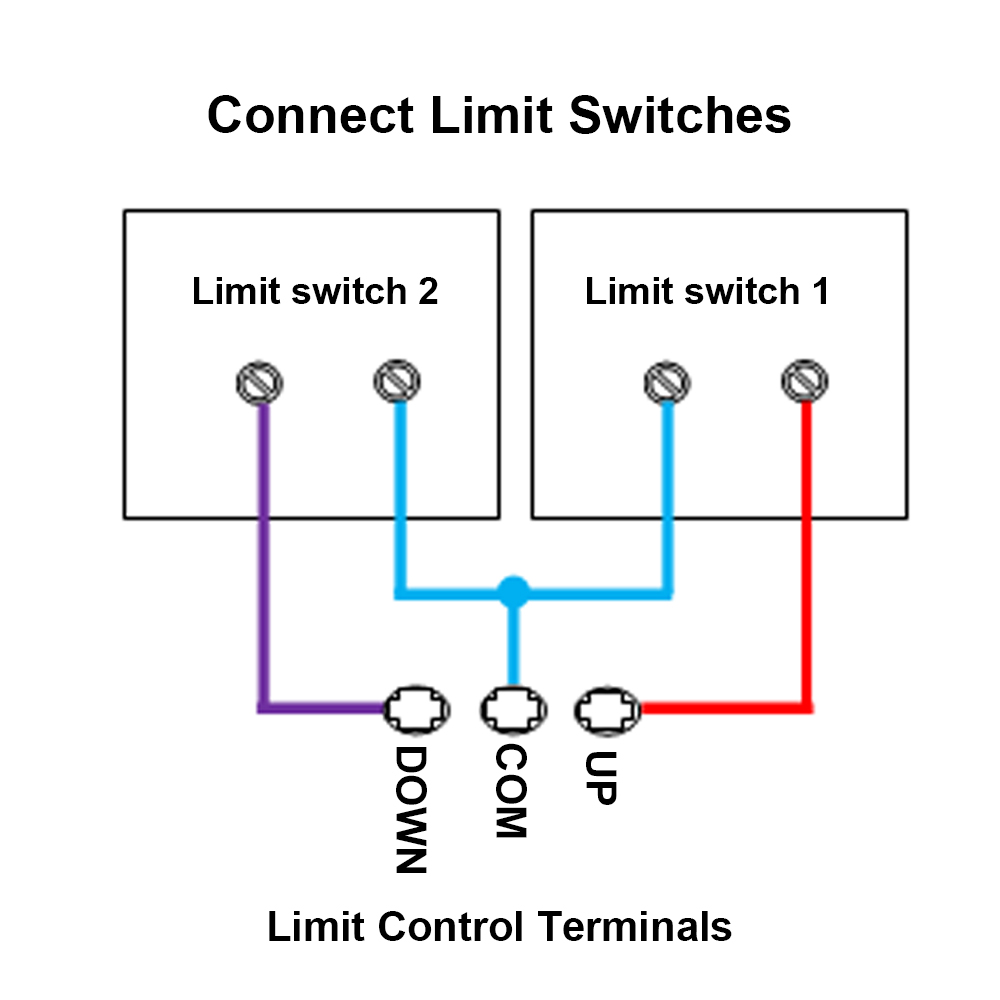

For example, you can connect a normally closed limit switch to terminals
and , and connect another normally closed limit switch to
terminals and .
When motor rotates in positive direction, or linear actuator extends
outward, if disconnect two terminals and , the motor or linear
actuator will stop automatically.
When motor rotates in reversal direction, or linear actuator inward
retracts, if disconnect two terminals and , the motor or linear
actuator will stop automatically.
Wired control terminals:
The receiver has wired control terminals, and you can connect external
devices (with normally open contact), such as manual switches to wired
control terminals, then use them to stop the motor or the linear actuator.

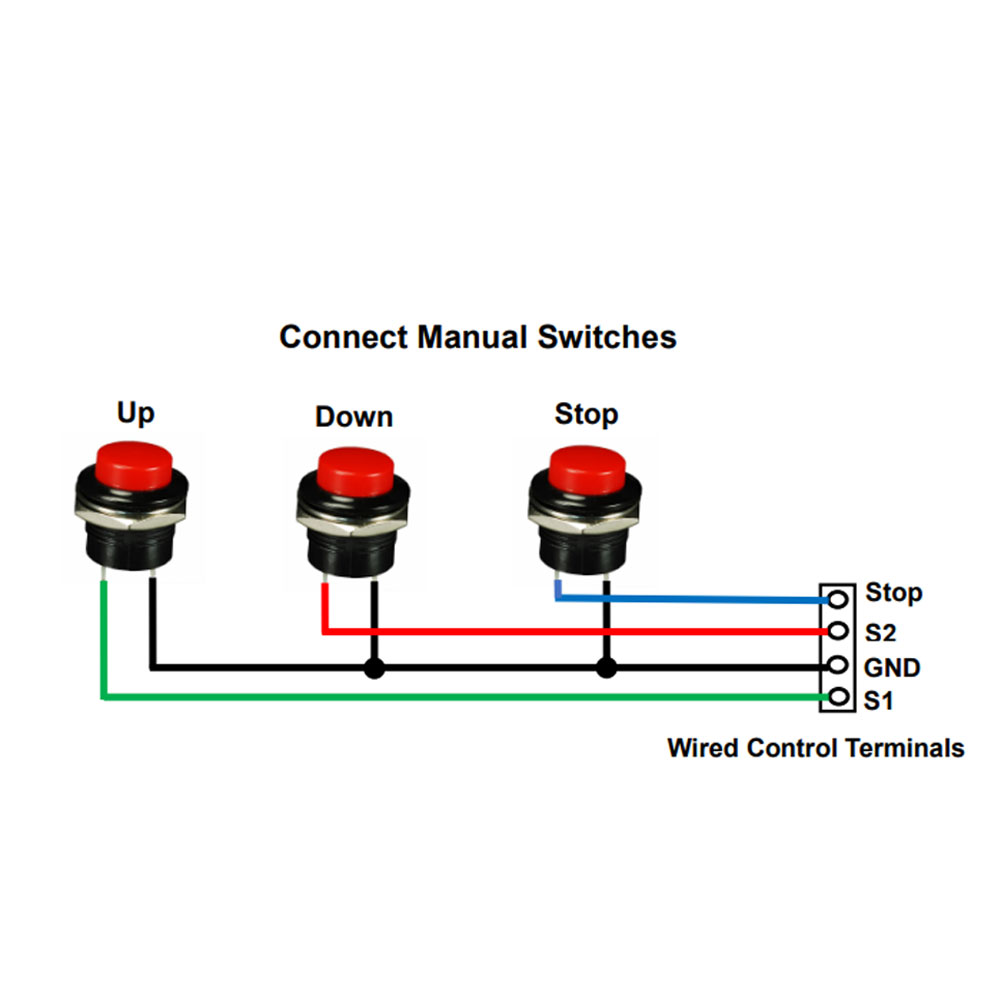

For example, you can connect three button manual switches to wired control
terminals , , and according to following wiring
diagram.
1) In Interlocking mode:
When connect two terminals and , the motor rotates in positive
direction, or the linear actuator extends outward. And when connect two
terminals and , motor or linear actuator stops.
When connect two terminals and , the motor rotates reversal
direction, or the linear actuator inward retracts. And when connect two
terminals and , motor or linear actuator stops.
2) In Momentary mode:
When connect two terminals and , the motor rotates in positive
direction, or the linear actuator extends outward. And when disconnect two
terminals and , motor or linear actuator stops.
When connect two terminals and , the motor rotates reversal
direction, or the linear actuator inward retracts. And when disconnect two
terminals and , motor or linear actuator stops.
Production time:
The linear actuators are the customized products, and these products are not in stock, we need to spend 3~7 working days to produce them according to the specified parameters in your order.
Return or Exchange:
The Linear Actuators are the customized products, we need to produce them
according to the specified parameters in your order, so that we do not
accept returns or cancel orders. If customers order unsuitable linear
actuators themselves, we also do not accept exchanges, please understand.
We can provide 3D CAD model files in STEP format for linear actuators.
Please contact us by e-mail if you need them.
