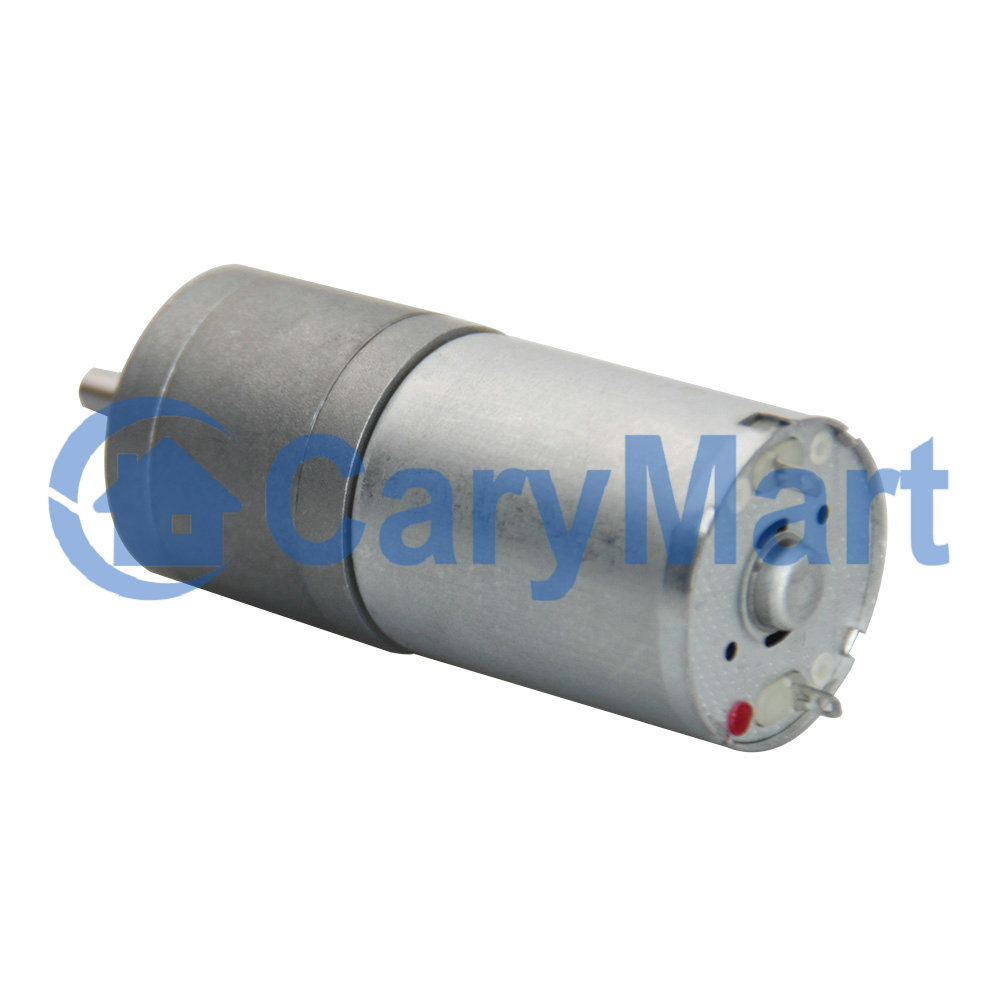

The DC
motor is a machine that transforms electric energy into mechanical energy in
form of rotation. It can rotate forward or reverse, and you can exchange DC
motor's two wires to change the rotating direction of motor.
Application:
Mainly used for remote-controlled car, toy car, miniature DC pump, electric motorbike,
ATV, Kart, robot, rolling blind and electric projector etc.
Feature:
Gearhead motor
High quality
With metal cover
Built-in cooling fan
Heavy duty design
Runs in either direction by reversing power supply polarity
Benefiting from high torque and low noise, this motor is solidly constructed and
ready to install in numerous applications.
Specifications:
Nominal voltage: 12V DC
Operating voltage range: 6 - 18V DC

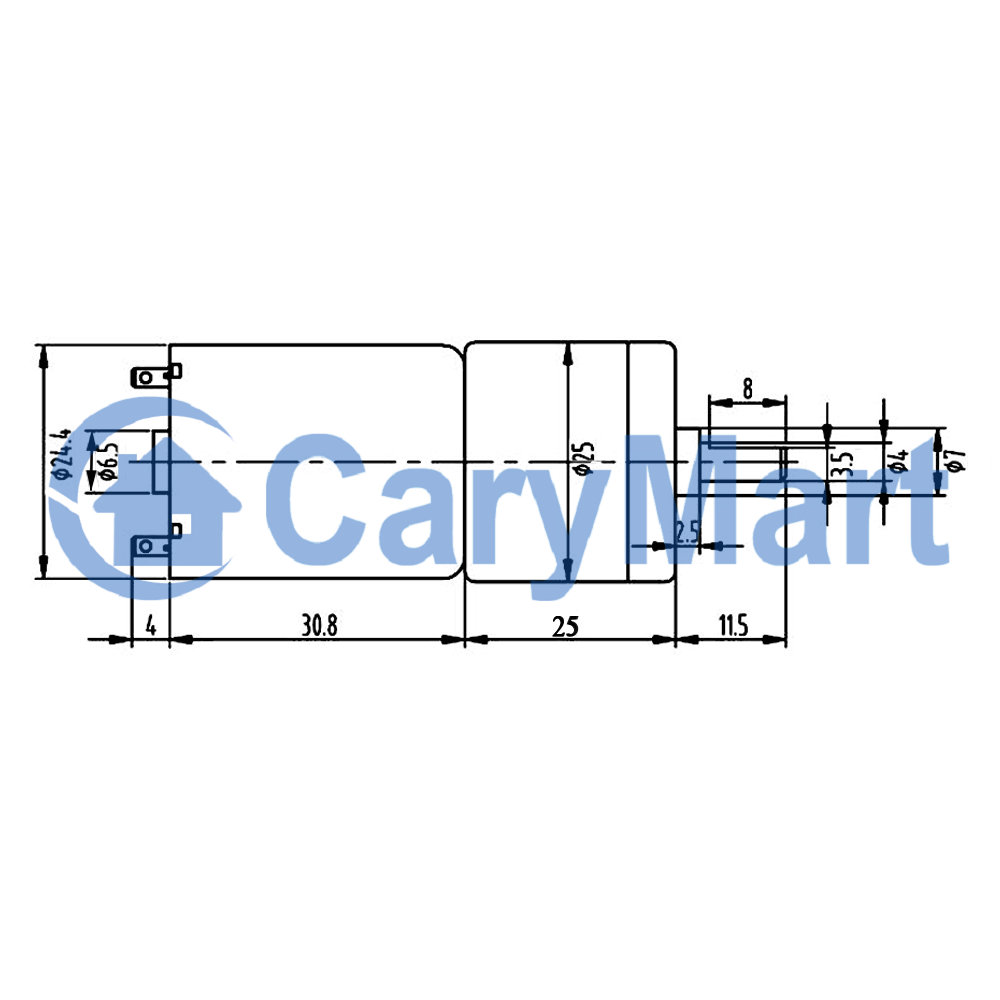

Diameter: 25mm
Length (excluding shaft): 57.8mm
Total length: 73.3mm

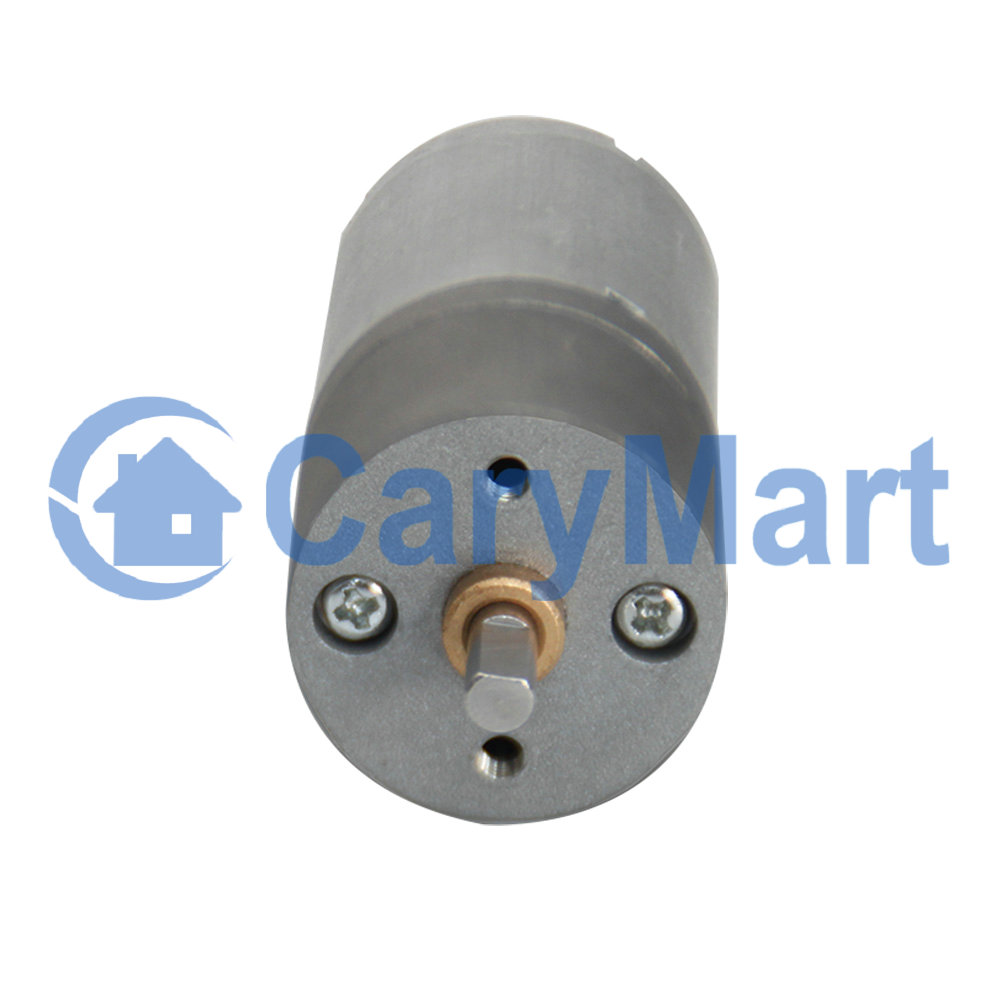

Shaft length: 11.5mm
Shaft diameter: 4mm

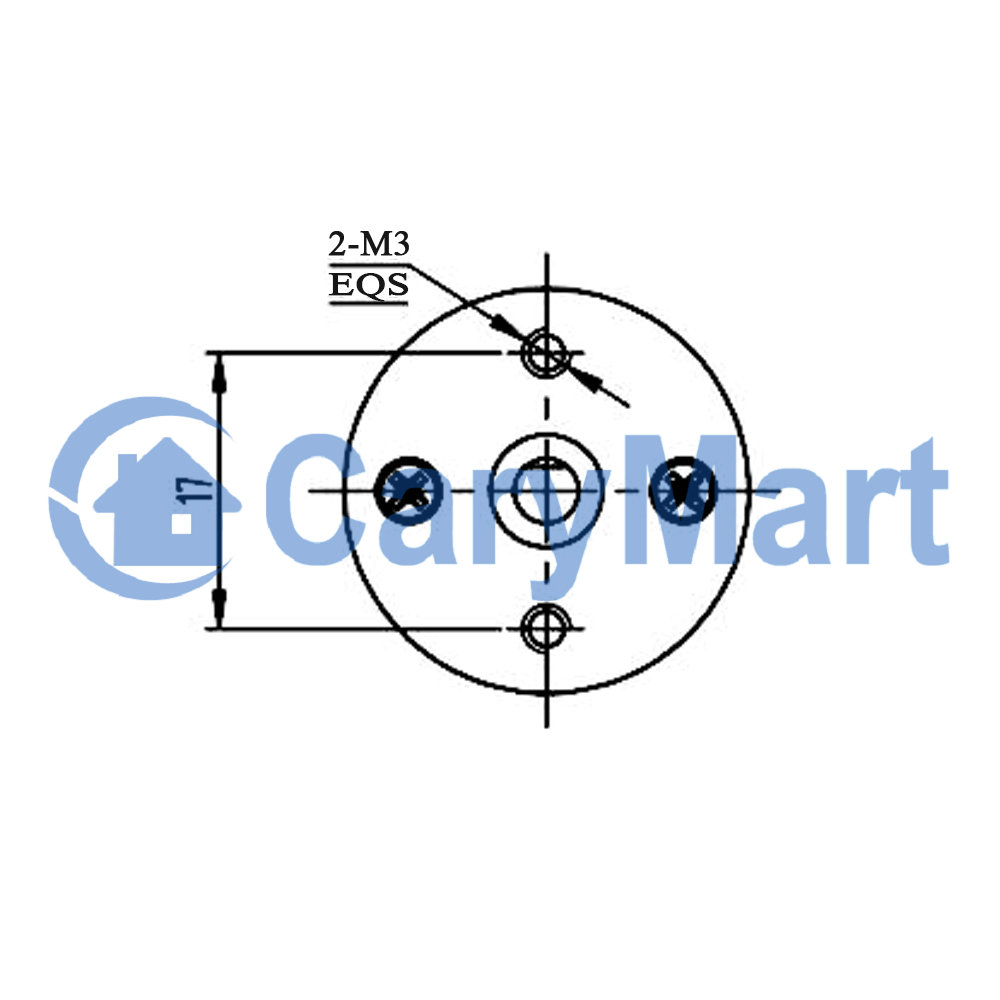

Front panel 3.0mm Screw for fixing this motor
Optional no-load speed at 12V: 17RPM, 37RPM, 50RPM, 108RPM, 250RPM, 915RPM,
1931RPM
No-load speed at 12V
17 RPM
37 RPM
50 RPM
108 RPM
250 RPM
945 RPM
1931 RPM
No-load current (MA)
50
50
50
50
50
50
50
Load speed (RPM)
13
29
40
75
175
640
1351
Load current (MA)
240
240
240
240
240
250
250
Operating torque (kg.cm)
14
6.3
4.78
2.1
0.95
0.24
0.11
Stall torque (kg.cm)
Banned
14
18
8.4
38
1
0.44
Stall current (MA)
1200
1200
1200
1200
1200
1200
1200
Gear ratio
1:500
1:226
1:171
1:78
1:34
1:9.28
1:4.4
