The DC
motor is a machine that transforms electric energy into mechanical energy in
form of rotation. It can rotate forward or reverse, and you can exchange DC
motor's two wires to change the rotating direction of motor.
Application:
Mainly used for remote-controlled car, toy car, miniature DC pump, electric motorbike,
ATV, Kart, robot, rolling blind and electric projector etc.
Feature:
Gearhead motor
High quality
With metal cover
Built-in cooling fan
Heavy duty design
Runs in either direction by reversing power supply polarity
Benefiting from high torque and low noise, this motor is solidly constructed and
ready to install in numerous applications.
Specifications:
Nominal voltage: 24V DC
Operating voltage range: 12 - 36V DC
Diameter: 25mm
Length (excluding shaft): 57.8mm
Total length: 73.3mm
Shaft length: 11.5mm
Shaft diameter: 4mm

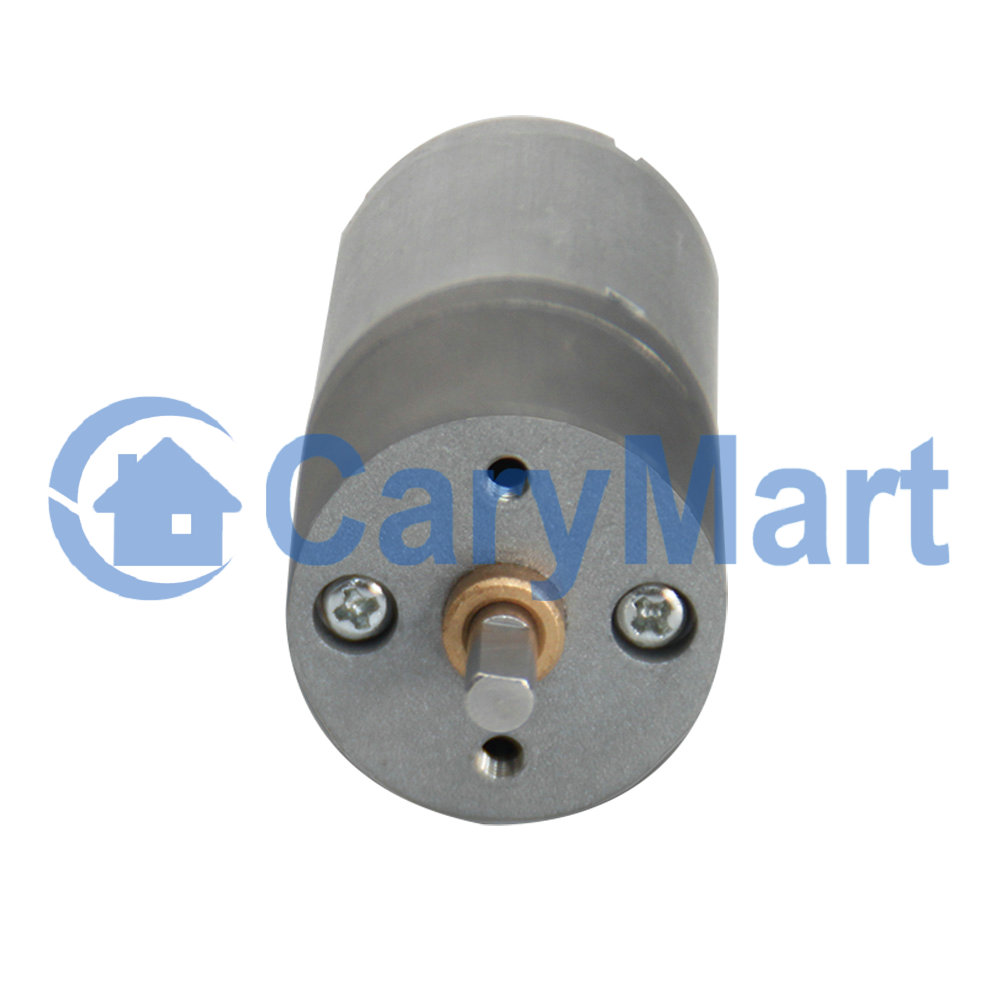

Front panel 3.0mm Screw for fixing this motor
Optional no-load speed at 24V: 10RPM, 22RPM, 48RPM, 111RPM, 178RPM, 409RPM,
863RPM
No-load speed at 24V
10 RPM
22 RPM
48 RPM
111 RPM
178 RPM
409 RPM
863 RPM
No-load current (MA)
10
10
10
10
10
10
10
Load speed (RPM)
8
17
38
88
142
327
690
Load current (MA)
260
260
260
260
260
260
260
Operating torque (kg.cm)
7
3.2
1.4
0.64
0.4
0.17
0.083
Stall torque (kg.cm)
35
16
7.4
3.2
2
0.88
0.4
Stall current (MA)
800
800
800
800
800
800
800
Gear ratio
1:378
1:171
1:78
1:34
1:21.3
1:9.28
1:4.4
