2CH DC Power Supply Wireless Interlocking Mode Remote Control Kit

 Manuel

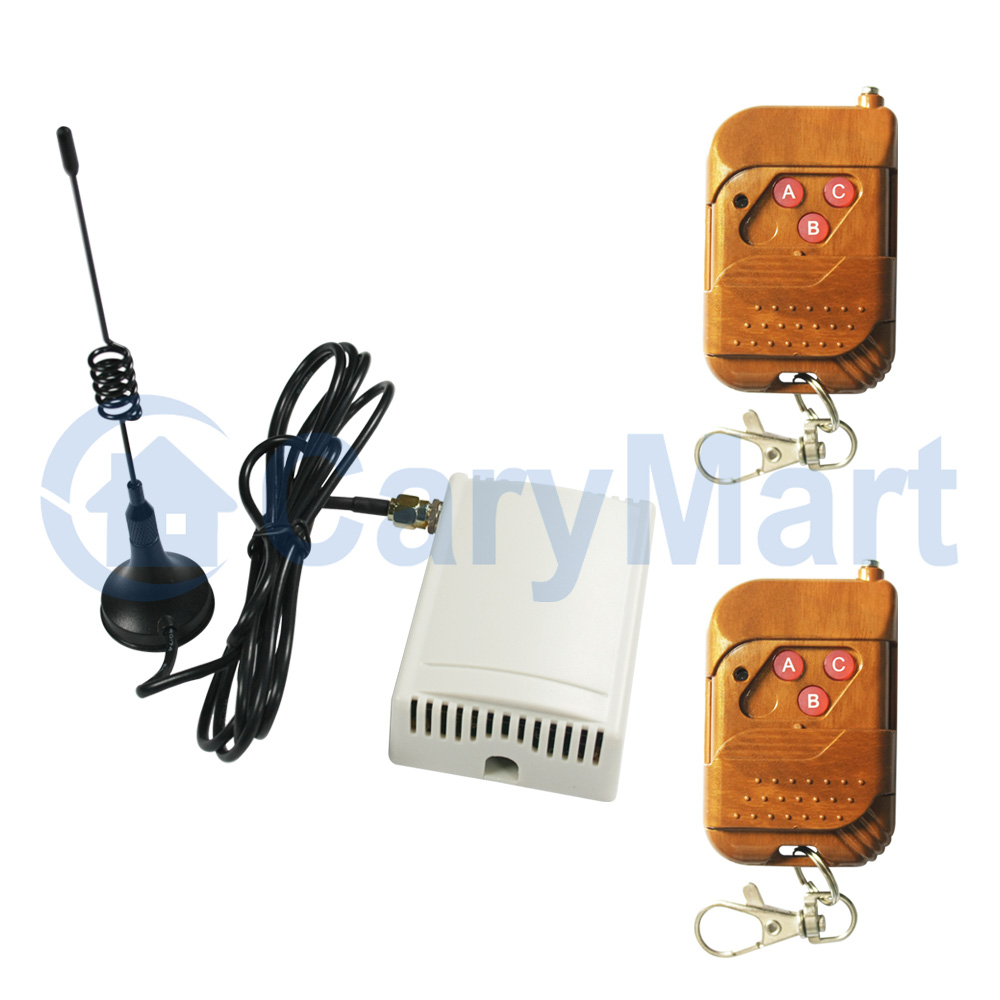

Package Include:
1 x Receiver: S2L-DC-ANT3
2 x Transmitter: C-3
1 x User manual

Feature:
Application: It can be used in industry automation, agriculture automation and home automation, such as factory, house, farm, pasture, vehicle, ship, offshore operation, aerial vehicle, field call, etc. It can remote control equipments on land, water and air, such as remote control lights, sirens, locks, motors, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, business signs and various devices.
Wireless control, easy to install.
Power Supply: Four working voltage versions, DC 6V, 9V, 12V, 24V.
Relay Output: This receiver is dry relay output, it can be used to operate both DC and AC equipments. The terminals are NO / NC (normally open / normally closed), which serves as a switch. That means you should also connect a separate power supply to equipments.
Each channel can work at maximum current 10A.
With external telescopic antenna, the receiver have a farther working range.
You can control the equipments by using the receiver with transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With reverse power protection and over current protection.
Reliable control: The code has thousands of different combinations, and the receiver only works with the transmitter which use the same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

Receiver Parameters:
Model No.: S2L-DC06 / S2L-DC09 / S2L-DC12 / S2L-DC24
Power Supply (Operating Voltage): DC6V (S2L-DC06), DC12V±1V (S2L-DC12), DC9V±1V (S2L-DC09), DC24V±2V (S2L-DC24)
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
Wire range for the terminals: 22-14 AWG
Working Frequency: 433.92MHz
Channel: 2 CH
Control Modes: Interlocking (Press -> On, another relay Off; Press another button -> Off)
Static Current: ≤6mA
Maximum Working Current: 10A / each channel
Operating Temperature: -20 ° C to +70 ° C
PCB size: 67mm x 50mm x 18mm

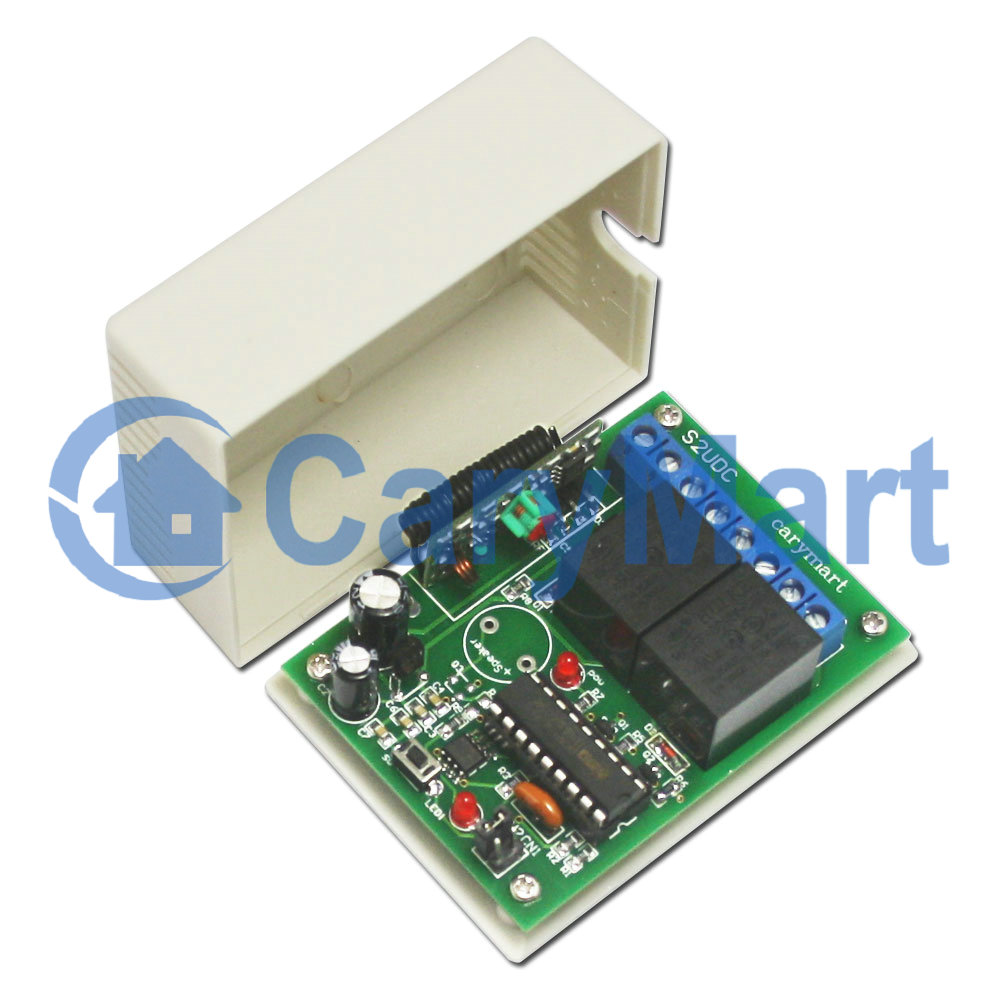

Case size: 75mm x 54mm x 27mm

Transmitter Parameters:
Model No.: 0021002 (C-3)
With Sliding Cover: Slide up when it doesn’t work (to protect the button). Slide down the button will appear.
Channel/Button: 3
Button Symbol: A, B, C
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 6mA
Encoding Chip: PT2262/ PT2264/ SC2262
Transmitting Distance: 100m / 300ft (theoretically)
Modulation Mode: ASK
Unit Size: 58mm x 39mm x 16mm

Matching Transmitters:
The receiver can work with different transmitters, such as model C-3 (100M), CWB-3 (50M, waterproof), or CB-3 (1000M) etc.

Working Range:
With a transmitter (such as C-3) to form a complete set, the maximum working distance can reach 100M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can use a powerful transmitter, such as CB-3 transmitter.

Usage (with the transmitter C-3):
The receiver can be used to control both DC 0~28V and AC 110~240V equipments.

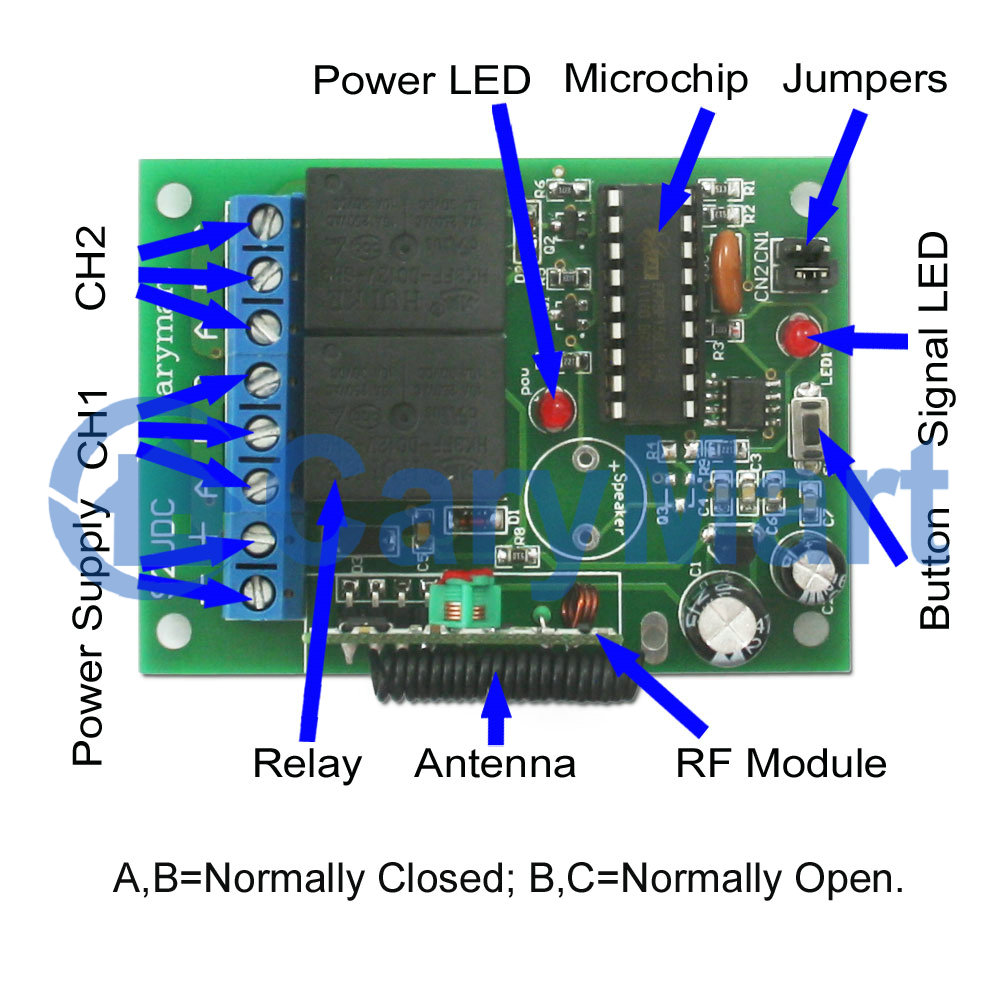

Notice: The receiver is relay output, not DC/AC power output. Initial state of relay output terminals: Terminals B and C are Normally Open; Terminals A and B are Normally Closed.

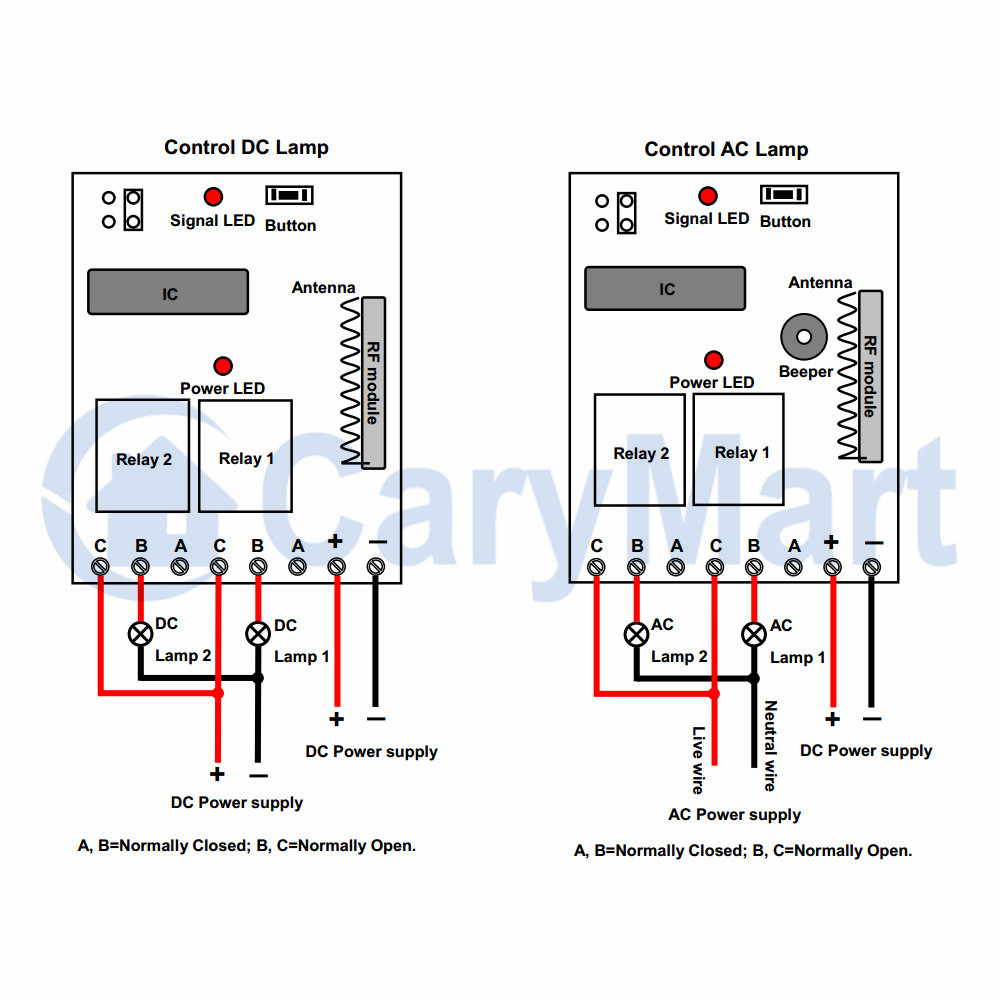

Wiring:
If you want to control a DC 12V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “L / +” of INPUT, and connect the negative pole of DC power supply to terminal “N / -” of INPUT.
2) Connect terminal B to the positive pole of DC power supply, connect terminal C to the positive pole of DC lamp, and connect the negative pole of DC lamp to the negative pole of DC power supply.

If you want to control an AC 120V or 220V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “L / +” of INPUT, and connect the negative pole of DC power supply to terminal “N / -” of INPUT.
2) Connect terminal B to the live wire of AC power supply, connect terminal C to one side of AC lamp, and connect another side of AC lamp to the neutral wire of AC power supply.

Operating:
Press button A: The relay 1 is activated (connect the terminals B and C, disconnect the terminals A and B), and the lamp 1 is turned on. The relay 2 is deactivated (disconnect the terminals B and C, connect the terminals A and B, and the lamp 2 is turned off.
Press button B: The relay 2 is activated (connect the terminals B and C, disconnect the terminals A and B), and the lamp 2 is turned on. The relay 1 is deactivated (disconnect the terminals B and C, connect the terminals A and B, and the lamp 1 is turned off.
Press button C: The relay 1 & 2 are deactivated (disconnect B and C, connect A and B), and two lamps are turned off.
