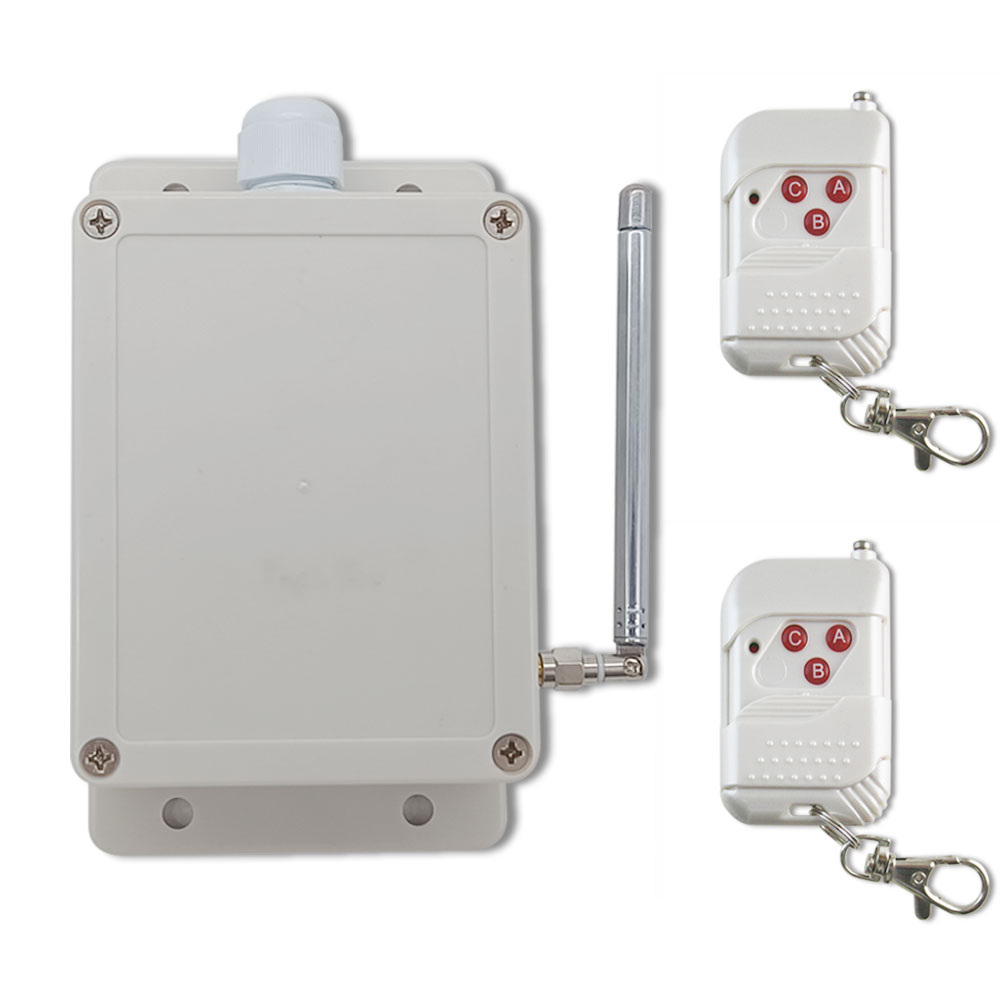

Feature: Application: It can be used in industry automation, agriculture automation and home automation, such as factory, house, farm, pasture, vehicle, ship, offshore operation, aerial vehicle, field call, etc. It can remotecontrolequipments on land, water and air, such as remote control lights, sirens, locks, motors, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, business signs and various devices. Wireless control, easy to install. You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors. With characteristics of reverse power protection and over current protection One/several transmitters can control one/several receivers simultaneously. You can use two or more units in the same place. Waterproof: The receiver has waterproof case and waterproof connectors, it can be installed outdoors. With manual terminals: The receiver allows you to connect external devices, sensors, or manual switches to control the receiver. High Power: Each relay output can work at maximum current 30A. The maximum power of the device is 360W/12V, 180W/6V, 250W/9V, 700W/24V, 3000W/110V, 6000W/220V. Power Supply: Support voltage of AC110V (100V~120V), widely used in US, Canada... and voltage of AC220V (200V~240V), used in UK, France... AC Power Output: It can control equipment in the power 110V / 120V / 220V / 240V AC and its wiring is easier. Receiver parameters: Model No.: S2PX-AC Power Supply (Operating Voltage): AC100~240V (110V/120V/220V/240V) Output: AC100~240V (110V/120V/220V/240V) Working Frequency: 433MHz Channel: 2 CH Control Modes: Self-locking, Momentary, Interlocking, Momentary + Self-locking Maximum Working Current: 30A / each channel Static Current: ≤6mA PCB size: 140mm x 73mm x 18mm Case size: 192mm x 100mm x 45mm
Transmitter parameters: Model No.: 0021001 (C-2) Button Symbol:1, 2 Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months) Operating Current: 6mA Operating Frequency: 433Mhz Encoding Chip: PT2262/ PT2264/ SC2262 Encoding Type: Fixed code by soldering, up to 6561 codes. Transmitting Distance: 100m / 300ft (theoretically) Operating Temperature: -20 ° C to +70 ° C Unit Size: 58mm x 39mm x 16mm
Usage (with the transmitter like C-2): The receiver can be used to control AC 110~240V equipments. You can use it to control two AC equipments. Wiring: If you want to control two AC 220V lamps, do as following: 1) Connect the live wire of the AC 220V power supply to terminal “L / +”, and the neutral wire of the AC power supply to terminal “N / -“. 2) Connect lamp 1 to terminal "A" and "B" of OUT 1, and connect lamp 2 to terminal "A" and "B" of OUT 2.. Setting different control modes: Control mode Self-locking (with transmitter C-2): Press -> On; Press again -> Off. Press button 1 of the transmitter: Terminal OUT1 outputs AC power, the lamp 1 is on. Press button 1 again: Terminal OUT1 stops outputting, the lamp 1 is off. Press button 2 of the transmitter: Terminal OUT2 outputs AC power, the lamp 2 is on. Press button 2 again: Terminal OUT2 stops outputting, the lamp 2 is off. Control mode Momentary (with transmitter C-2): Press and hold -> On; Release -> Off. Press and hold button 1 of the transmitter: Terminal OUT1 outputs AC power, the lamp 1 is on. Release button 1 of the transmitter: Terminal OUT1 stops outputting, the lamp 1 is off. Press and hold button 2 of the transmitter: Terminal OUT2 outputs AC power, the lamp 2 is on. Release button 2 of the transmitter: Terminal OUT2 stops outputting, the lamp 2 is off. Control mode Interlocking (with transmitter C-3): Press -> On, Press another button -> Off. Press button A of the transmitter: Terminals OUT1 outputs AC power, the lamp 1 is on; And terminals OUT2 no output, the lamp 2 is off. Press button B of the transmitter: Terminals OUT2 outputs AC power, the lamp 2 is on; And terminals OUT1 no output, the lamp 1 is off. Press button C of the transmitter: Terminals OUT1 and OUT2 stops outputting, the lamps 1 and 2 are off. Control mode Momentary (Channel 1) + Self-locking (Channel 2): Press and hold button 1 of the transmitter: Terminal OUT1 outputs AC power, the lamp 1 is on. Release button 1 of the transmitter: Terminal OUT1 stops outputting, the lamp 1 is off. Press button 2 of the transmitter: Terminal OUT2 outputs AC power, the lamp 2 is on. Press button 2 again: Terminal OUT2 stops outputting, the lamp 2 is off. Notice: The receiver can pair different transmitters, includes model C-2 / C-3 (100M), CWB-2 / CWB-3 (50M, waterproof), CP-2 / CP-4 (500M) and CB-2 / CB-3 (1000M) etc..If you set the receiver with Toggle mode or Momentary mode, you just need to use two buttons transmitter (like C-2) to control the receiver. Otherwise, if you set the receiver with Latched mode, you should use three buttons transmitter (like C-3) to control the receiver. Manual control terminals: The receiver has manual control terminals, you can connect external devices, sensors, or manual switches to control the receiver. 1) Signal input: You can connect external devices (with low level output signal) to manual terminals 1 (Signal 1 “+”), terminal 2 (Signal 2 “+”) and 3 (Signal “-“) , then the external device’s output signal can control the receiver. When the external device outputs low level signal to manual terminal 1 (Signal 1 “+”) and 3 (Signal “-“), terminals A and B of OUT1 outputs AC power. And when disconnect manual terminals 1 (Signal 1 “+”) and 3 (Signal “-“), terminals A and B of OUT1 stop outputting. When the external device outputs low level signal to manual terminal 2 (Signal 2 “+”) and 3 (Signal “-“), Terminals A and B of OUT2 outputs AC power. And when disconnect manual terminals 2 (Signal 2 “+”) and 3 (Signal “-“), terminals A and B of OUT2 stop outputting. 2) The manual switches: You can connect one manual switch to manual terminals 1, 2, 3, then you can use this manual switch to control the receiver. When connect terminals 1 and 3, terminals A and B of OUT1 outputs AC power. And when disconnect terminals 1 and 3, terminals A and B of OUT1 stop outputting. When connect terminals 2 and 3, terminals A and B of OUT2 outputs AC power. And when disconnect terminals 2 and 3, terminals A and B of OUT2 stop outputting.
