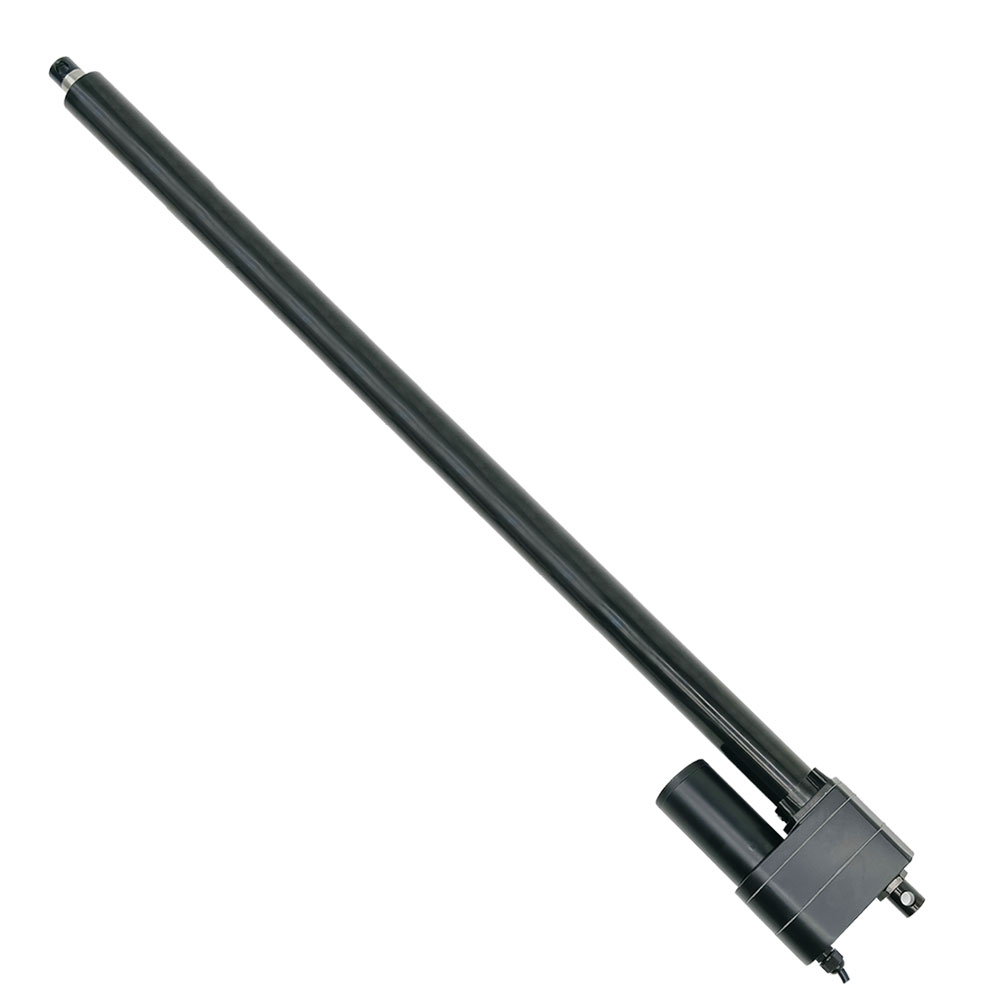

Application:
Mainly used for doors, windows, cellars, trapdoors, hatchways, solar
tracking system, medical devices, agricultural machinery, vehicles, ships,
elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage
sofas, electric beds, medical chairs, and other electrical equipment. It can
open, close, push, pull, lift, and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.
Feature:
High-quality products and high-quality services

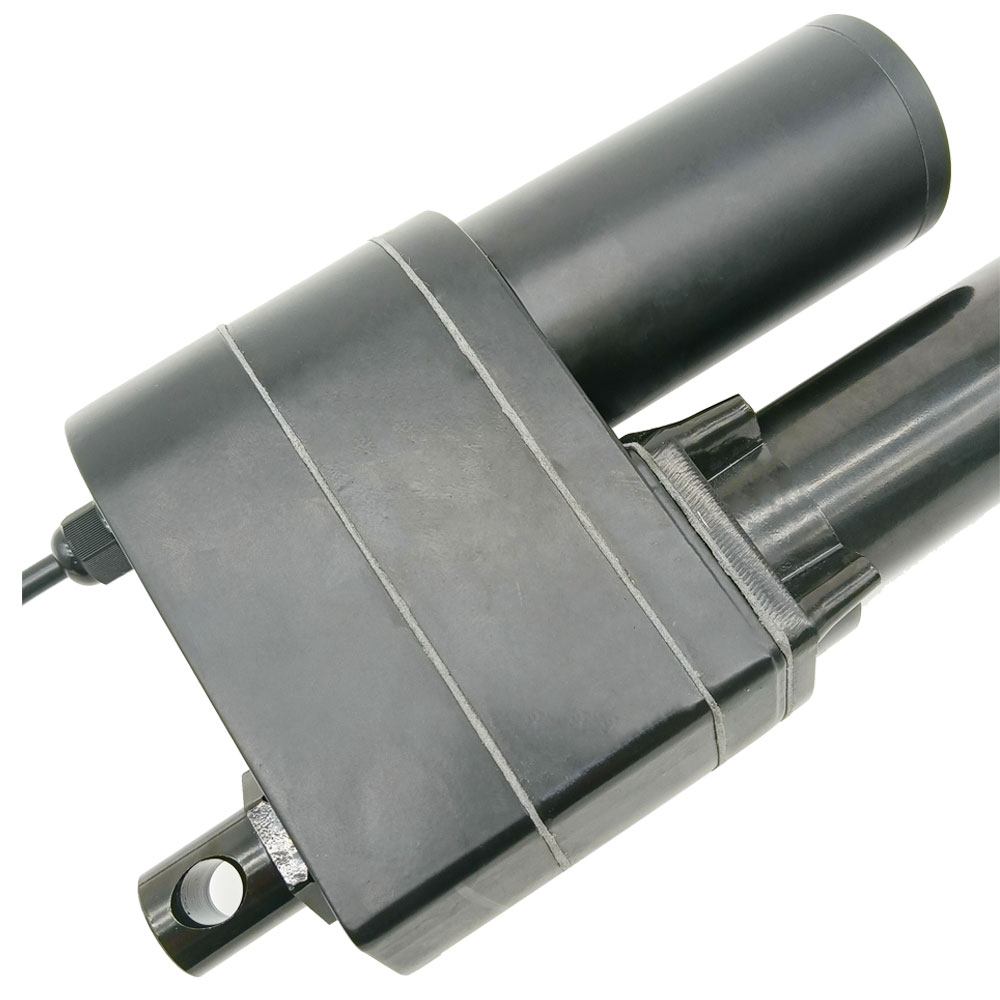

Metal housing, able to work in very harsh environments
Metal gearbox and high strength wear-resistant metal gears

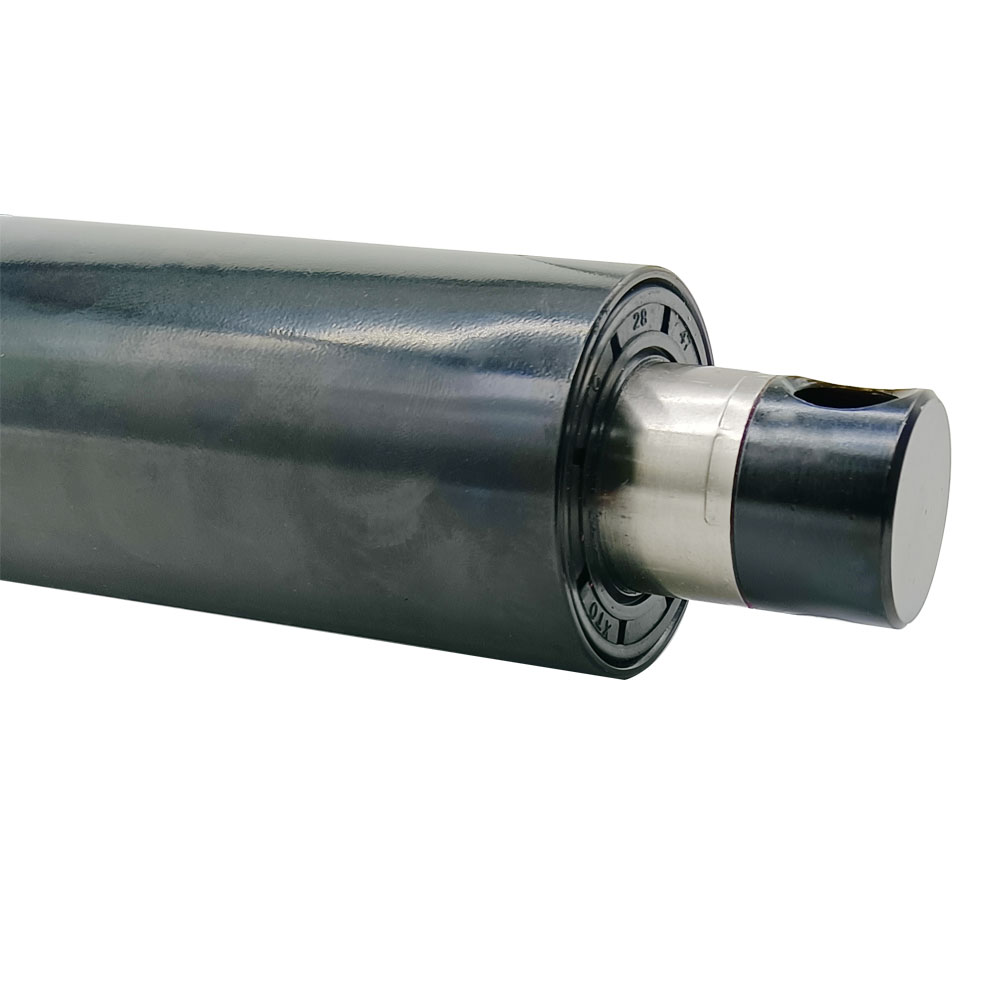

Stainless steel telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 5000N / 500 Kgs / 1100 lbs
Multiple speed options, from 5 mm/second to 50 mm/second
Multiple stroke options, from 10 mm to 2000 mm
We can customize any stroke length from 10mm to 2000mm, such as 770mm,
1250mm, 1850mm and so on.
Advanced waterproof and dustproof technology
Low power consumption and low noise

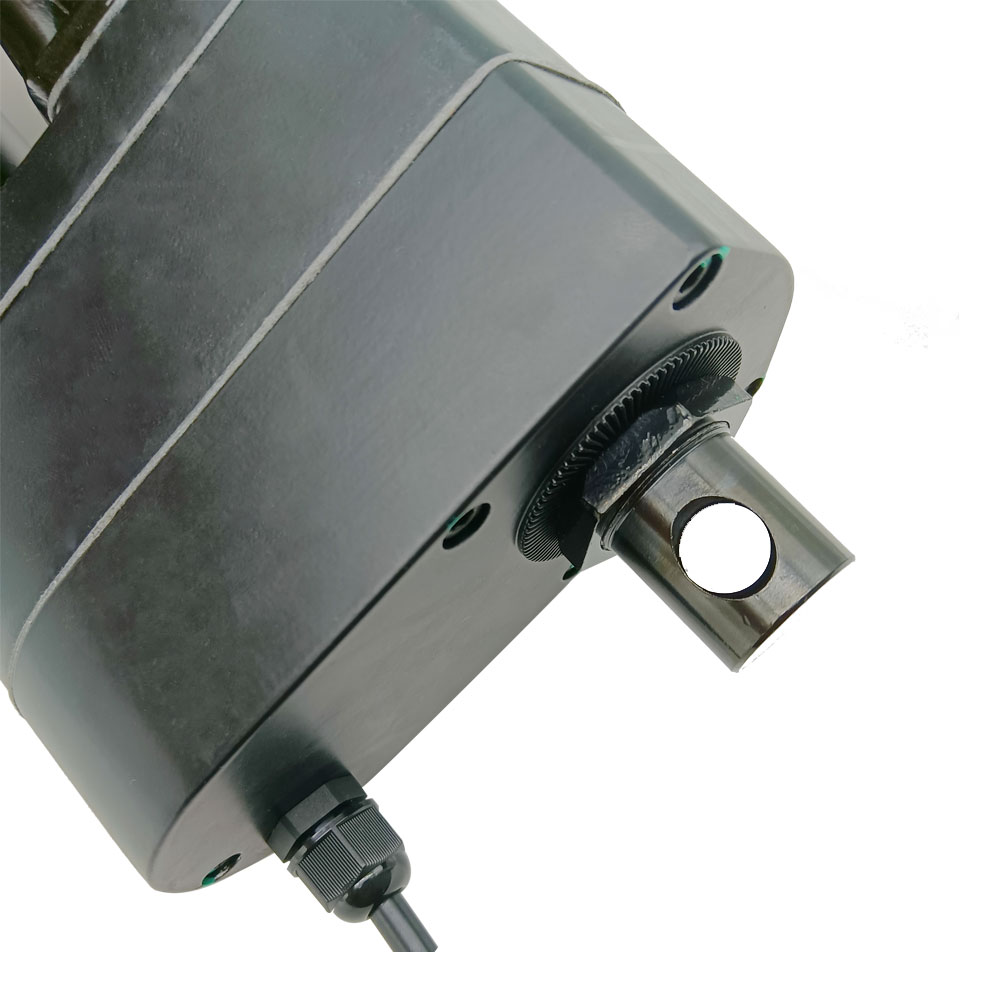

Built-in clutch to protect gears and motors
Built-in motor overload and overheat protection
Built-in two limit switches, linear actuator will automatically stop when
stroke rod reaches the limit position.
Built-in limit switch signal output is optional.
Built-in potentiometer is optional.
Built-in Hall sensor is optional, so you can use the synchronous controller
to operate 2, 3 or 4 linear actuators fully synchronously.
Automatically lock after stopping, and no power supply is required.
Maintenance-free
Specifications:
Optional working voltage: DC 12V, DC 24V, DC 36V or DC 48V, and 24V is the
most commonly used working voltage.
Stroke range: 32 inches or 800 mm
Optional speed: 12±2mm/s, 16±3mm/s, 20±4mm/s, 28±6mm/s, 50±10mm/s
The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases.
Max Load capacity: 5000N / 500 Kgs / 1100 lbs at 12mm/s
Linear actuator can get maximum load capacity when it operates in the
vertical direction, and the pulling force is less than pushing force.
No-load current: 2~3A at 12V or 1~1.5A at 24V
Full load current: 12~20A at 12V or 6~10A at 24V
Please use a 12V/20A or 24V/10A power supply to power a linear actuator, or
use a 12V/50A or 24V/25A power supply to power two linear actuators, or use
a 12V/84A or 24V/42A power supply to power three or four linear actuators.
Shaft diameter: 28mm

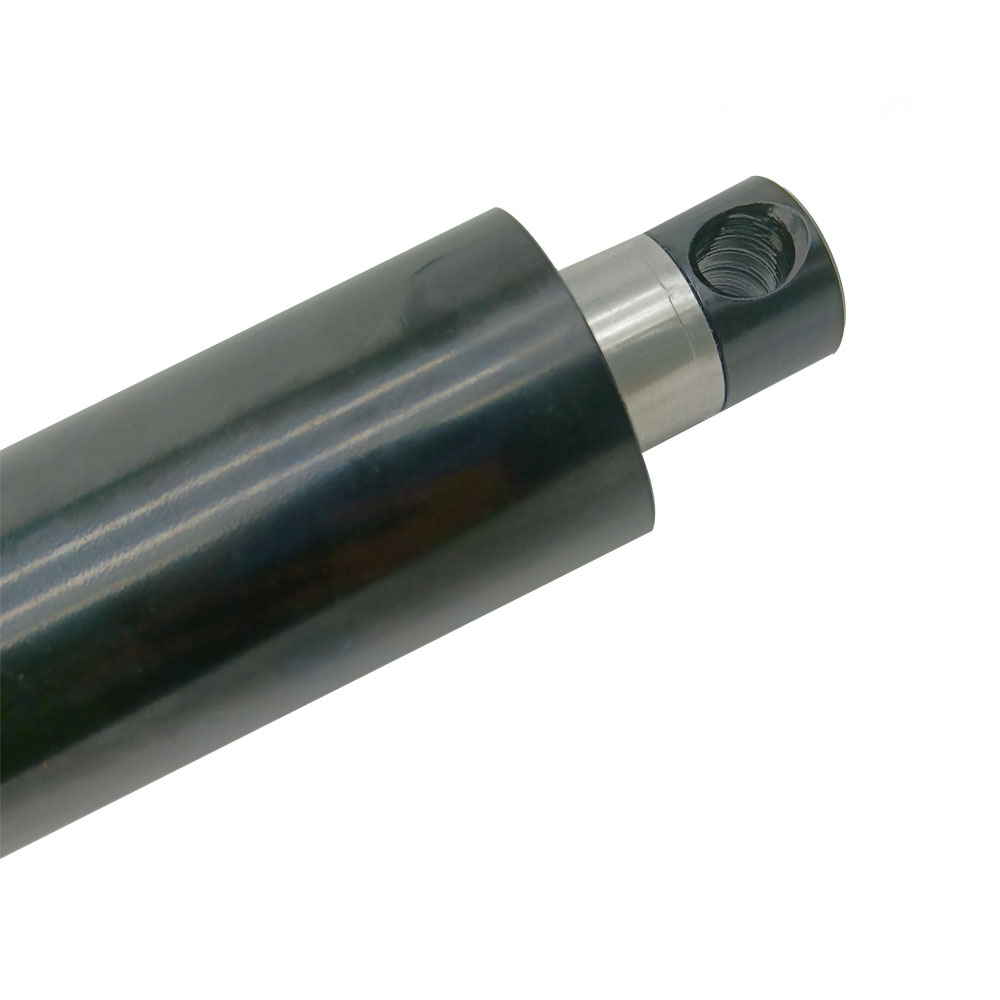

Mounting holes diameter: 13mm [0.512 in]
Housing Material: Stainless steel
Stroke Rod Material: Stainless steel
Gear Material: Steel Alloy
Motor Type: Brushed DC Motor
Duty cycle: 10%, max 5mins continuous use
Service life: approx. 35, 000 cycles
Power cable: two-core wire for normal linear actuators; five-core wire for
linear actuators with built-in potentiometers; six-core wire for linear
actuators with built-in Hall sensors; four-core, five-core or six-core wire
for linear actuators with built-in limit switch signal outputs.
Cable length of the normal linear actuator: 600±10%mm [20 in], the length
can also be customized according to your specific needs.
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating Noise: about 56dB~66dB (Linear actuators with different parameters
will have different noise levels.)
IP rating: IP65

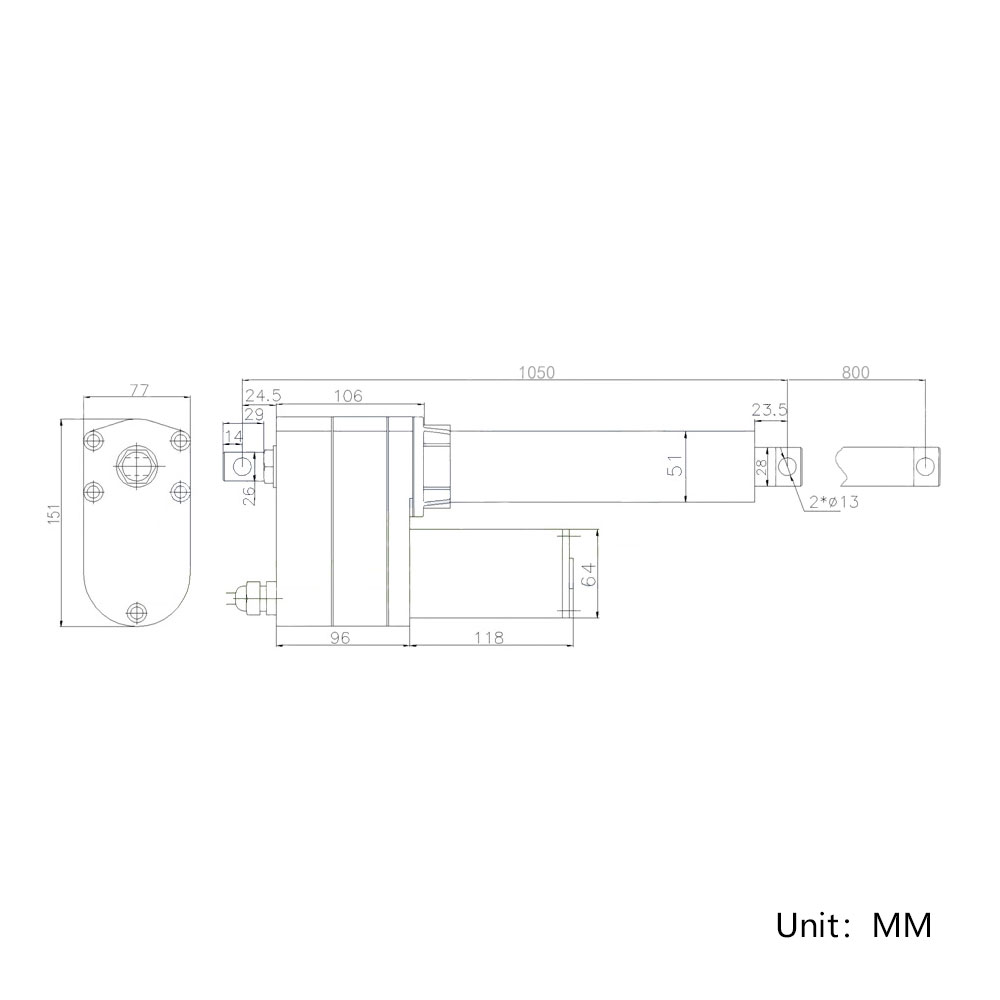

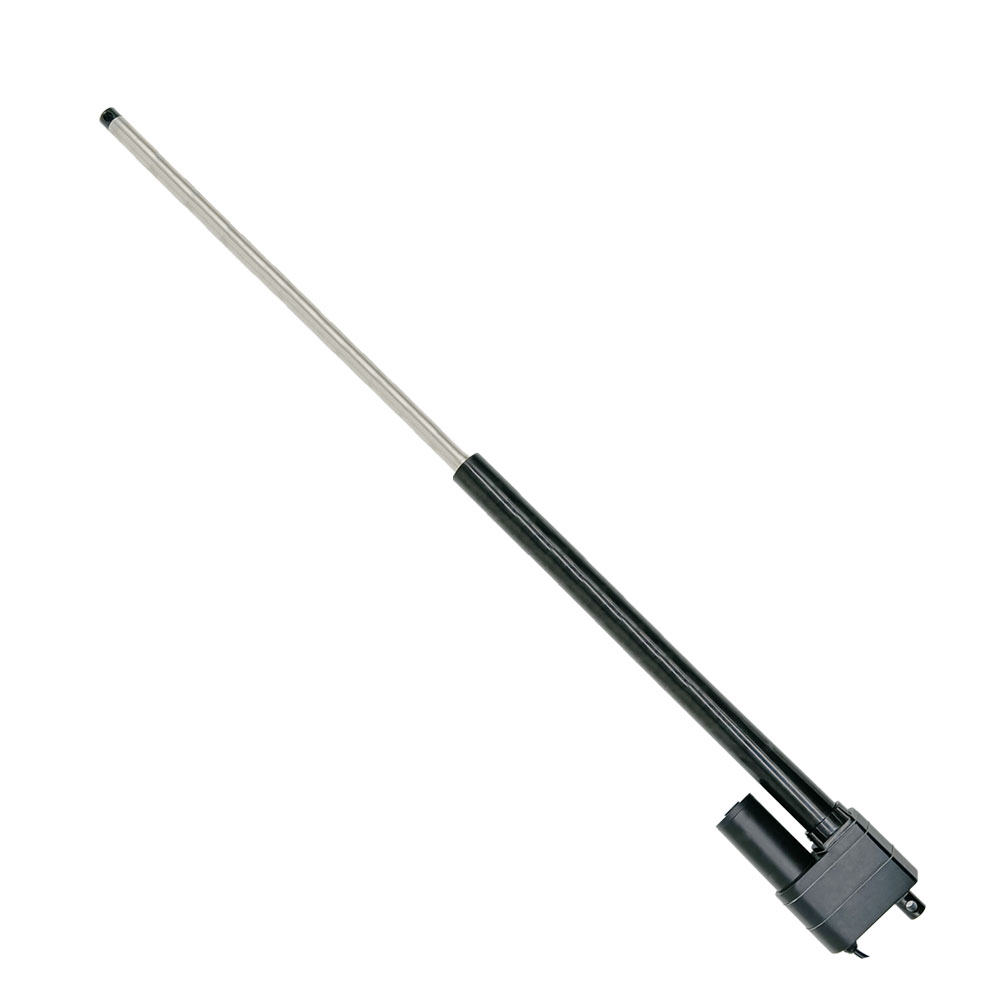

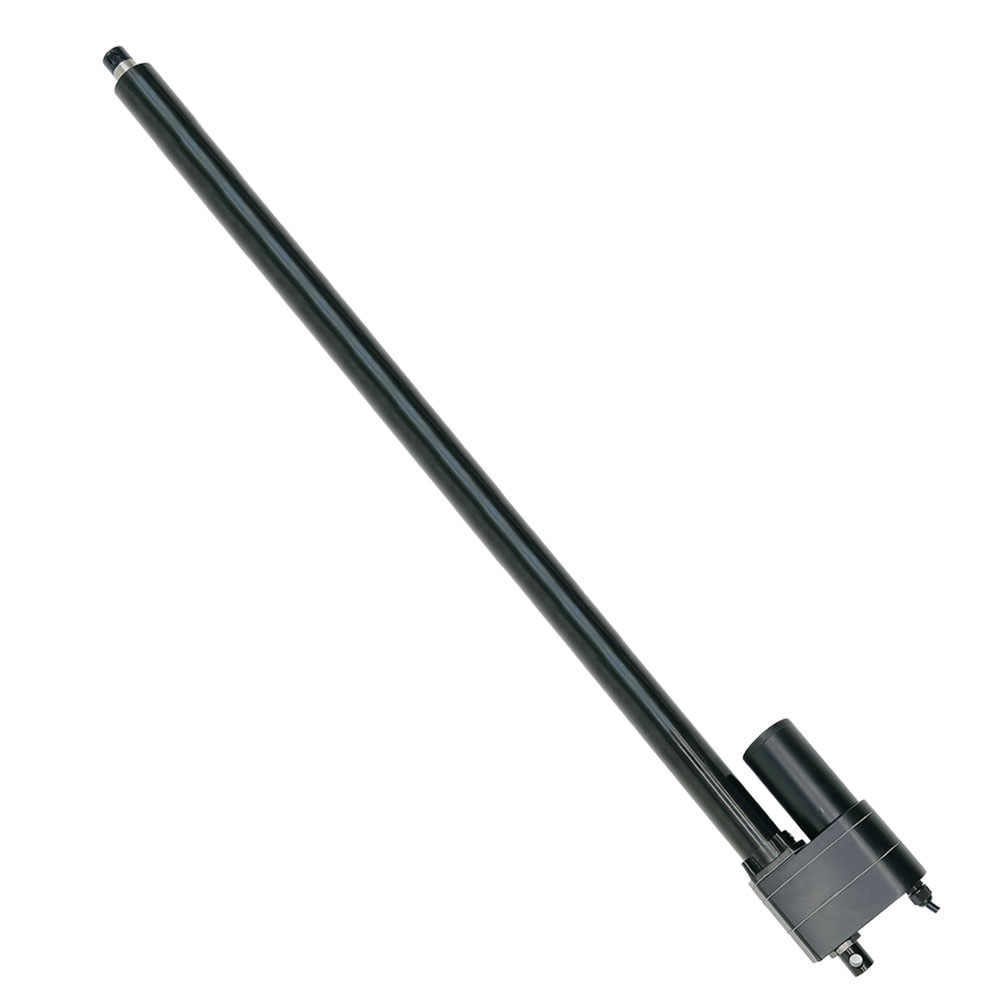

Stroke and Length (Model 0041547):
Stroke: 800MM.
Rretraction Length: When the linear actuator is fully retracted, the center
distance between the two mounting holes is 1050MM.
Extension Length: When the linear actuator is fully extended, the center
distance between the two mounting holes is 1850MM.
The linear actuator has two built-in limit switches, When the linear
actuator is fully retracted or fully extended, it will stop automatically.
We can adjust the position of the built-in limit switches during production
to meet customer-specified stroke and retraction lengths. For example,
specify the stroke length of 780MM and the retraction length of 1070MM.
Note: The specified retraction length must be greater than the original
length, and the specified stroke must be less than the original stroke.
Fixed Bracket:
1. This linear actuator does not contain fixed mounting brackets, please
click
here
to purchase.
2. Each linear actuator would require two mounting brackets, one to fix the
head of linear actuator and another to fix the bottom of linear actuator.
3. Compatible Mounting Brackets:

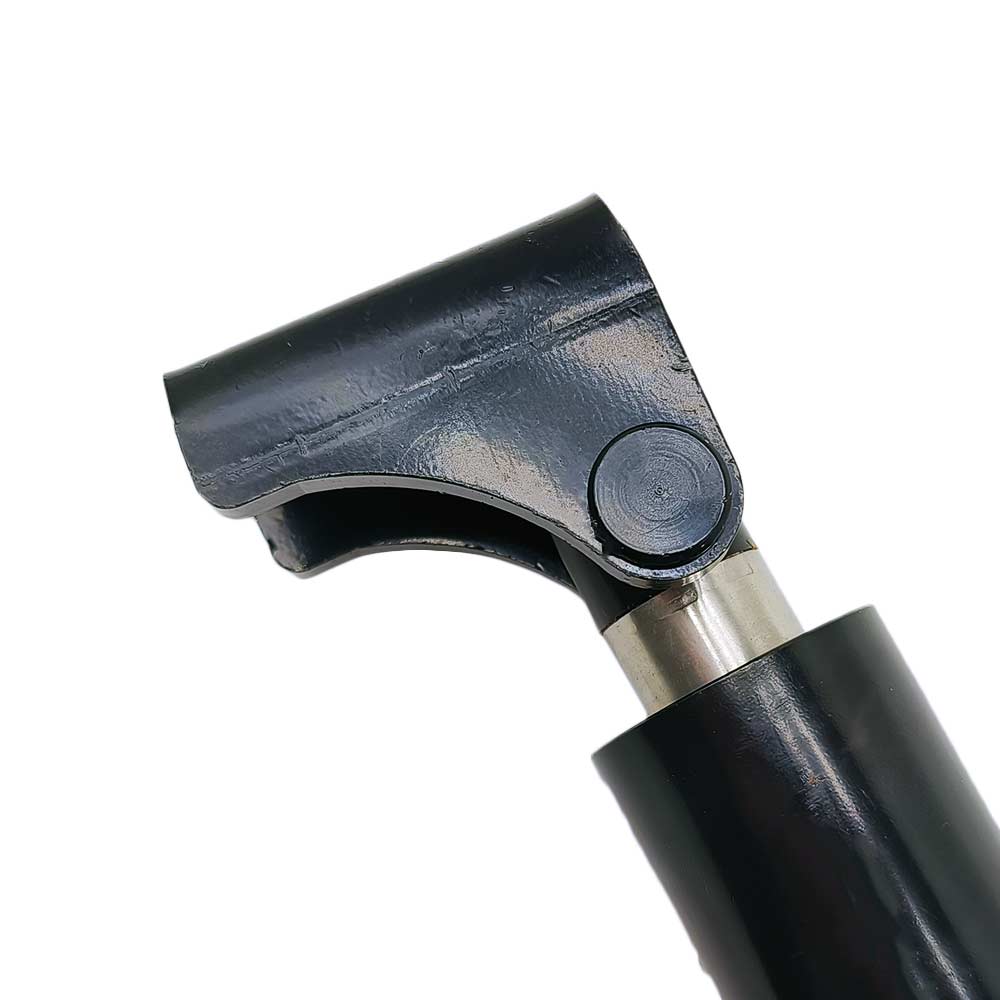

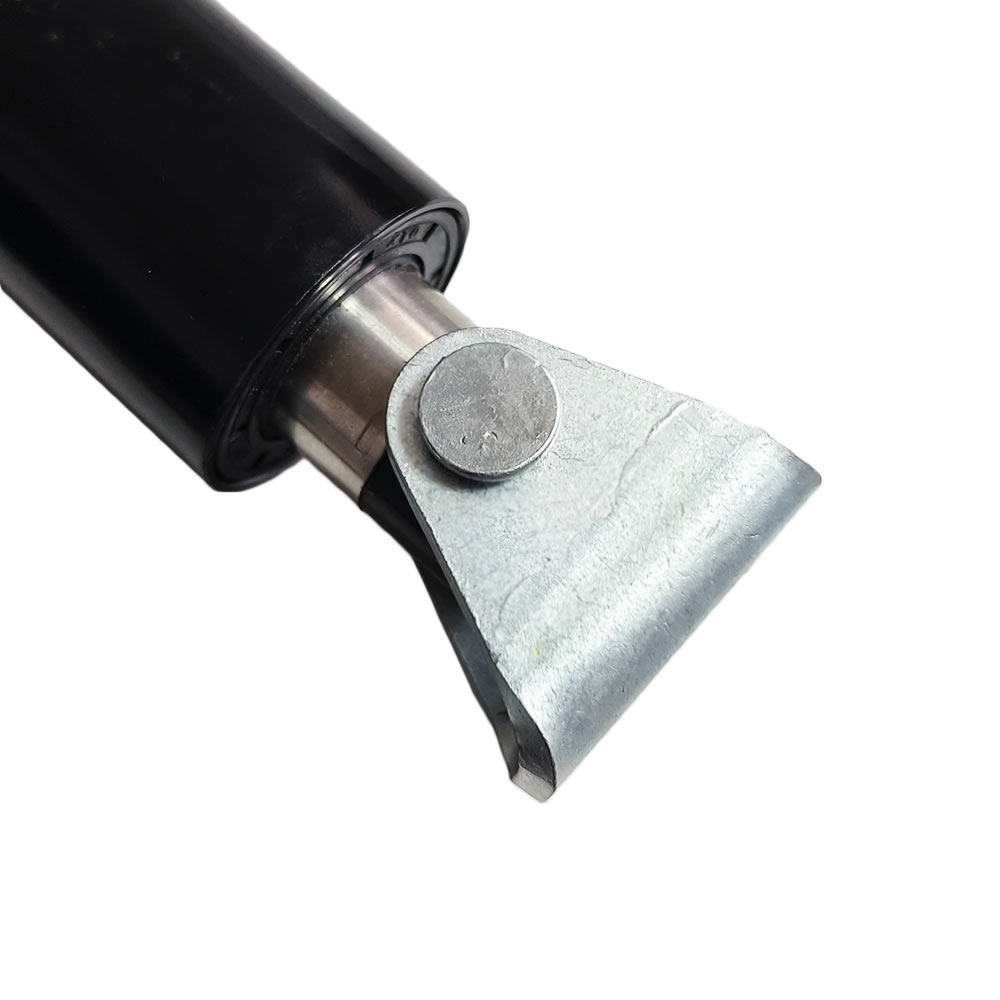

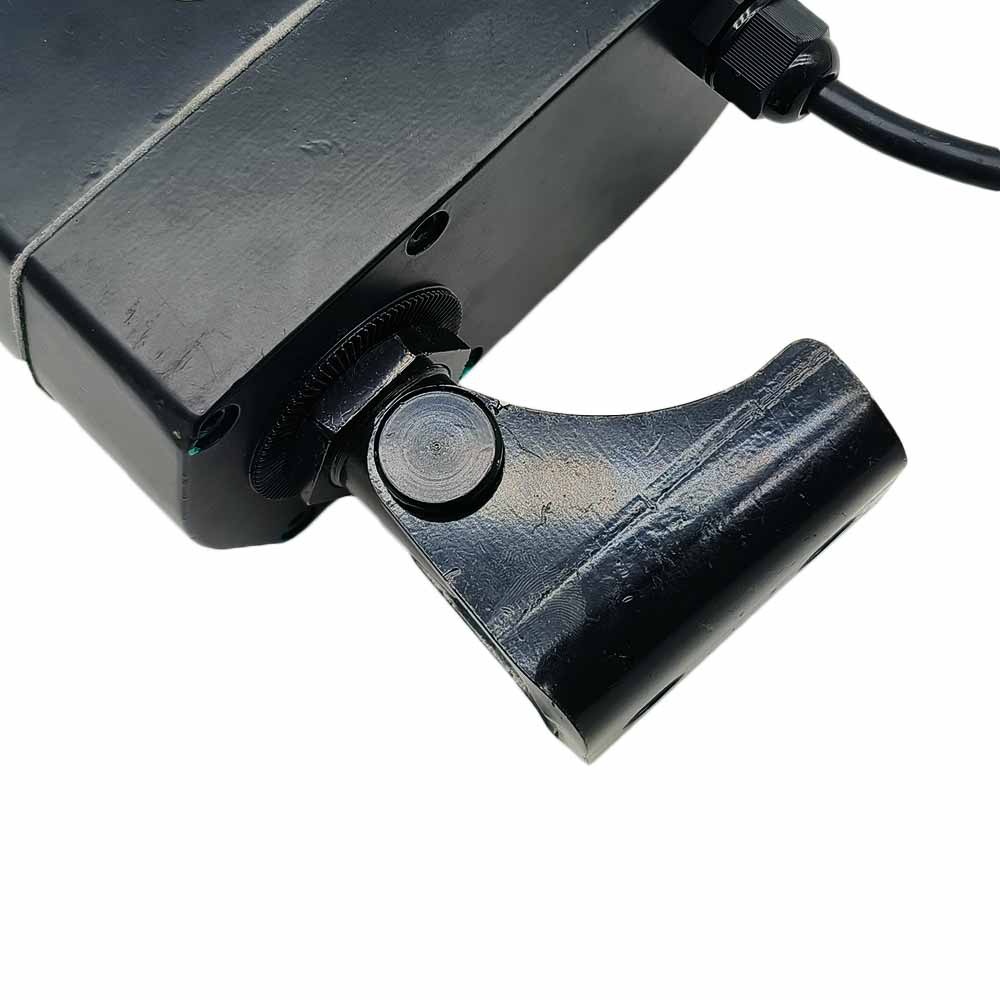

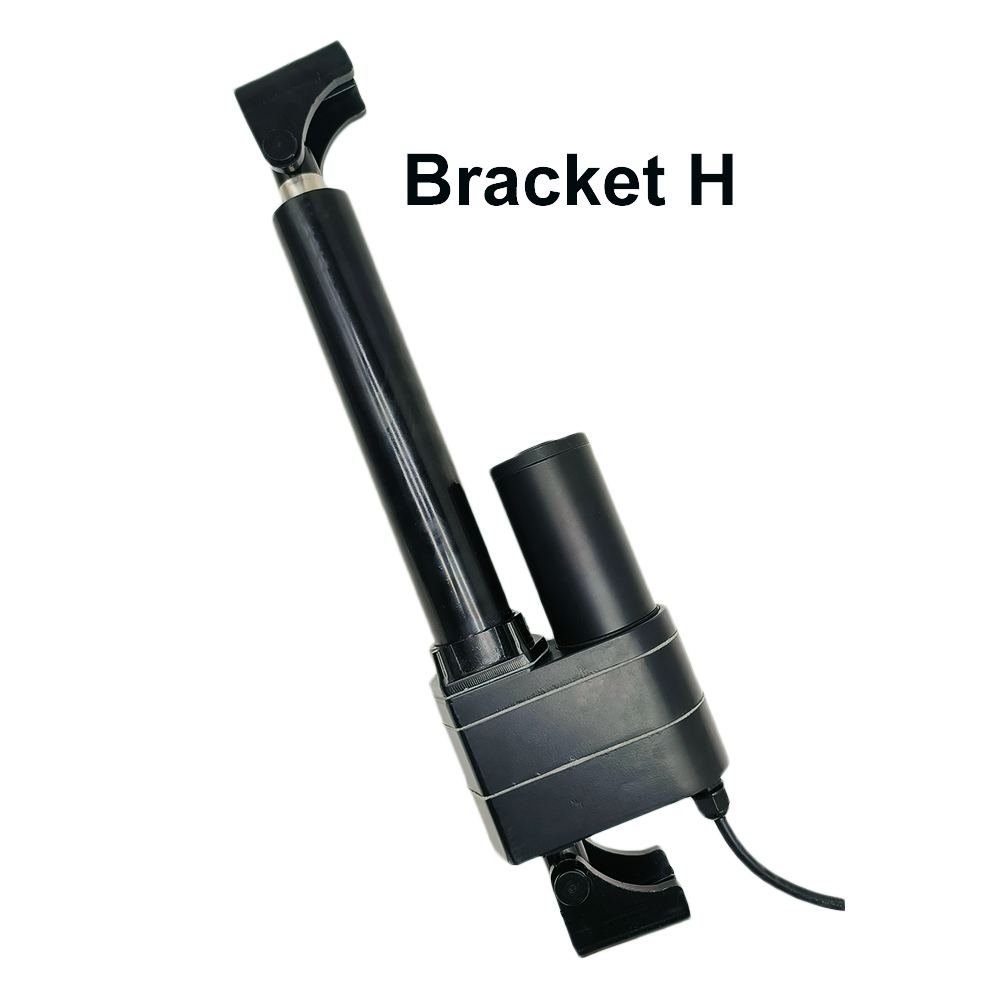

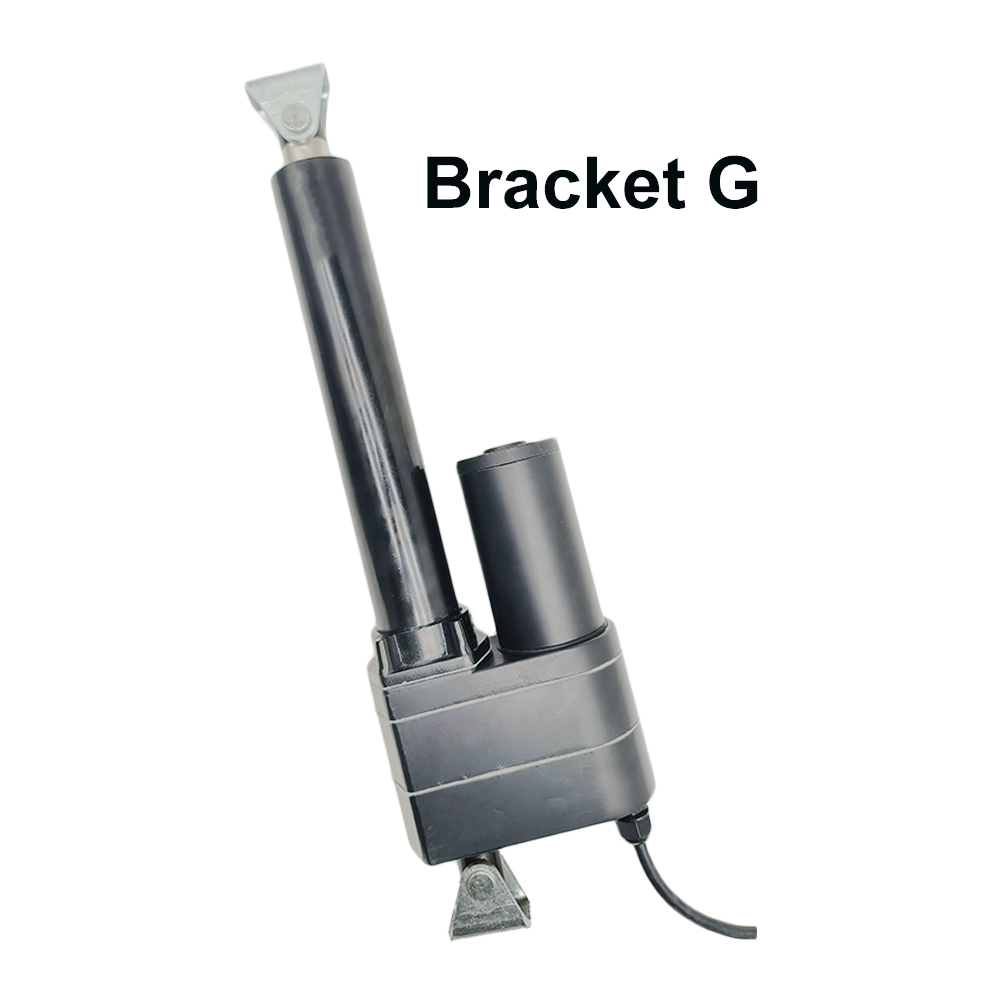

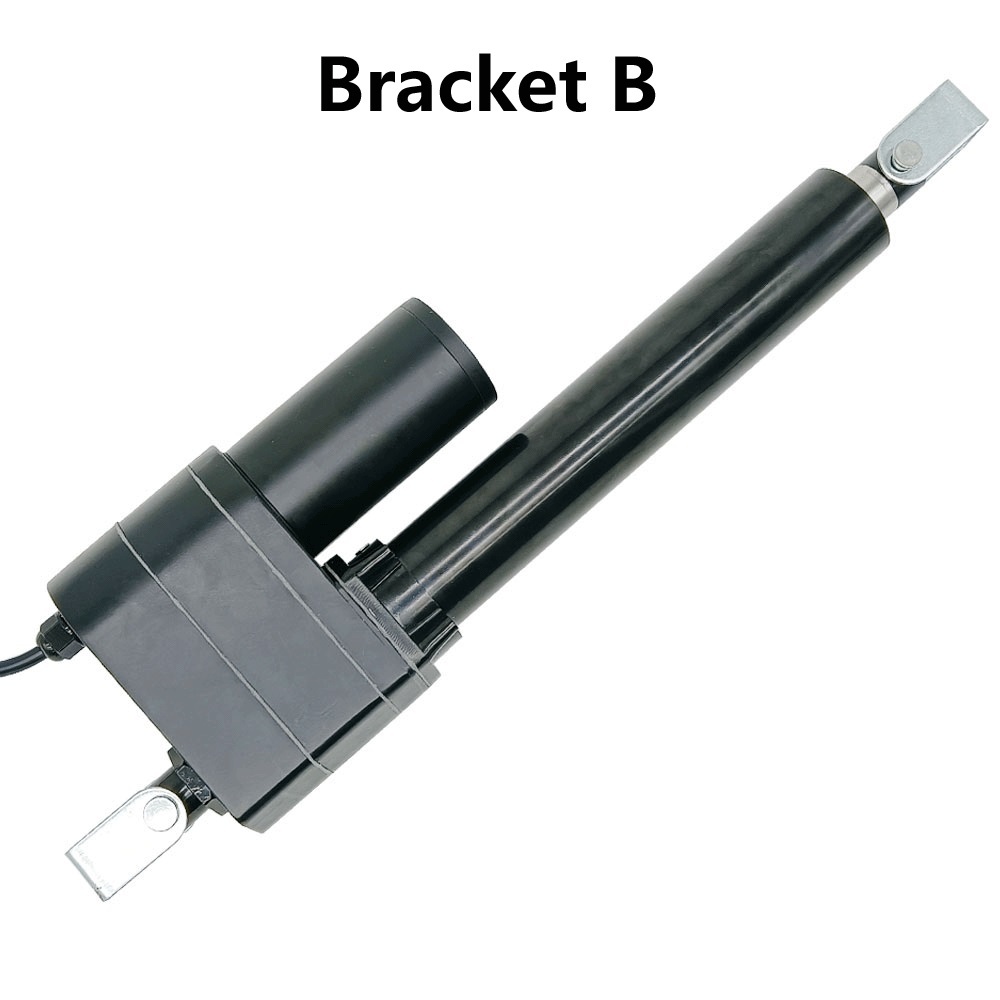

Bracket B,

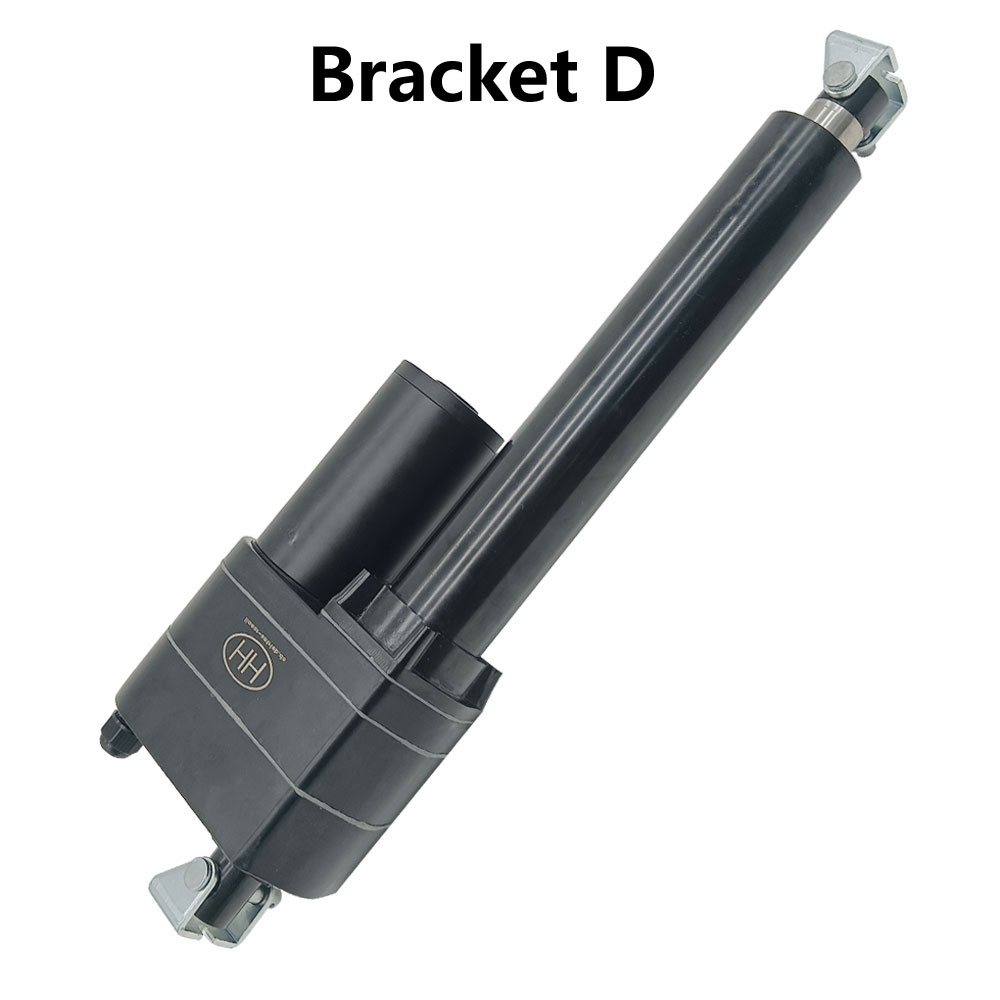

Bracket D,
Bracket G
and
Bracket H

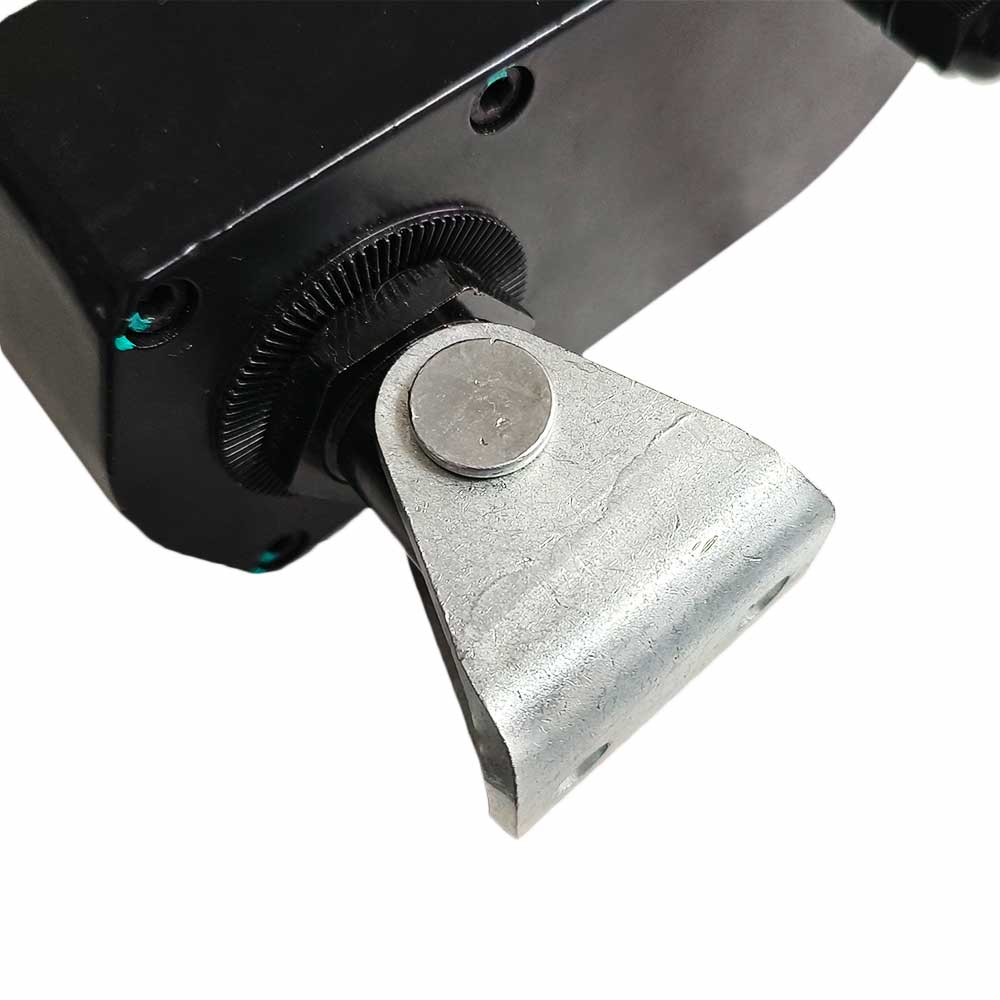

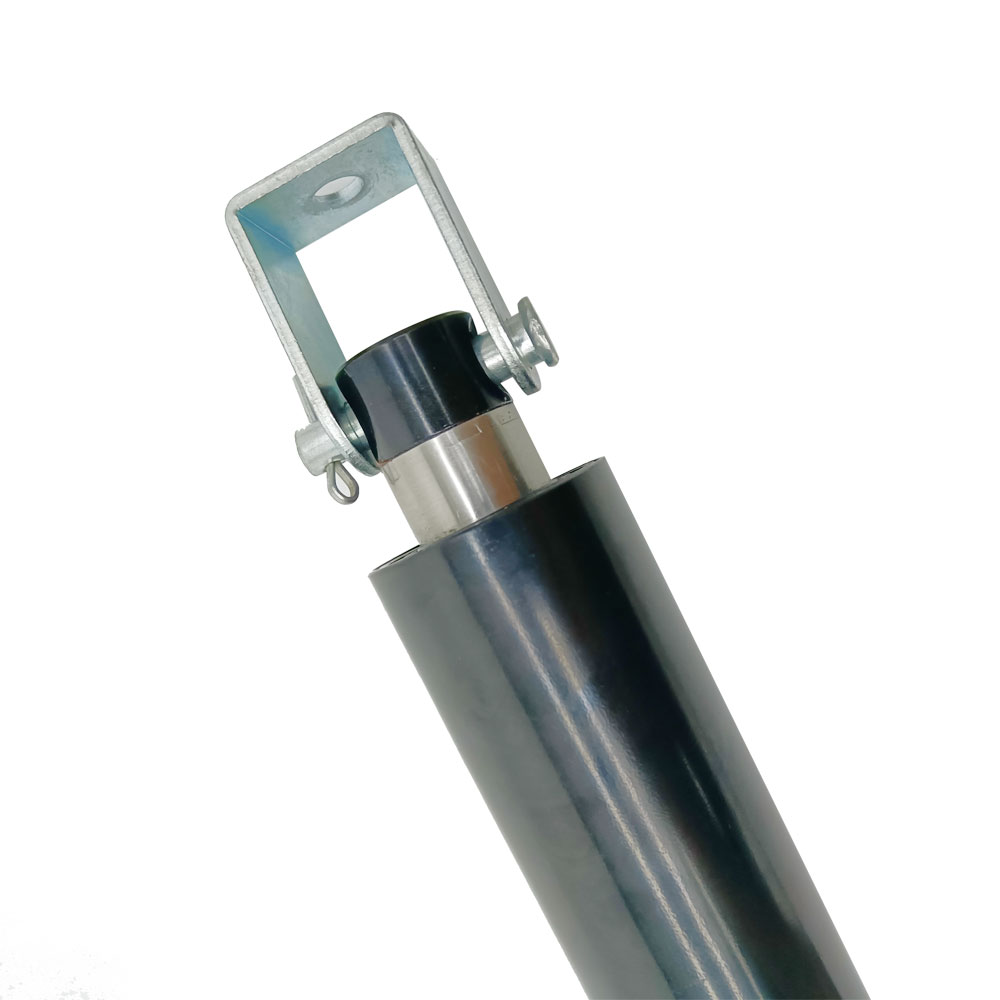

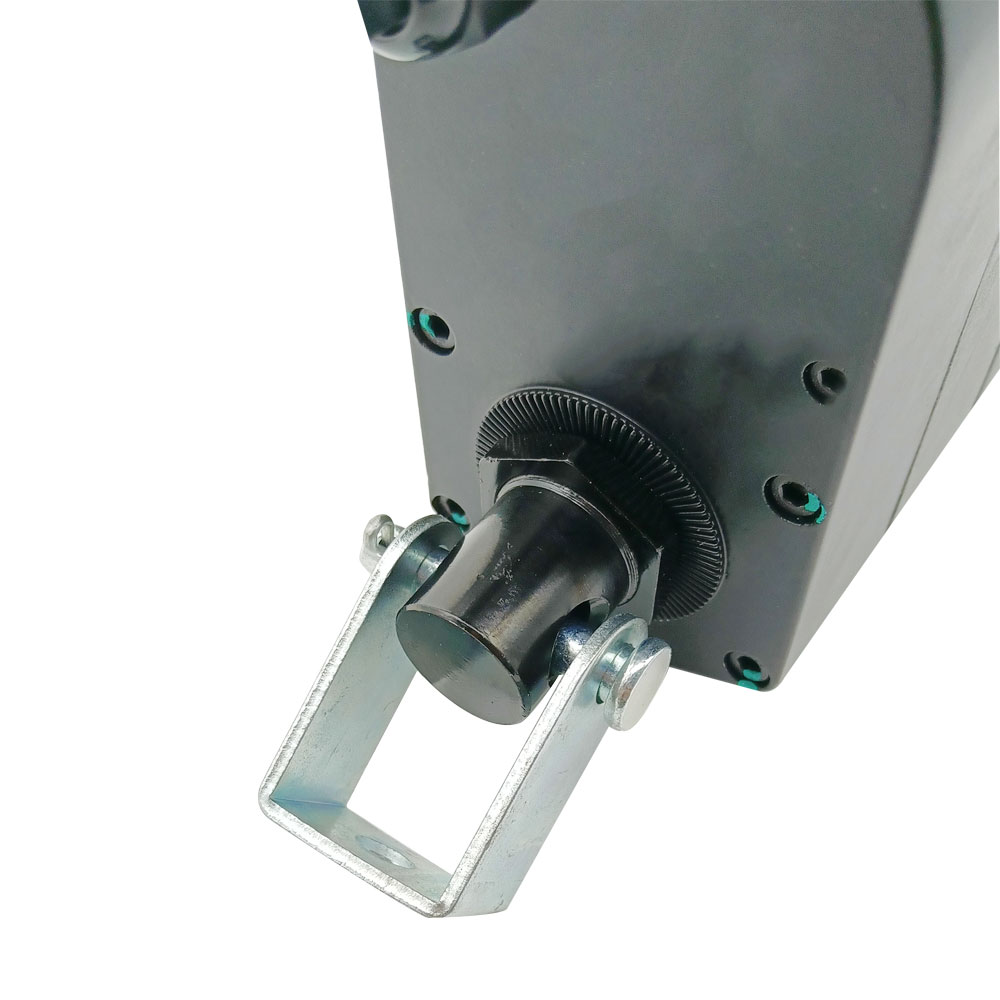

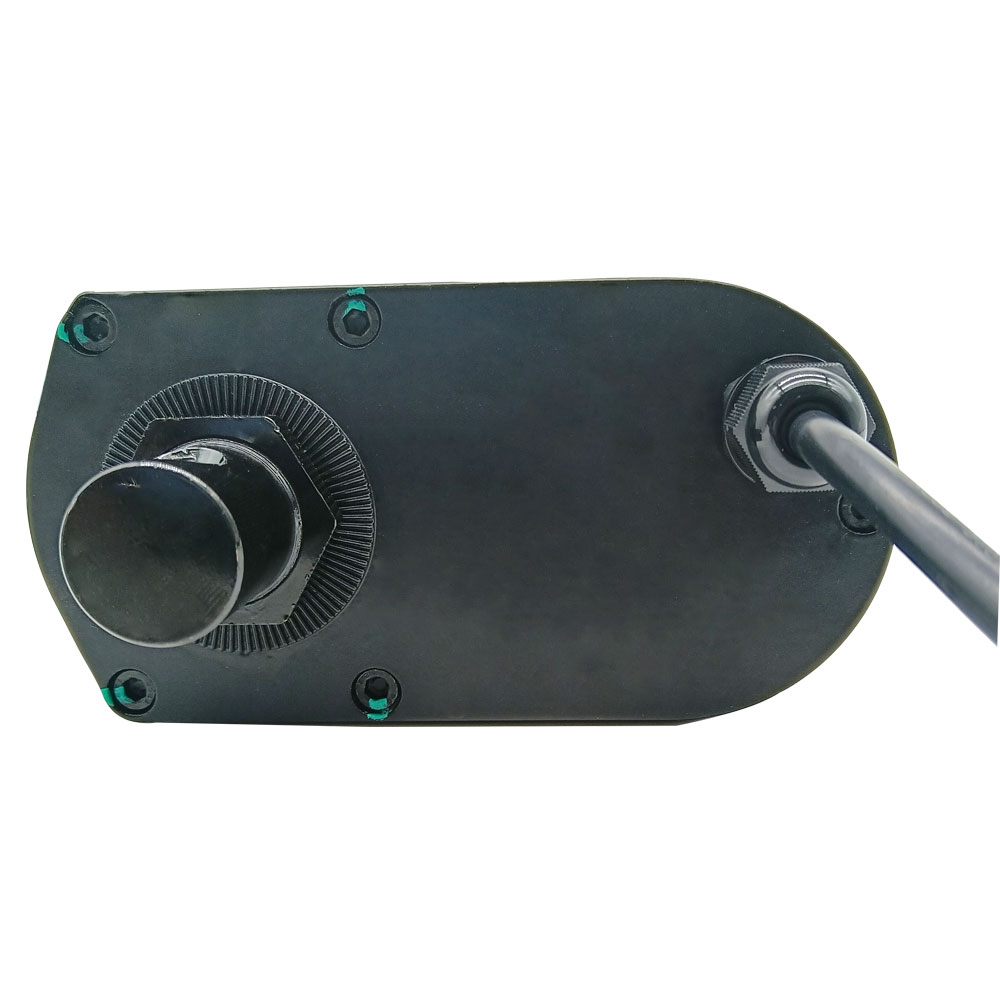

4. This linear actuator is also compatible with two flat mounting brackets:
Head Fixed Mounting Circular Disk Bracket (Model 0043075)
and
Bottom Fixed Mounting Square Plate Bracket (Model 0043076)
.
When you have purchased flat mounting bracket along with linear actuators, we will install flat mounting bracket on the linear actuator during production for you.
Operation:
When the red power wire is connected to the positive pole of the DC power
supply and the black power wire is connected to the negative pole of the DC
power supply, the stroke rod will extend outward; after switching the power
in the reverse direction, the stroke rod will retract inward.
Note:
1. If you want to control 2, 3 or 4 linear actuators fully synchronously, you
need to add built-in hall effect sensor to each linear actuator, and buy a
synchronization controller, please click
here
to purchase.
2. If you need a power supply to power linear actuator, please click
here
to purchase.
3. If you want to use external limit switches to stop linear actuator at any
position, please click here to purchase. How to connect two external limit
switches to electric linear actuator, please click
here
to watch the
connection video.
4. If you want to use a remote control switch to operate linear actuator
wirelessly, please click
here
to purchase.
Different speeds and corresponding maximum thrust:
No-load Speed
Full load Speed
Maximum Thrust
Self-locking Force
12mm/s
9mm/s
5000N / 500 kg / 1100 lbs
5500N / 550 kg / 1200 lbs
16mm/s
12mm/s
4000N / 400 kg / 880 lbs
4500N / 450 kg / 1000 lbs
20mm/s
15mm/s
3000N / 300 kg / 670 lbs
3500N / 350 kg / 790 lbs
28mm/s
20mm/s
2000N / 200 kg / 450 lbs
2500N / 250 kg / 560 lbs
50mm/s
38mm/s
1000N / 100 kg / 200 lbs
1500N / 150 kg / 340 lbs
Note:
1. The above data is the maximum load capacity that can be obtained when the
linear actuator runs in the vertical direction. If the weight of your equipment
(such as a cellar door) is 100kg, and you want to use a linear actuator to open
this door, you need to calculate the actual force acting on the linear actuator
according to your installation method. This force is usually 2-5 times the
weight of the cellar door. If you don't know how to calculate it, please contact
us for help.
2. The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases. Full load speed is approximately
60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the
right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum
load, we recommend letting it work at about half of the maximum load to get a
longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not
normally allow them to operate at their maximum stroke under heavy loads. If the
actual stroke you want is 600MM, we recommend that you choose a linear actuator
with a stroke of 700-800MM.
6. The maximum pull force of the linear actuator is slightly less than its
maximum thrust force.
Production time:
The linear actuators are the customized products, and these products are not in
stock, we need to spend 3~7 working days to produce them according to the
specified parameters in your order.
Return or Exchange:
The Linear Actuators are the customized products, we need to produce them
according to the specified parameters in your order, so that we do not accept
returns or cancel orders. If customers order unsuitable linear actuators
themselves, we also do not accept exchanges, please understand.
We can provide 3D CAD model files in STEP format for linear actuators.
Please contact us by e-mail if you need them.
