Feature:

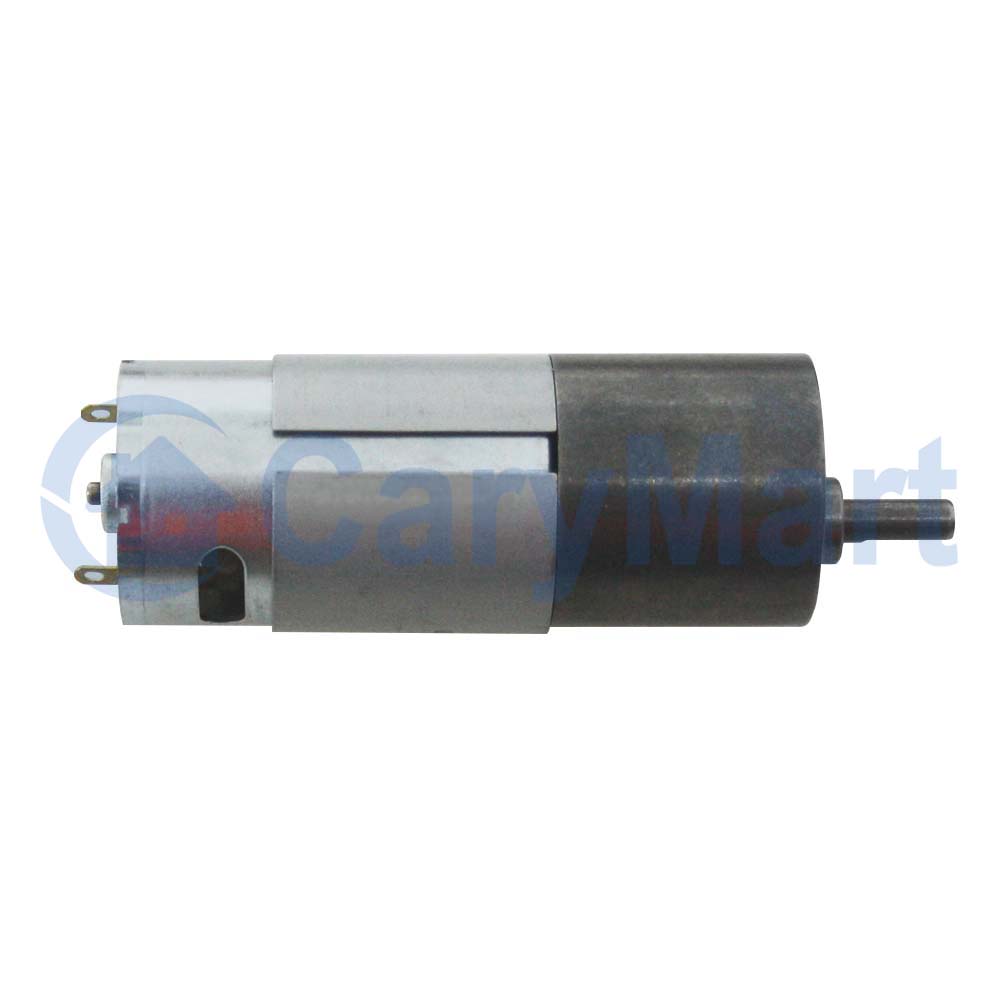

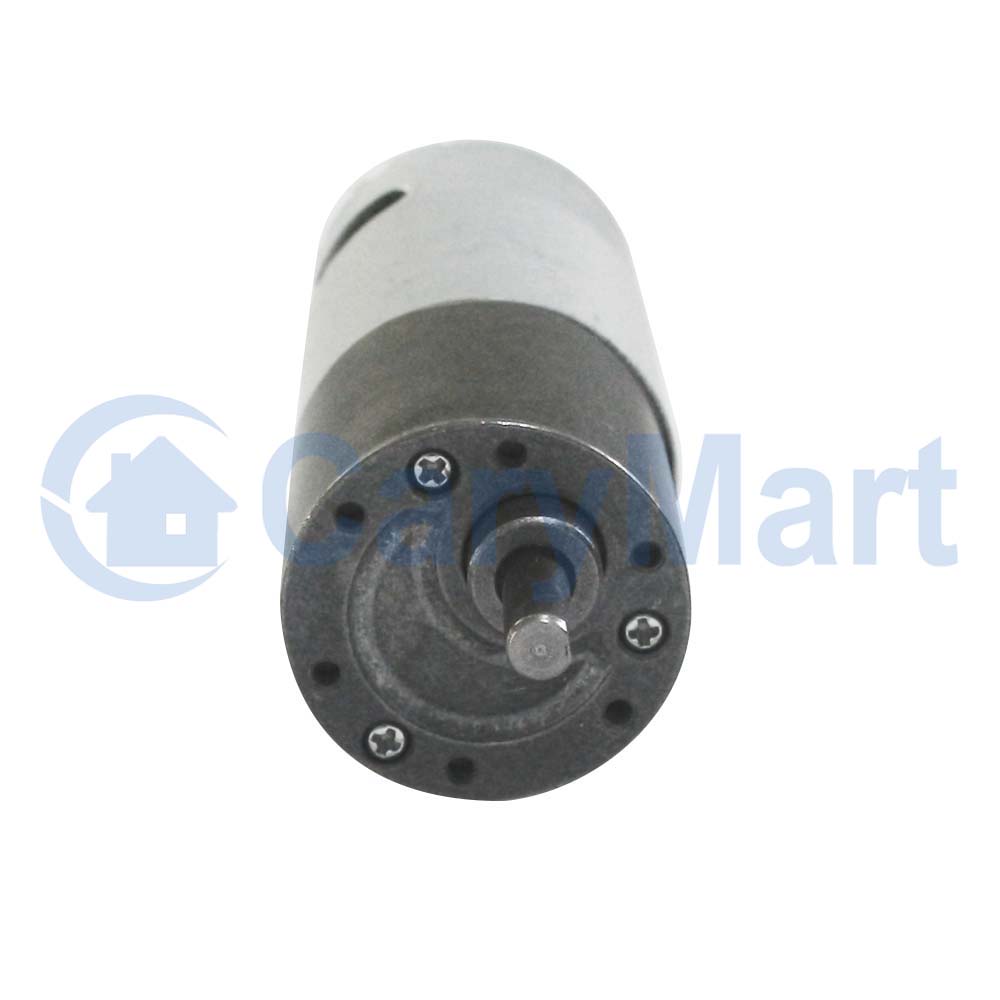

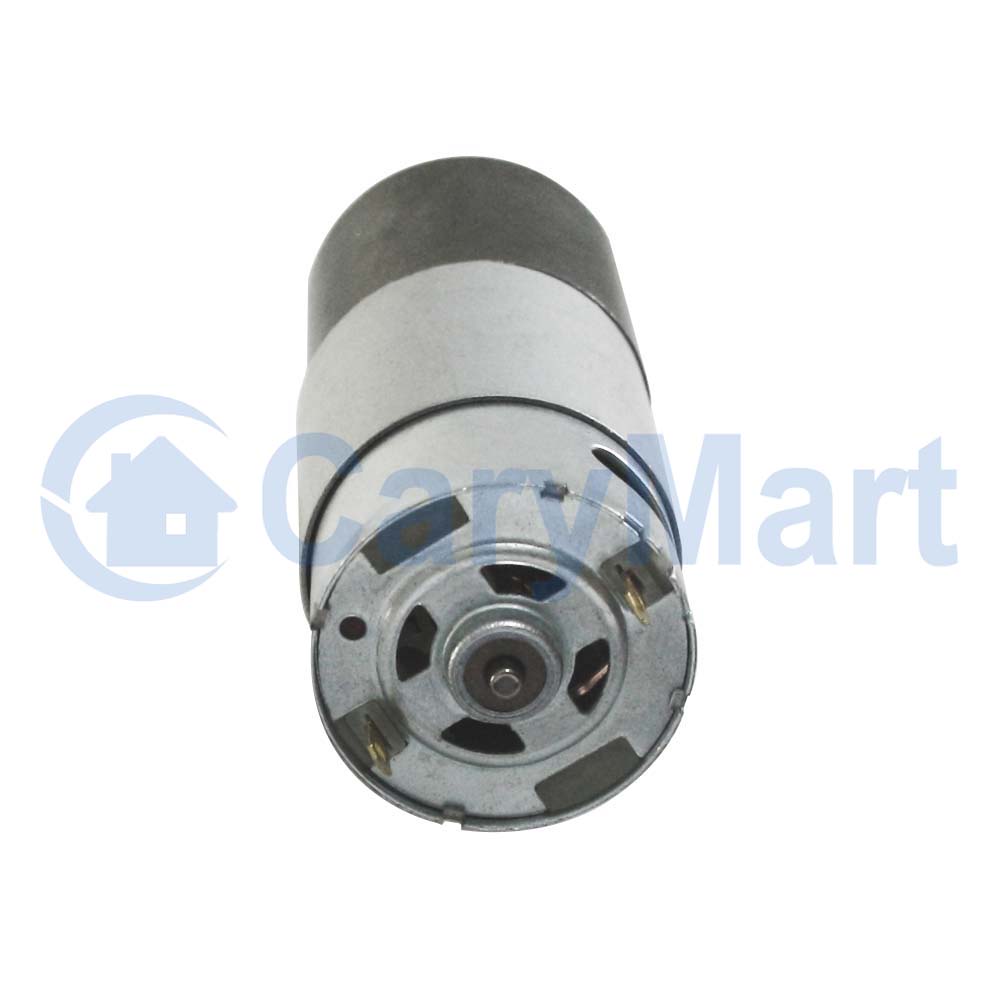

Gearhead motor
High quality
With metal cover
Built-in cooling fan
Heavy duty design
Runs in either direction by reversing power supply polarity
Benefiting from high torque and low noise, this motor is solidly constructed
and ready to install in numerous applications
Specifications:

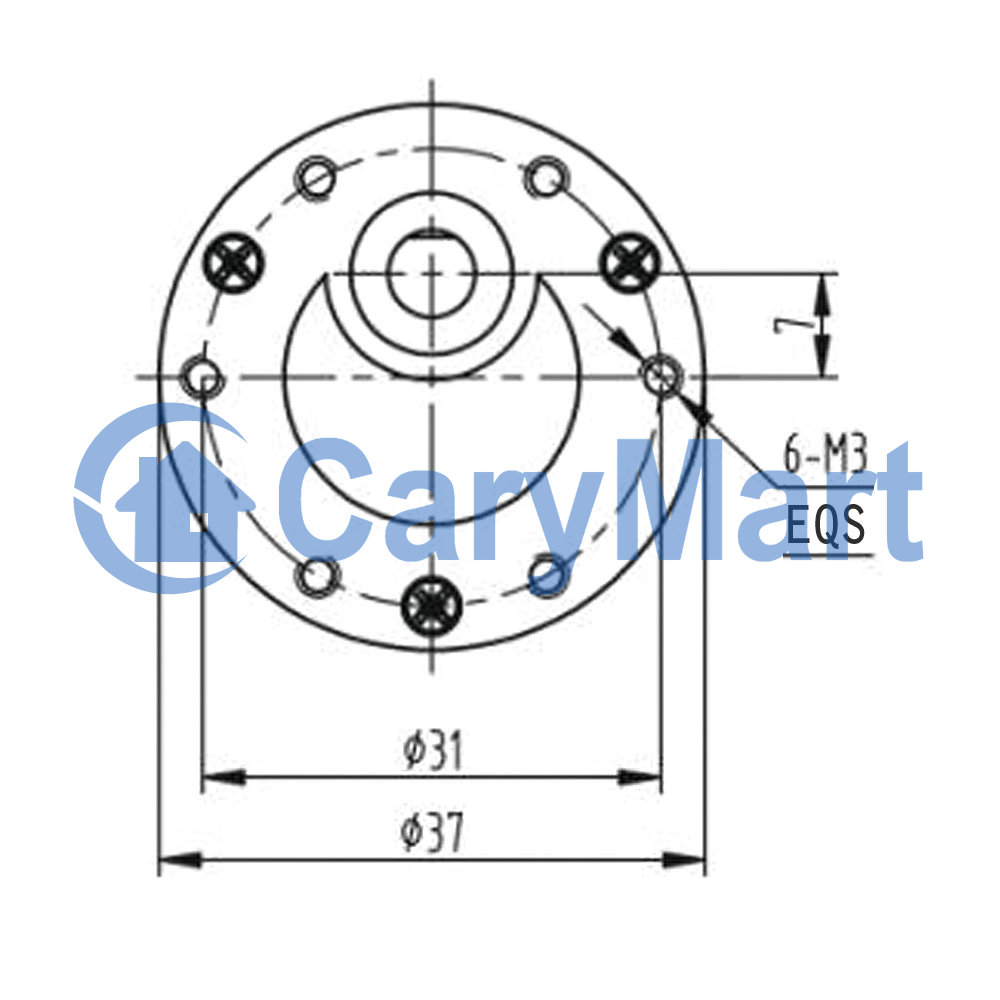

Diameter: 37mm
Length (excluding shaft): 92.5mm
Total length: 111.5mm
Shaft length: 15.5mm
Shaft diameter: 6mm
Front panel 3.0mm Screw for fixing this motor
Nominal voltage: 12V DC
Operating voltage range: 3 - 18V DC
No load speed at 12 V: 58 rpm
No load current: 0.8A
Load speed: 51 rpm
Load current: 3A
Operating torque: 60kg.cm
Stall torque: 180kg.cm
Stall current: 7A
Gear ratio: 1:270
Power: 50W
Weight: 350g
Parameters:
No load speed at 12V
Load speed
Total length (including shaft)
Speedreducer length (L)
No load current
Load current
Operating torque
Gear ratio
Power
Weight
19 rpm
16 rpm
114 mm
29 mm
0.8 A
3 A
60 kg.cm
1:810
50 W
380 g
31 rpm
27 rpm
114 mm
29 mm
0.8 A
3 A
60 kg.cm
1:506
50 W
370 g
58 rpm
51 rpm
111.5 mm
26.5 mm
0.8 A
3 A
60 kg.cm
1:270
50 W
350 g
95 rpm
83 rpm
111.5 mm
26.5 mm
0.8 A
3 A
53 kg.cm
1:168
50 W
320 g
120 rpm
105 rpm
111.5 mm
26.5 mm
0.8 A
3 A
41 kg.cm
1:131
50 W
310 g
175 rpm
154 rpm
109 mm
24 mm
0.8 A
3 A
28 kg.cm
1:90
50 W
310 g
282 rpm
248 rpm
109 mm
24 mm
0.8 A
3 A
18 kg.cm
1:56
50 W
300 g
526 rpm
462 rpm
107 mm
22 mm
0.8 A
3 A
9 kg.cm
1:30
50 W
290 g
840 rpm
739 rpm
107 mm
22 mm
0.8 A
3 A
6 kg.cm
1:18.8
50 W
290 g
1580 rpm
1390 rpm
104 mm
19 mm
0.8 A
3 A
3.2 kg.cm
1:10
50 W
290 g
2528 rpm
2224 rpm
104 mm
19 mm
0.8 A
3 A
2 kg.cm
1:6.25
50 W
290 g
Application:
Mainly used for remote-controlled car, electric motorbike, ATV, Kart, robot,
rolling blind and electric projector, etc.
Warning:
Do not frequently stall the motor, or else the gear of motor will be broken.
Owing to large torque and high power, the starting current of motor is
relatively large, up to 6A. After starting the motor, the current will be
back to normal, about 1A~2A. You should choose high power supply above 10A,
or else you cannot start the motor.
