4 Button 50M Wireless Remote Control / Transmitter - For DC / AC Motor

Price: US $15.00

Qty:

Product Description:

Model No.: 0021030 (CA-4)
Shell Color: White
Channel/Button: 4
Button Symbol: △, ▽, □,

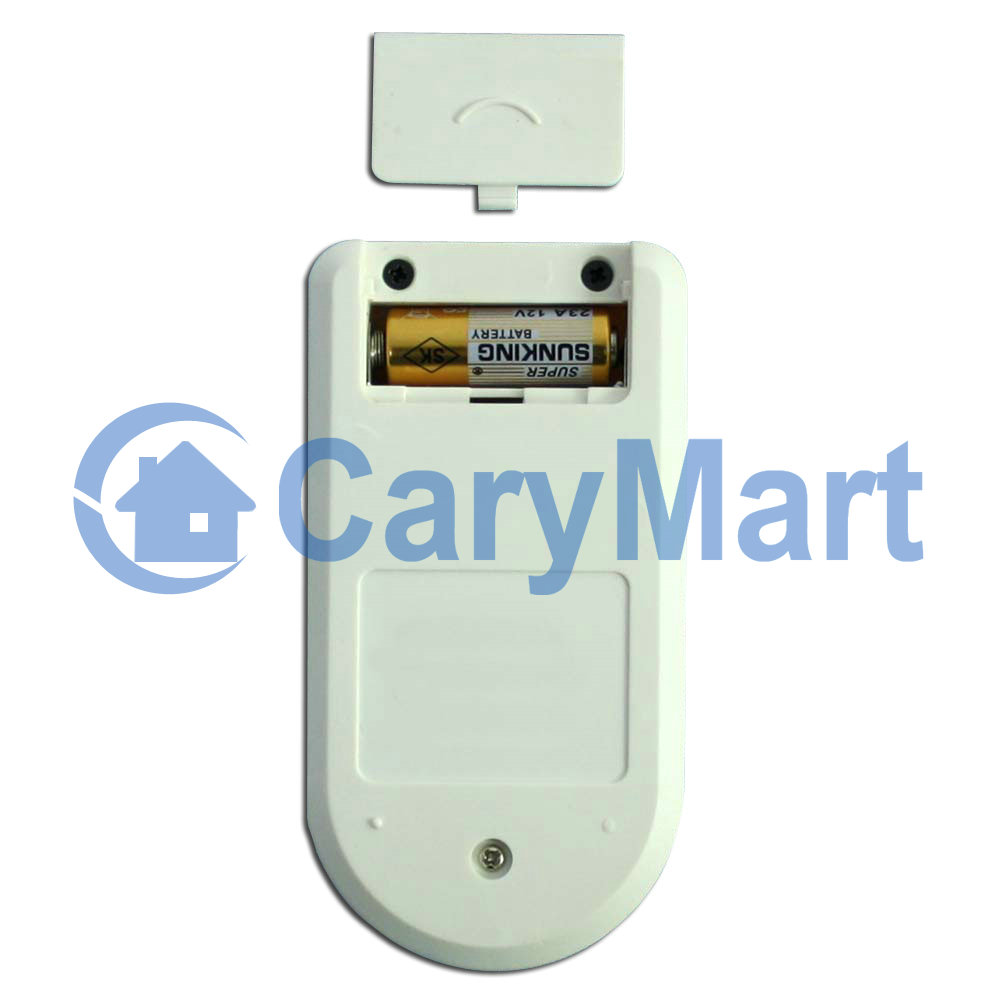

Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 5mA
Operating Frequency: 315Mhz
Encoding Chip: PT2262 / PT2264 / SC2262

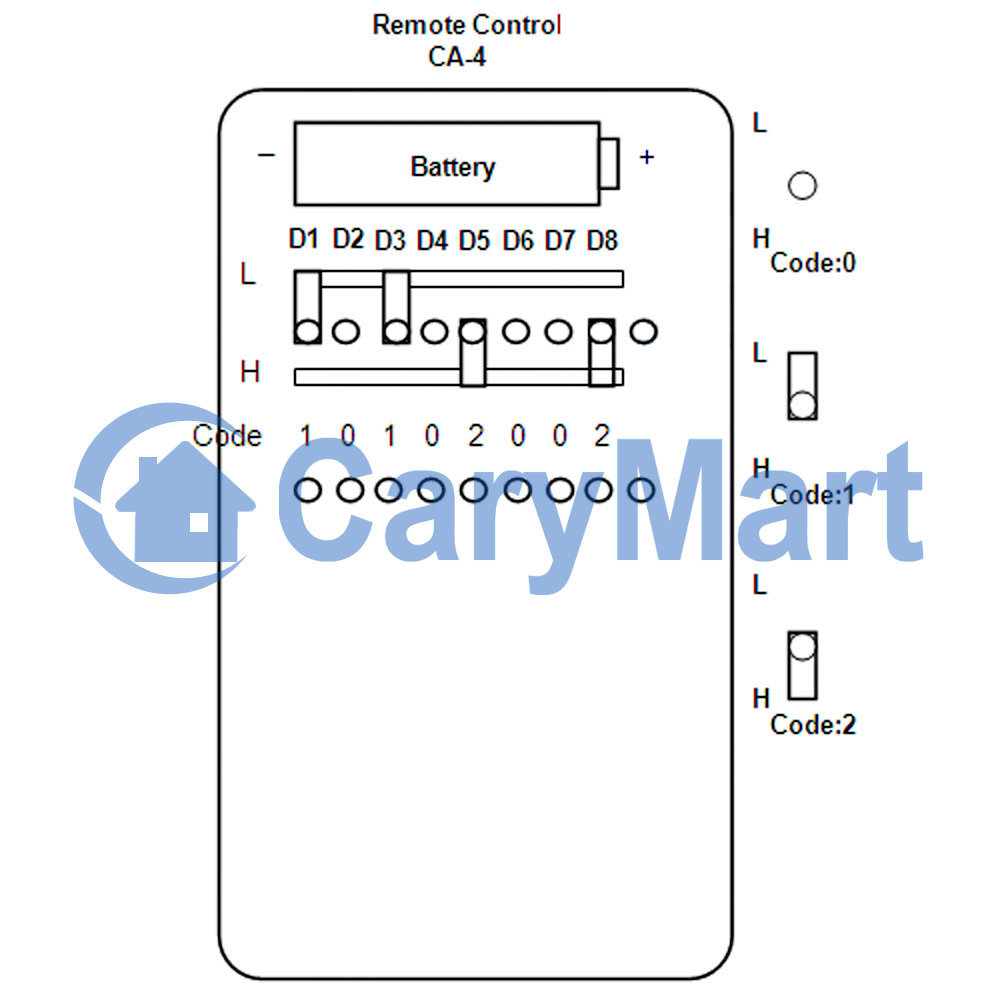

Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 50m / 150ft (theoretically)
The distance of 50m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance may or may not reach 50m.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 88mm x 46mm x 20mm
Weight: 25g

Uses:

garage doors, motorcycles, car alarm products, home security products, wireless remote control products, industrial control products.
