Introduction: This receiver is a super long range remote switch. It is developed by
LORA (Long Range) wireless communication technology, so it has ultra-long
working distance, ultra-high receiving sensitivity, superior
anti-interference ability, and smaller power consumption. It uses a
transceiver chip to implement bidirectional communication. Its ideal working
distance is up to 5 kilometers, which is an excellent device for remote
control and long-distance communication.
Application: This receiver is an electric device with 4 channels AC power outputs, it
and the transmitter form a wireless remote-control system. This system may
be used in all types of industry automation, agriculture, business, home,
factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can
remote control different AC equipment on land, water, and air, such as
lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters,
motors, fans, winches, curtains, blinds, linear actuators, electric solenoid
valves, and security alarm systems. The applications are endless.
Feature: Wireless control, easy to install.
Super long working range: With the transmitter forming a complete set, the
maximum working distance may reach 5000 meters in an open area.

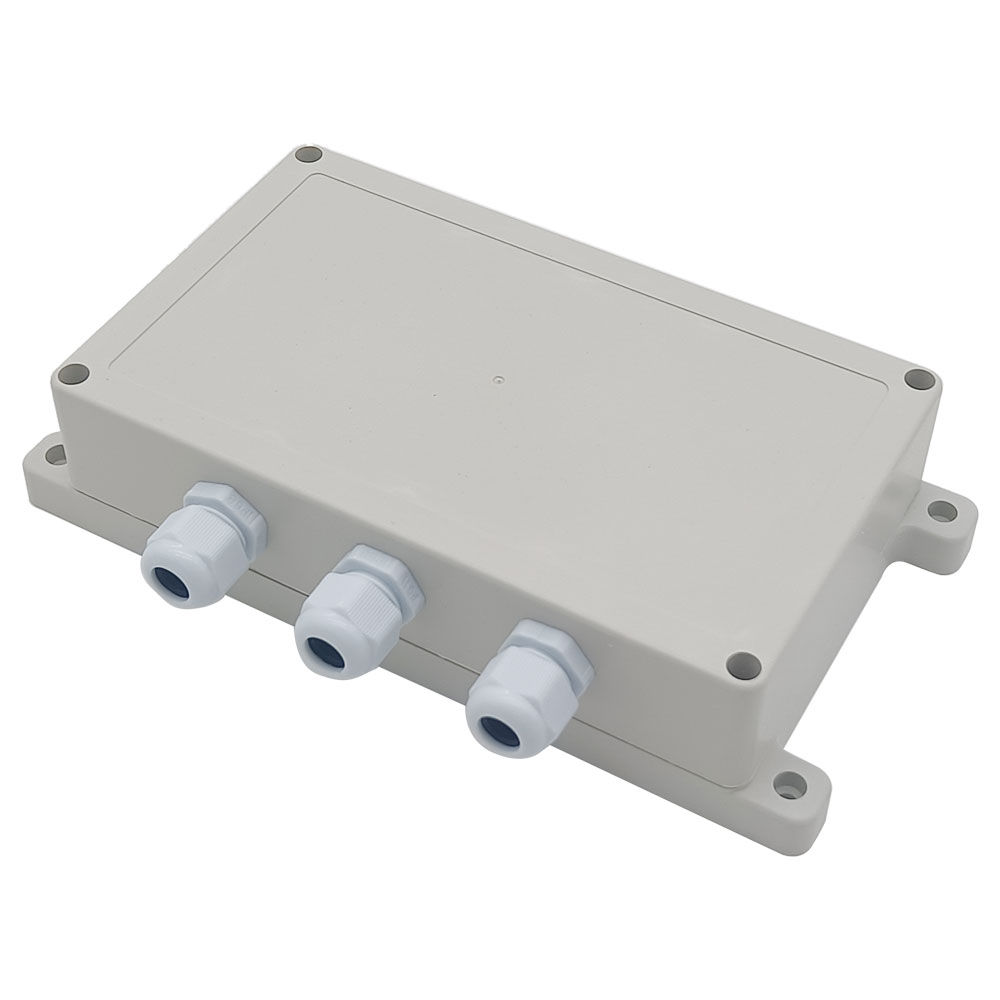

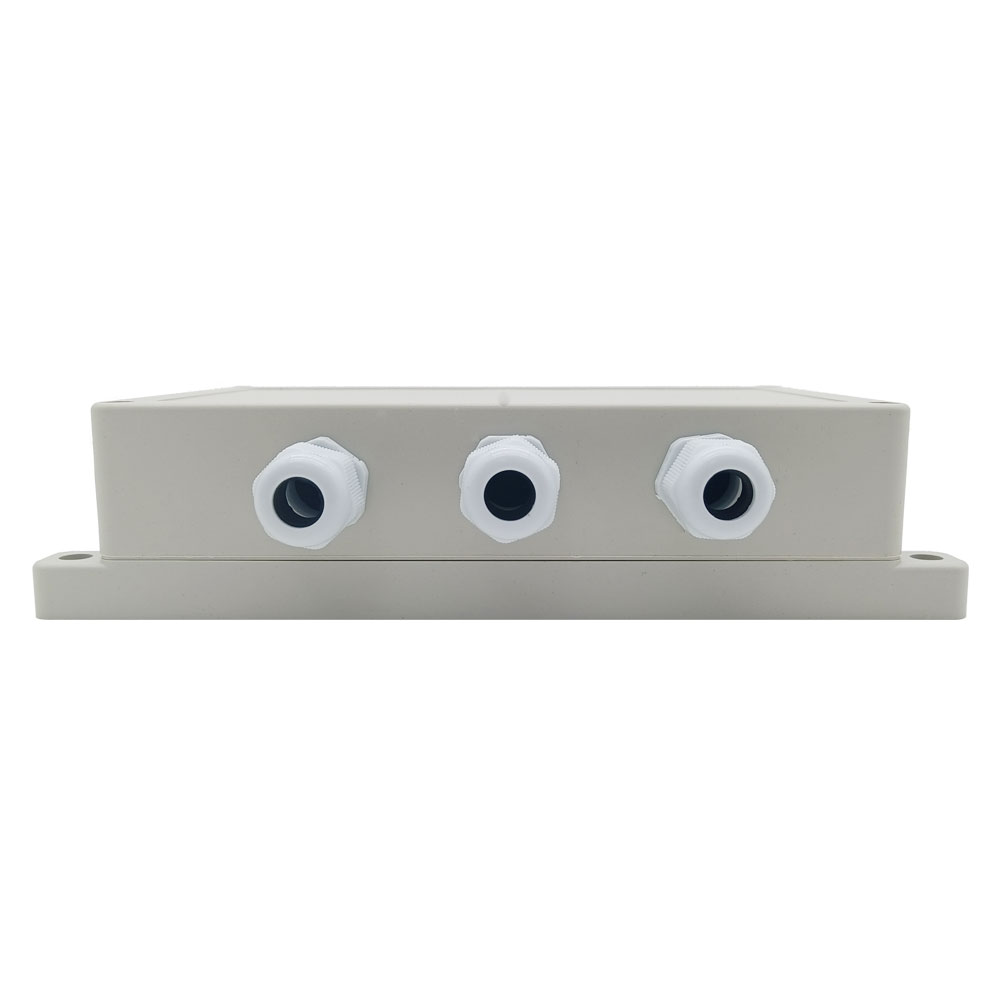

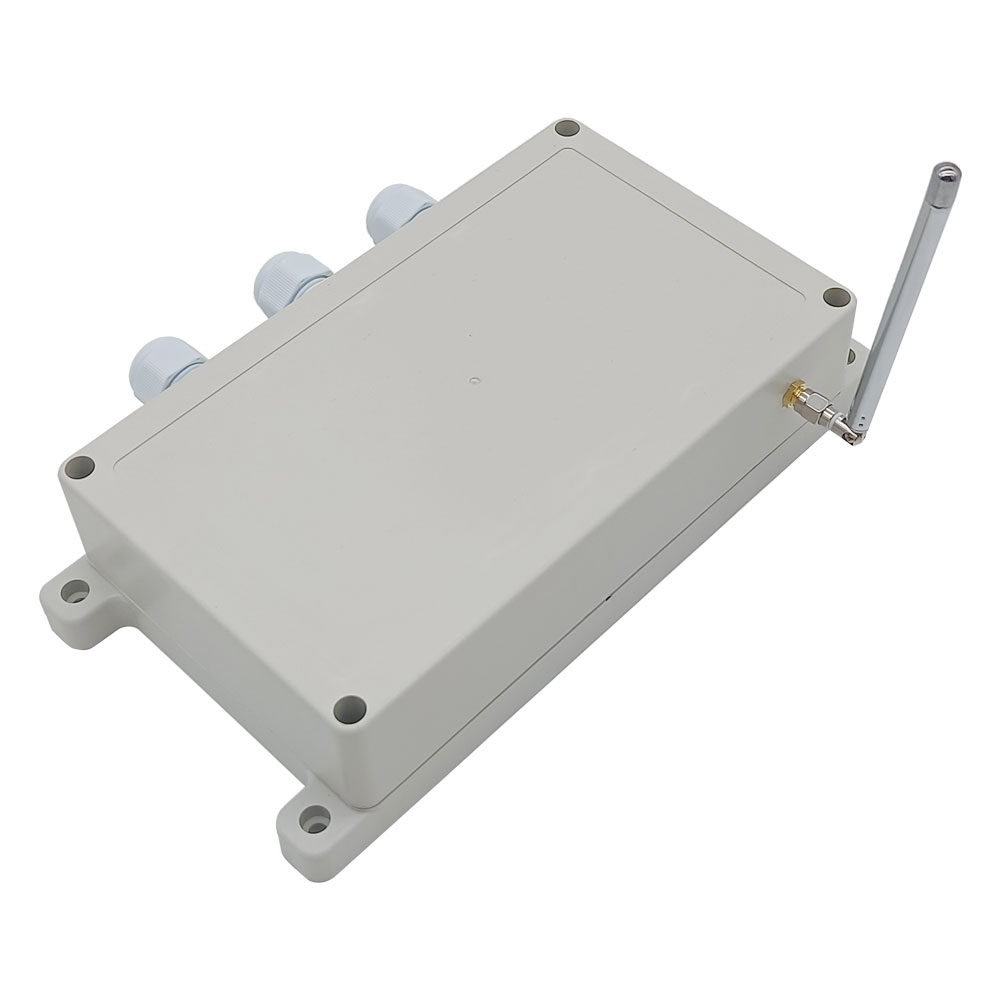

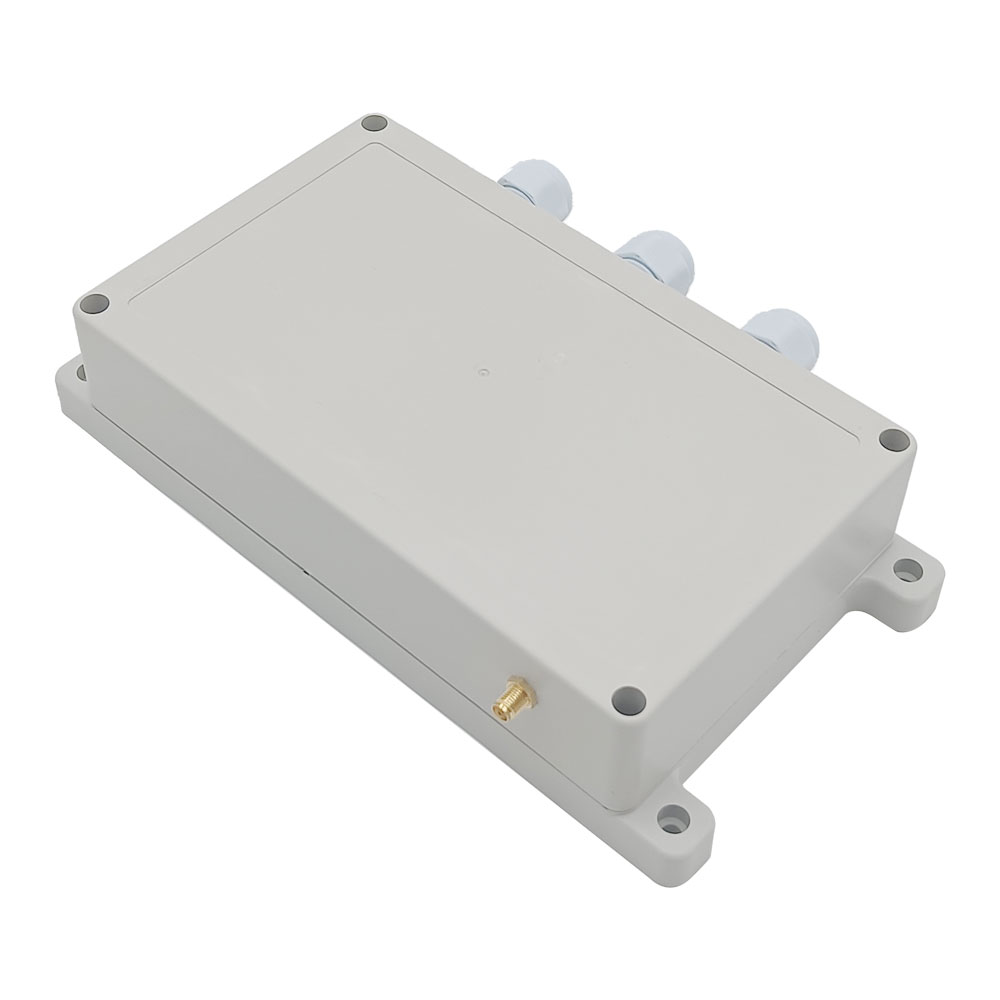

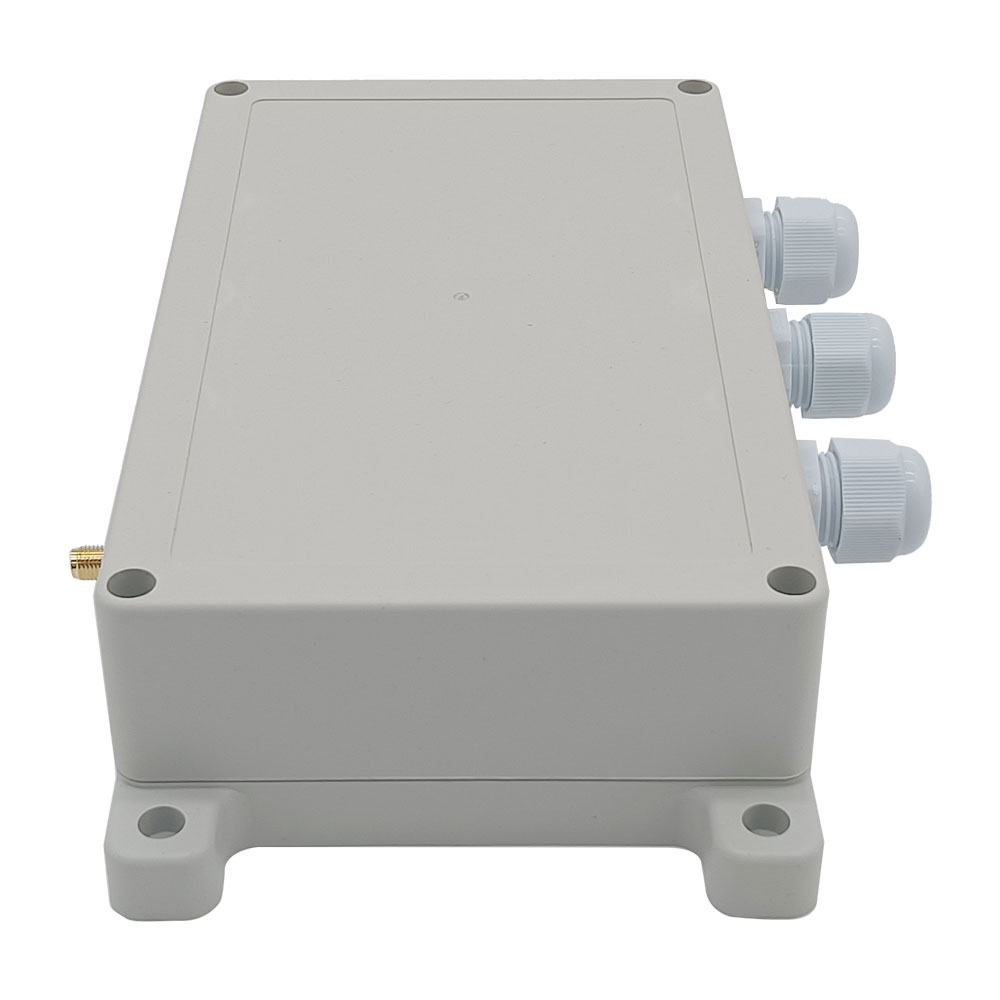

Waterproof: The receiver has waterproof case and waterproof connector; it
can be installed outdoors.
Universal input: Support 110V AC (110V~120V) used in US, Canada, etc, and
220V AC (220V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V,
220V or 240V.
High Power: Each channel can work at maximum load current 30A.

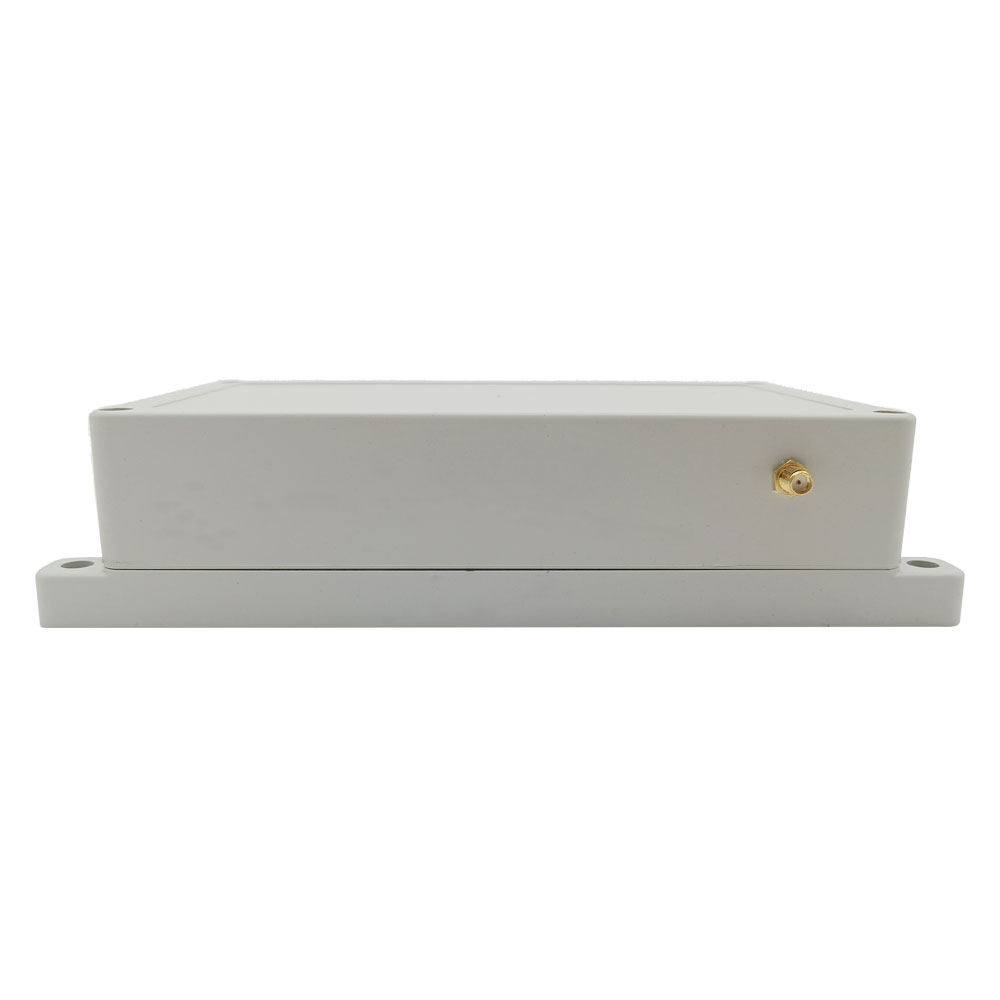

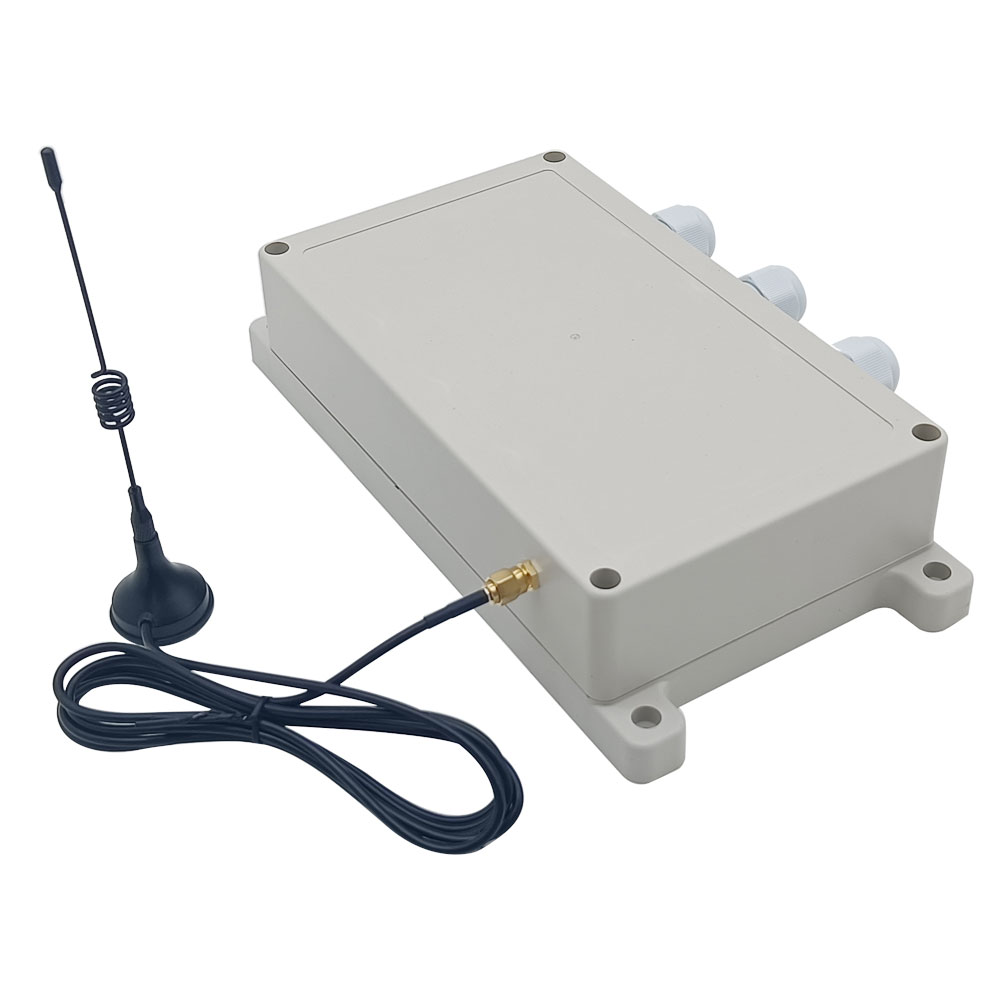

With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a
reliable working distance.
Wireless RF signal from the transmitter can pass through walls, floors,
doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers
simultaneously.
Two or more receivers may be used in the same area.
Feedback Function: The receiver and the transmitter have a Two-way working mode, so the
user can know the working status of the receiver by the transmitter.
Two-way working mode: When the receiver is successfully triggered by the
signal from the transmitter, it will immediately transmit a feedback signal
to the transmitter. When the transmitter receives this signal, it will send
out a buzzing sound to inform you that the receiver has been successfully
triggered.

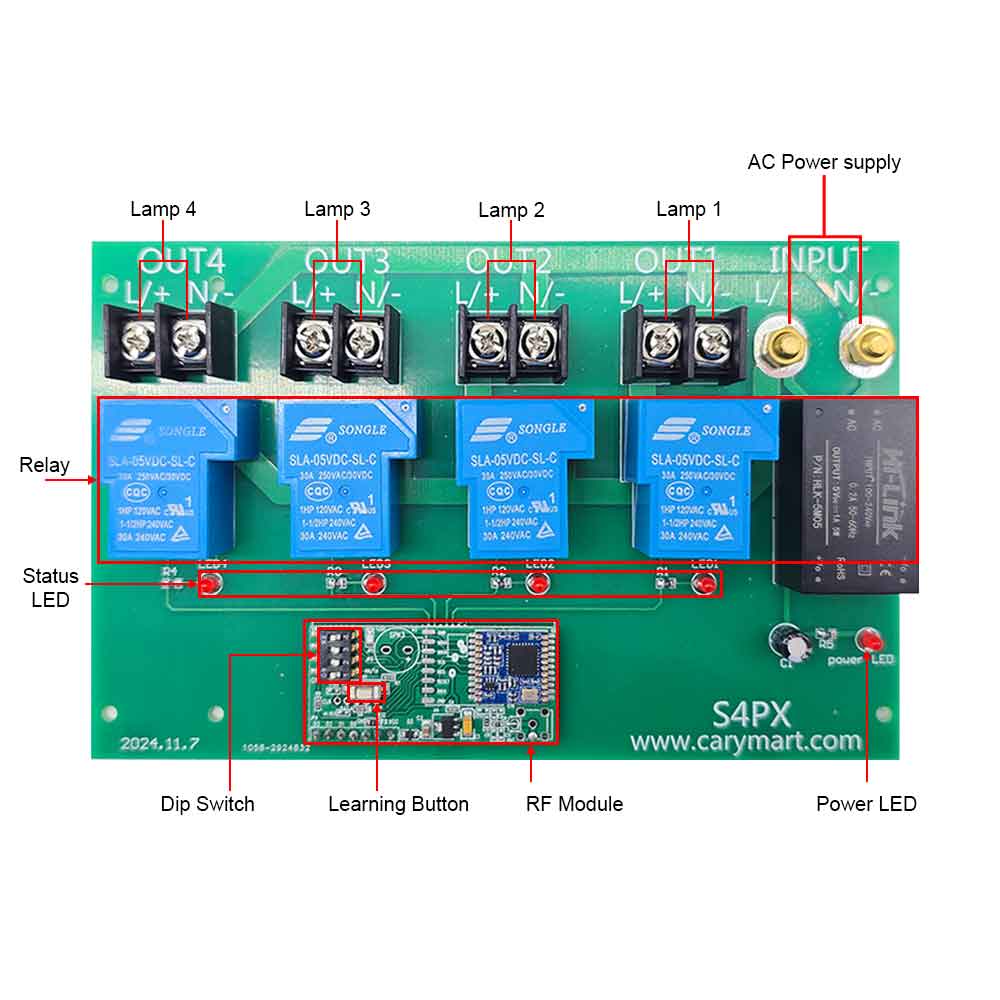

Receiver Parameters: Model: S4PXW-AC-ANT3
Operating Voltage: 110~240V AC (110V/120V/220V/240V)
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Channel: 4 CH
Output Type: 110~240V AC (110V/120V/220V/240V)
Maximum Load Current of Relay: 30A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
3 Selectable Working Modes: Self-locking, Momentary, Interlocking
Operating Temperature: -20 °C ~ +70 °C

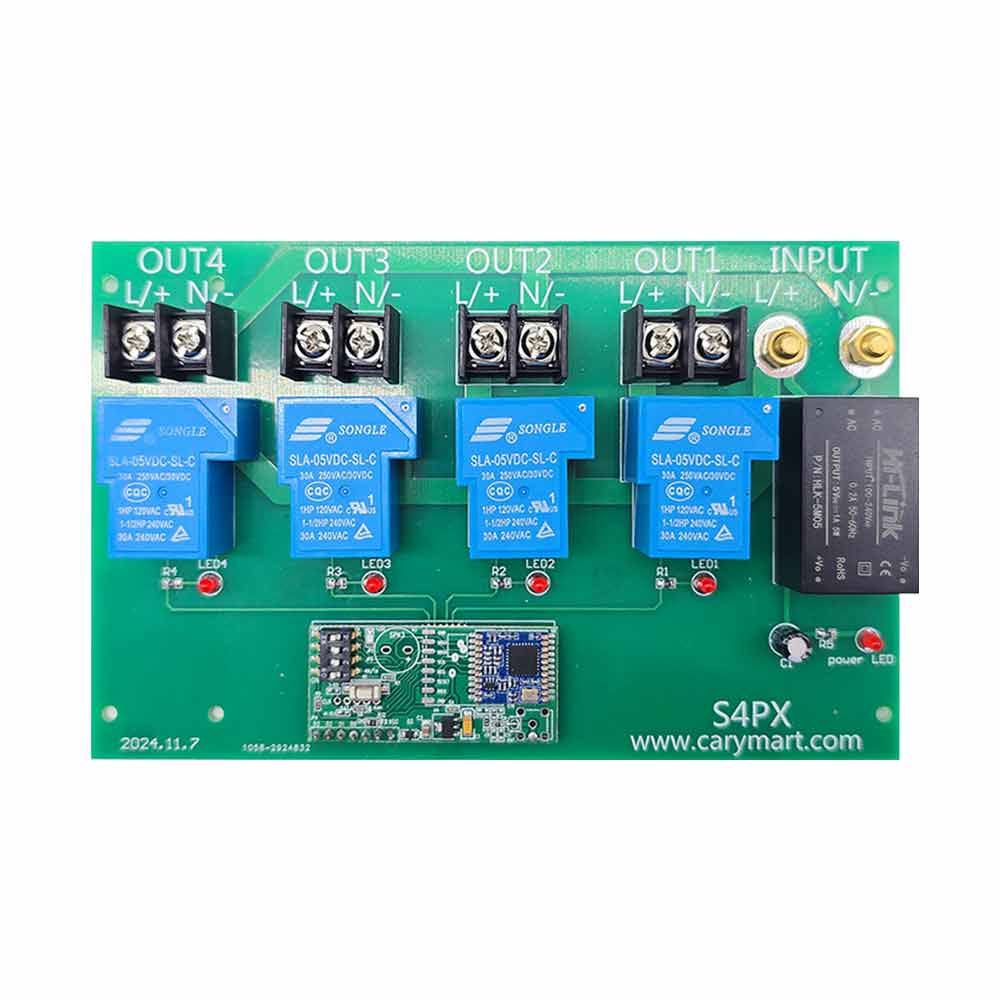

PCB size: 170 x 100 x 18 mm (6.7x 4.0 x 0.7 inches)

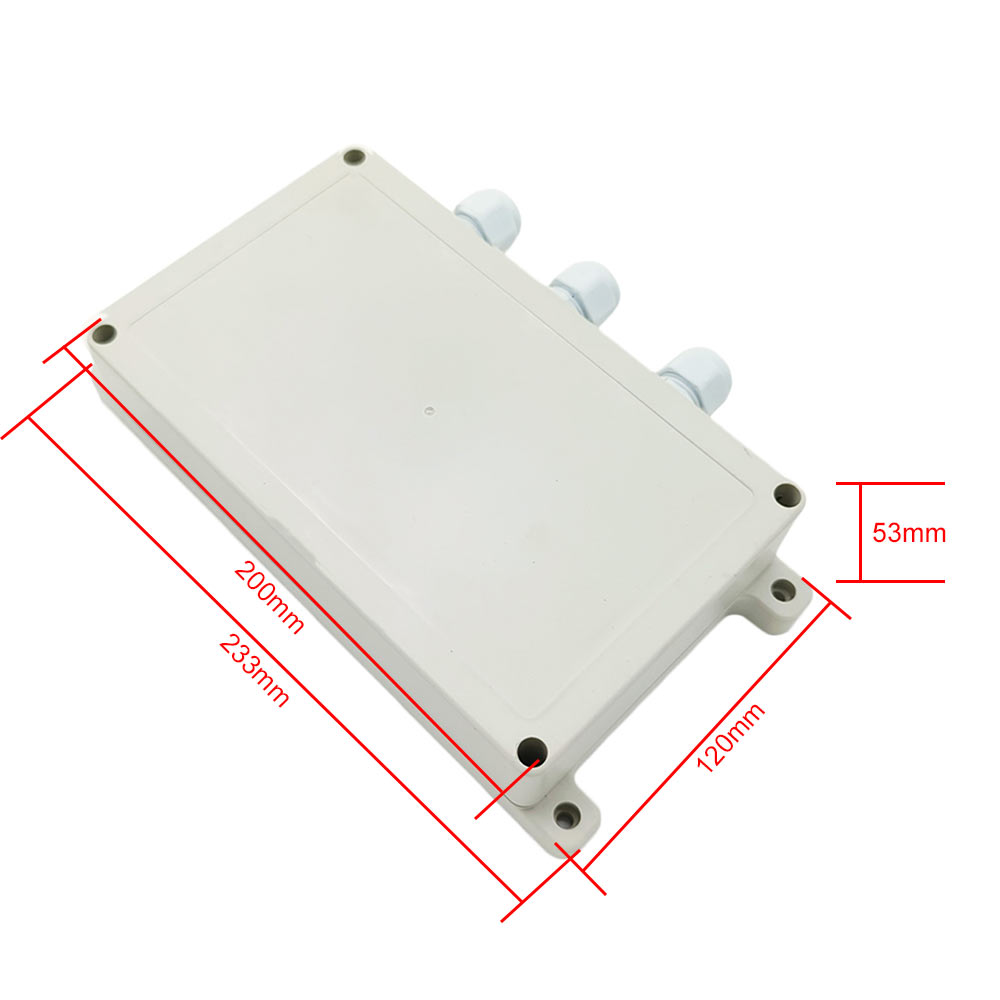

Case size: 200 x 120 x 53 mm (7.9x 4.0 x 2.0 inches)
Matching Transmitters: This receiver only works with 5000m transmitters, such as model
CC-4 (5000 Meter / 15000 feet range) or
CCW-4 (waterproof, 5000 Meter / 15000 feet range).
Super Long Working Range: The receiver and the transmitter form a wireless remote control switch,
the maximum working distance may reach 15000 feet or 5000 meters in an open
area.
The maximum working distance is a theoretical data, it shall be operated in
an open ground, no barriers, no interference. But in the practice, it will
be hindered by trees, walls or other construction, and will be interfered by
other wireless signals. Therefore, the actual working distance may not reach
this maximum distance.
Usage: The receiver can be used to control AC 110~240V (110V/120V/220V/240V)
equipments.

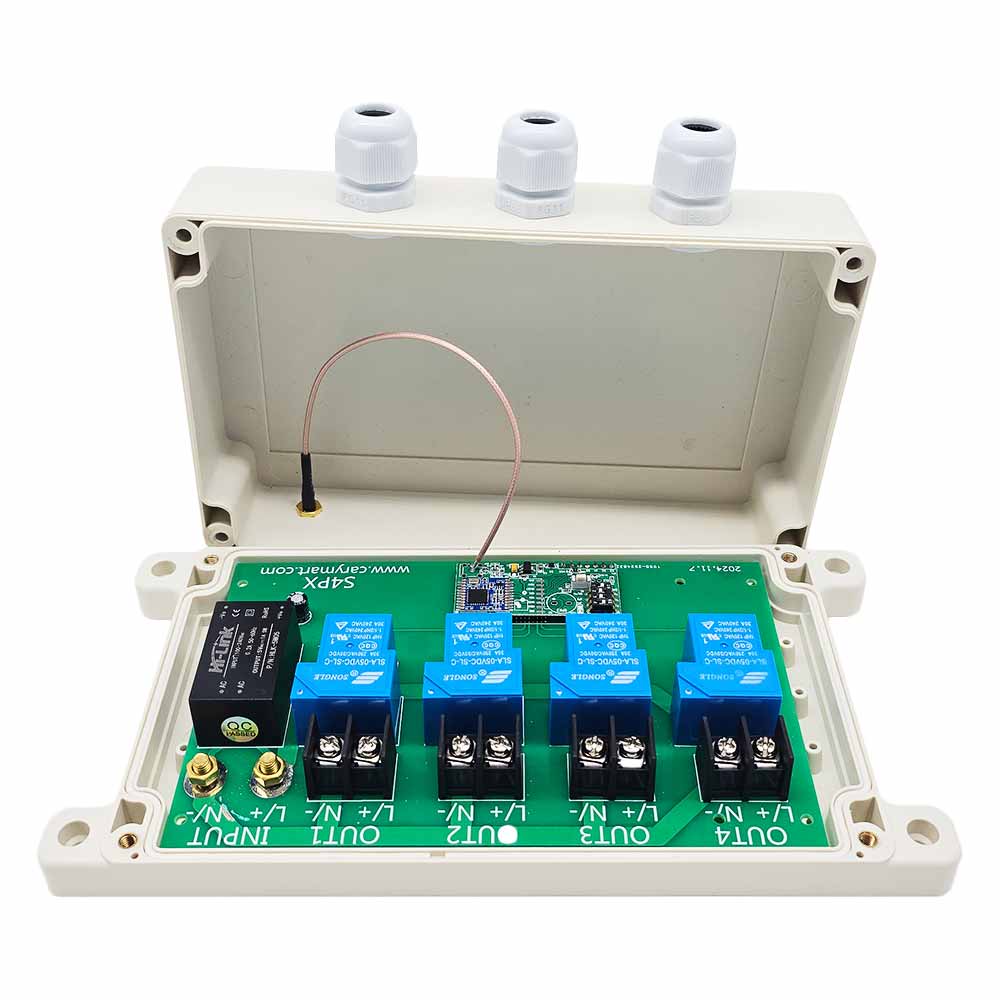

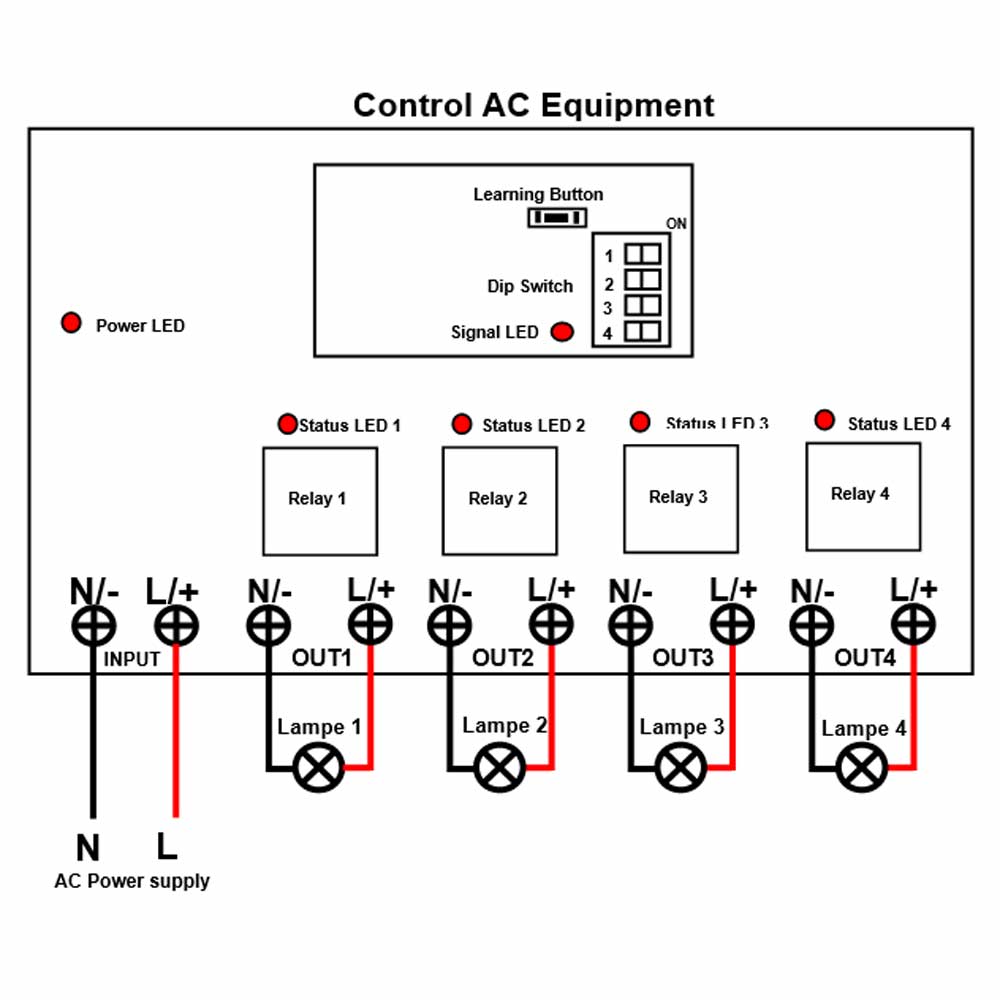

Wiring: If you want to control an AC 120V lamp, do as following:
1) Connect the live wire of AC power supply to terminal L/+, and connect
the neutral wire of AC power supply to terminal N/-.
2) Connect terminal L/+ to one side of AC lamp, connect terminal N/- to
the other side of AC lamp.
Setting different working modes: The receiver will be set in Self-locking mode before leaving the
factory, if you want to use another mode, please follow the following steps.
1) Setting Self-locking mode: Turn on the third bit of the dip switch.
The operation of Self-locking mode with the transmitter CC-4:
Press the button A on the transmitter: The relay 1 in the receiver is
activated, and the connected lamp 1 is turned on.
Press the button A again: The relay 1 is deactivated, and the connected lamp
1 is turned off.
Press the button B on the transmitter: The relay 2 in the receiver is
activated, and the connected lamp 2 is turned on.
Press the button B again: The relay 2 is deactivated, and the connected lamp
2 is turned off.
Press the button C on the transmitter: The relay 3 in the receiver is
activated, and the connected lamp 3 is turned on.
Press the button C again: The relay 3 is deactivated, and the connected lamp
3 is turned off.
Press the button D on the transmitter: The relay 4 in the receiver is
activated, and the connected lamp 4 is turned on.
Press the button D again: The relay 4 is deactivated, and the connected lamp
4 is turned off.
2) Setting Momentary mode: Turn off the second bit and the third bit of the
dip switch.
The operation of Momentary mode with the transmitter CC-4:
Press and hold the button A on the transmitter: The relay 1 in the receiver
is activated; Release the button A: The relay 1 is deactivated.
Press and hold the button B on the transmitter: The relay 2 in the receiver
is activated; Release the button B: The relay 2 is deactivated.
Press and hold the button C on the transmitter: The relay 3 in the receiver
is activated; Release the button C: The relay 3 is deactivated.
Press and hold the button D on the transmitter: The relay 4 in the receiver
is activated; Release the button D: The relay 4 is deactivated.
3) Setting Interlocking mode: Turn on the second bit of the dip switch.
The operation of Interlocking mode with the transmitter CC-4:
Press the button A on the transmitter: The relay 1 in the receiver is
activated, and other 3 relays are deactivated.
Press the button B on the transmitter: The relay 2 in the receiver is
activated, and other 3 relays are deactivated.
Press the button C on the transmitter: The relay 3 in the receiver is
activated, and other 3 relays are deactivated.
Press the button D on the transmitter: The relay 4 in the receiver is
activated, and other 3 relays are deactivated.
How to set the feedback function: You can turn on the fourth bit of the dip switch to activate the
feedback function; or turn off the fourth bit to deactivate the feedback
function.
Attention: The first bit of the dip switch needs
to be set in the ON position.
How to pair the transmitter to the receiver: Notice: We have paired the transmitter to the receiver before leaving
the factory.
1) Press the learning button in the receiver for 1-2 seconds, until the
signal LED on the receiver turns on, this indicates that the receiver enters
the learning status.
2) Press any one button on the transmitter, if signal LED flashes 3 times
quickly and then goes off, this indicates that the pairing is successful.
3) The receiver can learn several transmitters with different codes.
How to delete all transmitters codes stored in the receiver: We have paired the transmitter to the receiver, if you don’t want the
receiver to work with the transmitter, you can delete all transmitters codes
stored in the receiver.
Operation: Press and hold the learning button in the receiver for 3-4
seconds, the signal LED first comes on, then flashes 3 times quickly and
then goes out, at this time release the learning button, this indicates that
all stored codes have been successfully deleted successfully.
Package Include: 1 x Receiver: S4PXW-AC-ANT3
1 x User manual
