Application: This receiver is an electric device with 4 channels AC power output, it and
the transmitter form a wireless remote-control system. This system may be
used in all types of industry automation, agriculture, business, home,
factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can
remote control different AC equipment on land, water, and air, such as
lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters,
motors, fans, winches, curtains, blinds, linear actuators, electric solenoid
valves, and security alarm systems. The applications are endless.
Feature: Wireless remote control, easy to install.

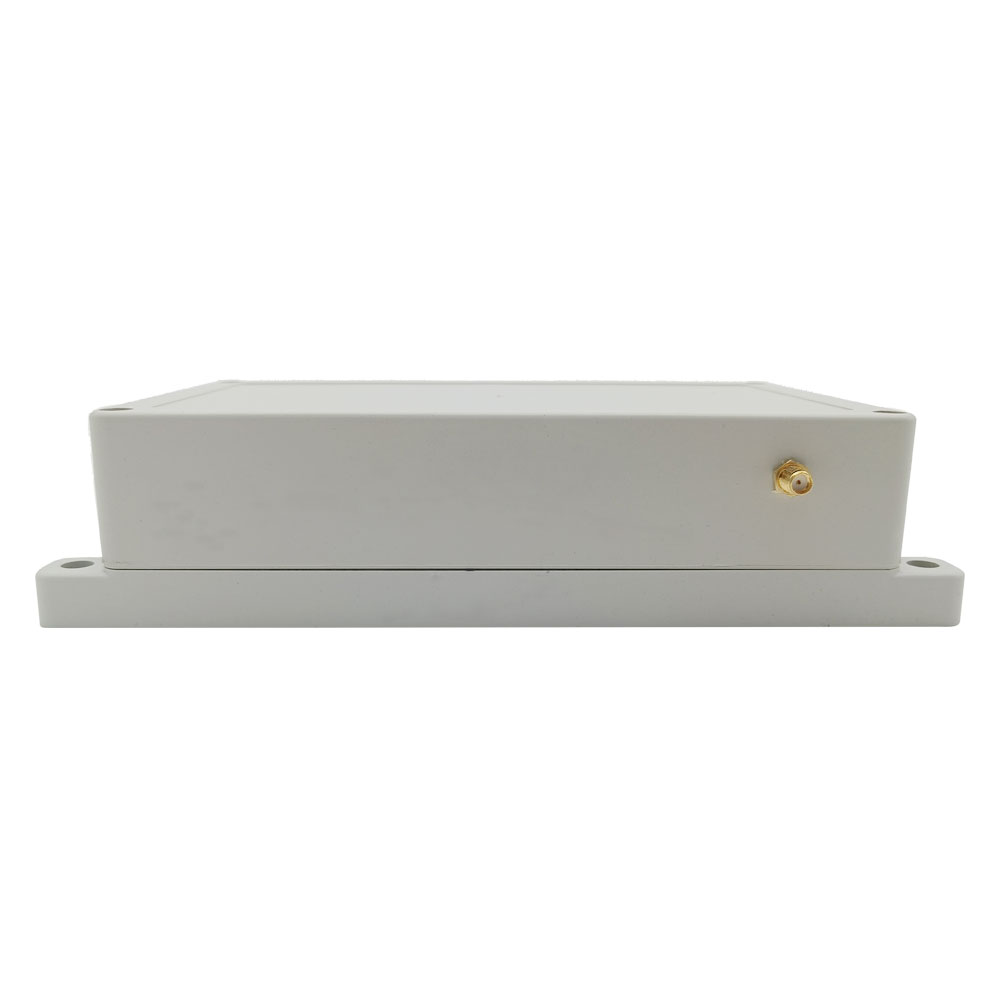

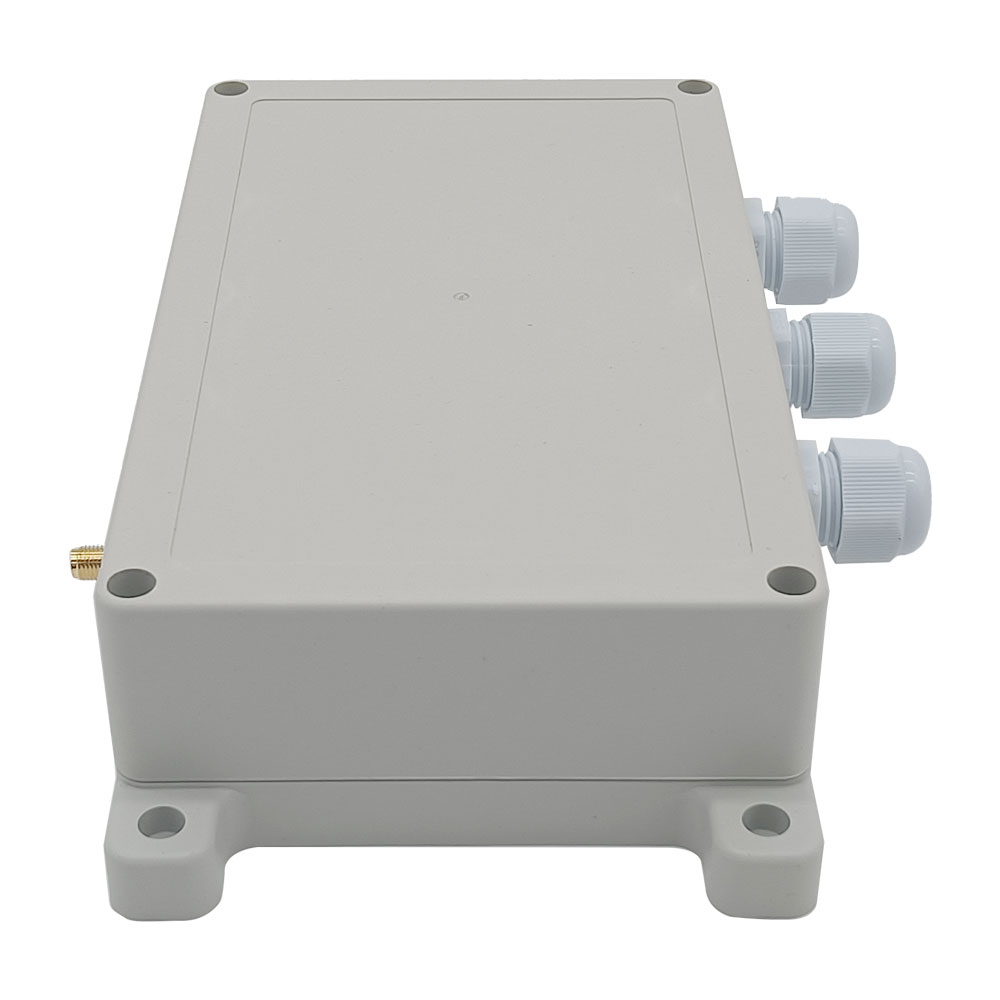

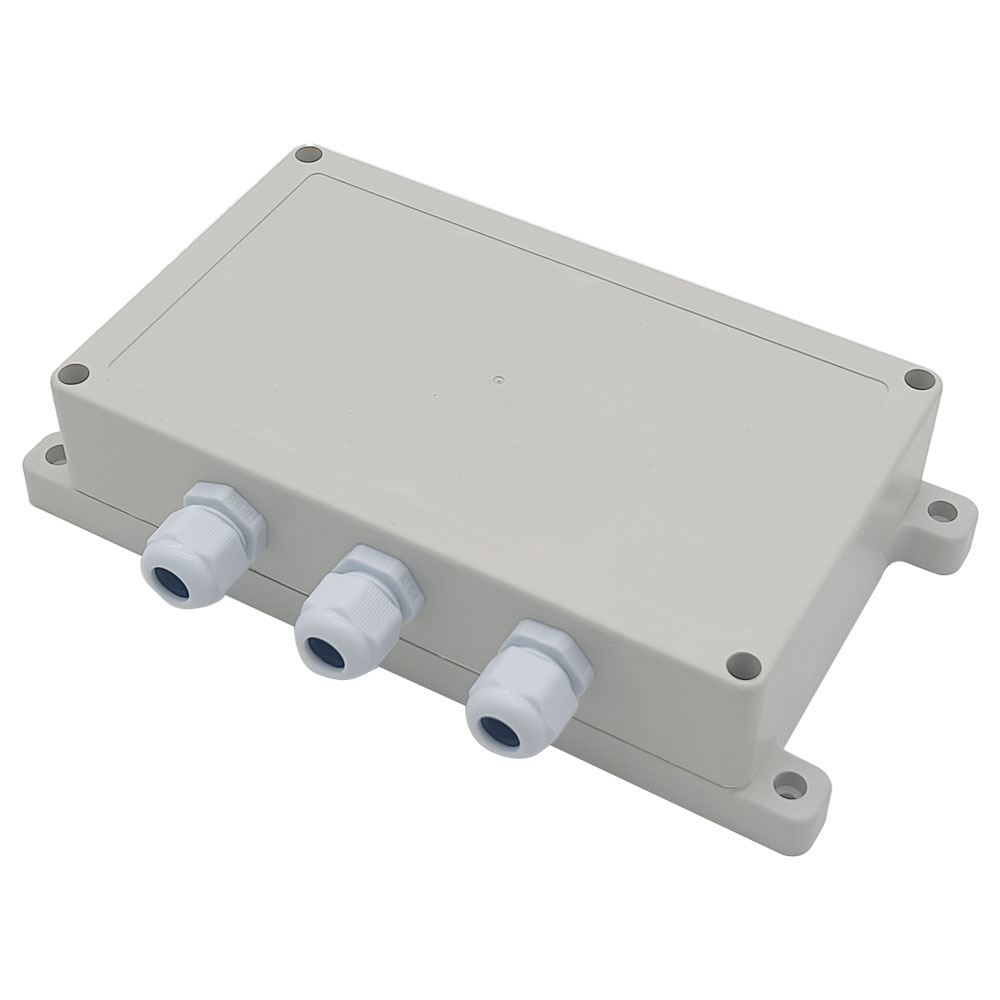

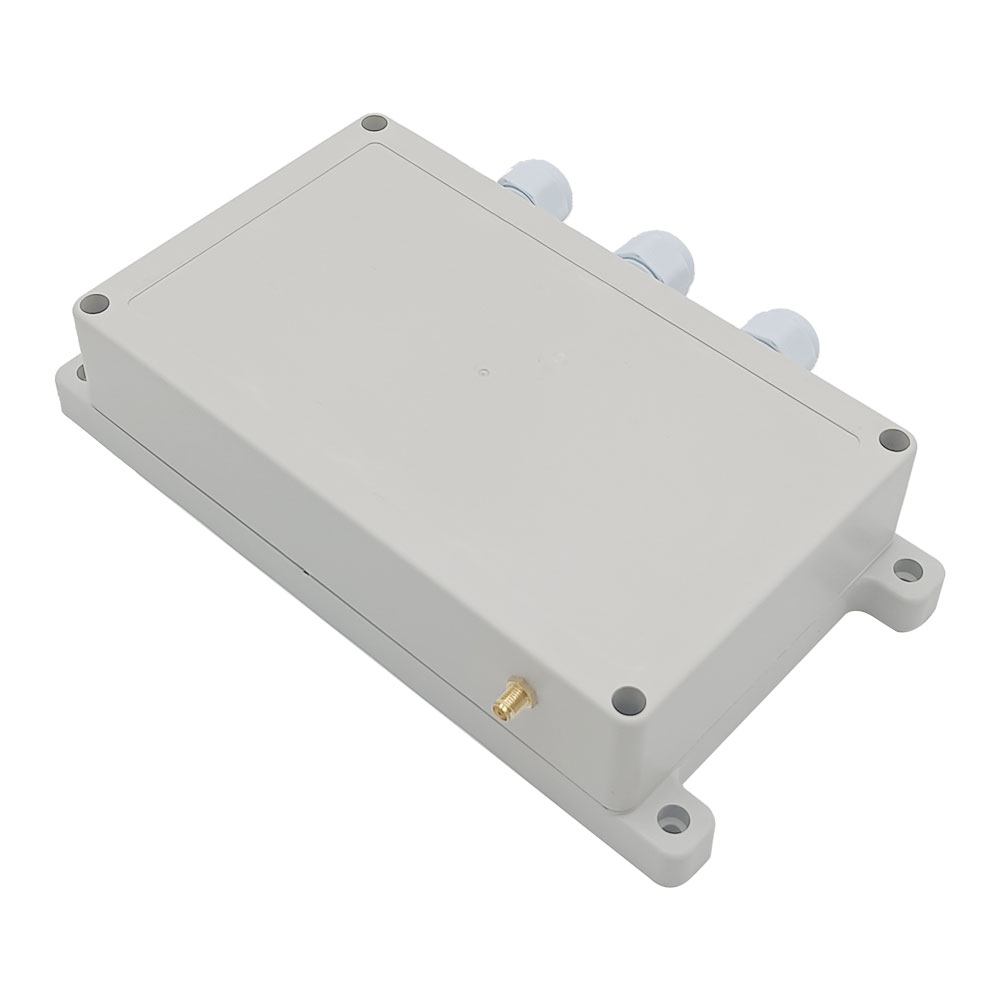

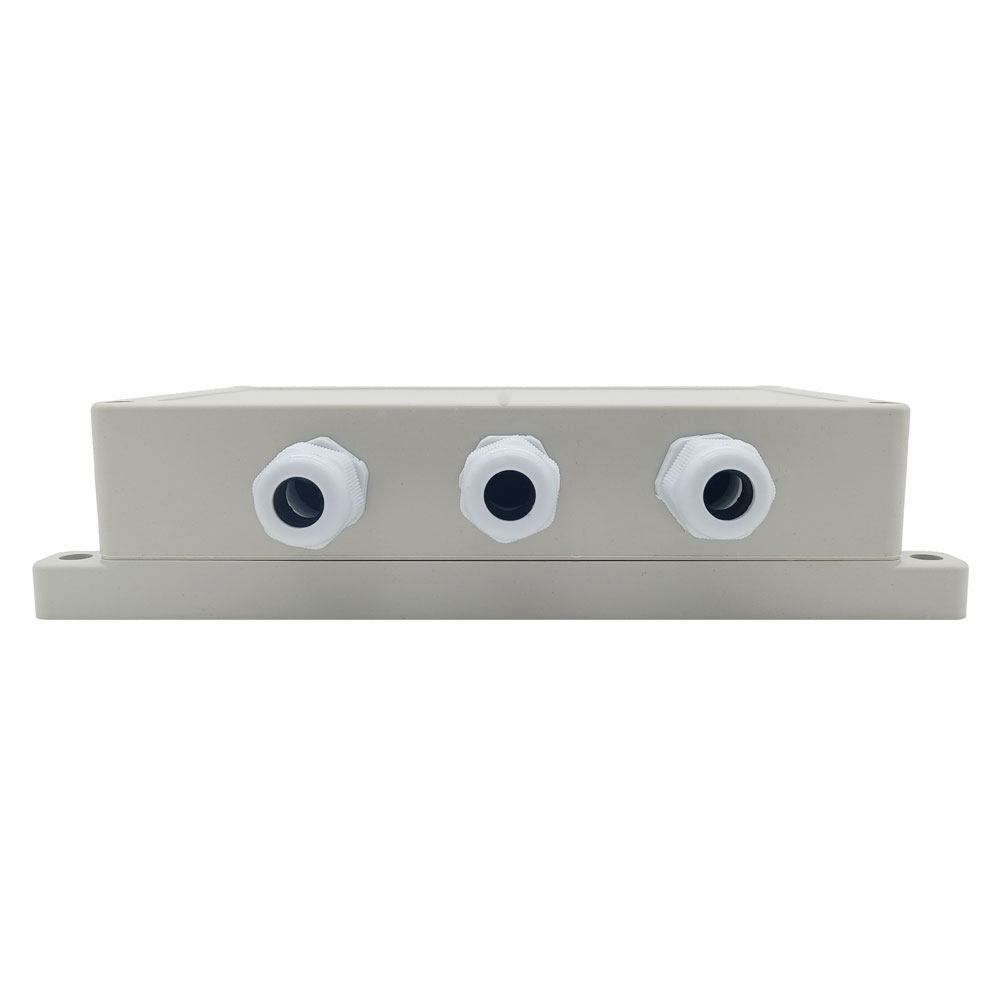

Waterproof: The receiver has waterproof case and waterproof connector; it
can be installed outdoors.
Universal input: Support 110V AC (110V~120V) used in US, Canada, etc, and
220V AC (220V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V,
220V or 240V.
High Power: Each channel can work at maximum load current 30A.

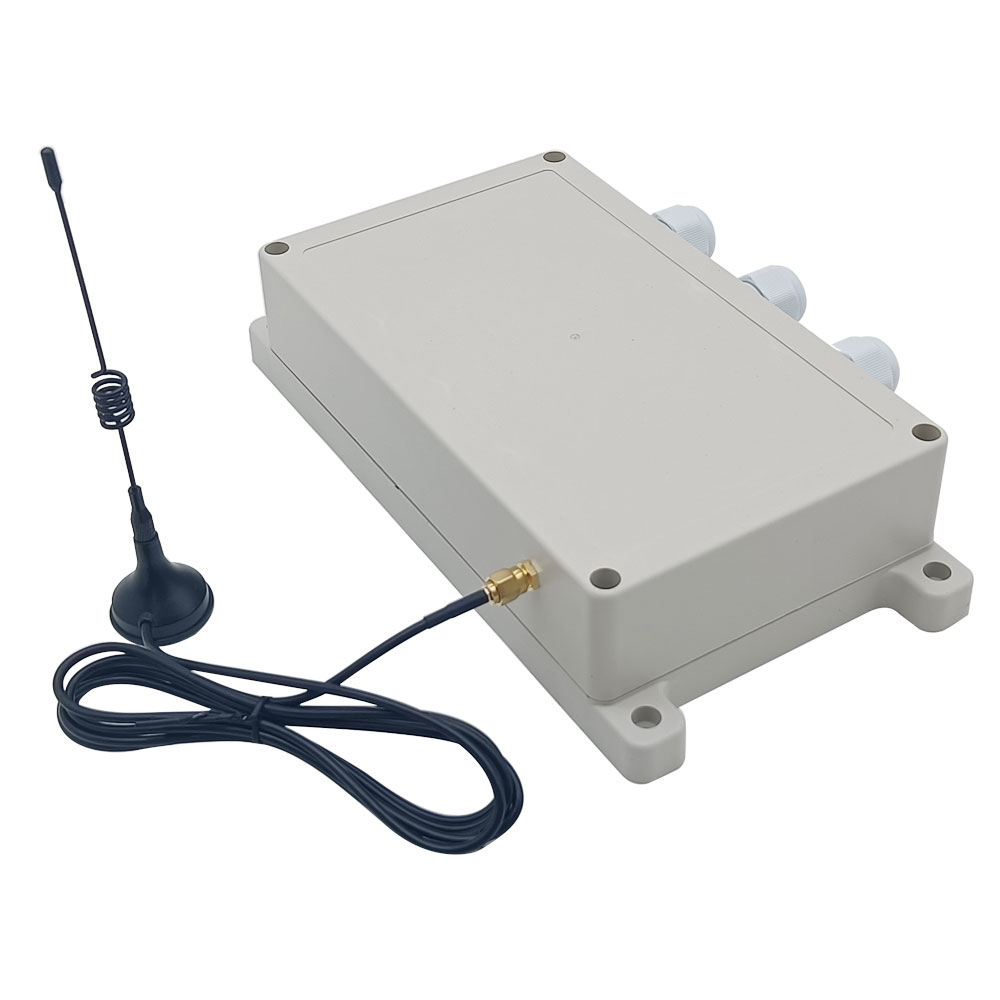

With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a
reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors,
doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers
simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters: Model: S4PX-AC-ANT3
Operating Voltage: 110~240V AC (110V/120V/220V/240V)
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Channel: 4 CH
Output Type: 110~240V AC (110V/120V/220V/240V)
Maximum Load Current of Relay: 30A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
8 Different Control Modes: Self-locking, Momentary, Interlocking, and 5
Mixed modes
Operating Temperature: -20 °C ~ +70 °C

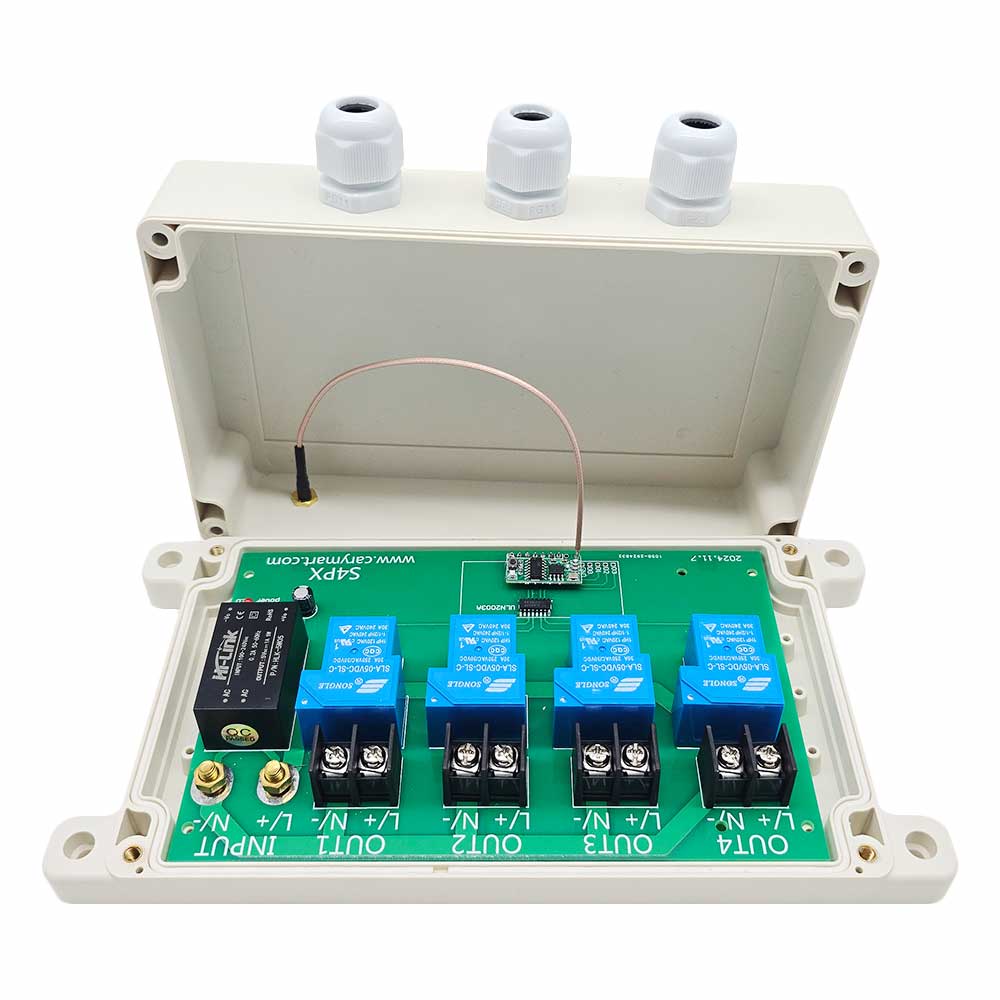

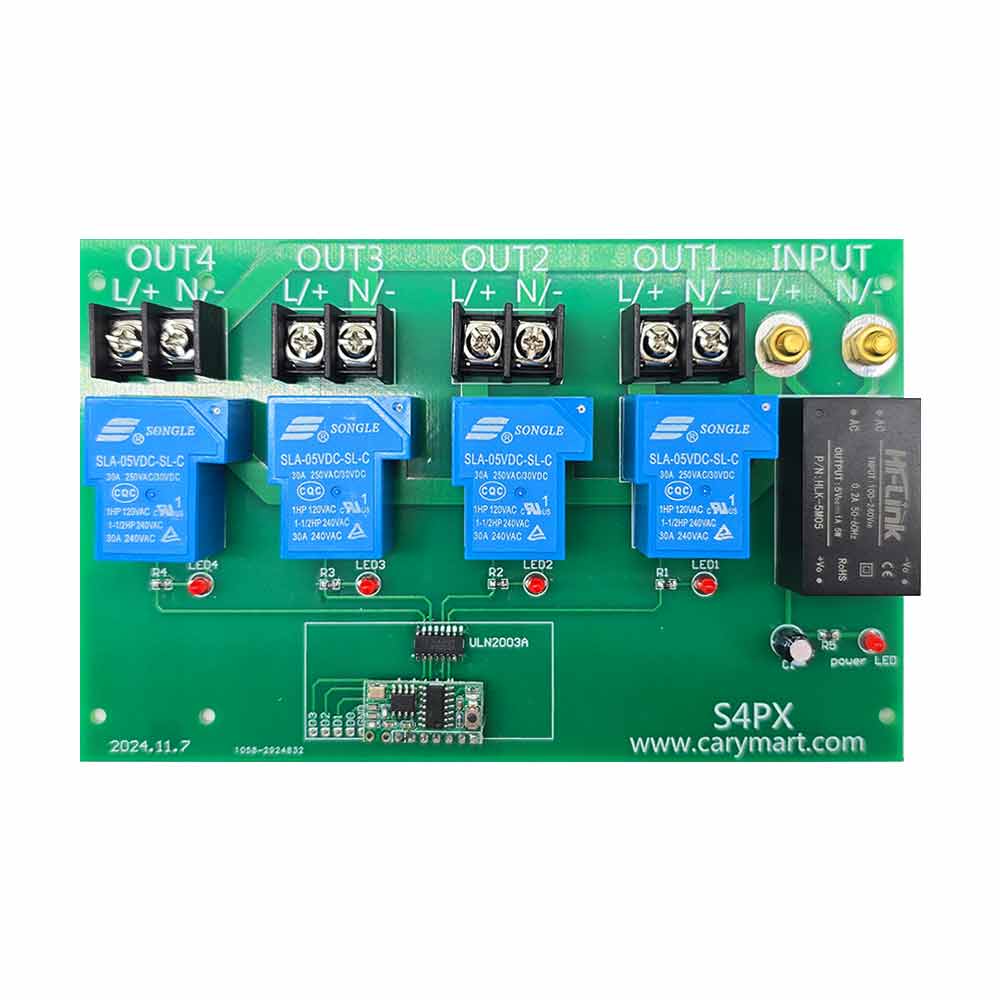

PCB size: 170 x 100 x 18 mm (6.7x 4.0 x 0.7 inches)

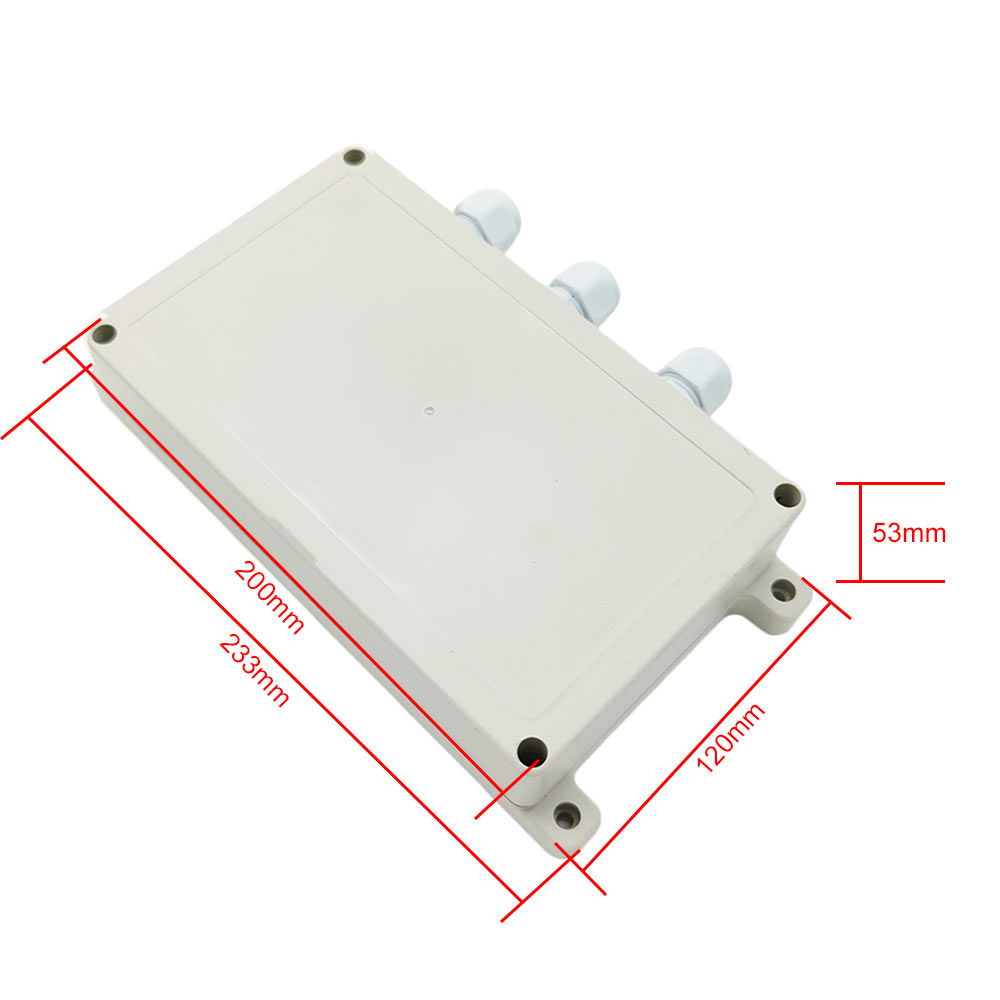

Case size: 200 x 120 x 53 mm (7.9x 4.0 x 2.0 inches)
Matching Transmitters: The receiver can work with different transmitters, such as model
CWB-4 (50M, waterproof),
C-4 (100 meters / 300 feet range),
CV-4 /
CP-4 (500 meters / 1500 feet range) and
CB-4 (1000 meters / 3000 feet range) etc.
Working Range: With a transmitter (such as C-4) to form a complete set, the maximum working
distance can reach 300 feet or 100 meters in an open area.
The maximum working distance is a theoretical data, it shall be operated in
an open ground, no barriers, no interference. But in the practice, it will
be hindered by trees, walls, or other construction, and will be interfered
by other wireless signals. Therefore, the actual working distance may not
reach this maximum distance.
If you need a longer working distance, you can replace the antenna on the
receiver, or use an RF signal repeater, or use a powerful transmitter, such
as a CB-4 transmitter.
Usage: The receiver can be used to control AC 110~240V (110V/120V/220V/240V)
equipments.

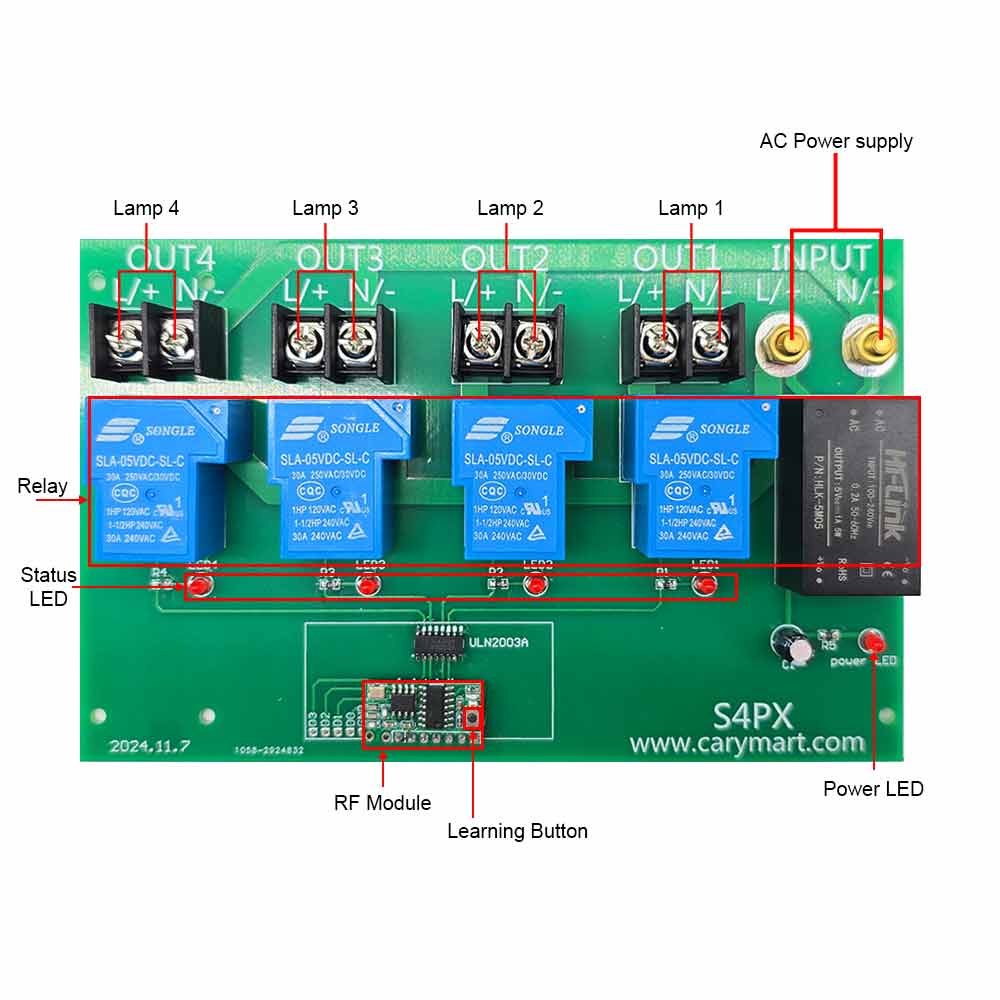

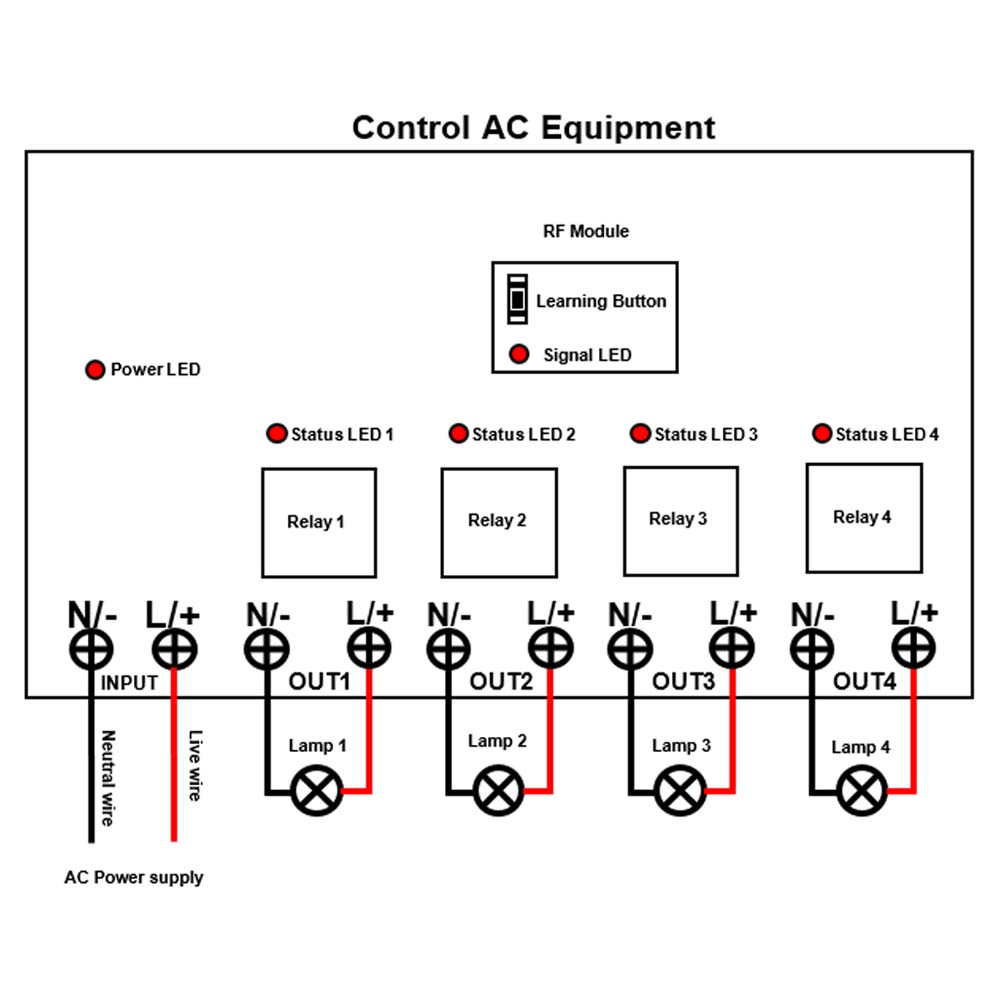

Wiring: If you want to control an AC 120V lamp, do as following:
1) Connect the live wire of AC power supply to terminal L/+ of INPUT, and
connect the neutral wire of AC power supply to terminal N/- of INPUT.
2) Connect the live pole of AC lamp to terminal L/+ of OUT, and connect
the neutral pole of AC lamp to terminal N/- of OUT.
Setting different control modes: The receiver will be set in Self-locking mode before leaving the factory, if
you want to use another mode, please follow the following steps.
1) Setting Momentary mode: Press the learning button in the receiver 2
times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter C-4:
Press and hold the button 1 on the transmitter: The terminal OUT1 of the
receiver outputs AC power, and the connected lamp 1 is turned on.
Release the button 1: The terminal OUT1 of the receiver stops outputting,
and the connected lamp 1 is turned off.
……
Press and hold the button 4 on the transmitter: The terminal OUT4 of the
receiver outputs AC power, and the connected lamp 4 is turned on.
Release the button 4: The terminal OUT4 of the receiver stops outputting,
and the connected lamp 4 is turned off.
2) Setting Self-locking mode: Press the learning button in the receiver 3
times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter C-4:
Press the button 1 on the transmitter: The terminal OUT1 of the receiver
outputs AC power, and the connected lamp 1 is turned on.
Press the button 1 again: The terminal OUT1 of the receiver stops
outputting, and the connected lamp 1 is turned off.
……
Press the button 4 on the transmitter: The terminal OUT4 of the receiver
outputs AC power, and the connected lamp 4 is turned on.
Press the button 4 again: The terminal OUT4 of the receiver stops
outputting, and the connected lamp 4 is turned off.
3) Setting Interlocking mode: Press the learning button in the receiver 4
times, signal LED continuously flashes 4 times and then goes off.
The operation of Interlocking mode with the transmitter C-4:
Press the button 1 on the transmitter: The terminal OUT1 of the receiver
outputs AC power, and the connected lamp 1 is turned on. Other 3 terminals
stop outputting, and other 3 connected lamps are turned off.
……
Press the button 4 on the transmitter: The terminal OUT4 of the receiver
outputs AC power, and the connected lamp 4 is turned on. Other 3 terminals
stop outputting, and other 3 connected lamps are turned off.
4) Setting Momentary (Channel 1) + Self-locking (Channels 2~4) mode: Press
the learning button in the receiver module 5 times, signal LED continuously
flashes 5 times and then goes off.
5) Setting Momentary (Channels 1~3) + Self-locking (Channel 4) mode: Press
the learning button in the receiver module 6 times, signal LED continuously
flashes 6 times and then goes off.
6) Setting Momentary (Channels 1~2) + Self-locking (Channel 3~4) mode: Press
the learning button in the receiver module 7 times, signal LED continuously
flashes 7 times and then goes off.
7) Setting Momentary (Channels 1~2) + Interlocking (Channel 3~4) mode: Press
the learning button in the receiver module 8 times, signal LED continuously
flashes 8 times and then goes off.
8) Setting Self-locking (Channels 1~2) + Interlocking (Channel 3~4) mode:
Press the learning button in the receiver module 9 times, signal LED
continuously flashes 9 times and then goes off.
How to pair the transmitter to the receiver: Notice: We have paired the transmitter to the receiver before leaving the
factory.
1) Press the learning button once in the receiver, signal LED on the
receiver flashes one time and then stays on, this indicates that the
receiver enters the learning status.
2) Press button 1 on transmitter, if the signal LED flashes one time, this
indicates that the pairing with button 1 is successful. Then press button 2
on transmitter, if the signal LED flashes one time, this indicates that the
pairing with button 2 is successful. Then press button 3 on transmitter, if
the signal LED flashes one time, this indicates that the pairing with button
3 is successful. Then press button 4 on transmitter, if the signal LED
flashes one time, this indicates that the pairing with button 4 is
successful.
3) Press the learning button in the receiver again for 1-2 seconds, signal
LED turns off, this indicates that the receiver exits the learning status.
4) The receiver can learn several transmitters with different codes.
How to delete all transmitters codes stored in the receiver: Notice: We have paired the transmitter to the receiver, if you don’t want
the receiver to work with the transmitter, you can delete all transmitters
codes stored in the receiver.
Operation: Press the learning button in the receiver 10 times and then
release the learning button, signal LED flashes 10 times quickly and then
goes off, this indicates that all stored codes have been deleted
successfully.
Package Include: 1 x Receiver: S4PX-AC-ANT3
1 x User manual
