PCB size: 68mm x 48mm x 20mm
Case size: 75mm x 55mm x 30mm
Transmitter Parameters:
Model No.: 0021000 (C-1)
With Sliding Cover: Slide up when it doesn’t work (to protect the button). Slide down the button will appear.
Channel/Button: 1
Button Symbol: no symbol
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 6mA
Operating Frequency: 433.92Mhz
Encoding Chip: PT2262 / PT2264 / SC2262
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 100m / 300ft (theoretically)
Modulation Mode: ASK
Unit Size: 58mm x 39mm x 16mm
Matching Transmitters:

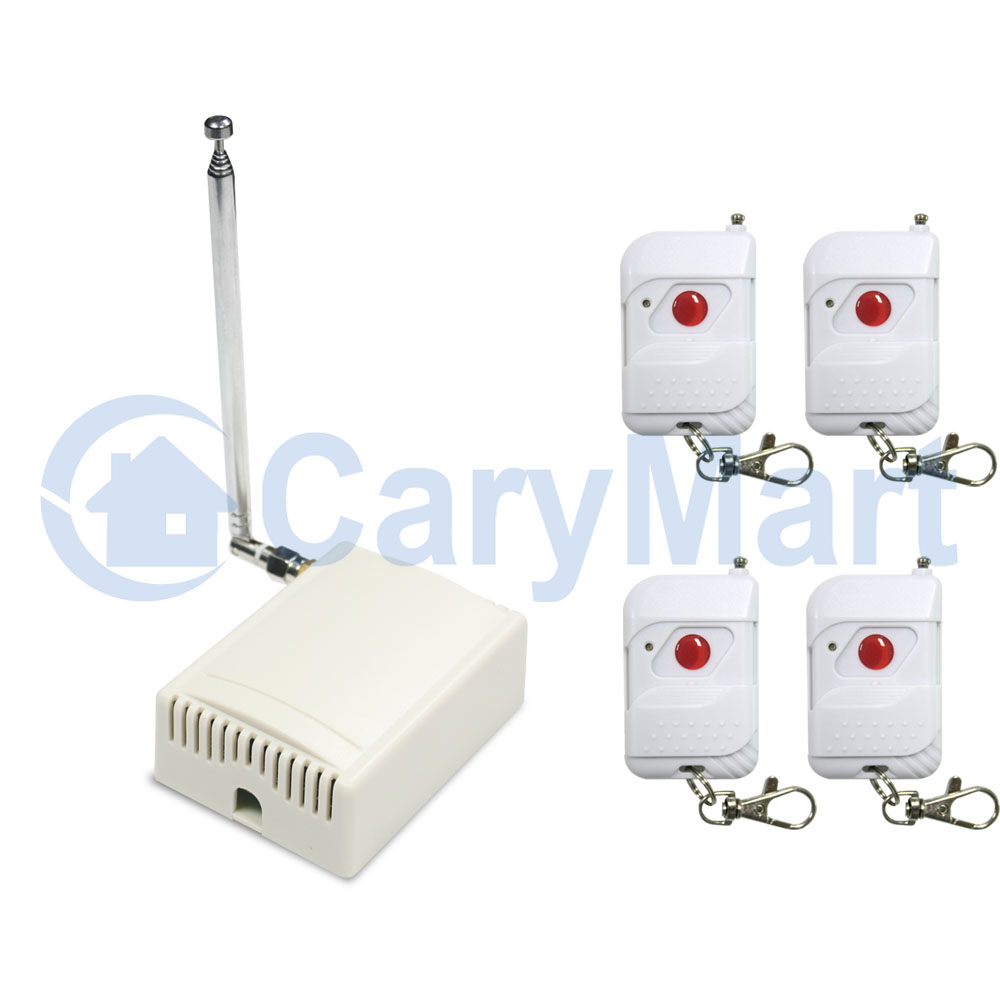

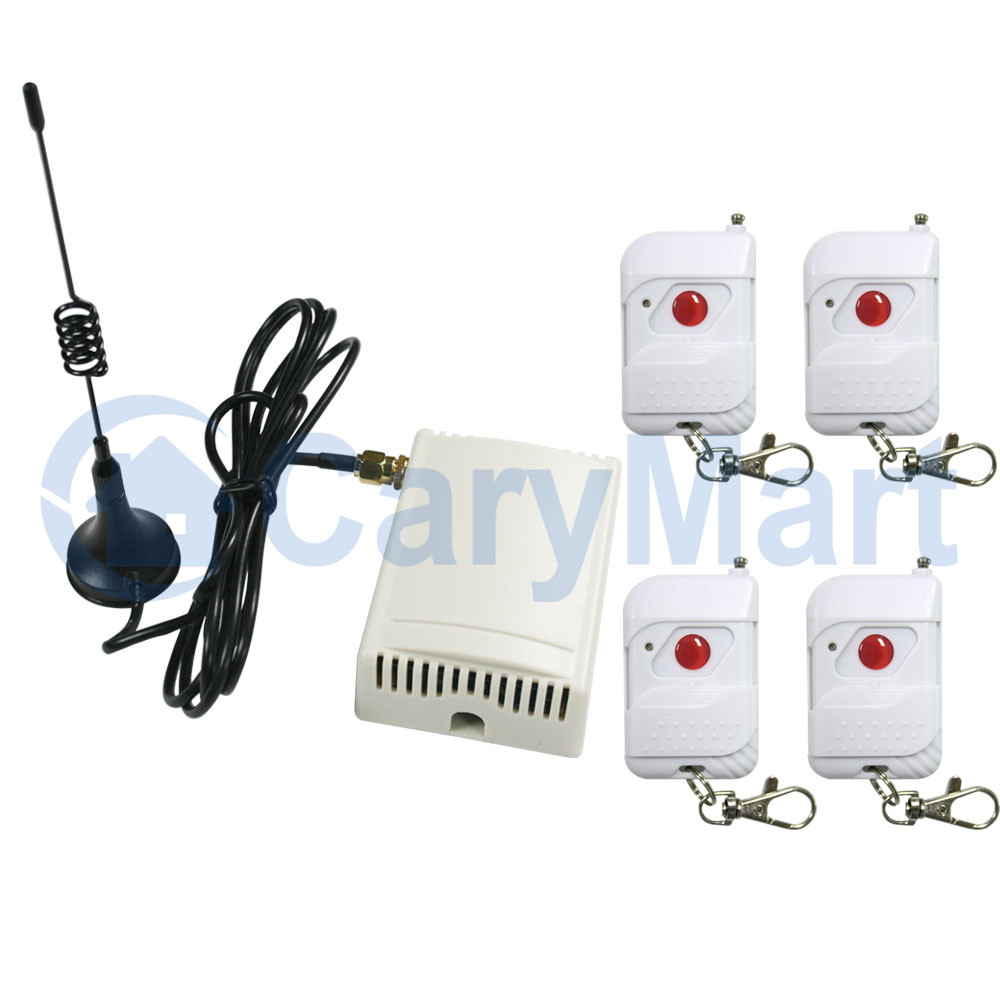

The receiver can work with different transmitters, such as model CWB-4 (50M,
waterproof), C-4 (100M) or CB-4 (1000M) etc.
Working Range:
With a transmitter (such as C-1) to form a complete set, the maximum working
distance can reach 100M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an
open ground, no barriers, no any interference. But in the practice, it will be
hindered by trees, walls or other constructions, and will be interfered by other
wireless signals. Therefore, the actual distance may not reach this maximum
working distance.
If you want to have a further working range, you can use a powerful transmitter,
such as CB-4 transmitters.
Usage (with the transmitter C-1):
The receiver can be used to control both DC 0~28V and AC 110~240V equipments.

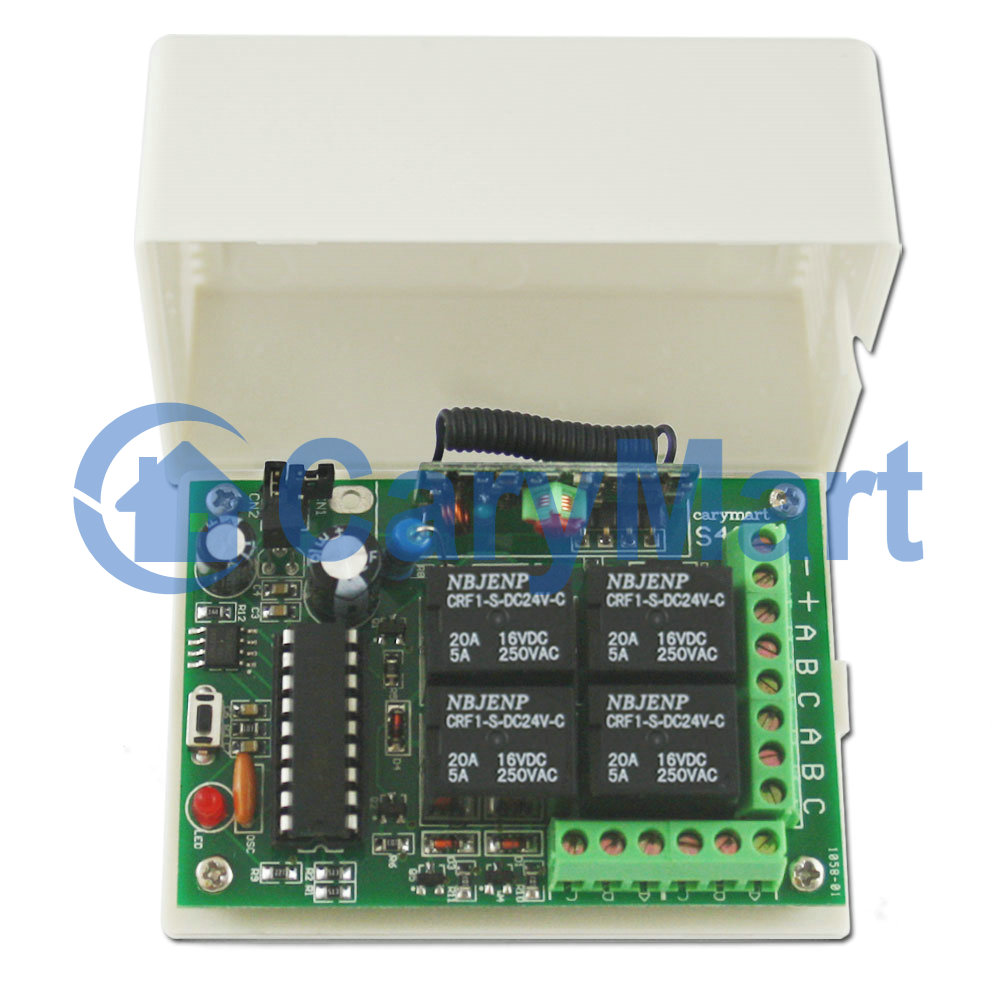

Notice: The receiver is relay output, not DC/AC power output. Initial state of

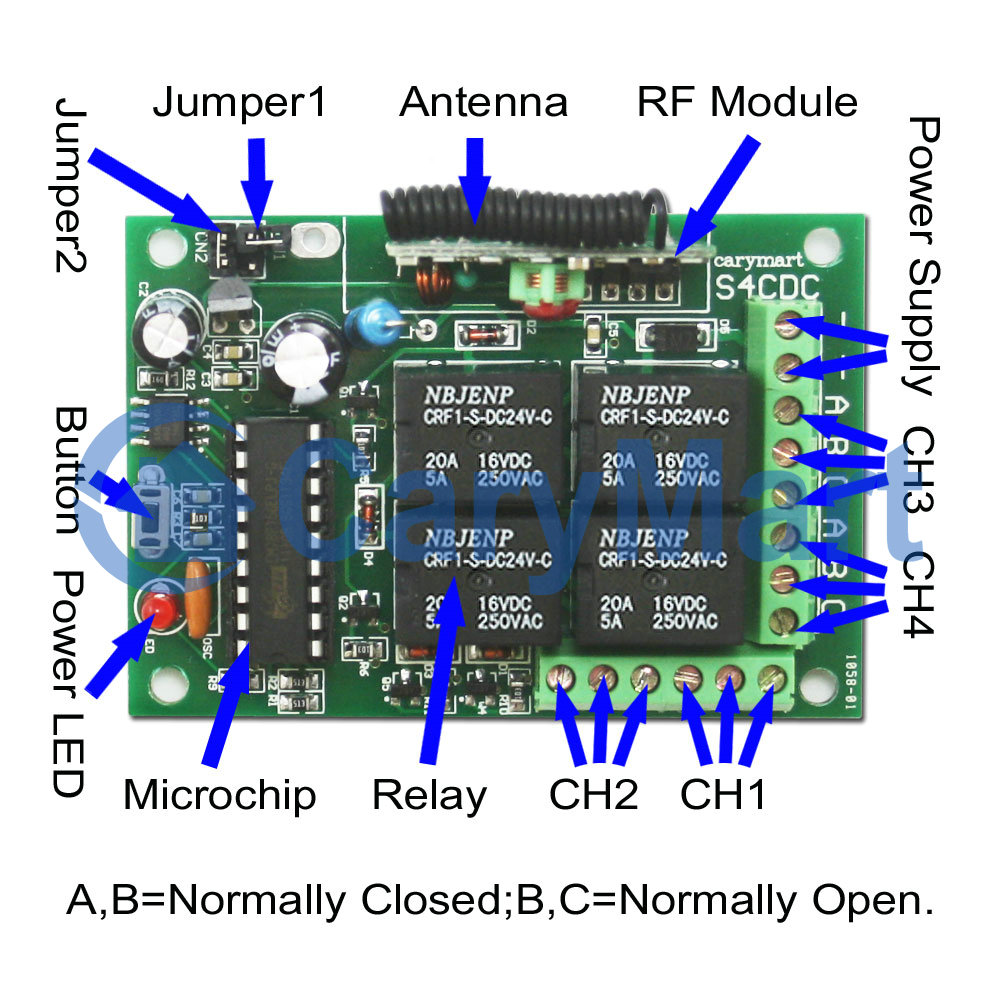

relay output terminals: Terminals B and C are Normally Open; Terminals A and B
are Normally Closed.

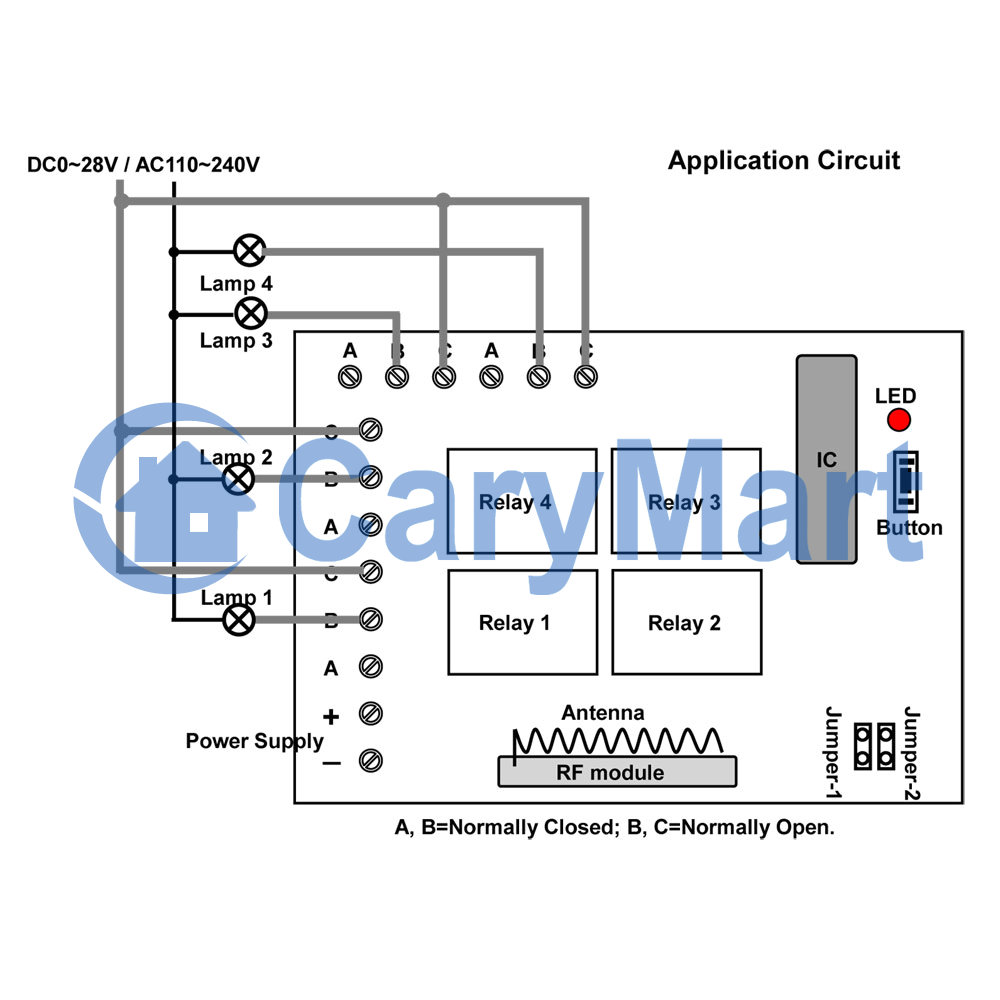

Wiring:
1) If you want to control a DC 12V lamp, do as following:
1.1 Connect the positive pole of DC power supply to terminal “L / +” of INPUT,
and connect the negative pole of DC power supply to terminal “N / -” of INPUT.
1.2 Connect terminal B to the positive pole of DC power supply, connect terminal
C to the positive pole of DC lamp, and connect the negative pole of DC lamp to
the negative pole of DC power supply.
2) If you want to control an AC 220V lamp, do as following:
2.1 Connect the positive pole of DC power supply to terminal “L / +” of INPUT,
and connect the negative pole of DC power supply to terminal “N / -” of INPUT.
2.2 Connect terminal B to the live wire of AC power supply, connect terminal C
to one side of AC lamp, and connect another side of AC lamp to the neutral wire
of AC power supply.
Setting different control modes:
We have set the receiver as Self-locking control mode before delivery. If you
want to use other control modes, do as following operation:
1) Setting Self-locking mode: Only connect Jumper-2.
Mode Self-locking (working with transmitter C-1): Press -> On; Press again ->
Off.
Press button of the transmitter 1: The relay 1 is activated (connect the
terminals B and C, disconnect the terminals A and B), and the lamp 1 is turned
on.
Press button of the transmitter 1 again: The relay 1 is deactivated (disconnect the terminals B and
C, connect the terminals A and B), and the lamp 1 is turned off.
Press button of the transmitter 2: The relay 2 is activated (connect the
terminals B and C, disconnect the terminals A and B), and the lamp 2 is turned
on.
Press button of the transmitter 2 again: The relay 2 is deactivated (disconnect the terminals B and
C, connect the terminals A and B), and the lamp 2 is turned off.
Press button of the transmitter 3: The relay 3 is activated (connect the
terminals B and C, disconnect the terminals A and B), and the lamp 3 is turned
on.
Press button of the transmitter 3 again: The relay 3 is deactivated (disconnect the terminals B and
C, connect the terminals A and B), and the lamp 3 is turned off.
Press button of the transmitter 4: The relay 4 is activated (connect the
terminals B and C, disconnect the terminals A and B), and the lamp 4 is turned
on.
Press button of the transmitter 4 again: The relay 4 is deactivated (disconnect the terminals B and
C, connect the terminals A and B), and the lamp 4 is turned off.
2) Setting Momentary mode: Only connect Jumper-1.
Mode Momentary (working with transmitter C-1): Press and hold -> On; Release ->
Off.
Press and hold button of the transmitter 1: The relay 1 is activated (connect
the terminals B and C, disconnect the terminals A and B), and the lamp 1 is
turned on.
Release button: The relay 1 is deactivated (disconnect the terminals B and C,
connect the terminals A and B), and the lamp 1 is turned off.
Press and hold button of the transmitter 2: The relay 2 is activated (connect
the terminals B and C, disconnect the terminals A and B), and the lamp 2 is
turned on.
Release button: The relay 2 is deactivated (disconnect the terminals B and C,
connect the terminals A and B), and the lamp 2 is turned off.
Press and hold button of the transmitter 3: The relay 3 is activated (connect
the terminals B and C, disconnect the terminals A and B), and the lamp 3 is
turned on.
Release button: The relay 3 is deactivated (disconnect the terminals B and C,
connect the terminals A and B), and the lamp 3 is turned off.
Press and hold button of the transmitter 4: The relay 4 is activated (connect
the terminals B and C, disconnect the terminals A and B), and the lamp 4 is
turned on.
Release button: The relay 4 is deactivated (disconnect the terminals B and C,
connect the terminals A and B), and the lamp 4 is turned off.
3) Setting Interlocking mode: Disconnect Jumper-1 and Jumper-2.
Mode Interlocking (working with transmitter C-1): Press -> On; Press another
button -> Off.
Press button of the transmitter 1: The relay 1 is activated (connect the terminals B and C, disconnect the terminals A and B), and the lamp 1 is turned on. The
relays 2, 3, 4 are deactivated (disconnect the terminals B and C, connect the terminals A and B), and the lamps 2, 3, 4 are turned off.
Press button of the transmitter 2: The relay 2 is activated (connect the terminals B and C, disconnect the terminals A and B), and the lamp 2 is turned on. The relays 1, 3, 4 are deactivated (disconnect the terminals B and C, connect the terminals A and B), and the lamps 1, 3, 4 are turned off.
Press button of the transmitter 3: The relay 3 is activated (connect the terminals B and C, disconnect the terminals A and B), and the lamp 3 is turned on. The relays 1, 2, 4 are deactivated (disconnect the terminals B and C, connect the terminals A and B), and the lamps 1, 2, 4 are turned off.
Press button of the transmitter 4: The relay 4 is activated (connect the terminals B and C, disconnect the terminals A and B), and the lamp 4 is turned on. The relays 1, 2, 3 are deactivated (disconnect the terminals B and C, connect the terminals A and B), and the lamps 1, 2, 3 are turned off.
4) Setting Mixed mode (Momentary + Self-locking): Connect Jumper-1 and Jumper-2.
Mode Momentary for channel 1 & 2 (working with transmitter C-1): Press and hold
-> On; Release -> Off.
Press and hold button of the transmitter 1: The relay 1 is activated (connect
the terminals B and C, disconnect the terminals A and B), and the lamp 1 is
turned on.
Release button: The relay 1 is deactivated (disconnect the terminals B and C,
connect the terminals A and B), and the lamp 1 is turned off.
Press and hold button of the transmitter 2: The relay 2 is activated (connect
the terminals B and C, disconnect the terminals A and B), and the lamp 2 is
turned on.
Release button: The relay 2 is deactivated (disconnect the terminals B and C,
connect the terminals A and B), and the lamp 2 is turned off.
Mode Self-locking for channel 3 & 4 (working with transmitter C-1): Press -> On;
Press again -> Off.
Press button of the transmitter 3: The relay 3 is activated (connect the
terminals B and C, disconnect the terminals A and B), and the lamp 3 is turned
on.
Press button of the transmitter 3 again: The relay 3 is deactivated (disconnect the terminals B and
C, connect the terminals A and B), and the lamp 3 is turned off.
Press button of the transmitter 4: The relay 4 is activated (connect the
terminals B and C, disconnect the terminals A and B), and the lamp 4 is turned
on.
Press button of the transmitter 4 again: The relay 4 is deactivated (disconnect the terminals B and
C, connect the terminals A and B), and the lamp 4 is turned off.
