The
receiver is designed for one-transmitter-many-receivers system. You can use an
8 buttons transmitter to control 2 receivers, or use a 12 buttons transmitter to
control 3 receivers.
Feature:
Application:
It can be used in industry automation, agriculture automation and home
automation, such as factory, house, farm, pasture, vehicle, ship, offshore
operation, aerial vehicle, field call, etc. It can remote control equipments on
land, water and air, such as remote control lights, sirens, locks, motors,
fans, winches, blinds, linear actuators, doors, windows, electric solenoid
valves, security alarm, business signs and various devices.
Wireless control, easy
to install.
Relay
Output: This receiver is relay output, it can be used to operate both DC and AC
equipments. The terminals are NO / NC (normally open / normally closed), which
serves as a switch. That means you should also connect a separate power supply
to equipments.
You can
turn on/ off the receiver with transmitter (remote control) from any place
within a reliable distance.
Wireless RF
signal can pass through walls, floors, doors or windows.
With
reverse power protection and over current protection.
Reliable
control: The receiver only works with the transmitter which use same code.
One/several
transmitters can control one/several receivers simultaneously.
You can use
two or more units in the same place.
Receiver Parameters:
Model No.: S4UB-DC09-ANT3 /
S4UB-DC12-ANT3 / S4UB-DC24-ANT3
Power Supply
(Operating Voltage): DC12V±1V (S4UB-DC12), DC9V±1V (S4UB-DC09), DC24V±1V
(S4UB-DC24)
Output: Relay output
(Normally open and normally closed)
Working Voltage Range
of Relay: AC110~240V or DC0~28V
Working Frequency: 433MHz
Channel: 4 CH
Control Modes: Self-locking, Momentary, Interlocking, Momentary + Self-locking
Static Current: ≤6mA
Maximum Working
Current: 10A / each channel
PCB size: 94mm x 76mm
x 21mm
Case size: 100mm x 80mm
x 28mm
Work with Fixed code transmitters
Matching Transmitters:
The
receiver can work with different transmitters, such as model CV-8/ CV-12 (500M),
or CB-8/ CB-12(1000M) etc.
Working
Range:
With a transmitter (such as CV-12) to form a complete
set, the maximum working distance can reach 500M in an open ground.
The maximum working
distance is a theoretical data, it shall be operated in an open ground, no
barriers, no any interference. But in the practice, it will be hindered by
trees, walls or other constructions, and will be interfered by other wireless
signals. Therefore, the actual distance may not reach this
maximum working distance.

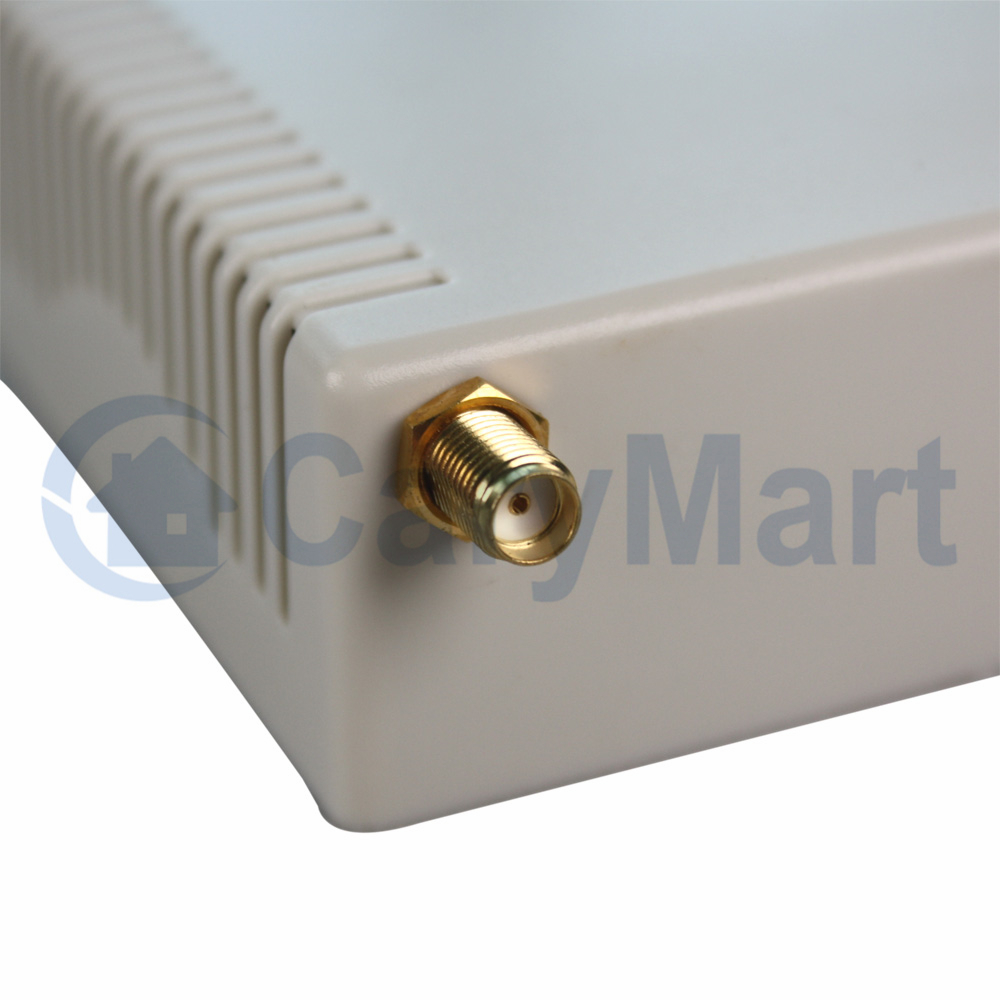

If you
want to have a further working range, you can install an external antenna to
the receiver, and you also can use a powerful
transmitter, such as CB series transmitters.
Usage:
The receiver can be used to control both DC 0~28V and AC 110~240V equipments.

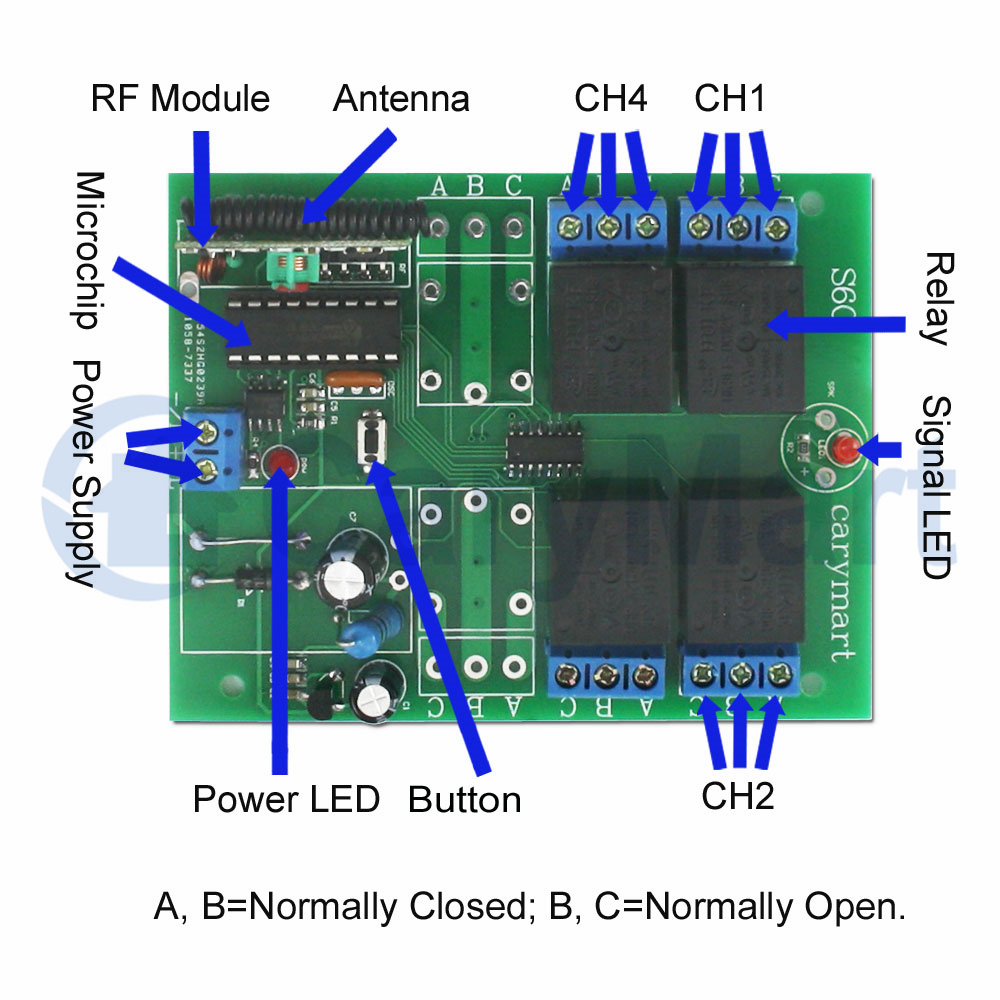

Notice: The receiver is relay output, not DC/AC power output. Initial
state of relay output terminals: Terminals B and C are Normally Open; Terminals
A and B are Normally Closed.
Wiring:

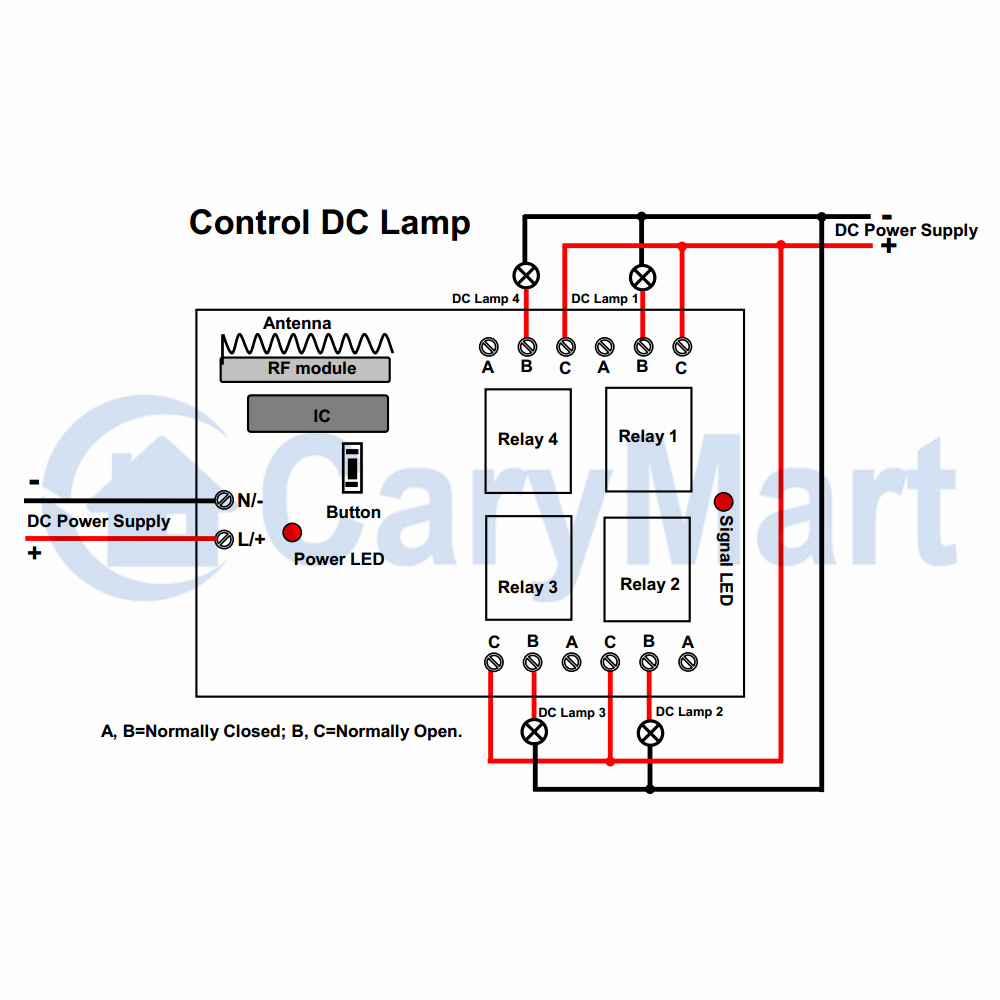

If you want to control a DC 12V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “L / +” of
INPUT, and connect the negative pole of DC power supply to terminal “N / -” of
INPUT.
2) Connect terminal C to the positive pole of DC power supply, connect terminal
B to the positive pole of DC lamp, and connect the negative pole of DC lamp to
the negative pole of DC power supply.

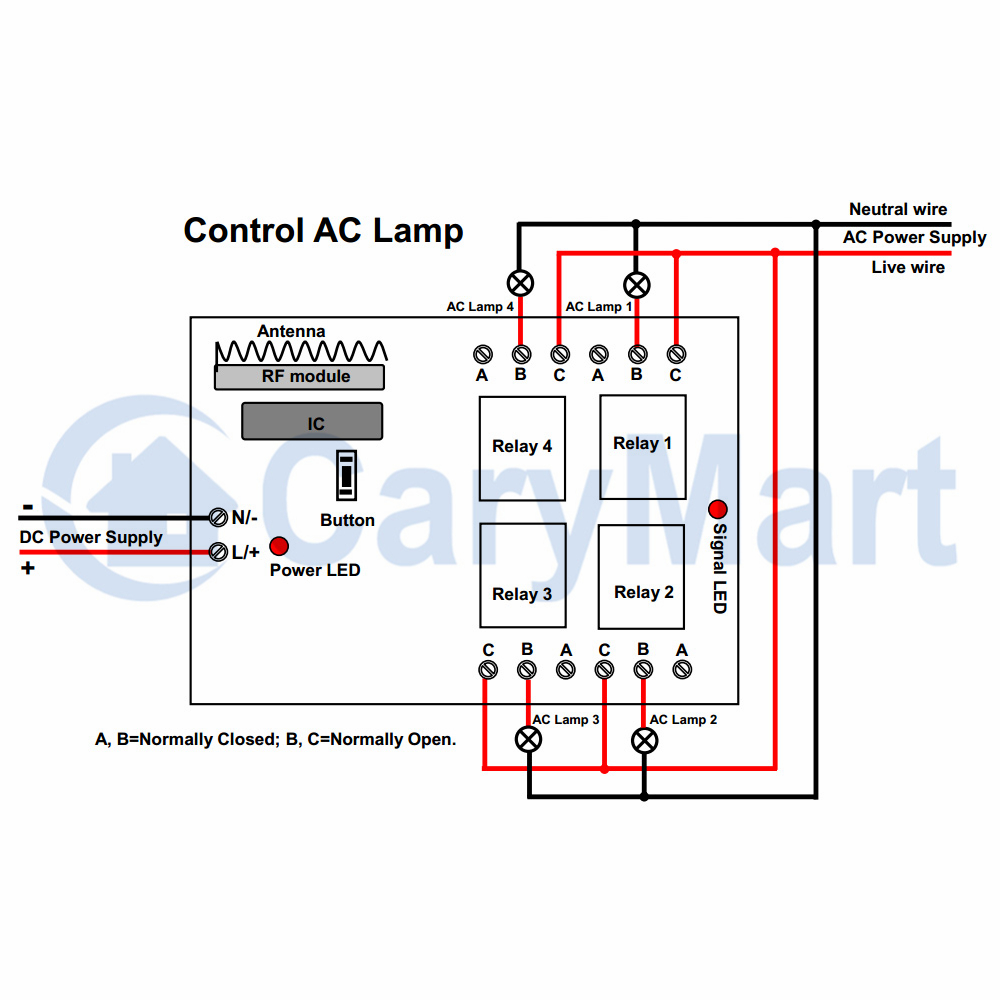

If you want to control an AC 220V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “L / +” of
INPUT, and connect the negative pole of DC power supply to terminal “N / -” of
INPUT.
2) Connect terminal C to the live wire of AC power supply, connect terminal
B to one side of AC lamp, and connect another side of AC lamp to the neutral
wire of AC power supply.
Setting different control modes:
Setting
different control modes: (We have set the receiver in Self-locking mode before
delivery, if you want to use other modes, do as following operation.)
1) Learning
Self-locking control mode (with the
transmitter CV-12): When the receiver is in the status of LEARNING,
press button 1 of the remote control to learn receiver 1, press button 5 to
learn receiver 2, press button 9 to learn receiver 3.
Control
mode Self-locking (remote button 1, 2, 3 and 4 are for receiver 1; remote button 5,
6, 7 and 8 are for receiver 2; remote button 9, 10, 11 and 12 are for receiver
3): Press -> On; Press again -> Off.
Press
button 1: Turn on relay 1 of receiver 1 (connect B and C, disconnect A and B),
the lamp 1 is on.
Press
button 1 again: Turn off relay 1 of receiver 1 (disconnect B and C, connect A
and B), the lamp 1 is off.
…
Press
button 4: Turn on relay 4 of receiver 1 (connect B and C, disconnect A and B),
the lamp 4 is on.
Press
button 4 again: Turn off relay 4 of receiver 1 (disconnect B and C, connect A
and B), the lamp 4 is off.
Press
button 5: Turn on relay 1 of receiver 2 (connect B and C, disconnect A and B),
the lamp 5 is on.
Press
button 5 again: Turn off relay 1 of receiver 2 (disconnect B and C, connect A
and B), the lamp 5 is off.
…
Press
button 8: Turn on relay 4 of receiver 2 (connect B and C, disconnect A and B), the
lamp 8 is on.
Press
button 8 again: Turn off relay 4 of receiver 2 (disconnect B and C, connect A
and B), the lamp 8 is off.
Press
button 9: Turn on relay 1 of receiver 3 (connect B and C, disconnect A and B), the
lamp 9 is on.
Press
button 9 again: Turn off relay 1 of receiver 3 (disconnect B and C, connect A
and B), the lamp 9 is off.
…
Press
button 12: Turn on relay 4 of receiver 3 (connect B and C, disconnect A and B),
the lamp 12 is on.
Press button
12 again: Turn off relay 4 of receiver 3 (disconnect B and C, connect A and B),
the lamp 12 is off.
2) Learning
Momentary control mode (with the
transmitter CV-12): When the receiver is in the status of LEARNING,
press button 2 of the remote control to learn receiver 1, press button 6 to
learn receiver 2, press button 10 to learn receiver 3.
Control
mode Momentary (remote button 1, 2, 3 and 4 are for receiver 1; remote button
5, 6, 7 and 8 are for receiver 2; remote button 9, 10, 11 and 12 are for receiver
3): Press and hold -> On; Release -> Off.
Press and
hold button 1: Turn on relay 1 of receiver 1 (connect B and C, disconnect A and
B), the lamp 1 is on.
Release
button 1: Turn off relay 1 of receiver 1 (disconnect B and C, connect A and B),
the lamp 1 is off.
…
Press and
hold button 4: Turn on relay 4 of receiver 1 (connect B and C, disconnect A and
B) the lamp 4 is on.
Release
button 4: Turn off relay 4 of receiver 1 (disconnect B and C, connect A and B),
the lamp 4 is off.
Press and
hold button 5: Turn on relay 1 of receiver 2 (connect B and C, disconnect A and
B), the lamp 5 is on.
Release
button 5: Turn off relay 1 of receiver 2 (disconnect B and C, connect A and B),
the lamp 5 is off.
…
Press and
hold button 8: Turn on relay 4 of receiver 2 (connect B and C, disconnect A and
B), the lamp 8 is on.
Release
button 8: Turn off relay 4 of receiver 2 (disconnect B and C, connect A and B),
the lamp 8 is off.
Press and
hold button 9: Turn on relay 1 of receiver 3 (connect B and C, disconnect A and
B), the lamp 9 is on.
Release
button 9: Turn off relay 1 of receiver 3 (disconnect B and C, connect A and B),
the lamp 9 is off.
…
Press and
hold button 12: Turn on relay 4 of receiver 3 (connect B and C, disconnect A
and B), the lamp 12 is on.
Release
button 12: Turn off relay 4 of receiver 3 (disconnect B and C, connect A and B),
the lamp 12 is off.
3) Learning
Interlocking control mode (with the
transmitter CV-12): When the receiver is in the status of LEARNING,
press button 3 of the remote control to learn receiver 1, press button 7 to
learn receiver 2, press button 11 to learn receiver 3.
Control
mode Interlocking (remote button 1, 2, 3 and 4 are for receiver 1; remote button 5,
6, 7 and 8 are for receiver 2; remote button 9, 10, 11 and 12 are for receiver
3): Press -> On, other relays Off; Press other button -> Off.
Press
button 1: Turn on relay 1 of receiver 1 (connect B and C, disconnect A and B), the
lamp 1 is on.
Turn off other relay
(disconnect B and C, connect A and B), the lamp 2, 3 and 4 are off.
…
Press button
4: Turn on relay 4 of receiver 1 (connect B and C, disconnect A and B), the
lamp 4 is on.
Turn off other relay
(disconnect B and C, connect A and B), the lamp 1, 2 and 3 are off.
Press
button 5: Turn on relay 1 of receiver 2 (connect B and C, disconnect A and B), the
lamp 5 is on.
Turn off other relay
(disconnect B and C, connect A and B), the lamp 6, 7 and 8 are off.
…
Press
button 8: Turn on relay 4 of receiver 2 (connect B and C, disconnect A and B), the
lamp 8 is on.
Turn off other relay
(disconnect B and C, connect A and B), the lamp 5, 6 and 7 are off.
Press
button 9: Turn on relay 1 of receiver 3 (connect B and C, disconnect A and B), the
lamp 9 is on.
Turn off other relay
(disconnect B and C, connect A and B), the lamp 10, 11 and 12 are off.
…
Press
button 12: Turn on relay 4of receiver 3 (connect B and C, disconnect A and B), the
lamp 12 is on.
Turn off other relay
(disconnect B and C, connect A and B), the lamp 9, 10 and 11 are off.
4) Learning
Momentary (Channel 1~2 of receiver 1, 2 and 3) + Self-locking (3, 4 channel of
receiver 1, 2 and 3) control mode (with
the transmitter CV-12): When the receiver is in the status of LEARNING,
press button 4 of the remote control to learn receiver 1, press button 8 to
learn receiver 2, press button 12 to learn receiver 3.
