4 Channel High Level Output Super Regeneration RF Wireless Receiver Module With Decoder


Price: US $7.00

  • Model: 0020243

Please Choose:








Qty:





Manual

Feature:

  • Model No.: 0020243
  • Type: Receiver module with decode for fixed code
  • Modulation Method: Amplitude modulation (ASK or OOK)
  • Working voltage: DC 5V
  • Working current: 4.5mA
  • RF Sensitivity: -95dBm
  • Coding Method: Fixed code by soldering
  • Decoding Outputs: High level
  • Working temperature: -20°C ~ +70°C

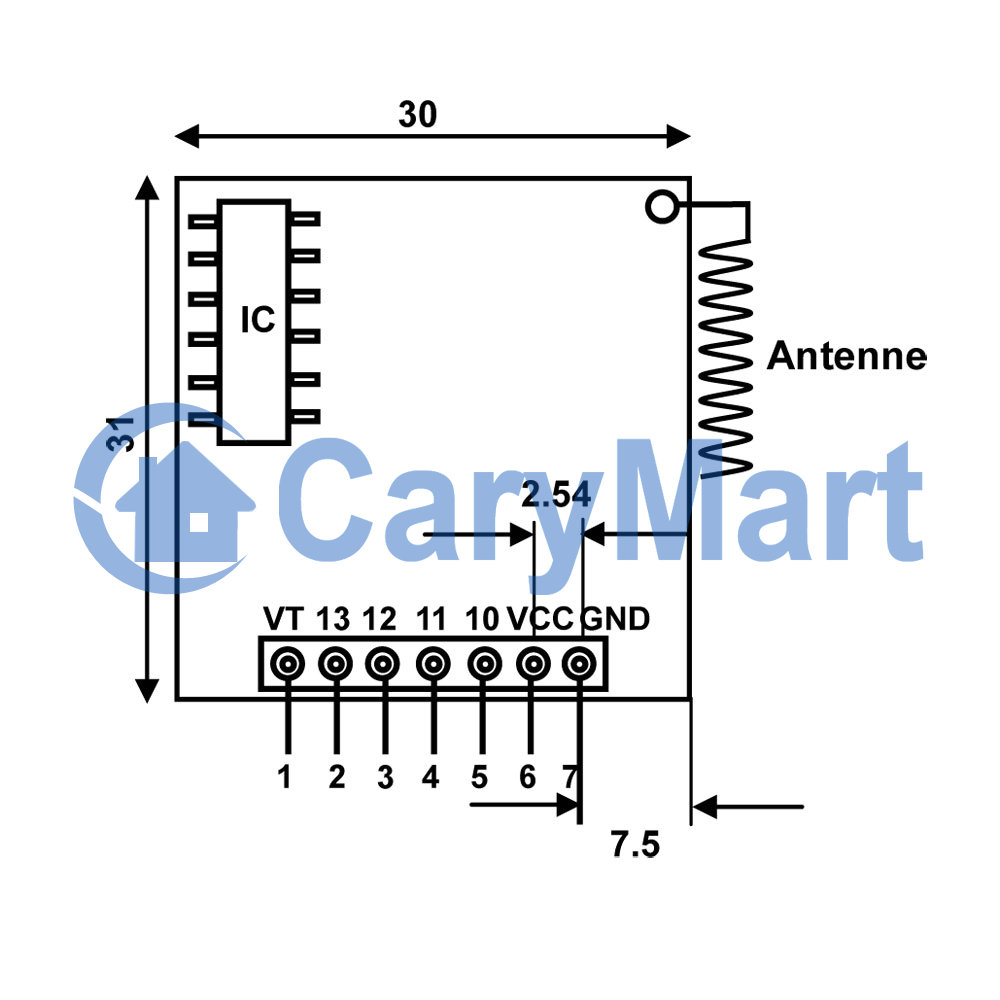

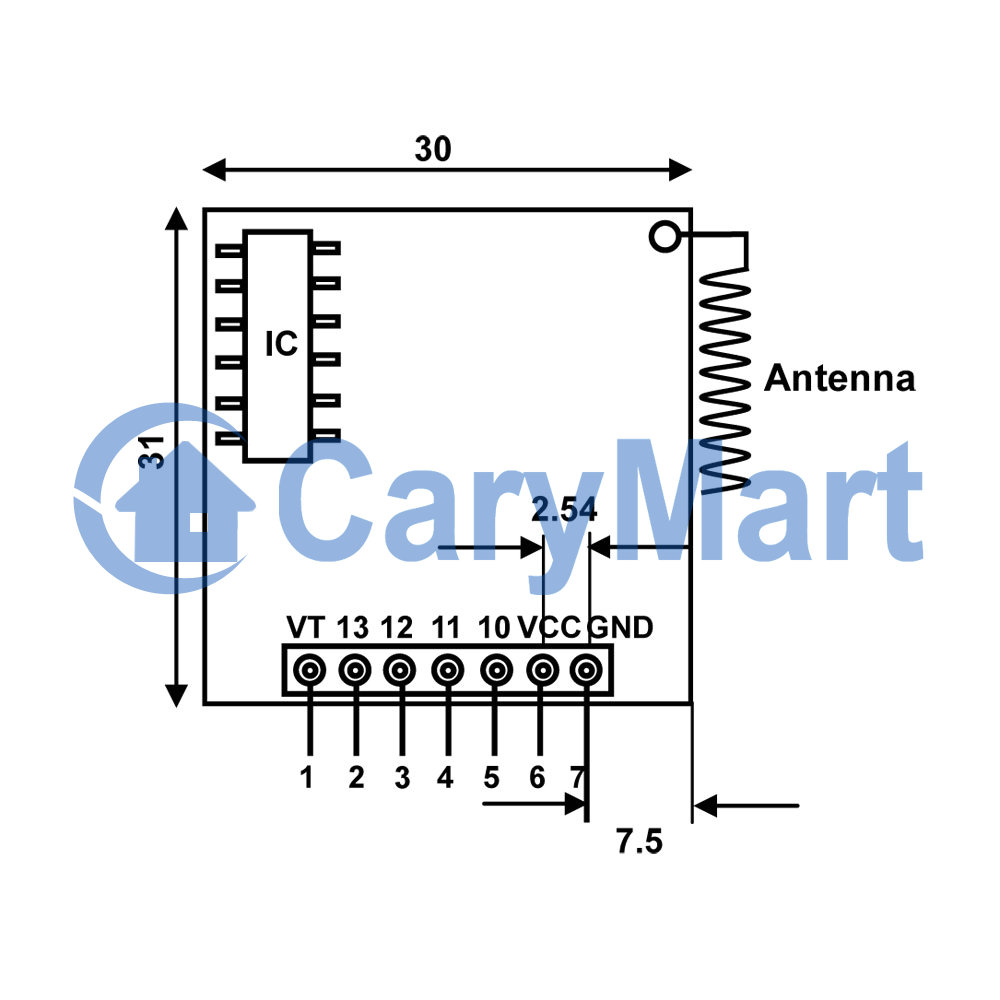

  • Size: 30 x 31 x 19mm
  • With four decoding outputs
  • Control Modes: Self-locking, Momentary, Interlocking
  • Frequency: 433.92 MHz

Application:

  • The RF receiver modules are widely used for remote controls, remote control toys, anti-theft alarms, garage doors, roller shutter, road barrier, retractable doors and so on.

Notes:

  • It is best to use the antenna of 1/4 wavelength, for antenna has a great impact on receiving effect of the module; normally using 50Ω single core cable. For frequency 433MHz, the length of antenna is about 17cm. The position of antenna also affects the receiving effect of the module. When installing the antenna should be extended as much as possible and be away from the shield and the place in high pressure and interference.
    The receiving frequency, decoding mode and timing resister should be compatible with the transmitter.

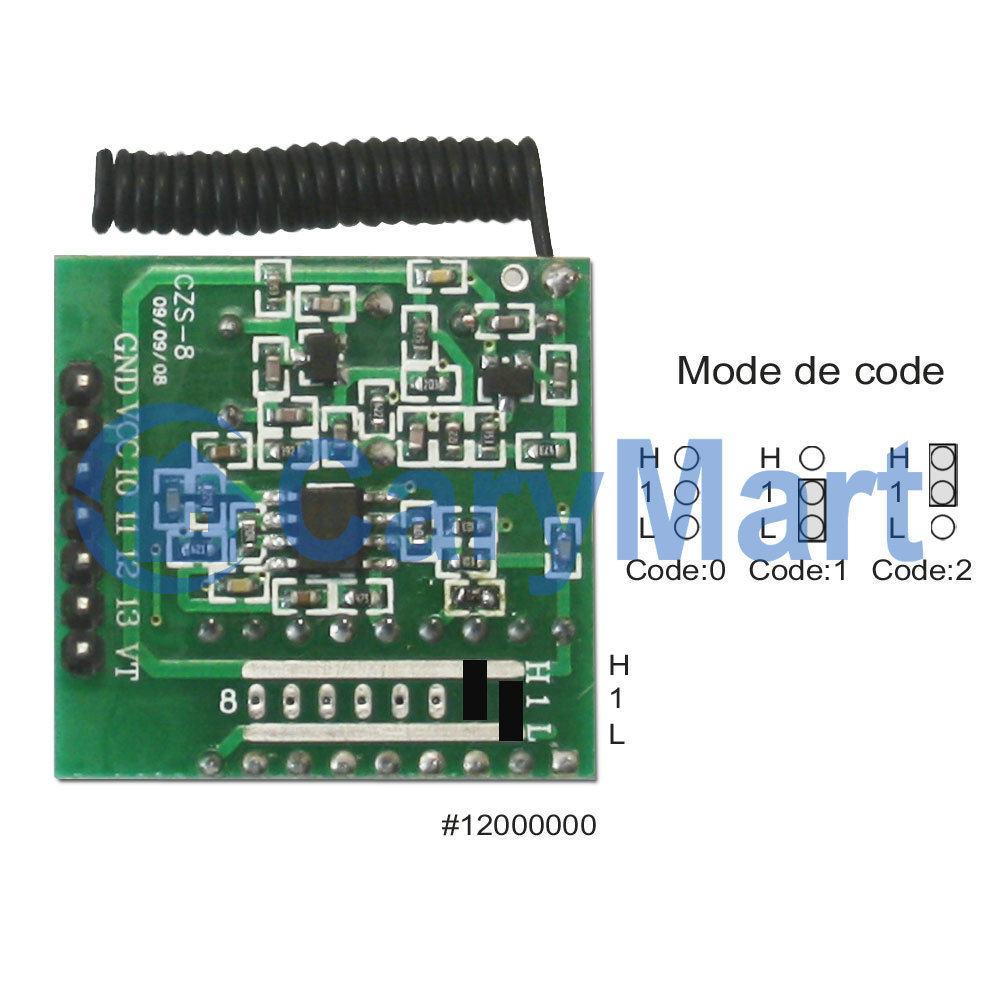

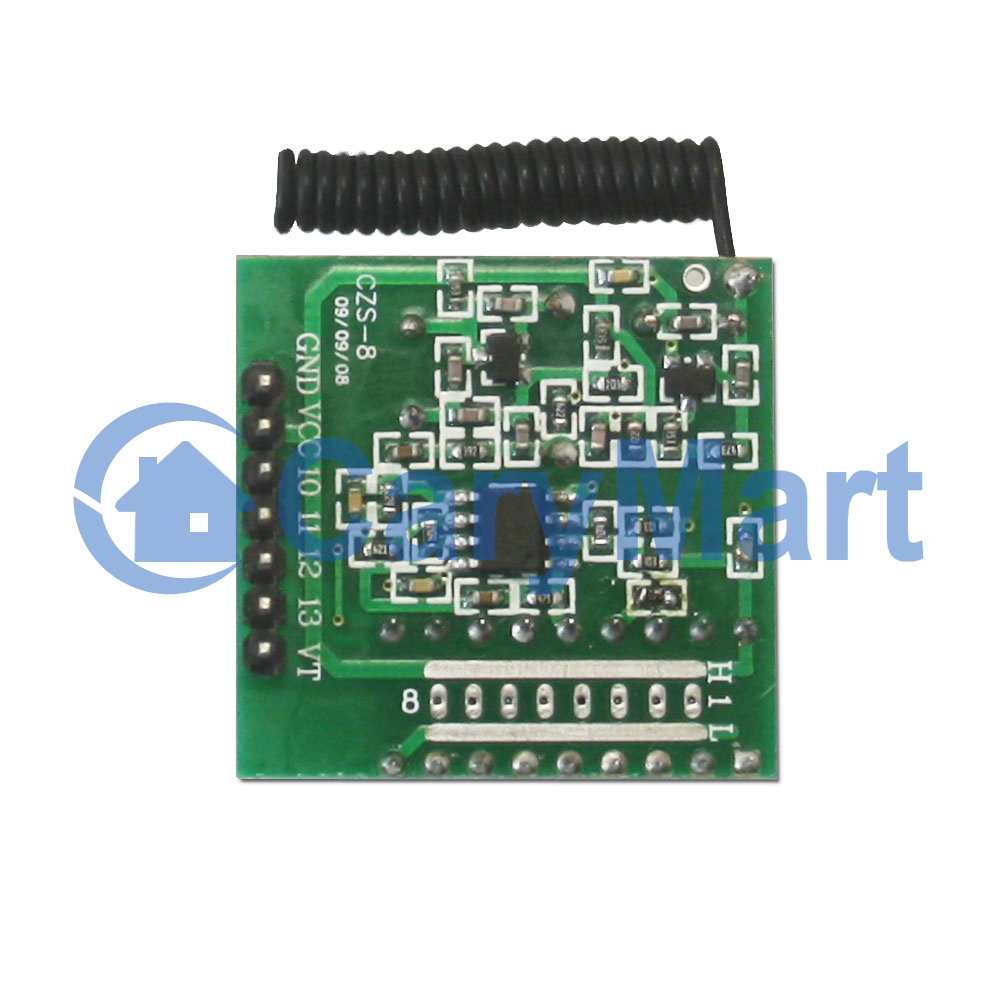

Introduction of pin (from left to right)

PinsNameFunction
1VTEffective recognition of decoding output
2~513 ~ 10Data output
6VCCPositive power supply
7GNDNegative power supply
